Westermo DDW-120 User manual

Industrial Ethernet
SHDSL Extender
www.westermo.com
©Westermo Teleindustri AB
User Guide
6621-2214
DDW-120

2
6621-2214
Legal information
The contents of this document are provided “as is”. Except as required by applicable
law, no warranties of any kind, either express or implied, including, but not limited to,
the implied warranties of merchantability and fitness for a particular purpose, are made
in relation to the accuracy and reliability or contents of this document. Westermo
reserves the right to revise this document or withdraw it at any time without prior
notice.
Under no circumstances shall Westermo be responsible for any loss of data or income
or any special, incidental, and consequential or indirect damages howsoever caused.
More information about Westermo can be found at the following Internet address:
http://www.westermo.com
Software tools
Related software tools are available in the folder software tools under
technical support on the Westermo website.

3
6621-2214
Safety
Before installation:
Read this manual completely and gather all information on the unit. Make sure
that you understand it fully. Check that your application does not exceed the safe
operating specifications for this unit.
This unit should only be installed by qualified personnel.
This unit should be built-in to an apparatus cabinet, or similar, where access is
restricted to service personnel only.
The power supply wiring must be sufficiently fused, and if necessary it must be
possible to disconnect manually from the power supply. Ensure compliance to
national installation regulations.
Branch circuit protection (fuse) is required for this unit with rating not
exceeding 20 A.
This unit uses convection cooling. To avoid obstructing the airflow around the
unit, follow the spacing recommendations (see Cooling section).
Before mounting, using or removing this unit:
Prevent access to hazardous voltages by disconnecting the unit from the power
supply.
Warning! Do not open a connected unit. Hazardous voltages may occur within
this unit when connected to a power supply.
Care recommendations
Follow the care recommendations below to maintain full operation of the unit and to
fulfil the warranty obligations.
This unit must not be operated with covers or lids removed.
Do not attempt to disassemble the unit. There are no user serviceable parts inside.
Do not drop, knock or shake the unit. Rough handling beyond the specification may
cause damage to internal circuit boards.
Do not use harsh chemicals, cleaning solvents or strong detergents to clean the unit.
Do not paint the unit. Paint can clog the unit and prevent proper operation.
Do not expose the unit to any kind of liquids (rain, beverages, etc).
The unit is not waterproof. Keep the unit within the specified humidity levels.
Do not use or store the unit in dusty, dirty areas. Connectors as well as other
mechanical parts may be damaged.
If the unit is not working properly, contact the place of purchase, nearest Westermo
distributor office, or Westermo Tech support.
Warning:
To reduce the risk of fire, use only No. 26 AWG or larger telecommunication line cord.
For more information see General safety, art. no.100-5001.
Maintenance
No maintenance is required, as long as the unit is used as intended within the specified
conditions.
!
!
!

4
6621-2214
FCC Part 15.105 Notice: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of
the following measures:
… Reorient or relocate the receiving antenna
… Increase the separation between the equipment and receiver
… Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected
… Consult the dealer or an experienced radio/TV technician for
help.
Agency approvals and standards compliance
Type Approval / Compliance
EMC EN 61000-6-1, Immunity residential environments
EN 61000-6-2, Immunity industrial environments
EN 61000-6-3, Emission residential environments
EN 61000-6-4, Emission standard for industrial environments
EN 50121-4, Railway signalling and telecommunications apparatus
IEC 62236-4, Railway signalling and telecommunications apparatus
Safety UL/CSA/IEC/EN 60950-1, IT equipment
SHDSL ITU-T G.991.2, G.SHDSL and G.SHDSL.bis standard
Environmental NEMA TS 2-2003 version 02.06
Traffic Controller Assemblies with NTCIP Requirements

5
6621-2214
Westermo Teleindustri AB
Declaration of conformity
Org.nr/
Postadress/Postal address
Tel.
Telefax
Postgiro
Bankgiro
Corp. identity number
Registered office
S-640 40 Stora Sundby 016-428000 016-428001 52 72 79-4 5671-5550 556361-2604 Eskilstuna
Sweden Int+46 16428000 Int+46 16428001
The manufacturer Westermo Teleindustri AB
SE-640 40 Stora Sundby, Sweden
Herewith declares that the product(s)
Type of product Model Art no
SHDSL Ethernet bridge / DIN rail mounted DDW-120 3621-0110
is in conformity with the following EU directive(s).
No Short name
2014/35/EU Electromagnetic Compatibility (EMC)
2014/30/EU Low Voltage Directive (LVD)
2011/65/EU Restriction of the use of certain hazardous substances in electrical and electronic
equipment (RoHS)
References of standards applied for this EU declaration of conformity.
No Title Issue
EN 61000-6-1 Electromagnetic compatibility – Immunity for residential environments 2007
EN 61000-6-2 Electromagnetic compatibility – Immunity for industrial environments 2005
EN 61000-6-3 Electromagnetic compatibility – Emission residential environments 2007
+A1:2011
EN 61000-6-4 Electromagnetic compatibility – Emission for industrial environments 2007
+A1:2011
EN 50121-4 Railway applications – Electromagnetic compatibility – Emission and
immunity of the signalling and telecommunications apparatus
2015
IEC 62236-4 Railway applications - Electromagnetic compatibility
Emission and immunity of the signalling and telecommunications
apparatus
2008
EN 60950-1 Information technology equipment -- Safety -- General
requirements
2006
+A11: 2009
+A1: 2010
+A12: 2011
EN 50581 Technical documentation for the assessment of electrical and electronic
products with respect to the restriction of hazardous substances
2012
The last two digits of the year in which the CE marking was affixed: 16
Pierre Öberg
Technical Manager
10
th
Mars 2016
Declaration of Conformity, DDW-120

6
6621-2214
Type tests and environmental conditions
Phenomena Test Description Test levels
ESD EN 61000-4-2 Enclosure contact ± 6 kV
Enclosure air ± 8 kV
RF field AM modulated IEC 61000-4-3 Enclosure 20 V/m 80% AM (1 kHz), 80 – 2 000 MHz
10 V/m 80% AM (1 kHz), 2 000 – 6 000 MHz
RF field 900 MHz ENV 50204 Enclosure 20 V/m pulse modulated 200 Hz, 900 ± 5 MHz
Fast transient EN 61000-4-4 Signal ports ± 2 kV
Power ports ± 2 kV
Surge EN 61000-4-5 Signal ports unbalanced ± 2 kV line to earth, ± 2 kV line to line
Signal ports balanced ± 2 kV line to earth, ± 1 kV line to line
Power ports ± 2 kV line to earth, ± 2 kV line to line
RF conducted EN 61000-4-6 Signal ports 10 V 80% AM (1 kHz), 0.15 – 80 MHz
Power ports 10 V 80% AM (1 kHz), 0.15 – 80 MHz
Power frequency
magnetic field
EN 61000-4-8 Enclosure 100 A/m, 50 Hz, 16.7 Hz & 0 Hz
Pulse magnetic field EN 61000-4-9 Enclosure 300 A/m, 6.4 / 16 µs pulse
Mains freq. 50 Hz EN 61000-4-16 Signal ports 100 V 50 Hz line to earth
Mains freq. 50 Hz SS 436 15 03 Signal ports 250 V 50 Hz line to earth
Voltage dips and
interruption
EN 61000-4-29 DC power ports 10 ms, interruption
10 ms, 30% reduction
10 ms, 60% reduction
+20% above & –20% below rated voltage
Radiated emission CISPR 16-2-3 Enclosure EN 61000-6-3
ANSI C63.4
Conducted emission CISPR 16-2-1 DC power ports EN 61000-6-4
Dielectric strength EN 60950 Signal port to other
isolated ports
2 kVrms 50 Hz 1 min
Power port to other
isolated ports
3 kVrms 50 Hz 1 min
2 kVrms 50 Hz 1 min (@ rated power <60 V)
Temperature EN 60068-2-1
EN 60068-2-2
Operating –40 to +70ºC
Storage & Transport –40 to +70ºC
Humidity EN 60068-2-30 Operating 5 to 95% relative humidity
Storage & Transport 5 to 95% relative humidity
Altitude Operating 2 000 m / 70 kPa
Reliability prediction
(MTBF)
MIL-HDBK- 217F Operating 1 180 000 hours
Service life Operating 10 year
Vibration IEC 60068-2-6 Operating 7.5 mm, 5 – 8 Hz
2 g, 8 – 500 Hz
Shock IEC 60068-2-27 Operating 15 g, 11 ms
Enclosure UL 94 PC / ABS Flammability class V-1
Dimension W x H x D 35 x 121 x 119 mm
Weight 0.2 kg
Degree of protection IEC 529 Enclosure IP21
Cooling Convection
Mounting Horizontal on 35 mm DIN-rail

7
6621-2214
Description
Functional description
The DDW-120 Ethernet Extender is the ideal solution for extending your Ethernet
network over copper cables where in the past the only option would have been fibre.
At shorter range the transfer rate will be as fast as 15.3 Mbit/s in both directions.
Depending on the quality of the cables distances up to 15 km are possible.
DDW-120 is transparent for multicast addressing, VLAN packets, VPN pass-through for
IPSec and for protocols like MODBUS/tcp and Profinet. The Link Fault Forward (LFF)
functionality in DDW-120 forwards information about the Ethernet link status, this is
sent over the SHDSL link between two DDW-120 units. In many applications it is a
requirement to disconnect the link on the other side of the SHDSL link if the primary
Ethernet link goes down.
The units will auto negotiate the transmission speed but can also be forced to choose a
slower (more reliable) or faster (less reliable) data rate.
Communication speed and distance depends on the cable characteristics, communication
reach with different cables can be calculated with DDW-tool
DDW-120 can be used in point-to-point applications or as start and termination unit
together with other Wolverine products in daisy-chain applications.
Description of used nomenclature:
Noise margin:
The margin between signal and noise (dB)
CO/CPE:
CO (Central Office) answering central unit, the CO configures the CPE when
establishing a connection. CPE (Customer Premises Equipment) is the unit that initiates
the connection.

8
6621-2214
Getting started
The DDW-120 is easy to use and install, the units work in pairs, one as has to be
configured as CO (Central Office) and one as CPE (Customer Premises Equipment). This
configuration is made with DIP-switches situated under the lid of the DDW-120.
 Connect the SHDSL Line
1) Connect the twisted pair to DSL screw terminal 1 and 2 (polarity independent)
situated at the base of the DDW-120.
 Connect the Ethernet Line
Connect Ethernet to the TX port on the front of the DDW-120.
The factory settings for the DDW-120 is plug and play mode where TX port is enabled
for:
… Ethernet Auto-negotiation enabled.
… Auto MDI/MDI-X.
… Auto-polarity enabled.
The DDW-120 will automatically sense the data rate of the connected unit and cable
type.
 Settings in the units
The units operate in pairs, one as CO (Central Office) and one as CPE (Customer
Premises Equipment). Factory setting in the DDW-120 is as CPE.
Depending on the quality of the line and the distance there is possibility to select
autobaud function.
This is done via DIP switches in the unit configured as CO. Factory default is autobaud,
reliable mode.
Note! Before connection and installation one of the connecting units have to be
reconfigured as a CO, see DIP-switch S1:4.
Note!
If the DSL link is not established, the speed might be set to high for the distance.

9
6621-2214
Diagnostic information
The DDW-120 can display diagnostic information on two way:
1) Using the Westermo diagnostic tool DDWtool.exe.
2) Using a terminal program.
Using DDW-tool
1) Connect the standard cable 1211-2027 to the diagnostic port, located under the lid of
DDW-120.
2) Choose the corresponding Com port in the drop list of the tool. The tool will try to
find the port used by the debug cable.
3) Click the button connect, if the correct com port is selected DDW-tool will be
updated with actual status online information.
Information from diagnostic tool
• Software release
• Serial number
• DIP switch settings
• If the unit is configured as CO or CPE
• Ethernet link status
• Ethernet data rate
• Ethernet duplex
• System uptime
• DSL uptime
• DSL negotiations
• LFF status
• DSL link state
• DSL data rate
• DSL noise margin (information is sampled and continually displayed)
1211-2027

10
6621-2214
Using a terminal program
If a customer supervision system is used the DDW-120 can provide with diagnostic
status.
The DDW-120 support
Data rate: 115.2 kbit/s
Data bits: 8
Stop bits: 1
Parity: None
Flow control: None
The unit is responing to two commandon
1) DIAG
2) RUNDIAG
Information from DIAG command
• Software release
• DIP switch settings
• If the unit is configured as CO or CPE
• If the unit is configured for Annex A or Annex B
• DSL link state
• DSL data rate (bit/s)
• DSL noise margin (dB)
• Ethetnet data rate
• Ethernet duplex
Information from RUNDIAG command
• DSL link state
• DSL Data rate (bit/s)
• DSL Noise margin (dB)
The DDW-120 is ready for commando then prompt “DDW” is transmitted to supervisor
system.
The commando RUNDIAG will continuously send the information. Approx update with
1s base. Commando is aborted by sending “any key to abort”.

11
6621-2214
Interface specifications
Power
Rated voltage 12 to 48 VDC
Operating voltage 10 to 60 VDC
Rated current 240 mA @ 12 VDC
110 mA @ 24 VDC
60 mA @ 48 VDC
Rated frequency DC
Inrush current, I2t 0.23 A2s
Startup current* 0.65 Apeak
Polarity Reverse polarity protected
Redundant power input Ye s
Isolation to All other
Connection Detachable screw terminal
Connector size 0.2 – 2.5 mm2 (AWG 24 – 12)
Shielded cable Not required
* If external power supply is used it must meet specified start up current
Service port
Electrical specification TTL-level
Data rate 115.2 kbit/s
Data format 8 data bits, none parity, 1 stop bits, no flow control
Circuit type SELV
Transmission range 15 m
Isolation to All other
Galvanic connection to None
Connection 2.5 mm jack, use Westermo cable 1211-2027

12
6621-2214
* To minimise the risk of interference, a shielded cable is recommended when the cable is located
inside 3 m boundary to the rails and connected to this port.
The cable shield should be properly connected (360°) to an earthing point within 1 m from this
port. This earthing point should have a low impedance connection to the conductive enclosure
of the apparatus cabinet, or similar, where the unit is built-in. This conductive enclosure should
be connected to the earthing system of an installation and may be directly connected to the
protective earth.
Ethernet TX
Electrical specification IEEE std 802.3. 2000 Edition
Data rate 10 Mbit/s, 100 Mbit/s, manual or auto
Duplex Full or half, manual or auto
Circuit type SELV
Transmission range 100 m
Isolation to All other
Connection RJ-45 MDI or auto MDI/MDI-X
Shielded cable Not required, except when installed in Railway applications as
signalling and telecommunications apparatus and located close
to rails*
Conductive housing Isolated to all other circuits
Miscellaneous If Auto-Neg. is disabled then this interface will be set MDI
Number of ports 1
DSL
Electrical specification IEEE G.991.2 Annex B
Data rate 192 kbit/s to 15304 kbit/s
Protocol EFM according to IEEE 802.3-2004
Transmission range According to ITU-T G.991.2 depending on the line quality
Protection Overcurrent / overvoltage protection circuit and varistor
Isolation to All other
Connection Detachable screw terminal
Connector size 0.2 – 2.5 mm2 (AWG 24 - 12)
Shielded cable Not required

13
6621-2214

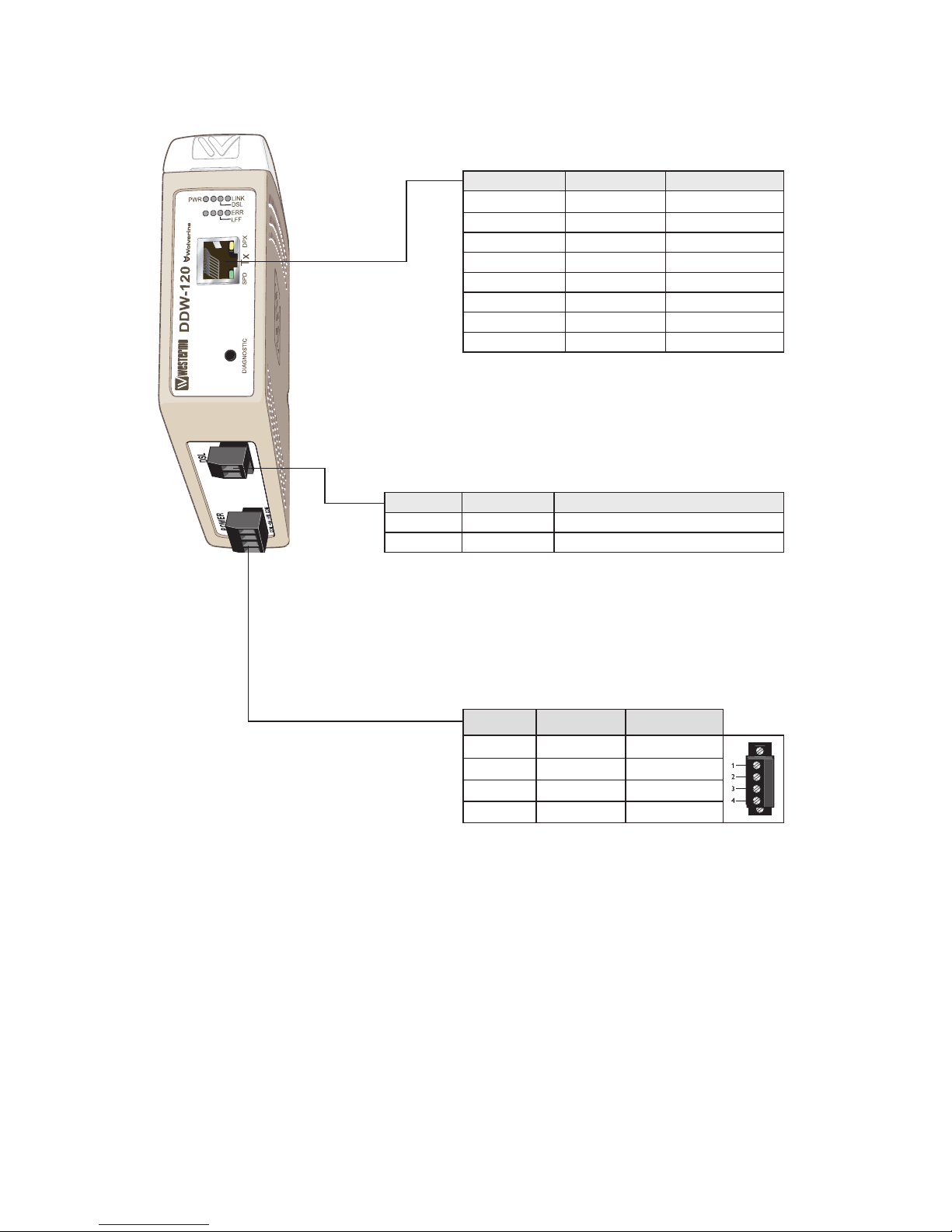

Connections
* Direction relative this unit
** To minimise the risk of interference, a shielded cable is recommended when the cable is located inside 3 m
boundary to the rails and connected to this port. The cable shield should be properly connected (360°) to an
earthing point within 1 m from this port. This earthing point should have a low impedance connection to the
conductive enclosure of the apparatus cabinet, or similar, where the unit is built-in. This conductive enclosure
should be connected to the earthing system of an installation and may be directly connected to the protective
earth.
DSL screw connector 1 & 2
Position Direction Description
1 In/Out 2-wire Receive/ Transmit SHDSL
2 In/Out 2-wire Receive/ Transmit SHDSL
Ethernet TX connection
(RJ-45 connector) 1 – 4**
Position Direction* Description
1 In/Out TD+
2 In/Out TD–
3 In/Out RD+
4 – Not Connected
5 – Not Connected
6 In/Out RD–
7 – Not Connected
8 – Not Connected
CAT 5 cable is recommended.
Unshielded (UTP) or shielded (STP) connectors
can be used.
Power connection
Position Direction* Description
1 In Common
2 In + Voltage A
3 In + Voltage B
4 In Common
1234 12

14
6621-2214
LED indicators
LED Status Description
PWR
(green)
OFF No internal power
ON Internal power ok / boot ok
LFF
(green)
OFF LFF disabled
ON LFF enabled
ERR
(red)
OFF LFF not active
ON LFF active, link fault on this unit
Flash LFF active, link fault on opposite unit
DSL OFF No DSL link
ON DSL link established
Flash DSL link negotiating
LINK OFF No Ethernet link
ON Ethernet link established
Flash Ethernet traffic indication
SPD OFF Ethernet speed, 10 Mbit/s
ON Ethernet speed, 100 Mbit/s
DPX OFF Ethernet duplex, half
ON Ethernet duplex, full

15
6621-2214
DIP-switch settings
Before DIP-switch settings:
Prevent damage to internal electronics from electrostatic discharges (ESD) by
discharging your body to a grounding point (e.g. use of wrist strap).
NOTE DIP-switch alterations are only effective after a power on.
!
S2S1
S1 DIP-switch
S1: 6, 7 and 8 not used
* Autobaud is recommended. When using manual locked speed user must make sure a correct noise margin
is achieved. Westermo recommends at least 3 dB noise margin for reliable operation.
** Negotiation of speed may take up to 3 minutes to complete.
ON
1 2 3 4 5 6 7 8
Autobaud, normal mode**
(Standard speed 192 kbit/s – 5.7 Mbit/s)
(Turbo speed 192 kbit/s – 15.3 Mbit/s)
ON
1 2 3 4 5 6 7 8
Turbo speed
ON
1 2 3 4 5 6 7 8
Standard speed
ON
1 2 3 4 5 6 7 8
Autobaud, high speed mode**
(Standard speed 192 kbit/s – 5.7 Mbit/s)
(Turbo speed 192 kbit/s – 15.3 Mbit/s)
ON
1 2 3 4 5 6 7 8
Autobaud, reliable mode**
(Standard speed 192 kbit/s – 5.7 Mbit/s)
(Turbo speed 192 kbit/s – 15.3 Mbit/s)
ON
1 2 3 4 5 6 7 8
Manual speed locked
according to S2:4-8*
ON
1 2 3 4 5 6 7 8
CPE,
Customer Premises Equipment
ON
1 2 3 4 5 6 7 8
CO,
Central Office
ON
1 2 3 4 5 6 7 8
LFF disabled
ON
1 2 3 4 5 6 7 8
LFF enabled

16
6621-2214
S2 DIP-switch
ON
1 2 3 4 5 6 7 8
Ethernet auto-negotiation disabled
ON
1 2 3 4 5 6 7 8
Ethernet auto-negotiation enabled
ON
1 2 3 4 5 6 7 8
Ethernet speed 10 Mbit/s
(if auto-neg. disabled)
ON
1 2 3 4 5 6 7 8
Ethernet speed 100 Mbit/s
(if auto-neg. disabled)
ON
1 2 3 4 5 6 7 8
Ethernet half duplex
(if auto-neg. disabled)
ON
1 2 3 4 5 6 7 8
Ethernet full duplex
(if auto-neg. disabled)
ON
1 2 3 4 5 6 7 8
DSL-speed 192 kbit/s*
DSL-speed 6200 kbit/s**
ON
1 2 3 4 5 6 7 8
DSL-speed 384 kbit/s*
DSL-speed 6712 kbit/s**
ON
1 2 3 4 5 6 7 8
DSL-speed 512 kbit/s*
DSL-speed 7224 kbit/s**
ON
1 2 3 4 5 6 7 8
DSL-speed 768 kbit/s*
DSL-speed 7736 kbit/s**
ON
1 2 3 4 5 6 7 8
DSL-speed 1024 kbit/s*
DSL-speed 8248 kbit/s**
ON
1 2 3 4 5 6 7 8
DSL-speed 1280 kbit/s*
DSL-speed 8760 kbit/s**
Factory settings
ON
1 2 3 4 5 6 7 8
S1
ON
1 2 3 4 5 6 7 8
S2
ON
1 2 3 4 5 6 7 8
DSL-speed 2688kbit/s*
DSL-speed 10296kbit/s**
ON
1 2 3 4 5 6 7 8
DSL-speed, 3072 kbit/s*
DSL-speed 10808kbit/s**
ON
1 2 3 4 5 6 7 8
DSL-speed, 3456 kbit/s*
DSL-speed 11320kbit/s**
ON
1 2 3 4 5 6 7 8
DSL-speed 2048kbit/s*
DSL-speed 9272kbit/s**
ON
1 2 3 4 5 6 7 8
DSL-speed, 3840 kbit/s*
DSL-speed 11832kbit/s**
ON
1 2 3 4 5 6 7 8
DSL-speed 2304kbit/s*
DSL-speed 9784kbit/s**
ON
1 2 3 4 5 6 7 8
DSL-speed, 4224 kbit/s*
DSL-speed 12344kbit/s**
ON
1 2 3 4 5 6 7 8
DSL-speed, 4608 kbit/s*
DSL-speed 13112kbit/s**
ON
1 2 3 4 5 6 7 8
DSL-speed, 4992 kbit/s*
DSL-speed 13880kbit/s**
ON
1 2 3 4 5 6 7 8
DSL-speed, 5376 kbit/s*
DSL-speed 14648kbit/s**
ON
1 2 3 4 5 6 7 8
DSL-speed 5696kbit/s*
DSL-speed 15304kbit/s**
* Standard speed S1:1 OFF
** Turbo speed S1:1 ON

17
6621-2214
Cooling
This unit uses convection cooling. To avoid obstructing the air-
flow around the unit, use the following spacing rules. Minimum
spacing 25 mm (1.0 inch) above /below and 10 mm (0.4 inches)
left /right the unit. Spacing is recommended for the use of unit
in full operating temperature range and service life.
Mounting
This unit should be mounted on 35 mm DIN-rail, which is
horizontally mounted inside an apparatus cabinet, or similar.
Snap on mounting, see figure.
CLICK!
CLICK!
Removal
Press down the black support at the top of the unit. See figure.
10 mm *
(0.4 inches)
25 mm
25 mm
* Spacing (left/right) recommended for
full operating temperature range

REV. H 6621-2214 2017-06 Westermo Teleindustri AB, Sweden
For complete contact information, please visit our website at www.westermo.com/contact or scan the QR code
China
[e-mail]
www.cn.westermo.com
France
[e-mail]
www.westermo.fr
Germany
[e-mail]
www.westermo.de
North America
[e-mail]
www.westermo.com
Singapore
[e-mail]
www.westermo.com
Sweden
[e-mail]
www.westermo.se
United Kingdom
[e-mail]
www.westermo.co.uk
Other Offices
Sales Units
Westermo Data Communications
Westermo • SE-640 40 Stora Sundby, Sweden
Tel [phone] Fax [phone]
E-mail: [e-mail]
www.westermo.com
