Westermo MCW-211 SERIES User manual

Industrial Ethernet
Media Converter
www.westermo.com
©Westermo Teleindustri AB • 2005
User Guide
6645-2201
MCW-211
SERIES

26645-2201
Safety
Before installation:
Read this manual completely and gather all information on the unit. Make sure
that you understand it fully. Check that your application does not exceed the safe
operating specifications for this unit.
This unit should only be installed by qualified personnel.
This unit should be built-in to an apparatus cabinet, or similar, where access is
restricted to service personnel only.
The power supply wiring must be sufficiently fused, and if necessary it must be
possible to disconnect manually from the power supply. Ensure compliance to
national installation regulations.
This unit uses convection cooling.To avoid obstructing the airflow around the unit,
follow the spacing recommendations (see Cooling section).
Care recommendations
Follow the care recommendations below to maintain full operation of unit and to fulfil
the warranty obligations.
This unit must not be operating with removed covers or lids.
Do not attempt to disassemble the unit.There are no user serviceable parts inside.
Do not drop, knock or shake the unit, rough handling above the specification may cause
damage to internal circuit boards.
Do not use harsh chemicals, cleaning solvents or strong detergents to clean the unit.
Do not paint the unit. Paint can clog the unit and prevent proper operation.
Do not expose the unit to any kind of liquids (rain, beverages, etc).The unit is not water-
proof. Keep the unit within the specified humidity levels.
Do not use or store the unit in dusty, dirty areas, connectors as well as other mechanical
part may be damaged.
If the unit is not working properly, contact the place of purchase, nearest Westermo dis-
tributor office or Westermo Tech support.
Maintenance
No maintenance is required, as long as the unit is used as intended within the specified
conditions.
!

36645-2201
Functional description
Introduction
The MCW-211 is an Industrial Ethernet FX/TX Media Converter.
The MCW-211 convert data between Ethernet 10/100Base-TX and 100Base-FX.
The unit is easy to use and install caused by auto-negotiation of speed and duplex,auto-
crossover and auto-polarity.The media converter is transparent for large frames (VLAN
or QoS).It is also possible to set speed,duplex and flow control via DIP-switches.
The FX side supports Far-End-Fault indication.A link fault from either side is forwarded
to the other side,Link Fault Forwarding.
MCW-211 has a wide DC power input range with polarity protection and redundant
power from dual sources.With extended temperature range supported as standard the
MCW-211 is designed to be used the harshest environments.

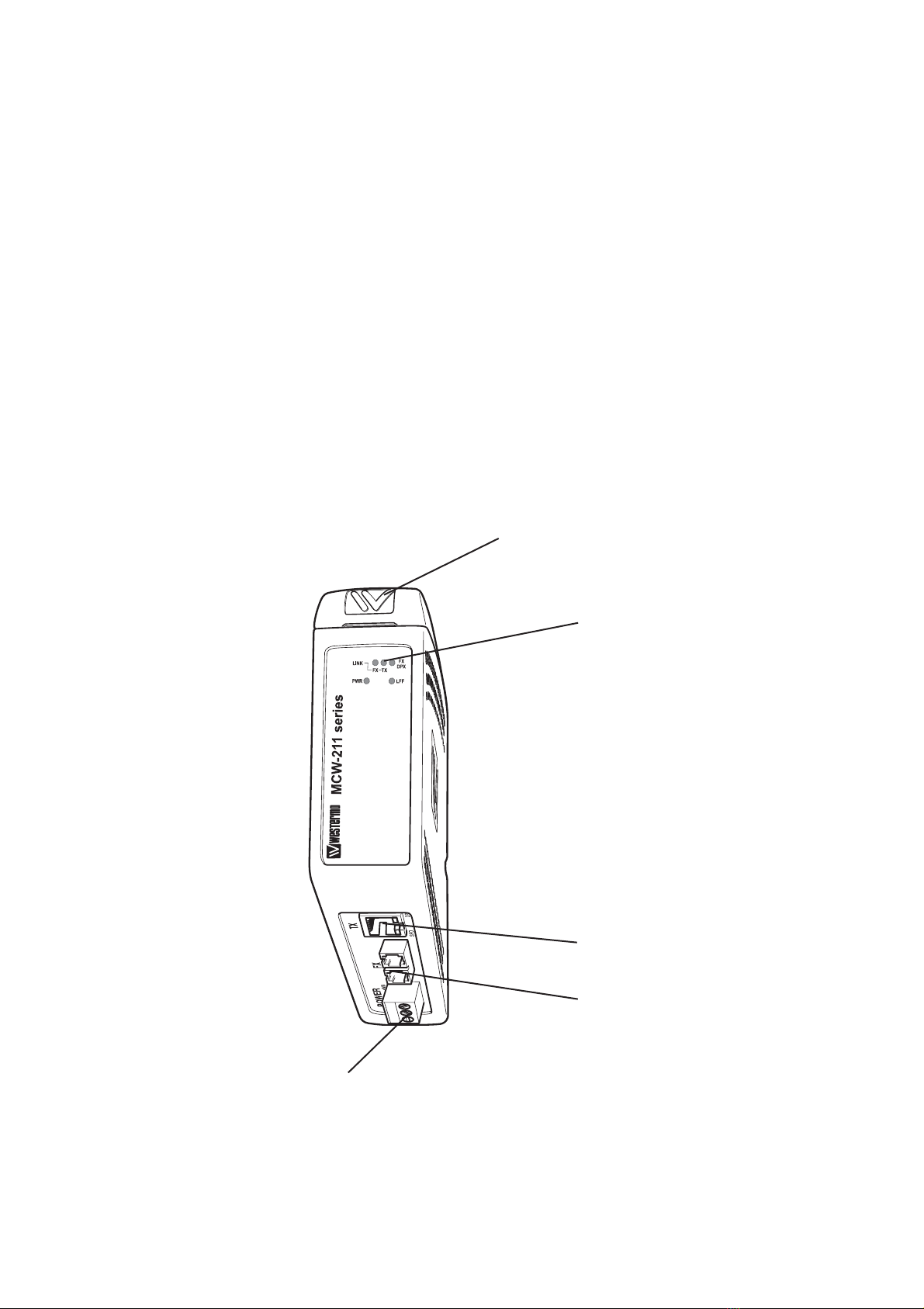

Location of Interface ports, LED’s and DIP-switches
Power connection
Network
RJ-45 connection
Network
Fibre connection
LED indicators
DIP-switches
Accessible under lid

46645-2201
Declaration of Conformity
Westermo Teleindustri AB
Declaration of conformity
Org.nr/
Postadress/Postal address Tel. Telefax Postgiro Bankgiro Corp. identity number Registered office
S-640 40 Stora Sundby 016-428000 016-428001 52 72 79-4 5671-5550 556361-2604 Eskilstuna
Sweden Int+46 16428000 Int+46 16428001
The manufacturer Westermo Teleindustri AB
SE-640 40 Stora Sundby, Sweden
Herewith declares that the product(s)
Type of product Model Art no Installation manual
DIN-rail MCW-211-MM-SC2
MCW-211-MM-ST2
MCW-211-SM-SC15
MCW-211-SM-LC15
MCW-211-SM-LC40
MCW-211-MM-LC2
3645-0001
3645-0010
3645-0020
3645-0030
3645-0040
3645-0050
6645-2201
is in conformity with the following EC directive(s).
No Short name
89/336/EEG Electromagnetic Compatibility (EMC)
References of standards applied for this EC declaration of conformity.
No Title Issue
EN 61000-6-2 Immunity for industrial environments 2 (2001)
EN 61000-6-4 Emission standard for industrial environments 1 (2001)
The last two digits of the year in which the CE marking was affixed: 05
Hans Levin
Technical Manager
9th May 2005

56645-2201
Packaging
Enclosure UL 94 PC / ABS Flammability class V-1
Dimension 35 x 121 x 119 mm
W x H x D
Weight 0.25 kg
Degree of protection IEC 529 Enclosure IP 21
Cooling Convection
Mounting Horizontal on 35 mm DIN-rail
Environmental
Temperature Operating –25 to +70ºC
Storage & Transport –40 to +70ºC
Humidity Operating 5 to 95% relative humidity
Storage & Transport 5 to 95% relative humidity
Altitude Operating 2 000 m / 70 kPa
Service life Operating 10 year
Vibration IEC 60068-2-6 Operating 7.5 mm, 5 – 8 Hz
2 g, 8 – 500 Hz
Shock IEC 60068-2-27 Operating 15 g, 11 ms
Electromagnetic Compatibility
Phenomena Test Description Test levels
ESD EN 61000-4-2 Enclosure contact ± 4 kV
Enclosure air ± 8 kV
RF field AM IEC 61000-4-3 Enclosure 10 V/m 80% AM (1 kHz), 80 – 1 000 MHz
modulated
Fast transient EN 61000-4-4 Signal ports ± 1 kV
Power ports ± 2 kV
Surge EN 61000-4-5 Signal ports balanced ± 2 kV line to earth, ± 1 kV line to line
Power ports ± 2 kV line to earth, ± 2 kV line to line
RF conducted EN 61000-4-6 Signal ports 10 V 80% AM (1 kHz), 0.15 – 80 MHz
Power ports 10 V 80% AM (1 kHz), 0.15 – 80 MHz
Voltage dips EN 61000-4-29 DC power ports 10 & 100 ms, interruption
and interruption 10 ms, 30% reduction
10 ms, 60% reduction
+20% above & –20% below rated voltage
Radiated emission EN 55022 Enclosure Class B
Conducted emission EN 55022 DC power ports Class B
Dielectric strength EN 60950 Signal port to other 1.5 kVrms 50 Hz 1 min
isolated ports
Power port to other 2 kVrms 50 Hz 1 min
isolated ports
Type tests and environmental conditions
Type Approved Approval / Compliance
Agency/ W-mo
EMC W-mo EN 61000-6-2, Immunity industrial environments
W-mo EN 61000-6-4, Emission industrial environments
Safety W-mo EN 60950, IT equipment
Agency approvals and standards compliance

66645-2201
Interface specifications
Rated voltage 12 to 48 VDC
Operating voltage 10 to 60 VDC
Rated current 200 mA @ 12 VDC
100 mA @ 24 VDC
50 mA @ 48 VDC
Rated frequency DC
Inrush current I2t 0.03A2s @ 12 VDC
Startup current* 0.75A peak
Polarity Reverse polarity protected
Redundant power input Yes
Isolation to Ethernet TX
Ethernet FX
Connection Detachable screw terminal
Connector size 0.2 – 2.5 mm2(AWG 24 – 12)
Shielded cable Not required
Power
Ethernet TX
Position Direction** Description Product marking
1 In + Voltage A +VA
2 In + Voltage B +VB
3 – Common COM
Electrical specification IEEE std 802.3. 2000 Edition
Data rate 10 Mbit/s or 100 Mbit/s, manual or auto
Duplex Full or half, manual or auto
Transmission range 100 m
Isolation to Power
Connection RJ-45
** Direction relative this unit
* External supply current capability for proper startup
Position Direction* Description Product marking
1 In/Out TD+
2 In/Out TD-
3 In/Out RD+
4
5
6 In/Out RD-
7
8
Shield HF-connected
* Direction relative this unit

76645-2201
Ethernet FX
Optical specification IEEE std 802.3. 2000 Edition
Data rate 100 Mbit/s
Duplex Full or half
Connection SC, ST or LC
Position Direction* Description Product marking
Rx In Receive port Rx
Tx Out Transmit port Tx
* Direction relative this unit
Model MCW-211-MM MCW-211-SM MCW-211-SM MCW-211-SM
xx2 SC15 LC15 LC40
Transmitted 1310 nm 1310 nm 1310 nm 1310 nm
wavelength
Min. output power, –19 dBm –15 dBm –15 dBm –5 dBm
transmitter
Max. output power, –12 dBm –8 dBm –8 dBm 0 dBm
transmitter
Input sensitivity, –31 dBm –34 dBm –31 dBm –34 dBm
receiver
Min. power budget 12 dBm 19 dBm 16 dBm 29 dBm
Max. power budget 19 dBm 26 dBm 23 dBm 34 dBm
Recommended Multimode Singlemode Singlemode Singlemode
fibre cable and 50/125, 62.5/125 9/125, 10/125 9/125, 10/125 9/125, 10/125
core / cladding
diameter
Fibre type Normal attenuation Normal attenuation
@ 1310 nm multimode @ 1310 nm singlemode
50/125 3.0 dBm/km –
62,5/125 3.5 dBm/km –
9/125 – 0.5 dBm/km
10/125 – 0.5 dBm/km
Type Normal attenuation
Connector 0.2 – 0.4 dBm
Fusion splice 0.1 dBm
Mechanical splice 0.2 dBm
Fibre optic power budget
Attenuation in connectors / splices

86645-2201
LED indicators
LED indicators are available on the front panel and
on the RJ-45TX connector.
LED Status Description
PWR ON Internal power, initialising OK
Slow flash Initialisation progressing
Fast flash Initialisation error
LINK TX OFF No Ethernet link TX
ON Good Ethernet link TX
Flash Ethernet data is transmitted or received on TX interface
LINK FX OFF No Ethernet link FX
ON Good Ethernet link FX
Flash Ethernet data is transmitted or received on FX interface
FX DPX OFF Half dupex FX interface
ON Full duplex FX interface
LFF OFF Link fault forward is not active
ON Link fault forward is active and has shutdown an interface
LED Status Description
SPD OFF 10 Mbit/s TX interface
ON 100 Mbit/s TX interface
DPX OFF Half duplex TX interface
ON Full duplex TX interface
TX
SPD DPX

96645-2201
Installation
Mounting / Removal
Before mounting or removing the unit:
Prevent damage to internal electronics from electrostatic discharges (ESD)
by discharging your body to a grounding point (e.g. use of wrist strap).
Prevent access to hazardous voltages by disconnecting the unit from AC/DC
mains supply and all other electrical connections.
Mounting

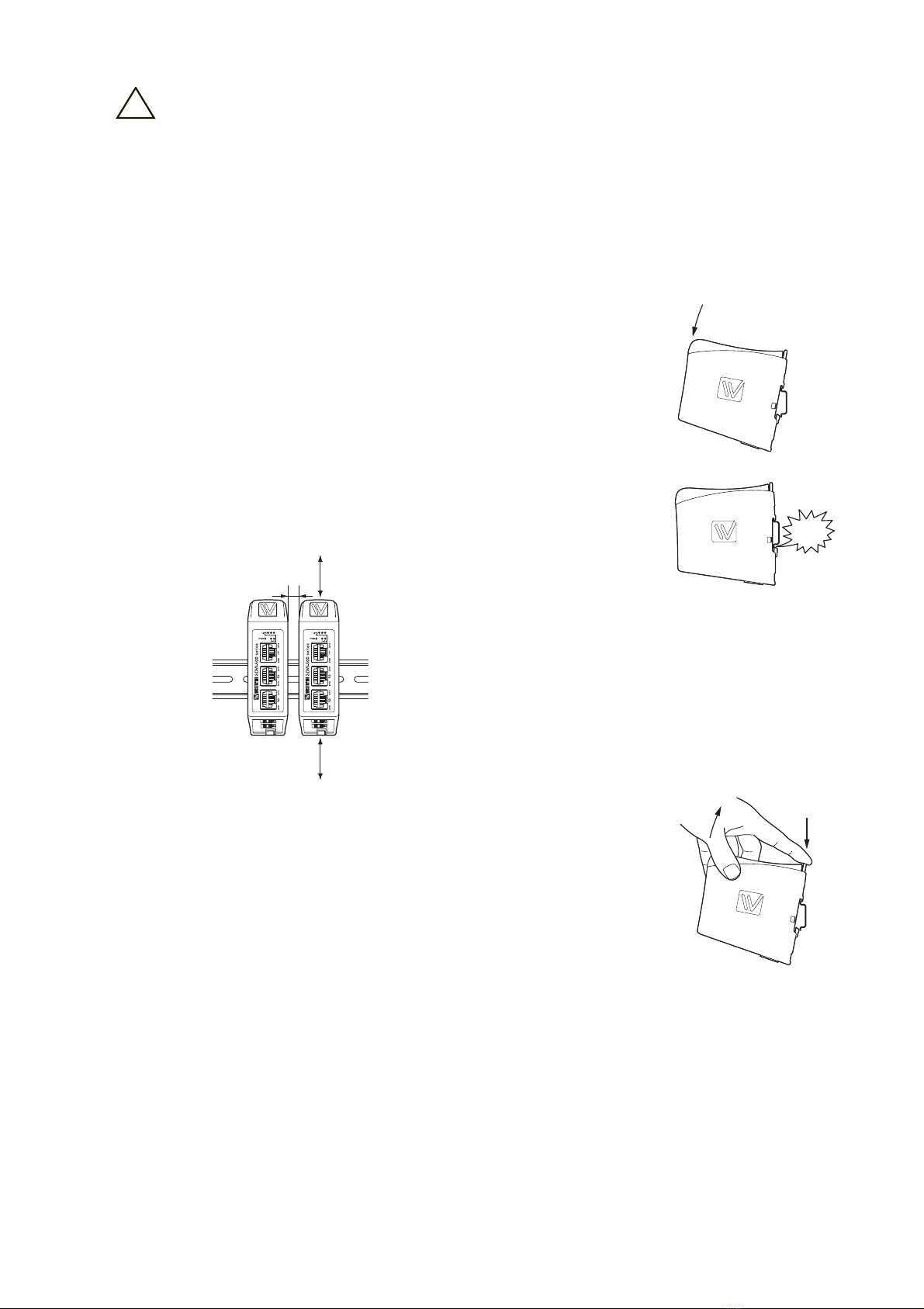

This unit should be mounted on 35 mm DIN-rail which is horizon-
tally mounted on a wall or cabinet backplate.
This unit uses convection cooling.To avoid obstructing the airflow
around the unit, use the following spacing rules.
Recommended spacing 25 mm (1.0 inch) above/below and 10 mm
(0.4 inches) left/right the unit.
Snap on mounting, see figure
Removal
Press down the black support at the back of the unit, see figure.
10 mm *
(0.4 inches)
!
25 mm
25 mm
* Spacing (left/right) recommended for
full operating temperature range
CLICK!

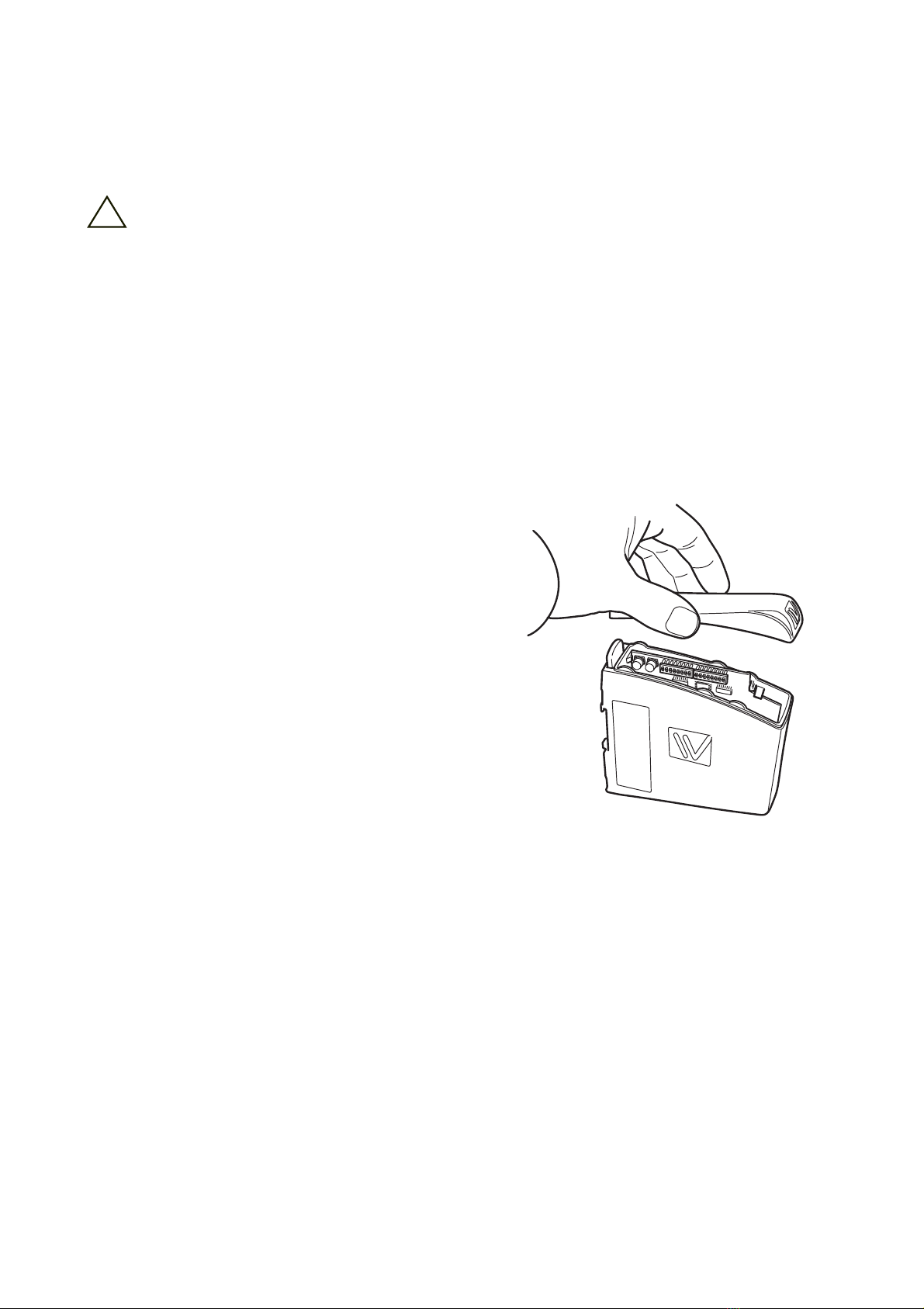

To be observe when the DIP-switches will be configured
… Speed and duplex setting only valid when auto-negotiation is disabled.
… If auto-negotiation and auto MDI/MDI-X disabled the TX ports supports
MDI-X configuration.
10 6645-2201
Configuration
DIP switches are accessible under the lid on top of the unit.DIP switches are used to
configure the unit.
DIP-switch settings
Before DIP-switch settings:
Prevent damage to internal electronics from electrostatic discharges (ESD)
by discharging your body to a grounding point (e.g.use of wrist strap).
NOTE DIP-switch alterations are only effective after a power on.
!

116645-2201
TX Port settings
ON
12345678
Auto-negotiation and
auto MDI / MDI-X
disabled TX port
S1
ON
12345678
Auto-negotiation and
auto MDI / MDI-X
enabled TX port
S1
ON
12345678
10 Mbit/s speed
selected TX port
S1
ON
12345678
100 Mbit/s speed
selected TX port
S1
ON
12345678
Half duplex
selected TX port
S1
ON
12345678
Full duplex
selected TX port
S1
Flow control setting
ON
12345678
Flow control
disabled
S1
ON
12345678
Flow control
enabled
S1
Link fault forward settings
ON
12345678
TX →FX Link
fault forward disabled
S1
ON
12345678
TX →FX Link
fault forward enabled
S1
ON
12345678
FX →TX Link
fault forward disabled
S1
ON
12345678
FX →TX Link
fault forward enabled
S1
FX Port settings
ON
12345678
Half duplex
selected FX port
S1
Factory settings
ON
12345678
S1
ON
12345678
Full duplex
selected FX port
S1
S1

REV.B 6645-2201 05.09 Mälartryck AB, Eskilstuna, Sweden
Westermo Teleindustri AB • SE-640 40 Stora Sundby, Sweden
Phone [phone] Fax [phone]
E-mail: [e-mail]
Westermo Web site: www.westermo.com
Westermo Teleindustri AB have distributors in several countries, contact us for further information.
Westermo OnTime AS
Gladsvei 20 0489 Oslo, Norway
Phone [phone] • Fax [phone]
E-mail: [email protected]
Westermo Data Communications Ltd
Talisman Business Centre • Duncan Road
Park Gate, Southampton • SO31 7GA
Phone: [phone] • Fax.:[phone]
E-Mail: [e-mail]
Westermo Data Communications GmbH
Goethestraße 67, 68753 Waghäusel
Tel.: [phone] • Fax.:[phone]
E-Mail: [e-mail]
Westermo Data Communications S.A.R.L.
9 Chemin de Chilly 91160 CHAMPLAN
Tél : [phone] • Fax : [phone]
E-mail : [e-mail]
Subsidiaries
