OpenFlex™ Data24
Regulatory Model: DCS0010
D018-000332-000
Doc. Version 04
September 2022

EcoDesign Disclosures Table of Contents
Table of Contents
Revision History................................................................................................................................................................................................ii
Notices....................................................................................................................................................................................................................iii
Chapter 1. EU EcoDesign Disclosures............................................................................. 1
EcoDesign Overview.................................................................................................................................................................................. 2
OpenFlex™ Data24 EcoDesign Specifications..................................................................................................................... 2
Instant Secure Erase / Secure Erase...........................................................................................................................................3
OpenFlex™ Data24 Disassembly....................................................................................................................................................4
IO Module (IOM) Disassembly........................................................................................................................................................33
i

EcoDesign Disclosures Revision History
Revision History
Date Revision Comment
August 2021 2.0 Initial release for version 2.0
October 2021 01 Changed document number from
1ET2362 to D018-000332-000
January 2022 02 Updated the Instant Secure Erase / Secure Erase (page 3)
section to include more information on NVMe Sanitize.
February 2022 03 Added information related to the Cable Management Arm
(CMA) Assembly during the disassembly procedures.
September 2022 04 Rebranded document to new Western Digital design
ii

EcoDesign Disclosures Notices
Notices
Western Digital Technologies, Inc. or its affiliates' (collectively “Western Digital”) general policy does not
recommend the use of its products in life support applications wherein a failure or malfunction of the product
may directly threaten life or injury. Per Western Digital Terms and Conditions of Sale, the user of Western
Digital products in life support applications assumes all risk of such use and indemnifies Western Digital
against all damages.
This document is for information use only and is subject to change without prior notice. Western Digital
assumes no responsibility for any errors that may appear in this document, nor for incidental or consequential
damages resulting from the furnishing, performance or use of this material.
Absent a written agreement signed by Western Digital or its authorized representative to the contrary,
Western Digital explicitly disclaims any express and implied warranties and indemnities of any kind that may,
or could, be associated with this document and related material, and any user of this document or related
material agrees to such disclaimer as a precondition to receipt and usage hereof.
Each user of this document or any product referred to herein expressly waives all guaranties and warranties
of any kind associated with this document any related materials or such product, whether expressed or
implied, including without limitation, any implied warranty of merchantability or fitness for a particular purpose
or non-infringement. Each user of this document or any product referred to herein also expressly agrees
Western Digital shall not be liable for any incidental, punitive, indirect, special, or consequential damages,
including without limitation physical injury or death, property damage, lost data, loss of profits or costs of
procurement of substitute goods, technology, or services, arising out of or related to this document, any
related materials or any product referred to herein, regardless of whether such damages are based on tort,
warranty, contract, or any other legal theory, even if advised of the possibility of such damages.
This document and its contents, including diagrams, schematics, methodology, work product, and intellectual
property rights described in, associated with, or implied by this document, are the sole and exclusive
property of Western Digital. No intellectual property license, express or implied, is granted by Western Digital
associated with the document recipient's receipt, access and/or use of this document or the products
referred to herein; Western Digital retains all rights hereto.
Western Digital, the Western Digital logo, Ultrastar, and OpenFlex are registered trademarks or trademarks
of Western Digital Corporation or its affiliates in the US and/or other countries. Linux® is the registered
trademark of Linus Torvalds in the U.S. and other countries. All other marks are the property of their
respective owners. Product specifications subject to change without notice. Pictures shown may vary from
actual products. Not all products are available in all regions of the world.
Western Digital
5601 Great Oaks Parkway
San Jose, CA 95119
© 2022 Western Digital Corporation or its affiliates. All Rights Reserved.
iii

1
EU EcoDesign
Disclosures
This document provides information and instructions related to the OpenFlex™ Data24's
disclosures for the EU's ecodesign requirements.
In This Chapter:
- EcoDesign Overview....................................................................................................... 2
- OpenFlex Data24 EcoDesign Specifications.........................................................2
- Instant Secure Erase / Secure Erase....................................................................... 3
- OpenFlex Data24 Disassembly.................................................................................. 4
- IO Module (IOM) Disassembly..................................................................................33

EcoDesign Disclosures 1. EU EcoDesign Disclosures
1.1 EcoDesign Overview
1.1 EcoDesign Overview
This document provides information about the OpenFlex™ Data24 related to its manufacturing and
operation, and instructions for secure data deletion and disassembly.
1.2 OpenFlex™ Data24 EcoDesign Specifications
Product Type Online Data Storage Product
Manufacturer's Name Western Digital
Manufacturer's Registered Trade Name Western Digital®
Manufacturer's Registered Trade Address
5601 Great Oaks Parkway
San Jose, CA 95119
USA
Product Model Number DCS0010
Starting Year of Manufacture 20201
PSU efficiency at 20%, 50%, 100%
of rated output power
20% load = 93.01%
50% load = 94.31%
100% load = 92.02%
Power Factor at 50% Rated Load Level Minimum Power Factor (at 50%) = 1.0
Declared Operating Condition Class A2
Neodymium Content in HDDs N/A
Cobalt Content in Batteries N/A
1. This value is the original date of product manufacture. For the specific manufacture date of your platform, check the
agency label attached to the platform. There will be a 4 digit date code on that label.
2

EcoDesign Disclosures 1. EU EcoDesign Disclosures
1.3 Instant Secure Erase / Secure Erase
1.3 Instant Secure Erase / Secure Erase
This section provides conceptual information and instructions for using the Instant Secure Erase (ISE) or
Secure Erase (SE) features included with Western Digital drives.
Data Erasure Options
Western Digital provides several options for securely erasing data from its drives. The appropriate method
depends upon many factors, including the following:
•Erase Configuration (ISE or SE)
•Drive Type (HDD or SSD)
•Interface Type (SAS, SATA, or NVMe™ )
•Encryption (none, TCG, or FIPS)
For more information on the sanitize command for specific drive models, please see the drive model's
specification, contact Western Digital technical support, or download the following whitepaper for details:
https://documents.westerndigital.com/content/dam/doc-library/en_us/assets/public/western-digital/
collateral/tech-brief/tech-brief-instant-secure-erase....
ISE / SE Overview
Instant Secure Erase (ISE) is Western Digital’s implementation of the industry standard T10 (SAS)/T13
(SATA) sanitize command, allowing users to instantly erase both user-accessible data and hidden user
data from Western Digital drives.
The sanitize command supports three options:
1. Crypto Scramble (SATA) / Crypto Erase (SAS): deletes the encryption key of a self-encrypting drive.
2. Overwrite (HDDs): overwrites the data on the drive with a supplied value.
3. Block Erase (SSDs): electrically erases each storage element by modifying their voltage levels.
Secure Erase (SE) is a subset of ISE, where the Crypto Scramble / Erase option has been disabled, allowing
only the Overwrite or Block Erase options.
Requirements
To perform secure deletion, the following versions are the minimal recommended/supported utilities for
each drive interface required on the host. For other versions, please verify the arguments/parameters in the
appropriate man pages.
•SAS: sg_sanitize version 1.00 20151219 (included in sg3_utils 1.422)
•SATA: hdparm version 9.58
Erase Methods
The following methods cover all erasure options and storage technologies for Western Digital drives.
For more information on the sanitize command for specific drive models, please see the drive model's
specification.
Note: If a RAID adapter or software is in use, remove the drives from a RAID set before erasure.
2. For details on how to use the sg3_utils v1.42 utility, visit http://sg.danny.cz/
3

EcoDesign Disclosures 1. EU EcoDesign Disclosures
1.4 OpenFlex ™ Data24 Disassembly
Note: If a drive is encrypted (TCG or FIPS), unlock the drive before executing any sanitize
commands.
Note: In the following commands, replace the generic reference of <dev> with the specific
device reference appropriate for your operating system (i.e. sgX for Linux, SCSIX:X,X,X for
Windows).
NVMe
•NVMe - Crypto Erase - SSD:
# sudo nvme sanitize /dev/<nvme_namespace> -a 4
•NVMe - Block Erase - SSD:
# sudo nvme sanitize /dev/<nvme_namespace> -a 2
Important: For more information related to NVMe Sanitize, see the current version of the NVM
Express® NVM Command Set Specification at https://nvmexpress.org/developers/nvme-
command-set-specifications/.
1.4 OpenFlex™ Data24 Disassembly
This procedure provides instructions for disassembling an OpenFlex™ Data24.
Table 3: Replacement Procedure Info
Required Tools # of People Required
•T7 Torx screwdriver
•T8 Torx screwdriver
•T10 Torx screwdriver
•Tweezers or needle-nose pliers
(recommended)
•2 for removal of the Chassis from the rack
•1 for the disassembly of the Chassis
Step 1 :Power down the system by shutting down the system from the operating system.
Step 2 : (Optional) If your configuration contains a CMA, carefully move the arm on the side in need of
servicing away from the system. This will allow for ease of access to the components on the
chosen side while keeping the system cabling organized and safe.
4

EcoDesign Disclosures 1. EU EcoDesign Disclosures
1.4 OpenFlex ™ Data24 Disassembly
Figure 1: Move CMA Assembly into a Servicing State
Step 3 :Disconnect the power and data cables from the enclosure.
a. Unclip the retention strap as shown in the following image.
Figure 2: Unclipping Cable Retention Strap (Generic PSU Shown)
b. Move to the rear of the rack and disconnect the power cables from each of the two Supply
Unit (PSU).
5

EcoDesign Disclosures 1. EU EcoDesign Disclosures
1.4 OpenFlex ™ Data24 Disassembly

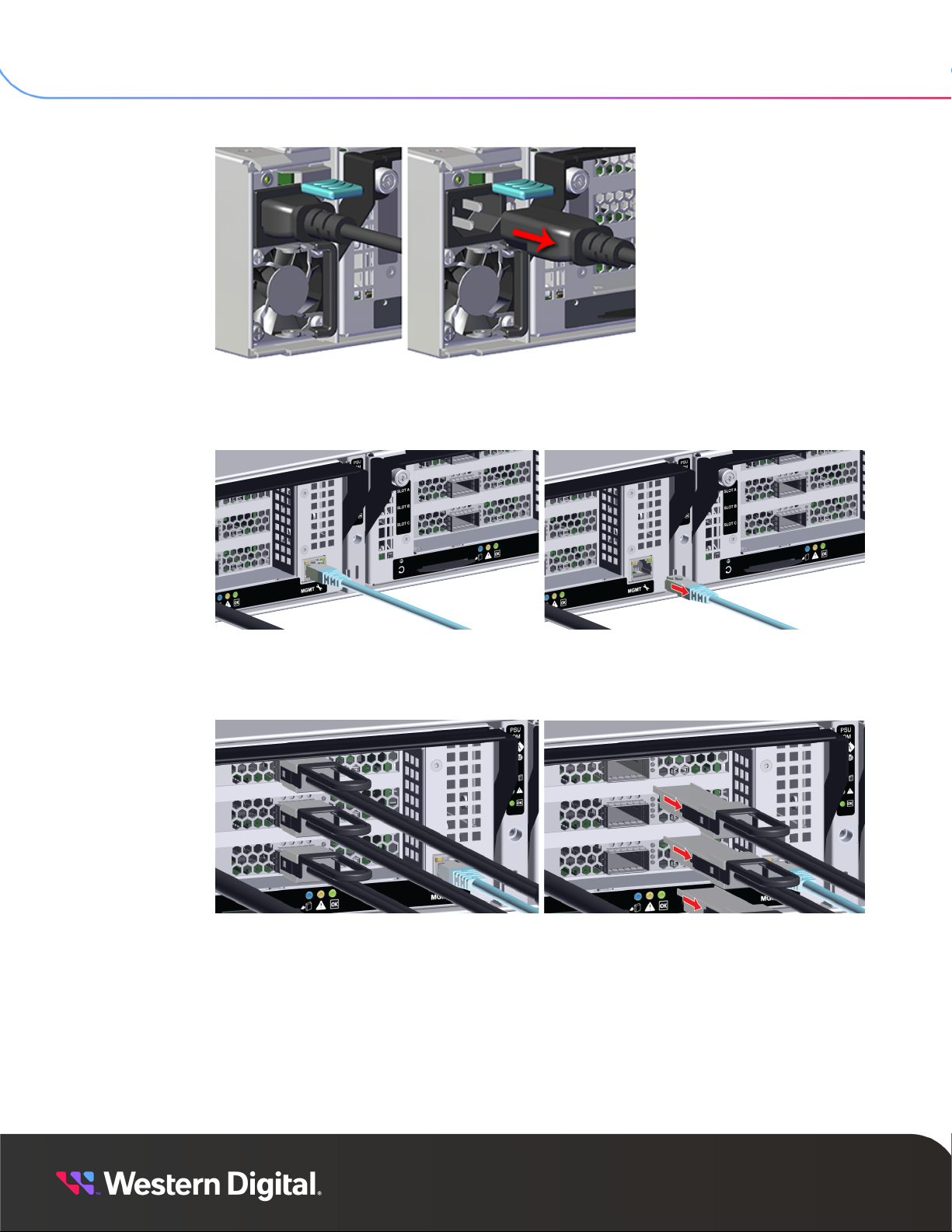

Figure 3: Disconnect Power Cables
c. Disconnect the Ethernet Cable from the RJ45 Ethernet Management port.
Figure 4: Disconnect RJ45 Ethernet Cables
d. Disconnect the QSFP28 cables from all of the IOM ports.
Figure 5: Disconnect QSFP28 Cables
Step 4 :(Optional) Repeat the previous step to move the remaining arm into the servicing state.
Step 5 :Uninstall the Drive Assemblies.
a. At the front of the enclosure, press the release button on the front of a Drive Assembly. The
release handle will rotate outward:
6

EcoDesign Disclosures 1. EU EcoDesign Disclosures
1.4 OpenFlex ™ Data24 Disassembly
Figure 6: Drive Assembly Release Button and Handle Operation
b. Pull down slightly on the release handle to unseat the Drive Assembly. Then pull the handle
to remove the Drive Assembly from the enclosure:
Figure 7: Drive Assembly Removal
c. Repeat these steps to remove the remaining Drive Assemblies.
Step 6 :Uninstall the Power Supply Units (PSUs).
a. At the rear of the enclosure, grasp the ring handle of a Supply Unit (PSU) with your index
finger, and use your thumb to press the latch release with a pinching motion:
7

EcoDesign Disclosures 1. EU EcoDesign Disclosures
1.4 OpenFlex ™ Data24 Disassembly

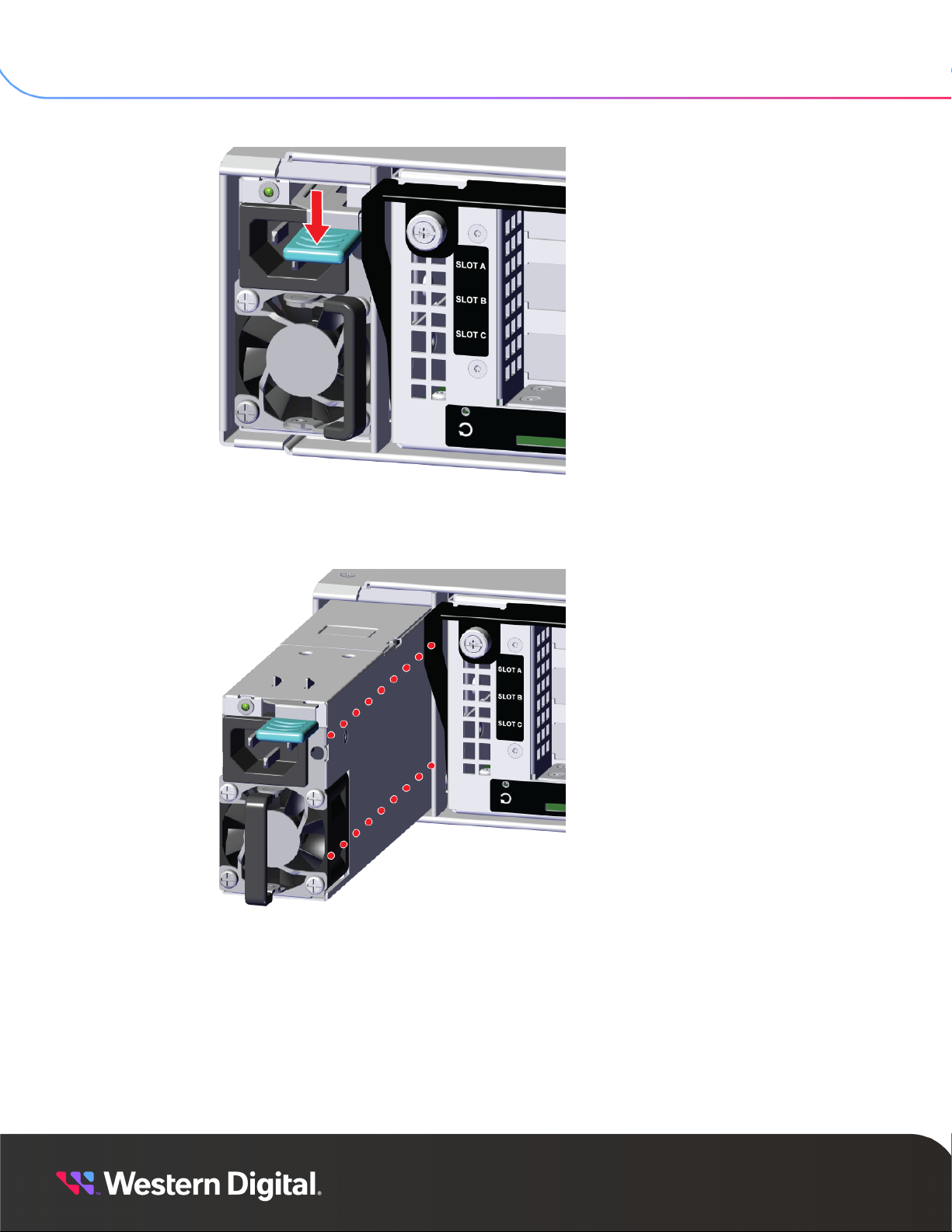

Figure 8: Supply Unit (PSU) Release Latch Operation
b. Pull the Supply Unit (PSU) out of its slot:
Figure 9: Supply Unit (PSU) Removal
c. Repeat these steps to remove the remaining Supply Unit (PSU).
Step 7 :Uninstall the IO Modules (IOMs).
a. Unlock an IO Module (IOM) by turning its thumbscrew counterclockwise until the threads are
disengaged. The location of the thumbscrew is shown in the following image:
8

EcoDesign Disclosures 1. EU EcoDesign Disclosures
1.4 OpenFlex ™ Data24 Disassembly
Figure 10: IO Module (IOM) Thumbscrew Operation
b. Pull the release handle down until the IO Module (IOM) is unseated from its slot:
Figure 11: IO Module (IOM) Release Handle Operation
c. Use the handle to pull the IO Module (IOM) out of the enclosure:
9

EcoDesign Disclosures 1. EU EcoDesign Disclosures
1.4 OpenFlex ™ Data24 Disassembly
Figure 12: IO Module (IOM) Removal
d. Repeat these steps to remove the remaining IO Module (IOM).

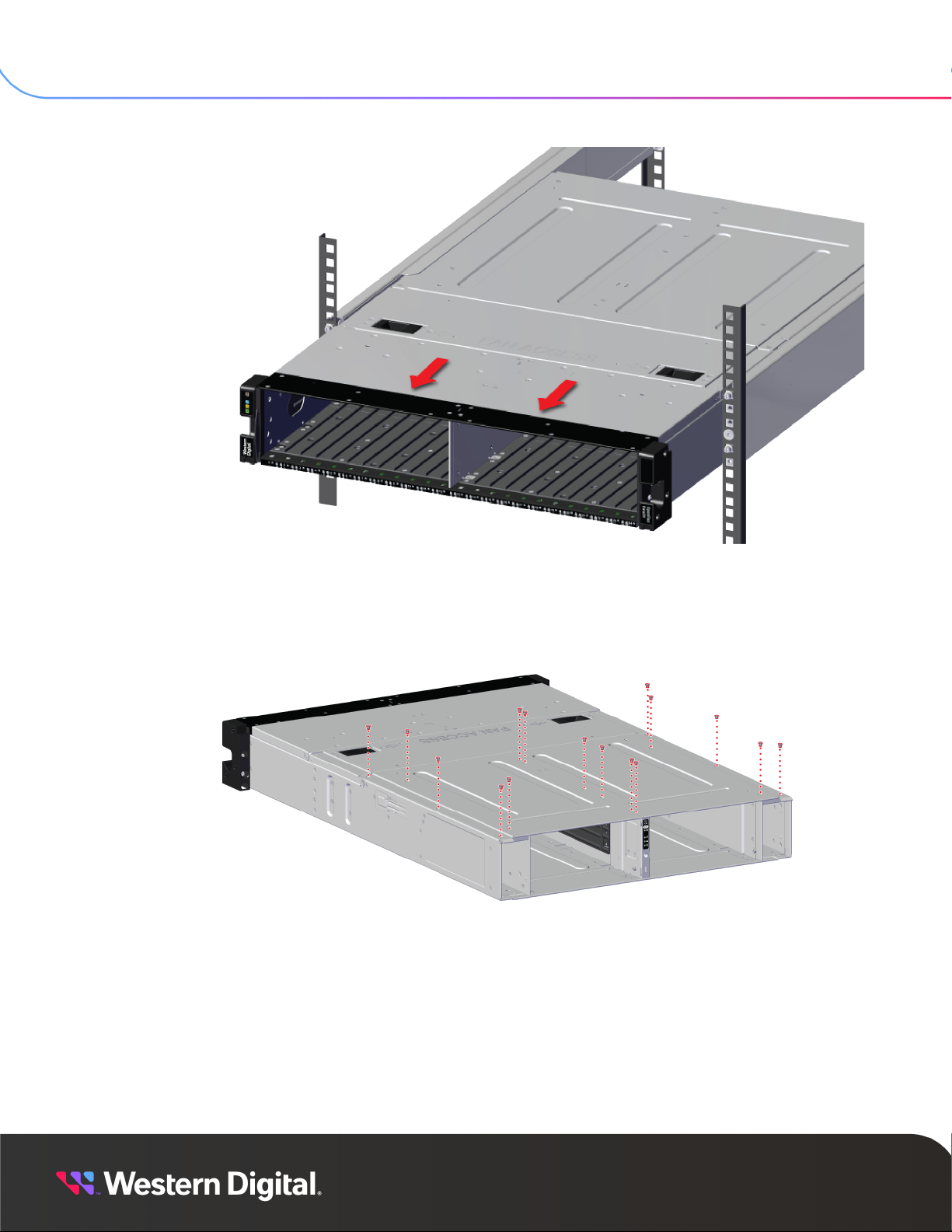

Step 8 :Uninstall the Chassis from the rack mounted rails.

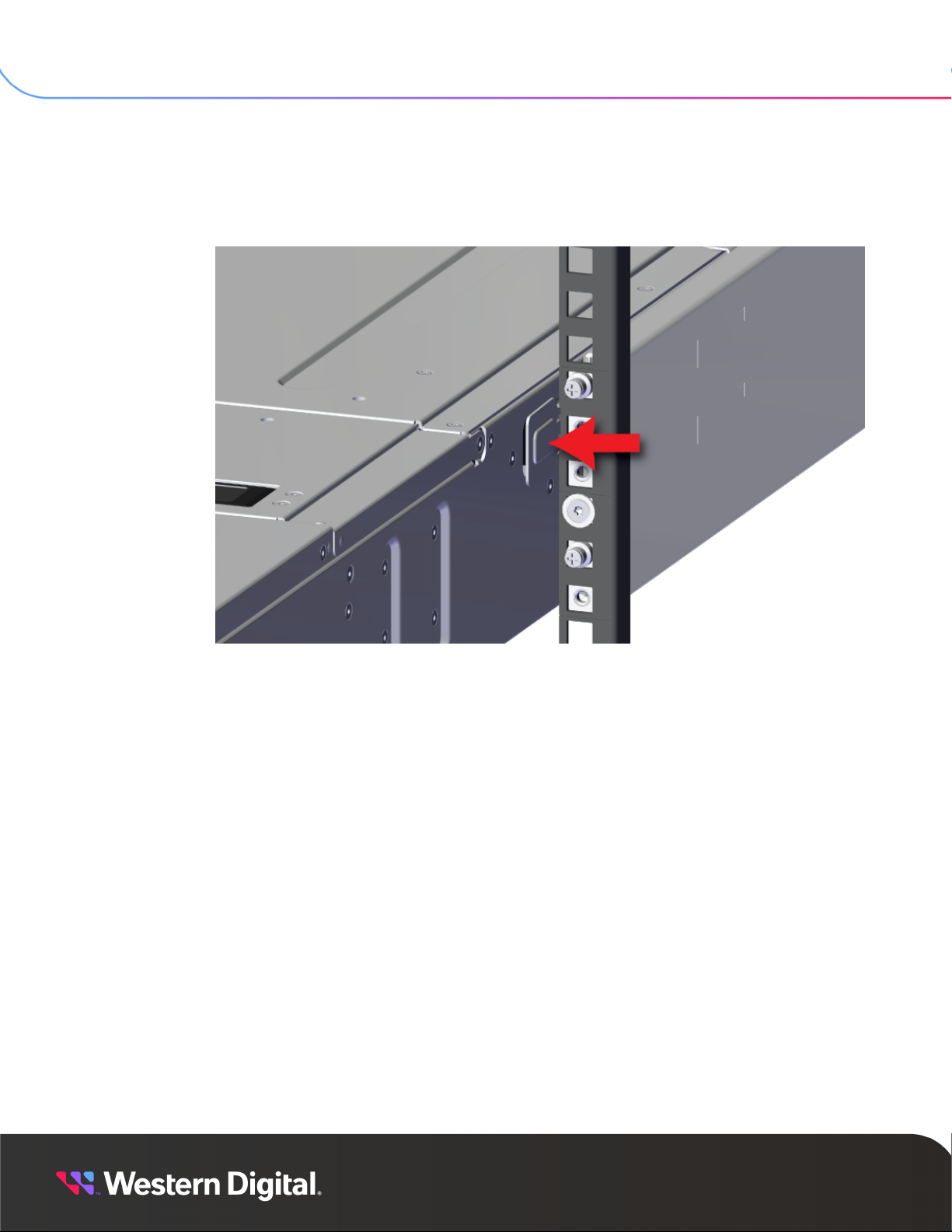

a. From the front of the rack, using the T15 Torx screwdriver, loosen the two Torx captive screws
that secure the Chassis to the rail. Repeat this step to loosen the two Torx captive screws
that secure the Chassis to the remaining rail. The location of the captive screws are shown in
the following image.
Figure 13: Rack Ear Captive Screw Location
10

EcoDesign Disclosures 1. EU EcoDesign Disclosures
1.4 OpenFlex ™ Data24 Disassembly
b. Carefully pull the Chassis out of the rack. The chassis will slide out of the rails until the
locking tabs on the side of the chassis engage and stop the chassis from being pulled out
further.
c. Depress the locking tabs on the sides of the chassis to allow it to be removed from the rails.
Figure 14: Locking Tabs
d. Continue sliding the chassis out of the rack and ensure extra care is taken to support the
weight of the Chassis when the Chassis is clear of the rack mount rails.
11

EcoDesign Disclosures 1. EU EcoDesign Disclosures
1.4 OpenFlex ™ Data24 Disassembly
Figure 15: Uninstall Chassis
Step 9 :Remove the rear chassis cover.
a. Using a T7 Torx screwdriver, remove the sixteen (16) screws securing the rear chassis cover:
Figure 16: Rear Chassis Cover Screw Locations
b. Remove the rear chassis cover by lifting it from the back and sliding it toward the rear of the
Chassis:
12

EcoDesign Disclosures 1. EU EcoDesign Disclosures
1.4 OpenFlex ™ Data24 Disassembly
Figure 17: Removing the Rear Chassis Cover
Step 10 :Remove the fan cover.
a. Using a T7 Torx screwdriver, remove the two (2) screws securing the fan cover:
Figure 18: Fan Cover Screw Locations
b. Remove the fan cover by pressing inward on the latches and lifting the cover away from the
Chassis:
13

EcoDesign Disclosures 1. EU EcoDesign Disclosures
1.4 OpenFlex ™ Data24 Disassembly

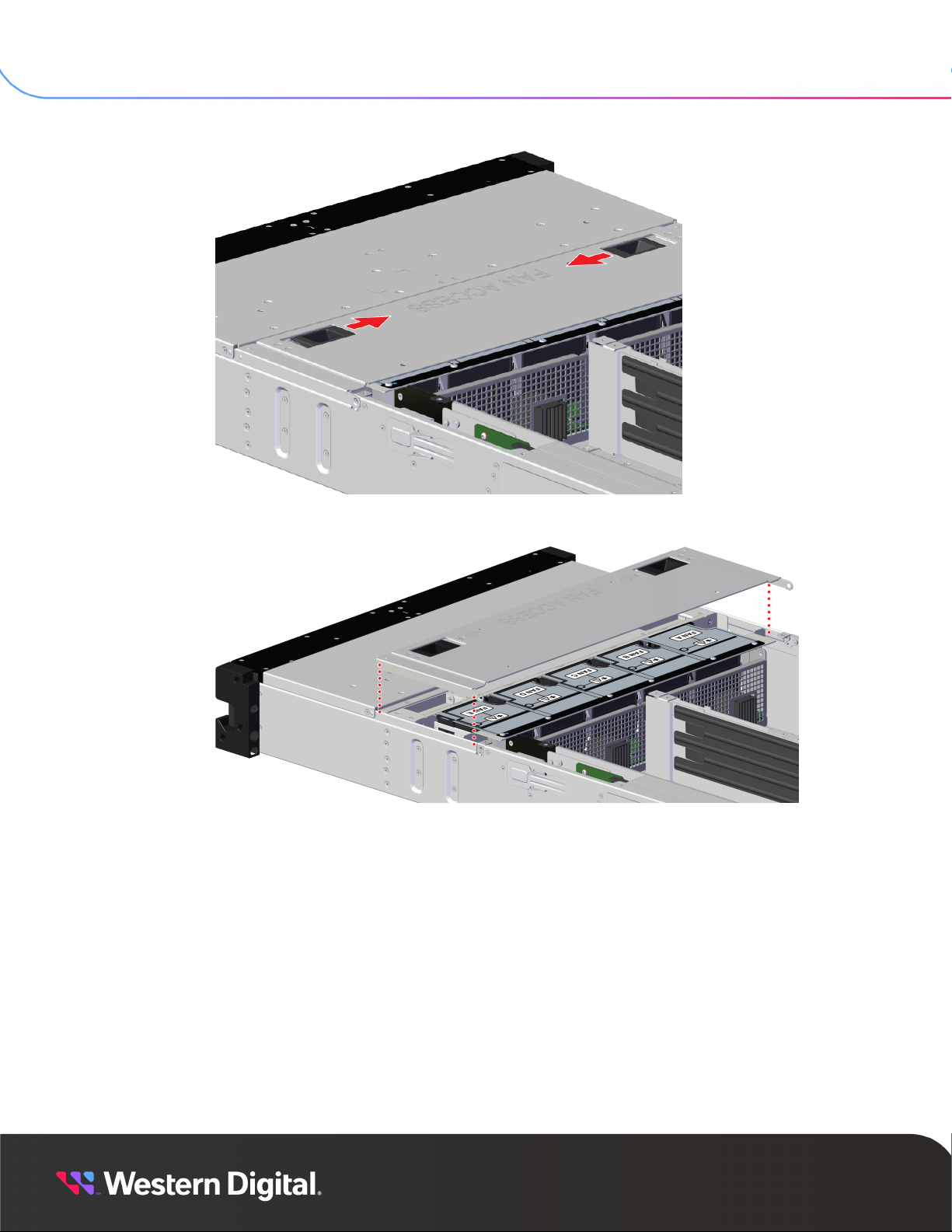

Figure 19: Fan Cover Latches Operation
Figure 20: Fan Cover Removal
Step 11 :Remove the fan backflow guard.
a. Using a T8 Torx screwdriver, remove the six (6) screws securing the fan backflow guard:
14

EcoDesign Disclosures 1. EU EcoDesign Disclosures
1.4 OpenFlex ™ Data24 Disassembly
Figure 21: Fan Backflow Guard Screw Locations
b. The fan backflow guard is a single piece of flexible material; remove it by lifting it away from
the Chassis:
Figure 22: Fan Backflow Guard Removal
Step 12 :Remove the System Fan modules.
a. Each System Fan module has a rounded notch and a rectangular notch with a retaining clip.
Place your thumb and index finger into the notches, squeeze to release the tension clip, and
pull upward on the System Fan module to remove it from the Chassis:
15

EcoDesign Disclosures 1. EU EcoDesign Disclosures
1.4 OpenFlex ™ Data24 Disassembly

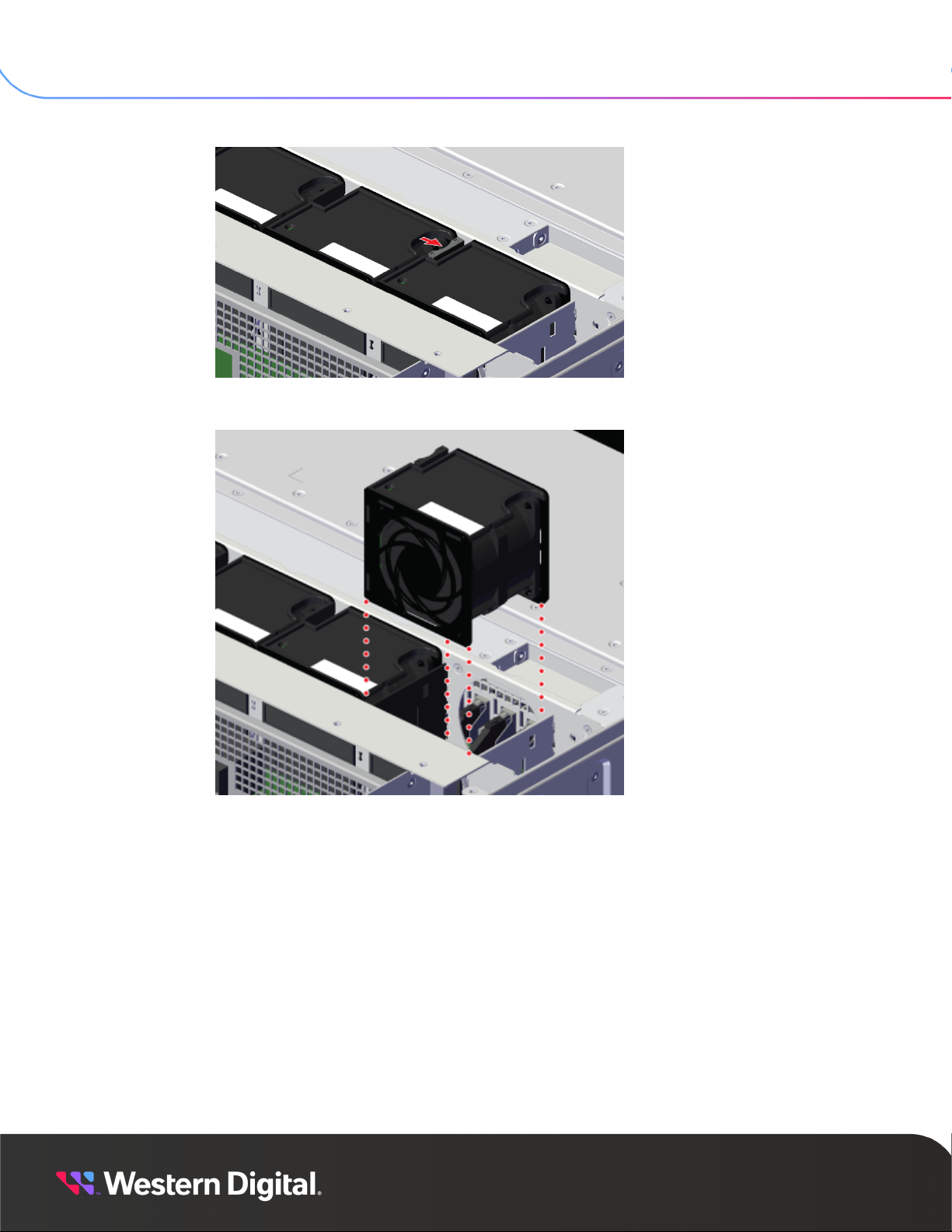

Figure 23: System Fan Latch Operation
Figure 24: System Fan Module Removal
b. Repeat these steps to remove the remaining System Fan modules.
Step 13 :Remove the Rack Ears and front system LED PCBA.
a. Using a T10 Torx screwdriver, remove the three (3) screws holding each cover to its rack ear
(6 screws total):
16
