Western 110 User manual

October 1, 2018
Lit. No. 68660, Rev. 06
Western Products, PO Box 245038, Milwaukee, WI 53224-9538 • www.westernplows.com
This manual is for WESTERN®Model 110, 1000 & 2000 Low-Profile Tailgate Spreaders
with serial numbers 7192 and higher (Model 110), 10001–10002 (Model 1000), and 20237–20363 (Model 2000).
Low-Profile Tailgate Spreader
Model 110, 1000 & 2000
Owner's Manual
Original Instructions
This manual supersedes all editions with an earlier date.
CAUTION
Read this document before operating
or servicing the spreader.

Lit. No. 68660/68661, Rev. 06 3 October 1, 2018
TABLE OF CONTENTS
PREFACE.................................................................... 4
Owner's Information Form .................................... 4
SAFETY ...................................................................... 5
Safety Definitions.................................................. 5
Warning/Caution Labels ....................................... 5
Serial Number Label ............................................. 6
Safety Precautions................................................ 6
Fuses .................................................................... 7
Personal Safety..................................................... 7
Fire and Explosion ................................................ 7
Cell Phones........................................................... 7
Ventilation ............................................................. 8
Battery Safety ....................................................... 8
Noise..................................................................... 8
Vibration................................................................ 8
Torque Chart ......................................................... 8
LOADING .................................................................... 9
Certification........................................................... 9
Material Weights ................................................... 9
MOUNTING THE SPREADER ................................. 10
Fixed Mount Spreader ........................................ 10
SWING AWAY®Spreader ................................... 10
OPERATING THE SPREADER................................ 11
Spreader Controls............................................... 11
ON/OFF Control ........................................... 11
Variable Speed Control ................................ 12
Driving and Spreading on Snow and Ice ............ 12
REMOVING THE SPREADER ................................. 13
Fixed Mount ........................................................ 13
SWING AWAY Mount.......................................... 13
MAINTENANCE........................................................ 14
Preseason Check................................................ 14
After Each Use.................................................... 14
Postseason Maintenance.................................... 15
Drive Belt Replacement ...................................... 15
Bearing and Set Screw Maintenance ................. 16
Fuse Replacement.............................................. 16
Recycle ............................................................... 16
2-PIN HARNESS WIRING DIAGRAM ..................... 17
TROUBLESHOOTING GUIDE ................................. 18

Lit. No. 68660, Rev. 06 4 October 1, 2018
PREFACE
This manual has been prepared to acquaint you with
the safety information, operation, and maintenance of
your new tailgate spreader. Please read this manual
carefully and follow all recommendations. This will
help ensure profitable and trouble-free operation of
your spreader. Keep this manual accessible. It is a
handy reference in case minor service is required.
When service is necessary, bring your spreader to
your distributor. They know your spreader best and are
interested in your complete satisfaction.
NOTE: This spreader is designed to spread snow
and ice control materials only. Do not use it
for purposes other than those specified in this
manual.
Register your spreader online at www.westernplows.com
OWNER'S INFORMATION
Owner's Name: ______________________________________________________________________
Date Purchased: _____________________________________________________________________
Outlet Name: ______________________________________________ Phone:_________________
Outlet Address: ______________________________________________________________________
Vehicle Model: _______________________________________________ Year: _______________
Spreader Type (Model):________________________________ Serial #:______________________
Length:________________________ Weight: __________________ lb/kg: _________________

Lit. No. 68660/68661, Rev. 06 5 October 1, 2018
SAFETY
Warning and Caution Label
(both sides)
Caution Label (both sides,
SWING AWAY®mount only)
SAFETY DEFINITIONS
NOTE: Indicates a situation or action that can lead
to damage to your spreader and vehicle or other
property. Other useful information can also be
described.
WARNING/CAUTION LABELS
Become familiar with and inform users about the
warning and caution labels on the spreader.
NOTE: If labels are missing or cannot be read, see
your sales outlet.
CAUTION
Indicates a potentially hazardous situation
that, if not avoided, may result in minor or
moderate injury. It may also be used to alert
against unsafe practices.
WARNING
Indicates a potentially hazardous situation
that, if not avoided, could result in death or
serious personal injury.
Warning Label

Lit. No. 68660/68661, Rev. 06 6 October 1, 2018
SAFETY
SAFETY PRECAUTIONS
Improper installation and operation could cause
personal injury and/or equipment and property
damage. Read and understand labels and the
Owner's Manual before installing, operating, or
making adjustments.
WARNING
• Driver to keep bystanders minimum of
25 feet away from operating spreader.
• Before working with the spreader, secure all
loose-fitting clothing and unrestrained hair.
• Before operating the spreader, verify that all
safety guards are in place.
• Before servicing the spreader, wait for
conveyor, auger, and spinner to stop.
• Do not climb into or ride on spreader.
WARNING
Do not install the control for this product in
the deployment path of an air bag. Refer to
vehicle manufacturer's manual for air bag
deployment area(s).
CAUTION
If rear directional, CHMSL light, or brake
stoplights are obstructed by the spreader, the
lights shall be relocated, or auxiliary directional
or brake stoplights shall be installed.
WARNING
Overloading could result in an
accident or damage. Do not exceed
GVWR or GAWR ratings as found
on the driver-side vehicle door
cornerpost. See Loading section to determine
maximum volumes of spreading material.
Code Definition
YY 2-Digit Year
MM 2-Digit Month
DD 2-Digit Day
LL 2-Digit Location Code
XXXX 4-Digit Sequential Number
ZZZZZZ 5- to 7-Digit Assembly PN
SERIAL NUMBER LABEL
WARNING
Vehicles <10,000 lb GVWR: Obstructing the
visibility from the vehicle's rear camera could
result in serious injury or damage. An auxiliary
camera system shall be installed if the
vehicle's rear camera is removed or blocked.

Lit. No. 68660/68661, Rev. 06 7 October 1, 2018
SAFETY
CAUTION
Disconnect electric and/or hydraulic power
and tag out if required before servicing or
performing maintenance.
NOTE: Lubricate grease fittings after each use.
Use a good quality multipurpose grease.
FUSES
The electrical system contains several
automotive-style fuses. If a problem should occur
and fuse replacement is necessary, the replacement
fuse must be of the same type and amperage rating
as the original. Installing a fuse with a higher rating
can damage the system and could start a fire. Fuse
Replacement, including fuse locations, is located in
the Maintenance section of this Owner's Manual.
PERSONAL SAFETY
• Remove ignition key and put the vehicle in PARK
or in gear to prevent others from starting the
vehicle during installation or service.
• Wear only snug-fitting clothing while working on
your vehicle or spreader.
• Do not wear jewelry or a necktie, and secure long
hair.
• Wear safety goggles to protect your eyes from
battery acid, gasoline, dirt, and dust.
• Avoid touching hot surfaces such as the engine,
radiator, hoses, and exhaust pipes.
• Always have a fire extinguisher rated BC handy,
for flammable liquids and electrical fires.
FIRE AND EXPLOSION
Be careful when using gasoline. Do not use gasoline
to clean parts. Store only in approved containers away
from sources of heat or flame.
CELL PHONES
A driver's first responsibility is the safe operation of
the vehicle. The most important thing you can do
to prevent a crash is to avoid distractions and pay
attention to the road. Wait until it is safe to operate
Mobile Communication Equipment such as cell phones,
text messaging devices, pagers, or two-way radios.
CAUTION
DO NOT leave unused material in
hopper. Material can freeze or solidify,
causing unit to not work properly.
Empty and clean after each use.
WARNING
Gasoline is highly flammable and gasoline
vapor is explosive. Never smoke while
working on vehicle. Keep all open flames
away from gasoline tank and lines. Wipe up
any spilled gasoline immediately.
CAUTION
• Do not operate a spreader in need of
maintenance.
• Before operating the spreader, reassemble
any parts or hardware removed for cleaning
or adjusting.
• Before operating the spreader, remove
materials such as cleaning rags, brushes,
and hand tools from the spreader.
• Before operating the spreader, read the
engine owner's manual, if so equipped.
• While operating the spreader, use auxiliary
warning lights, except when prohibited by law.
• Tighten all fasteners according to the
Torque Chart. Refer to Torque Chart for the
recommended torque values.

Lit. No. 68660/68661, Rev. 06 8 October 1, 2018
SAFETY
VENTILATION
BATTERY SAFETY
NOISE
Airborne noise emission during use is below 70 dB(A)
for the spreader operator.
VIBRATION
Operating spreader vibration does not exceed 2.5 m/s2
to the hand-arm or 0.5 m/s2to the whole body.
TORQUE CHART
1/4-20 109 154
1/4-28 121 171
5/16-18 150 212
5/16-24 170 240
3/8-16 269 376
3/8-24 297 420
7/16-14 429 606
7/16 -20
9/16-12
9/16-18
5/8-11
5/8-18
3/4-10
3/4-16
7/8-9
7/8-14 474 669
644 9091-8
1-12 704 995
1/2-13
1/2-20
11.9
13.7
24.6
27.3
43.6
26.9
53.3
93
148
49.4
69.8
77.9
106.4
120.0
8.4
9.7
17.4
19.2
30.8
35.0
49.4
55.2
75.3
85.0
M6 x 1.00
M12 x 1.75
M8 x 1.25
M14 x 2.00
M10 x 1.50
M27 x 3.00
M22 x 2.50
M30 x 3.50
M24 x 3.00
M20 x 2.5011.1
19.5
38.5
67
107
7.7
613
778
1139
1545
450
428
562
796
1117
M33 x 3.50
M36 x 4.00
2101
2701
1468
1952
325
M16 x 2.00 231 167
M18 x 2.50 318222
Recommended Fastener Torque Chart
Size Size
Torque (ft-lb)
Grade
5
Grade
8
Metric Fasteners Class 8.8 and 10.9
These torque values apply to fasteners
except those noted in the instructions.
Torque (ft-lb)
Grade
5
Grade
8
Size Size
Torque (ft-lb)
Class
8.8
Class
10.9
Torque (ft-lb)
Class
8.8
Class
10.9
Inch Fasteners Grade 5 and Grade 8
CAUTION
Batteries normally produce explosive gases
which can cause personal injury. Therefore,
do not allow flames, sparks, or lit tobacco
to come near the battery. When charging or
working near a battery, always cover your
face and protect your eyes, and also provide
ventilation.
• Batteries contain sulfuric acid, which burns
skin, eyes, and clothing.
• Disconnect the battery before removing or
replacing any electrical components.
CAUTION
Read instructions before assembling.
Fasteners should be finger tight until
instructed to tighten according to the Torque
Chart. Use standard methods and practices
when attaching spreader, including proper
personal protective safety equipment.
WARNING
Vehicle exhaust contains lethal fumes.
Breathing these fumes, even in low
concentrations, can cause death. Never
operate a vehicle in an enclosed area without
venting exhaust to the outside.

Lit. No. 68660/68661, Rev. 06 9 October 1, 2018
LOADING
5.4 ft3
9.0 ft3
1.8 ft3
Model 110
5.9 ft3
8.0 ft3
3.1 ft3
Model 1000
7. 2 f t 3
10.6 ft3
3.1 ft3
Model 2000
This Owner's Manual covers vehicles that have been
recommended for carrying the tailgate spreader. Please
see your local dealer for proper vehicle applications.
CERTIFICATION
WARNING
Overloading could result in an accident or
damage. Do not exceed GVWR or GAWR as
found on the driver-side cornerpost of vehicle.
WARNING
New untitled vehicle installation of a spreader
requires National Highway Traffic Safety
Administration altered vehicle certification
labeling. Installer to verify that struck load of
snow or ice control material does not exceed
GVWR or GAWR rating label and complies
with FMVSS.
CAUTION
Read and adhere to manufacturer's
ice-control material package
labeling, including Material Safety
Data Sheet requirements.
MATERIAL WEIGHTS
Density
Material (lb/ft3)(lb/yd
3)(kg/m 3)
Salt 80 2160 1282
Sand 100 2700 1602
Material densities are approximate and are based on dry,
loose material. It is the responsibility of the operator to
know the weight of the material to be spread and the vehicle
carrying capacity.

Lit. No. 68660/68661, Rev. 06 10 October 1, 2018
MOUNTING THE SPREADER
NOTE: The spreader shall be installed according
to instructions supplied. Your local outlet is
trained to provide this service and service your
spreader with factory original parts.
FIXED MOUNT SPREADER
1. Install the left and right top brackets to the truck
bed rail with two 1/2" cap screws, four 1/2" flat
washers, and two 1/2" locknuts per side. Secure
the small mounting flange of each top bracket
to the bed rail using two 5/16" cap screws, two
5/16" flat washers, and two 5/16" locknuts per side.
NOTE: Pay special attention when drilling or
clamping dissimilar metals to aluminum bodies.
Galvanic corrosion can occur if not handled
properly. Contact vehicle manufacturer for
recommended attachment practices.
2. Place the spreader on the bumper and line up the
holes in the bottom feet with the holes in the bumper.
3. Attach the spreader to the top brackets using two
3/8" cap screws and two 3/8" locknuts per side.
4. Attach the spreader to the bumper of the truck
using one 3/8" cap screw, one 3/8" flat washer,
and one 3/8" locknut per side.
5. Plug the spreader harness into the vehicle harness.
CAUTION
During removal or mounting, securely grip
spreader to avoid dropping.
SWING AWAY®SPREADER
1. Fasten the left and right top brackets along
with any shims to the truck bed rail with two
1/2" cap screws, two 1/2" flat washers, and two
1/2" locknuts per bracket. Install the two 5/16" cap
screws and 5/16" locknuts to the side of the top
brackets.
NOTE: Pay special attention when drilling or
clamping dissimilar metals to aluminum bodies.
Galvanic corrosion can occur if not handled
properly. Contact vehicle manufacturer for
recommended attachment practices.
2. Place the left and right base plates on the bumper
of the truck and line up with the holes in the
bumper.
3. Attach the base plates to the bumper using three
3/8" cap screws, three 3/8" plain washers, any
shims, and three 3/8" locknuts per side.
4. Place the spreader on the base plates and insert
the hinge pins. Secure the hinge side by installing
one 1/4" cap screw and 1/4" locknut through the
hole in the base plate boss and hinge pin.
5. Install hitch pin clip through the base plate boss
and the removable hinge pin.
6. Plug the spreader harness into the vehicle
harness.
7. Plug the center high mounted stoplight (CHMSL)
cord into the vehicle stoplight harness.

Lit. No. 68660/68661, Rev. 06 11 October 1, 2018
OPERATING THE SPREADER
CAUTION
Do not swing spreader with material in the
hopper.
NOTE: Always place the cover on the hopper to
prevent moisture buildup. Do not let the spreader
sit idle with material in the hopper for an extended
period of time. This can cause the material to
compact and reduce or stop the flow of material.
SPREADER CONTROLS
There are two control options: the ON/OFF Control
and the Variable Speed Control.
ON/OFF Control
Starting and Stopping the Motor
1. Turn the control ON to start the motor. The motor
will start immediately. The power switch will
remain in the "ON" position.
2. Turn the control OFF to stop the motor. The power
switch will remain in the "OFF" position.
The ON/OFF switch operates as an emergency
stop when required.
NOTE: The truck ignition must be ON to start the
spreader.
NOTE: If the truck ignition is turned OFF while the
spreader is running, the motor will stop.
NOTE: Always place the cover on the hopper to
prevent moisture buildup. Do not let the spreader
sit idle with material in the hopper for an extended
period of time. This can cause the material to
compact and reduce or stop the flow of material.
WARNING
Before starting the spreader, the driver shall
verify that all bystanders are a minimum of
25 feet away from operating spreader.
ON
OFF
RESET
15
POWER
Circuit Breaker
(resets control)
ON/OFF Control Switch
(emergency stop
when required)

Lit. No. 68660/68661, Rev. 06 12 October 1, 2018
OPERATING THE SPREADER
Variable Speed Control
Starting and Stopping the Motor
1. Turn the control ON to start the motor. The motor
will start immediately. The power switch will
remain in the "ON" position. The spreader will
operate at the speed selected on the speed dial.
2. To increase the speed of the spinner, turn the
speed dial clockwise.
3. To decrease the speed of the spinner, turn the
speed dial counterclockwise.
4. Turn the control OFF to stop the motor. The power
switch will remain in the "OFF" position.
The ON/OFF switch operates as an emergency
stop when required.
NOTE: The truck ignition must be ON to start the
spreader.
NOTE: If the truck ignition is turned OFF while the
spreader is running, the motor will stop.
NOTE: Always place the cover on the hopper to
prevent moisture buildup. Do not let the spreader
sit idle with material in the hopper for an extended
period of time. This can cause the material to
compact and reduce or stop the flow of material.
WARNING
Before starting the spreader, the driver shall
verify that all bystanders are a minimum of
25 feet away from operating spreader.

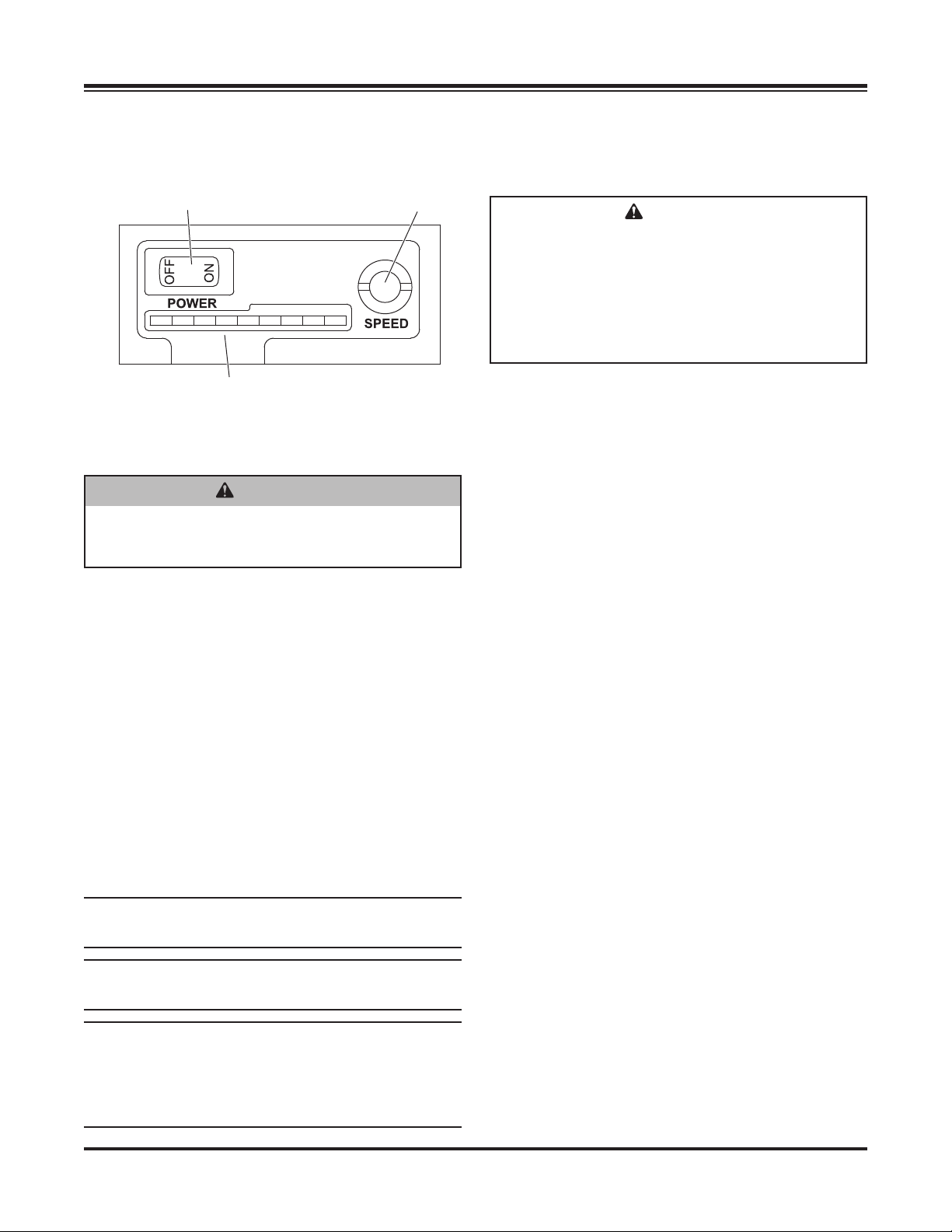

Speed
Control
Indicator Lights (Show actual motor
speed relative to total speed range.)
ON/OFF Switch
(emergency stop when required)
DRIVING AND SPREADING
ON SNOW AND ICE
Follow your vehicle owner's manual instructions for
driving in snow and ice conditions. Remember, when
you drive on snow or ice, your wheels will not get good
traction. You cannot accelerate as quickly, turning
is more difficult, and you will need longer braking
distance. Wet and hard packed snow or ice offer the
worst tire traction. It is very easy to lose control. You
will have difficulty accelerating. If you do get moving,
you may have poor steering and difficult braking,
which can cause you to slide out of control.
Here are some tips for driving in these conditions:
• Drive defensively.
• Do not drink, then drive or spread ice-control
materials.
• Spread or drive only when you have good visibility
for operating a vehicle.
• If you cannot see well due to snow or icy
conditions, you will need to slow down and keep
more space between you and other vehicles.
• Slow down, especially on higher-speed roads.
Your headlamps can light up only so much road
ahead.
• If you are tired, pull off in a safe place and rest.
• The spreader's size and location reduce driver
visibility to the rear of the vehicle. We recommend
an OSHA-compliant backup alarm for all governed
employers.
• Keep your windshield and all glass on your vehicle
clean to see around you.
• Dress properly for the weather. Wear layers of
clothing; as you get warm, you can take off layers.
CAUTION
Drinking and then driving or spreading is
very dangerous. Your reflexes, perceptions,
attentiveness, and judgment can be affected
by even a small amount of alcohol. You can
have a serious or even fatal collision if you
drive after drinking. Please do not drink then
drive or spread ice-control materials.

Lit. No. 68660/68661, Rev. 06 13 October 1, 2018
REMOVING THE SPREADER
FIXED MOUNT
Removing the Spreader
1. Unplug the spreader and CHMSL (if equipped).
2. Remove the two 3/8" cap screws, washers, and
locknuts that fasten the spreader to the bumper of
the vehicle.
3. Use an additional person or clamps to support the
unit, and then remove the four 3/8" cap screws
and locknuts that fasten the spreader to the top
brackets.
4. Remove the spreader from the vehicle and stand it
in an upright position. This may require additional
support.
Removing the Brackets
1. Remove the two 1/2" cap screws, washers,
and locknuts that fasten each top bracket to the
bed rail.
2. Remove the two 5/16" cap screws, washers, and
locknuts that fasten each top bracket to the side of
the bed rail.
3. Package the brackets with all hardware and store
them with the unit.
CAUTION
During removal or mounting, securely grip
spreader to avoid dropping.
SWING AWAY®MOUNT
Removing the Spreader
1. Unplug the spreader and CHMSL (if equipped).
2. Remove the hitch pin from the latch-side hinge pin.
3. Remove the 1/4" cap screw and locknut from the
hinged-side hinge pin.
4. Use an additional person to support the unit and
remove both hinge pins.
5. Remove the spreader from the vehicle and stand it
in an upright position. This may require additional
support.
Removing the Top Brackets
1. Remove the two 1/2" cap screws, washers,
and locknuts that fasten each top bracket to the
bed rail.
2. Remove the two 5/16" cap screws and locknuts
that fasten each top bracket to the side of the
bed rail.
3. Mark the location of any shims to aid in
reinstallation.
4. Package the brackets with all hardware and store
with the unit.
Removing the Base Plates
1. Remove the four 3/8" cap screws, washers,
locknuts, and any shims that fasten the base plate
to the bumper.
2. Mark the location of the shims to aid in
reinstallation.
3. Package the base plates with all hardware and
store with the unit.
CAUTION
Empty the hopper before removing the
spreader.

Lit. No. 68660/68661, Rev. 06 14 October 1, 2018
MAINTENANCE
PRESEASON CHECK
Before the unit is placed in service for the ice control
season, make sure that it is in top working condition.
Here are some tips for getting your spreader ready.
Remove the motor cap assembly and inspect the
following:
1. Check the condition of the drive belt. Any cracks
or damaged teeth indicate the need for a new belt.
See "Drive Belt Replacement" in this section.
2. Check the motor connection terminals for damage
or corrosion. Clean or replace as necessary and
coat with dielectric grease.
3. Check the condition of the drive shaft bearings by
first removing the drive belt. To remove the drive
belt see "Drive Belt Replacement" later in this
section. With the drive belt removed, spin the drive
shaft by hand. Any excess noise or roughness in
either bearing may indicate bearing failure.
4. If bearings pass inspection be sure to thoroughly
grease them with a good quality multipurpose
grease. See "Bearing and Set Screw
Maintenance" later in this section.
5. Verify that all drive sprocket set screws are tight.
Verify that all other fasteners are tight. Refer to the
torque chart in the Safety section of this manual.
6. Check the condition of the motor cap assembly
seal. This seal is very important to the reliability of
the unit. Replace the seal if needed.
7. Check the condition of the spinner disk. If the vanes
are excessively worn, the unit may not spread as
intended. Replace the spinner if necessary.
8. Replace the motor cap assembly and locknuts.
9. Verify that vehicle stoplights and spreader CHMSL
are visible and working properly.
AFTER EACH USE
Disconnect the electrical plug located between the
spreader and the truck before cleaning.
1. Thoroughly clean the unit inside and out using
tap water or a high-pressure washer. Avoid
spraying water into bearings, motor, and electrical
connections. A long-handled brush can be used to
aid cleaning.
2. Apply dielectric grease to all electrical connections
to prevent corrosion.
3. Lubricate the drive shaft bearings with a good
quality multipurpose grease.
CAUTION
• Do not operate a spreader in need of
maintenance.
• Before operating the spreader, reassemble
any parts or hardware removed for cleaning
or adjusting.
• Before operating the spreader, remove
materials such as cleaning rags, brushes,
and hand tools from the spreader.
• Empty and clean spreader after every use.
Material can freeze or solidify, causing unit
to not work properly.
CAUTION
Disconnect electric power at spreader
electrical wiring harness connection and tag
out if required before servicing or performing
maintenance.

Lit. No. 68660/68661, Rev. 06 15 October 1, 2018
MAINTENANCE
DRIVE BELT REPLACEMENT
1. Disconnect the electrical plug between the
spreader and truck.
2. Remove the motor cap assembly.
3. Loosen the four Phillips head screws that fasten
the motor mount to the drive support.
4. Slide the motor toward the drive shaft.
5. Remove the belt and replace with a new one.
6. Slide the motor mount away from the drive shaft
until the proper tension of the drive belt is achieved.
After tightening the belt should easily deflect 3/8".
7. Tighten the four Phillips head screws and replace
the motor cap.
CAUTION
Overtightening the belt may result in damage
to the motor or bearings.
Phillips Head Screws
Belt deflects
approx. 3/8"
POSTSEASON MAINTENANCE
Before storing the unit for the off-season, taking a few
minutes to do the following will extend the service life
of your spreader:
1. Thoroughly clean the unit inside and out.
2. Apply dielectric grease to all electrical connections
to prevent corrosion.
3. Grease the drive shaft bearings.
4. Oil or paint all bare metal surfaces.
5. Place the lid on the hopper body of the unit and
secure the latch.
6. Store the unit in an upright position; stabilize it
with supports if necessary. If the unit is stored
outdoors, cover the unit and place it on blocks to
avoid ground moisture.
CAUTION
Disconnect electric power at spreader
electrical wiring harness connection and tag
out if required before servicing or performing
maintenance.
CAUTION
Disconnect electric power at spreader
electrical wiring harness connection and tag
out if required before servicing or performing
maintenance.

Lit. No. 68660/68661, Rev. 06 16 October 1, 2018
MAINTENANCE
FUSE REPLACEMENT
See the Harness Wiring Diagram on the following
page for fuse location.
If a problem should occur and fuse replacement is
necessary, the replacement fuse must be of the same
type and amperage rating as the original. Installing a
fuse with a higher rating can damage the system and
could start a fire.
RECYCLE
When your spreader has performed its useful life,
the majority of its components can be recycled as
steel. Gear oil shall be disposed of according to local
regulations. Balance of parts made of plastic shall be
disposed of in customary manner.
BEARING & SET SCREW MAINTENANCE
1. Tighten all set screws shown after every 60 hours
of use.
2. Grease the top and bottom drive shaft bearings as
shown below, using a good quality multipurpose
grease. Due to the harsh environment of the
bottom bearing, it will require more maintenance
than the top bearing.
Lubricate drive shaft bearings with
a good quality multipurpose grease.
Top Bearing
Set Screw
Shaft Pulley
Set Screw
Motor Pulley
Set Screw
Bottom Bearing: Grease
after every 8 hours of use.
Top Bearing: Grease after
every 60 hours of use.
Bottom Bearing
Set Screw
Spinner
Set Screw
Auger
Set Screw
CAUTION
Disconnect electric power at spreader
electrical wiring harness connection and tag
out if required before servicing or performing
maintenance.

Lit. No. 68660/68661, Rev. 06 17 October 1, 2018
CHMSL
White
Vehicle
Harness
White
Black
Orange
Black
Black
White
Black
Battery
Motor
+
_
Battery
Harness
Spreader
Harness
Fuse
Fuse Holder Butt
Connector
Red
Power Lead
Black
To
CHMSL
Vehicle
Stoplight
Harness
CHMSL
Extension
Cord
White
Black
Red
Black
Speed
Control
12V DC (0.4kW motor)
Vehicle Wiring Harness
Spreader Wiring Harness
2-PIN HARNESS WIRING DIAGRAM – LOW-PROFILE SPREADERS

Lit. No. 68660/68661, Rev. 06 18 October 1, 2018
TROUBLESHOOTING GUIDE
Problem Possible Cause Suggested Solution
Spinner does not spin.
No power to the spreader control.
Spreader control is turned OFF. Turn the spreader control ON.
Spreader control circuit breaker is
tripped (ON/OFF control only).
Turn the control OFF. Reset the circuit
breaker. Turn the control ON.
Battery lead in-line fuse is blown. Change the fuse and inspect for short
circuits.
Battery connection is poor. Clean or replace the ring terminal. Coat the
terminal with dielectric grease.
Battery wiring harness is damaged. Repair or replace the battery wiring harness
as required.
Spinner does not spin.
Motor is not turning.
12V DC power is present at the
Red wire to Red wire connection
located near the rear of the
spreader control.
Spinner, auger, or drive shaft is
jammed or overloaded.
Unplug the spreader harness. Turn the
spinner by hand. If the shaft will not turn
freely, check the spinner and auger for any
obstructions or frozen material. Clear all
obstructions.
Spinner shaft bearings are damaged. Unplug the spreader harness. Remove
the drive belt and turn the spinner by
hand. If the shaft will not turn freely, check
for obstructions. If no obstructions exist,
lubricate or replace the spinner bearings.
Motor is damaged. Turn the spinner by hand. If the shaft will
turn freely and the belt and pulleys are in
working order, check for 12V DC at the
orange wire to white wire connection located
near the motor. If the motor has 12V DC, the
problem is in the motor. Replace the motor.
Spreader control is damaged. Check for 12V DC at the white wire to white
wire connection at the back of the spreader
control. If the control does not have power,
the problem is in the control. Replace the
control.
Wiring harness is damaged. Check for 12V DC at the white wire to white
wire connection at the back of the spreader
control. If the control has 12V DC, check
for 12V DC at the white wire to orange
wire connection located near the motor. If
the motor does not have power, then the
problem is the spreader harness. Replace or
repair the harness as necessary.
Spinner does not spin when
load is applied.
Motor is turning.
Drive belt is loose or broken. Remove the motor cap and check for a
broken or loose drive belt. Tighten or replace
the belt as necessary.
Drive pulley is loose. Remove the motor cap and verify that the
motor and drive pulley set screws are tight.
For control operation instructions, refer to the
Operating the Spreader section of this manual.

Lit. No. 68660, Rev. 06 October 1, 2018
Copyright © 2018 Douglas Dynamics, LLC. All rights reserved. This material may not be reproduced or copied, in whole or in part, in any
printed, mechanical, electronic, film, or other distribution and storage media, without the written consent of Western Products. Authorization
to photocopy items for internal or personal use by Western Products outlets or spreader owner is granted.
Western Products reserves the right under its product improvement policy to change construction or design details and furnish equipment
when so altered without reference to illustrations or specifications used. Western Products or the vehicle manufacturer may require or
recommend optional equipment for spreaders. Do not exceed vehicle ratings with a spreader. Western Products offers a limited warranty
for all spreaders and accessories. See separately printed page for this important information. The following are registered (®) trademarks of
Douglas Dynamics, LLC: SWING AWAY®, WESTERN®.
Printed in U.S.A.
A DIVISION OF DOUGLAS DYNAMICS, LLC
Western Products
PO Box 245038
Milwaukee, WI 53224-9538
www.westernplows.com
