Westgate LFX-LG-50-150W K Series Service manual

INSTALLATION INSTRUCTION MANUAL
LED FLOOD LIGHT, 100-277&200-480VAC
MODELS:
LFX-LG-50-150W-xxK, LFX-LG-50-150W-xxK-480V;
LFX-XL-150-300W-xxK, LFX-XL-150-300W-xxK-480V
Model description :xx=CCT (30=3000K, 40=4000K, 50=5000K)
Model number parameter list:
1. Introduction

This LED Flood light uses the latest in solid state lighting technology for long life, low maintenance, and high
efficiency.


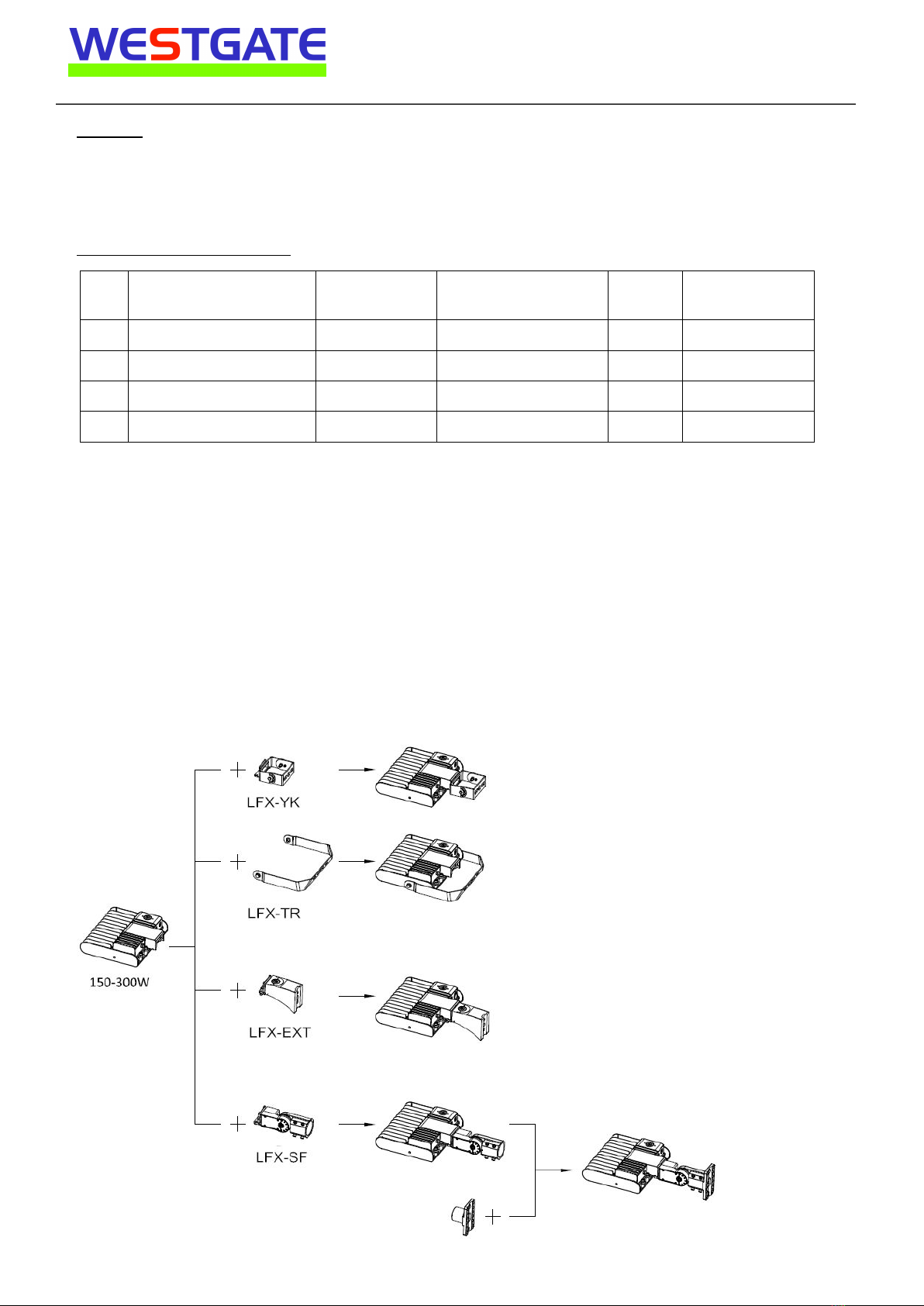

The same as traditional HID lighting. 150~300W there are five different mounting options, suitable for various
occasion.
 Use
100-
2
77V&200-480
V, 50/60Hz AC supply
.
Suitable for using in the following
locations:
• Ambient Temp: -40~+104°F
• Wet Locations
Note: Save these instructions for future reference.
Item Model Input Voltage Watt
Input
Current
Maximum Weight
1 LFX-LG-50-150W-xxK-480V 200-480V AC 50W/80W/100W/150W 0.8A 9 lbs
2 LFX-LG-50-150W-xxK 100-277V AC 50W/80W/100W/150W 1.8A 8 lbs
3 LFX-XL-150-300W-xxK 120-277V AC 150W/200W/240W/300W 3.5A 13.2 lbs
4 LFX-XL-150-300W-xxK-480V 277-480V AC 150W/200W/240W/300W 1.8A 16.8 lbs
WESTGATE MFG., INC | 2462 E 28th Street, Vernon, CA 90058 USA |1-323-826-9490|[email protected]

2. Installation
For supply connections use wire rated for at least 194°F
Installation Steps:
Refer to the following diagram when you install the fixture. Five installation methods, directly fix to the mounting surface or fix
to a post with a knuckle.
1.Directly fix to mounting surface
Warning:
To avoid the risk of fire, explosion, or electric shock, this product should be installed, inspected, and
maintained by a qualified electrician only, in accordance with all applicable electrical codes.
All the products can not be installed on woods.
Warning:
To avoid electric shock:
•Make sure electrical power is OFF before and during installation and maintenance.
•Luminaire must be connected to a wiring system with an equipment-grounding conductor.
Warning:
To avoid explosion:
•Make sure the supply voltage is the same as the rated luminaire voltage.
•Do not install where the marked operating temperatures exceed the ignition temperature of the hazardous
atmosphere.
•Do not operate in ambient temperatures above those indicated on the luminaire nameplate.
•Keep lens tightly closed when in operation.
WESTGATE MFG., INC | 2462 E 28th Street, Vernon, CA 90058 USA |1-323-826-9490|[email protected]

2. (1)Mounting with a Slip fitter:
WESTGATE MFG., INC | 2462 E 28th Street, Vernon, CA 90058 USA |1-323-826-9490|[email protected]

(2)Mounting with Slip fitter and Wall-mounted adapter:
WESTGATE MFG., INC | 2462 E 28th Street, Vernon, CA 90058 USA |1-323-826-9490|[email protected]

3. Mounting with Arm.
WESTGATE MFG., INC | 2462 E 28th Street, Vernon, CA 90058 USA |1-323-826-9490|[email protected]

4. Wall mounted installation.
The mounting method of the straight arm is added to a wall mounted fixing plate, and the fixing plate is mounted
on the wall, and the fixing plate is fixed by a nut.
Without sensor or photocell
WESTGATE MFG., INC | 2462 E 28th Street, Vernon, CA 90058 USA |1-323-826-9490|[email protected]

With sensor
With photocell
With photocell(0-10VDC)
WESTGATE MFG., INC | 2462 E 28th Street, Vernon, CA 90058 USA |1-323-826-9490|[email protected]

Wiring diagram for plug-in sensor With Potentiometer
WESTGATE MFG., INC | 2462 E 28th Street, Vernon, CA 90058 USA |1-323-826-9490|[email protected]

Positions for Sensor and Photocell installed:
3. Function description of Wattage Tunable:
If the luminaire is designed to be wattage tunable.Please unscrew the knob cap before using the watt selectable
function. According to the watt selectable label shown in Fig. 1,please toggle the DIP switch 1,2,3 to select the
corresponding watt. Screw the knob cap after using the watt selectable function.
After installation, please
check whether the lighting fixture is firmly fixed.
check whether wires are connected correctly.
At last, turn on the power, and check if the lighting fixture works well. If not, please turn off the power and
contact with local dealer.
Reserved 1/2"-14T thread hole for sensor Reserved the hole for Photocell
Wattage Adjustable
Fig. 1
OR
