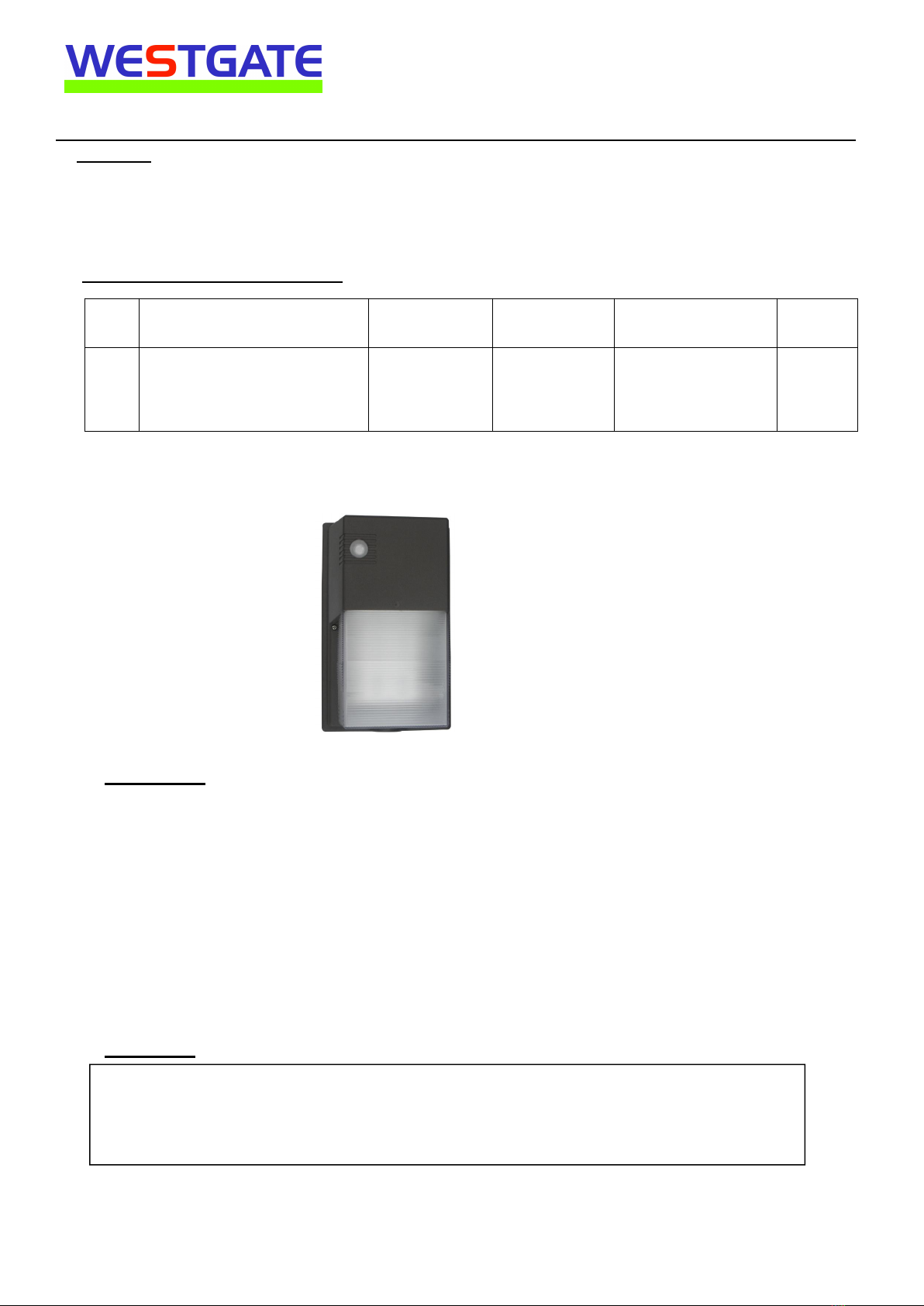

INSTALLATION INSTRUCTION MANUAL
LED WALL PACK LIGHT, 120-277V AC
SERIES:
LSWX-5-30W-xxK-PC
xx=CCT (30=3000K, 40=4000K, 50=5000K)
Model number parameter list:
CAUTION: This product use an input 120-277VAC driver of wide range voltage.
1. Introduction
This LED Wall-Packs light uses the latest in solid state lighting technology for long
life, low maintenance, and high efficiency.
An internal power-factor-corrected switch-mode supply allows it to be used from
any nominal 120V-277V, 60Hz AC supply without any variation in light output.
Suitable for use in the following locations:
• Ambient Temp: -4~+104°F
• Wet Locations
Note:Save these instructions for future reference.
2. Installation
Item Model Input Voltage Power Factor Watt Input
Current
ALSWX-5-30W-xxK-PC 120-277V AC ≥0.9 5W/10W/20W/30W 0.32A
Warning:
To avoid the risk of fire, or electric shock, this product should be installed, inspected,
and maintained by a qualified electrician only, in accordance with all applicable
electrical codes.
WESTGATE MFG., INC | 2462 E 28th Street, Vernon, CA 90058 USA |1-323-826-9490|[email protected]

For supply connections use wire rated for at least 194°F
Installation Steps:
Warning:
To avoid electric shock:
•Be certain electrical power is OFF before and during installation and maintenance.
•Luminaire must be connected to a wiring system with an equipment-grounding
Warning:
To avoid explosion:
•Make sure the supply voltage is the same as the rated luminaire voltage.
•Do not operate in ambient temperatures above those indicated on the luminaire nameplate.
•Keep lens tightly closed when in operation.
Step1: Turn on the screws on
both sides of the lamp shade,
then take off the lamp shade.
Step2: Loosening the two
screws as shown in the picture,
take off the driver box.
Step3: Using tools to open the installation
position of Junctions Box, then fix the lamp
on Junctions Box.
Step4: The driver box back to its original position.
Step5: Install shade.
WESTGATE MFG., INC | 2462 E 28th Street, Vernon, CA 90058 USA |1-323-826-9490|[email protected]

After installation, please
check whether the lighting fixture is firmly fixed.
check whether wires are connected correctly.
At last, turn on the power, and check if the lighting fixture works well. If not, please turn off the
power and contact with local dealer.
According to the watt selectable label shown in the diagram,please toggle the DIP
switch 1,2,3 to select the corresponding watt.
Wattage tunable
Diagrams and Methods of Watt Selectable Function:
