WESTHILL BIKES TERRAIN User manual

Electric Bike User Manual
westhillbikes.com
HAVE A QUESTION? NEED HELP?
Contact us on Facebook for a quick reply.
TERRAIN

fb.com/westhillbikes • westhillbikes.com2
Warranty
Westhill bikes are covered by a limited 3-year warranty. Aside from general cycle maintenance, any
work to the motor should be carried out by a Westhill technician or authorised dealer.
1. Warranty periods
The statutory warranty valid at the time of
delivery applies to:-
Frame : 3 years
Motor: 2 years
Battery, Charger & Controller: 1 year
2. Warranty conditions
2.1 Requirements
There is a defect in materials or workmanship
or an error of information.
The cause of the change in the product is
neither natural nor related to its functions, wear
and tear or ageing.
The damage was not caused by use of the bike
for other than the intended purpose.
2.2 Warranty exclusions
Damage caused by improper use or force
majeure.
All parts subject to function-related wear and
tear, unless this is the result of a defect in the
manufacturing process or material.
Damage which results from improper or
insufficient care and repairs, alterations or the
replacement of parts by persons other than
trained professionals.
Accidental damage or other external effects,
provided these are not the result of defective
products or information.
Repairs resulting from the use of second-hand
parts or damage caused by this use.
Damage resulting from competitive use.
Special fittings, accessories or non-standard
components, especially technical modifications.
Observing the required service intervals is also
a condition of any warranty claims you may
make.
2.3 The following are considered wear
parts under the statutory warranty:
Tyres
Rims in combination with rim brakes
Spokes
Brake pads
Chains and toothed belts
Chain wheels, sprockets, bottom brackets and
jockey wheels
Sliding bearings
Lamps for lighting system
Handlebar tape/handle grips
Hydraulic oils and lubricants
Gear-shift cables and brake cables
Paint finishes
Batteries (depletion of capacity to 60% is
acceptable within first two years)
(1) Definitions
In this warranty the following terms shall have
the following meanings: Westhill Bikes shall
mean FW3 Limited; Westhill Product shall
mean the FW3 Ltd; Product Warranty Period
shall mean a period commencing on the original
date of purchase as new.
(2) Circumstances outside our control
FW3 Ltd shall not be liable for any failure
in service as a result of FW3 Ltd, or FW3
Ltd agents employees or contractors being
delayed, prevented or hindered in the
performance of its obligations by reason of any
circumstances beyond its reasonable control.
Such circumstances include, but are not limited
to fire, flood, Act of God, and civil disorder.
(3) Disclaimers
FW3 Ltd shall not be liable for any indirect,
incidental, special or consequential damages
losses or expenses (including without limitation
lost profits, loss of use or loss of data, goodwill,
reputation or lost business) arising directly or
indirectly, from the purchase use or sale of the
Product, whether or not FW3 Ltd was advised
or aware of the possibility of such damages,
losses or expenses. It is the customer’s
responsibility to make lawful use of the
products FW3 Ltd supplies.

3fb.com/westhillbikes • westhillbikes.com
Westhill Bikes Warranty
Register Now Through Facebook
The easiest way to register your new bike is through Facebook. Simply visit
our page www.fb.com/westhillbikes or scan the QR code below with your
mobile phone and message us with this information:
Your Name:
Your Email Address:
Your Postal Address:
Bike Model & Colour:
Purchase Date:
Where You Purchased From:
Be sure to register right away so your bike is covered!
Don’t have Facebook? Email the above details to [email protected]
to activate your Warranty.

fb.com/westhillbikes • westhillbikes.com4
Contents
Warranty ..................................................................................................... 2
Warranty Registration ............................................................................... 3
Contents ...................................................................................................... 4
Attention ..................................................................................................... 5
1 Check Before Use ....................................................................................... 5
2 Product Information ................................................................................... 6
2.1 Product Performance .................................................................................... 6
2.2 Product Specifications................................................................................... 6
3 Assembly & Adjustments........................................................................... 7
3.1 Assembling & Adjusting The Handlebar........................................................ 7
3.2 Adjusting The Saddle .................................................................................... 8
3.3 Adjusting The Wheels ................................................................................... 8
3.4 Adjusting And Maintaining The Breaks ......................................................... 9
3.5 Gears ............................................................................................................ 9
3.5.1 Gear Display .................................................................................................. 9
3.5.2 Adjusting The Rear Derailleur..................................................................... 10
4 The Battery ............................................................................................... 11
4.1 Input The Battery ........................................................................................ 11
4.2 Charging The Battery .................................................................................. 12
4.3 Battery & Charger Maintenance.................................................................. 12
4.4 Battery & Charger Precautions.................................................................... 12
4.4.1 Battery......................................................................................................... 12
4.4.2 Charger........................................................................................................ 12
5 How To Use Bike Controls ....................................................................... 13
5.1 Control Screen Installation .......................................................................... 13
5.2 Bike Controls At A Glance........................................................................... 14
5.3 Turning The Bike On/Off ............................................................................. 14
5.4 Battery Charge Indicator ............................................................................. 14
5.5 Increasing/Decreasing Speed...................................................................... 15
5.6 Showing The Mileage ................................................................................. 15
5.7 Turning On The Headlight & Screen Backlight ........................................... 16
5.8 Walk Mode.................................................................................................. 16
5.9 Error Codes ................................................................................................. 17
5.10 Changing The Settings ................................................................................ 17
5.11 Caution Whilst Parked................................................................................. 18

5fb.com/westhillbikes • westhillbikes.com
6 Bicycle Inspection & Care......................................................................... 18
6.1 Regular Cleaning ......................................................................................... 18
6.2 Regular Maintenance .................................................................................. 18
6.3 Lubricating The Bike.................................................................................... 19
Attention
• Do not operate this electric bike without fully reading and understanding its
operation and limitations.
• Before riding each time ensure that all parts are in good order. If you have any
questions or concerns, please contact us via Facebook chat or by email.
• Ensure you observe traffic rules and regulations when using this electric bike.
• Passengers cannot be carried.
• When riding in rain, snow or slippery conditions reduce your speed and increase
the distance between yourself and other vehicles.
• We advise against performing maintenance operations that involve removing parts
or components. If this is necessary, please contact us for guidance.
• Do not ride through deep puddles. Water could enter the hub motor, causing short
circuits and irreparable damage.
• Do not allow individuals who are unfamiliar with the features and functions of this
e-bike to operate it without proper instruction.
• Do not modify the e-bike by yourself.
1. Check Before Use
• Is the tyre pressure [3.4 - 5.1 bar] correct?
• Are the breaks working correctly?
• Are the batteries sufficiently charged?
• Is the handlebar attachment and saddle post correctly inserted and tightened?
• Are the wheel hub mounting nuts correctly tightened?
• Is the bell working correctly?

fb.com/westhillbikes • westhillbikes.com6
2. Product Information
2.1 Product Performance
This e-bike is fitted with a high quality brushless motor, intelligent operating system,
high quality lithium battery, freewheel, power display unit and electric cut off when
braking.
2.2 Product Specifications
Bike Specifications
Model AEC-TDE16Z
Motor Specifications
Type Brushless
Dimensions 1800 x 650 x
1070 mm Rated Power 250 w
Wheel
Diameter 660 mm Un-Load RPM 245 ± 10 rpm
Wheelbase 1120 mm Rated Voltage 36 v
Rated Load 75 kg Max Torque 15 N.m
Max Rider
Weight 95 kg / 15 st Speed Range 0~25 Km/h
Range Per
Charge 70 km
Controller
Under Voltage
Value 31.5 ± 0.5 v
Weight 23 kg Over Current Value 15±0.5 A
Battery Spec
Type Lithium-ion
Charger
Current AC110 v-240 v
50-60 hZ
Capacity 10 Ah Output DC41.7 v
Rated
Voltage 36 v
Packing
1450 x 270 x 770 mm
Note: Maximum travel distance on a fully charged battery is measured at a condition
of 20°C, no wind, flat road, total bike weight 75Kg, and 25km/h speed. This will vary
according to load, road conditions, wind direction, temperature, braking and restarts,
tyre pressure and prompt battery charging. To obtain the maximum travel distance, we
suggest you check all factors within your control, including overloading, driving style,
tyre pressure and timely battery charging.

7fb.com/westhillbikes • westhillbikes.com
3. Assembly & Adjustments
3.1 Assembling And Adjusting The Handlebar
• Place the handlebar onto the handlebar stem, place on the cover, and fix with the
four screws provided. The tighten torque should not be less than 18 Nm.
Handlebar
stem cover
Hexagon socket screws
Handlebar stem
• To align the handlebars, face your bike and hold the front wheel between your
legs. Turn the handlebars so that they are perpendicular to the front wheel.
• Tighten the screw that fixes the handlebar attachment to the frame. The
tightening torque should be no less than 18 Nm.
Handlebar
stem screw

fb.com/westhillbikes • westhillbikes.com8
3.2 Adjusting The Saddle
• The saddle post must be inserted to at least the circular safety mark
engraved on the tube (shown below).
• An ideal saddle height is when the knee is at a soft bend when you are
sat on the saddle with your foot on the pedal at it’s lowest point. Adjust
the saddle to this height.
• The saddle should be parallel to the ground for maximum comfort
• The tightening torque for the saddle mounting screw and saddle post
mounting screw should not be less than 18 Nm.
Quick release
Safety mark
(exaggerated for
illustration)
3.3 Adjusting The Wheels
• Tighten the screws to make sure the front and back wheels are fixed to
the front fork and frame.
• Recommended tightening torques are as follows:
Front wheel hub: 18 Nm
Rear wheel hub: 30 Nm

9fb.com/westhillbikes • westhillbikes.com
3.4 Adjusting And Maintaining The Brakes
• Make sure the rotors are true. Spin the wheel and, sighting against
the pads, watch for wobbles. If the rotor clears the pads and calliper,
the bend probably isn’t worth straightening. If you spot a warp, try to
straighten it by clamping a clean adjustable wrench along the rotor and
bending toward true. Make sure everything that touches the rotor is
clean. You don’t want any grease there to reduce the grip.
• If your brakes squeal, something is probably loose. Check all bolts
holding the rotor on, as well as the calliper bolts and adapter bolts (if
your bike is fitted with one).
• If everything’s snug, the rotor and pads should be cleaned.
• If one lever pulls back farther than the other, try to equal out the travel
by dialing the lever limit screws in or out. If that doesn’t work, it’s time
for a shop to bleed your hydraulic fluid.
• Inspect hydraulic system for leaks. Check the levers, callipers and all
along the housing. Take a leaky system to a professional or contact us.
3.5 Gears
3.5.1 Gear Display
Higher gears
Lower gears
Gear display

fb.com/westhillbikes • westhillbikes.com10
3.5.2 Adjusting The Rear Derailleur
• Adjust the lower bolt to make the guide wheel move to the free-wheel; align the
centre of the guide wheel and the outer line of the smallest sprocket.
• Turning the front chain-wheel, operate the gear lever to shift to the lowest gear,
then tighten the derailleur cable and fix it by the derailleur cable nut.
• Turn the low adjustment screw so that the guide pulley moves to a position
directly below the largest sprocket.
• Tighten the adjust nut when the real gear is lower than the gear shift shows;
loosen the adjust nut when the rear gear is upper than the gear shift shows. It is
OK when the gear changes correctly and smoothly.
Outer line of smallest sprocket
Top adjustment
screw
Guide pulley
Low adjustment
screw
Largest sprocket
Guide pulley
Note: Be sure that the cable
is securely in the groove.
Groove

11fb.com/westhillbikes • westhillbikes.com
4 The Battery
4.1 Input The Battery
• 󰖱 Make sure the battery terminals are dry before inserting the battery.
• Lift up the saddle using the leaver underneath.
Battery guide board
Battery terminals
Seat lever
• Slide in the battery, ensuring that the battery guide board slots into the grooves of
the battery.
• Lock the battery into place using the lock at the base of the battery, turning the
key clockwise.
Battery slotting into the battery guide

fb.com/westhillbikes • westhillbikes.com12
4.2 Charging The Battery
• Connect the battery to the charger; ensure the output terminal of the charger and
the input terminal of the battery are firmly connected.
• Plug the charger into the wall outlet. The LED on the battery charger will
illuminate RED when charging. The LED will change to GREEN when the battery
is fully charged.
• When the battery is fully charged, disconnect the charger from the wall outlet
before disconnecting the charger from the battery.
• Charge the battery for 12 hours for the first 3 times you use it.
• Be sure to use the charger supplied together with the battery, use of other
chargers will invalidate the warranty.
4.3 Battery And Charger Maintenance
• If the battery needs to be stored for an extended period, it should be kept at
around 50% state of charge (or charge the battery for 2-3 hours if totally flat) and
should be placed in a dry and ventilated area. The battery should be charged 2-3
hours every two months.
• The battery and charger should be kept in a clean, dry and ventilated area, avoid
contact with corrosive substances and keep away from excessive heat and open
flames.
• Storage conditions for the battery: temperature -20~35°C, relative humidity:
5~65%RH
• The charger should be disconnected from the battery when be kept in storage.
4.4 Battery And Charger Precautions
4.4.1 Battery
• Never short circuit and discharge or charge terminals of the battery.
• Keep the battery away from fire & excessive heat. Never put the battery into fire.
• To avoid damage to the battery, never subject it to intense physical shock, severe
vibration or impact.
• Protect the battery from water and moisture. Protect the discharge and charge
terminals of the battery from rain or water logging.
• Operating temperature range when charge: 0~45°C
• Operating temperature range when discharged: -20~45°C
• Humidity whilst battery is in a working state: 80% RH
• Keep the battery away from children.
• When the battery is not in use for an extended period of time, remove the battery

13fb.com/westhillbikes • westhillbikes.com
from the bike for storage.
• If you have any questions about this battery or its usage, please contact us
through Facebook or email.
• Never disassemble the battery.
4.4.2 Charger
• Charge the battery after you buy this e-bike or the power is low.
• Make sure the charger is as least 1M away from computers, TV’s, fridge, washing
machine and other electric appliances while charging.
• Use only the charger supplied with this e-bike.
• Only use the charger in a clean and dry place, free from smoke, dust and
moisture.
• When the battery is fully charged, disconnect the plug from the wall first and then
disconnect the battery.
• Charge out of the reach of children.
• Never disassemble or refit the charger.
• Never put anything on the charger.
• Do not disconnect the battery output while charging.
• Do not switch on the e-bike while charging.
5 How To Use The Bike Controls
󰖱 Start slowly and speed up gradually.
󰖱 The power will automatically cut out if the e-bike overloads and automatically cut
back in after a short period if the e-bike is ridden normally.
󰖱Try to avoid knocking and bumping the screen and control panel.
󰖱Avoid direct contact with water.
󰖱If your control panel does malfunction please let us know straight away.

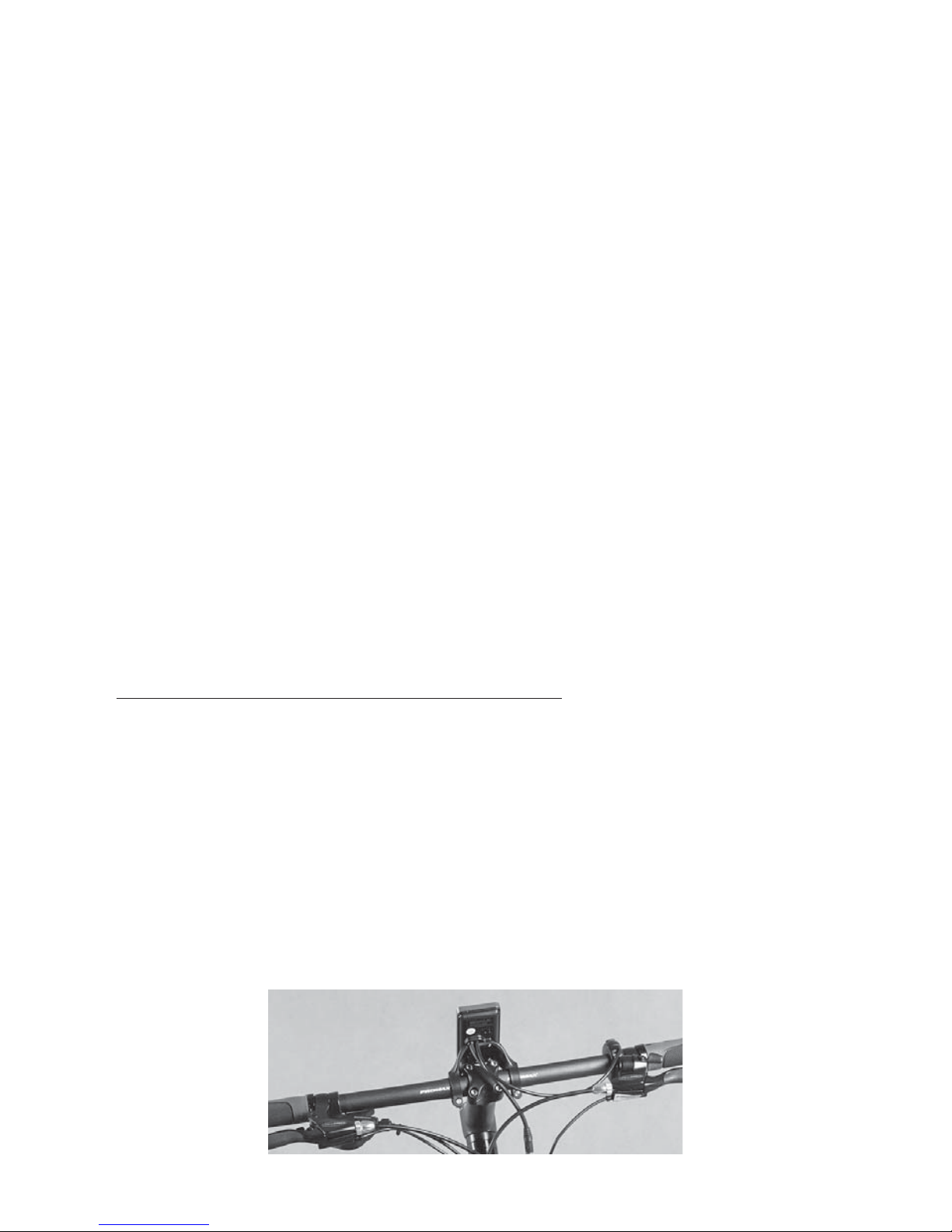

5.1 Control Screen Installation
Attach the display screen to the bike handlebars. This display is designed to straddle
the centre stem of the handlebar. Tighten using the screws underneath.

fb.com/westhillbikes • westhillbikes.com14
5.2 Control Panel - At A Glance
Walk mode
Energy saving
Speed
Units
Control Buttons
MODE
Up button
Down button
Mode button
Battery charge
indicator Power indicator
Headlights
Distance: trip,
overall
ECO
TRIP ODO TIME ERROR
Km/h mph
SPEED
MOTOR
POWER
BOOST
5.3 Turning On/Off
Turn the battery on by placing the key in the lock and turning clockwise. Then turn on
the bike by pressing and holding the mode
MODE
button. You should see the screen
power up when turned on. Press and hold the mode
MODE
button to turn the bike and
display off.
Tip: Charge your bike for at least 12 hours before you ride it for the first time and the
next two times you charge it.
Tip: if the screen does not turn on check the electrical connections are not loose and
that the battery has charge.
5.4 Battery Charge Indicator
In the top left of the display screen there is a battery charge indicator. When there is
only one flashing bar in the battery this means that the charge is very low and should
be recharged immediately.
Fully Charged Very Low Charge

15fb.com/westhillbikes • westhillbikes.com

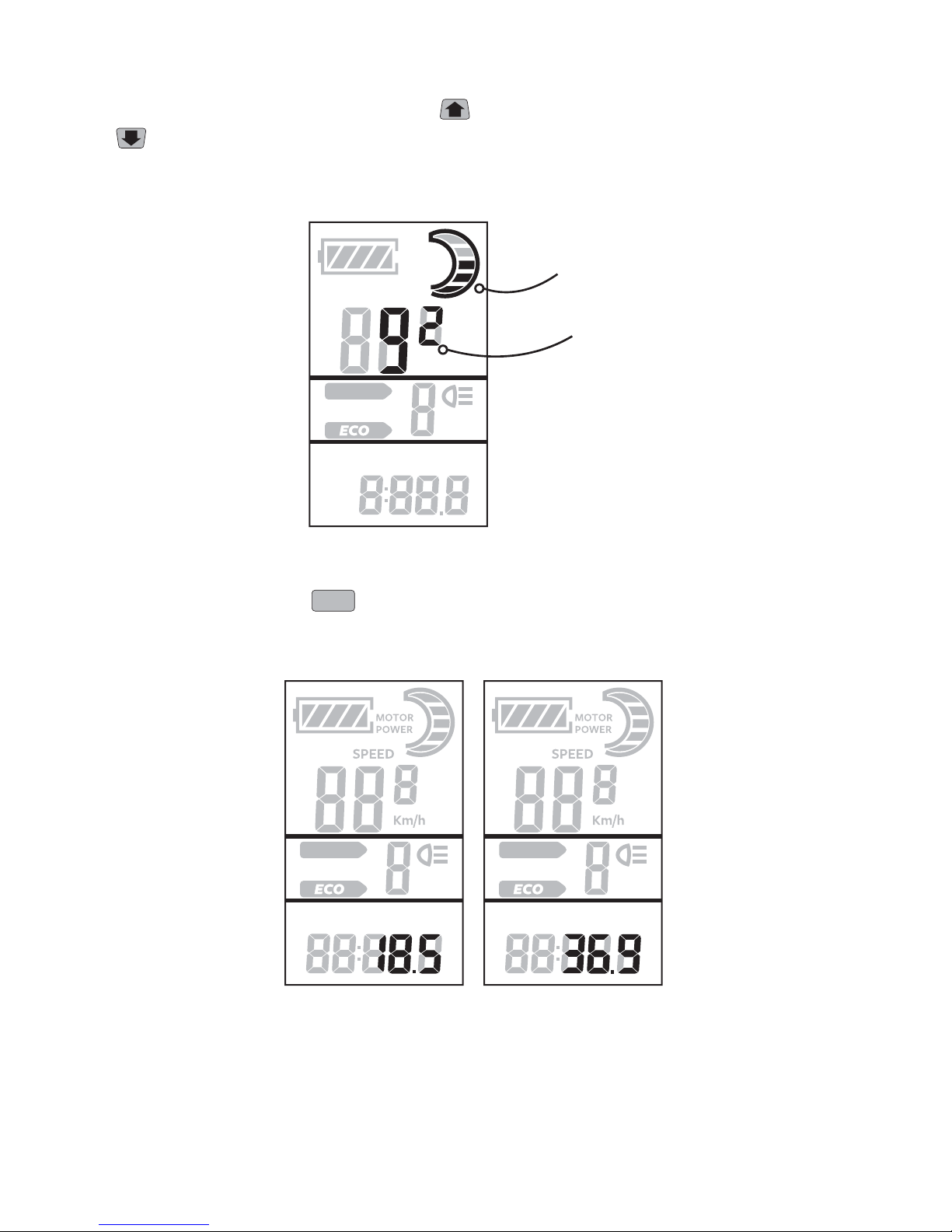

5.5 Increasing/Decreasing Speed
To increase speed press the up button . To decrease speed press the down button
. The lowest speed is 0, the highest speed is 5. The stating speed will always be
at 1. Start slowly and speed up gradually. Make sure your speed is appropriate to the
riding conditions (weather, road surface, traffic/pedestrians etc).
mph
SPEED
MOTOR
POWER
BOOST
TRIP ODO TIME ERROR
speed mph-km/h
motor power
5.6 Showing The Mileage
Press the mode button
MODE
to cycle through the mileage indicator in the following
order: Single trip miles (TRIP) Total miles (ODO).
BOOST
TRIP ODO TIME ERROR
BOOST
TRIP ODO TIME ERROR

fb.com/westhillbikes • westhillbikes.com16

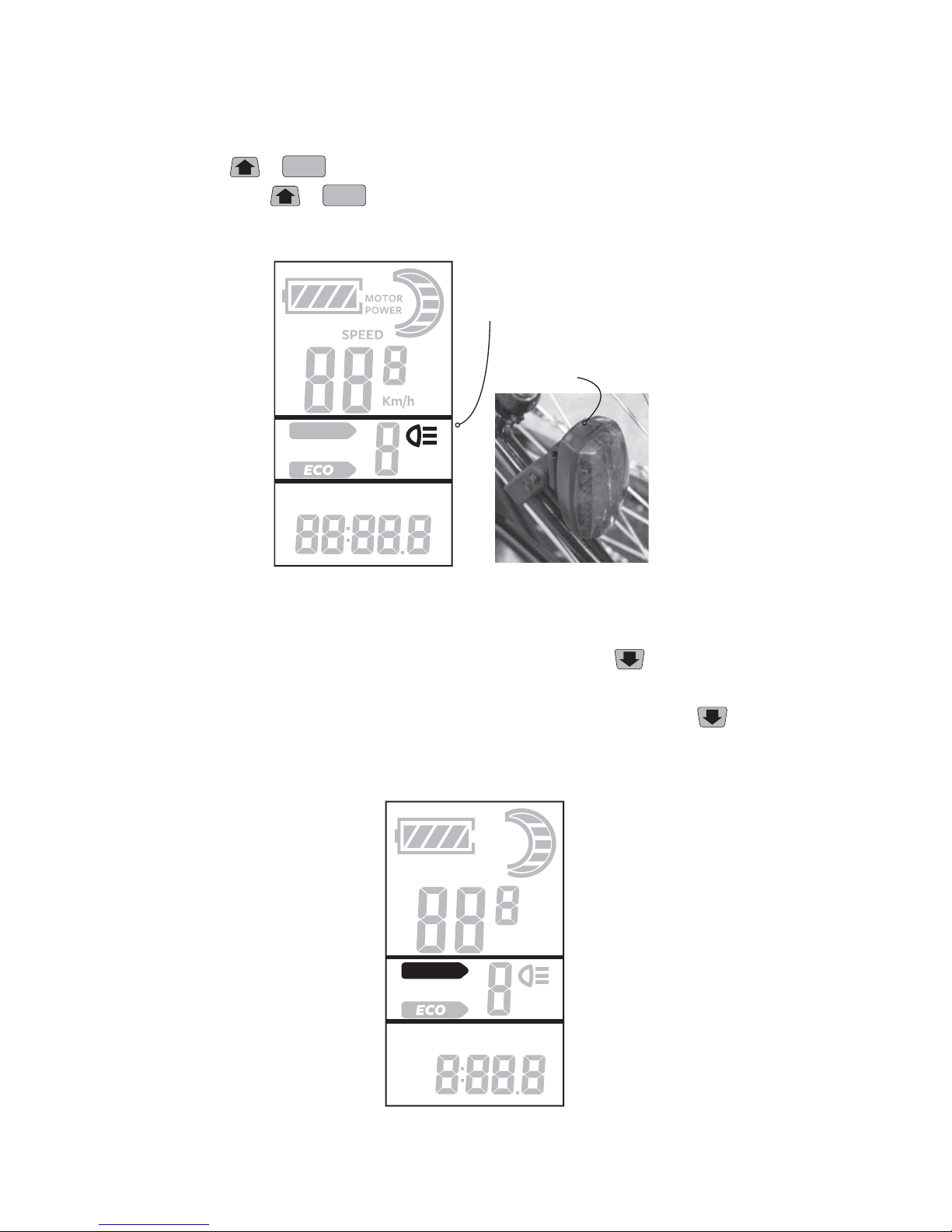

5.7 Turning On/Off the Headlights & Screen Backlight
The headlight and screen backlight turn on using the same buttons, to make sure you
can see the screen at night! To turn on the headlight and screen backlight press both
up and mode +
MODE
at the same time for three seconds. To turn off press and
hold up and mode +
MODE
at the same time for three seconds. The rear light is
operated by a button mounted onto the rear light.
BOOST
TRIP ODO TIME ERROR
Button for rear light
Front light on
5.8 Walk Mode
Stand at the side of the bike with both hands on the handlebars and make sure the
way in front of you is clear. Press and hold the down button to enable cruise
mode for the ebike. This will power the bike at a steady 6 km/h allowing you to walk
alongside the bike without needing to push. Release the down button when you
want the bike to stop.
󰖱DO NOT use walk mode when riding the bike.
mph
SPEED
MOTOR
POWER
BOOST
TRIP ODO TIME ERROR

17fb.com/westhillbikes • westhillbikes.com
5.9 Error Codes
If there is an error in the electrical function of the bike an error message will be
displayed on the control screen along with an error code. See the table below for error
code definitions:
󰖱 The bike will not run if there is an error code. Please contact us immediately
BOOST
TRIP ODO TIME ERROR
Error Code Definition
21 Current abnormality
22 Throttle abnormality
23 Missing phase on motor
24 Motor hall signal abnormality
25 Brake power-off sensor abnormality
30 Controller/instrument communication
abnormality
5.10 Changing The Settings
After power up press both up and down buttons + for 2.5 seconds to enter
the settings menu. Press the mode button
MODE
briefly to scroll through the settings:
mph
SPEED
MOTOR
POWER
Blacklight Brightness 1-3
BOOST
TRIP ODO TIME ERROR
Km/h
SPEED
MOTOR
POWER
Unit Select
mph
BOOST
TRIP ODO TIME ERROR
Wheel Size: press up or down
to select the correct wheel size.
This ensures speed and mileage are
accurate. Default wheel size 47 –
622. Press the mode button
MODE
to
confirm and select the next setting.
Backlight Brightness: Press the up
button to increase the brightness
of the backlights and the down arrow
to decrease the brightness. 3 is
the maximum and 1 is the minimum.
Default brightness is set to level 1. Press the mode button
MODE
to confirm and move
to next setting.
Change Between Imperial & Metric System: Press up or down to
switch between mph and km/h. Press the mode button
MODE
to select and move to
the next setting.
To exit the setting menu press & hold the mode button
MODE
for three seconds.

fb.com/westhillbikes • westhillbikes.com18
5.11 Caution Whilst Parked
• If leaving the bike unaccomanied for any period of time turn off and lock the
battery box, taking the key with you.
6 Bicycle Inspection And Care
6.1 Regular Cleaning
• Remove the battery box from the e-bike before carrying out regular cleaning.
• Wipe any dirty painted or plastic parts with a soft, damp cloth and a neutral
cleaning solution. Carefully dry the parts with a soft, dry cloth to finish.
• DO NOT use water to clean the e-bike, as the electrical and electronic systems
may get wet, resulting in personal injury or malfunction of the bicycle.
• DO NOT grease or use a greasy cloth to wipe down the electrical connectors,
brake pads, wheels, tyres or plastic parts..
• DO NOT use a pressure washer as this can force water into the electrical
components.
6.2 Regular Maintenance (Every 1-2 Months)
Always carry out the following checks:
• Check handlebar attachment and saddle post are correctly inserted & tightened.
• Check the wheel hub mounting nuts are correctly tightened.
• Check the wheel rims are not cracked and that no spokes are loose or broken.
• Check the tyres are not worn or cut.
• Check the tyres are correctly inflated.
• Check the battery contacts on the frame are not dirty or oxidized.
• Check the battery is sufficiently charged.
• Check the front and rear lights are working correctly.
• Check the front and rear brakes brake effectively.
• Check cables are sufficiently greased, & that the brake pads are in good condition.
• Check frame welds are in good condition and are free from corrosion or oxidation

19fb.com/westhillbikes • westhillbikes.com
6.3 Lubricating The E-Bike
To maintain your e-bike in proper working order, be sure to carry out regular
lubrication, as indicated in the following illustration:
• Use specific transmission lubricants for the chain, freewheel and gears every 1–2
months, or if the drive line is dry.
• Do not lubricate or grease the speed controller, brake pads or wheel rims
Parts that can be lubricated Parts that should not be lubricated
Head set Rear brake
Break cable Front break
Chain Rims
Tyres
Head set Brake cable
Front brake
Rim
Chain
Tyre
Rear brake

10/16
HAVE A QUESTION? NEED HELP?
Contact us on Facebook for a quick reply.
THIS MANUAL SHOULD BE CONSIDERED A PERMANENT PART OF THE
ELECTRIC BICYCLE AND SHOULD REMAIN WITH IT IF RESOLD
