USER MANUAL
90cm COOKING
APPLIANCES
WFE9516DD
Enjoy peace of mind.
Register your appliance today.
Stay updated on better living services, safety notices and
shop for accessories.
1. O pen the camera app on your smartphone and
point at the QR code to scan
Product Registration QR code is located on the
front of your appliance or inside the door rim*.
2. Tap the notification or linkto open the registration form
3. Complete your details and enjoy peace of mind
*Exact location of QR code may vary depending on oven model

2CONGRATULATIONS
Please read the user manual carefully and store in a handy
place for later reference.
The symbols you will see in this booklet have
these meanings:
WARNING
WARNING
This symbol indicates information concerning your
personal safety.
WARNING
CAUTION
This symbol indicates information on how to avoid
damaging the appliance.
TIPS & INFORMATION
IMPORTANT
This symbol indicates tips and information about use
of the appliance.
ENVIRONMENTAL TIPS
ENVIRONMENT
This symbol indicates tips and information about
economical and ecological use of the appliance.
Congratulations and thank you for choosing our product.
We are sure you will find your new cooker a pleasure to
use and a great asset to your cooking. Before you use the
appliance, we recommend you read through the whole
user manual which provides a description of the product
and its functions.
To avoid the risks that are always present when you use
an appliance, it is important that the appliance is installed
correctly and that you read the safety instructions
carefully to avoid misuse and hazards. We recommend
that you keep this instruction booklet for future reference
and pass it on to any future owners.
This appliance complies with the requirements
of Australian Standard AS/NZS 60335.2.6.
Gas appliances also comply with the requirements
of AS/NZS 5263.1.1.
Conditions of use
This appliance is intended to be used in household
and similar applications such as:
•Staff kitchen areas in shops, offices and other
working environments
•Farm houses
•By clients in hotels, motels and other residential
type environments
•Bed and breakfast type environments
Please ensure you read the instruction manual fully
before you call for service, or a full service fee could
be applicable.
Record model and serial number here:
Model number:........................................................................................
Serial number:.........................................................................................
PNC:.............................................................................................................
CONTENTSCONGRATULATIONS
Important safety instructions ..........................................................3
Product description ...........................................................................5
Installation of the appliance.......................................................... 6
Wiring requirements........................................................................16
Installing the freestanding cooker ............................................ 17
LPG conversion gas cooktop model........................................18
Testing the operation of the gas cooker................................19
Before operating your appliance for the first time.................20
Installing your oven accessories ................................................ 21
Installing burners and trivets...................................................... 22
Getting to know your cooktop..................................................23
Using your oven .........................................................................................24
Cooking Guide...................................................................................28
Dealing with cooking problems .................................................31
Cleaning your oven .........................................................................32
Troubleshooting................................................................................ 37
Warranty...............................................................................................39

3IMPORTANT SAFETY INSTRUCTIONS
Installation, cleaning and servicing
• An authorised person must install this appliance.
(Certificate of Compliance to be retained).
• Before using the appliance, ensure that all packing
materials are removed from the appliance.
• In order to avoid any potential hazard, the enclosed
installation instructions must be followed.
• Ensure that all specified vents, openings and
airspaces are not blocked.
• Where the appliance is built into a cabinet,
the cabinet material must be capable of
withstanding 85°C.
• Only authorised personnel should carry out servicing.
(Certificate of Compliance to be retained).
• Always ensure the appliance is switched off before
cleaning or replacing parts.
• Do not use steam cleaners, as this may cause
moisture build up.
• Always clean the appliance immediately after any
food spillage.
• This appliance must be earthed.
• Due to the weight (freestanding 95-100kg) and
size of cookers, 2 persons are required to manually
manoeuvre them. Remove loose items such as trivets,
oven racks and trays to minimise weight.
• Do not use the handle to lift the cooker, instead open
the oven door and lift the roof of the oven cavity.
• Take care when lifting to avoid any sharp edges not
intended for lifting.
• This cooker must not be installed with a cut-off timer.
• Disconnection in the fixed wiring must occur in
accordance with AS/NZS 3000 wiring rules.
• This appliance must be fixed in position or must be
connected to the supply by a supply cord fitted with
a male connector
Please read the user manual carefully and store in a
handy place for later reference. Pass the user manual
on to possible new owners of the appliance.
Read the following carefully to avoid damage or injury.
NOTE: You must read these warnings carefully
before installing or using the appliance. If you need
assistance, contact your Customer Care Department.
The manufacturer will not accept liability, should
these instructions or any other safety instructions
incorporated in this book be ignored.
WARNING
WARNING
General warnings
• This appliance must not be used as a space heater.
• In order to avoid fire, the appliance must be kept clean
and vents kept unobstructed.
• Do not spray aerosols in the vicinity of this appliance
whilst it is in operation.
• Do not use or store flammable materials in this
appliance storage drawer or near this appliance.
• Do not line the bottom of the oven with foil
or cookware.
• Always use gloves when handling hot items inside
the oven.
• Always turn the grill off immediately after use as fat
left behind may catch fire.
• Do not hang any objects from the hob as it may block
the air vents.
• Do not modify this appliance.
• To maintain safe operation, it is recommended that the
product be inspected every 5 years by an authorised
service person.
• Do not install an aftermarket lid or cover over
this appliance.
• The cooking process must be supervised. A short term
cooking process must be supervised continuously.
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT INFORMATION THAT MAY IMPACT
YOUR MANUFACTURER’S WARRANTY
Adherence to the directions for use in this manual
is extremely important for health and safety.
Failure to strictly adhere to the requirements in
this manual may result in personal injury, property
damage and affect your ability to make a claim
under the Westinghouse manufacturer’s warranty
provided with your product. Products must be
used, installed and operated in accordance with
this manual. You may not be able to claim on the
Westinghouse manufacturer’s warranty in the
event that your product fault is due to failure to
adhere to this manual.

4IMPORTANT SAFETY INSTRUCTIONS
WARNING
WARNING
Oven
• During use the appliance becomes hot. Care should
be taken to avoid touching the hot surfaces inside the
oven.
• Switch the appliance off at the isolating switch before
removing the oven light glass for globe replacement.
• To avoid an accident, ensure that oven shelves and
fittings are always inserted into the appliance in
accordance with the instructions.
• Do not use the door as a shelf.
• Do not push down on the open oven door.
• Do not cover the grill insert with foil, as fat left there
may catch fire.
• Always keep the grill dish clean as any fat there may
catch fire.
Gas cooktops
• Do not allow pots to boil dry, as damage to both
pan and cooktop may result.
• Do not operate the cooktop for an extended period of
time without a pot or pan on the burner.
• Do not allow large cookware to overhang the cooktop
onto the adjacent benchtop. This will
cause scorching to the benchtop surface.
• Do not allow cooking pots or pans to intrude into
the area which is close to the controls.
• Ensure burner bodies and trivets are
properly located.
• Unattended cooking with oil or fat on a hob can
be dangerous and result in fire.
• In order to avoid a fire do not store items on the
cooking surface.
WARNING
WARNING
Child safety
• This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety.
• Children should be supervised to ensure that they do
not play with the appliance.
• During use this appliance becomes hot. Care should
be taken to avoid touching hot surfaces, e.g. oven
door, heating elements etc.
• Accessible parts will also become hot when in
use. To avoid burns and scalds children should be
kept away.
• Always turn pan handles to the side or rear to
prevent accidental knocking and to keep out of
reach of children.
IMPORTANT SAFETY INSTRUCTIONS

5PRODUCT DESCRIPTION
PRODUCT DESCRIPTION
Freestanding cooker with flame safeguard gas cooktop and multi-function electric oven
Control Panel
Model WFE9516DD
Removable cast iron trivet
Gas hob
(Refer to Chapter ‘Get to know
your cooktop’)
Control panel
Oven door
Storage compartment
(Selected model only)
Clip on kick panel
(Select model only)
(Refer to Chapter ‘Installation’)
Oven function
selector
Oven/Grill
temperature
control
Gas hob
burner
controls
Stainless steel splashback

6INSTALLATION OF THE APPLIANCE

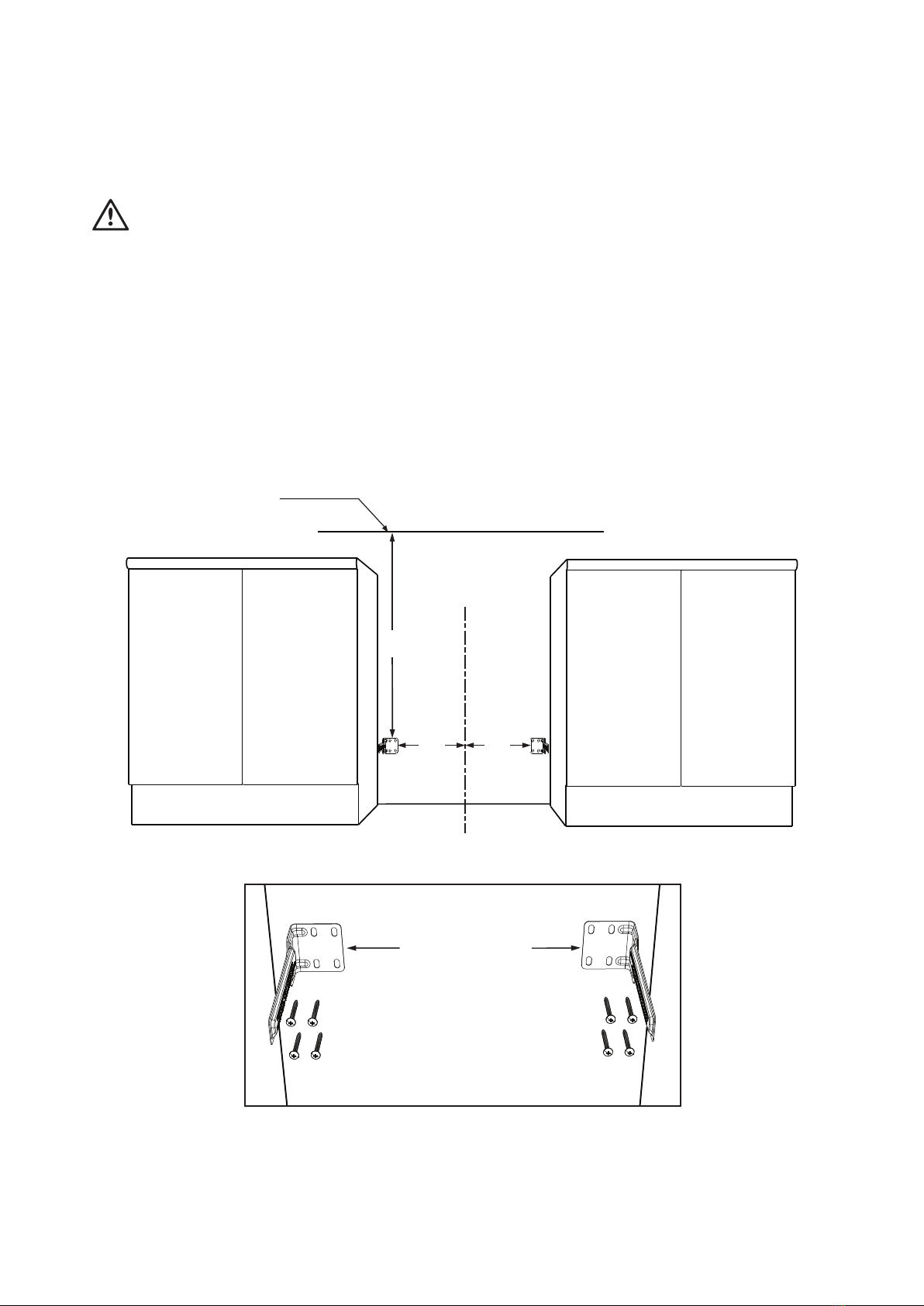

Cabinet requirement
Model WFE9516DD is designed to fit into a 900mm
wide gap between standard kitchen cabinets. The
appliance integrates with the kitchen cabinets by
matching the height, depth and kick panel. The cooker
may also be installed at the end of a line of benches
or with a free space either side. In addition, a slot-in
type installation is catered for allowing a continuous
cabinetry kick panel to be used.
WARNING
WARNING
• The cooker must be installed and serviced only
by an authorised person.
• A Certificate of Compliance MUST be supplied to
be kept by the customer.
• The packing materials must be removed before
you install the cooker.
• The surrounding kitchen cabinets must be able
to withstand 85°C. Electrolux WILL NOT accept
responsibility for damage caused by installation
into kitchen cabinets which cannot withstand 85°C.
• The pipes used for installation MUST have sufficient
loops so the cooker can be moved for service
(gas models).
• The vents, openings and air spaces MUST NOT
be blocked.
• Two anti-tilt brackets are supplied and stored in the
base of the packaging
• The anti-tilt brackets and chain or front stops
MUST be installed to avoid accidental tipping
(freestanding and slot-in models).
• You MUST NOT lift or pull the cooker by the
door handle.
• The cooker MUST be checked every five years.
• If the supply cord is damaged,it must be replaced
by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
• The appliance must not be installed behind a
decorative door in order to avoid overheating.
• Due to the weight (95-100kg) and size of the
cooker, 2 persons are required to install it.
Gas model clearance requirements
• Ensure the appliance is installed in accordance with
AS/NZS 5601.1 or AS/NZS 5601.2 with regard to
clearances to combustible surfaces and materials,
and clearances to rangehoods and exhaust fans,
to ensure clearances of 200mm from burners to
vertical combustible surfaces observe the minimum
dimension of 100mm from each side of the cooker to
combustible surfaces.
• Clearances to combustible surfaces may be reduced
if combustible surfaces are protected in accordance
with AS/NZS 5601.1, or AS/NZS 5601.2.
• When setting the cooker height, ensure the top of
the cooker is at least 10mm higher than the level of
the benchtop.
Dimensions
600mm minimum
vertical clearance
from combustible
surfaces
Gas hob 910mm
(adjustable 910-930mm)
600mm
895mm
60mm
Splashback
The splashback is secured to the back of the cooker.
REMOVE the splashback before installing the feet.
Undo this screw
to remove the
splashback.
Re-attach the
screw afterwards
INSTALLATION OF THE APPLIANCE

7INSTALLATION OF THE APPLIANCE
Freestanding installation
Cabinet construction for freestanding installation
The freestanding type installation requires four screw-in
feet to be installed before it can be fitted in between
cabinets, with cabinets on one side or without adjacent
cabinets. There is no clearance requirement to adjacent
side cabinets.
To ensure cooker stability, the anti-tilt brackets must
be installed.
Four screw-in feet are supplied with the appliance and
can be found in the accessories pack in the oven.
WFE9516DD is supplied with a clip-on kick panel.
900mm minimum
755mm NOM
900mm NOM
600mm
both sides
INSTALLATION OF THE APPLIANCE

8INSTALLATION OF THE APPLIANCE
Freestanding installation (continued)

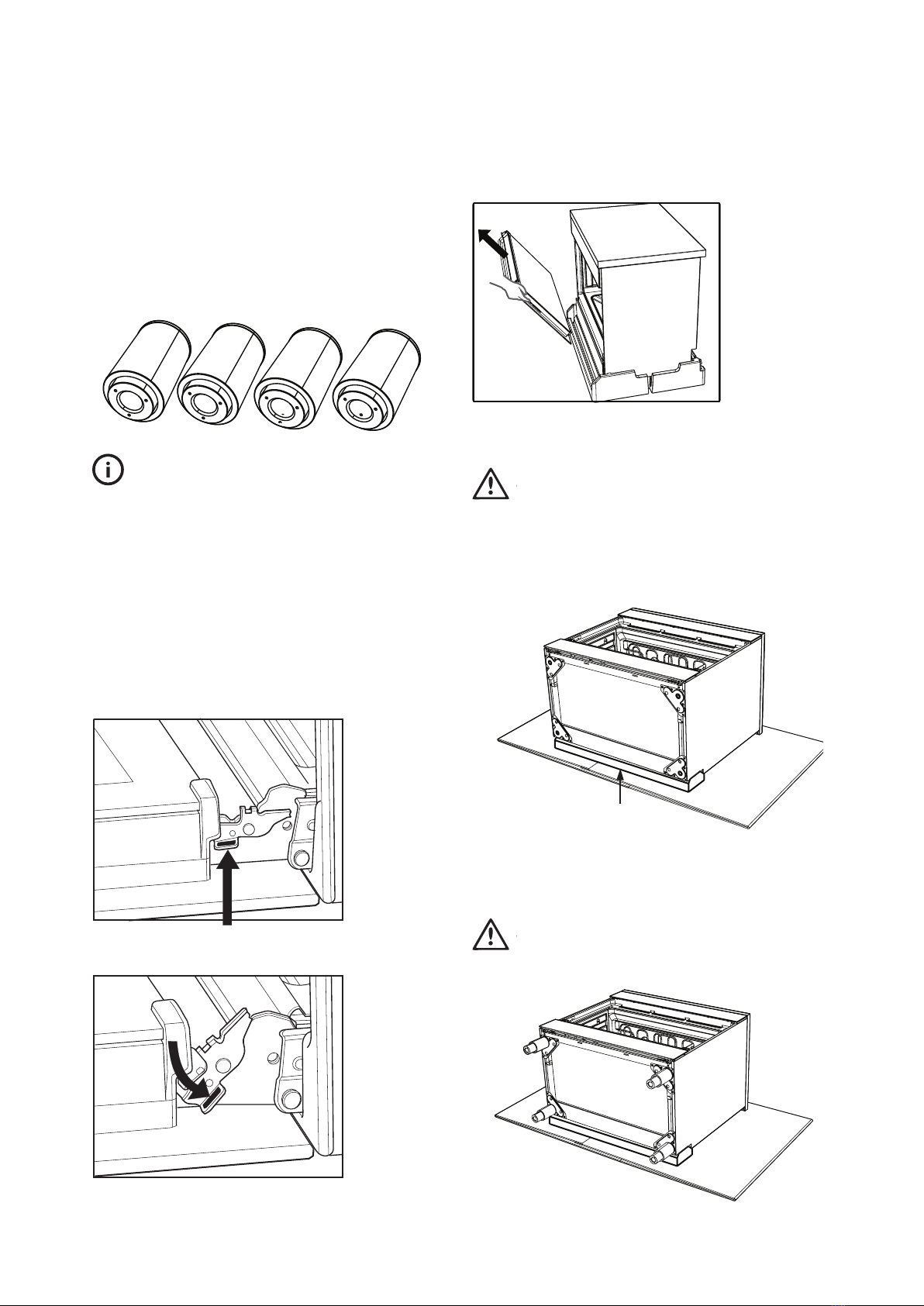

Installation of screw-in feet
• Freestanding appliance are supplied with four
screw-in feet in the internal accessory pack.
The screw-in feet can be adjusted by turning the
lower half clockwise or anti-clockwise.
TIPS & INFORMATION
IMPORTANT
• Your cooker is supplied with two silver feet and
two black feet, it is recommended to install the two
sliver feet at the front of the appliance for the best
aesthetics.
• If the appliance is a gas hob model, remove the
burner cap and burner crown. Store all items safely,
away from the installation area.
You MUST remove the oven door before commencing
installation
Locking tab up at normal position
Locking tab up at normal position.
Press the locking tab down for
removing the door.
Gently close the door until it comes to
a stop.Then lift the door off the hinge.
Press the locking tab down for removing the door.
Locking tab up at normal position.
Press the locking tab down for
removing the door.
Gently close the door until it comes to
a stop.Then lift the door off the hinge.
Gently close the door until it comes to a stop. Then lift
the door off the hinge.
Tilt and carefully lay the appliance on its back to gain
access to the installation point for the screw in feet.
WARNING
CAUTION
• To avoid scratching the floor and the appliance
itself, fold the packaging carton board and place
it underneath the appliance as protection.
• The cooker MUST be laid on its back when
installing the feet.
Put the oven door handle protection
foam underneath the laid down cooker to
protect your cooker when puting it upright
Install the four supplied feet via the four installation
points. Make sure that each foot is securely fastened.
WARNING
CAUTION
Do not over-torque the foot.
Adjust the height of the screw-in feet to make sure the
hob surface is 10mm above the bench when appliance
is upright.
INSTALLATION OF THE APPLIANCE (CONTINUED)

9INSTALLATION OF THE APPLIANCE
Bench height + 10mm minimum
If your kitchen has a 900mm height kitchen bench
top, follow the quick measurement guide below before
putting the cooker upright
For a 900mm height kitchen bench top,
adjust the lower half of the feet to measure
50mm as shown in the illustration.
50mm
Tilt the appliance upright by lifting the back of the hob
and pivoting it about the back two feet.
WARNING
WARNING
Heavy item! This step must be performed by two
persons.
Leveling oven
Place a level in the oven as below making sure the
level sits on the front and rear forms. Adjust the feet
accordingly to level the appliance.
Installing splashback
Fit splashback to rear of hob with three screws provided.

10 INSTALLATION OF THE APPLIANCE
Freestanding installation (continued)
Installation the anti-tilt brackets
To ensure cooker stability, the anti-tilt brackets must
be installed.
There are left and right engagement slots for the
anti-tilt bracket at the bottom rear of the appliance.
The following steps must be followed to ensure the
correct installation of anti-tilt brackets and the stability
of the appliances.
WARNING
CAUTION
It is not recommended to push and pull the appliance
on uneven or rough surface. Use other means to
maneuver the appliance if necessary.
1. Carefully push the appliance into the cabinet cavity
until the back of the oven is flush against the back wall.
2. Use non-permanent methods to mark a line on the
wall along the top surface of the splashback. This line
is used as a reference line to locate the correct location
of where the anti-tilt brackets need to be installed.
3. After the reference line is marked, pull the appliance
out of the cabinet cavity to install the anti-tilt brackets.
Anti-tilt bracket
engagement slots
INSTALLATION OF THE APPLIANCE (CONTINUED)
Anti-tilt bracket
installation
reference line

11INSTALLATION OF THE APPLIANCE
Freestanding installation (continued)
WARNING
WARNING
• Appropriate fasteners must be used to suit the type
of wall on which the anti-tilt brackets are installed.
• Freestanding unit must be pushed up against
the wall on installation. On gas units check that
the gas hose, if used, has not been kinked during
installation.
4. The anti-tilt brackets must be secured to the
rear wall of the cavity with appropriate fasteners
according to dimensions in diagram.
Install anti-tilt brackets
in this orientation as
shown (fasteners not
supplied)
C
L
425
Anti-tilt bracket
installation
reference line
725
370 370

12 INSTALLATION OF THE APPLIANCE
Freestanding installation (continued)
• Connect services to the appliance prior to placing
into cavity.
• To locate appliance, slide into cavity ensuring the
anti-tilt brackets fully engaged with the rear left and
right engagement slots.
• The unit must be pushed against the wall
on installation.
• Re-install oven door, burner body, burner caps and
trivets after the appliance is placed in the cavity.
• Gas only: check that the gas hose, if used, has not
been kinked during installation.
Installing the clip-on kick panel
Your cooker is supplied with a clip-on kick panel that
can be assembled to clip onto the front feet for a more
integrated and seamless kitchen appearance.
Clip base
Clip snap
Assemble the clip snap onto the base.
click!
Press in both assembled clip modules into the
kick panel in the orientation as shown below.
click!
INSTALLATION OF THE APPLIANCE (CONTINUED)

13INSTALLATION OF THE APPLIANCE
Freestanding installation (continued)
Make sure both clip modules are in the same orientation
after installation.
Clip the kick panel onto the front feet of the appliance.
Make sure the kick panel snaps onto the larger section
of the front feet.

14 INSTALLATION OF THE APPLIANCE
Slot-in installation
The slot-in type installation use the appliance as
supplied. The appliance can be mounted on a plinth.
This enables a continuous cupboard kickboard to be
installed, giving a more integrated appearance. There is
no clearance requirement between oven and adjacent
side cabinets.
600mm minimum
vertical clearance
from combustible
surfaces
This surface to be level with
the top edge of the kick board
755mm
900mm
900mm
minimum
600mm
Gas hob 769mm

15INSTALLATION OF THE APPLIANCE
Slot-in installation
The slot-in type installation use the appliance as
supplied. The appliance can be mounted on a plinth.
This enables a continuous cupboard kickboard to be
installed, giving a more integrated appearance. There is
no clearance requirement between oven and adjacent
side cabinets.
Slot-in installation (continued)
• The anti-tilt brackets are to be secured to the back
wall with appropriate fasteners.
• Two stops are to be screwed to the plinth in
locations as shown (stops provided). The stops
locate into slots in the base of the appliance to
prevent the product from being pulled forward
when installed.
• Measurements from the rear wall are to be adjusted
if there are tiles etc. that come between the
appliance and the wall.
• Once services are connected, product can be lifted
onto the plinth and pushed back carefully, ensuring
the appliance engages into both brackets at the rear
and the front stops.
• If the product requires removal for service, it must
be lifted at the front approximately 5mm to clear the
front stops prior to being pulled forward.
+
+
+
+
+
+
C
L
+
++
+
104 104
370 370
165 165
344
Location of holes
for front stops
Measurements are to be adjusted to account for the thickness of any skirting
board or tiles coming between the back of the appliance and the wall
344
Front stops Front stops
INSTALLATION OF THE APPLIANCE (CONTINUED)

16 WIRING REQUIREMENTS
WIRING REQUIREMENTS
The cooker MUST be installed in compliance with:
• Wiring connections in AS/NZS 3000 Wiring Rules.
• Local regulations, municipal building codes and
other statutory regulations.
For New Zealand Only:
The cooking range must be connected to the supply by
a supply cord fitted with the appropriately rated plug
that is compatible with the socket-outlet fitted to the
final sub-circuit in the fixed wiring that is intended to
supply this cooking range.
Supply cord size required:
WFE9516DD - 2.5mm2
The Data plate gives information about rating and is
located behind the bottom of the oven door.
• A functional switch MUST be provided near the
appliance in an accessible position (AS/NZS 3000).
• Wiring MUST be protected against mechanical failure
(AS/NZS 3000).
• Disconnection in the fixed wiring must occur in
accordance with the AS/NZS 3000 wiring rules.
• The cooker MUST be properly earthed.
• This range must be connected with cable of 75°C
rating minimum.
• This product has passed the insulation resistance test
after manufacture. If the resistance reading is low at
installation, it is probably caused by moisture from
the atmosphere being absorbed by the elements after
the range has been produced. (Pass at 0.01 MΩas per
AS/NZS 3000 - “Wiring Rules”).
Note: When connections are made to a multi-phase
230/240V supply, the bridge piece MUST be removed
from between the active connections.
Rated power input
MODEL TOTAL KW A1 KW A2 KW
WFE9516DD 4.3 4.3 -
TIPS & INFORMATION
IMPORTANT
Before you cook in your new oven it is important that
the protective oils used in the manufacture of the
product be removed.
• Make sure that the room is well ventilated (to allow
smoke to escape).
• Run the grill on high for 30 minutes without grill dish.
• Then run the oven on 180°C for 1 hour.
Connecting to services and commissioning
This appliance must be installed by an authorised
person, according to all codes and regulations of:
• Electrical supply authorities.
• Building regulations.
• Local government and council authorities.
• AS/NZS 5601.1.
• AS/NZS 3000.
Securing points
Plastic clips
Plastic clip
Hard wiring detail
1. Remove terminal cover plate from rear panel
of appliance.
2. Fit wires through hole in cover plate and make
connections to terminals.
3. Engage wires into plastic clip. Secure plastic
clip with two long silver screws (supplied in
separate bag).
4. Replace cover plate onto rear panel.

17INSTALLING THE FREESTANDING COOKER
INSTALLING THE FREESTANDING COOKER
Checking piping size
To work out a suitable pipe size for connection use the
information in this table.
GAS TYPE NATURAL
GAS
UNIVERSAL
LPG
WFE9516DD 54.2MJ/h 45.5MJ/h
For information and requirements about construction
and capacity of consumer piping refer to AS/NZS 5601
series of standards.
Gas connection
Read these points before connecting to the gas supply:
•The appliance is preset for natural gas use, if LPG is to
be used see Conversion to LPG section.
•Gas installation must be made in accordance with AS/
NZS 5601.1, the local gas fitting regulations, municipal
codes and other statutory regulations.
•The gas connection point is a ½” BSP external thread
located at the rear of the appliance as shown.
•The regulator is to be fitted to the manifold inlet at
the rear of the appliance and the connection is sealed
using a tape or jointing compound suitable for gas
connections. The consumer piping is then connected
to the inlet of the regulator, either
1. directly, or
2. using a hose assembly and in accordance with
AS/NZS 5601.1 (High level connection) together
with the supplied elbow. The elbow is fitted to the
inlet of the regulator and oriented to allow the
hose to hang downward. The connection thread
between the regulator and elbow is sealed using
a tape or jointing compound suitable for gas
connections.
This appliance is supplied set up for Natural Gas usage.
Model WFE9516DD
278
673
696
95
168
Gas connection point
to regulator
Electrical cable
entry point
Gas hose restraints
point to regulator
Gas pressures
The following table shows the supply and operating
pressures for various gases.
GAS TYPE NATURAL
GAS
UNIVERSAL
LPG
Supply pressure at inlet
to appliance regulator
(if fitted)
1.13 (kPa)
Minimum
2.75*
(kPa)
Operating pressure at
appliance test point 1.00 (kPa) 2.6 (kPa)
*If the regulator is placed upstream of the cooker inlet, as is normal
for cookers operating on LPG, then the supply pressure and
operating pressure are the same.
Injectors
The following table shows the injector sizes for
each burner.
INJECTOR ORIFICE NATURAL
GAS
UNIVERSAL
LPG
Low heat burner 1.00mm 0.55mm
Medium heat burner 1.35mm 0.70mm
High heat burner 1.60mm 0.90mm
Intense heat wok burner 1.75mm 1.00mm

18 LPG CONVERSION GAS COOKTOP MODEL
LPG CONVERSION GAS COOKTOP MODEL
A conversion kit is included with the product for
Universal LPG usage. The conversion kit contains 5 or
7 injectors (refer to LPG conversion table) and 1 LPG
sticker.
Please follow the procedure below if a conversion to suit
UNIVERSAL LPG is required:
1. Remove the hotplate trivets, burner caps and burner
crowns to access the hotplate injectors. Replace the
factory fitted injectors with the appropriate injectors,
as supplied. Refer to injector orifice table for injector
sizes. The injector size is stamped on the side of
the injector.
2. Unscrew the top hat nut from the regulator. The top hat
nut and control pressure spring assembly will disengage
as an assembly.
3. Unscrew the threaded pin from top hat.
4. Upturn threaded pin, so spring is free and screw pin
back into the top hat until firm.
5. Refit the top hat nut assembly to the regulator
ensuring that it is fully screwed down. The regulator
is now set for connection to LPG.
6. Turn on the gas supply and at each new connection
check for leaks using soapy water. Each hotplate
valve should be turned on, one at a time, and the
injector hole blanked off for several seconds.
7. The operation of the regulator can be confirmed by
connecting a manometer to the pressure test point
located on the side of the regulator body adjacent
to the outlet.
With the appliance operating check the outlet pressure:
• when all burners of the appliance are operating
at maximum,
• when the smallest burner of the appliance is
operating at minimum.
Under these conditions the outlet pressure should
not vary from the nominal outlet pressure of
2.60kPa by more than ±0.52kPa.
8. If the regulator appears to not be performing
satisfactorily then check the following points:
•If the outlet pressure is consistently too low then
the inlet pressure may be too low and adjustment
of an upstream regulator may be needed, or an
upstream regulator or valve with insufficient flow
capacity may be present in the gas supply line.
If this is suspected then it may be necessary to
repeat the checks whilst measuring both the
inlet and outlet pressure to determine if the inlet
pressure is in the range 2.75 – 7.00kPa.
• Check that the insert has been fitted correctly.
• Check that the turret screw is fully
screwed down.
•Check that the regulator has been fitted to the
gas supply line in the correct orientation, the
arrow on the base of the body indicates the
direction of gas flow.
Once these checks have been completed, if the regulator
still fails to perform in a satisfactory manner it should
be replaced.
9. One by one, turn the knobs to minimum and screw
in the bypass screw (accessible when the knob is
removed) until a small stable flame results.
Turn the knob to maximum and then back to
minimum to ensure that the correct minimum
flame is maintained.
10. Attach the LPG sticker to the cooker, near the gas
supply inlet. Cover the Natural Gas label that is
factory fitted.
Flame size adjusted
to maximum
Flame size adjusted
to minimum
Bypass screw
Control knob shaft
Reposition
Top hat nut assembly, fully
screwed down
Turn top hat
nut anti-
clockwise
and remove
Configuration for
Natural Gas
Configuration for LPG
A B
C D
E F
G H
NOTE: You MUST test the cooker after installation,
before you hand it over to the customer. You MUST have
a manometer and a connecting tube.

19TESTING THE OPERATION OF THE GAS COOKER
TESTING THE OPERATION OF THE GAS COOKER
Checking gas supply
1. Check the manometer zero point is correct.
2. Connect the manometer to the cooker pressure
test point. This is located on the regulator or LPG inlet
fitting.
3. Turn on the gas supply and the electricity and try to
ignite the gas.
NOTE: It will take additional time to light the gas for the
first time as air needs to be purged from the pipes.
4. Check the operating pressure for the particular
gas type.
Checking the function of the regulator
With the appliance operating check the outlet pressure:
•when all burners of the appliance are operating
at maximum,
•when the smallest burner of the appliance is
operating at minimum.
Under these conditions the outlet pressure should not
vary from the nominal outlet pressure by more than
±20% of the nominal outlet pressure (ie ±0.20kPa for
Natural Gas).
If the regulator appears to not be performing
satisfactorily then check the following points.
1. If the outlet pressure is consistently too low then
the inlet pressure may be too low and adjustment
of an upstream regulator may be needed, or an
upstream regulator or valve with insufficient flow
capacity may be present in the gas supply line.
If this is suspected then it may be necessary to repeat
the checks whilst measuring both the inlet and outlet
pressure to determine if the inlet
pressure is in the range 1.13 – 5kPa.
2. Check that the regulator has been fitted to the gas
supply line in the correct orientation, the arrow on the
base of the body indicates the direction of
gas flow.
Once these checks have been completed, if the regulator
still fails to perform in a satisfactory manner it should
be replaced.
Testing the cooker features
•Observe the flame appearance on each burner. If it
is much smaller or larger than expected, then the
injector size needs checking.
NOTE: When flame is unsatisfactory, then refer to the
Electrolux Technical Publications and correct the fault,
if possible.
When maximum flame appearance is correct, then check
the turn-down setting on each burner. If the settings
appear to be incorrect, proceed as follows:
1. Adjust the bypass screw mounted on the body of
each hotplate control cock. This is accessible when
the control knob and the control panel are removed.
2. Check the ignition on all burners both separately and
in combination.
3. Check the operation of the electrical components,
if applicable.
4. If you are satisfied that the cooker is operating
correctly, then turn it off and show the customer how
to use it. Make sure you ask the customer to operate
the clock and controls.
NOTE: If the cooker cannot be adjusted to perform
correctly, then inform the customer of the problem
and put a warning notice on the cooker. If the problem
is dangerous, then disconnect the cooker. If there is a
fault, then the customer should be advised to contact
the manufacturer’s local service organisation or
the retailer.

20 BEFORE OPERATING YOUR APPLIANCE FOR THE FIRST TIME
BEFORE OPERATING YOUR APPLIANCE FOR THE FIRST TIME
Preparing your appliance for the first time
• Please remove all internal boxes and bags from the
oven before operation.
• Please wipe out the oven interior prior to operation
with warm soapy water and polish dry with a soft
clean cloth. Do not close the oven door until the
oven is completely dry.
• New appliances can have an odour during first
operation. It is recommended to ‘run in’ your oven
before you cook for the first time. Run the oven at 180°C
for 2 hours and ensure that the room is well ventilated.
•DO NOT line the oven with foil, it will damage the enamel.
• Prior to installing accessories, remove all packaging
and remove plastic film from external panels.
Setting the time
If you have purchased a model fitted with an electronic
or programmable timer, you must set the time of day
before you can operate your appliance.
After electrically connecting the appliance, you must set
the time of the day before you can operate your oven.
Touch control electronic clock
1. After the appliance has been electrically connected
“12.00” will be displayed and the “clock” indicator
will flash.
2. To set the time of day, press or . 5 seconds after
the last change, the “clock” indicator will disappear,
confirming the time has been set.
Note: The clock has a 24-hour display.
