Westinghouse WFE517 User manual

USER MANUAL
540MM AND 600MM
SLOT-IN UPRIGHT RANGE COOKER
WFE517, WFE547, WFE616, WFE619
WFE642, WFE647, WFG617

2CONTENTS
TIPS & INFORMATION
TIPS AND INFORMATION
Important – CHECK FOR ANY DAMAGE OR MARKS
If you find the appliance is damaged or marked, you must
report it within 7 days if you wish to claim for damage/
marks under the manufacturer’s warranty. This does not
affect your statutory rights.
ENVIRONMENTAL TIPS
ENVIRONMENT
Information on disposal for users
• Most of the packing materials are recyclable.
Please dispose of those materials through your local
recycling depot or by placing them in appropriate
collection containers.
• If you wish to discard this product, please contact
your local authorities and ask for the correct method
of disposal.
Please read the user manual carefully and store in a
handy place for later reference. The symbols you will see
in this booklet have these meanings:
WARNING
WARNING
This symbol indicates information concerning your
personal safety
WARNING
CAUTION
This symbol indicates information on how to avoid
damaging the appliance
TIPS & INFORMATION
TIPS AND INFORMATION
This symbol indicates tips and information about use of
the appliance
ENVIRONMENTAL TIPS
ENVIRONMENT
This symbol indicates tips and information about
economical and ecological use of the appliance
Congratulations and thank you for choosing our cooker.
We are sure you will find your new appliance a pleasure
to use and a great asset to your cooking. Before you use
the appliance, we recommend that you read through the
whole user manual which provides a description of the
product and its functions.
To avoid the risks that are always present when an
appliance is used, it is important that the appliance
is installed correctly and that you read the safety
instructions carefully to avoid misuse and hazards. For
future reference, please store this booklet in a safe place.
This appliance complies with the requirements of
Australian Standard AS/NZ 60335.2.6. Gas appliances
also comply with the requirements of AS4551.
Conditions of Use
This appliance is intended to be used in household
and similar applications such as:
• Staff kitchen areas in shops, offices and other
working environments
• Farm houses
• By clients in hotels, motels and other residential
type environments
• Bed and breakfast type environments
Record model and serial number here:
Model number:........................................................................................
Serial number:.........................................................................................
CONTENTSCONGRATULATIONS
Important safety instructions.........................................................3
Description of your appliance....................................................... 4
Before operating your appliance for the first time............. 6
Installing your oven accessories ...................................................7
Using the hotplate.............................................................................. 8
Operating for the first time............................................................ 9
Using the gas cooker .......................................................................10
General hints and tips...................................................................... 12
Guide to better grilling.................................................................... 13
Operating the 120min mechanical timer ................................14
Using the oven..................................................................................... 15
Oven guide............................................................................................16
Cooking...................................................................................................18
Cleaning..................................................................................................19
Solving problems ............................................................................... 21
Installing the appliance
600mm ..................................................................................................22
540mm...................................................................................................24
Testing the operation of the gas cooker............................... 30
Warranty.................................................................................................31

3IMPORTANT SAFETY INSTRUCTIONS
• Do not place thick portions of food under the grill.
Foods may curl, catch and ignite.
• Accessible parts may become hot when grill is in use.
Children should be kept away.
Oven
• During use the appliance becomes hot. Care should
be taken to avoid touching the hot surfaces inside
the oven.
• Switch the appliance off before removing the oven
light glass for globe replacement.
• To avoid an accident, ensure that oven shelves and
fittings are always inserted into the appliance in
accordance with the instructions.
• Do not use the door as a shelf.
• Do not push down on the open oven door.
Installation, cleaning and servicing
• An authorised person must install this appliance.
(Certificate of Compliance to be retained)
• Before using the appliance, ensure that all packing
materials are removed from the appliance.
• In order to avoid any potential hazard, the enclosed
installation instructions must be followed.
• Ensure that all specified appliance vents, openings
and airspaces are not blocked.
• Where the appliance is built into a cabinet, the
cabinet material must be capable of withstanding
85°C.
• Only authorised personnel should carry out servicing.
(Certificate of Compliance to be retained)
• Always ensure the appliance is switched off before
cleaning or replacing parts.
• Do not use steam cleaners, as this may cause
moisture build up.
• Always clean the appliance immediately after any
food spillage.
• To maintain safe operation, it is recommended that
the product be inspected every five years by an
authorised service person.
• If rigid gas pipe is used for installation it should
include sufficient loops to allow the appliance to be
removed from installed position without the need to
disconnect the piping.
• This appliance must be earthed
• For appliances supplied with a supply cord, if the
supply cord is damaged, it must be replaced by the
manufacturer or its service agent or similarly qualified
person in order to avoid a hazard.
WARNING
WARNING
• This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety.
• Children should be supervised to ensure that they do
not play with the appliance.
• During use, this appliance becomes hot. Care should
be taken to avoid touching hot surfaces, e.g. oven door,
heating elements or internal surfaces of the oven.
• This appliance must not be used as a space heater.
• In order to avoid a fire, the appliance must be kept
clean and vents kept unobstructed.
• Do not spray aerosols in the vicinity of the appliance
during operation.
• Do not use or store flammable materials in or under
the appliance, e.g. Aerosols.
• Accessible parts will become hot when in use. To
avoid burns and scalds children should be kept away.
• Do not line the bottom of the oven or grill with foil
or cookware.
• Always use gloves when handling hot items inside
grill or oven.
• Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the oven door glass since they can
scratch the surface, which may result in shattering
of the glass.
• Do not modify this appliance.
• The appliance is not intended to be operated by
means of an external timer or separate remote
control system.
• Do not store items on the cooking surfaces. This may
result in a fire.
• Accessible parts may become hot during use. Young
children should be kept away.
• The cooking process has to be supervised. A
short term cooking process has to be supervised
continuously.
• Unattended cooking on a hob with fat or oil can be
dangerous and may result in a fire.
• The appliance must not be installed behind a
decorative door in order to avoid overheating.
Grill
• Always turn the grill off immediately after use as fat
left there may catch fire.
• Always keep the grill dish clean as any fat left
may catch fire.
• Do not leave the grill on unattended.
• To avoid a fire, ensure that grill trays and fittings are
always inserted into the appliance in accordance
with the instructions.
IMPORTANT SAFETY
INSTRUCTIONS

4DESCRIPTION
DESCRIPTION OF YOUR
APPLIANCE

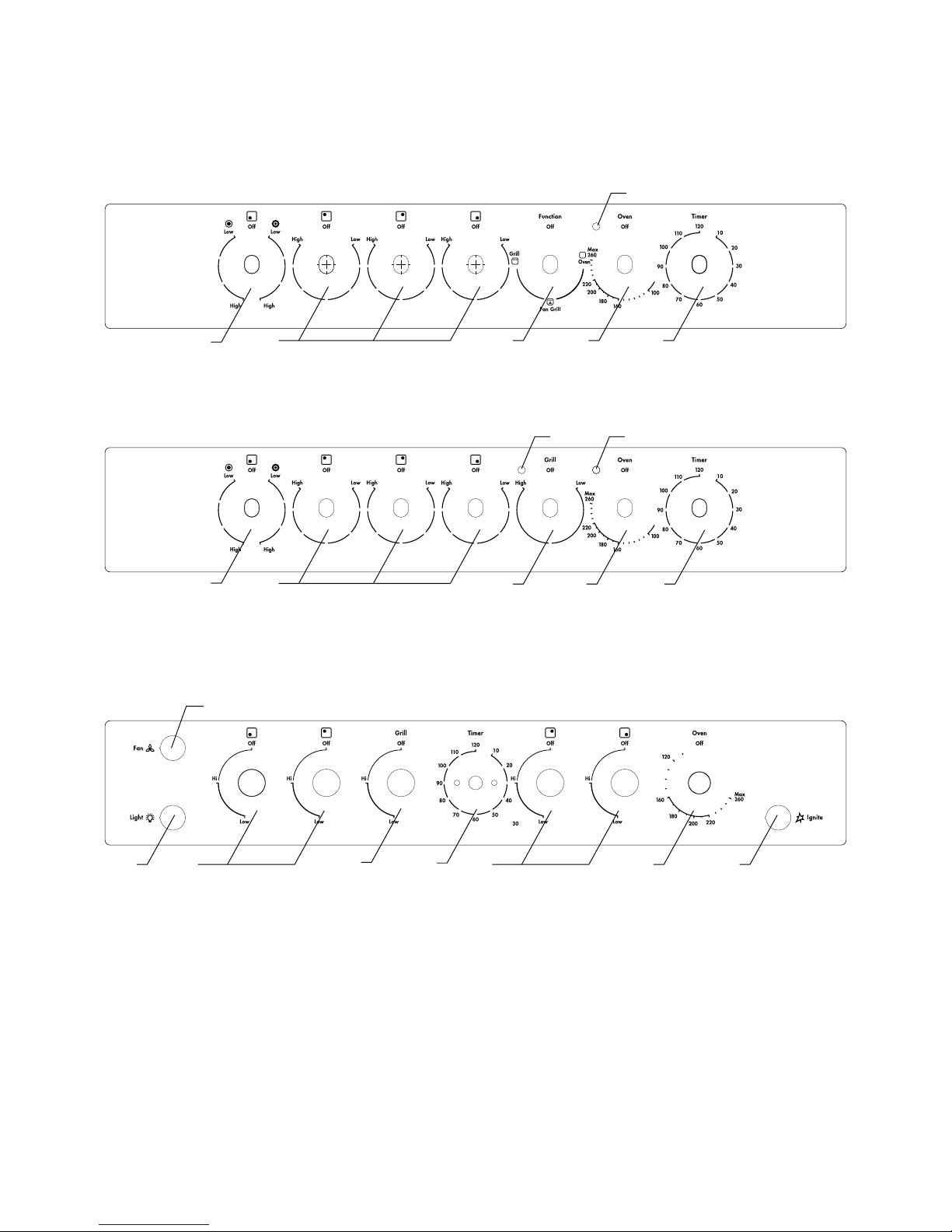

Model WFE517
Model WFE547
Model WFE616
Model WFE619
Hotplate
controls
Hotplate
controls
Dual ring
hotplate
control
Hotplate
controls
Hotplate
controls
Grill
temperature
selector
Oven
temperature
selector
Grill
temperature
selector
Grill/Oven
selector
Grill
temperature
selector
2 hour
timer
2 hour
timer
2 hour
timer
2 hour
timer
Oven
temperature
selector
Grill/Oven
temperature
selector
Oven
temperature
selector
Grill indicator
lamp
Grill indicator
lamp
Grill/Oven
indicator lamp
Grill indicator
lamp
Oven indicator
lamp
Oven indicator
lamp
Oven indicator
lamp

5DESCRIPTION
Model WFE642
Model WFE647
Model WFG617
Hotplate
controls
Hotplate
controls
Dual ring
hotplate
control
Dual ring
hotplate
control
Hotplate
controls
Hotplate
controls
Grill
temperature
selector
Grill
temperature
selector
2 hour
timer
Grill/Oven
temperature
selector
Grill/Oven
selector
Oven
temperature
selector
Oven
temperature
selector
2 hour
timer
2 hour
timer
Ignition
button
Oven
light button
Grill/Oven
indicator lamp
Grill indicator
lamp
Oven fan
button
Oven indicator
lamp

6BEFORE OPERATING
Grill in oven
(refer to Fitting Oven Shelves)
The grill dish with wire insert can be used in any of the
two upper height positions (shelf positions 4 and 5)
between the runners.
NOTE: You must remove the grill dish when baking in
the oven.
Oven shelf location
NOTE: The top ledge is not a shelf position. There are no
stops for shelf withdrawal.
Separate grill
• To insert the grill tray in a separate grill underbench
product, open the grill door and fully extend the grill
drawer Position thegrill tray so thatthe slots onthe outer
edges fit over the tabs on the slides.
Preparing your appliance for the first time
• Please remove all internal boxes and bags from the
oven before operation.
• Please wipe out the oven interior prior to operation
with warm soapy water and polish dry with a soft
clean cloth. Do not close the oven door until the oven
is completely dry.
WARNING
CAUTION
• Do not line the oven with foil as it will damage
the enamel.
• New appliances can have an odour during first use. It
is recommended to ‘run in’ the oven before cooking
for the first time Operate the oven(s), empty, at a
temperature of 180°C for approximately 30 minutes.
For appliances with a separate grill, run the grill on
maximum for 15 minutes WITH GRILL DOOR OPEN
Please ensure that the room is well ventilated during
this process.
Installing your oven accessories
Fitting oven shelves
1. Ensure shelf orientation is correct (refer to diagram
below).
2. Slide oven shelves onto oven supports (side runners)
at an angle until raised back of shelf is past the stop
on oven supports (side runners).
3. Lower front of shelf and push in until stop is reached.
4. To remove oven shelves, withdraw to the stop and
raise the front of shelf to clear the stop.
BEFORE OPERATING YOUR APPLIANCE
FOR THE FIRST TIME
Note the orientation
of the side and rear
features
Grill dish
insertion Grill dish
final position
5 shelf
positions
1
2
3
4
5
Not a shelf
position
Rear slot
Slide tab

7INSTALLING YOUR OVEN ACCESSORIES

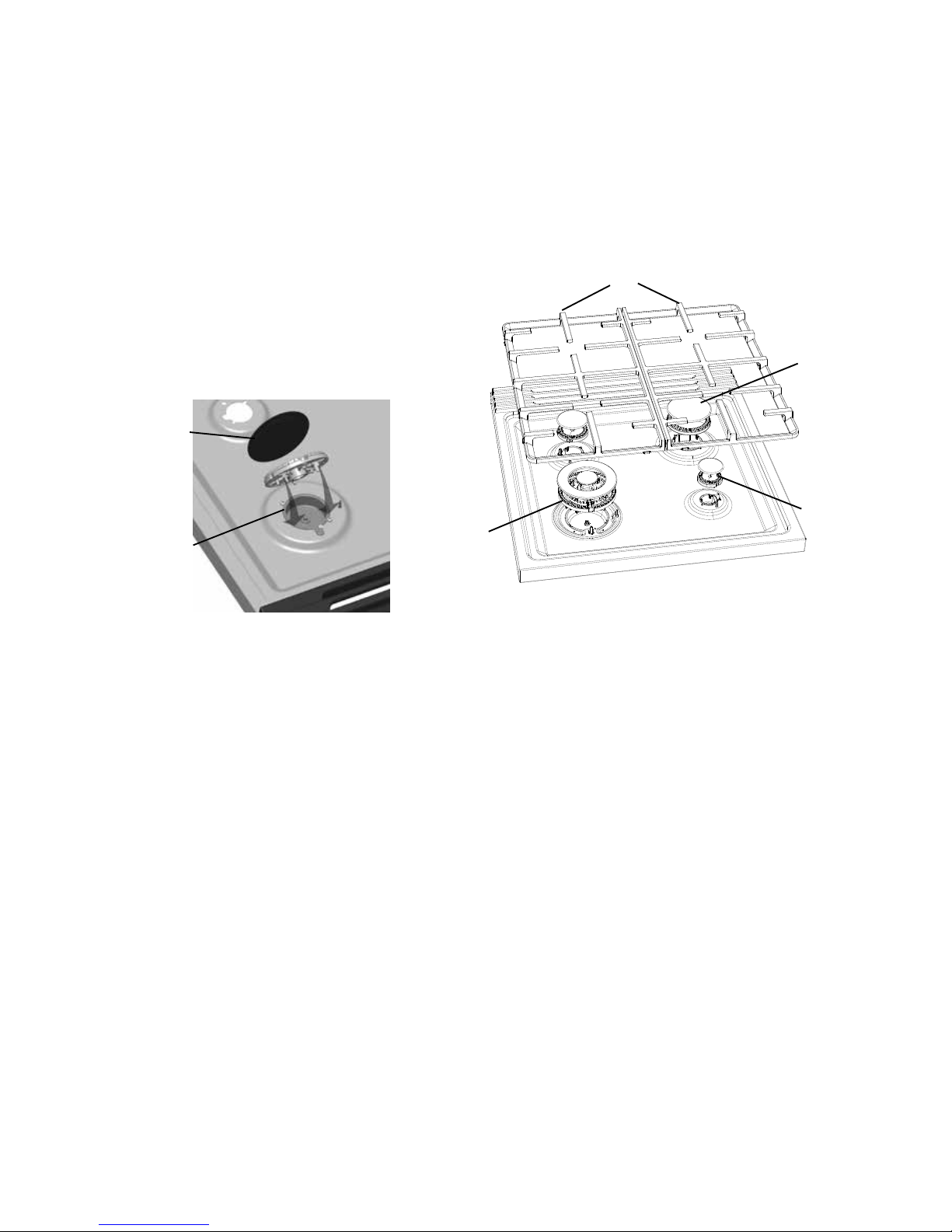

Burner crowns and caps
• The burner crown must be fitted correctly into the
burner cup or damage will occur during operation.
• To do this, ensure that the 2 ribs on either side of the
spark plug hole are positioned into the 2 slots on the
burner cup (see diagram).
• Burner cap and burner crown must be clean and
located correctly for the burner to light.
NOTE: When the burner is correctly fitted it will sit level
on the hob.
burner crown
burner cup
Trivets
• Take care when placing the trivets as dropping them
may damage the hob or trivet.
INSTALLING YOUR OVEN
ACCESSORIES
burner cap
trivets
wok burner
burner crown

8USING THE HOTPLATE
Ceramic hotplates
The cooktop is made from ceramic glass, a tough, durable
material that withstands heating and cooling without
breaking. It is strong enough to hold the heaviest utensils.
However, it must be remembered that as it is GLASS, it
may break. Treat it accordingly!
Should you have any questions about the glass in your new
appliance, please contact the service centre by dialling
13 13 49.
The heating elements are concealed under the smooth
glass surface which has a pattern to show the location
of the elements. When cooking, turn the control to the
required setting.
The ceramic cooktop glass will retain heat for a period of
time after the control is turned off. This will be indicated
by the hot surface warning light which will continue to
glow until the temperature drops below 60°C.
NOTE: If the ceramic glass is cracked switch off the
appliance to avoid the possibility of electric shock.
• Use pans with smooth, clean and dry bottoms to
avoid scratching or burning residue into the glass.
• Ensure the pan bottom is the same size as the
working element.
• We do not recommend ceramic glass pans because
they do not conduct heat well.
• Stainless steel or enamelled saucepans are best.
• Do not use pans with copper or aluminium bottoms
because they can leave traces which are difficult to
remove from the glass.
• If buying new utensils select enamelled steel pans
with 2-3mm thick bottoms or stainless steel pans with
sandwich bottoms 4-6mm thick. The pan bottom
should be flat, or preferably, slightly concave at room
temperature so that it lies flat on the glass surface
when hot.
Hotplate dos and dont’s
• Do not place heat resistant mats, wire mats or
aluminium foil under pots and pans.
• Do not allow pots and pans to boil dry, as damage to
both pan and hotplate may result.
• Do not use the hotplate as extra bench space or as a
cutting board.
• Do not allow children on or near the cooktop at any
time.
• Do not allow large cookware to overhang the
hotplate onto the adjacent benchtop. This will cause
scorching to the benchtop surface.
• Do not use round bottom woks or similar utensils
which could lead to overheating of the hotplates and
possible damage to the cooking surface.
• Use the stored heat in the hotplate by turning the
control to off before the final few minutes of cooking.
• Do not slide pans across the surface of the ceramic
glass as it could result in scratching of the surface.
USING THE HOTPLATE
a flat or slightly
concave pan is
preferable for
ceramic hotplates

9OPERATING

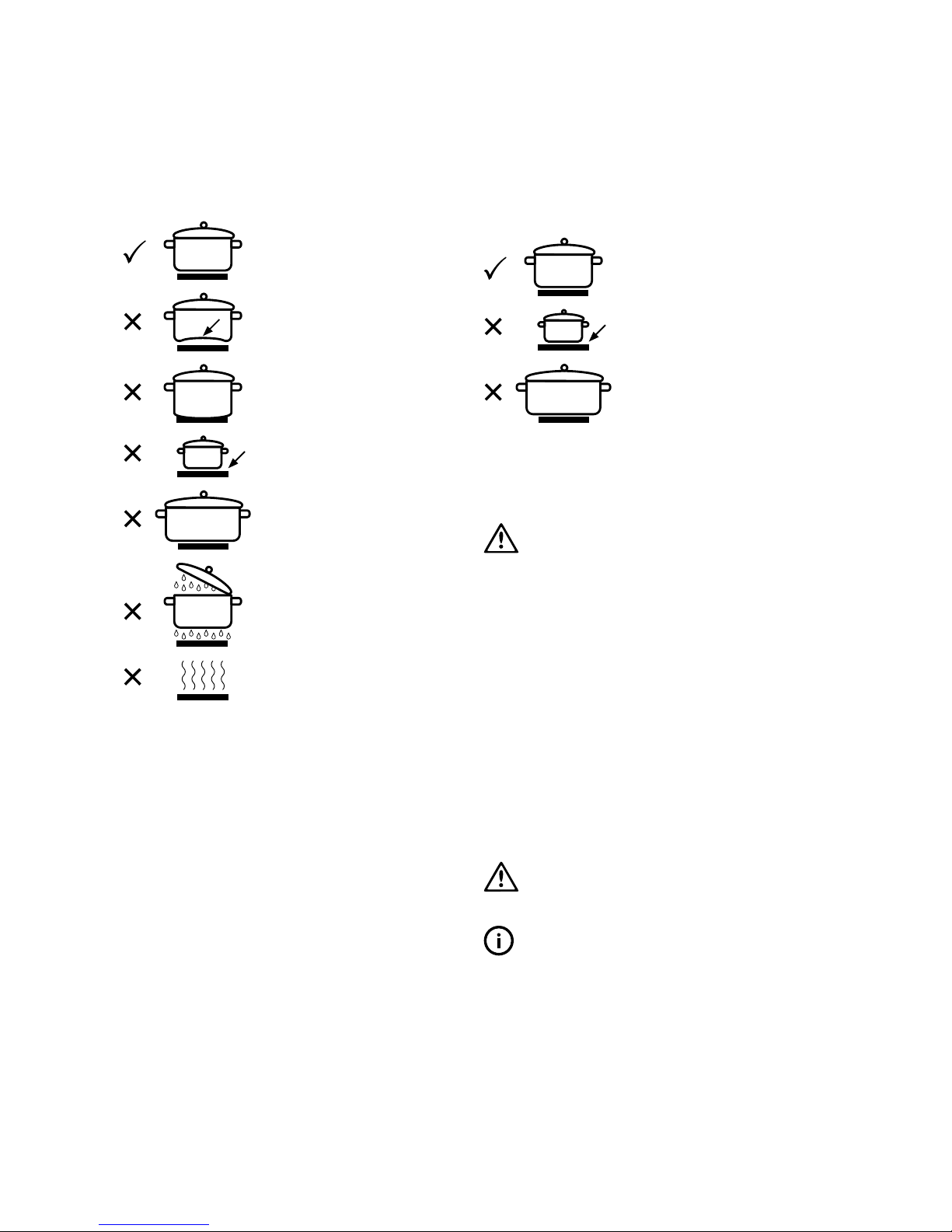

Choosing utensils for electric hotplates
Refer to the diagram below.
Good
Bad
(recessed base)
Bad
(convex base)
Bad
(undersize)
Bad
(oversize)
Bad
(moisture on hotplate)
Bad
(no cookware)
Choosing utensils for gas hotplates
Refer to the diagram below.
Good
Bad
(undersize)
Bad
(oversize)
Do not use utensils which are too large or too small.
Installation and service warning
WARNING
WARNING
• Only an authorised person must install and service
this appliance (Certificate of Compliance to be
retained).
• In order to avoid a hazard, the installation
instructions
MUST be followed.
• In order to avoid the appliance tipping, the anti-tilt
plate MUST be installed.
• Appliances requiring connection to 230 – 240V
MUST be earthed.
• An authorised person should inspect this appliance
every 5 years.
• This appliance must NOT be installed on a base,
box or in a closed cupboard.
• If the electrical supply cord is damaged, a qualified
person MUST replace the cord to avoid a hazard.
WARNING
WARNING
Surrounding kitchen cabinets MUST WITHSTAND 85°C.
TIPS & INFORMATION
BEFORE OPERATING FIRST TIME
1. Read all the Warning and Safety information.
2. Remove all internal boxes and bags from oven.
3. Clean out the oven interior with detergent and warm
water and polish with a soft cloth. DO NOT close
oven door until the oven is completely dry.
OPERATING FOR THE FIRST TIME

10 USING THE COOKER
Lighting gas hotplate, grill and oven
Electronic ignition (For models WFE616, WFE619
and WFE517)
These hobs are fitted with mains powered electronic ignition.
When the appliance has been connected and the power is on,
depressing any knob will release sparks to all burners. To light
a burner, depress the corresponding knob and while continuing
to depress knob turn anticlockwise to ‘HI’ position. The knob
may be released once the flame is established, and turned
further anticlockwise to reduce the flame height as desired.
Push button Ignition (For models WFG617)
Turn appropriate burner control knob to maximum and at the
same time press the ignition switch.
Flame safeguard models (For models WFE616, WFE619,
WFG617, WFE517)
Models with flame safeguard have the same ignition procedure
as above but require the knob to continue to be depressed
after flame is established for approximately 5 seconds. If the
flame goes out when the knob is released, simply depress the
knob again, this time holding it down with slightly more force
for the same length of time.
WARNING
WARNING
• Keep hands clear of burners when lighting.
• If burner does not light within 5 seconds, turn knob to
‘Off’ position, allow gas to disperse, then try lighting
again.
• Burners MUST be operated between ‘HIGH’ and ‘LOW’
settings only.
ENVIRONMENTAL TIPS
ENVIRONMENT
To conserve gas, place the pan centrally over the burner and
adjust the flame so that it does not go past the edge of the
cookware.
NOTE: In the absence of electrical power, carry out the ignition
directly to the burner with a hand held ignition source.
Grill ignition (For models WFG617)
Turn Grill Control Knob onto maximum and at the same time
press Electronic Ignition Switch. This burner also has flame
failure, so it is required to depress the knob approximately
5 seconds after the flame is established. If the flame goes out
when the knob is released, simply depress the knob again,
this time holding it down with slightly more force for the same
length of time.
Grill – in oven
Grill is electric and is operated by control knob only.
Oven ignition – electronic (For model WFG617)
Push and hold Oven Control Knob onto desired temperature
and at the same time press the Electronic Ignition Switch.
Hold control knob in for 5 seconds after ignition.

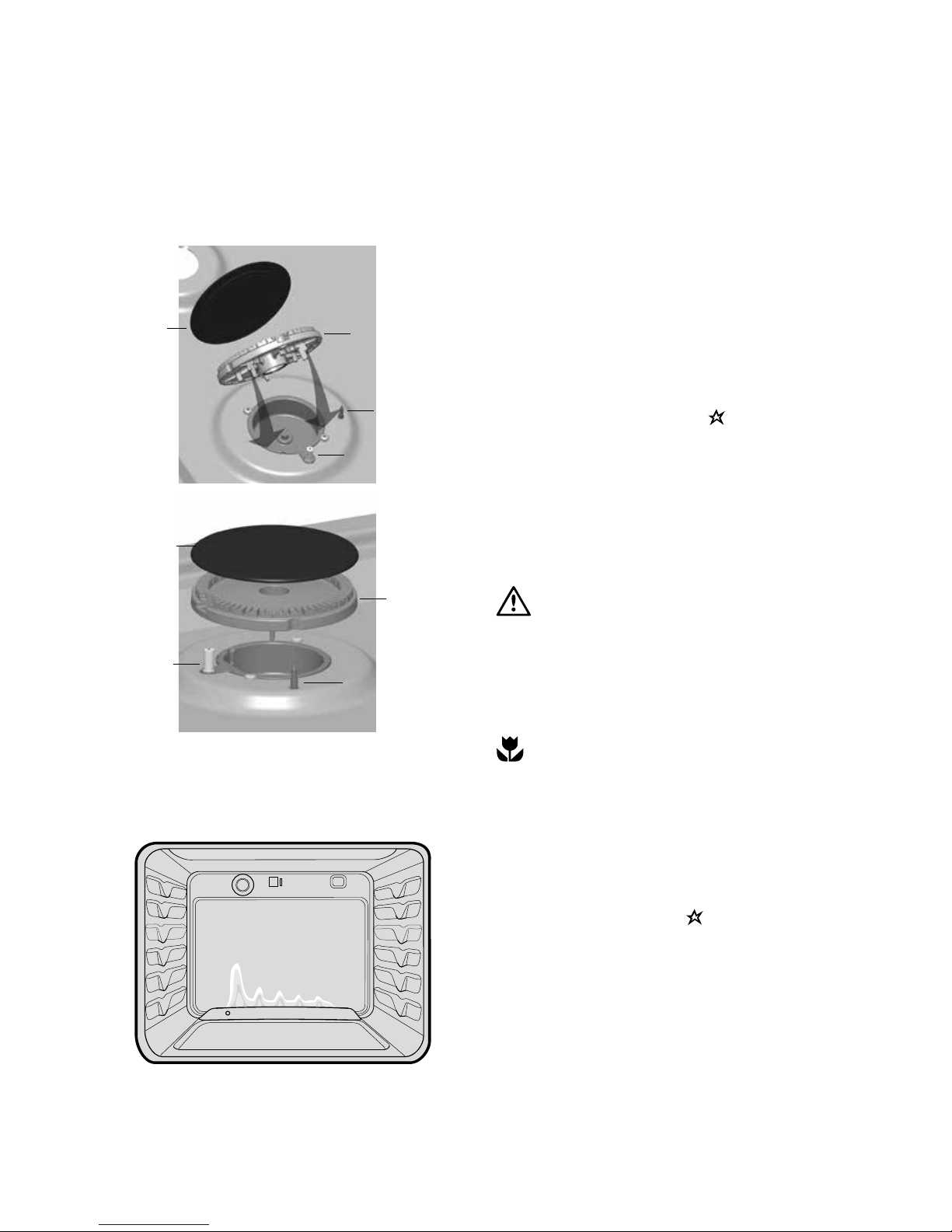

USING THE GAS COOKER
Gas hotplate
Ensure burner caps, crowns and trivets are properly assembled.
Gas oven burner flame
From a cold start the oven burner flame will be higher on the
left hand-side. After reaching the set temperature, the flame
will become even. This does not affect cooking results.
Burner Cap
Burner
Crown
Spark Plug
Burner Crown
Burner Cap
Spark Plug
Thermocouple
Thermocouple

11USING THE COOKER

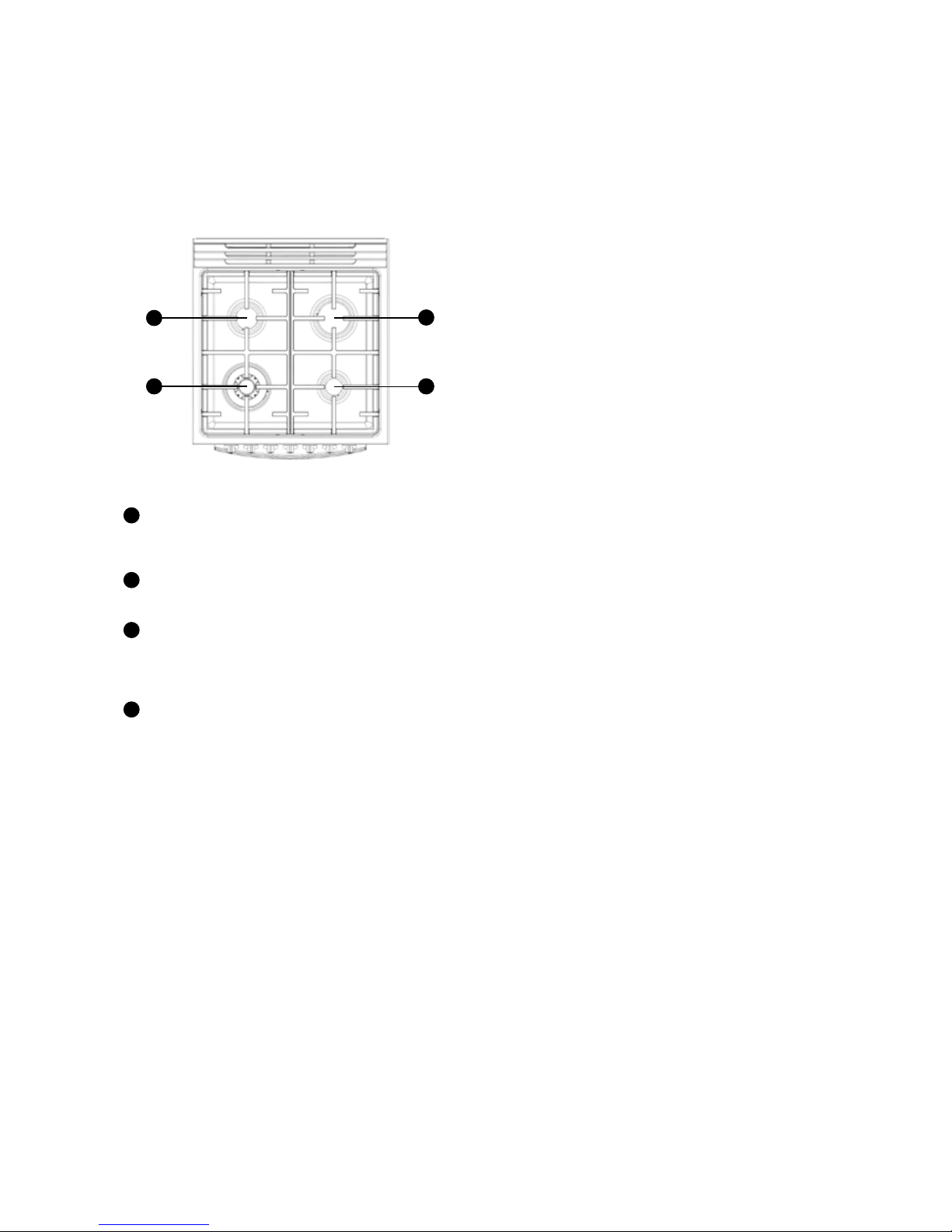

Gas hotplates (Energy rating)
1Medium heat burner (9.0 MJ/h)
Used for normal cooking and simmering with mid size
cookware items.
2High heat burner (12.1 MJ/h)
Used for fast heating with large size cookware items.
3Intense heat wok burner (14.2 MJ/h)
Used for very fast heating with woks and other large
size cookware items. Use wok support provided when
cooking with a wok.
4Low heat burner (5.1 MJ/h)
Used for simmering and for use with small cookware
items.
NOTE: Energy ratings above are for natural gas (NG)
models.
To conserve gas, place the pan centrally over the burner
and adjust the flame so that it does not go past the
edge of the cookware.
NOTE: In the absence of electrical power, carry out the
ignition directly to the burner with a hand held ignition
source.
USING THE GAS COOKER
12
3 4

12 HINTS AND TIPS
GENERAL HINTS AND TIPS
General hints
For best baking results preheat oven for 30 minutes.
The material and finish of baking trays and dishes used
will affect the way foods are baked, especially base
browning.
• Enamelware, anodised aluminium, dark bakeware or
non-stick interiors and coloured exteriors will assist in
maintaining or reducing the baking time and increase
base browning.
• Ovenproof glassware or ceramics are poor
conductors of heat. The shiny surface of aluminium
or polished steel utensils and trays also reflects the
heat rather then passing it through to the food being
baked.
• Always place dishes in the centre of the shelf to
ensure even browning.
• Stand casserole dishes on a baking tray to prevent
food from spilling onto the base of the oven.
• Use ovenproof cookware, which will withstand
temperatures of 250°C.
• Use shallow casserole dishes in preference to deeper
ones as this shortens cooking time in the oven.
WARNING
CAUTION
• DO NOT place dishes, trays or baking pans directly
on the oven base as they become very hot and will
crack and craze the oven liner.
• DO NOT use baking trays larger than 30 x 35cm
(12 x 14 inches) as they will restrict the circulation
of the heat and may affect cooking performance of
the oven.
Conventional Oven
• The shelf position is critical. The temperature in
centre of the oven is the temperature shown on the
oven control knob. Single shelf baking gives optimal
cooking results.
• DO NOT place baking trays, oven dishes or foil
directly on the base of oven, as trapped heat will
crack and craze the floor of the oven liner.
Fan Forced
• Make sure shelves are evenly spaced.
• When baking more than one dish in fan forced oven,
place dishes centrally on shelves rather than several
dishes on one shelf.
• When the oven is full you may need to allow a slightly
longer baking time.
• When using different size trays or cooking different
types of food, cooking times may vary for each dish.
WARNING
CAUTION
• DO NOT place baking trays and oven dishes
directly against the grid covering the fan at the back
of the oven.
• DO NOT place oven dishes directly on the oven base.
TIPS & INFORMATION
TIPS AND INFORMATION
Condensation and Steam
• During cooking steam may be produced which can
be released when opening the oven door. This is
quite normal.
• If there is any build-up of condensation on the oven
door it is recommended that it be carefully wiped
away either during or after cooking.
WARNING
WARNING
Always stand back from heated oven when opening oven
door to allow any build-up of steam or heat to release.
WARNING
WARNING
Door glass is a tough and durable material designed
to withstand heating and cooling without breaking.
However it must be remembered that it is glass and may
break, therefore must be treated with care. If you have
any questions about the glass in the oven please contact
the Service Centre on 13 13 49.

13GUIDE TO GRILLING
Separate Grill Grill with door open.
Grill dish must be located on slides.
Slides must be fully pushed in while
grilling.
Grill In Oven Grill with door closed.
No definite times can be given for grilling because
this depends on your own taste and the size of the
food. These times should only be used as a guide and
remember to turn the food over halfway through the
cooking process.
Steak 15 – 20 minutes
Chops 20 – 30 minutes
Fish 8 – 10 minutes
Bacon 4 – 5 minutes
For better grilling results, follow these easy instructions:
1. Preheat the grill for at least 3 minutes to obtain best
results. This will help to seal the natural juices.
2. Choose only prime cuts of meat or fish. If the cut is
less than 5mm thick it will dry out. If the cut is more
than 40mm thick, the outside may burn whilst the
inside remains raw.
3. Do not place aluminium foil under the food as this
prevents fats and oils from draining away, which
could result in a fire.
4. Baste the food during cooking with butter, olive oil
or marinade. Grilled food is better if marinated
before cooking.
5. Use tongs to turn food as a fork pierces the surface
and will let juices escape.
WARNING
WARNING
Safety warnings about the grill
• Do not cook food on the bottom of the grill
compartment. Always use the grill dish and grill
dish insert.
• Do not place foil under the food on the grill dish
insert, as this prevents fats and oils running away and
may cause a fire.
• Always use the grill parts according to instructions.
• Do not put thick pieces of food too near the element.
They may curl and catch fire.
• Always turn the grill off immediately after cooking.
Left-over fat may cause a fire.
• Always clean the grill dish and insert after use.
Fat build up may cause a fire.
• Do not let children play with the grill.
• Do not let children use the grill without adult
supervision.
• Do not leave the grill unattended when on.
• Be careful not to touch hot surfaces.
• Do not spray aerosols near the grill, when it is
turned on.
• Do not keep flammable materials in or near the grill,
eg chemicals, aerosols, etc.
WARNING
CAUTION
Using the Grill
WARNING
WARNING
Always clean the grill tray and grill tray insert after every
use. Excessive fat build up may cause a fire.
For separate grill models, the door must be open while
grilling. Ensure grill slides are fully inserted while grilling.
Always switch the grill off immediately after use.
What is grilling?
• The grill directs heat from the heat source in the grill
compartment onto the food.
• This way of cooking traps the juices inside the food
and increases the flavour.
• Grilling is suitable for tender cuts of meat, steak,
chops, sausages, fish and other foods which cook
quickly.
As a method of cooking, grilling can be used to:
• Enhance the flavours of vegetables, fish, poultry
and meat.
• Seal the surface of the food and retain the natural
juices.
This table shows how to grill different types of meat:
Beef You can use tenderloin, rump, sirloin.
Brush with oil or melted butter, especially
if the meat is very lean.
Lamb You can use loin chops, shortloin chops,
chump chops, and forequarter chops.
Remove skin or cut at intervals to stop
curling. Brush with oil or melted butter.
Sausages Prick sausages to stop skin from bursting.
Poultry Divide into serving pieces. Brush with oil.
Fish Brush with oil or melted butter and
lemon juice.
Bacon Remove rind. Grill flat.
GUIDE TO BETTER GRILLING

14 120 MINUTE TIMER
Operating your 120 minute ringer timer
To set the timer, simply turn the knob clockwise to the
required number of minutes.
Note: For any time below ten minutes, turn the knob past
the thirty minute mark, then turn it back to the required
number of minutes.
OPERATING THE 120 MINUTE MECHANICAL RINGER TIMER
(WHERE SUPPLIED)

15USING THE OVEN
Fan baking
The temperature in the oven is controlled by a thermostat.
The fan distributes the heat throughout the oven
compartment. This allows:
• Baking on all shelves at the same time with little
variation in browning or cooking.
• Cooking at slightly lower temperatures.
• Cooking from a cold start so there is no need to
preheat the oven – this is good for casseroles and
fruit cakes.
• Good cooking results for cream mixtures, rich
pastries and bread but with these foods, preheating
the oven for 10 to 15 minutes is required.
Defrosting
• Defrosting uses air that is circulated by the fan.
• You should defrost food before cooking it.
• You can also use the defrost function to raise yeast
dough and dry fruit, vegetables and herbs.
Condensation
Condensation fogs the oven door and happens when
you are cooking large quantities of food from a cold start.
You can minimise condensation by:
• Keeping the amount of water used in cooking to
a minimum;
• Making sure that the oven door is firmly closed;
• Cooking casseroles with a lid.
NOTE: If you are using water in cooking, this will turn to
steam and may condense outside the oven. This is not a
problem or a fault.
USING THE OVEN
Cooking guide
• Select the correct shelf location for food being
cooked.
• The grill tray can be used in the oven as a baking dish.
• Make sure dishes will fit into the oven and remove
unnecessary trays or dishes before you switch it on.
• Keep edges of baking dishes at least 40mm from the
side of the oven. This allows free circulation of heat
and ensures even cooking.
• Do not open the oven door more than necessary.
• Do not place foods with a lot of liquid into the oven
with other foods. This will cause food to steam and
not brown.
• After the oven is turned off it retains the heat for
some time. Use this heat to finish custards or to dry
bread.
• Do not use a lot of cooking oil when roasting. This will
prevent splattering oil on the sides of the oven and
the oven door. Polyunsaturated fats can leave residue
which is very difficult to remove.
• When cooking things which require a high heat from
below (e.g. tarts), place the cooking dish on a scone
tray in the desired shelf position.
• For sponges and cakes use aluminium, bright finished
or non-stick utensils.
Oven shelf location
Your oven comes with formed “easy clean” runners that
allow five positions for shelves These are numbered from
1 (the lowest shelf position) to 5 (the highest shelf
position). See diagram.
To give maximum space above and below the shelves,
load them in this way:
• When cooking with 1 shelf, use position 3.
• When cooking with 2 shelves, use positions 2 and 4.
Not a shelf
position
5 shelf positions
1
2
3
4
5

16 OVEN GUIDE
OVEN GUIDE
The following is intended as a guide. Cooking variation is natural and to be expected. You should experiment with
times, temperatures and recipes to obtain the best results to your own taste. Get to know your oven before making a
service call. Where the gas models vary from the electric models, details for gas cooking is shown in brackets. For best
results when baking, preheat your oven for 30 minutes.
FOOD CONVENTIONAL OVEN FAN FORCED OVEN TIME IN
MINUTES
TEMPERATURE
0C
OVEN SHELF PO-
SITION*
TEMPERATURE
0C
OVEN SHELF
POSITION*
Plain or fruit scones 220 2 (3) 210 Any 10 –15
Rolled biscuits 170 (180) 2150 (170) Any 10 –15
Spooned biscuits 190 2180 Any 12 –15
Shortbread biscuits 160 1 or 2 150 Any 30 – 35
Hard individual
meringues
110 2100 Any 90
Soft individual
meringues
180 2165 Any 15 – 20
Pavlova – 6 eggs 110 (120) 1100 Any 75
Patty cakes 190 2180 Any 15 – 20
Sponge – 4 eggs 180 2170 Any 20 – 30
Plain butter cake 180 2170 Any 25 – 40
Rich fruit cake 140 (150) 2130 Any 180
Shortcrust cornish
pasty#
200 (200/180) 2180 (180/160) Any 40 – 45 (10/35)
Shortcrust custard tart 200/180
(220/180)
1(3) 190/170
(200/180)
Any 20 – 30 (10/25)
Cream puffs 210 2200 Any 25 – 30
Yeast bread 210 1200 Any 25 – 30
Pizza 220 2220 Any 15 – 25
* Shelf position is counted from the bottom shelf up. Bottom shelf position is 1.
# Turn down temperatures shown.
MEAT/POULTRY/FISH RECOMMENDED TEMPERATURE 0C MINUTES PER KILOGRAM
Beef
– Rare 200 35 - 40
– Medium 200 45 - 50
– Well done 200 55 - 60
Lamb – Medium 200 40
– Well done 200 60
Veal 180 60
Pork 200 60
Chicken 180 - 200 45 – 50
Duck 180 - 200 60 – 70
Turkey 180 40 – 45 (less than 10kg)
35 – 40 (more than 10kg)
Fish 180 20

17CAKE TEST
Roasting Meat
• You can use the grill tray and grill tray insert for
roasting meat in the oven.
• Place the meat in the oven and set the temperature
between 180°C and 200°C. (It is recommended to
wrap your meats in an oven roasting bag or foil to
prevent fats and oils from splattering, making it easier
to clean your oven.)
• Do not pierce the meat, as this will allow juices to
escape.
• When the meat is cooked, take the roast out of the
oven, wrap in aluminum foil and leave to stand for
about 10 minutes. This will help retain the juices when
the meat is carved.
The table shows temperatures and cooking times for
different kinds of meat. These may vary depending on the
thickness or bone content of the meat.
MEAT RECOMMENDED
TEMPERATURE
MINUTES PER KG
Beef 200°C Rare 35 - 40
Medium 45 - 50
Well done 55 - 60
Lamb 200°C Medium 40
Well done 60
Veal 180°C Well done 60
Pork 200°C Well done 60
Roasting poultry and fish
• Place the poultry or fish in an oven set at a moderate
temperature of 180°C.
• Place a layer of foil over the fish for about three
quarters of the cooking time.
The table shows temperatures and cooking times for
different kinds of fish and poultry. These may vary
depending on the thickness or bone content of the meat.
POULTRY
& FISH
RECOMMENDED
TEMPERATURE
MINUTES PER KG
Chicken 180°C 45 - 50
Duck 180 - 200°C 60 - 70
Turkey 180°C 40 - 45 (<10kg)
35 - 40 (>10kg)
Fish 180°C 20
GET TO KNOW YOUR NEW OVEN
WITH THIS ‘SIMPLE TEST CAKE’
Although we strive for a perfect performing oven, it’s
possible that there will be some variation in colour
when baking. Therefore, we suggest this simple, easy
and delicious to make Simple Test Cake, it can help you
understand your new oven. All ovens do sometimes have
hot or cold spots, therefore it is important to judge with
your eye as you may require to rotate during baking.
125g butter, softened to room temperature
1 cup caster sugar
1 teaspoon pure vanilla essence
4 large eggs
2 cups self-raising flour
Pinch of salt
4 tablespoons (80ml) full-cream milk
Method:
1. Butter base and sides of two, 20cm straight-sided
round or square cake pans. Then line the base with
grease proof or baking paper.
2. Preheat oven to moderate 180°C (170°C fan forced)
and ensure oven shelf is in the centre position of oven.
3. Cream softened butter and sugar until light in colour.
4. Add vanilla essence.
5. Then eggs one at a time, beating well after each
addition.
6. Sift flour and salt into the mixture and beat until
well combined.
7. Add milk and beat or stir to combine.
8. Spoon mixture equally between prepared cake pans.
9. Bake in preheated oven, middle shelf for about 25 to
35 minutes or until when tested with a fine cake skewer
it comes out clean or the edges of the cakes have
come away slightly from the sides of the cake pans.
10. Remove from oven to wire cake rack and rest for 5
minutes before removing from cake pans. Cool
completely.
To serve: Sandwich together with your favourite jam or
conserve, and dust top with pure icing sugar.
NOTE: If desired, substitute butter for either margarine or
olive oil spread.
Recipe is based on the Australian standard metric 250ml
cup and 20ml tablespoon sets.

18 COOKING PROBLEMS
PROBLEM CAUSES WHAT TO DO
Uneven cooking Incorrect shelf position Select shelf that puts food in centre of oven
Oven tray too large Try other trays or dishes
Trays not in centre Put trays in centre
Air flow in oven uneven Rotate food during cooking
Grill tray affecting thermostat Remove grill tray from oven on bake modes
Baked products too brown on top Oven not preheated Preheat the oven
Baking tins too large for recipe Use correct size tins
Baking tins not evenly spaced Stagger baking tins at least 3cm between
tins and the oven walls
Products not evenly sized or spaced
on trays
Make into same size and shape and spread
evenly over trays
Baking temperature too high Lower the temperature
Baked products too brown on
bottom
Baking tins too large for recipe Use correct size tins
Baking tins are dark metal or glass Change to shiny, light tins or lower the
temperature by 10°C
Food too low in oven Cook one shelf higher
Oven door opened too frequently
during baking
Don’t open the oven door until at least half
the cooking time has passed
Baking temperature too high Lower the temperature
Grill tray affecting thermostat Remove grill tray from oven on bake modes
Cakes have a cracked thick crust Baking temperature too high Lower the temperature
Food too low in oven Cook one shelf higher
Cake batter over mixed Mix just long enough to combine the
ingredients
Baking tin too deep Check size of tin and use recommended
size
Baking tins dark Change to shiny light tins
Baked products are pale, flat and
undercooked
Baking temperature too low Raise the temperature
Food too low in oven Cook one shelf higher
Baking time too short Increase cooking time
Incorrect baking tin size Use correct size tin
Cakes fallen in centre Baking temperature too low Raise the temperature
Baking time too short Increase cooking time
Proportions of ingredients incorrect
for recipe
Check recipe
Opening door too early during baking Do not open door until the last quarter of
cooking time
Roast meat and potatoes not
brown in fan oven
Poor hot air circulation Elevate food onto a rack to allow air
circulation
Grill tray affecting thermostat Remove grill tray from oven on bake modes
Juices running out of meat Do not pierce meat with fork, turn with
tongs
Grilled meats overcooked on
outside & raw in the centre
Grill at lower insert position
(Grill in oven models only)
Grilled chops & steaks curling Cut into fat every 2cm (¾")
DEALING WITH COOKING
PROBLEMS

19CLEANING
CLEANING THE COOKER
Ovens and hotplates are made from steel and enamel.
Do not use abrasives and harsh scourers as they may
scratch the surface.
Enamel
• Keep enamel clean by wiping it with a soft cloth
dipped in warm soapy water.
• Rub difficult stains with a nylon scourer or cream
powder cleanser.
• DO NOT use abrasive cleaners, powder cleaners, steel
wool or wax polishes.
• If you use an oven cleaner, follow the instructions on
the product carefully.
Stainless Steel
• All grades of stainless steel can stain, discolour or
becomes greasy. Clean the cooker regularly, using the
procedures outlined below, to maintain the function
and appearance of your appliance.
• Care must be taken when wiping exposed stainless
steel edges as they can be sharp.
• The front frame around the oven can be cleaned
with stainless steel cleaners if it comes soiled or
discoloured.
• A suitable cleaner can be purchased from Electrolux
Customer Care Centres.
• Always clean the stainless steel in the direction of the
grain. Going against the grain may scratch the surface.
Oven Shelves
• Chrome shelves: use detergent and hot water. If very
dirty use a non-abrasive nylon scourer.
Oven – Grill Dish and Insert
• After every use and while still warm, wash pan and
grill with warm soapy water and a suitable oven
cleaner. Rinse and dry before replacing in position.
Oven
• Use detergent, warm water (and household cloudy
ammonia if necessary) and a soft cloth. Dry thoroughly.
• Remove shelves when the cleaning oven.
• If there is a build-up of grease use a suitable oven
cleaner, following the instructions on the cleaning
product carefully. Heat oven to 110°C and turn
oven off when 110°C is reached. Leave over-night.
The fumes will loosen stubborn grease and stains.
Remove bowl, wash with hot, soapy water and dry
well before closing oven door again. Ensure oven is
thoroughly rinsed and dried before subsequent use.
WARNING
CAUTION
DO NOT remove the oven door.
Glass
• Glass surfaces on doors and control panels are best
cleaned immediately after soiling.
• A damp cloth may help remove baked on food
deposits.
• Oven cleaners can be used to remove stubborn
marks and stains.
WARNING
WARNING
The door glass on this appliance is made from tough
durable material that withstands heating and cooling
without breaking. However it must be remembered that
it is glass, it may break. Treat it accordingly!
Should you have any questions about the glass in your
appliance, please contact the customer care centre
by calling 1300 363 640. Do not use harsh cleaners or
sharp metal scrapers to clean the oven door since they
can scratch the surface, which may result in shattering
of the glass.
Ceramic Hotplate
• Remove all spilt food and fat with the supplied razor
blade scraper, while the ceramic glass is still warm but
not hot. Wipe clean with dishwashing detergent on a
damp cloth.
• If aluminium foil, plastic items or high sugar content
foods are allowed to melt on the ceramic glass, clean
immediately with the supplied razor blade scraper
before the surface has cooled down, otherwise pitting
of the surface can occur.
NOTE: Items with high sugar content not only include jam
and fruit, but also vegetables such as peas, tomatoes and
carrots.
• When the ceramic glass is cool, apply a suitable
ceramic glass cleaner.
• It is important to follow the cleaner manufacturer’s
instructions. Remove any cleaning residue from the
surface as staining of the cooktop may occur.
• Do not use abrasive sponges or scourers, as they may
scratch the surface.
• Any pitting, staining, scratches or other surface
deterioration is excluded from the warranty.
• All stains/water marks can be removed by vigorous
cleaning, using a ceramic glass cleaner.
• Sometimes surface stains appear to be ‘bubble’
marks under the ceramic glass. These can be cleaned
with a razor blade scraper and ceramic cleaner.

20 CLEANING
Cleaning the grill
Grill tray and grill pan
• Wash the grill tray and grill pan in hot soapy water.
WARNING
WARNING
Always keep the grill pan clean as any fat left in it may
catch fire.
Grill Compartment
• Clean the grill compartment with hot soapy water.
• If stronger action is needed use a non-abrasive oven
cleaner applied with a nylon scourer.
Removing and replacing the oven light
WARNING
WARNING
Make sure the appliance is turned off before you remove
or replace parts, to avoid the possibility of electric shock.
CLEANING THE COOKER
(CONTINUED)
WARNING
WARNING
Grill
• Always keep the grill tray and grill tray insert clean,
as any fat deposits may catch fire.
Gas Burners
• Flame port blockages should be removed with a
small metal cake skewer or nylon brush.
• Clean dirty spark plugs very gently with a nylon
scourer. Do not use steel wool. Do not bend spark plug as
it may break.
• If the caps, crowns and cups are heavily soiled, use a
non-abrasive cleaning compound.
• Do not clean these parts with abrasive or caustic type
cleaners, or clean in a dishwasher as they will
be damaged.
Turn light anti-clockwise
to remove it for globe
Globe Specifications:
25W 9 maximum)/230 – 240V
Temperature rating 300˚C
Edison screw, small (E14)
CLEANING YOUR OVEN
ACCESSORIES
