Westinghouse WB84U1D1 User manual

USER’S MANUAL
MANUEL DE L’UTILISATEUR
MANUAL DEL USUARIO
WB84U1D1



InteractiveWhiteBoard
OperatingInstruction
Beforeoperatingtheunit,pleasereadthismanualthoroughly,
andretainitforfuturereference.

SafetyWarning 

Beforeoperatingtheunit,pleasereadthismanualthoroughly,
andretainitforfuturereference.
Placement
Donotplacetheunitonanunstablecart,stand,tripod,bracket,table,orshelf.
Donotexposetheunittodirectsunlightandothersourcesofheat.
Donotplacetheunitnearappliancesthatcreatemagneticfields.
Donothandleliquidsnearorontheunit.
Neverspillliquidofanykindintotheunit
Donotputheavyobjectsontopoftheunit.
PowerSupply
Checkthattheunit’soperatingvoltageisidenticalwithyourlocalpowersupply.
Pleaseunplugpowersupplyandaerialplugduringathunder(lightening)storm.
Pleaseunplugpowersupply,whenthereisnobodyathomeornotusingoveralongperiodoftime.
Pleaseprotectpowercordfromanyphysicalormechanicaldamage.
Pleaseusepowercordprovided,don'tmodifyorlengthenit.
PleasecheckandensureACsourceisgrounded.
For55/65/70/84inchDisplayequipment:Fuseratingininletis6.3A,250VAC.
LCDScreen
Neveruseanyothertoughorsharpobjecttoreplacewiththeoriginaltouch‐writepen.
Unplugthepowersupplybeforecleaning.
Cleanthescreenwithasoftdustlessdrycloth.
Neverusewaterordetergenttocleantheunit.
Fordeepclean,contactanauthorizedservicecenter.
Pleasedon'tdisplaythehighbrightnessimageonthescreenforalongtime.
ObservationDistance
Thebestdistancebetweenaudienceandscreenis5‐7timesthatofscreensizediagonally.
Thebestwatchinganglebetweenaudienceandscreeniswithin176degrees.
Temperature
Donotplacetheunitneararadiatororheater.
Ifyourunitissuddenlymovedfromacoldtoawarmplace,unplugthepowercordforatleasttwohours
allowingthemoisturethatmayhaveformedinsidetheunittodry.
Normaloperatingtemperatureis0~40℃,storagetemperatureis‐20~60℃
Humidity
Donotexposemachinetorain,dampareaorplacenearwater.
Ensuretheindooroperatinghumidityis10~90%,storagehumidityis10~95%.
Ventilation
Keepallventilationopeningsclear.
Ensurethattheunithasenoughspaceforventilationaround:left,rightandback>10cm,top>20cm.
Standby
Standbymodewillnotturnofftheunit.
PressPowerbuttononremoteunittoactivatestandbymode.

 3

Battery
Properlymaintainthebatteriesandrecycletheusedbatteries.
Caution
ThisisaClassBproduct,thereisnotcauseradiointerference.


















































 4

CONTENT
1INSTALLATION............................................................................................................5
1.1Openthepackage........................................................................................................................5
1.2Checkingparts……………………………………………………………………………………………………………………….5
1.3Installation....................................................................................................................................6
2CONTROLPANEL(locatedattheFrontpanel).............................................................8
3INUT/OUTPUTTERMINALS.......................................................................................9
4REMOTECONTROL...................................................................................................11
4.1RemoteControlButtonsFunctionDescription..........................................................................12
4.2RemoteControlInstruction.......................................................................................................13
4.3Remotecontrolrange................................................................................................................13
5CONNECTIONGUIDE................................................................................................12
5.1ExternalComputerandTouchConnecting................................................................................12
5.2AVConnection............................................................................................................................13
5.3Y‐Pb‐PrINPUT.............................................................................................................................13
5.4HDMI1/HDMI2INPUT...............................................................................................................14
5.5COAXIALCONNECTION(SPDIPAUDIOOUTPUT).......................................................................14
6RS232CCOMMUNICATION.......................................................................................17
6.1RS232C.......................................................................................................................................15
6.2Protocol......................................................................................................................................15
6.3Acknowledgement.....................................................................................................................15
7INSIDEPCUNITINSTALLATION/REPLACEMENT(OPTION).........................................17
7.1InsidePCbasicoperations.........................................................................................................17
7.2WindowsOperationSystemActivate........................................................................................20
8OSDOPERATION......................................................................................................21
8.1Instructionformainmenu.........................................................................................................21
8.2Functionintroductionofsubmenu............................................................................................22
8.3HotKeyMenu.............................................................................................................................25
9Multimedia(MM）...................................................................................................29
9.1Introduction...............................................................................................................................29
9.2Appearance................................................................................................................................29
9.3USB.............................................................................................................................................30
9.4FileSystem.................................................................................................................................30
9.5FileBrowser................................................................................................................................30
10SOURCEMENU.......................................................................................................31
11DISPLAYSIGNALRESOLUTIONFORREFERENCE.......................................................32
12RESOURCEDVD......................................................................................................33
WscribeactivateKey&procedure...................................................................................................33
13TROUBLESHOOTING..............................................................................................34










 5
1INSTALLATION
1.1Openthepackage


Step‐1:Takeoutthecartonhandles.
Step‐2:Move‐Upthecartonbody.
Step‐3:TakeOffEPEpackingmaterial&LeftIWBdisplay.
Step‐4:BecarefultoMoveoutIWBdisplay.Itisheavyandeasytobeslide,Pleasecarefullyand
betterWeargloveswhenmovedisplayfromcartonbox.



1.2Checkingparts
WarrantyCard,QuickConnectGuide,RemoteControl,PowerCord,
VGA/USB/Audio/AV/YPBPRcables,Batteries,handwrittenpenandDVD.

 6


1.3Installation
TheIWBStand(matched)takesmaterialobjectasthestandard, Pleaseread“IWBStandInstalling
Instruction”whileinstalling.

1.3.1MountingBrackettie‐uptoIWBdisplay











 7
IWBBackView
 
Pleasefollowabovepicture,Tie‐UPmountingbrackettoIWBdisplayby3screwsoneach
sideinsertto#2.#3,#4screwholes.Fixscrewstofirmcondition.
Afterfinishedmountingbracketinstallation,itiseasyhang‐updisplaytomovablestand.

1.3.2Movablestandassemblydrawing

TopView
 
SideViewFrontView

 8
2CONTROLPANEL(locatedattheFrontpanel)




1POWERDisplaypoweron/off
2VOL+/VOL‐ SoundVolumeadjustment
3P+/P‐ MenuItemup/downselection
4MENUToenter/exitMENUPage
5SOURCEToswitchinputsource
6

MainSwitchforPoweron/off
(one):ON,0(zero):OFF











 9
3INPUT/OUTPUTTERMINALS
RearBottomTerminals


RearRightSideTerminals


1.USBTOUCHUSBterminalfortouchpanel.
(USB:DC5V,500mA)
2.RS232Serialcontrolinterface,Usedfortransferdata/commands
3.EARPHONEEarphoneSignalOutput.
4.COAXSPDIF‐audioOutput(Digitalsoundsignalinterface)
5.YPBPR(Y)ForYPbPrsignalinput(ConnectedtoDVD,set‐top–boxetc.withYPbPr
outputdevice).YcomponentsignalinputtothisRCAJack(G)
6.YPBPR(PB)ForYPbPrsignalinput(ConnectedtoDVD,set‐top–boxetc.withYPbPr
outputdevice).PBColorcomponentsignalinputtothisRCAJack(B)
7.YPBPR(PR)ForYPbPrsignalinput(ConnectedtoDVD,set‐top–boxetc.withYPbPr
outputdevice).PRColorcomponentsignalinputtothisRCAJack(R)
8.AV(CVBS)Compositevideoinput
9.AV(L)Audiosignalsinput(L‐Channel)
10.AV(R)Audiosignalsinput(R‐Channel)
11.PCAUDIOPCAudioinput(relatedtoVGAPCSignalinput)
12.VGAPCSignalInputterminal
13.USBUSBterminalforotherperipheraldevice,suchasmouse,hard‐diskInput

 10
14.HDMI1HighDefinitionMultimediaInterface‐1
15.HDMI2HighDefinitionMultimediaInterface‐2

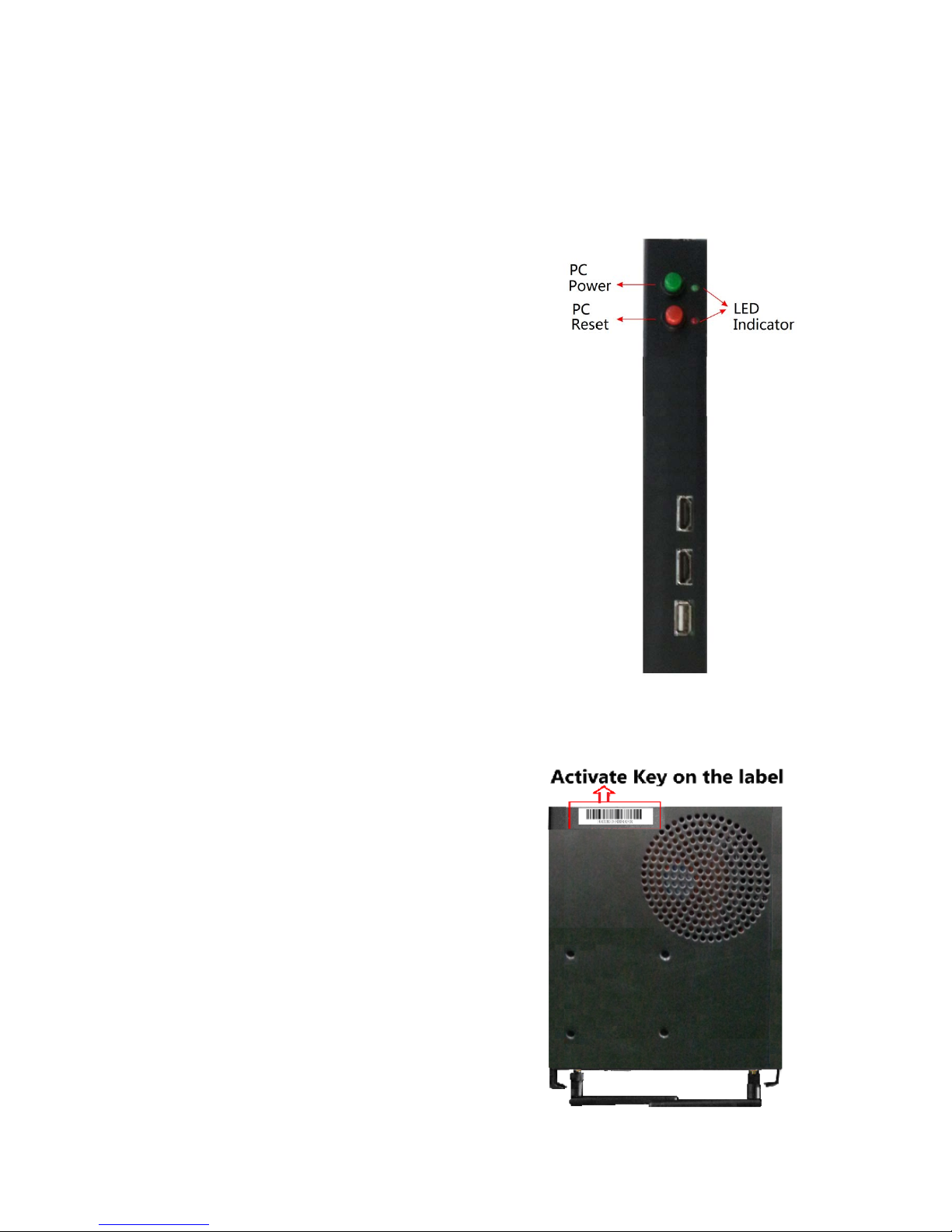

16.POWERPCTurnON/OFFtheinternalPCpower(ifinstalled)
17.RESETPCInternalPCreset,suspendsallprogramscurrentlyrunning,thePCsystem
re‐starts

NOTE:FunctionsrelatedtoPCwillonlyworkifinternalPCisinstalled.







 11
4.2 Remote Control Instruction
InserttheBatteries
1Removethecoverontherearoftheremotecontrol
2Inserttwo“AAA”batteries
3Placethecover



4.3Remotecontrolrange
Therangeofremotecontrolreceiverasshownbelow: 
 

CAUTION
RISKOFDAMAGEIFBATTERYISREPLACEDWITHANINCORRECTTYPE
DISPOSEOFUSEDBATTERIESACCORDINGTOTHEINSTRUCTIONS.







 12
5CONNECTIONGUIDE
Forthesafetyofyouandyourunit,pleasedonotconnectanypowersourcebeforetheexternaldeviceis
installed.


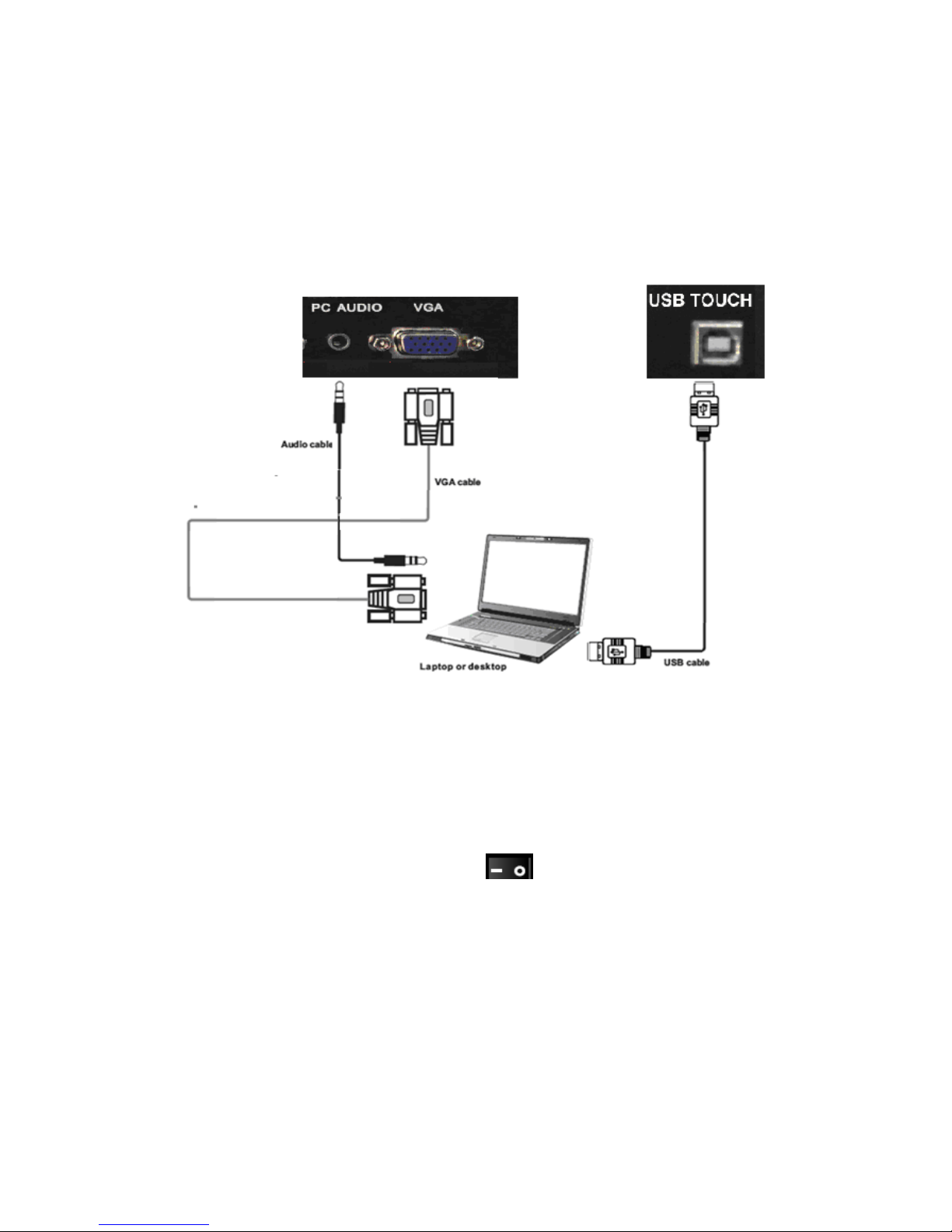

5.1ExternalComputerandTouchConnecting


(1)ConnectaVGAcable(15pin)betweenthePC‐VGAInputandOutputofexternalPC.Connectanaudio
cablebetweenthePCanddisplay.
(2)ConnectaUSBcablebetweentheexternalPCandUSBterminal
(3)Plug‐inthePOWERcordandswitchthedisplayon.
(4)Starttheexternalcomputerthattouchfunctionwillbeactivatedinfreeofdriver.
(5)PressIWBmainpowerswitchtoONposition()toturnthedisplayon.
(6)PressSourcebuttontoselectINPUTtoVGA1orVGA2correspondingtoexternal
PCconnection.


Caution：
TouchUSBconnectedtoexternalPCforWhiteBoardapplication,freeofdriverfortouchpanel.
JustsimplyconnectexternalPCandwhiteboardcanbeactivate.
IncaseyouuseInsidePCforwhiteboard,,insidehasconnectionforOPS.YouneedremoveUSBcablefor
ExternalPC.TouchpanelonlysupportonePCoperation.BothPCconnectionwillcauseerrorinwritingor
Breakofstrokes.


 13
5.2AVConnection
 

(1)ConnectanAVcablebetweendisplayandexternaldevicethroughtheAVout.
YellowisVideo,RedisAudio‐R,WhiteisAudio‐L.
(2)Plug‐inthePOWERcordandturnONthedisplay.
(3)PressmainpowerswitchlocatedonthefrontofthedisplaytoINposition toturnthe
poweron
(4)PressINPUTtochangesourcetoAV.

5.3Y‐Pb‐PrINPUT
 

(1).ConnecttheY‐Pb‐Prcablebetweenthedisplayandanexternaldevice.
(2).Plug‐inthePOWERcordandswitchitonfromtherearpanel.
(3).Pressmainpowerswitchtoturnthepoweron.
(4).PressINPUTtochangesourcetoYPbPr.

 14

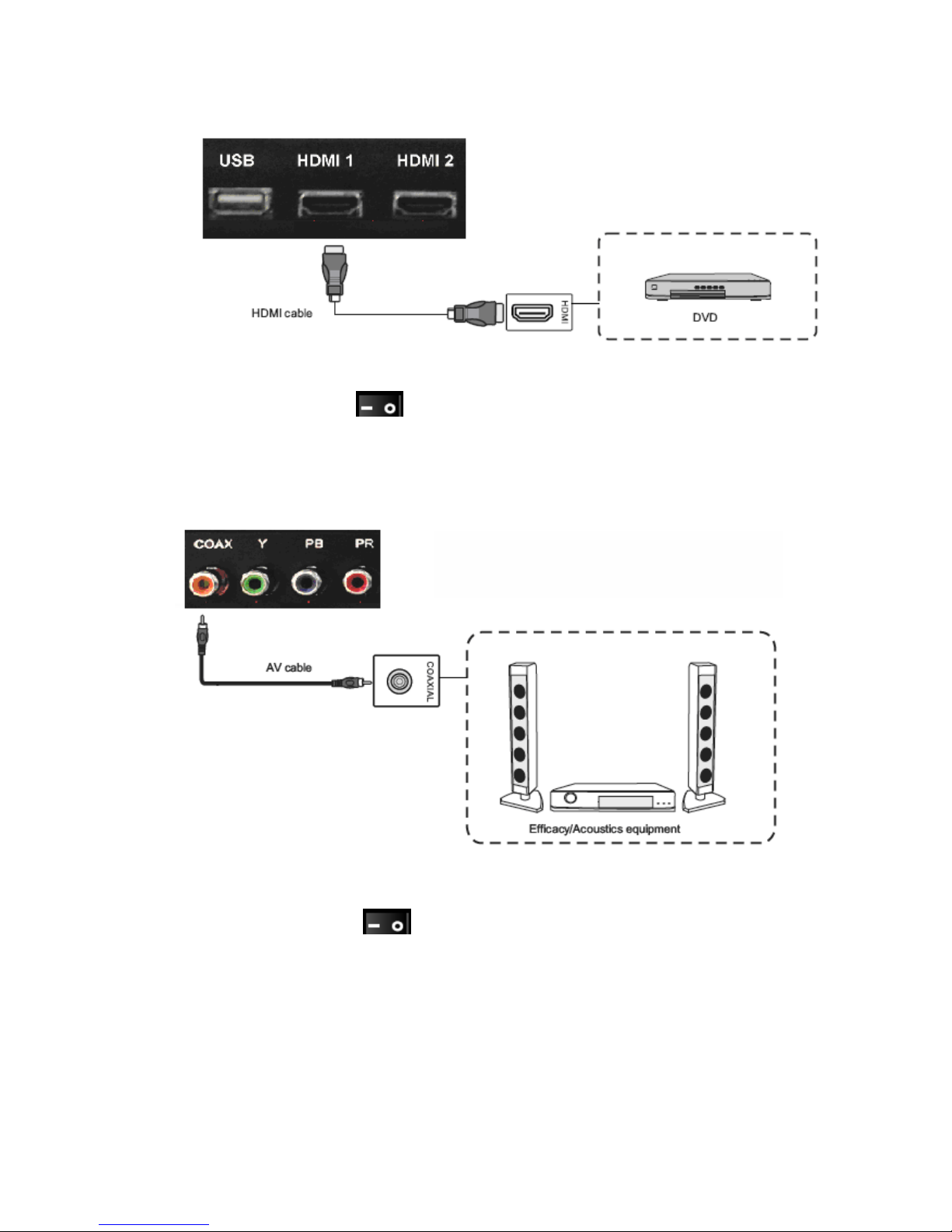

5.4HDMI1/HDMI2INPUT
(1)ConnectaHDMIcablefromthedisplaytoanexternaldevice.
(2).Plug‐inthePOWERcordandswitchitonfromtherearpanel.
(3)Pressmainpowerswitchtoturnthepoweron.
(4)FromtheexternaldeviceselectinputsourcetoHDMI.
5.5COAXIALCONNECTION(SPDIPAUDIOOUTPUT)
(1)ConnectaCoaxialcablefromdisplaytoanexternaldevice.
(2)Plug‐inthePOWERcordandswitchitonfromtherearpanel.
(3)Pressmainpowerswitch toturnthepoweron


 15
6RS232CCOMMUNICATION

Afterconnectingthecentralcontrolsystemandunit,youcanuseRS232controlsomeofthefunction,
suchaspoweron/offoradjustthevolumeetc.
6.1RS232C
Baudspeed:9600bps
Bitnumber:8bit
OddParity:None
Stopbit:1bit
6.2Protocol
FunctionProtocol(16th)Code
POWERONF6010100F86F0x01
POWEROFFF6020100F96F0x02
VOLUME+F6030100FA6F0x03
VOLUME‐ F6040100FB6F0x04
HDMI1F6050100FC6F0x05
HDMI2F6060100FD6F0x06
Inside/PCF6070100FE6F0x07
VGA1F6080100FF6F0x08
VGA2F6090100006F0x09
USBF60A0100016F0x0A
AVF60B0100026F0x0B
YPbPrF60C0100036F0x0C

6.3Acknowledgement
SendCommandF6 CMD ID DATA CS6F
ACCF7 CMD ID DATA CS7F
NACF7 CMD ID 0xFF CS7F


 16
IntheProtocollist(commandlist),ID=01(0x01)isused.
0xF6:commandstartbit
0x6F:commandendbit










































 17
7INSIDEPCUNITINSTALLATION/REPLACEMENT
(OPTION)
ThisPCunit（IWBPC‐02）iscompatiblewithWB84U1D1only,
donotintendtoattachthisunittotheothermodels.
BesureTurn‐offtheTWBMonitorbeforeinstallationofinsidePC.

CAUTION
1.PowersupplyofinsidePCandHDMIsignaltoIWBdisplayareconnectedbyinternal40‐pinconnector.
Beforeinstallation,checkifsomethingcloggedattheconnector‐pinarea,ifso,removethemand
keeptheconnectorclean.InsertinsidePCtoslot,gentlyandsmoothpushingishighlyrecommended.
AfterinsertinsidePC,besuretotightenboth2‐handheldscrewstofastenpcsecurely.
2.Therehave2‐WifiAntennaprovidedinsidepackage.Whenyoufeelwifisignalisstrongenough,You
Couldonlyuseoneantenna.WhenyouneedstrongerWifisignal,2‐Antenaarepossibletobeboth
usedtogether.
3.OnInsidePCunitbackside,a+19VDCpowersupplyinputJack,Onlyforunitservicepurpose.Don’t
insertDCadopterinnormalapplication.

7.1InsidePCbasicoperations
AfterinstallationofthePCunit,itsoperationisbasedontheIWBmothermonitor
Operation.ToturnONorOFFIWBtherehavemainswitchandremotecontroltoaccess.

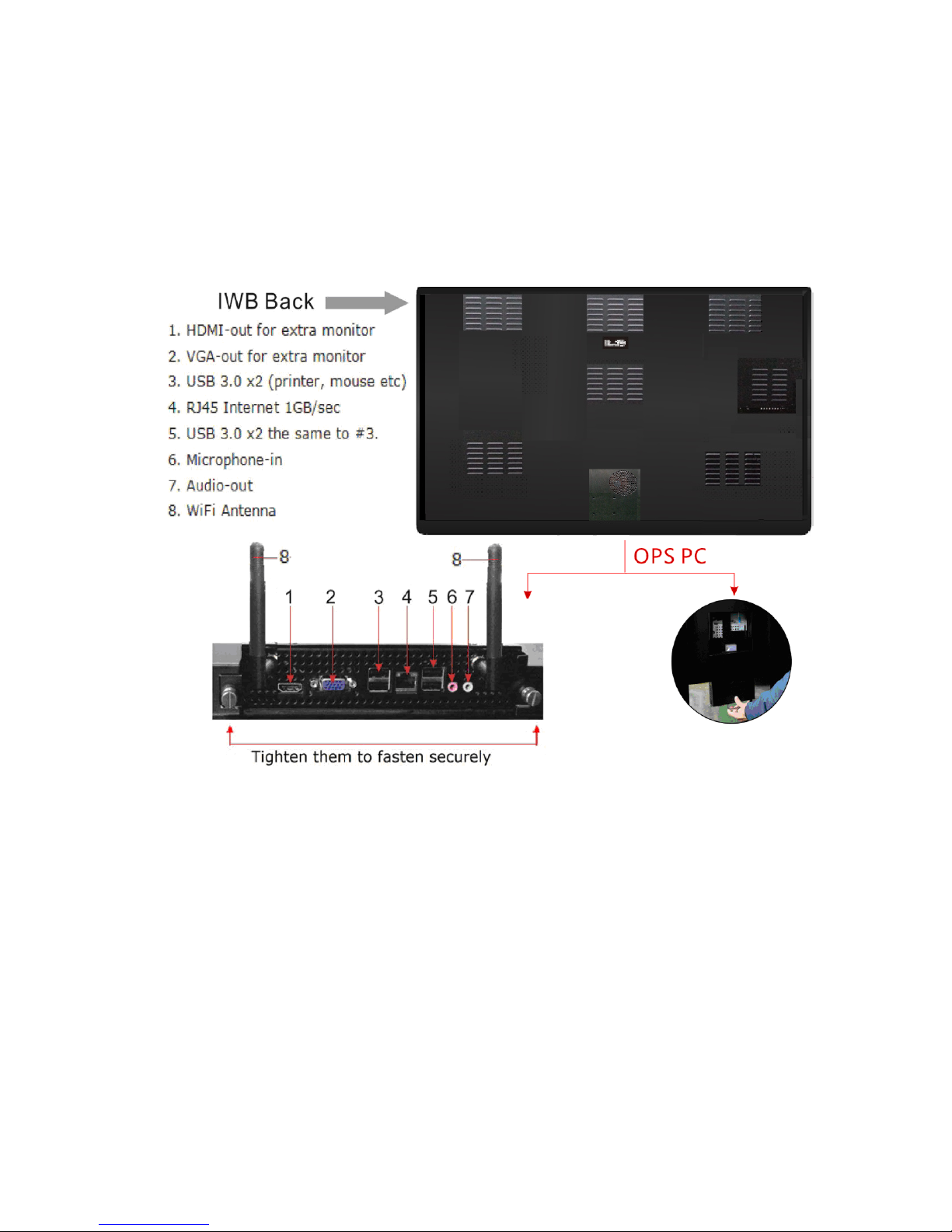

Refertothepicturebelow:

 18
AttherightsideoftheIWBMonitor&atlowerportion,Inputterminalsandswitchesarelocated.
Therearetwoswitches,onefor“PCPower”andtheother“forPCreset”,theyaretheswitchesrelatedto
thisOptionalPCunitoperation.ThePCPowerswitchisa“cyclictype”,push‐ON,push‐OFFandPCResetis
push‐makecontacttype. 

PushPowerPCbuttontoswitchONPC
Waitabout30secondsafterinstallingPCatbackofthedisplay,
pressPOWERtoturnontheMonitorandPCtogether.

PushPowerPCbuttontoswitchOFFPC
PressthePOWERbutton,
waitfor2to3secondsand
then,pressthepowerbutton
againtoturnofftheMonitor
andPCtogether.

MonitorON,PCOFF
WhileusingPCsource,select"WINDOWS"onthe
lowerleftcornerofthedesktoporpressthe
"WINDOWS"buttonontheremotecontrol,andthen
select"off",then,thePCturnsoffbutkeepthe
Monitoron.

PCON
WhenturnontheMonitor,thePCisnormallyoff.
ItispossibletoturnonthePCbypressingthe
INPUTbuttonofthemonitortoselectPC.

PCRESET
WhenthePCunitneedstoresetbyanyhappeningoroccasion,
pushinggreenbuttonshouldtakeplacefortheoperation.
AllthePCoperationstopsandreturnsbacktoitsstartpointstatus,
asstartingthePCfromzeropoint.
7.2WindowsOperationSystemActivate
WhenyoufinishedOPSinstallationandfixeditwell.
YoumayneeduseOS.
InOPSaccessorybag,youcouldseeasystemdisk,
InsidehaveWindows8Program.
WehavefinishedinstallationWindows8inOPS,
butthisWindows8Systemisnotregisteredyet.
YoujustsimplyactivateWindows8Systembya
activatekey.Pleaseberemindedthat,this
activatekeylabelislocatedonaOPStop‐side
shownasrightsidepicture:
Pleaseusethisactivatekeytoactivate
yourWindowsoperationsystemstepbystep.



 19
8OSDOPERATION
8.1Instructionformainmenu
8.1.1Appearance

 

8.1.2Operationofkeysundermainmenu




key
Function
MainSub
Menu ExitfromMain
menuReturntoMainmenu
Exit ExitfromMain
menuExitMenu

Up

‐‐‐‐‐‐‐‐ SelectpreviousItem,ifcurrentItemisthefirstone,thenit.
willskiptothelastone

Down

EnterSubMenu
SelectnextItem,ifcurrentItemisthelastone,thenitwillskip
tothefirstone

Right
ChangeSubMenuAdjustItemoptionorvalue;enterthenextmenu.
Left ChangeSunMenuAdjustItemoptionorvalue
OK/Enter EnterSubMenuEnternextmenu

Note:
1、Themenuisdividedintothreepartsonthewhole:mainmenu,submenu,promptmenu
2、Mainmenuwillbeside‐to‐sidesetupfromlefttoright: Picture/Audio/Time/Setup
3、Submenuwillbeend‐to‐endarrangedfromthetoptown.
4、Promptmenuwillbeside‐to‐sidesetupfromlefttoright

 20
8.2Functionintroductionofsubmenu
8.2.1Picturesubmenu
8.2.1.1Appearance

 

8.2.1.2Functionintroduction

Item  VariablerangeDefaultExplanation
PictureModeStandard/Dynamic
/Movie /UserStandardPressingbuttonforPictureModeChange
Over.
Contrast0‐‐‐‐10050
Youwillneedtowatchthepicture
whenyouadjustit,so,weclosethemain
menu,popupContrastsmallmenu
Bright0‐‐‐‐10050SametoContrast
Color0‐‐‐‐10050ThisitemisunavailableunderVGA
channelandDVIsignal
Tint‐50‐‐‐‐‐500
OnlyadjustableunderNTSCsignal,
un‐adjustableunderothersignals.
Recoverto0undernonNTSCsignal.
Sharpness0‐‐‐‐10050ThisItemisunavailableunderVGAand
DVIsignal
ColorTempNeutral / Warm / Cool Neutral
Control MEMC
Level
Inside/PCmode
MEMC
Off
(default)
MEMC(MotionEstimate&Motion
Compensation)，Thisismovepicture
QualityEnhanceandImprovetechnology,
MEMClevel:Low/Medium/Strong
OtherInputMode
MEMC
Low 
(default)

