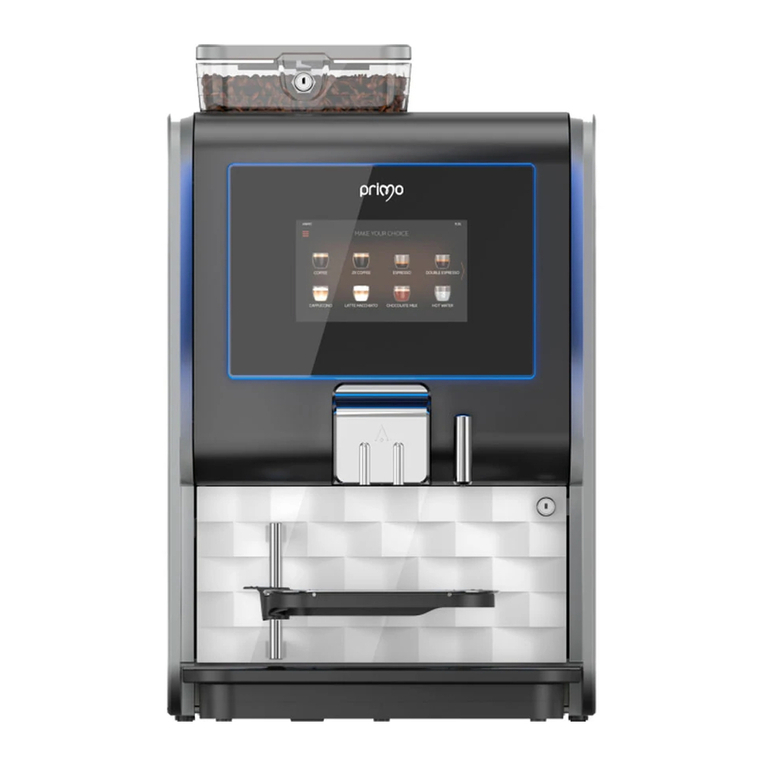

Westomatic primo MINI User manual

INSTALLATION GUIDE
MINI/MIDI
MINI/MIDI

TECHNICAL INFORMATION - MINI
External Dimensions:
W409xD569xH520mm
Capacity Instant Canisters:
1x2.3L and 2x1.2L
Noise Emission: <70dB
Weight: 18kg
The Primo Mini is a slimline Instant
Machine. The machine has 3
canisters, is capable of 24 different
drink choices, and produce a drink
every 10 seconds:

TECHNICAL INFORMATION - MIDI
External Dimensions:
W409xD520xH569mm
Capacity Instant Canisters:
4x1.2L
Noise Emission: <70dB
Weight: 23kg
The Primo Midi is an Instant
Machine capable of 24 different
drink choices, and with 4 canisters
provides a great variety. The Midi
can produce a drink every 10
seconds:

Parts Included:
Primo Mini/Midi Machine
Drip Tray and Grid
Waste Bin (inside machine)
Cleaning Container
Power Cable
Westomatic Hose set
Canister Labels
Keys
Safety Instructions
Welcome Booklet
Check the contents:
NB: The machine will have been set up to your specifications and tested at Westomatic
HQ prior to install. All parts have been assembled on the machine. The QR code inside
the machine gives access to the We:Support pages with technical information.

Important:
Ensure genuine Westomatic
water hoses are used, fitted
with a water cut-off
Ensure the power supply has
a capacity of at least 2.5W.
Ensure the surface has a
capacity of at least 50kg
Water supply requirements:
Water Pressure: 0.2 - 1.0MPa
(2-8 Bar)
Westomatic strongly recommend
using a water filter to prevent
scale build up in the parts - if this
happens the warranty on the
machine becomes void.
Flow Rate: >1L/Min
Water Temperature: <25°C

Ensure the
protective foil is
removed from
the touchscreen.
Once in place -
Level the machine
Min Clearances:
Rear: 50mm
Above:250mm
Left: 100mm
Connect water
filter to main
water - set filter
to hardness of
local area
Place grill into
drip tray
Connect water
filter to Primo -
ensure new
hoses are used
Slide drip tray
into machine

Place the cup tray
grill onto tray and
firmly push down
to clip into place
Connect Primo
to an earthed
power socket
Westomatic will
have taken your
set up
specifications and
attached labels
11
Switch the Primo
Mini/Midi on -
switch located
below instant
canisters.
12
Machine is set
up and ready to
use or install
any accessories
Close the lid,
and the door.
Lock the door.

INSTALL WASTE TO BASE DRAIN
The Primo Drain Hose WVS
PN: 1057278 (Midi)
A screw driver
Combination Pliers
There is the option to have
plumbed drainage from the drip
tray to waste water drain:
Required Items:
NB: The machine must be
situation within close proximity
of a waste water drain - and
there needs to be height
differential to ensure the water
flows freely into the drain.

Remove the drip
tray from the
machine
Drill a 6mm hole
in drip tray
connector.
Route the hose
to the rear under
the machine.
Place and fix
the drain hose
in the waste
water drain.
Connect the
drain hose to
the drip tray
connector.
Replace drip
tray at the front
of the machine.

INSTALL CUP WARMER
External Dimensions Cup
Warmer:
W230xD420xH455mm
External Dimensions Total:
W530xD515xH600mm
Noise Emission: <70dB
Weight: 11kg (Total: 49kg)
The cup warmer is designed for
pre-heating coffee cups and
glasses used with the Primo
Mini/Midi:

Switch on and fill
with cups
(upside down)
Takes approx 60
mins to reach
temperature
Plug the cup
warmer into
the mains 230V
Plug socket
Place unit next
to the Primo
Mini/Midi - on a
flat and level
surface
Contents:
Cup Warmer
Power cable
Instructions
Ensure the
protective
plastic is
removed from
the top
