Westover CleanBlast User manual

Patent Pending
User Guide
© 2004 Westover Scientific, Inc.
For Bench-Top and Portable
System Configurations

© 2004 Westover Scientific, Inc.
All rights reserved. No part of this publication may be reproduced, stored in a retrieval
system, or transmitted in any form, be it electronically, mechanically, or by any other
means such as photocopying, recording, or otherwise, without the prior written
permission of Westover Scientific Inc. (WSI).

3
Information
Important Information
Information provided by WSI is believed to be accurate and reliable. However, no responsibility is assumed
by WSI for its use.
WSI’s Commerce And Government Entities (CAGE) code under the North Atlantic Treaty Organization
(NATO) is 0L8C3.
The information contained in this publication is subject to change without notice.
Words that WSI considers trademarks have been identified as such. However, neither the presence nor
absence of such identification affects the legal status of any trademark.
Units of measurement in this document conform to SI standards and practices.
F.C.C. Information
Electronic test equipment is exempt from Part 15 compliance (FCC) in the United States.
Electronic test equipment is subject to the EMC Directive in the European Union. The
EN61326 standard prescribes both emission and immunity requirements for laboratory,
measurement, and control equipment.
Independent Laboratory Testing
This unit has undergone extensive testing according to the European Union Directive and Standards. All
pre-qualification tests were performed internally, at WSI, while all final tests were performed externally, at
an independent, accredited laboratory. This guarantees the unerring objectivity and authoritative
compliance of all test results.
This equipment has been tested and found to comply with the EN 61000-6-3:2001 specifications for
electronic and electronic apparatus intended for use in residential, commercial, and light industrial
environment. In addition, this equipment has been tested and found to comply with the EN 61000-6-
1:2001 specifications for immunity of residential, commercial and light industrial equipment. The
requirements of these rules and the measurement methods used for assessing equipment compliance to
these rules are available upon request from Westover Scientific.
Certification

4
You should understand the following conventions before using the product
described in this manual:
WARNING
Refers to a potential personal hazard. It requires a procedure which, if not
correctly followed, may result in bodily harm or injury. Do not proceed unless
you understand and meet the required conditions.
CAUTION
Refers to a potential product hazard. It requires a procedure which, if not
correctly followed, may result in component damage. Do not proceed unless
you understand and meet the required conditions.
IMPORTANT
Refers to any information regarding the operation of the product which you
should not overlook.
Safety Conventions

5
Safety Information
Cleaning Solvent
HFE-Based Cleaning Fluid
IMPORTANT
User is responsible for determining whether this product is fit for a
particular purpose and suitable for user’s method of use or application.
Given the variety of factors that can affect the use and application of this
product, some of which are uniquely within the user’s knowledge and
control, it is essential that the user evaluate this product to determine
whether it is fit for a particular purpose and suitable for user’s method of
use or application.
Intended Use: FOR INDUSTRIAL USE ONLY. NOT INTENDED FOR USE AS A
MEDICAL DEVICE OR DRUG.
Specific Use: Cleaning Solvent for use in the CleanBlast™ System
CAUTION
DO NOT SUBSTITUTE ANY OTHER CLEANING SOLUTION.
Product Information Source: Material Safety Data Sheet or
Westover Scientific, Inc.
Mill Creek, WA 98012
1-800-304-3202 or [phone]
(7 a.m. to 5 p.m. PST)

6
Safety Information
Cleaning Solvent
WARNING
STORAGE
Store away from heat. Store out of direct sunlight. Store away from
oxidizing agents. Keep container tightly closed. Keep container in well-
ventilated area. Store away from strong bases. Contents may be under
pressure if stored/shipped under elevated temperature. Open closure slowly
to vent pressure.
INGREDIENTS C.A.S. No. % by Wt
1,2-TRANS-DICHLOROETHYLENE 156-60-5 66 - 70
ETHYL NONAFLUOROISOBUTYL ETHER 163702-06-5 4 - 16
ETHYL NONAFLUOROBUTYL ETHER 163702-05-4 4 - 16
METHYL NONAFLUOROISOBUTYL ETHER 163702-08-7 2 - 8
METHYL NONAFLUOROBUTYL ETHER 163702-07-6 2 - 8
ISOPROPYL ALCOHOL 67-63-0 1 - 3

7
FIRST AID INSTRUCTIONS:
The following first aid recommendations are based on an assumption that
appropriate personal and industrial hygiene practices are followed.
Eye Contact: Flush eyes with large amounts of water. If signs/symptoms
persist, get medical attention.
Skin Contact: Remove contaminated clothing and shoes. Immediately
flush skin with large amounts of water. Get medical attention. Wash
contaminated clothing and clean shoes before reuse.
Inhalation: Remove person to fresh air. If signs/symptoms develop, get
medical attention.
If Swallowed: Do not induce vomiting unless instructed to do so by
medical personnel. Give victim two glasses of water. Never give anything
by mouth to an unconscious person. Get medical attention.
Safety Information
Cleaning Solvent

8
Warranty Information
General Information
Westover Scientific, Inc. (WSI) warrants this equipment against defects in material and workmanship for a
period of one year from the date of original shipment. WSI also warrants that this equipment will meet
applicable specifications under normal use.
During the warranty period, WSI will, at its sole discretion, repair, replace, or issue
credit for any defective product free of charge should the equipment need to be repaired.
IMPORTANT
The warranty will become null and void if
• the equipment has been tampered with, repaired, or worked
upon by unauthorized individuals or non-WSI personnel.
• the warranty label has been removed.
• product enclosure screws, other than those specified in this
manual, have been removed.
• the product enclosure has been opened, other than as explained
in this manual.
• the equipment serial number has been altered, erased, or
removed.
• the equipment has been misused, neglected, or damaged by
accident.

9
THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES EXPRESSED, IMPLIED,
OR STATUTORY, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT
SHALL WESTOVER BE LIABLE FOR SPECIAL, INCIDENTAL, OR CONSEQUENTIAL
DAMAGES.
Liability
WSI shall not be liable for damages resulting from the use of the purchased product, nor
shall be responsible for any failure in the performance of other items to which the purchased
product is connected or the operation of any system of which the purchased product may be
a part. WSI shall not be liable for damages resulting from improper usage or unauthorized
modification of the product, its accompanying accessories and software.
Warranty Information
General Information

10
Table of Contents
IMPORTANT INFORMATION ...................................................................... 3
Certification .................................................................................................. 3
SAFETY CONVENTIONS ............................................................................. 4
SAFETY INFORMATION ............................................................................. 5
Cleaning Solvent ........................................................................................... 5
WARRANTY INFORMATION ....................................................................... 8
TABLE OF CONTENTS .............................................................................. 10
INTRODUCTION ...................................................................................... 12
Contact Information .................................................................................... 12
BENCH-TOP SYSTEM OVERVIEW ............................................................. 13
Identifying the system components ............................................................... 13
System Status Indicators ............................................................................. 14
Controls & Functions.................................................................................... 15
Filter System .............................................................................................. 16
BENCH-TOP SYSTEM ASSEMBLY .............................................................. 17
Attaching necessary elements ....................................................................... 17
Attaching the Optional Exhaust Filter ............................................................. 18
BENCH-TOP SYSTEM QUICK START ......................................................... 21
Start-up Instructions ................................................................................... 21
BENCH-TOP SYSTEM OPERATION ............................................................ 22
Using a Video Inspection Probe ..................................................................... 22
BENCH-TOP SYSTEM MAINTENANCE ....................................................... 23
Scheduled and Preventative Maintenance ....................................................... 23
Refilling the Solvent Reservoir ...................................................................... 24
Replacing the disposable air filters................................................................. 26
BENCH-TOP SYSTEM SPECIFICATIONS .................................................... 27

11
PORTABLE SYSTEM OVERVIEW ............................................................... 28
Identifying the system components ............................................................... 28
System Status Indicators ............................................................................. 30
PORTABLE SYSTEM ASSEMBLY ................................................................ 31
Attaching the necessary elements ................................................................. 31
PORTABLE SYSTEM QUICK START ........................................................... 32
Start-up Instructions ................................................................................... 32
PORTABLE SYSTEM OPERATION .............................................................. 33
Attaching a Video Inspection Probe................................................................ 33
Operating the 6.4” LCD ................................................................................ 35
PORTABLE SYSTEM MAINTENANCE ......................................................... 36
Refilling the Solvent Reservoir ...................................................................... 36
Replacing the disposable air filters................................................................. 38
Scheduled and Preventative Maintenance ....................................................... 40
SYSTEM TROUBLESHOOTING .................................................................. 41
Troubleshooting tips .................................................................................... 41
OTHER SYSTEM CONFIGURATIONS ......................................................... 43
Transceiver Cleaning System ........................................................................ 43
Patch Cord Cleaning System ......................................................................... 46
90 degree Handset and Mil Tip ...................................................................... 47
Universal 2.5 mm........................................................................................ 48
Universal 1.25 mm ...................................................................................... 49
PART NUMBERS ...................................................................................... 50
Cleaning Tips .............................................................................................. 50
Bench-top Systems ..................................................................................... 51
Portable Systems ........................................................................................ 52
Parts and Accessories .................................................................................. 53
Table of Contents

12
Introduction
Thank you for purchasing our products. Before assembly and use, make
certain that all of the parts you have ordered are present. Check the
packaging carefully as some parts are small and can be overlooked.
Also, locate any additional parts and accessories you may have
purchased.
If you are missing any parts, or you are unable to complete the
installation of your products, contact Customer Support at the numbers
listed below.
Westover Scientific
18421 Bothell-Everett Hwy.
Suite 110
Mill Creek, WA 98012
Phone: [phone] or 425-398-1298
Fax: [phone]
Web: www.westoverscientific.com
Contact Information

13

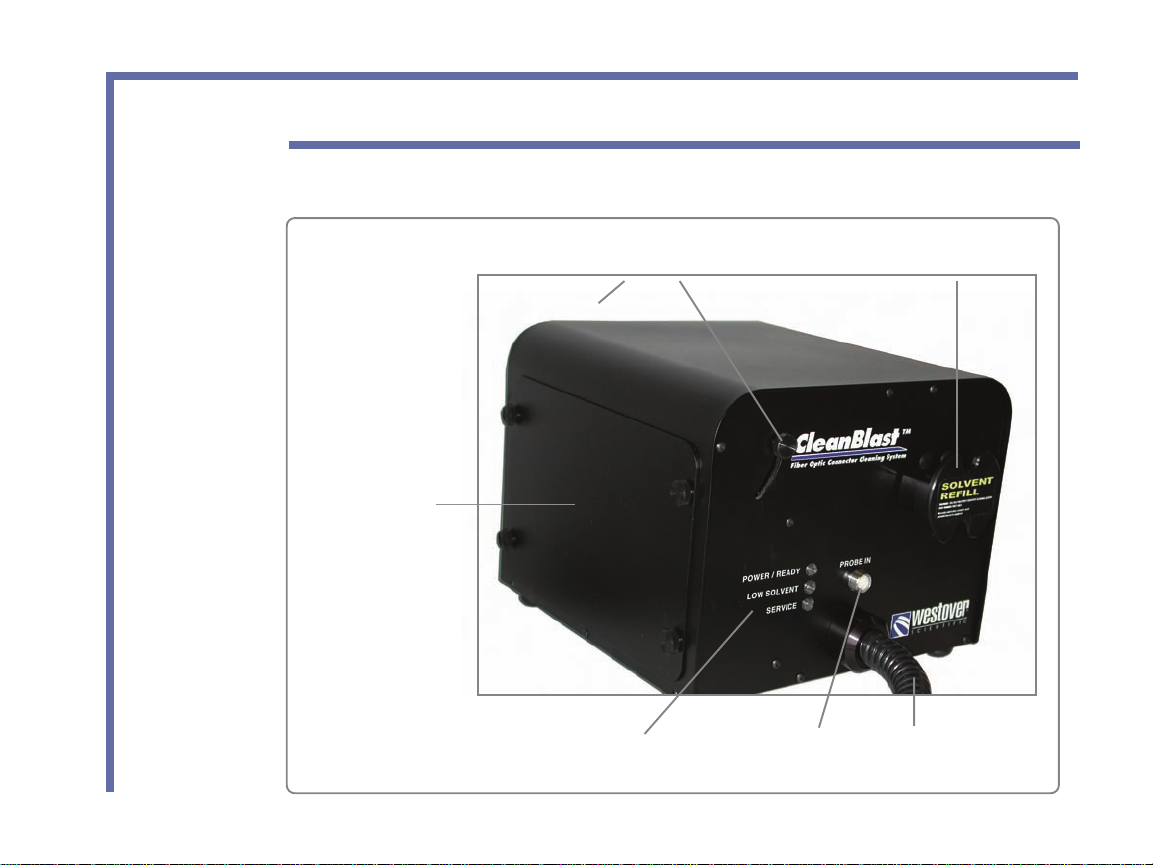

Identifying the system components
Solvent Refill Cap
ROTATE to access the
solvent refill system
Cleaning Umbilical
Hose system which
contains the air,
solvent and vacuum
lines.
Inspection Probe
Input
4 or 6 pin connector
used to connect a
Westover Scientific
Video Inspection Probe
System Status
Indicators (3)
LED’s which indicate
the system’s operating
status
Filter Access Panel
Removable panel to
access the two fine air
filters when
replacement is
necessary
Filter Access Panel
Release Knobs (2)
Used to tilt the air filter
system for easier
access
Filter
Access
Panel
Filter Access Panel
Release Knobs
Inspection
Probe Input
Solvent Refill Cap
Cleaning
Umbilical
System Status
Indicators
Bench-Top System Overview
(rear panel)

14
Bench-Top System Overview
System Status Indicators
Power/Ready - This LED will alert the user when there is AC power connected to the
system (RED LED), and it will indicate when the nozzle safety switch is released allowing
the cleaning cycle to be activated (GREEN LED). The cleaning cycle WILL NOT activate
when this LED is RED. This switch is similar to a safety release found on some power
tools, i.e. saws, nail guns, etc. To release the safety switch, apply slight pressure against
the bulkhead mating sleeve and gently slide the handset forward. Notice the POWER/
READY LED turn green. Press the RUN button on the handset.
Low Solvent -When lit, indicates the solvent level is too low to operate and the system
is in standby mode. The solvent resevoir must be refilled before operation can be contin-
ued. The solvent resevoir contains 225 ml. of solvent.
Service - When lit, indicates the system’s air filters need to be replaced. The reset
button is pushed to reset the system’s cycle counter to zero. System will count 100,000
cleaning cycles before the filter change is necessary as indicated by this lit LED.
2. Press RUN button. It is not necessary to
hold the button down.
1. Apply slight pressure and
slide handset forward to
disable the safety switch.

15
Bench-Top System Overview
Controls & Functions
Exhaust Port
Used to attach the
optional, external
exhaust filter.
Filter Access Panel
Release Knobs
Used to tilt the air
filter system outboard
for easier access.
Prime Button
Used for troubleshoot-
ing the system. Not
for routine use.
Video Output
The BNC connection to
output video signal
from the Inspection
Probe.
Power Cord Socket
For detachable power
cord.
Power Switch
System On/Off
control.
Fuse
Type 500mA, 250V,
20mm
Air Input
1/4” Male Industrial
Quick Connect for
external air supply.
Power Cord
Socket
Power Switch
Fuse
Air Input
Exhaust
Port
Filter Access Panel
Release Rear Knob
(Rear)
Prime
Button
Video
Output
(BNC)
USB Output
(optional-Digital models only)
Video
Out
(LCD)
optional
LCD
attachment
knob

16
Bench-Top System Overview
Filter System
Filter Access Panel
Release Knobs
Used to tilt the air filter
system for easier access
Fine Filters
Used to filter air supply
Holes for optional
drain attachments
Access holes to attach
external drains to filter
water trap
Holes for optional drain attachment
Filter Access Panel
Release Knob (Front)
Solenoid
(non-user serviceable)
If the “Service” LED indicator is lit,
the two air filters should be replaced.
This condition occurs after 100,000
cleaning cycles.
See “Maintenance”
for filter change procedure.
To access filter assembly:
1. Power the unit off.
2. Remove the air supply hose.
3. Remove the side panel
4. Loosen the two release knobs and
slide the knobs down to tilt the
assembly outward from the
chassis.
5. Unscrew the water trap bowls and
replace each filter inside the
bowls.
NOTE: Periodically open the side
panel and check for condensation
inside the water traps. Open the
traps by loosening the drain knobs
on the bottom of the traps.
Filter Water
Traps

17
Bench-Top System Assembly
Attaching necessary elements
Step 1
Attach
the power
cord.
Step 2
Attach an external
air supply.
The system requires
a minimum of 60 psi
and a maximum of
250 psi of clean air.
Step 3
Attach a cleaning tip to handset.
A variety of tips are available.
The cleaning tips thread onto the handset.
Male 1/4”
Industrial
Quick
Connect
System requires a
Female 1/4”
Industrial Quick
Connect
Run Button
To deactivate the safety switch, hold the handset securely in
one hand and push the tip into the handset. Notice the
spring release tension. This is the safety feature which
prevents the system from accidentally discharging. The tip
must be retracted into the handset and the Run button
depressed before initiating a cleaning cycle. If the system
has been idle for over 4 hours, the handset may need to be
primed to assure proper solvent delivery. It is best to run 3-5
cleaning cycles to prime the handset, or press the “Prime”
button twice in succession, and then press the RUN button.
Always point the nozzle away from people and objects.
Cleaning tip
(Universal 2.5 mm Bulkhead)

18
Attaching the Optional Exhaust Filter
Bench-Top System Assembly
Exhaust Filter
Cap Activated
Carbon Filter
Cartridge
Exhaust Filter
Housing
Exhaust Filter Assembly
(Disassembled)
(Assembled)
Activated Carbon
Filter
The optional carbon
exhaust filter does an
exceptional job in
removing the solvent
fumes.
Replacement of the
activated carbon filter
depends upon usage,
but it is recommended
that the filter cartridge
be changed at least
once per year.

19
Attaching the Optional Exhaust Filter
Bench-Top System Assembly
Step 2
Install the Filter Cap. Assure that the
“IN” port of the cap is threaded onto the
exhaust port.
Step 1
Remove the exhaust fitting from the rear panel
of the system.

20
Bench-Top System Assembly
Attaching the Optional Exhaust Filter
Step 3
Thread the cap onto the exhaust port and
hand tighten. DO NOT OVERTIGHTEN.
Assure that the cap is facing upward.
Place the carbon filter cartridge on the
cap.
Step 4
Thread the housing onto the cap and hand
tighten.
DO NOT OVERTIGHTEN.
