WFE Technology Corp. WAFERLOCK L375 User manual

WFE Technology Corp.
1
■ Content
•Specifcation ................................................................................................... 02
•Appearance .......................................................................................... 03
•Program New User Card/Program New Pin Code................................................ 04
•Open door with User Card ( Lock status )
Open door with Pin Code / Backup Mechanical Key..................................... 05
•Delete All User Cards / Delete All Pin Codes.................................................. 06
•Delete Individual Pin Code....................................................... 07
•Set Voice Volume /How to enable key alarm function....................................... 08
•How to Activate / Deactivate key alarm...........................................09
•Deactivate Security Mode/Low Battery Warning/External Power Supply......................... 10
•Troubleshooting Q & AQ&A........................................................................................ 11
Measurements indicated in mm
20 17.5 7575
67.5 66
183.6
320
115

WFE Technology Corp.
2
■ SPECIFICATIONS
•Door thickness: (L375) 40mm ~ 100mm / (L775) 35mm~60mm
•Latch & Deadbolt: Solid Brass with Steel Roller
•Anti-panic Exit Function
•Mechanical Key Override
•M-touch Panel keypad + Mifare Reader + Mechanical Key
•Transponder: Mifare Classic (13.56Mhz)
•Reading Distance up to 30 mm
•Total User Code & Card: 90
•Adjustable Voice Volume
•Battery Life: 60,000 Operation or 2 Years Standby
•Battery Spec: AAA 1.5V x 4pcs
•Smart Sleep Mode
•Acoustic Low Power Warning
•Operation Temperature:-20°C ~ 60°C
•Support 9V External Power Supply
•US ANSI Grade 1 Mortise Lock
•UL 3H Fire Rated Mortise Lock
•Pantented anti-theft lock cylinder, illegal unlock will trigger the alarm
•Pantented evacuation signal, wireless doorbell can be linked
(Work with the wireless doorbell)
•IP54
•RS-485/ Dry Contact/ Zigbee/ Zigwave (Optional)

WFE Technology Corp.
3
■ Apperance
Deadbolt
Key Pad
Card Reading Area
9V Battery Contact Point
Mechanical Cylinder
Mechanical Cylinder Slide Cover
Outer Handle
Latch
Tamper-proof
Sensor
Side Plate
Inner Handle
AAA Battery X 4pcs
Inner Knob
Battery Slide Cover

WFE Technology Corp.
4
■ Operation
Program New User Card
● You could program user cards continuously when blue light ashes
Step 1:
Step 1:
Step 2:
Step 2:
Step 3:
Step 3:
Approach the card you
would like to program
as user card, and there
will be a voice sound
meaning program is
successful.
Approach reading area
with programming card,
there will be a voice
sound instruction, and
number (1,2,3) light
ashes.
Press digit one, there
will be a voice sound,
and blue light ashes.
● Press "touch" button and repeat step 3 to program new pin codes
during white light ashing.
● When key in digits more or less than 6, there will short beeps X 4
and red lights X 2.
Program New Pin Code
Approach reading area
with programming card,
there will be a voice
sound instruction, and
number (1,2,3) light
ashes.
Press digit two, there
will be a voice sound,
numbers light up and blue
light ashes.
Key in 6 digit pin codes
and press as end up.
there will be a voice
sound meaning new
code is programmed
successfully.
Remark
Remark

WFE Technology Corp.
5
Backup Mechanical Key ( Lock status )
Step 2:Step 1:
Slide the cover
down to bottom.
Use mechanical key to
unlock and open door.
● Using mechanical key
does not go through
electronic control, so it
will trigger alarm.
Please use programmed
user cards or pind codes
to disarm the alarm.
Open door with User Card ( Lock status )
Step 1: Step 2:
● When user cards are
wrong, there will red
lightsX 2.
Approach reading area
with user cards, and
there will be a voice
sound meaning door
unlock.
White numbers light up
in cycles and open door.
Remark
Open door with Pin Code ( Lock status )
● When key in wrong pin
codes 5 times, door
key pad will be locked
automatically and. key
pad will not response to
any codes until using
programmed user cards
to open door or 3 minutes
pass.
● When pin codes are
wrong, there will short
beeps X 4 and red lightsX
2.
● Press wakeup "TOUCH"
button again, and rekey
the pin codes when
pressing wrong number.
Step 2:
Press wakeup
"TOUCH" button
and white numbers
light up.
Press 6 digit pin codes and end
with , and there will be a voice
sound with white numbers light
up in cycles meaning door
unlock, and open door.
Step 1:
Remark
Remark

WFE Technology Corp.
6
Delete All User Cards
Step 2: Step 3: Step 4:
Press digit one,
there will be a voice
sound, and blue light
ashes.
Press wakeup
"TOUCH" button and
numbers light up.
Key in , and
there will be a voice
sound instruction
meaning all user
cards are deleted,
then light off.
Approach
reading area with
programming card,
there will be a voice
sound instruction,
and number (1,2,3)
light ashes.
Step 1:
Delete All Pin Codes
Approach reading area
with programming card,
there will be a voice
sound instruction, and
number (1,2,3) light
ashes.
Step 1: Step 2: Step 3:
Press digit two, there
will be a voice sound,
numbers light up and
blue light ashes.
Key in , and
there will be a voice
sound instruction
meaning all pin codes
are deleted, then light
off.

WFE Technology Corp.
7
● Press "touch" button and repeat step 3 to program new pin codes during
blue light ashing.
● When pin codes are wrong, there will short beeps X 4 and red lights X 2.
Delete Individual Pin Code
Step 1: Step 2: Step 3:
Approach reading area
with programming card,
there will be a voice
sound instruction, and
number (1,2,3) light
ashes.
Press digit two, there
will be a voice sound,
numbers light up and
blue light ashes.
Key in the pin code you
would like to delete, and
then . There will be
a voice sound meaning
the pin code is deleted.
Remark

WFE Technology Corp.
8

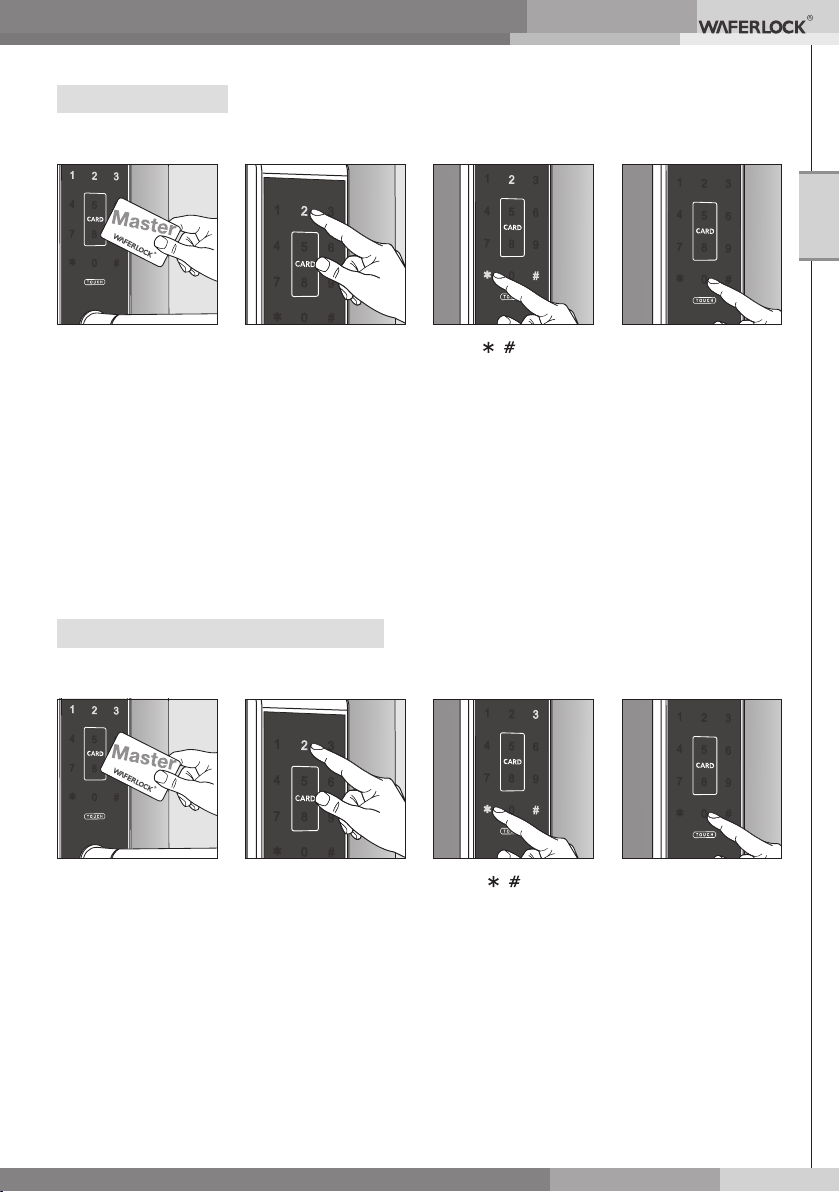

Set Voice Volume
Approach
reading area with
programming card,
there will be a voice
sound instruction,
and number (1,2,3)
light ashes.
Step 1: Step 2: Step 4:Step 3:
Press digit two,
there will be a voice
sound, numbers light
up and blue light
ashes.
Press( 3) to
enter voice volume
setting
press:
001# to change to
silence mode with
two short beeps.
or 002#, to change
to low voice mode
with two short
beeps.
or 003#, to change
to loud voice mode
with two short
beeps.
How to enable key alarm function
Approach
reading area with
programming card,
there will be a voice
sound instruction,
and number (1,2,3)
light ashes.
Step 1: Step 2: Step 4:Step 3:
Press digit two,
there will be a voice
sound, numbers light
up and blue light
ashes.
Press( 3) to enter
alarm setting
『001#』：
Disable key alarm
『002#』：
Enable key alarm

WFE Technology Corp.
9
Approach reading
area with user card.
Step 1: Step 2:
Steady the user cards at reading area for 5
seconds, and there will be long beep with
blue light on meaning the security mode is
setting.
Press "TOUCH"
button and numbers
light up.
Step 1: Step 2: Step 3:
Key in pin codes
and . There will
be a voice sound,
door lock, no matter
it is lock or unlock
status.
there will be long
beep with blue light
on meaning the
security mode is
setting.

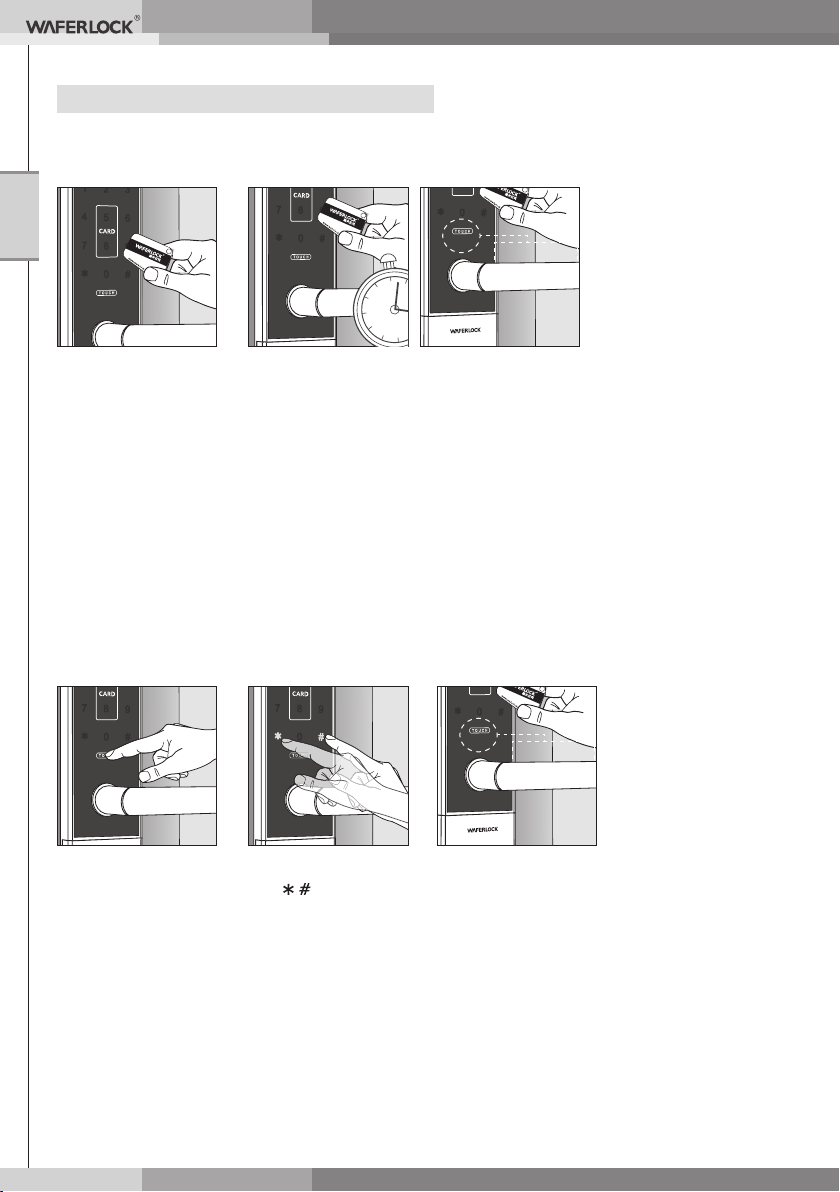

How to Activate / Deactivate key alarm
Activate by card：
Activate by Pin code：
5
s
e
c
blue light
blue light

WFE Technology Corp.
10
Low Battery Warning
Step 2:Step 1:
When using pin codes/
to open or lock door…
Silence mode: if the buzzer play 3
short beep 5 times and Touch button
ash blue LED 5 times.
Sound mode: if the voice says
(Door opened, please change the
batteries)
It means the battery power is low,
please change the battery as soon
as possible.
When using user cards
to open or lock door, or
programming card to
program…
OR
Please replace batteries immediately once door open, then remove
the 9V battery, and slide the cover up to close position.
External Power Supply
Slide the cover
down to bottom.
Step 1: Step 2: Step 3:
Connect 9V battery
with contact points.
Using programmed user cards or pin
codes to unlock door.
Deactivate Security Mode
Use Programmed user card to unlock door.
Remark
