Whale WH0822 Assembly Instructions

Thank you for purchasing this Whale® product.
For over 40 years Whale has led the way in the design and manufacturer of freshwater and waste systems
including:- plumbing, faucets, showers and pumps for low voltage applications. The company and its products have
built a reputation for quality, reliability and innovation backed up by excellent customer service.
For information on our full product range visit: www.whalepumps.com
CONTENTS
1. Principles of Operation
2. Specification
3. Application
4. Warnings
5. Parts List
6. Instructions for Installation
7. Instructions for Use
8. Maintenance
9. Trouble Shooting
10. Winterising
11. Service Support Details
12. EU Declaration of Conformity
13. Patents and Trademarks
14. Warranty
LIST OF IMAGES
Fig. 1 Components drawing
Fig. 2 Dimensions – side view
Fig. 3 Dimensions – top view
Fig. 4 Dimensions – front view
Fig. 5 Installation locating diagram
Fig. 6 Cut out hole for flue
Fig. 7 Flue dimensions
Fig. 8 Reinforce flue hole
Fig. 9 Flue sealing
Fig. 10 Attaching flue box
Fig. 11 Installation and securing of flue cover
Fig. 12 Connect Water Heater to flue
Fig. 13 Water heater position
Fig. 14 Fitting the drain
Fig. 15 Secure water heater to floor
Fig. 16 Connect to the gas supply
Fig. 17 Insert control panel
Fig. 18 Secure control panel
Fig. 19 Installed control panel
Fig. 20 Connect 12V d.c.connector
Fig. 21 Connect cold water supply
Fig. 22 Installed cold water supply
Fig. 23 Connect hot water supply
Fig. 24 Completed installation - Manufacturer version
Gas Only Water Heater
INSTALLATION & USER INSTRUCTIONS
WH0822 / WH0822B / WH0822BR
1

The Whale® 8L Water Heater is a gas storage water heater. The unique design has a 8.5L capacity hot water tank
and incorporates versatile controls for low current draw or fast heat up settings. With robust insulation and no
removable flue cover the Whale® Water Heater only requires minimal maintenance.
Read the following carefully before installation
Model: WH0822(B)
Maximum dimensions inside RV: Height: 258mm, Width: 330mm, Length: 330mm, Dry Weight: 8.0kg
Nominal Water Capacity 8.5L
Gas: Butane 28-30mbar, Propane 37mbar - CAT I3+ (29/37)
Butane/Propane 30mbar - CAT I3B/P (30)
Classification of Storage Water heater: Type: C11 (Natural draft)
Nominal Heat Input: Gas 1.25kW
Standby Consumption Gas 98W
Nominal Voltage: 12V d.c. (10.0V d.c. min. to 15V d.c. max.)
Maximum Current d.c.: 0.36Amps (0.01Amps on standby)
Maximum Water Supply Pressure: 190kPa (1.9 Bar)
Rated Pressure 300kPa (3.0 Bar)
Pressure Relief Valve Setting: 300kPa (3.0 Bar)
Maximum Caravan Side Wall Thickness: 47mm
Ingress Protection Rating: IPX1
Note: If connecting to mains water supply, a suitable water pressure regulator must be connected to ensure that the
maximum supply water pressure does not exceed 190kPa (1.9 Bar).
Dry Storage Temperature: -20°C to 70°C
Maximum Water Temperature: Approx. 70°C
Gas only approx. 33 min.
Whale’s policy is one of continuous improvement and we reserve the right to change specifications without prior
notice.
2. SPECIFICATION
1. PRINCIPLES OF OPERATION
2

The Whale® Water Heater has been designed for caravan, motorhome and mobile applications, and is suitable for
use in small and medium sized recreational vehicles. The compact and lightweight 8L tank fits in confined spaces
and has a greater power input for rapid heat up times.
This symbol indicates that this appliance is suitable for use in Leisure Accommodation Vehicles.
This symbol indicates that this appliance is not suitable for use in boats.
Observe all warnings.
In the unlikely event of leaks in the gas system, or if there is a smell of gas:
• Extinguish all naked flames
• Switch off all appliances and do not operate any electrical switches
• Open windows and doors for ventilation
• Do not smoke
• Shut off gas connection
Get the system thoroughly checked by a Whale® Authorised Dealer.
The appliance must not be operated while the vehicle is being re-fuelled.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do
not play with the appliance.
• Before using for the first time, it is essential to disinfect and rinse the entire water supply system
with drinking water.
• Ensure to fill the tank with drinking water only.
• With suspicion on contamination with pathogens the water supply system has to be disinfected.
• To avoid microorganisms, water should not stay longer than 14 days in the boiler.
Ensure the caravan water system including water heater is full of water, and the vehicle is level before operating.
This appliance must be fully drained if there is a risk of frost. Frost damage will not be covered by warranty.
The water temperature cannot be adjusted. It is automatically set to approximately 70°C and controlled by the PCB to
prevent bacteria growth.
To avoid scalding, the temperature of the hot water supplied to the taps and showers should be controlled.
Do not use the water as drinking water.
Any alteration to the appliance, including flue plate, use of non-Whale® spare parts/accessories and non-observation
of the installation and operation instructions shall lead to cancellation of the warranty and exclusion of liability claims
and results in it becoming illegal to use the appliance.
Please note that incorrect installation or use of non-original Whale® parts may invalidate the warranty. It also
becomes illegal to use the appliance if incorrectly installed, and in some countries this even makes it illegal to use
the vehicle.
3. APPLICATION
4. WARNINGS
3

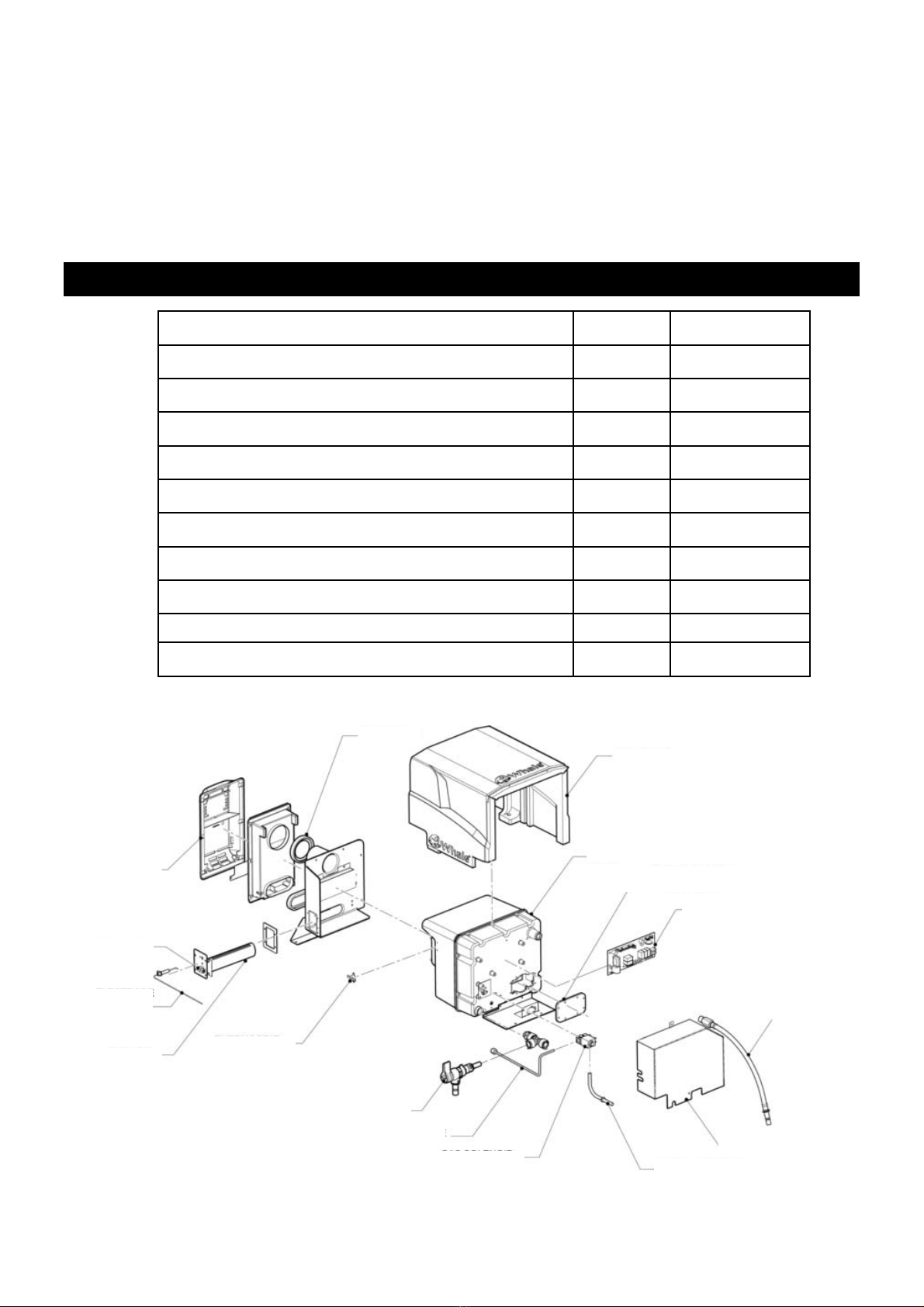

5. PARTS LIST
Fig.1
WH0822 WH0822B
Water Heater 1 1
Flue Assembly inc. 6 Screws 1 1
Control Panel inc. 4 Screws 1 1
3.5m Control Panel Extension Cable 1
Pressure Relief / Drain Valve 1 1
1 Male Adaptor 3/8" Flexible Hose Plumbing Fitting 1
2 Male Adaptor 1/2" Flexible Hose Plumbing Fitting 1
Warranty Registration Card 1 1
Instruction Manual including installation templates 1 1
Instruction Manual storage pocket, with adhesive fixing strip 1

6. INSTRUCTIONS FOR INSTALLATION
5

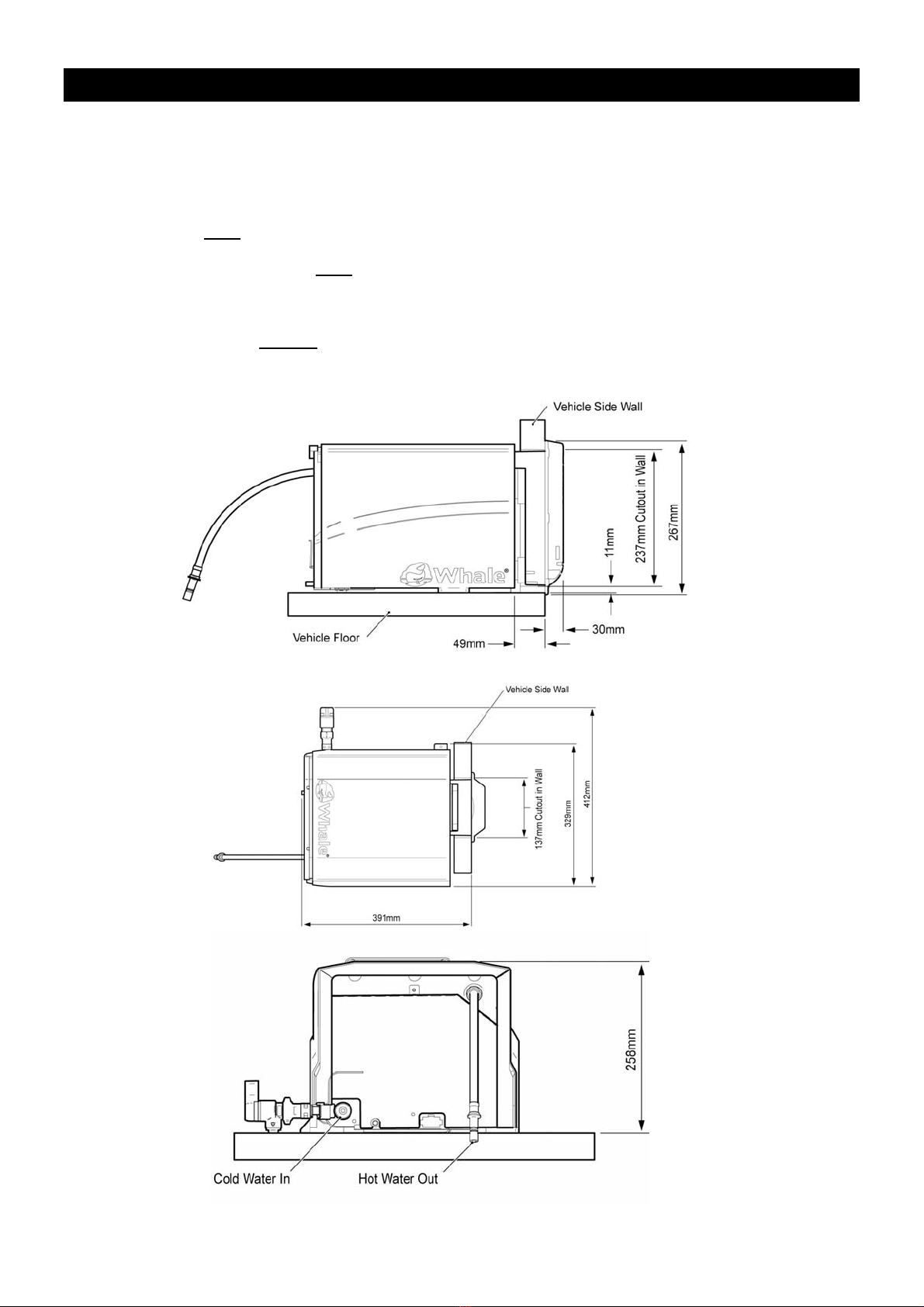

Fig. 2
Fig. 4
Fig. 3
To the Fitter:
Before installation, ensure the appliance has been supplied in good condition and if damaged, do not install.
Contact the Webasto Service Centre (see brochure with service phone numbers of the respective branch
offices).
A competent person must install the appliance in accordance with the appliance installation instructions. This
appliance is for use with LPG (see appliance data plate). Check that the product is suitable for the intended
application. In particular, the installer must check the compatibility of the data plate information with the LPG supply
requirements of the vehicle. Follow these installation instructions and ensure all relevant personnel read the points
listed below. Also ensure that these operating instructions are passed on to the end user.
Please note: The appliance must be installed in accordance with any relevant regulations in the country where the
appliance is installed. For this appliance in Europe the standard is BS EN 1949:2002 “Specification for the installation
of LPG systems for habitation purposes in leisure accommodation vehicles and in other road vehicles”.

Step 1 Find suitable location for water heater installation
Consider the following 5 points:
i. For weight distribution in caravans, aim to position the Water Heater as near to the axle as possible.
You must avoid locating at the very rear and preferably avoid the very front of the vehicle.
ii. Ensure that the position allows access for servicing the Water Heater.
iii. In selecting the Water Heater position, ensure that the flue will be located on a flat and exposed
outside surface, avoiding trim strips.
iv. Ensure the pressure relief / drain valve discharge pipe can be located through the floor without
fouling chassis members etc.
v. Only the supplied flue terminal is permitted to be used and must not be positioned within 300mm of
a refuelling point or fuel tank breather outlet or any ventilator from the fuel system(s). The flue
terminal must not be fitted within 300mm of a ventilator for the living space or an opening part of a
window.

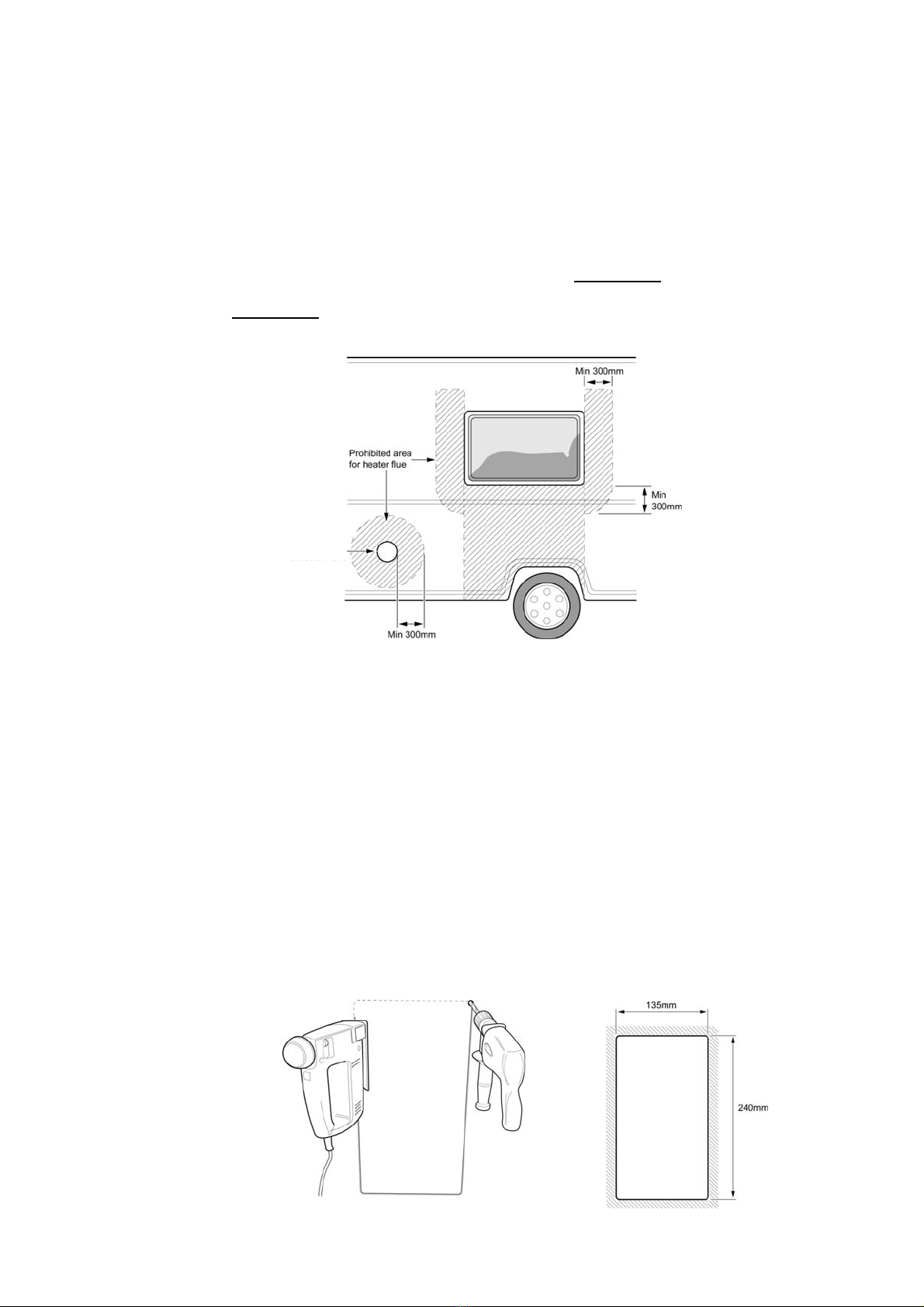

Fig. 5
The flue terminal may be positioned vertically below an opening part of a window if the appliance is fitted with an
automatic shut-off device to prevent operation when the window is open. It must also be a minimum of 300mm below
the window.
Step 2 Cut out hole for flue
See the flue template (also supplied with this heater).
Position template on the inside of the wall with side ‘A’ visible, then drill hole at centre position marked ‘X’ on the
template.
Position the template on the outside of the wall with side B visible, locate over the drilled position hole ‘X’, and ensure
the template is level.
Ensure that the flue outline is
flat to the wall and level,
avoiding trim strips etc. If the
flue needs to be mounted
higher, the heater can be
mounted on a board to raise
its height, as long as there is
enough space to do so.
Drill four 6mm corner holes
and cut aperture using flue
template as a guide. 6
Fig. 6 Fig. 7
Fuel refuelling / breather vent

Reinforce the cut out with wooden batons (minimum 20mm wide).This may require insulation in the wall to be
removed.
Fig. 8

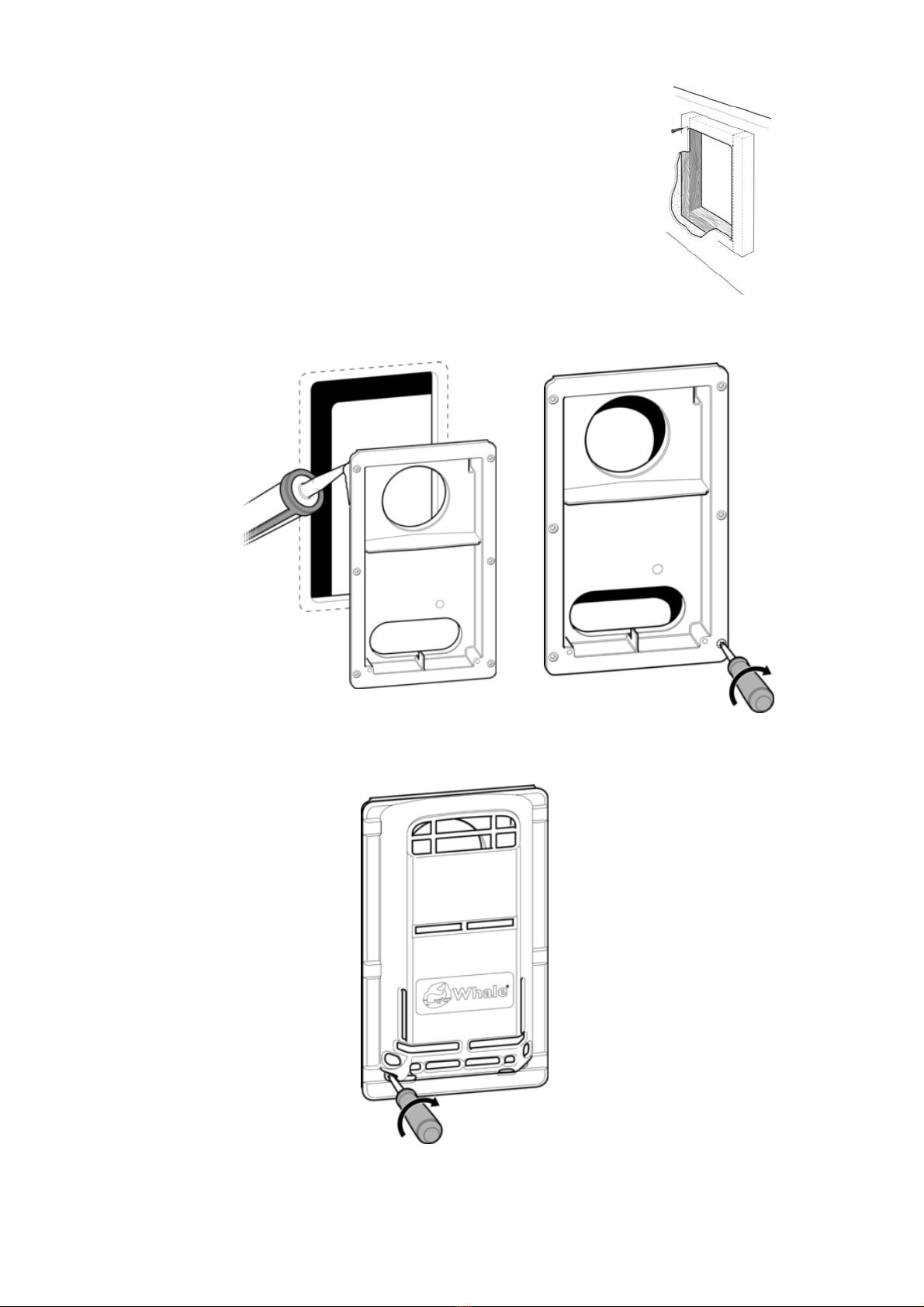

Step 3 Attaching the flue to the caravan
Apply sealant to seal the flue on the caravan side wall of the flue sealing face, ensuring each screw hole is
surrounded by sealant. Secure flue with the 6 screws (No. 8 x 3/4”) provided and remove excess sealant.
Step 4 Attaching the flue cover
Clip the top of the flue cover onto the back box and secure with two screws (No.6 x 1/2”) provided.
Fig. 11
7
Fig. 10
Fig. 9

Step 5 Connect water heater to flue
Set water heater on the floor and slide fully into flue as shown (see Fig. 12).
Fig. 12 Fig. 13
Step 6 Fitting the drain pipes (see Fig. 14)
With the Water Heater in place on the floor, mark a location for the pressure relief / drain valve discharge pipe to
come through the floor. Carefully remove the heater and drill a hole in the floor, minimum diameter 20mm,
ensuring that there are no obstructions on the underside of the vehicle i.e. gas pipes, chassis members etc. Refit the
heater, inserting the discharge pipe in the hole and ensure it is left open to the atmosphere at all times.
Fig. 14
8

Step 7 Secure heater
Secure Water Heater to the floor using the front and rear mounting plates with 3 screws (No. 8 x 1 ¼“) provided (see
Fig. 15).
Fig 15

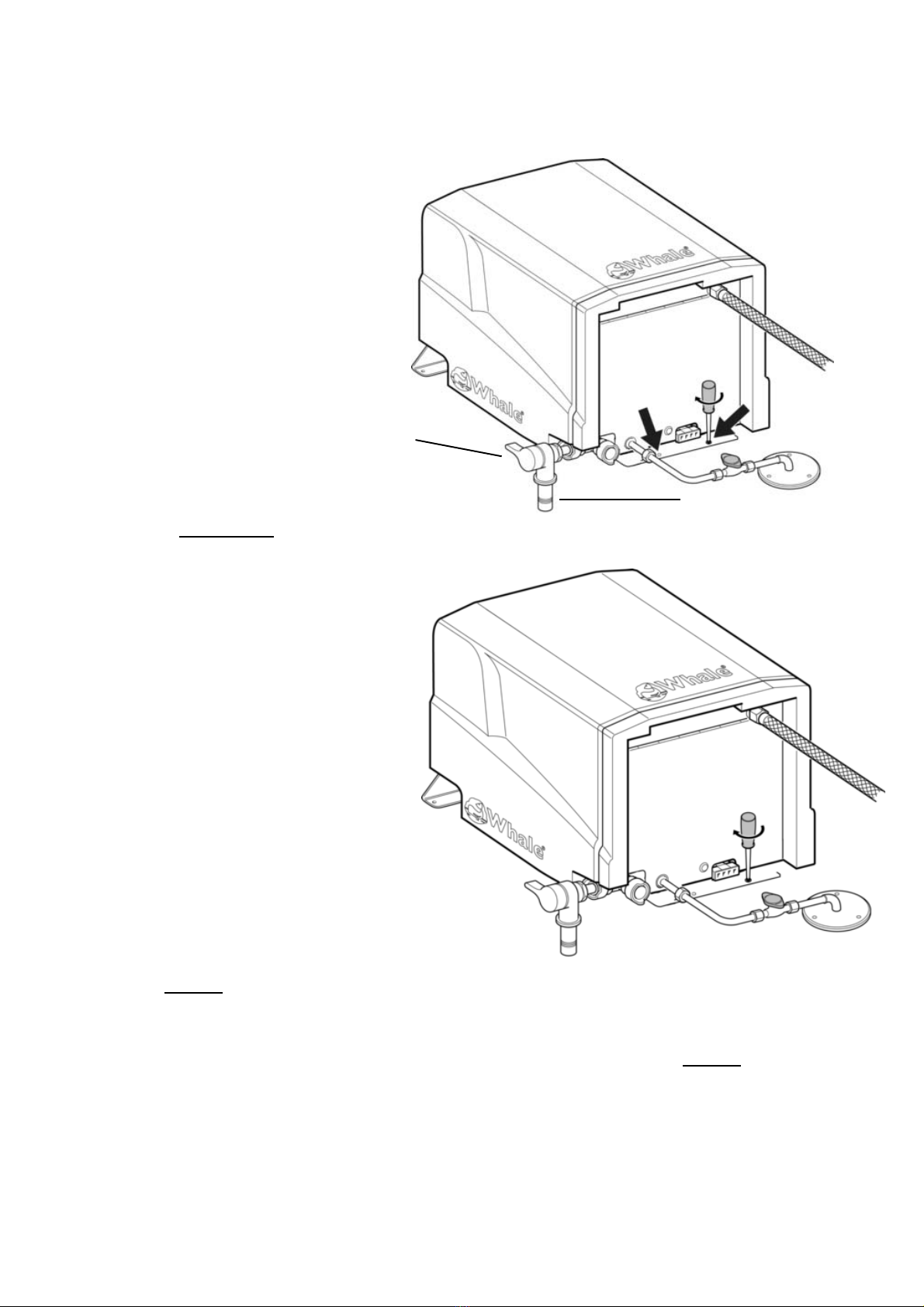

Step 8 Connect to gas supply (see Fig. 16)
Note: Ventilation must comply with relevant local requirements e.g. EN 721. Valve and connection are not part of the
kit.
Fig. 16
The appliance must be installed in accordance with the installation instructions and comply with any relevant
regulations in the country where the appliance is installed.
Check the gas pipe of the heater and the main gas supply pipe to ensure it is clear from dirt or other particles. Fit the
gas supply to the copper gas pipe of the heater with a compression fitting. The supply pipe must be positioned to
ensure the heater can be removed for servicing.
Gas shut- off valve should be located in the vicinity of the water heater and all connections should be kept to a
minimum.
WARNING: The operating pressure for the gas supply should be either 28-30mBar Butane or 30mbar/37mbar
Propane.
9
Discharge pipe
Pressure relief / drain valve

Step 9 Mounting of Whale® control panel (see Figs. 17-19)
When mounting the Whale® control panel, find a suitable, convenient and accessible position. Ensure suitable
access for wiring loom connection and cable. Note that the cable supplied to connect the control panel to the water
heater is 3.5m long. The minimum depth behind panel for wiring must be 50mm. If using a control panel specific to
the manufacturer or the vehicle, the electrical connections must be made in accordance with Step 10.
The control panel requires a cut out 45mm high x 35mm wide. Feed the wires through the control panel mounting
frame (see Fig.17) and line up the holes with the control panel. Feed the wires through the cut out in the wall and
locate into desired position. Secure with 2 screws (No.4 x 3/4) provided, then clip on the surround frame.
In some instances, it may be necessary to make the wiring connections in Step 9 before securing the control panel to
the wall.
Please note: It may be possible to retrofit the Whale® control panel into existing frames.
Fig. 17 Fig. 18 Fig. 19
Step 10 Electrical connections 12V d.c.
Manufacturer Installation
WARNING: Always disconnect the appliance from the power supply prior to working on electrical components.
The Water Heater and Control Panel come complete with electrical connectors fitted.
The Whale® Water Heater and Control Panel are designed to be integrated into the caravan’s wiring loom. The water
heater is provided with a JST VL series 8 way socket, and the control panel with a JST VL 6 way socket. 6 wires are
required to connect the water heater to the control panel, and 12V and 0V power supply are to be connected to the 8
way socket.
Please note: We recommend that a 5 amp fuse is fitted in the 12V supply.
10
Wire Number Description Wire Colour
1Switch common Brown
2Burner switch Blue
5Burner LED Orange
6Lockout LED Violet
712v supply Red
80v supply White

Retail installation (see Fig. 20)
The Water Heater and Control Panel come complete with electrical connectors fitted.
Connect the 8 way electrical connector to the 8 way connector on the water heater, then route the wire to the control
panel and connect the 6 way electrical connector to the 6 way connector at the control panel. Secure the 6 way wire
close to the control panel ensuring that there is no strain on the wires at the switches. Connect the red flying lead
coming from the 8 way connector to a 12V supply; then connect the white flying lead to the caravan 0V.
Please note: We recommend that a 5 amp fuse is fitted in the 12V d.c. supply.
Fig. 20
Step 11 Connection to Cold Water Supply (see Figs. 21 & 22)
The Whale® Water Heater is fitted with a Whale® 12mm Quick connect fitting on the cold water inlet to fit to Whale®
semi-rigid tubing. Various plumbing adaptors are included to assist with these connections as follows:
• To connect directly to 10mm (3/8”) flexible tubing, use 3/8” Stem Adaptor (WU1280) and secure with
a hose clip.
• For connecting to 13mm (1/2”) use ½” Stem Adaptor (WU1282) and secure with a hose clip.
• For any other plumbing systems contact Whale® Support for further information.
Fig. 21 Fig. 22
Important: Do not operate the appliance without the installed pressure relief device attached to the heater.
Please note: A Non-Return Valve (not supplied) can be fitted before the Pressure Relief Valve to prevent back flow
of hot water to cold water taps.
Step 12 Connect Hot Water Supply (see Figs. 23)
Screw in the braided hose supplied into the hot water outlet and tighten with a 19mm spanner. The outlet of the
braided hose has a 12mm stem which can be connected to a number of different pipe systems with the included
fittings as follows:-
To connect the braided hose to Whale® 12mm semi-rigid tubing use Whale® Equal Straight fitting (WU1204) as
shown Fig. 23. Push in twice to ensure the fitting is ‘fully home’ and water tight. To connect directly to 10mm (3/8”)
11
Water heater
Plumbing fitting
Cold water supply pipe

flexible tubing, no additional fittings are required, push the hose over the 12mm nipple on the end of the braided hose
and secure with a hose clip. For connecting to 13mm (1/2”) flexible tubing use Equal Straight fitting (WU1204) and ½”
Stem Adaptor (WU1282).
If you have any other plumbing system queries, contact the Webasto Service Centre (see brochure with service
phone numbers of the respective branch offices).
Please note: The hot water flexible braided hose must always be used to ensure safe operation.
Fig. 23
Step 13 Completed Installation (see Figs. 24)
Typical Manufacturer’s
Installation
Fig. 24
Please note: After completing installation, carry out a full function check including gas soundness to ensure the
appliance has been installed and operates correctly. The gas soundness check must be carried out by an accredited
LPG gas engineer and a test certificate issued.
To the User: Read the following instructions carefully.
Observe all Warnings.
Never operate the water heater without water in it. This appliance must not be connected directly to the mains water
supply without a pressure regulator fitted, or any water supply greater than 190 kPa (1.9 bar). Ensure the caravan
water system including Water Heater is full of water, and the vehicle is level before operating.
12
7. INSTRUCTIONS FOR USE

When using operating switches provided by the installer or manufacturer, they are responsible for providing user
instructions and identification of symbols on the control panel.
OPERATING INSTRUCTIONS
For operation of the heater, a 12V d.c. supply must be connected at all times.
Upon initial operation (or to refill after the system has been drained) check the drain valve is closed then fill the
system with clean fresh water. To fill, open one hot tap and switch on the water pump. Leave the tap open to allow air
to escape while the water heater is filling. Once water flows smoothly out of the hot tap, the water heater is filled. To
allow the remainder of air to escape from the system open each hot water tap in turn until water flows smoothly.
Please note: In cold temperatures, the water in the supply pipework may freeze and prevent filling.
Check that all the gas and/or electricity supplies are turned on.
Gas Operation. Operate the switch to the on (flame) position. There will be a pre-purge pause of approx. 5 seconds
to allow any un-burnt gas to leave the flue. A green LED will light upon successful flame ignition. If there is air in the
gas supply line it may take a few attempts for the gas to ignite. See section 9 for gas lockout re-setting. If the ignition
is not satisfactory, the red LED will flash - refer to the trouble-shooting guide (see Section 9).
Switching Appliance Off. Operate the switch to the top Off position (O). If the heater is not going to be used for
some time, isolate the gas supply and drain water if there is a risk of freezing.
Please Note: The water may drip from the discharge pipe of the pressure-relief valve during heating up. This pipe
must be left open to the atmosphere, must be installed in a continuously downward direction and in a frost-free
environment. The pressure relief valve must be operated regularly (at least twice a year) by turning the yellow lever
in the anti-clock wise direction, to remove lime deposits and to verify that it is not blocked.
General Safety Notes: The operating pressure of the gas supply to the water heater should be 28-30mbar Butane or
30-37mbar Propane.
To clean and sterilise inside the Water Heater use diluted sterilising fluid and fully rinse through with clean water
afterwards.
Disinfection
• Clean and disinfect the water supply system at least one time per year.
• In case no water has been taken from the water system for a period of a week or more, drain the
whole water system and rinse it thoroughly before refilling it.
To clean the water system.
1. Drain tank and water system.
2. Make up sterilizing solution as per the manufacturer’s recommendations.
3. Fill entire water system with water sterilizing mixture ensuring all air is removed by opening all water
taps in kitchen, bathroom and shower.
4. Close the taps and leave it on for 1-2 hours.
5. Drain the system again.
6. Rinse the system with fresh drinking water.
7. Repeat rinse if necessary.
8. The system can now be used normally.
The outside of the appliance should not normally require cleaning. If it does, isolate the electrical supplies and wipe
down with a soft, damp cloth only. Allow to fully dry before reconnecting the electrical supplies.
If descaling of this appliance is required, this can be done using a domestic liquid de-scaling product and fully rinse
through with clean water afterwards.
The Whale® Water Heater must be checked periodically by a Whale® Authorised service engineer, or competent
person, at least annually. This must be completed according to the practice in the country where it is used and
13
8. MAINTENANCE

according to the Whale® instructions. We recommend annual testing of gas soundness and combustion by an
accredited LPG gas engineer.
The heater is equipped with an electronic diagnostic system which will detect fault conditions ranging from poor gas
or d.c. supply to internal heater malfunctions. In the event of a failure, the red light on the control panel will flash a
number of times, pause, and repeat until switched off. Count the number of flashes and refer to the table below.
Gas lockouts
Gas lockouts must be cleared by moving the gas switch from on position to off position then back to the ‘on’ position.
The complete sequence of switch movements must be completed within 2.5 seconds for a lockout to be successfully
cleared. If there is air in the gas line, e.g. after a gas bottle change, the Water Heater may require several attempts
before it lights.
Other lockouts
Note: A cycling of the power supply to the unit will not clear a lockout. Some gas lockouts, e.g. Ignition lockout will
still permit use of the appliance in electric only operation.
If the problem persists contact the Webasto Service Centre (see brochure with service phone numbers of the
respective branch offices).
When using the heater in winter ensure the flue is not blocked by snow or fallen leaves etc. When not in use, ensure
the heater is drained. This is particularly important during the winter months as a precaution against freezing. To
drain, switch off the water pump at either the pump switch or main switch. Open all the hot water taps in the vehicle
and operate the drain valve fitted in the system. The drain valve should be left in the open position to ensure all the
water drains out.
Please contact the Webasto Service Centre for this purpose (see brochure with service
phone numbers of the respective branch offices).
14
Number of
flashes Fault Remedy
1No flame detected
2Overheat
3Low/high
supply voltage
5Other / internal fault
Check gas supply making sure there is gas in the bottle and no
blockage in the gas line. Ensure Propane is used at temperatures
below +5°C. Clear lockout as described below.
Check there is water in the appliance. We recommend that you
wait at least 5 to 10 minutes to allow the heater to cool before
clearing lockout as described below.
Attempt to clear lockout as shown below. If this fails, contact a
Whale Authorised Service Engineer.
Minimum operating voltage is 10V, maximum is 15V, when
measured at the heater. Check battery voltage. If between 10V and
15V, check connections between heater and battery. Check
alternator or external battery charging. Clear lockout as described
below.
10. WINTERISING / DRAINING
11. SERVICE SUPPORT DETAILS
9. TROUBLE SHOOTING

Description of Equipment: Gas and Electric Storage Water Heater
Manufacturer’s Declaration
We hereby declare, under our sole responsibility, that the above equipment complies with the provisions of the
following EC Directives:
The Drinking Water Directive 98/83/EC on the approximation of the laws of the Member States relating to the quality
of water intended for human consumption.
Gas Appliance Directive 90/396/EEC on the approximation of the laws of the Member States relating to appliances
burning gaseous fuels.
Low Voltage Directive 2006/95/EC on the harmonization of the laws of the Member States relating to electrical
equipment designed for use within certain voltage limits.
Electromagnetic Compatibility Directive 2004/108/EC, on the approximation of the laws of the Member States relating
to electromagnetic compatibility.
CE mark first affixed: August 2011
Basis on which conformity is declared
The above equipment meets the protection requirements of the EMC Directive and the principal elements of the
safety objectives of the Low Voltage Directive.
Please contact Whale® if further details are required.
Signed
Stanley McFarland
Engineering Director
The Whale® Water Heater is protected by the following patent and design registration applications:
UK Patent application number: 0902533.9
Whale® is a registered trademark of Munster Simms Engineering Ltd trading as Whale.
The Whale® Water Heater is covered by a 3 year warranty.
Please complete the enclosed warranty card and return to Whale.
See the enclosed document for details of our statement of limited warranty.
Munster Simms Engineering Ltd.
2 Enterprise Road, Bangor, N. Ireland BT19 7TA
Tel: [phone] Fax: [phone]
Web: www.whalepumps.com
Email: [email protected]
15
13. PATENTS AND TRADEMARKS
14. WARRANTY
12. EU DECLARATION OF CONFORMITY

©Copyright Whale 2014 - All rights reserved.
Whale’s policy is one of continuous improvement and we reserve the right to change specifications without prior
notice.
Ref: 181.230_v2_0214

Wir danken Ihnen für Ihren Kauf dieses Produkts von Whale®.
Seit über vierzig Jahren ist Whale einer der führenden britischen Hersteller und Anbieter von Frischwasser- und
Abwassersystemen, einschließlich Installationsrohren, Zapfhähnen, Duschen und Pumpen für
Niederspannungsanwendungen. Der Hersteller und seine Produkte genießen ein hohes Ansehen, denn Qualität,
Zuverlässigkeit und Innovation, gestützt durch einen exzellenten Kundendienst, werden bei uns großgeschrieben.
Für Informationen über unsere gesamte Produktpalette siehe: www.whalepumps.com
INHALTSÜBERBLICK
1. Funktionsprinzipien
2. Technische Daten
3. Anwendung
4. Warnhinweise
5. Teileliste
6. Montageanleitung
7. Bedienungsanleitung
8. Wartung und Instandhaltung
9. Fehlerbehebung
10. Vorbereitung für den Winter
11. Kundendienstangaben
12. EU-Konformitätserklärung
13. Patente und Warenzeichen
14. Garantie
VERZEICHNIS DER ABBILDUNGEN
Abb. 1 Zeichnung der Bestandteile
Abb. 2 Abmessungen – Seitenansicht
Abb. 3 Abmessungen – Ansicht von oben
Abb. 4 Abmessungen – Ansicht von vorne
Abb. 5 Montagediagramm
Abb. 6 Ausschnitt für den Abzug
Abb. 7 Abmessungen des Abzugs
Abb. 8 Verstärken des Abzugslochs
Abb. 9 Abdichten des Abzugs
Abb. 10 Befestigen des Abzugskastens
Abb. 11 Montage und Sicherung der Abzugabdeckung
Abb. 12 Anbringen des Wassererhitzers am Abzug
Abb. 13 Position des Wassererhitzers
Abb. 14 Installation des Abflussrohrs
Abb. 15 Feste Montage des Wassererhitzers am Boden
Abb. 16 Anschluss an die Gaszufuhr
Abb. 17 Einsetzen des Schalters
Abb. 18 Montage des Schalters
Abb. 19 Installierter Schalter
Abb. 20 Anschluss der 12V-Gleichstromsteckverbindung
Abb. 21 Anschluss der Kaltwasserversorgung
Abb. 22 Installierte Kaltwasserversorgung
Abb. 23 Anschluss der Warmwasserversorgung
Abb. 24 Fertige Installation – Hersteller-Version
Reiner Gasdurchlauferhitzer
MONTAGE- UND BENUTZERHANDBUCH
WH0822 / WH0822B / WH0822BR
1

Der 8-Liter-Wassererhitzer von Whale® ist ein Gasspeicherdurchlauferhitzer. Dieses einzigartige Modell hat einen
Heißwassertank von 8,5 Liter Kapazität, und es ist mit vielseitigen Funktionen für die geringe Stromaufnahme oder
Einstellungen für die schnelle Warmwasserbereitung ausgerüstet. Dank seiner robusten Isolierung und einem nicht
abnehmbaren Abzugsdeckel erfordert der Wassererhitzer von Whale® nur eine minimale Wartung.
Lesen Sie diese Anleitung vor der Montage bitte aufmerksam durch.
Modell: WH0822 (B / BR)
Maximale Innenabmessungen: Höhe 258 mm, Breite 330 mm, Länge 330 mm, Trockengewicht 8,0 Kg
Nominales Fassungsvermögen: 8,5 Liter
Gas: Butan-/Propangas 30 Mbar – CAT 13B/P (30)
Klassifizierung des Speicherdurchlauferhitzers: Typ C11 (Naturzug)
Nennwärmebelastung: Gas 1,25 KW
Gas - Verbrauch im Standby-Modus: 98 W
Nennspannung: 12 V Gleichstrom (min. 10,0 V Gleichstrom bis max. 15 V Gleichstrom)
Max.Stromstärke (Gleichstrom): 0,36 Amp. (0,01 Amp. in Standby-Modus)
Maximaler Wasserversorgungsdruck: 190 kPa (1,9 bar)
Nenndruck: 300 kPa (3,0 bar)
Druckablassventileinstellung: 300 kPa (3,0 bar)
Maximale Seitenwanddicke des Wohnwagens: 47 mm
Schutzgrad: IPX1
Wichtiger Hinweis: Im Falle eines Anschlusses ans Trinkwassernetz muss ein geeigneter Wasserdruckregler
integriert werden, um zu gewährleisten, dass der maximale Versorgungswasserdruck einen Wert von 190 kPa (1,9
bar) nicht überschreitet.
Trockenspeichertemperatur: - 20°C bis 70°C
Max. Wassertemperatur: ca. 70°C
Gas nur ca. 33 min.
Whale verfolgt eine Strategie der kontinuierlichen Verbesserung, und wir behalten uns das Recht der Änderung von
technischen Daten ohne Vorankündigung vor.
2. TECHNISCHE DATEN
1. FUNKTIONSPRINZIPIEN
2

Dieser Durchlauferhitzer von Whale® wurde für die Montage und den Betrieb in Wohnwagen, Wohnmobilen, usw.
konzipiert. Dieses Modell ist für den Einbau in kleine und mittelgroße Freizeitfahrzeuge geeignet. Dank seines
kompakten Leichtgewichttanks mit einer Kapazität von 8 Litern passt dieser Wassererhitzer in enge bzw. begrenzte
Räume, und er ist mit einer höheren Leistungsaufnahme für schnelle Aufheizzeiten ausgerüstet.
Dieses Symbol bedeutet, dass dieses Gerät für den Betrieb in Freizeitfahrzeugen (Wohnwagen,
Wohnmobilen usw.) geeignet ist.
Dieses Symbol bedeutet, dass dieses Gerät nicht für den Betrieb in Hausbooten geeignet ist.
Bitte befolgen Sie alle Warnhinweise.
Sollten, wider Erwarten, Leckagen im Gassystem auftreten bzw. im Falle von Gasgeruch:
• alle nackten Flammen löschen
• alle Geräte ausschalten und keine elektrischen Schalter betätigen
• Fenster und Türen zur Entlüftung öffnen
• Nicht rauchen
• Gaszufuhr absperren
Lassen Sie das System von einem autorisierten Vertragshändler von Whale® gründlich überprüfen.
Der Apparat darf nicht in Betrieb sein, während das Fahrzeug neu betankt wird.
Dieser Apparat ist nicht für die Bedienung durch Personen (einschließlich Kindern) mit eingeschränkten körperlichen,
sinnlichen oder geistigen Fähigkeiten bzw. mangelnder Erfahrung und Kenntnis über die Bedienung des Apparats
bestimmt, es sei denn sie haben von einer für deren Sicherheit verantwortlichen Person die entsprechende Aufsicht
oder Anleitung über dessen Benutzung erhalten. Kinder sind stets zu beaufsichtigen, um sicherzustellen, dass sie
nicht mit dem Gerät spielen.
• Vor dem erstmaligen Gebrauch ist es unbedingt erforderlich, das gesamte Wasserversorgungssystem mit
Trinkwasser zu desinfizieren und auszuspülen.
• Darauf achten, dass Sie den Tank nur mit Trinkwasser auffüllen!
• Bei Verdacht auf eine Kontaminierung mit Pathogenen ist das Wasserversorgungssystem zu desinfizieren.
• Um Mikroorganismen zu vermeiden, sollte das Wasser nicht länger als 14 Tage im Boiler bleiben.
Vor dem Betrieb prüfen, ob der Wasserkreislauf des Fahrzeugs, einschließlich des Durchlauferhitzers, mit Wasser
gefüllt ist und das Fahrzeug auf ebenem Untergrund steht.
Dieser Apparat muss bei Frostgefahr komplett abgelassen werden, denn Frostschäden werden nicht von der
Garantie abgedeckt. Die Wassertemperatur ist nicht einstellbar. Sie ist automatisch auf ca. 70°C eingestellt und wird
von der Leiterplatte gesteuert, um das Bakterienwachstum zu vermeiden. Um Verbrühungen zu vermeiden, sollte die
Temperatur des Heißwassers, mit dem die Wasserhähne und Duschen versorgt werden, kontrolliert werden. Das
Wasser nicht als Trinkwasser verwenden!
3. ANWENDUNG
4. WARNHINWEISE
3

Jegliche Modifizierung des Geräts, einschließlich der Abzugplatte, die Verwendung von Ersatz- oder
Zubehörteilen, die nicht von Whale® hergestellt wurden, sowie die Nichtbefolgung der Montage- und
Bedienungsanweisungen zieht eine Aufhebung der Garantie sowie den Ausschluss jeglicher Haftpflichtansprüche
nach sich, und die Benutzung des Geräts ist nicht mehr zulässig.
Wir weisen ferner darauf hin, dass jegliche falsche bzw. unsachgemäße Montage oder Verwendung von
Bestandteilen, die keine Teile des Originalherstellers Whale® sind, eine Ungültigkeit der Garantie zur Folge haben
kann. Im Falle einer falschen oder unsachgemäßen Montage des Geräts wird dessen Benutzung außerdem
unzulässig. In bestimmten Ländern wird sogar die Benutzung des gesamten Fahrzeugs unzulässig.
Abb. 1
WH0822 WH0822(B / BR)
Wassererhitzer 1 1
Abzug-Montagesatz (inkl. 6 Schrauben) 1 1
Wandschalter (inkl. 4 Schrauben) 1 1
Wandschalterverlängerungskabel (Länge 3,5 m) 1
Druckablass-/Ablaufventil 1 1
1 Übergangsstück (3/8“) für Montage der Schlauchinstallation 1
2 Übergangsstücke (1/2“) für Montage der Schlauchinstallation 1
Garantieanmeldekarte 1 1
Montage- und Bedienungshandbuch (inkl. Montageschablonen) 1 1
Aufbewahrungstasche für das Montage- und Bedienungshandbuch
(mit Haftklebestreifen) 1
5. TEILELISTE
Abzugsdichtungsringe
Abzug
(Terminal)
Einspritzdüse
Elektrode +
HT-Leitung
Isolierung
Brenner Thermostat (Gas)
Druckablassventil
Brennerrohr
Gas-Magnetventil
Heißwasseranschlusschlauch
Steuerungsabdeckung
Gasversorgungsrohr und
Durchführungshülse
Leiterplatte
Abdeckplatte und Dichtungsring
Tank
Lenkblech
