Whirlpool AMD 018 User manual

Gebrauchsanweisung
Instructions for use
Mode d’emploi
Gebruiksaanwijzing
Istruzioni per l’uso
Brugsanvisning
Bruksanvisning
Käyttöohje
Manual de utilização
Instrucciones para el uso
Instrukcje użytkowania
Használati utasítás
ИнструкциЯза употреба
Návod k použití
Návod na použitie
Instruc∑iuni de utilizare
Инструкции по эксплуатации

3
ENGLISH Instructions for use Page 4
POLSKI Instrukcje użytkowania Strona 28
ČESKY Návod k použití Strana 52
SLOVENSKY Návod na použitie Strana 76
MAGYAR Használati utasítás Oldal 100
РУCCКИЙ Инcтpyкции по экcплyaтaции Cтpaницa 124
БЪЛГAРCКИ Инcтpyкция зa yпoтpeбa Cтpaницa 148
ROMANA Instrucţiuni de utilizare Pagina 172
AMD 018 - 019

BEFORE USING THE APPLIANCE
To make the most out of your new appliance, please read the user instructions carefully and keep them
handy for future consultation.
SAFETY PRECAUTIONS
• The Installation and service/repair must be
performed by a qualified technician, in
compliance with the producer's instructions and
following local safety norms. Do not repair or
replace any parts of the appliance unless it is
specifically written in the user instructions.
• Do not pull the power supply cord to remove it
from the socket. Do not twist or press the
power supply cord, and make sure it is not
broken.
• Do not touch the power plug, circuit breaker
and emergency button when your hands are
wet.
• Do not insert your fingers or foreign substances
into the air inlet/outlet of indoor&outdoor unit.
• Never block the air inlet or outlet of indoor and
outdoor unit.
• Physically or mentally disabled people, children
and people without any experience with the
product are only allowed to use the appliance if
they have had specific training on how to
operate the appliance by a person responsible
for their security and well-being. The appliance
is not intended for use by disabled people and
very young children without supervision.
• Children should be supervised to ensure that
they do not play with the appliance (including
remote control).
4
AIR CONDITIONER PRECAUTIONS
Please strictly follow the below instructions:
• Long and direct exposure to cool air might be
harmful to health. It is advisable to set the
louvers in order to avoid direct cool air and
deflect it within the room.
• Upon malfunctioning first turn the appliance off
by pressing the ON/OFF button on the remote
control, then disconnect it from power supply.
• Do not switch the appliance on and off too often
as this can damage the appliance.
• Do not place any objects on the outdoor unit.
• Disconnect the air conditioner from the power
supply if it is to be left unused for a long period
of time or during a thunder/lightning storm.
• This product contains Fluorinated Greenhouse
Gases covered by the Kyoto Protocol, the
refrigerant gas being in a hermetically sealed
system. Refrigerant gas: R410a has a Global
Warming Potential (GWP) 1975.

• This appliance has been made of recyclable or
re-usable material. Scrapping must be carried
out in compliance with local waste disposal
regulations. Before scrapping it, make sure to
cut off the mains cord so that the appliance
cannot be re-used.
• For more detailed information on handling and
recycling of this product, contact your local
authorities who deal with the separate collection
of rubbish or the shop where you bought the
appliance.
SCRAPPING OF PACKAGING
• The packaging can be 100% recycled as
confirmed by the recycling symbol . The
various parts of the packaging must not be
dispersed in the environment, but must be
scrapped in line with local authority regulations.
SCRAPPING OF APPLIANCE
• This appliance is marked according to the
European Directive 2002/96/EC, Waste
Electrical and Electronic Equipment (WEEE).
• By ensuring that this product is disposed of
correctly, you will help to prevent potentially
negative consequences for the environment and
for human health.
• The symbol on the product or on the
documents accompanying the product indicates
that this appliance should not be treated as
household waste, but must be given to the
appropriate local gathering place where electric
and electronic appliances are stored and
recycled.
SAFEGUARDING THE ENVIRONMENT
5

6
PRODUCT DESCRIPTION
Indoor unit
1. Air Intake
2. Front Panel
3. Display panel
4. Electrical box
5. Air Outlet
6. Filter monitor reset button
7. Vertical Adjustment Louver
8. Horizontal Adjustment Louver
9. Air Filter
10. Remote Control
Outdoor unit
11. Air Intake
12. Pipes and Power Connection Cord
13. Drain Hose
Note: Condensate water drains at
COOLING or DRY operation.
14. Air Outlet
Images in the user instructions are based on external views of standard models, shape and design vary
according to the model.

7

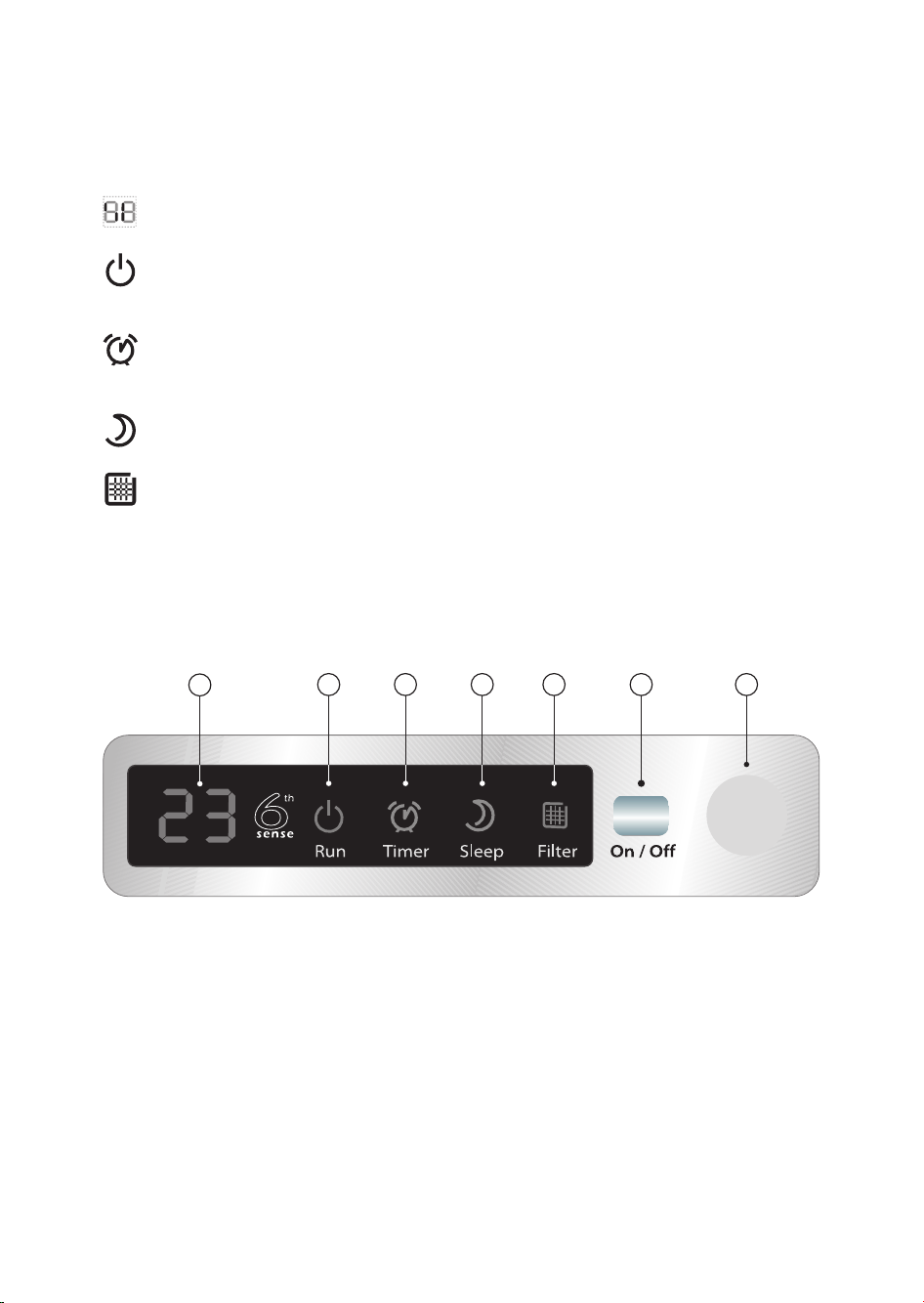

CONTROL PANEL DISPLAY INDICATORS
DESCRIPTION
Temperature indicator (1)
Displays set temperature.
Running indicator (2)
It lights up during operation.
It flashes during outside unit defrosting.
Timer indicator (3)
It lights up during the set time.
It goes off when timer operation ends.
Sleep indicator (4)
It lights up during sleep mode.
Filter monitor indicator (5)
Filter monitor indicator doesn't work on inverter models. This LED will never light up, so regular
check anc cleaning of dust filter is required.
Emergency ON/OFF button (6)
Used to control the unit by pressing the button, when the RC is out of work.
Used to set or cancel auto-restart function.
Signal Receptor (7)
12 3 4 5 6 7

8

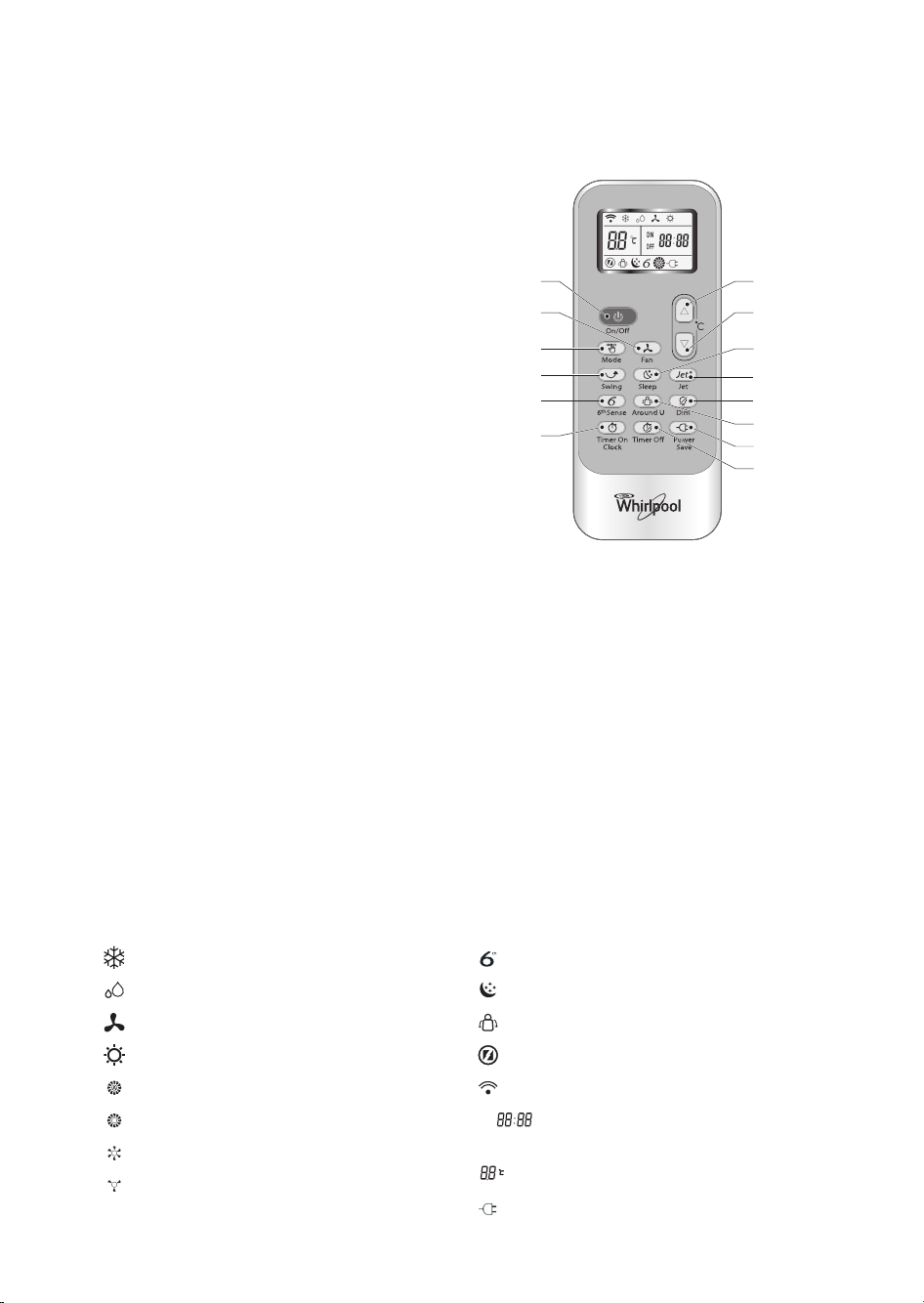

REMOTE CONTROL FUNCTIONS
AND INDICATORS
1. ON/OFF BUTTON
Starts and/or Stops the appliance by pressing
this button.
2. MODE BUTTON
Used to select the operation mode.
3. FAN BUTTON
Used to select fan speed in sequence auto,
high, medium or low.
4-5. TEMPERATURE BUTTON
Used to select the room temperature. Used
to set time in timer mode and real time clock.
6. 6TH SENSE BUTTON
Sets or cancels 6th sense operation.
7. SWING BUTTON
Stops or starts vertical adjustment louver
swinging and sets the desired up/down airflow
direction.
8. SLEEP BUTTON
Sets or cancels Sleep Mode operation.
9. AROUND U BUTTON
When you press this button, the remote
control transmits signal of the actual room
temperature around itself to the indoor unit
every 10 minutes. Therefore please keep the
remote control in a location where it can
transmit the signal to the indoor unit properly.
Press once to set and press again to cancel.
10. TIMER ON/CLOCK BUTTON
Used to set the current time.
Used to set or cancel the timer on operation.
11 TIMER OFF BUTTON
Used to set or cancel the timer off operation.
12. JET BUTTON
Used to start or stop the fast cooling.
13. DIM BUTTON
Used to turn on or turn off display light on
indoor unit.
14. POWER SAVE BUTTON
Used to start or stop the power save
operation.
rq
et
d
f
i
o
g
s
u
w
y
a
INDICATOR SYMBOLS ON RC DISPLAY
Cooling indicator
Dry indicator
Fan only indicator
Heating indicator
Auto fan speed
High fan speed
Medium fan speed
Low fan speed
6th Sense indicator
Sleep indicator
Around U indicator
Jet indicator
Signal transmission
Display set timer
Display current time
Display set temperature
Power save indicator
O
ON
OFF

9
STORAGE AND TIPS FOR USING THE
REMOTE CONTROL

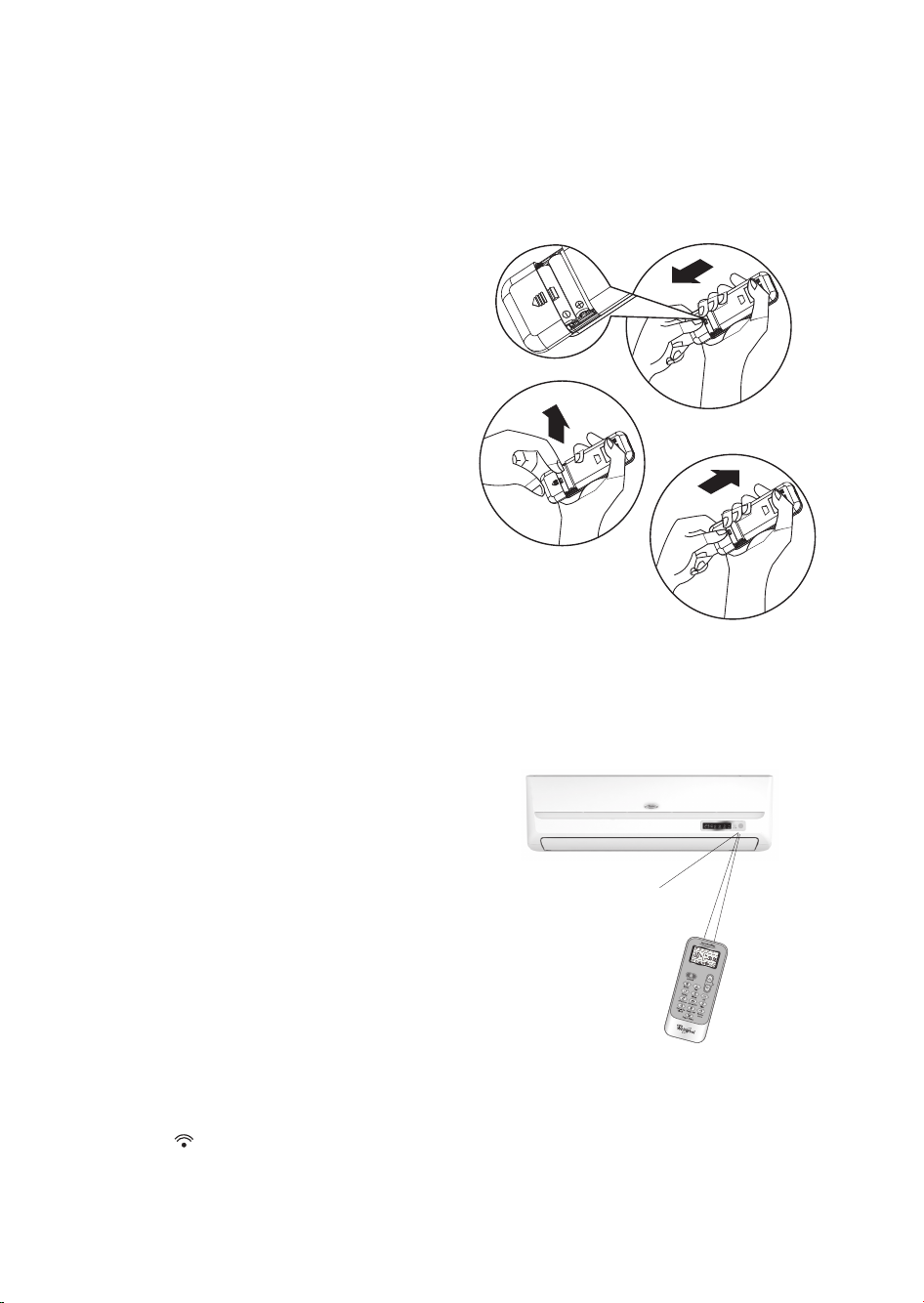

How to insert the batteries
1. Insert a pin and gently press down on the
battery cover and push in the direction of the
arrow to remove, as shown.
2. Insert 2 AAA batteries (1.5V) into the
compartment.
Ensure that "+" and "-" polarity is correctly
positioned.
3. Close the battery cover on the remote control.
How to remove the batteries
Remove the battery cover in the direction of the
arrow.
Press the positive pole of the battery softly with
your fingers, then draw the batteries out of the
compartment. All this should be done by adults,
children are forbidden to remove the batteries
from the remote control in order to avoid danger
of swallow.
Disposal of the batteries
Please discard the batteries as sorted municipal
waste at the accessible collection point.
Precautions
• When replacing the batteries, do not use new
batteries with old batteries, or different types of
batteries as this may cause the remote control
to malfunction.
• If you do not expect to use the remote control
for some time, take the batteries out to prevent
leakage of battery acid in the remote control.
• Operate the remote control within effective
range. Keep the remote control at least 1 meter
from any TV set or HI-FI equipment.
• If the remote control does not work normally,
take the batteries out and reinstall after 30
seconds. If it still does not work install new
batteries.
• To operate the appliance by remote control,
point the remote control at the receiving device
on the indoor unit, to ensure receiving
sensibility.
• To send a message from remote control, the
symbol will flash for 1 second. On receipt
of the message, the appliance will emit a beep.
• The remote control will operate the air
conditioner at a distance of up to 7m.
• Each time the batteries are replaced in the
remote control, the remote control is pre-set at
Heat Pump mode.
Signal receptor

10

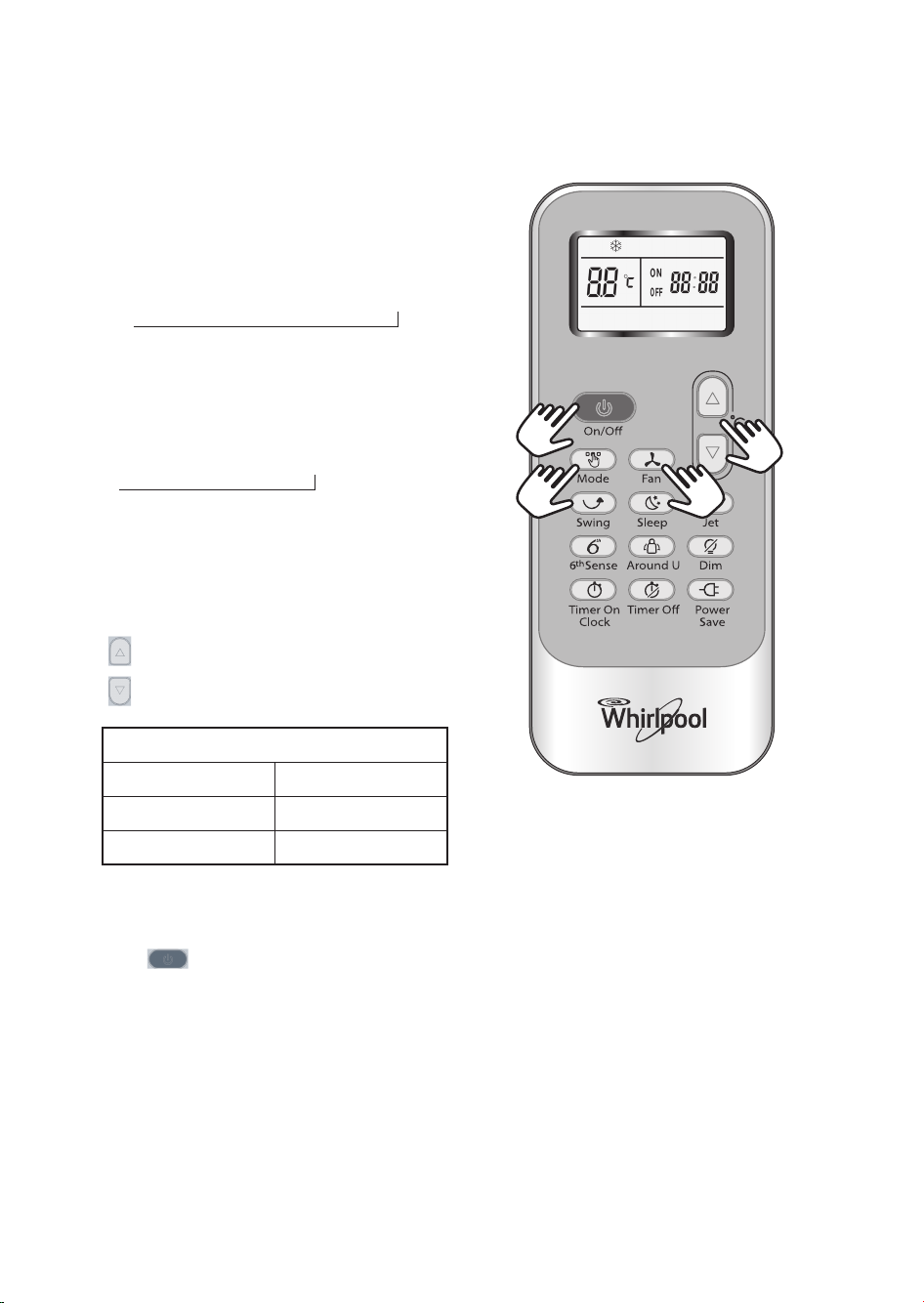

OPERATING MODE DESCRIPTION
Operation Modes:
1. Selecting mode
Each time MODE button is pressed, the operation
mode is changed in sequence:
COOLING →DRY →FAN ONLY →HEATING
↑
Heating mode is not available for cooling only air
conditioners.
2. FAN mode
Each time the "FAN" button is pressed, the fan
speed is changed in sequence:
Auto →High →Medium →Low
↑
At "FAN ONLY" mode, only "High","Medium" and
"Low" are available.
At "DRY" mode, Fan speed is set at "Auto"
automatically, "FAN" button is ineffective in this
case.
3. Setting temperature
Press once to raise temperature setting by 1
raise °C
Press once to lower temperature setting by 1
lower °C
*Note: Heating mode is NOT available for
cooling only models.
4. Turning on
Press button, when the appliance receives
the signal, the RUNNING indicator of the indoor
unit lights up.
During mode changes wait a few seconds and
repeat the operation if the unit does not respond
at once.
When selection the heating operation, air flow will
start after 2-5 minutes.
Range of available set temperature
*HEATING, COOLING 18°C~32°C
DRY +/-7°C
FAN ONLY unable to set
4
1 2
3

11

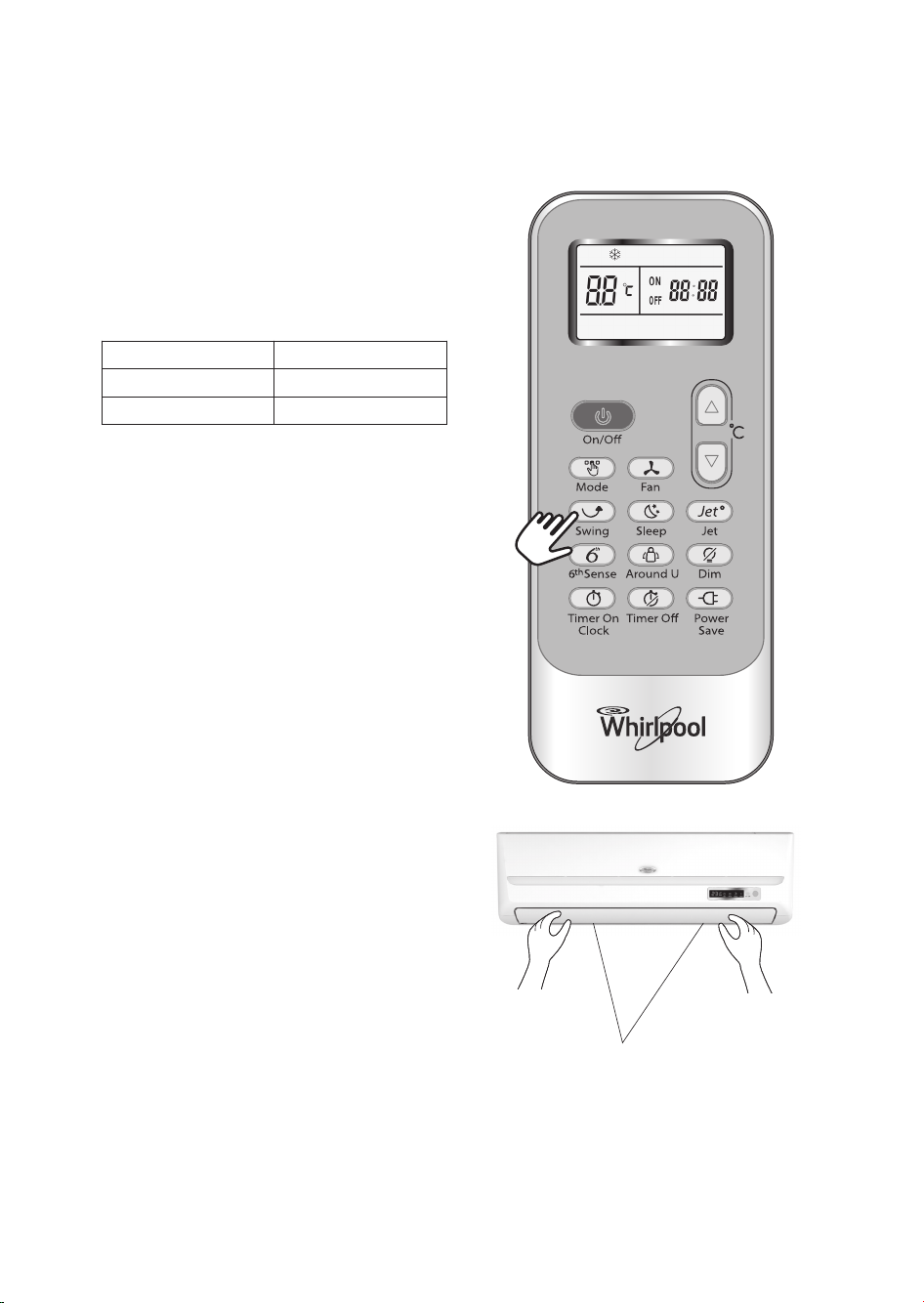

AIRFLOW DIRECTION CONTROL
5. Airflow direction control
Vertical airflow is automatically adjusted to a
certain angle in accordance with the operation
mode after turning on the unit.
The direction of airflow can be also adjusted to
your own requirement by pressing the "SWING"
button of the remote control.
*Heating mode is only available for heat pump
models.
Vertical airflow control (using the remote
control)
Use the remote control to set the flow angles.
Swinging airflow
Pressing "SWING" button once, the vertical
adjustment louver will swing up and down
automatically.
Desired direction airflow
Pressing the "SWING" button again when the
louvers swing to a suitable angle as desired.
Horizontal airflow control (with hands)
Turn the control rods of the horizontal adjustment
louvers to change horizontal air flow as shown.
Note: The shape of the unit may look different
from that of the air conditioner you have selected.
A - Do not turn the vertical adjustment louvers
manually, otherwise malfunction may occur. If
that happens, turn off the unit first and cut off
the power supply, then restore power supply
again.
B - It is better not to let the vertical adjustment
louver tilt downward for a long time at
COOLING or DRY mode to prevent
condensed water from dripping.
Operation mode Direction of airflow
COOLING, DRY horizontal
*HEATING, FAN ONLY downward
control rod of horizontal
adjustment louvers

12
MODE AND FUNCTION DESCRIPTIONS
6th SENSE MODE
Press the button, the unit enters 6th sense
mode directly regardless of the unit is on or off.
In this mode, temperature and fan speed are
automatically set based on the actual room
temperature.
Operation mode and temperature are
determined by indoor temperature.
Heat pump models
Button is ineffective in Jet mode.
Note: Temperature, airflow and direction are
controlled automatically in 6th sense mode.
However, a decrease or rise of up to 2°C can be
set with the remote control if you still feel
uncomfortable.
What you can do in 6th sense mode
Indoor
temperature
Operation
mode
Target
temperature
21°C or below HEATING 22°C
21°C-23°C FAN ONLY
23°C-26°C DRY
Room
temperature
decrease 1.5°C
after operating
for 3 minutes
Over 26°C COOLING 26°C
Your feeling button adjustment procedure
Uncomfortable because of unsuitable
air flow volume.
Indoor fan speed alternates among High, Medium
and Low each time this button is pressed.
Uncomfortable because of unsuitable
flow direction.
Press it once, the vertical adjustment louver swings
to change vertical airflow direction. Press it again,
swings stops. For horizontal airflow direction please
refer to the chapter "Airflow direction control".

13
Clock function
You can adjust the real time by pressing TIMER
ON/CLOCK button, then using and
buttons to get the correct time, press this button
again, the real time is set.
SLEEP mode
SLEEP mode can be set in COOLING,
HEATING or DRY operation mode.
This function gives you a more comfortable
environment for sleep.
In SLEEP mode,
• The appliance will stop operation automatically
after operating for 8 hours.
• Fan speed is automatically set at low speed.
• Set temperature will rise by max 1°C if the
appliance operates in cooling mode for 1 hour.
• Set temperature will decrease by 3°C at most if
the appliance operates in heating mode for 3
hours.
*Note: In cooling mode, if room temperature is
26°C or above, set temperature will not change.
Note: Heating is NOT available for cooling only air
conditioner.
JET mode
• JET mode is used to start or stop fast cooling or
Heating.
Fast cooling operates at high fan speed, changing
the set temperature automatically to 18°C.
Fast heating operates at auto fan speed,changing
the set temperature automatically to 32 °C.
•InJET mode, you can set airflow direction or
timer. If you want to quit from JET mode, press
any - JET , MODE, FAN, ON/OFF or
TEMPERATURE SETTING button, the display
will return to the original mode.
Note:
• SLEEP and 6th Sense buttons are not available in
JET mode.
• The appliance will continue working in JET mode
if you don't quit from it by pressing any of the
buttons mentioned.

14
Timer function
It is convenient to set the timer on by pressing the
TIMER ON/CLOCK button to achieve a
comfortable room temperature at the time you get
home.
You can also set timer off by pressing the TIMER
OFF button to enjoy a good sleep at night.
How to set TIMER ON
TIMER ON/CLOCK button can be used to set the
timer programming as wished in order to switch on
the appliance at your desired time.
i) Press TIMER ON/CLOCK button for 3 seconds,
when "ON 12:00" flashes on the LCD, then you
can press the or buttons to select your
desired time for appliance on.
Press the or button once to increase or
decrease the time setting by 1 minute.
Press the or button for 5 seconds to
increase or decrease the time setting by 10
minutes.
Press the or button for a longer time to
increase or decrease the time by 1 hour.
Note: If you don't see the time in 10 seconds after
you press TIMER ON/CLOCK button, the remote
control will exit the TIMER ON mode
automatically.
ii) When your desired time displayed on LCD,
press the TIMER ON/CLOCK button and confirm
it.
A "beep" can be heard.
"ON" stops flashing.
The TIMER indicator on the indoor unit lights up.
iii) After the time set displayed for 5 seconds the
clock will be displayed on the LCD of the remote
control instead of set timer.
How to cancel TIMER ON
Press the TIMER ON/CLOCK button again, a
"beep" can be heard and the indicator disappears,
the TIMER ON mode has been canceled.
Note: It is similar to set the TIMER OFF, you can
make the appliance switch off automatically at your
desired time.
OON
Increase
Decrease

15
Around U function
When you press this button, will display,
remote control transmits the actual room
temperature around it to the indoor unit, and the
appliance will operate according to this
temperature to let you feel more comfortable.
Please keep the remote control in a location where
it can transmit the signal to the indoor unit
properly.
Press once to set and press again to cancel.
DIM function
Press this button to turn on or turn off display light
on indoor unit control panel.
POWER SAVE function
POWER SAVE mode can be available in
COOLING, HEATING, DRY and FAN ONLY
operation mode.
When pressing this button, will display on
remote control.
POWER SAVE function under COOLING,
HEATING and DRY mode, the appliance will set
the temperature at 25°C with low fan speed.
POWER SAVE function under FAN ONLY mode:
the appliance will set at low fan speed.
Change mode or press the power save button
again to cancel this function.
Note: Fan speed and temperature can not be
adjusted under this mode.

16
EMERGENCY OPERATION
Under emergency situation or when remote
control is missing, you can control the unit by
pressing the on/off swith located on the indoor
unit.
• Turn on the appliance: when the unit is off, press
this button, it will start up and operate in 6th
SENSE mode.
• Turn off the appliance: when the unit is on, press
this button, the unit will stop working. on/off switch
PROTECTION
Operating condition
The protective device maybe trip and stop the
appliance in the cases listed below.
*For Tropical (T3) Climate condition models, the
temperature point is 52°C instead of 43°C.
If the air conditioner runs in COOLING or DRY
mode with door or window opened for a long
time when relative humidity is above 80%, dew
may drip down from the outlet.
Noise pollution
• Install the appliance at a place that can bear its
weight in order to operate more quietly
• Install the outdoor unit at a place where the air
discharged and the operation noise would not
disturb your neighbours.
• Do not place any obstacles in front of the air
outlet of the outdoor unit lest it increases the
noise level.
Features of protection device
Wait at least 3 minutes before restarting the unit
after operation stops or changing mode during
operation. After connecting to power supply and
turning on the appliance immediately, a delay of 20
seconds may occur before it starts to operate. If all
operation has stopped, press ON/OFF button
again to restart. Timer should be set again if it has
been cancelled.
Features of COOLING mode
Anti-freezing
When the temperature of the indoor heat
exchanger drops to 0° or below, compressor will
stop working to protect the appliance.
Features of HEATING mode
Preheating
In order to prevent cool air blowing, 2-5 minutes
are necessary to preheat the indoor unit at
HEATING operation start. The indoor fan will not
work during preheating.
Defrosting
In HEATING operation the appliance will defrost
(de-ice) automatically to raise efficiency. This
procedure usually lasts 6-10 minutes. During
defrosting, fan stops running and running indicator
flashes.
After defrosting is completeed, it returns to
HEATING mode automatically.
Heating
Outdoor air temperature is over 24°C
Outdoor air temperature is below -10°C
Room temperature is over 27°C
Cooling Outdoor air temperature is over *43°C
Room temperature is below 21°C
Dehumidifying Room temperature is below 18°C

MAINTENANCE
Clean front panel of Indoor Unit
1. Disconnect from the power supply
Turn off the appliance first before disconnecting
from power supply.
2. Remove the front panel
Open the front panel as shown by the arrow
(Fig. A).
Pull the slots at the side of the front panel with
force to take out the front panel (Fig. B).
3. Clean the front panel
Wipe it with a soft and dry cloth. Use lukewarm
water (below 40°C) to clean if the appliance is
very dirty. After cleaning let it dry.
4. Refit and close the front panel.
Refit and close the front panel by pushing it
downward.
Note:
• Do not use substances such as gasoline or
polishing powder to clean the appliance.
• Do not sprinkle water onto the indoor unit
Dangerous! Electric shock!
Clean Air filter
It is necessary to clean the air filter after using it
for about 100 hours.Clean the air filter every two
weeks if the air conditioner operates in an
extremely dusty environment.
1. Disconnect from the power supply
Turn off the appliance first before disconnecting
from power supply.
2. Take out air filter (Fig. C).
1. Open the front panel.
2. Press the handle of the filter gently.
3. Slide out the filter.
3. Cleaning the air filter (Fig. D)
If the filter is very dirty, clean it with a solution
of lukewarm water and neutral detergent.
After cleaning let it dry.
4. Refit the filter and close the front panel.
Note:
• To avoid injury, do not touch the fins of
indoor unit with your fingers after
removing the filter.
• Do not attempt to clean the inside of the
air conditioner by yourself.
• Do not clean the filter in washing machine.
Fig. A
Fig. B
Fig. C
Fig. D
17

18
TROUBLESHOOTING
Trouble Analysis
Does not run
• Is the protection device or fuse blown?
• Please wait for 3 minutes and start again, protection device may be preventing
unit to work.
• Are the remote control batteries low?
• Is the plug not properly plugged?
No cooling or
heating air
• Is the air filter dirty?
• Are the intakes and outlets of the air conditioner blocked?
• Is the temperature set properly?
• Are doors or windows open?
Ineffective control
• Has there been a strong interference (from excessive static electricity discharge,
power supply voltage abnormality)? Note that operation will be abnormal, in this
case unplug from the power supply and re-plug after 2-3 seconds.
Does not operate
immediately • 3 minute delay will occur when changing mode during operation.
Peculiar smell • This smell may come from another source such as furniture, cigarette etc, which
is sucked in the unit and blown out with the air.
A sound of running
water
• Normal behaviour caused by the flow of refrigerant in the air conditioner.
• Defrosting sound in heating mode.
Cracking sound • The sound may be generated by the expansion or contraction of the front panel
due to temperature changes.
Mist sprays from
the outlet
• Mist is present in the room with low temperature? Normal behaviour due to
cool air discharged from indoor unit during COOLING or DRY operation
mode.
Running indicator
flashes but indoor
fan stops.
• The unit is shifting from heating mode to defrost. The indicator will light off and
return to heating mode.
Operation problems are often due to minor causes, please check and refer to the
following chart before contacting the service. This may save time and unnecessary
expenses.
Note: If the problems still have, turn off the appliance and disconnect from power supply,
then contact the nearest Whirlpool Authorized Service Center. Do not attempt to move,
repair, disassemble, or modify the appliance by yourself.

INSTALLATION INSTRUCTIONS
Installation diagram
NOTE: The figure above is only a simple presentation of the unit, it may not match the external
appearance of the product you purchased. Installation must be performed in accordance with the national
wiring standards by authorized service people only.
Distance from wall
should be over 50mm
Distance from ceiling
should be over 200mm
Distance from floor
should be over 2500mm
Distance from the wall
should be over 50mm
Air intake distance from
the wall should be over
250mm
Air intake distance from
the wall should be over
250mm
Air outlet distance from the wall
should be over 500mm
Over 250mm
19
Indoor unit
Outdoor unit

Select the best location
Location for Installing Indoor Unit
• Where there is no obstacle near the air outlet
and air can be easily blown to every corner of
room.
• Where piping and wall hole can be easily
arranged.
• Observe the required distance from ceiling and
wall according to the installation diagram.
• Where the air filter can easily be removed.
• Keep the unit and remote control 1m or more
from television, radio etc.
• To prevent the effects of a fluorescent lamp,
keep the unit as far as possible from it.
• Do not put anything near the air inlet that could
obstruct it.
• In a place that can bear the weight and will not
increase operating noise and vibrations.
• The indoor unit is not suitable to be installed in
areas used for laundry.
Location for Installing Outdoor Unit
• Install in a convenient and well-ventilated place.
• Avoid installing it where flammable gas could
leak.
• Observe the required distance from the wall
according to the installation diagram.
• The distance between Indoor and outdoor unit
should be 5 meters and can go up to maximum
15 meters with additional refrigerant charge.
• Do not install the outdoor unit in a dirty or
greasy place, near a vulcanization gas exit.
• Avoid installing it at the roadside where it could
be soiled with muddy water.
• A fixed base where operating noise will not
increase.
• Where the air outlet is not obstructed.
• The installation position shall be able to
withstand the weight and vibration of the
outdoor unit and ensure safe installation;
• Where drained water does not become any
problem.
Model Standard tubing
Length (m)
Limit of Tubing
Length (m)
Limit of Elevation
Difference H (m)
Required extra
refrigerant when
the connecting
tube over 5m
(g/m)
9K/12K/18K 515 520

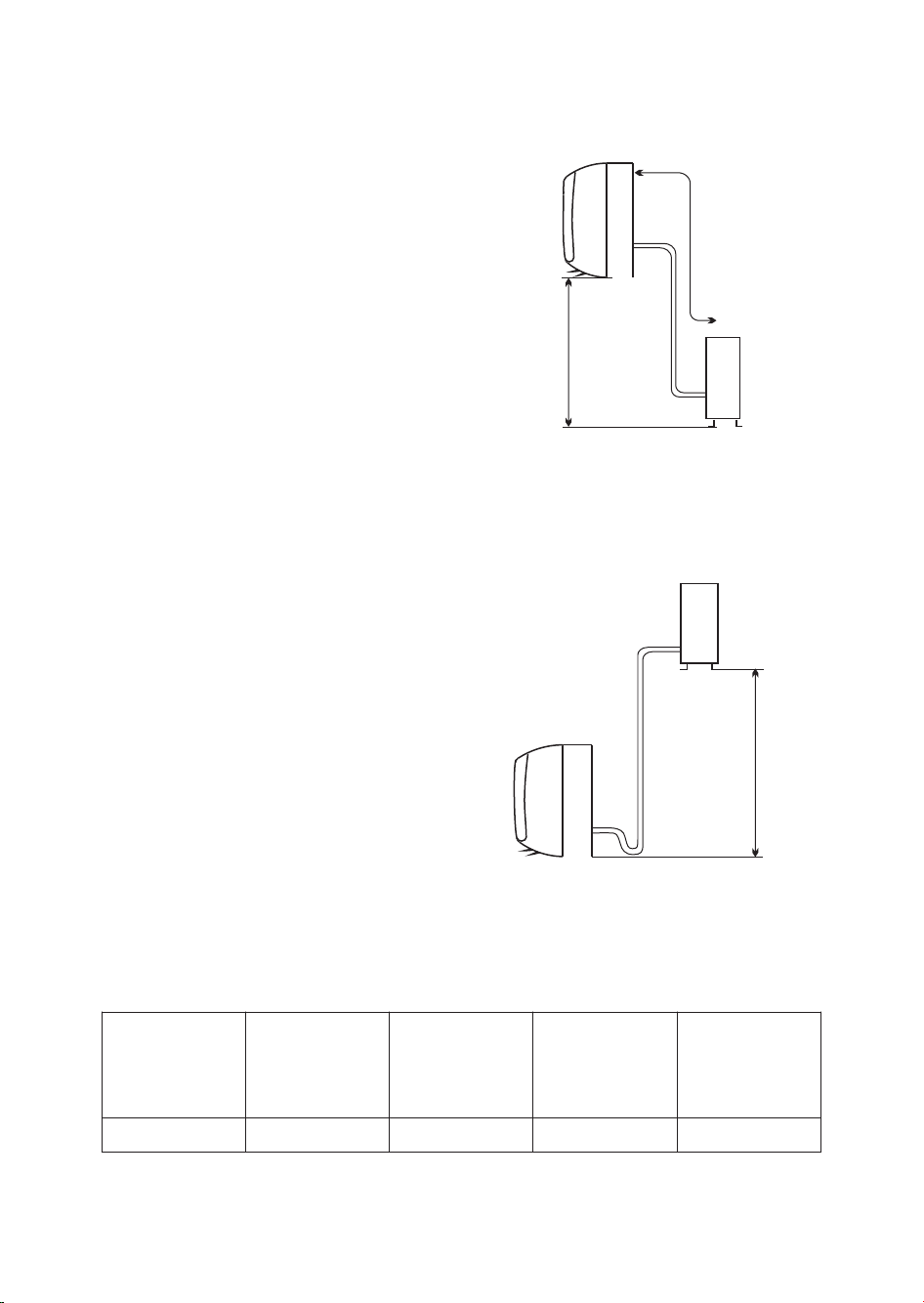

Indoor unit
Pipe length is
3~15 meters
Outdoor unit
Height should be less than 5m
Outdoor unit
Pipe length is
3~15 meters
Indoor unit
Height should be less than 5m
20
