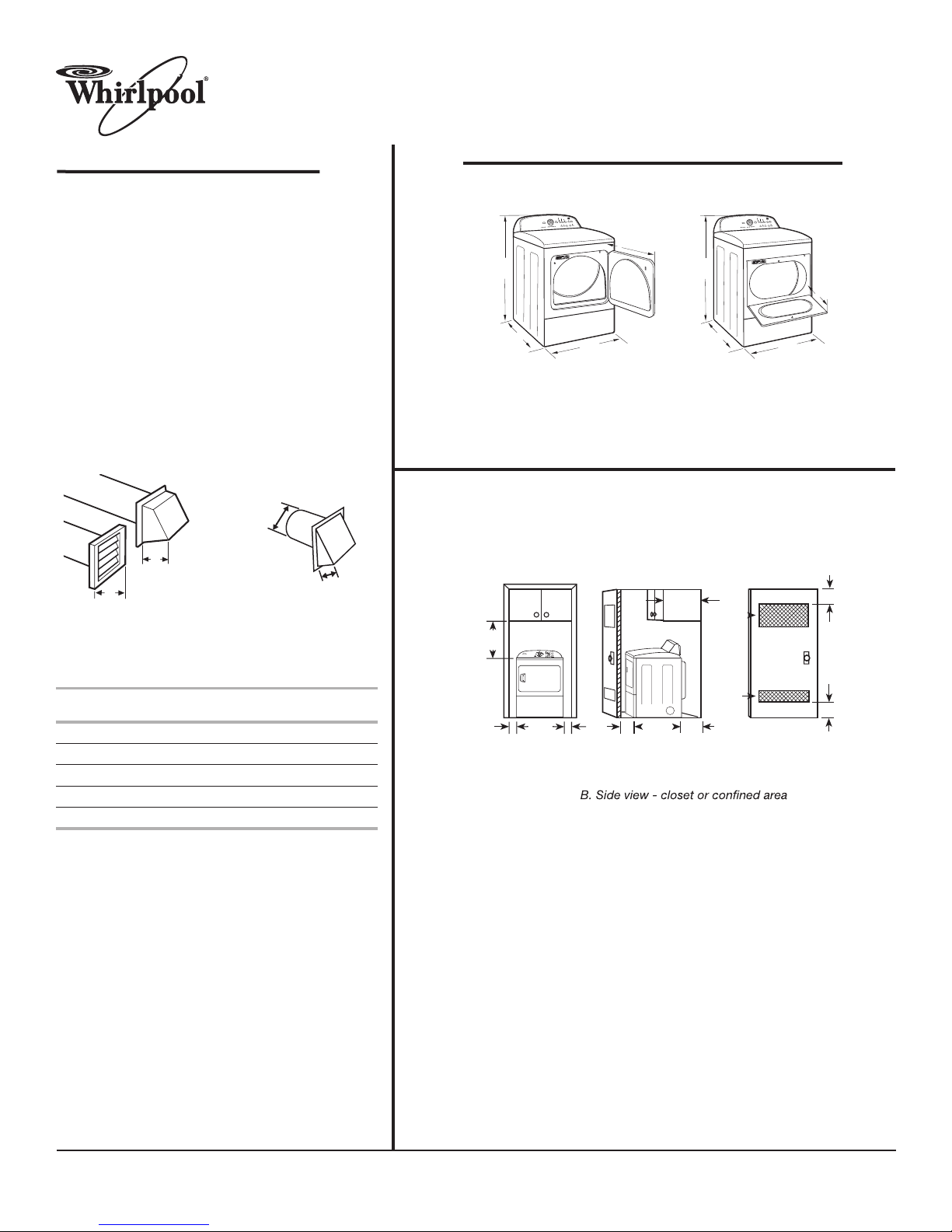

27" Electric Dryer
PRODUCT MODEL NUMBERS OVERALL DIMENSIONS
WED5500X, WED5550X,
WED5600X, WED5700X
Electrical: This dryer requires a 3 or 4 wire, single
phase, 120/240 volt, 60 Hz., AC only electrical
supply (or 3 or 4 wire, 120/208 volt electrical supply,
if specied on the serial/rating plate) on a separate
30-amp circuit, fused on both sides of the line. A time-
delay fuse or circuit breaker is recommended. Connect
to an individual branch circuit. Do not have a fuse in the
neutral or grounding circuit.
Exhaust venting: Exhaust your dryer to the outside.
4" (102 mm) diameter vent is required. Rigid or exible
metal exhaust vent must be used. Do not use plastic
or metal foil vent. Exhaust hood must be at least
12" (305 mm) from the ground or any object that
may be in the path of the exhaust.
Exhaust hood styles:
Vent System Chart:
Dryer dimensions
Select the route that will provide the straightest and most
direct path outdoors. Plan the installation to use the fewest
number of elbows and turns. Use the fewest 90° turns
possible. Do not use vent runs longer than specied in
vent length chart. Determine the number of elbows you
will need.
Because Whirlpool Corporation policy includes a continuous commitment to improve Dimensions are for planning purposes only. For complete details, see Installation
our products, we reserve the right to change materials and specications without notice. Instructions packed with product. Specications subject to change without notice.
Ref. W10096988
04/2010
For closet installation, with a door, the minimum ventilation openings in the top
and bottom of the door are required. Louvered doors with equivalent air ventilation
openings are acceptable.
For cabinet installation, with a door, the minimum ventilation openings in the top are
required.
NOTE: Side and bottom exhaust installations have a 90°
turn inside the dryer. To determine maximum exhaust length,
add one 90° turn to the chart.
4"
(102 mm)
4"
(102 mm)
B
A
4"
(102 mm)
2½"
C
Recommended styles:
A. Louvered hood
B. Box hood
Acceptable styles:
C. Angled hood
Number 90º
elbows
Ty pe of ventBox /louvered
hoods
Angled
hoods
0Rigid metal64 ft. (20 m) 58ft. (17.7 m)
1Rigid metal54 ft. (16.5 m) 48 ft. (14.6 m)
2Rigid metal 44 ft. (13.4 m) 38 ft. (11.6 m)
3Rigid metal 35 ft. (10.7 m) 29 ft. (8.8 m)
4Rigid metal 27 ft. (8.2 m) 21 ft. (6.4 m)
Minimum required spacing
43"
(1092 mm)
*291/2"
(749 mm)
27"
(687 mm)
A
23¾"
(603 mm)
43"
(1092 mm)
*291/2"
(749 mm) 27"
(687 mm)
B
13¾"
(349 mm)
A. Large opening side-swing door
B. Wide opening hamper door
ABC
18"*
(457 mm)
1"
(25 mm)
27"
(686 mm)
1"
(25 mm)
1"*
(25 mm)
14" max.*
(356 mm)
29 ¼"
(743 mm)
5 ½"*
(140 mm)
48 in.
(310 cm )
2*
2
24 in.
(155 cm )
2 *
2
3"*
(76 mm)
3"*
(76 mm)
A. Recessed area
C. Closet door with vents
*Additional spacing recommended
*Most intallations require a minimum 5
1/2"(140 mm) clearance behind the dryer for
the exhaust vent with elbow. See "Venting Requirements" in the Use and Care Guide.
