PRODUCT MODEL NUMBERS
Washer Dimensions:
W10254447B
08/2013
WFL98HEB, WFW94HEX, WFW95HEX, WFW97HEX
Front-Loading Washer
311/2"
(800 mm)
1/2" - 1"
(13 mm - 25 mm)
27"
(686 mm)
38"
(965 mm)
51"
(1295 mm)
1"
(25 mm)
1"
(25 mm)
39" min.
(990 mm)
Recessed area or closet installation (washer only):
1"
(25 mm)
4"
(102 mm)
24 in.2
(155 cm2)
48 in.2
(310 cm2)
3"
(76 mm)
3"
(76 mm)
1"
(25 mm)
1"
(25 mm)
5"
(127 mm)
24 in.2
(155 cm2)
48 in.2
(310 cm2)
3"
(76 mm)
3"
(76 mm)
771/2"
(1969 mm)
6"
(152 mm)
1"
(25 mm)
Recessed area or closet installation
(stacked washer and dryer):
7"
(178 mm)
14"
(356 mm)
1"
(25 mm)
4"
(102 mm)
1"
(25 mm)
Custom cabinet installation:
Custom under counter installation:
All dimensions show recommended spacing allowed, except for
closet door ventilation openings which are the minimum required.
For each arrangement, consider allowing more space for ease of
installation and servicing, and spacing for companion appliances
and clearances for walls, doors, and oor moldings.
Space must be large enough to allow door to fully open.
Add spacing of 1" (25 mm) on all sides of washer to reduce
noise transfer. If a closet door or louvered door is installed, top
and bottom air openings in door are required.

Because Whirlpool Corporation policy includes a continuous commitment to improve Dimensions are for planning purposes only. For complete details, see Installation
our products, we reserve the right to change materials and specications without notice. Instructions packed with product. Specications subject to change without notice.
ELECTRICAL REQUIREMENTS
A 120 volt, 60 Hz., AC only, 15- or 20-amp, fused electrical supply is required. A time-delay fuse or circuit breaker is recommended. It is
recommended that a separate circuit serving only this appliance be provided.
Floor drain system requires a Siphon Break Kit (Part Number
285834), 2 Connector Kits (Part Number 285835), and an
Extension Drain Hose (Part Number 285863) that may be
purchased separately. See “Alternative Parts”. Minimum siphon
break height: 28" (710 mm) from bottom of washer. (Additional
hoses may be needed.)
Minimum diameter for a standpipe drain: 2" (51 mm). Minimum
carry-away capacity: 17 gal. (64 L) per minute. A 1/4" (6 mm)
diameter to 1" (25 mm) diameter Standpipe Adapter Kit is
available (Part Number 3363920). Top of standpipe must be at
least 30" (762 mm) high; install no higher than 96" (2.44 m) from
bottom of washer. If you have an overhead sewer and need to
pump higher than 96 inches, a sump pump and associated
hardware are needed. See “Alternative Parts”.
Wall standpipe drain system
Laundry tub drain system
Minimum capacity: 20 gal. (76 L). Top of laundry tub must
be at least 30" (762 mm) above oor; install no higher than
96" (2.44 m) from bottom of washer.
41/2"
(113 mm)
Floor standpipe drain system
41/2"
(113 mm)
See requirements for oor standpipe drain system.
30"
(762 mm)
min.
41/2"
(113 mm)
Floor drain system

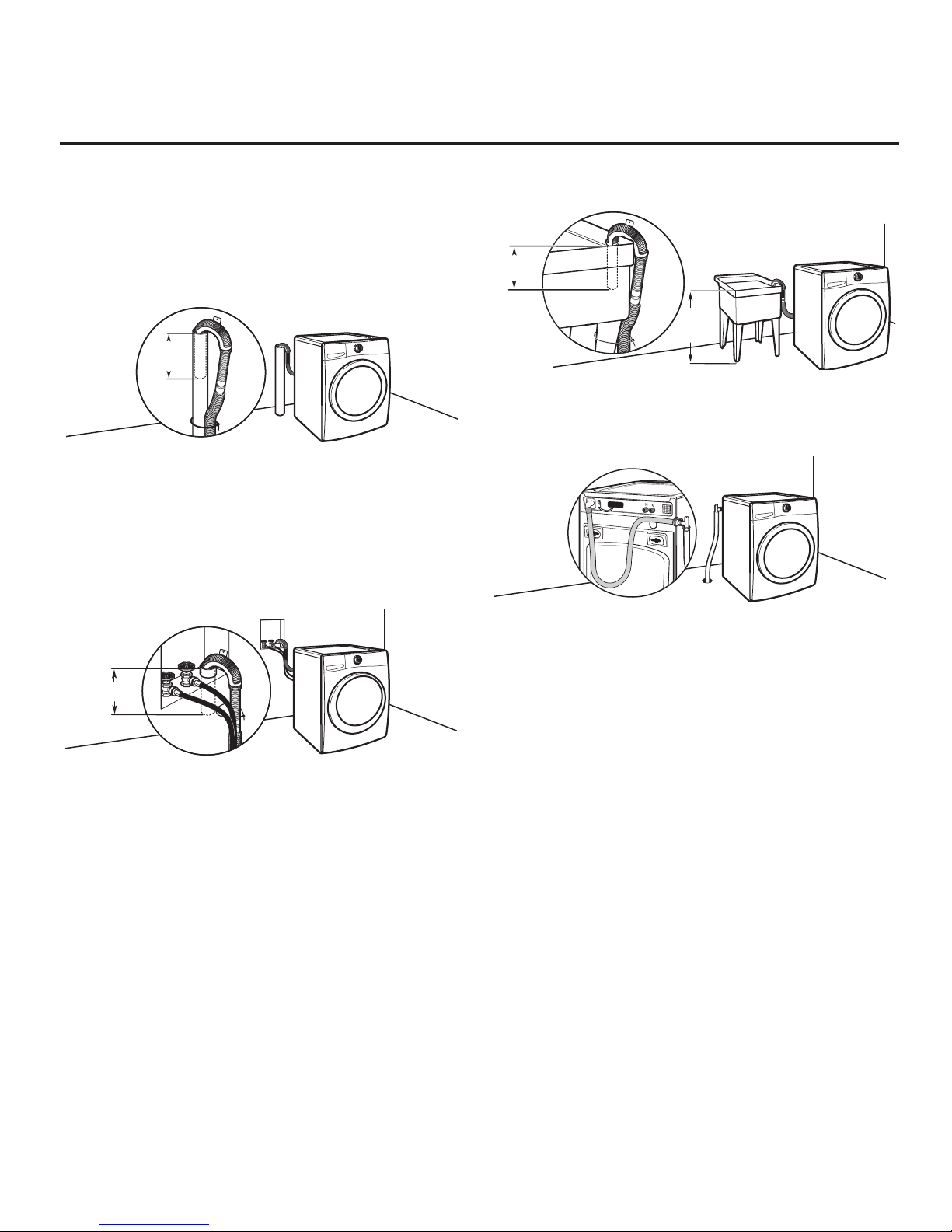

DRAIN SYSTEM
Drain system can be installed using a oor drain, wall standpipe,
oor standpipe, or laundry tub. Select method you need.
IMPORTANT: To avoid siphoning, only 41⁄2" (113 mm) of drain
hose should be inside standpipe. Always secure drain hose with
cable tie.
