Whirlpool L30P User manual

How to install, operate
and maintain your Demand
Controlled Water Softener
Model WHES30
Model WHES33
Systems tested and certified by the Water Quality
Association against CSA B483.1.
7392301 (Rev. C 9/13/23)
Manufactured and warranted by
Water Channel Partners
1890 Woodlane Drive
Woodbury, MN 55125
Installation and Operation Manual
Systems tested and certified by NSF International
against NSF/ANSI Standard 44
for hardness reduction and efficiency,
and certified to NSF/ANSI/CAN Standard 372.
®
If you have any questions or concerns when
installing, operating or maintaining your water
softener, call our toll free number:
1-866-986-3223
or visit whirlpoolwatersolutions.com
When you call, please be prepared to provide
the model and serial number of your product,
found on the rating decal, typically located on
the rim below the salt lid hinges.
PRODUCT REGISTRATION
AND WARRANTY EXTENSION
Please register your product on
whirlpoolwatersolutions.com
See warranty page for
extended warranty details.

2
TABLE OF CONTENTS
Page
Specifications & Performance Claims . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Water Softener Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Before You Start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Inspect Shipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Water Conditioning Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Installation Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7
Installation Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-11
Programming the Water Softener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-13
Controller Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-16
Routine Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16-18
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19-21
Wiring Schematic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Exploded View & Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24-27
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Dimensions
41-3/8"
IN - OUT
48"
SIDE VIEW FRONT VIEW
TOP VIEW
20-1/2"
15"
3-3/8"
IN
OUT
OUT
IN
IN – OUT
FIG. 1
FRONT VIEWSIDE VIEW
TOP VIEW
3-3/8" (8.6 cm)
20-1/2"
(52 cm)
15"
(38 cm)
41-3/8"
(105 cm)
48"
(122 cm)
NOTE: Due to variances in
production and assembly,
the water softener valve
height may vary by up to
1/2", and may not match
previously installed sys-
tems. This will not affect
system performance.

3
Specifications & Performance Claims
These models are efficiency rated. The efficiency rating is valid only at the minimum salt dose and rated service flow.
These softeners have a demand initiated regeneration (D.I.R.) feature that complies with specific performance
specifications intended to minimize the amount of regenerant brine and water used in their operation.
These softeners have a rated softener efficiency of not less than 3,350 grains of total hardness exchange per pound
of salt (based on sodium chloride) and shall not deliver more salt than their listed rating or be operated at a
sustained maximum service flow rate greater than their listed rating. These softeners have been proven to deliver
soft water for at least ten continuous minutes at the rated service flow rate. The rated salt efficiency is measured by
laboratory tests described in NSF/ANSI Standard 44. These tests represent the maximum possible efficiency that
the system can achieve. Operational efficiency is the actual efficiency after the system has been installed. It is
typically less than the rated efficiency, due to individual application factors including water hardness, water usage,
and other contaminants that reduce a softener's capacity.
*Capacity to reduce clear water iron is substantiated by laboratory test data. The state of Wisconsin requires
additional treatment if the water supply contains clear water iron exceeding 5 ppm.
**Canada working pressure limits: 1.4 - 7.0 kg/cm2.
***Intermittent flow rate does not represent the maximum service flow rate used for determining the softener’s
rated capacity and efficiency. Continuous operation at flow rates greater than the service flow rate may affect
capacity and efficiency performance.
These systems conform to NSF/ANSI 44 for the specific performance claims as verified and substantiated by
test data.
Variable Salt Dose: The salt dose is selected by the electronic controls at regeneration time based on the
amount needed.
Model WHES30 Model WHES33
Model Code L30P L33P
Rated Softening Capacity (Grains @ Salt Dose)
12,500 @ 2.4 lbs
26,600 @ 7.8 lbs
31,700 @ 13.1 lbs
13,400 @ 2.6 lbs
28,500 @ 8.3 lbs
34,100 @ 14.1 lbs
Rated Efficiency (Grains/Pound of Salt @ Minimum Salt Dose) 5,094 @ 2.4 lbs 5,094 @ 2.6 lbs
Water Used During Regeneration @ Minimum Salt Dose 2.3 gal. /1,000 grains 1.9 gal. /1,000 grains
Total Water Used Per Regeneration @ Maximum Salt Dose 35.2 gallons 33.3 gallons
Rated Service Flow Rate 7.3 gpm 7.2 gpm
Amount of High Capacity Ion Exchange Resin 0.82 cu. ft. 0.88 cu. ft.
Pressure Drop at Rated Service Flow 14.8 psig 14.9 psig
Water Supply Max. Hardness 95 gpg 105 gpg
Water Supply Max. Clear Water Iron 8 ppm* 9 ppm*
Water Pressure Limits (minimum / maximum) 20 - 125 psi**
Water Temperature Limits (minimum / maximum) 40 - 120 °F
Minimum Water Supply Flow Rate 3 gpm
Intermittent Flow @ 30 PSI 11.0 gpm*** 10.9 gpm***
Maximum Drain Flow Rate 2.0 gpm 1.8 gpm
Salt Storage Capacity 175 lbs
Questions? Call Toll Free 1-866-986-3223 or visit whirlpoolwatersolutions.com
When you call, please be prepared to provide the model and serial number,
found on the rating decal, typically located on the rim below the salt lid hinges.

4
Water Softener Safety
Your safety and the safety of others are very important.
We have provided many safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING”
These words mean:
You can be killed or seriously injured if you don’t
immediately follow instructions.
You can be killed or seriously injured if you don’t
follow instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell
you what can happen if the instructions are not followed.
Before You Start
In the state of Massachusetts: The Commonwealth of Massachusetts plumbing code 248-CMR shall
be adhered to. A licensed plumber shall be used for this installation.
In the state of California: You must turn the Salt Efficiency Feature setting to ON. This may initiate
more frequent recharges. However, it will operate at 4,000 grains per pound of salt or higher. To turn
on the Salt Efficiency Feature, follow the instructions in the “Salt Efficiency” section of this manual.
Do not return the water softener to store.
If you have any questions, or there are missing parts or damage, please call Toll Free 1-866-986-3223
or visit www.whirlpoolwatersolutions.com
When you call, please be prepared to provide the model and serial number, found on the rating decal,
typically located on the rim below the salt lid hinges.
=The water softener requires a minimum water flow of 3 gallons per minute at the inlet. Maximum allowable inlet
water pressure is 125 psi. If daytime pressure is over 80 psi, nighttime pressure may exceed the maximum. Use
a pressure reducing valve if necessary (Adding a pressure reducing valve may reduce the flow). Failure to use a
pressure reducing valve may cause damage to the system, resulting in flooding and damage to property. If your
home is equipped with a back flow preventer, an expansion tank must be installed in accordance with local codes
and laws.
=The water softener works on 24 V DC electrical power, supplied by a direct plug-in power supply (included). Be
sure to use the included power supply and plug it into a nominal 120 V, 60 Hz household outlet that is in a dry
location only, grounded and properly protected by an overcurrent device such as a circuit breaker or fuse.
=Do not use this system to treat water that is microbiologically unsafe or of unknown quality without adequate
disinfection upstream or downstream of the system.
European Directive 2002/96/EC requires all electrical and electronic equipment to be disposed of accord-
ing to Waste Electrical and Electronic Equipment (WEEE) requirements. This directive or similar laws are
in place nationally and can vary from region to region. Please refer to your state and local laws for proper
disposal of this equipment.

5
Packing List
Inspect Shipment
Water Conditioning Information
IRON
Iron in water can cause stains on clothing and plumbing
fixtures. It can negatively affect the taste of food,
drinking water, and other beverages. Iron in water is
measured in parts per million (ppm). The total* ppm of
iron, and type or types*, is determined by chemical
analysis. Four different types of iron in water are:
=Ferrous (clear water) iron
=Ferric (red water) iron
=Bacterial and organically bound iron
=Colloidal and inorganically bound iron (ferrous or
ferric)
Ferrous (clear water) iron is soluble and dissolves in
water. This water softener will reduce moderate
amounts of this type of iron (see specifications).**
Ferrous (clear water) iron is usually detected by taking
a sample of water in a clear bottle or glass.
Immediately after taking, the sample is clear. As the
water sample stands, it gradually clouds and turns
slightly yellow or brown as air oxidizes the iron. This
usually occurs in 15 to 30 minutes.
When using the softener to reduce Ferrous (clear
water) iron, add 5 grains to the hardness setting for
every 1 ppm of Ferrous (clear water) iron. See “Set
Water Hardness Number” section.
Ferric (red water), and bacterial and organically bound
irons are insoluble. This water softener will not remove
ferric or bacterial iron. This iron is visible immediately
when drawn from a faucet because it has oxidized
before reaching the home. It appears as small cloudy
yellow, orange, or reddish suspended particles. After
the water stands for a period of time, the particles
settle to the bottom of the container. Generally, these
irons are removed from water by filtration. Chlorination
is also recommended for bacterial iron.
Colloidal and inorganically bound iron is of ferric or
ferrous form that will not filter or exchange out of
water. This water softener will not remove colloidal
iron. In some instances, treatment may improve
colloidal iron water. Colloidal iron water usually has a
yellow appearance when drawn. After standing for sev-
eral hours, the color persists and the iron does not set-
tle, but remains suspended in the water.
SEDIMENT
Sediment is fine, foreign material particles suspended
in water. This water softener will not remove sediment.
This material is most often clay or silt. Extreme
amounts of sediment may give the water a cloudy
appearance. A sediment filter installed upstream of the
water softener normally corrects this situation.
* Water may contain one or more of the four types of
iron and any combination of these. Total iron is the
sum of the contents.
** Capacity to reduce clear water iron is substantiated
by laboratory test data.
The parts required to assemble and install the water
softener are included with the unit. Thoroughly check
the water softener for possible shipping damage and
parts loss. Also, inspect and note any damage to the
shipping carton.
Remove and discard (or recycle) all packing materials.
To avoid the loss of small parts, we suggest you keep
the small parts in the parts bag until you are ready to
use them.
Water Hardness
Test Strip
FIG. 2
Bypass Valve Drain Hose
Adaptor Elbow
Clips
(shipped installed on
the softener’s valve)
Hose Clamps
Grommet
Silicone Grease

6

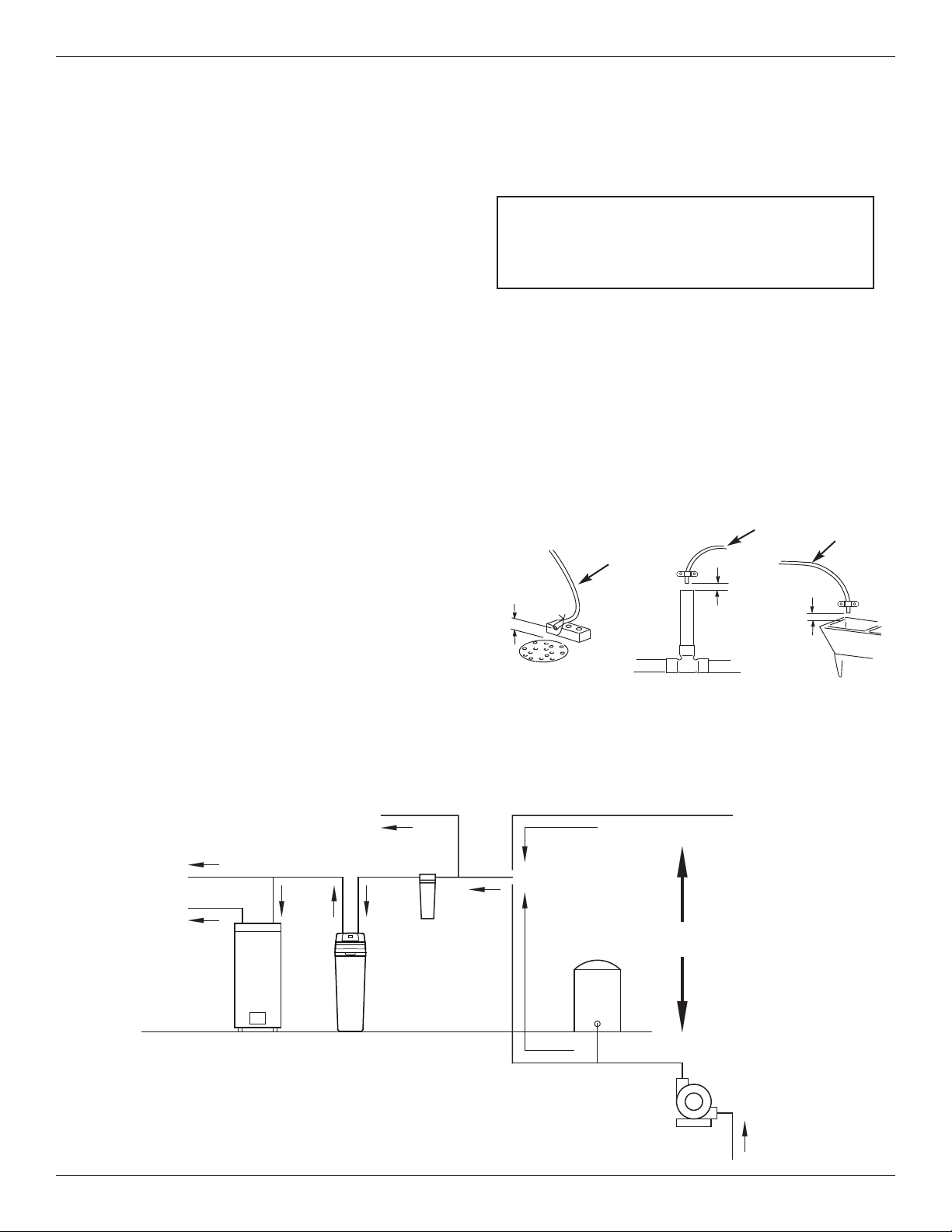

PLUMBING CODES
All plumbing must be completed in accordance with
national, state, and local plumbing codes.
LAUNDRY TUBSTANDPIPE
1-1/2"
air gap
FLOOR DRAIN
In the state of Massachusetts: The Commonwealth
of Massachusetts plumbing code 248-CMR shall
be adhered to. A licensed plumber shall be used
for this installation.
AIR GAP REQUIREMENTS
A drain is needed for regeneration water (See Figure
3). A floor drain, close to the water softener, is pre-
ferred. A laundry tub, standpipe, etc. are other drain
options. Secure valve drain hose in place. Leave an air
gap of 1-1/2" between the end of the hose and the
drain. This gap is needed to prevent the backflow of
sewer water into the water softener. Do not put the
end of the drain hose into the drain.
FIG. 3
1-1/2"
air gap
Drain
Hose
Drain
Hose
1-1/2"
air gap
LOCATION REQUIREMENTS
Consider all of the following when selecting an
installation location for the water softener.
=Do not locate the water softener where freezing
temperatures occur. Do not attempt to treat water
over 120ºF. Freezing temperatures or hot water
damage voids the warranty.
=To condition all water in the home, install the water
softener close to the water supply inlet, and
upstream of all other plumbing connections, except
outside water pipes. Outside faucets should remain
on hard water to avoid wasting conditioned water
and salt.
=A nearby drain is needed to carry away
regeneration discharge (drain) water. Use a floor
drain, laundry tub, sump, standpipe, or other
options (check your local codes). See “Air Gap
Requirements” and “Valve Drain Requirements”
sections.
=The water softener works on 24 V DC electrical
power, supplied by a direct plug-in power supply
(included). Provide nearby a 120 V, 60 Hz electrical
outlet in accordance with NEC and local codes.
=Always install the water softener between the water
inlet and water heater. Any other installed water
conditioning equipment should be installed between
the water inlet and water softener (See Figure 4
below).
=Avoid installing in direct sunlight. Excessive sun
heat may cause distortion or other damage to
non-metallic parts.
Installation Requirements
THE PROPER ORDER TO INSTALL WATER TREATMENT EQUIPMENT
FIG. 4
Pressure
Tank
City Water Supply
Well Water Supply
Well
Pump
OR
Optional
Sediment
Filter
Water
Heater
Water
Softener
Untreated Water to
Outside Faucets
Hot Water
to House
Cold Water
to House
Drain
Hose

FIG. 6
Clip
Barbs
1/4 NPT
Threads
1/2" Outside Dia.
Copper Tube
(not included)
Compression Fitting.
1/4 NPT x 1/2" O.D.
Tube (not included)
Cut barbs from drain fit-
ting (pull clip to remove
fitting from valve)
7
Installation Requirements
VALVE DRAIN REQUIREMENTS
Using the flexible drain hose (included), measure and
cut to the length needed. Flexible drain hose is not
allowed in all localities (check your plumbing codes). If
local codes do not allow the use of a flexible drain
hose, a rigid valve drain run must be used. Purchase a
compression fitting (1/4 NPT x 1/2 in. minimum tube)
and 1/2" tubing from your local hardware store. Plumb
a rigid drain as needed (See Figure 6).
NOTE: Make the valve drain line as short and direct
as possible.
INLET / OUTLET PLUMBING OPTIONS
Always install either a single bypass valve (provided),
as shown in Figure 7, or, if desired, parts for a 3 valve
bypass system (not included) can be purchased and
assembled, as shown in Figure 8. Bypass valves allow
you to turn off the water to the softener for maintenance
if needed, but still have water in house pipes.
Use:
=Copper pipe
=Threaded pipe
=PEX (Crosslinked Polyethylene) pipe
=CPVC plastic pipe
=Other pipe approved for use with potable water
IMPORTANT: Do not solder with plumbing attached to
the single bypass valve. Soldering heat
will damage the plastic valve.
FIG. 8
3 VALVE BYPASS
From Water
Softener
To Water
Softener
Inlet
Valve
Outlet
Valve
Bypass
Valve
FIG. 5
1/4" NPT
Thread Barbs for 3/8"
I.D. Tubing
Drain Hose
Hose Clamp
FIG. 7
SINGLE BYPASS VALVE
Pull out for “Service”
(Soft water)
Push in for
“Bypass”

8
Installation Instructions
Inlet
Single
Bypass Valve
Lubricated
O-rings
Outlet
Clips
Pipes
1" NPT Sweat
Adaptors (not
included)
TYPICAL INSTALLATION
FIG. 9
NOTE: See “Air Gap Requirements” section.
To Outside
Faucets
Soft
Water
Main Water Pipe
Water
Softener
Valve
Valve Drain
Elbow
Valve Drain
Hose*
Floor Drain
Overflow
Drain Elbow
Salt Storage
Tank Overflow
Hose*
Secure Valve Drain Hose
in place over Floor Drain
1-1/2"
air gap
Plug-in
Power
Supply
To
Controller
Hard
Water
*Do not connect the
water softener valve
drain hose to the salt
storage tank overflow
hose.

9
Installation Instructions
MOVE THE WATER SOFTENER INTO PLACE
1. Move the water softener into the desired location.
Set it on a solid, level surface.
IMPORTANT: Do not place shims directly under the
salt storage tank to level the softener.
The weight of the tank, when full of
water and salt, may cause the tank to
fracture at the shim.
2. Visually check and remove any debris from the
water softener valve inlet and outlet ports. Gently
remove the two large plastic clips (you will use
them).
3. Make sure the turbine assembly spins freely in the
“out” port of the valve.
4. If not already done, put a light coating of silicone
grease on the single bypass valve o-rings.
5. Push the single bypass valve into the softener valve
as far as it will go. Snap the two large holding clips
into place, from the top down as shown in Figures
11 & 12.
IMPORTANT: Be sure the clips snap firmly into place
so the single bypass valve will not pull
out.
Excessive Weight Hazard
Use two or more people to move and install or
uninstall water softener.
Failure to do so can result in back or other
injury.
FIG. 11
Clip
Channel
Single Bypass Valve
FIG. 12
CORRECT ASSEMBLY
Clip
Outside diameter
of clip channel on
single bypass valve
Outside diameter
of water softener
valve inlet & outlet
NOTE: Be sure all 3 tabs of the clip go through the matching
holes on the water softener valve inlet or outlet, and
fully into the channel on the single bypass valve.
Make sure that the tabs are fully seated.
TURN OFF WATER SUPPLY
1. Close the main water supply valve, located near the
well pump or water meter.
2. Open all faucets to drain all water from house pipes.
NOTE: Be sure not to drain water from the water
heater, as damage to the water heater
elements could result.
INSTALL THE BRINE TANK OVERFLOW
ELBOW
Install the brine tank overflow grommet and elbow in
the 13/16" diameter hole in the back of the salt storage
tank sidewall.
NOTE: The brine tank overflow elbow accepts either
1/2" or 3/8" I.D. hose.
FIG. 10
Top Cover
Salt Lid
Salt
Storage
Tank
Brine Tank
Overflow
Elbow
Brine Tank
Overflow
Grommet
13/16" Hole

10
Installation Instructions
COMPLETE INLET AND OUTLET PLUMBING
Measure, cut, and loosely assemble pipe and fittings
from the main water pipe to the inlet and outlet ports of
the water softener valve. Be sure to keep fittings fully
together, and pipes squared and straight.
Be sure hard water supply pipe goes to the water
softener valve inlet side.
NOTE: Inlet and outlet are marked on the water softener
valve. Trace the water flow direction to be sure
hard water is to inlet.
IMPORTANT: Be sure to fit, align and support all plumbing
to prevent putting stress on the water
softener valve inlet and outlet. Stress from
misaligned or unsupported plumbing may
cause damage to the system.
Complete the inlet and outlet plumbing for the type of
pipe you will be using.
INSTALL VALVE DRAIN HOSE
1. Measure, cut to needed length and connect the 3/8"
drain line (provided) to the water softener valve drain
fitting. Use a hose clamp to hold the hose in place.
NOTE: Make the valve drain line as short and direct as
possible.
IMPORTANT: If codes require a rigid drain line see
“Valve Drain requirements” section.
2. Route the drain hose or copper tubing to the floor
drain. Secure drain hose. This will prevent “whipping”
during regenerations. See “Air Gap Requirements”
section.
1. Measure, cut to needed length and connect the 3/8"
drain line (provided) to the salt storage tank overflow
elbow and secure in place with a hose clamp.
2. Route the hose to the floor drain, or other suitable
drain point no higher than the drain fitting on the salt
storage tank (This is a gravity drain). If the tank
overfills with water, the excess water flows to the
drain point. Cut the drain line to the desired length
and route it neatly out of the way.
IMPORTANT: For proper operation of the water
softener, do not connect the water
softener valve drain tubing to the salt
storage tank overflow hose.
INSTALL SALT STORAGE TANK OVERFLOW
HOSE
FIG. 13
Ground Wire
(not included)
Clamp
(2 - not included)
Electrical Shock Hazard
Prior to installation on metallic plumbing,
securely install two grounding clamps and a
#4 copper wire per installation instructions.
Failure to follow these instructions can result
in death or electrical shock.
GROUNDING INFORMATION
(for Installations on Metal Pipe)
The house main incoming water pipe is often used to
ground electrical outlets in the home. Grounding
protects you from electrical shock. Installing the water
softener with a plastic bypass valve will break this
ground. Before beginning installation, purchase and
securely install two grounding clamps and a #4 copper
wire across the location where the softener will be,
tightly clamping it at both ends, as shown in Figure 13.
NOTE: Check local plumbing and electrical codes for
proper installation of the ground wire. The
installation must conform to them. In
Massachusetts, plumbing codes of
Massachusetts shall be conformed to. Consult
with your licensed plumber.

11
Excessive Weight Hazard
Use two or more people to move and lift salt
bags.
Failure to do so can result in back or other
injury.
ADD WATER AND SALT TO THE SALT
STORAGE TANK
Installation Instructions
TEST FOR LEAKS
To prevent air pressure in the water softener and
plumbing system, complete the following steps in
order:
1. Fully open two or more softened cold water faucets
close to the water softener, located downstream
from the water softener.
2. Place the bypass valve (single or 3 valve) into the
“bypass” position. See Figures 7 & 8 on Page 7.
3. Slowly open the main water supply valve. Run water
until there is a steady flow from the opened faucets,
with no air bubbles.
4. Place bypass valve(s) in “service” or soft water
position as follows:
= Single bypass valve: Slowly move the valve stem
toward “service,” pausing several times to allow
the water softener to fill with water.
= 3 valve bypass: Fully close the bypass valve and
open the outlet valve. Slowly open the inlet valve,
pausing several times to allow the water softener
to fill with water.
5. After about three minutes, open a hot water faucet
until there is a steady flow, and there are no air
bubbles, then close this faucet.
6. Close all cold water faucets and check for leaks at
the plumbing connections that you made.
7. Check for leaks around clips at softener’s inlet and
outlet. If a leak occurs at a clip, depressurize the
plumbing (turn off the water supply and open
faucets) before removing clip. When removing clips
at the softener’s inlet or outlet, push the single
bypass valve body toward the softener (See Figure
14). Improper removal may damage clips. Do not
reinstall damaged clips.
1. Using a container, add about three gallons of clean
water into the salt storage tank.
2. Add salt to the storage tank. Use nugget, pellet, or
coarse solar salts with less than 1% impurities.
PLUG IN THE POWER SUPPLY
During installation, the water softener wiring may be
moved or jostled from place. Be sure all leadwire
connectors are secure on the back of the electronic
board and be sure all wiring is away from the valve
gear and motor area, which rotates during
regenerations.
1. Plug the power supply into an electrical outlet that is
not controlled by a switch.
NOTE: The water heater is filled with hard water and,
as hot water is used, it will refill with
conditioned water. In a few days, the hot water
will be fully conditioned. To have fully
conditioned hot water immediately, wait until
the initial recharge is over. Then, drain the
water heater (following instructions for water
heater) until water runs cold.
SANITIZE THE WATER SOFTENER /
SANITIZE AFTER SERVICE
1. Open the salt lid and pour about 3 oz. (6 table-
spoons) of household bleach into the softener
brinewell.
2. Make sure the bypass valve(s) is in the “service”
(open) position.
3. Start a recharge (regeneration).
See “Start a Recharge” on Page 13.
4. After the recharge has completed, fully open a cold
water faucet, downstream from the softener, and
allow 50 gallons of water to pass through the
system. This should take at least 20 minutes. Close
the faucet.
FIG. 14
...depressurize the
plumbing, then push
Bypass Valve body
toward softener
If removing
clips...

12
Programming the Water Softener
FIG. 16
STATUS LIGHT
When the water softener is connected to electrical
power, the status light on the control panel will
operate as follows:
=Light flashing slowly, along with the salt level
indicators in the display - The salt monitor
system indicates a low salt level and needs to be
set. See “Set Salt Level” on Page 15.
=Light flashing slowly, along with the words
“SCHEDULED CLEAN” in the display - Four
months have elapsed on the system’s timer since
start up or the last reset. This is a reminder to use
Whirlpool®WHE-WSC Water Softener Cleanser
three times a year. To reset the timer, press any
button on the control panel and the flashing words
will disappear. The status light will stop flashing,
unless the system is also low on salt (see above).
=Light flashing rapidly, with “CURRENT TIME”
shown in the display and the clock flashing
slowly - The present time needs to be set, either
during initial start up or after a long power outage.
See “Set Time of Day”, at right.

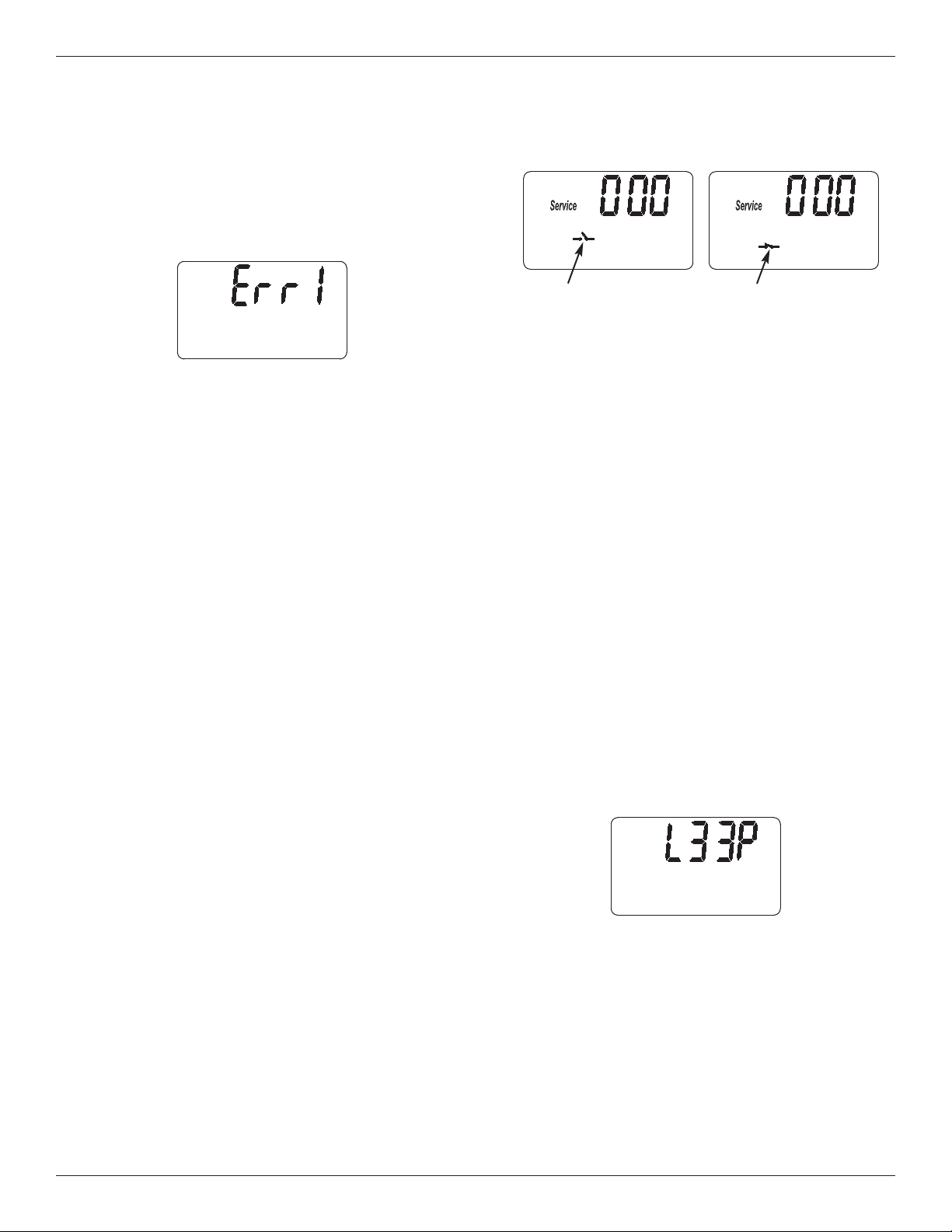

=Light flashing rapidly, with “Err” shown in the
display - The electronic self-diagnostics have
detected a problem. See “Troubleshooting” on
Page 18.
=Light on steady (not flashing) - The system has
power applied and does not require any attention.
PROGRAM THE SOFTENER
When the power supply is plugged into the electrical
outlet, the model code (“L30P” for Model WHES30 or
“L33P” for Model WHES33) and a software version
number (example: J3.9), are briefly shown in the
display. Then the words “CURRENT TIME” appear
and 12:00 PM begins to flash.
SET TIME OF DAY
If the words “CURRENT TIME” do not show in the
display, press the PROGRAM button until they do.
1. Press the rUP or sDOWN buttons to set the
present time. Up moves the display ahead; down
sets the time back. Be sure AM or PM is correct.
NOTE: Press buttons and quickly release to slowly
advance the display. Hold the buttons down
for fast advance.
continued on the next page
Questions? Call Toll Free 1-866-986-3223 or visit whirlpoolwatersolutions.com
When you call, please be prepared to provide the model and serial number,
found on the rating decal, typically located on the rim below the salt lid hinges.
FIG. 15
FIG. 15
Display
SET SALT
LEVEL button
STATUS LIGHT
(see below)
RECHARGE
button
UP button
PROGRAM
button
DOWN
button

13
Programming the Water Softener
SET WATER HARDNESS NUMBER
1. Press the PROGRAM button once again to display
a flashing “25” and the word “HARDNESS”.
FIG. 17
2. Press the rUP or sDOWN buttons to set your
water’s hardness number.
NOTE: If your water supply contains iron, compensate
for it by adding to the water hardness number.
For example, assume your water is 20 gpg
hard and contains 2 ppm iron. Add 5 to the
hardness number for each 1 ppm of iron. In
this example, you would use 30 for your
hardness number.
20 gpg hardness
2 ppm iron x 5 = 10 +10
(times) 30 HARDNESS NUMBER
NOTE: If you use potassium chloride (KCl) salt
instead of sodium chloride (NaCl) salt in this
softener, increase the hardness setting by
25%. For example, if you will be using KCl
and your water supply’s hardness is 20 gpg,
set the softener to 25 gpg.
SET RECHARGE (REGENERATION) TIME
1. Press the PROGRAM button once again to display
a flashing “2:00 AM” and the words “RECHARGE
TIME”. This is a good time for the recharge to start
in most households, because water is not in use.
FIG. 18
2. If you want to change the recharge start time,
press the rUP or sDOWN buttons until the
desired time shows. Be sure AM or PM is correct.
3. Press the PROGRAM button once again, to return
to the normal time of day display.
START A RECHARGE
1. Press the RECHARGE button and hold for three
seconds, until “RECHARGE” begins to flash in the
display, starting a recharge. This recharge draws
the sanitizing bleach into and through the water
softener. Any air remaining in the water softener is
purged to the drain. During this time, periodically
check for leaks.
NOTE: As with all other water system applications,
leaks may occur. Leaks may not be
immediately apparent. Recheck for leaks 24
hours after the first recharge cycle is
complete.

14
FIG. 20

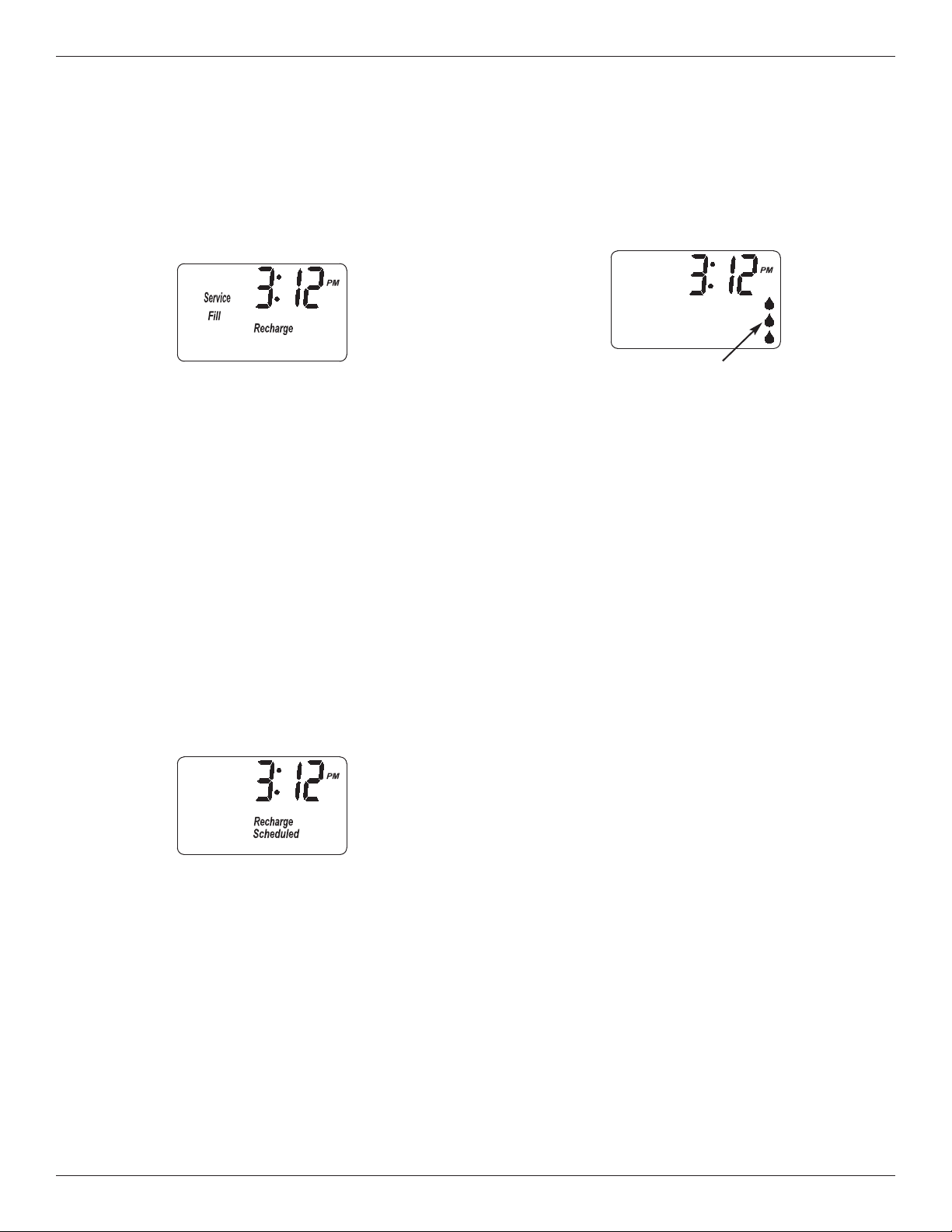

The words “RECHARGE SCHEDULED” flash in the
display, and the softener will recharge at the next
recharge time. The word “RECHARGE” will flash
during the regeneration. When completed, full water
conditioning capacity is restored.
RECHARGE scheduled
RECHARGE initiated
RECHARGE
The RECHARGE button is used to initiate an
immediate recharge.
1. Press and hold the RECHARGE button until the
words “RECHARGE”, “SERVICE” and “FILL” flash
in the display.
FIG. 19
The softener enters the fill cycle of regeneration right
away. “RECHARGE” will flash during the
regeneration. When completed, full water conditioning
capacity is restored. While water softener is running a
recharge, the time remaining until the recharge is
completed will show in the display during all cycles
except for the Fill cycle.
NOTE: Avoid using hot water while the softener is
regenerating, because the water heater will
refill with bypass hard water.
RECHARGE SCHEDULED
If you do not want to start an immediate recharge, but
would like to schedule an extra recharge at the next
preset recharge time, do the following:
1. Press and release (do not hold) the RECHARGE
button.
Controller Features
POWER OUTAGE MEMORY
If electrical power to the water softener is lost,
“memory” built into the timer circuitry will keep all
settings for several hours. While the power is out, the
display is blank and the water softener will not
regenerate. When electrical power is restored, the
following will occur:
Reset the present time only if the display is flashing.
The HARDNESS and RECHARGE TIME never
require resetting unless a change is desired. Even if
the clock is incorrect after a long power outage, the
softener operates as it should to keep your water soft.
However, regenerations may occur at the wrong time
of day until you reset the clock to the correct time of
day.
NOTE: If the water softener was regenerating when
power was lost, it will now finish the cycle.
FIG. 21
Droplets indicate water
flow through softener
WATER FLOW INDICATOR
Whenever the softener has water flowing from the
outlet port, the display will show water droplets
scrolling down the right hand side of the screen (See
Figure 21). The faster the water flow, the faster the
droplets will flash.

15
Controller Features
This feature is beneficial on water supplies containing
ferrous (clear water) iron. The default setting is OFF.
When this feature is set to ON, an additional back-
wash and fast rinse cycle will occur first, preceding
the normal regeneration sequence. This provides
extra cleaning of the resin bed before it is regenerated
with the salt brine. To conserve water set this feature
OFF if your water supply does not contain iron or
sediments.
1. Press and hold the PROGRAM button until the
screen in Figure 26 is displayed. Once in this
display, press the PROGRAM button twice and one
of the two displays in Figure 27 is shown.
2. Press the rUP or sDOWN buttons to set ON or
OFF.
FIG. 26
CLEAN / CLEAR WATER IRON REDUCTION
FIG. 27
Efficiency Icon
In the state of California: You must turn the Salt
Efficiency Feature ON. This may initiate more
frequent recharges. However, it will operate at
4,000 grains per pound of salt or higher.
SALT EFFICIENCY
When this feature is ON, the water softener will
operate at salt efficiencies of 4000 grains of hardness
per pound of salt or higher (May recharge more often
using smaller salt dosage and less water). The
softener is shipped with this feature set OFF.
1. Press and hold the PROGRAM button until the
screen in Figure 24 is displayed. Once in this
display, press the PROGRAM button once and one
of the two displays in Figure 25 is shown.
2. Press the rUP or sDOWN buttons to set ON or
OFF. When set to ON, the efficiency icon will be
displayed in the lower left hand corner of the
normal run display.
FIG. 24
FIG. 25
SET SALT LEVEL
The water softener has a salt monitor indicator light to
remind you to add salt to the storage tank.
NOTE: You must set salt level each time salt is added
to the water softener.
To set this monitor system:
1. Lift the salt lid and level the salt in the storage tank.
2. The salt level scale, on the brinewell inside the
tank, has numbers from 0 to 8. Observe the
highest number the leveled salt is at, or closest to.
3. Press the SET SALT LEVEL button until black
ovals correspond to the salt level number (See
Figure 22). At level 2 or below, the “Check Salt
Level” light will flash.
If you want to turn the salt monitor off, press the SET
SALT LEVEL button until “SALT LEVEL OFF” shows
in the display (See Figure 23).
FIG. 22
FIG. 23
3. Press the PROGRAM button five times to return to
the normal run display.
continued on the next page
8
7
6
5
4
Brinewell
Numbers
Salt
Level

16
Controller Features
NOTE: The softener will recharge on its own if needed,
even if it is before the set number of days.
1. Press and hold the PROGRAM button until the
screen in Figure 26 is displayed. Once in this
display, press the PROGRAM button four times
and the display in Figure 29 is shown.
2. Press the rUP or sDOWN buttons to set the
number of days.
3. Press the PROGRAM button two times to return to
the normal time of day screen.

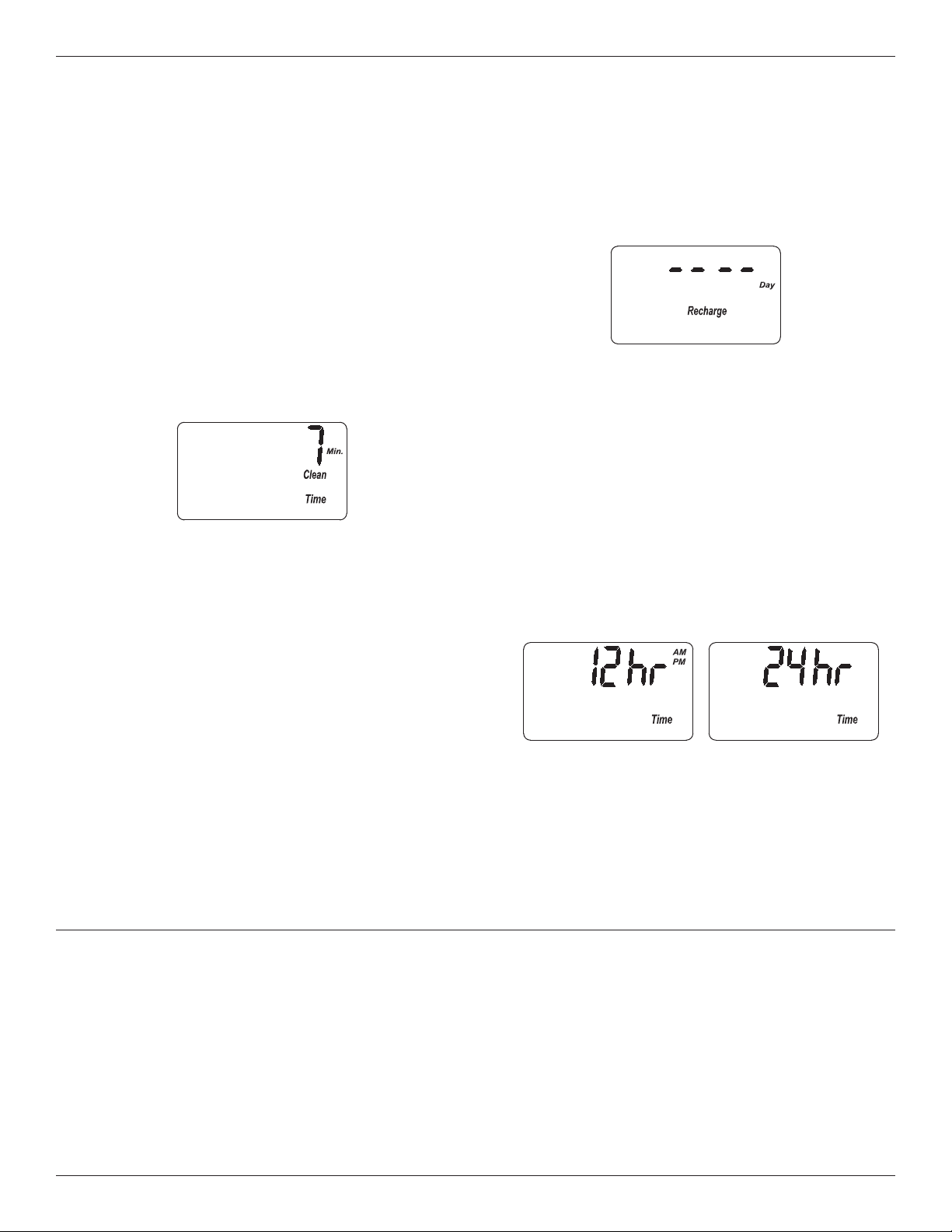

12 OR 24 HOUR CLOCK
At the default setting, all clock displays are shown in
12 hour time format (AM and PM). If 24 hour time
format is desired, follow the steps below:
1. Press and hold the PROGRAM button until the
screen in Figure 26 is displayed. Once in this
display, press the PROGRAM button five times and
one of the two displays in Figure 30 is shown.
continued from the previous page
3. Press the PROGRAM button four times to return to
the normal run display.
CLEAN FEATURE MINUTES
The Clean / Clear Water Iron Reduction feature
(described above) may be adjusted, from 1 to 15
minutes in length. To change this cycle time, use the
UP button to increase the time, or the DOWN button
to shorten the time. The default value for this feature
depends on the model.
1. Press and hold the PROGRAM button until the
screen in Figure 26 is displayed. Once in this
display, press the PROGRAM button three times
and the display in Figure 28 is shown.
FIG. 28
FIG. 29
FIG. 30
2. Press the rUP or sDOWN buttons to set the
time format.
3. Press the PROGRAM button once again, to return
to the normal time of day screen.
2. Press the rUP or sDOWN buttons to set the
number of minutes.
3. Press the PROGRAM button three times to return
to the normal run display.
MAXIMUM DAYS BETWEEN
REGENERATIONS
The water softener automatically controls
regeneration frequency. This provides the greatest
operating efficiency and, under most conditions, this
feature should be left in this automatic mode.
However, you may modify this feature if you want to
force a regeneration every set number of days. For
example, if your water supply contains clear water
iron, you may want the softener to regenerate every
few days to keep the resin bed clean. The maximum
days between recharges may be set from 1 to 15
days, as follows:
Routine Maintenance
WATER SOFTENER CLEANSER
The manufacturer recommends that you use
Whirlpool®WHE-WSC Water Softener Cleanser, as
directed, every four months.
Lift the brinewell cover and pour in the entire 16 oz.
bottle of Whirlpool®Water Softener Cleanser. Press
the RECHARGE button and hold for three seconds,
until “RECHARGE” begins to flash in the display. This
manual recharge will take about two hours. If taste,
odor, or discoloration are detected in the water,
manually recharge the softener again, then run a cold
water faucet immediately downstream of the softener
until water tastes, smells, and appears normal.

17
Routine Maintenance

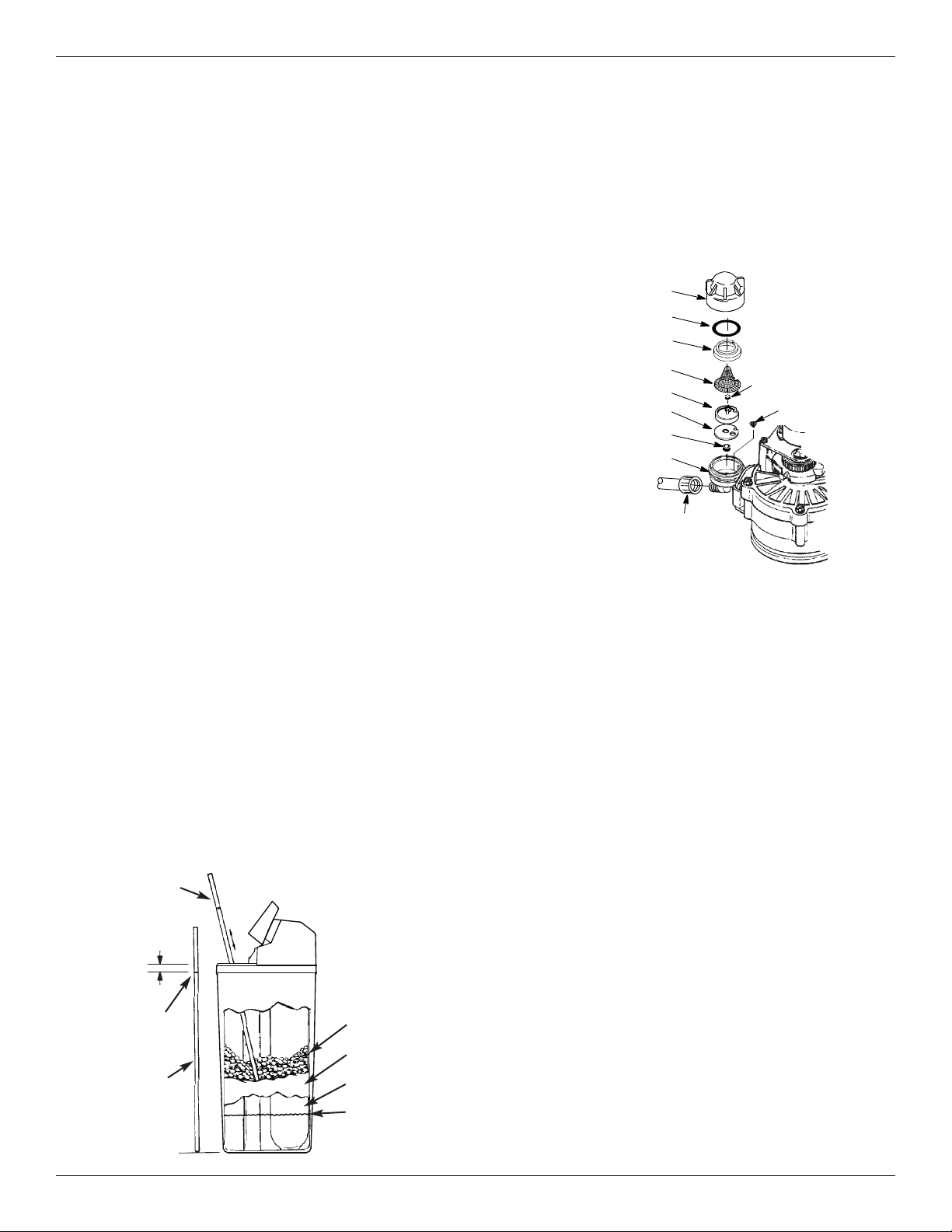

FIG. 32
Cap
O-ring Seal
Screen Support
Screen
Gasket
*Flow Plug (HVDC)
Housing
Ferrule
Nut
Cone Screen
*Flow Plug
*Install with lettered
side up, concave
side down.
Nozzle & Venturi Disc
ADDING SALT
Open the salt lid and check the salt storage level
frequently. If the water softener uses all the salt before
you refill it, you will experience hard water. Until you
have established a refilling routine, check the salt
every two or three weeks. Always add if less than 1/4
full.
NOTE: If using potassium chloride (KCl), do not fill
above level 4 on the brinewell scale.
NOTE: In humid areas, it is best to keep the salt
storage level lower, and to refill more often to
avoid salt “bridging”.
Recommended Salt: Nugget, pellet or coarse solar
salts with less than 1% impurities.
Salt Not Recommended: Rock salt, high in impurities,
block, granulated, table, ice melting, ice cream making
salts, etc.
BREAKING A SALT BRIDGE
Sometimes, a hard crust or salt “bridge” forms in the
brine tank. It is usually caused by high humidity or the
wrong kind of salt. When the salt “bridges,” an empty
space forms between the water and the salt. Then, salt
will not dissolve in the water to make brine. Without
brine, the resin bed is not recharged and hard water
will result.
If the storage tank is full of salt, it is difficult to tell if
you have a salt bridge. A bridge may be underneath
loose salt. Take a broom handle, or like tool, and hold
it next to the water softener. Measure the distance
from the floor to the rim of the water softener. Then,
gently push the broom handle straight down into the
salt. If a hard object is felt before the pencil mark is
even with the top, it is most likely a salt bridge. Gently
push into the bridge in several places to break it. Do
not use any sharp or pointed objects as you may
puncture the brine tank. Do not try to break the salt
bridge by pounding on the outside of the salt tank. You
may damage the tank.
FIG. 31
Broom
Handle
Pencil
Mark
1" - 2"
Push Tool into
Salt Bridge to
Break
Salt Bridge
Salt
Empty Space
Water Level
CLEANING THE NOZZLE & VENTURI
A clean nozzle & venturi (See Figure 32) is a necessity
for the water softener to work properly. This small
component creates the suction to move brine from the
brine tank, into the resin tank. If it should become
plugged with sand, silt, dirt, etc., the water softener will
not work, and hard water will result.
IMPORTANT: Be sure small hole in the gasket is
centered directly over the small hole in the nozzle &
venturi housing. Be sure the numbers are facing up
To get access to the nozzle & venturi, remove the
water softener’s top cover. Put the bypass valve(s) into
the bypass position. Be sure the water softener is in
soft water (service) cycle (no water pressure at
nozzle & venturi). Then, holding the nozzle & venturi
housing with one hand, unscrew the cap. Do not lose
the o-ring seal. Lift out the screen support and screen.
Then, remove the nozzle & venturi disc, gasket, and
flow plug(s). Wash the parts in warm, soapy water and
rinse in fresh water. Be sure to clean both the top and
bottom of the nozzle & venturi disc. If needed, use a
small brush to remove iron or dirt. Do not scratch,
misshape, etc., surfaces of the nozzle & venturi.
Gently replace all parts in the correct order. Lubricate
the o-ring seal with silicone grease and locate in place.
Install and tighten the cap by hand, while supporting
the housing. Overtightening may break the cap or
housing. Put the bypass valve(s) into service (soft
water) position.
Recharge the softener to reduce the water level in the
tank. This will also assure that the softener is
completely recharged and ready to provide softened
water again. Check the water level in the tank by
looking down the brinewell. If the water level does not
drop after a recharge, the problem has not been
resolved. Call 1-866-986-3223.

18
Routine Maintenance
PROTECT THE WATER SOFTENER FROM
FREEZING
If the softener is installed where it could freeze
(summer cabin, lake home, etc.), you must drain all
water from it to stop possible freeze damage. To drain
the softener:
1. Close the shut-off valve on the house main water
pipe, near the water meter or pressure tank.
2. Open a faucet in the soft water pipes to vent
pressure in the softener.
3. Move the stem in the single bypass valve to
bypass. Close the inlet and outlet valve in a 3 valve
bypass system, and open the bypass valve. If you
want water in the house pipes again, reopen the
shut-off valve on the main water pipe.
4. Unplug the power supply at the wall outlet. Open
the salt lid and remove the softener’s top cover.
Take off both drain hoses if they will interfere with
moving the softener into position over the drain.
5. Gently remove the large holding clips at the
softener inlet and outlet. Separate the softener
from the plastic installation adaptors, or from the
bypass valve.
6. Lay a piece of 2 inch thick board near the floor
drain (See Figure 33).
7. Move the softener close to the drain. Slowly and
gently, tip it over until the rim rests on the wood
block with the inlet and outlet over the drain. Do
not allow the softener’s weight to rest on the inlet
and outlet fittings or they may break.
8. Tip the bottom of the softener up a few inches and
hold until all water has drained. Leave the softener
laying like this until you are ready to use it. Plug
the inlet and outlet with clean rags to keep dirt,
bugs, etc. out.
Floor Drain FIG. 33
Wood Block

19
Troubleshooting Guide
PROBLEM CAUSE CORRECTION
No soft water 1. No salt in the storage tank. Refill with salt and then use RECHARGE NOW feature.
No soft water & dis-
play is blank
1. Power supply unplugged at wall outlet, or
power cable disconnected from back of elec-
tronic board or power supply malfunction.
Check for loss of power and correct. Reset electronic
controls and then use RECHARGE NOW feature.
2. Fuse blown, circuit breaker popped, or cir-
cuit switched off (See “Power Outage
Memory” on Page 14).
Replace fuse, reset circuit breaker, or switch circuit on,
and then use RECHARGE NOW feature.
3. Electronic control board malfunction. Replace electronic control board (See Page 25).
No soft water & salt
level not dropping
1. Salt storage tank “bridged”. Refer to “Breaking a Salt Bridge” section to break.
2. Bypass valve(s) in “bypass” position. Move bypass valve(s) to “service” position.
No soft water & salt
storage tank full of
water,
water running to
drain while unit is in
the soft water cycle
1. Dirty, plugged or damaged nozzle & venturi
assembly
Take apart, clean and inspect nozzle & venturi (See
“Cleaning the Nozzle & Venturi” section.
2. Inner valve fault causing leak. Replace seals and rotor.
3. Valve drain hose is plugged. Hose must not have any kinks, sharp bends or any water
flow blockage (See “Valve Drain Requirements” section.
4. Valve drain line and Salt Storage Tank
overflow drain connected together by a tee.
Disconnect tee and run separate drain lines.
5. Low or high system water pressure (low
pressure may disrupt brine draw during
recharge, high pressure may cause inner
valve parts failure).
If pressure is low, increase well pump output to a
minimum 20 psi. If daytime pressure is over 100 psi,
add a pressure reducing valve in the supply pipe to the
softener. Contact a licensed plumber.
6. Brine float dirty or broken. Clean or replace Brine Valve Float Assembly.
7. Leak between valve and resin tank. Replace o-rings between resin tank and valve.
Water hard some-
times
1. Incorrect time set. Check and change time setting.
2. Incorrect water hardness set. Refer to “Set Water Hardness” section to set correctly.
3. Incorrect model code programmed. Refer to “Program the Water Softener” section to set
correctly.
4. Hot water being used when softener is
regenerating.
Avoid using hot water while the softener is regenerating,
as the water heater will fill with hard water.
5. Possible increase in water hardness. Test untreated water for hardness and iron, and program
the water softener accordingly (See “Set Water
Hardness”) section to set.
6. Leaking faucet or toilet valve. Excessive
water usage.
A small leak can waste hundreds of gallons of water in a
few days. Fix all leaks and always fully close faucets.
Iron in water 1. Clear water iron in water supply. Test untreated water for hardness and iron, and program
the water softener accordingly (See “Set Water
Hardness”) section to set.
2. Iron in soft water. Clean resin bed with Resin Bed Cleaner. Follow
instructions on package.
3. Bacterial or organic bound iron. Cannot be treated by water softener.
Resin in household
plumbing
1. Crack in distributor or riser tube. Replace resin tank assembly.
Salt storage tank
leaking
1. Crack in brine tank. Replace salt storage tank assembly.
Motor stalled or
clicking
1. Motor malfunction or internal valve fault
causing high torque on motor.
a. Replace rotor/seal.
b. Replace motor & switch.
Error code Err1, Err3
or Err4 appears
1. Fault in wiring harness or connections to
position switch.
Replace wiring harness or connections to position switch.
2. Fault in switch. Replace switch.
3. Fault in valve causing high torque. Replace rotor/seal.
4. Motor inoperative. Replace motor.
Error code Err5 1. Electronic control malfunction. Replace electronic control board.

20
Troubleshooting
While an error code appears in the display, all buttons
are inoperable except the PROGRAM button.
PROGRAM remains operational so the service
person can perform the Manual Advance Diagnostics,
see below, to further isolate the problem.
Procedure for removing error code from
display:
1. Unplug the power supply from electrical outlet.
2. Correct problem.
3. Plug the power supply back in.
4. Wait 8 minutes. The error code will return if the
problem was not corrected.
MANUAL ADVANCE DIAGNOSTICS
Use the following procedures to advance the water
softener through the regeneration cycles to check
operation.
Lift off the salt lid, remove the top cover by unlocking
the tabs in the back and rocking forward, to observe
cam and switch operation during valve rotation.
1. Press and hold PROGRAM for 3 seconds until
“000” shows in the display, then release.
2. The 3 digits indicate water meter operation as
follows:
000 (steady) = Soft water not in use, and no flow
through the meter.
Open a nearby soft water faucet.
000 to 199 (continual) = Repeats for each gallon
of water passing through
the meter.
3. Symbols in the display indicate POSITION switch
operation (See Figure 35).
FIG. 36
FIG. 35
4. Use the RECHARGE button to manually advance
the valve into each cycle and check correct switch
operation.
NOTE: Be sure water is in contact with the salt, and
not separated by a salt bridge (See “Breaking
A Salt Bridge” section).
5. While in this diagnostic screen, the following
information is available and may be beneficial for
various reasons. This information is retained by the
computer from the first time electrical power is
applied to the electronic controller.
a. Press the rUP button to display the number of
days this electronic control has had electrical
power applied.
b. Press the sDOWN button to display the number
of regenerations initiated by this electronic
control since the code number was entered.
6. Press and hold the PROGRAM button until the
model code (“L30P” for Model WHES30 or “L33P”
for Model WHES33) shows in the display. This
code identifies the softener model. If an incorrect
model code is displayed, the softener will operate
on incorrect configuration data.
7. To change the code number, press the rUP or
sDOWN button until the correct code shows.
8. To return to the present time display, press the
PROGRAM button.
Switch is open
(Cam not rotating)
Switch is closed
(Cam rotating)
AUTOMATIC ELECTRONIC DIAGNOSTICS
This water softener has a self-diagnostic function for
the electrical system (except input power and/or water
meter). The water softener monitors electronic
components and circuits for correct operation. If a
malfunction occurs, an error code appears in the
display.
FIG. 34
