White Mountain Hearth Tahoe DVS-30-2 Installation instructions

13369-1-0203 Page 1
INSTALLATION INSTRUCTIONS
AND
OWNER'S MANUAL
DIRECT VENT
GAS FIREPLACE
MODELS
DVS-30-2 DVS-30RF-2
DVS-36-2 DVS-36IP-2 DVS-36RF-2
DVS-42-2 DVS-42IP-2 DVS-42RF-2
EFFECTIVE DATE
FEBRUARY, 2003
WARNING:Ifnotinstalled,operatedand
maintainedinaccordancewiththemanu-
facturer'sinstructions,thisproductcould
expose you to substances in fuel or from
fuelcombustionwhichcancausedeathor
serious illness.
WARNING:Iftheinformationinthis
manual is not followed exactly, a fire
orexplosionmayresultcausingprop-
erty damage, personal injury or loss
of life.
— Do not store or use gasoline or other
flammable vapors and liquids in the
vicinityofthisoranyotherappliance.
— WHATTODO IFYOUSMELLGAS
•Do not try to light any appliance.
•Donottouchanyelectricalswitch;
donotuseanyphoneinyourbuild-
ing.
•Immediatelycallyourgassupplier
from a neighbor's phone. Follow
the gas supplier's instructions.
•If you cannot reach your gas sup-
plier, call the fire department.
— Installation and service must be per-
formedbyaqualifiedinstaller,service
agency or the gas supplier.
This appliance may be installed in an
aftermarket, permanently located,
manufacturedhome(USAonly)ormobile
home, where not prohibited by state or
local codes.
This appliance is only for use with the
type of gas indicated on the rating plate.
This appliance is not convertible for use
with other gases, unless a certified kit is
used.
The Tahoe Direct Vent Gas Fireplaces

Page 2 13369-1-0203
Section Page
Important Safety Information ............................................................................................................................ 3
Safety Information for Users of LP Gas............................................................................................................ 4
Introduction ....................................................................................................................................................... 5
Specifications .................................................................................................................................................... 6
Fireplace Dimensions ........................................................................................................................................ 6
Fireplace Component Installation...................................................................................................................... 7
Clearances.......................................................................................................................................................... 8
Locating Fireplace ............................................................................................................................................. 8
Gas Supply......................................................................................................................................................... 9
Venting Fireplace ............................................................................................................................................ 10
Installation ..................................................................................................................................................10-15
Termination Clearances................................................................................................................................... 16
Vent Clearances............................................................................................................................................... 17
Vent System Identification .............................................................................................................................. 18
DVS-30 Framing and Finishing .................................................................................................................19-20
DVS-36 & DVS-42 Framing and Finishing ...............................................................................................21-22
Horizontal Termination (for all models) ......................................................................................................... 22
Vertical Termination (for all models).........................................................................................................23-24
Log Placement ............................................................................................................................................24-26
Standing Pilot Operating Instructions ........................................................................................................26-28
Standing Pilot Wiring Diagram ....................................................................................................................... 28
Standing Pilot Lighting Instructions................................................................................................................ 29
Standing Pilot Troubleshooting ....................................................................................................................... 30
DVS-36 & DVS-42 Intermittent Pilot Operating Instructions ........................................................................ 31
DVS-36 & DVS-42 Intermittent Pilot Wiring Diagram.................................................................................. 31
DVS-36 & DVS-42 Intermittent Pilot Lighting Instructions .......................................................................... 32
DVS-36 & DVS-42 Intermittent Pilot Troubleshooting ............................................................................33-36
RF Standing Pilot Operating Instructions........................................................................................................ 37
RF Wiring Diagram with Optional Blower ..................................................................................................... 38
RF Standing Pilot Lighting Instructions.......................................................................................................... 39
Maintenance and Service................................................................................................................................. 40
How to Order Repair Parts .............................................................................................................................. 41
DVS-30 Parts List............................................................................................................................................ 41
DVS-36 Parts List............................................................................................................................................ 42
DVS-42 Parts List............................................................................................................................................ 43
Parts View ....................................................................................................................................................... 44
Accessory Parts ............................................................................................................................................... 45
Optional Variable Speed Blower Installation Instructions .........................................................................46-47
Optional Single Speed Blower Installation Instructions.............................................................................48-49
Optional Fresh Air Intake Installation Instructions ....................................................................................50-51
Optional Brick Liner Installation Instructions................................................................................................. 52
TABLE OF CONTENTS

13369-1-0203 Page 3
DVS-36 OR DVS-42 IS A HEATING APPLIANCE WHEN HEATER BAFFLE IS INSTALLED, SEE PAGE 7
Do Not Operate This Appliance Without Glass Front Panel Installed.
Before enclosing the Simpson Dura-Vent vent pipe assembly
operate the appliance to ensure it is venting properly.
IMPORTANT SAFETY INFORMATION
• If this appliance is installed directly on carpeting,
tile or other combustible material other than wood
flooring the appliance shall be installed on a metal
orwoodpanelextendingthefullwidthanddepthof
the appliance.
The base referred to above does not mean the
fireproofbaseasusedonwoodstoves.Theprotection
isforrugsthatareextremelythickandlightcolored
tile.
• Childrenandadultsshouldbealertedtothehazards
of high surface temperatures and should stay away
to avoid burns or clothing ignition.
• Youngchildrenshouldbecarefullysupervisedwhen
they are in the same room as the appliance.
• Clothingorotherflammablematerialshouldnotbe
placed on or near the appliance.
• Adequateaccessibility clearances forservicing and
proper operation.
• This appliance must not share or be connected to a
flueservingaseparatesolid-fuelburningappliance.
• Keep the area around your appliance clear of
combustiblematerials,gasolineandotherflammable
vapor and liquids.
• Undernocircumstancesshouldanysolidfuels(wood,
coal, paper or cardboard etc.) be used in this appli-
ance.
• Theflowofcombustionandventilationairmustnot
be obstructed in any way.
•Due to high temperatures the appliance should be
located out of traffic and away from furniture and
draperies.
• The glass front or any part removed for servicing
the appliance must be replaced prior to operating
the appliance. Work should be done by a qualified
service person.
• Keep burner and control compartment clean.
• Vent cap is hot while fireplace is in operation.
• Installation and repair should be done by a
QUALIFIED SERVICE PERSON. The appliance
shouldbeinspectedbeforeuseandatleastannually
by a qualified service person. More frequent
cleaningmayberequiredduetoexcessivelintfrom
carpeting, bedding materials, etc. It is imperative
thatcontrolcompartments,burnersandcirculating
air passageways of the appliance be kept clean.
• DO NOT put anything around the fireplace that
will obstruct the flow of ventilation air.
• DO keep the appliance area clear and free from
combustiblematerial,gasolineandotherflammable
vapors and liquids.
• DOexamineventingsystemperiodicallyandreplace
damaged parts.
• DO make a periodic visual check of pilot and
burners. Clean and replace damaged parts.
• CAUTION: The glass used in your fireplace is
tempered glass. If the glass is cracked or damaged
in any way, it should be replaced only with a
complete glass frame assembly from Empire. See
parts list on Page 40-42 for ordering.
• DO NOT use this fireplace if any part has been
under water. Immediately call a qualified service
technician to inspect the heater and to replace any
part of the control system and any gas control
which has been under water.
• Any safety screen or guard removed for servicing
an appliance must be replaced prior to operating
the appliance.

Page 4 13369-1-0203
Somepeoplecannotsmellwell.Somepeoplecannotsmellthe
odorofthechemicalputintothegas.Youmustfindoutifyou
cansmellthe odorantinpropane.Smokingcan decrease your
ability to smell. Being around an odor for a time can affect your
sensitivity or ability to detect that odor. Sometimes other odors
inthearea maskthegas odor.Peoplemay notsmellthe gasodor
or their minds are on something else. Thinking about smelling a
gas odor can make it easier to smell.
The odorant in LP-gas is colorless, and it can fade under
some circumstances. For example, if there is an underground
leak,the movementofthegasthrough soilcanfiltertheodorant.
OdorantsinLP-Gasalsoaresubjecttooxidation.Thisfadingcan
by point with the members of your household. Someday
whentheremaynotbeaminutetolose,everyone'ssafetywill
depend on knowing exactly what to do. If, after reading the
followinginformation,youfeelyoustillneedmore informa-
tion, please contact your gas supplier.
Propane (LP-Gas) is a flammable gas which can cause fires
and explosions. In its natural state, propane is odorless and
colorless.Youmay notknowallthe followingsafetyprecau-
tions which can protect both you and your family from an
accident. Read them carefully now, then review them point
occur if there is rust inside the storage tank or in iron gas pipes.
The odorant in escaped gas can adsorb or absorb onto or into
walls, masonry and other materials and fabrics in a room. That
will take some of the odorant out of the gas, reducing its odor
intensity.
LP-Gasmaystratifyinaclosedarea,andtheodorintensitycould
vary at different levels. Since it is heavier than air, there may be
more odor at lower levels. Always be sensitive to the slightest
gas odor. If you detect any odor, treat it as a serious leak.
Immediately go into action as instructed earlier.
•Learntorecognizethe odor of LP-gas.YourlocalLP-Gas
Dealercangiveyoua"ScratchandSniff"pamphlet.Useitto
findoutwhatthepropaneodorsmellslike.Ifyoususpectthat
yourLP-Gashasa weak or abnormalodor,call your LP-Gas
Dealer.
• If you are not qualified, do not light pilot lights, perform
service, or make adjustments to appliances on the LP-Gas
system.Ifyouarequalified,consciouslythinkabouttheodor
ofLP-Gasprior to andwhilelighting pilot lightsorperform-
ing service or making adjustments.
• Sometimes a basement or a closed-up house has a musty
smell that can cover up the LP-Gas odor. Do not try to light
pilot lights, perform service, or make adjustments in an area
where the conditions are such that you may not detect the
odor if there has been a leak of LP-Gas.
• Odor fade, due to oxidation by rust or adsorption on walls of
new cylinders and tanks, is possible. Therefore, people
should be particularly alert and careful when new tanks or
cylinders are placed in service. Odor fade can occur in new
tanks, or reinstalled old tanks, if they are filled and allowed
to set too long before refilling. Cylinders and tanks which
have been out of service for a time may develop internal rust
which will cause odor fade. If such conditions are suspected
to exist, a periodic sniff test of the gas is advisable. If you
have any question about the gas odor, call your LP-gas
dealer. A periodic sniff test of the LP-gas is a good safety
measure under any condition.
• If, at any time, you do not smell the LP-Gas odorant and you
thinkyoushould,assumeyouhavealeak.Thentakethesame
immediateactionrecommendedabovefortheoccasionwhen
you do detect the odorized LP-Gas.
• If you experience a complete "gas out," (the container is
under no vapor pressure), turn the tank valve off immedi-
ately.Ifthecontainervalveislefton,thecontainermaydraw
in some air through openings such as pilot light orifices. If
this occurs, some new internal rusting could occur. If the
valve is left open, then treat the container as a new tank.
Always be sure your container is under vapor pressure by
turningitoffatthecontainerbeforeitgoescompletelyempty
or having it refilled before it is completely empty.
• Do not operate electric switches, light matches, use your
phone. Do not do anything that could ignite the gas.
• Geteveryoneoutofthe building,vehicle,trailer,orarea.Do
that IMMEDIATELY.
• Close all gas tank or cylinder supply valves.
• LP-Gas is heavier than air and may settle in low areas such
as basements. When you have reason to suspect a gas leak,
keep out of basements and other low areas. Stay out until
firefighters declare them to be safe.
• Useyourneighbor'sphoneandcallatrainedLP-Gasservice
person and the fire department. Even though you may not
continuetosmellgas,donotturnonthegasagain.Donotre-
enter the building, vehicle, trailer, or area.
•Finally, let the service man and firefighters check for
escaped gas. Have them air out the area before you return.
Properly trained LP-Gas service people should repair the
leak, then check and relight the gas appliance for you.
SOME POINTS TO REMEMBER
NO ODOR DETECTED - ODOR FADE
LP-GAS WARNING ODOR
If a gas leak happens, you should be able to smell the gas because of the odorant put in the LP-Gas.
That's your signal to go into immediate action!
SAFETY INFORMATION FOR USERS OF LP-GAS

13369-1-0203 Page 5
INTRODUCTION
Instructions to Installer
1. Installer must leave instruction manual with owner after
installation.
2. Installer must have owner fill out and mail warranty card
supplied with the fireplace.
3. Installer should show owner how to start and operate the
fireplace.
This direct vent gas fireplace is designed to operate with all
combustion air being siphoned from the outside of the building
and all exhaust gases expelled to the outside of the building. The
information contained in this manual pertains to all models and
gas control systems unless otherwise noted.
Warning: This unit is not for use with solid fuel.
Approval Listings and Codes
Appliance Certification
This fireplace is design certified in accordance with American
National Standard/CSA Standard Z.21.88b-2001/CSA 2.33b-
2001andZ21.50b-2002/CSA2.2b-2002byUL/CULLaboratories
as a Direct Vent Gas Fireplace Heater/Direct Vent Gas Fireplace
and should be installed according to these instructions.
Consult your local building code agency, prior to installation, to
ensure compliance with local codes-including permits and
inspections.
The fireplace, when installed, must be electrically grounded in
accordance with local codes or, in absence of local codes, with
the National Electric Code ANSI/NFPA 70 or Canadian Electric
code, CSA C22.1, if an external electrical source is utilized.
These models may be installed in a bedroom or bed-sitting room
in the U.S.A. and Canada.
Qualified Installing Agency
Installationandreplacementofgaspiping,gasutilizationequipment
or accessories and repair and servicing of equipment shall be
performedonlybyaqualifiedagency.Theterm"qualifiedagency"
means any individual, firm, corporation or company which either
inpersonorthrougharepresentativeisengagedinandisresponsible
for (a) the installation or replacement of gas piping or (b) the
connection, installation, repair or servicing of equipment, who is
experienced in such work, familiar with all precautions required
andhascompliedwithalltherequirementsoftheauthorityhaving
jurisdiction.
State of Massachusetts: The installation must be made by a
licensed plumber or gas fitter in the Commonwealth of
Massachusetts.
The installation must conform with local codes or, in the absence
of local codes, with the National Fuel Gas Code ANSI Z223.1/
NFPA 54* Natural Gas and Propane Installation Code, CSA
B149.1.
*Available from the American National Standards Institute, Inc. 11 West 42nd
St., New York, N.Y. 10036.
WARNING: ANY CHANGE TO THIS FIREPLACE OR
ITS CONTROLS CAN BE DANGEROUS.
Improperinstallationoruseoftheheatercancauseserious
injury or death from fire, burns, explosion or carbon
monoxide poisoning.
Any alteration of the original design, installed other than as
shownintheseinstructionsorusewithatypeofgasnotshown
on the rating plate is the responsibility of the person and
company making the change.
Important
All correspondence should refer to complete Model Number,
Serial Number and type of gas.
Installation in Residential Garages
Gas utilization equipment in residential garages shall be
installed so that all burners and burner ignition devices are
located not less than 18" (457mm) above the floor.
Such equipment shall be located, or protected, so it is not subject
to physical damage by a moving vehicle.
High Altitude
When installing this unit at an elevation above 2000 feet (in the
UnitedStates)itmay be necessarytodecreasethe input ratingby
changing the existing burner orifice to a smaller size. Generally,
input should be reduced 4 percent for each 1000 feet above sea
level. However, if the heating value of the gas has been reduced,
this general rule may not apply. Check with local gas utility for
proper orifice size identification.
Canadian High Altitude
Altitude: 0-4500 feet (0-1370 m)
APPLIES TO CANADIAN MODELS ONLY
When installing this unit at an elevation above 4500 feet (in
Canada), check with local authorities.
Consult your local gas utility for assistance in determining the
proper orifice for location.
Preparation
This direct vent gas fireplace and its components are tested and
safe when installed in accordance with this Installation Manual.
Reporttoyourdealeranypartsdamagedinshipment,specifically
check glass condition. Do not install unit with damaged,
incomplete, or substitute parts. The vent system components and
trimdoorsareshippedinseparatepackages.Readallinstructions
beforestartinginstallationandfollowtheseinstructionscarefully
duringinstallation toinsure maximumbenefit andsafety. Failure
to follow them will void your warranty and may present a fire
hazard.
The warranty will be voided by, and the warranter disclaims any
responsibility for the following actions:
• Installationofanydamagedfireplaceorventsystemcomponent.
• Modification of the fireplace or direct vent system.
• InstallationotherthanasinstructedbyEmpireComfortSystem,
Inc.
• Improper positioning of the gas logs, glass door or lava rock.
• Installationand/oruseofanycomponentpartnotmanufactured
or approved by manufacturer.

Page 6 13369-1-0203
Model DVS-30(RF) DVS-36(RF) DVS-36IP DVS-42(RF) DVS-42IP
Input BTU/HR(KW/H)Maximum 20,000 (5.9) 25,000 (7.3) 25,000 (7.3) 28,000 (8.2) 28,000 (8.2)
BTU/HR(KW/H)Minmum 14,000 (4.1) 17,500 (5.1) —— 20,000 (5.9) ——
Height without standoff 34 1/4" 36 1/4" 36 1/4" 38 1/4" 38 1/4"
Width 33" 39" 39" 45" 45"
Depth 16 1/4" 21" 21" 24" 24"
Gas Inlet (Pipe) 3/8" 3/8" 1/2" 3/8" 1/2"

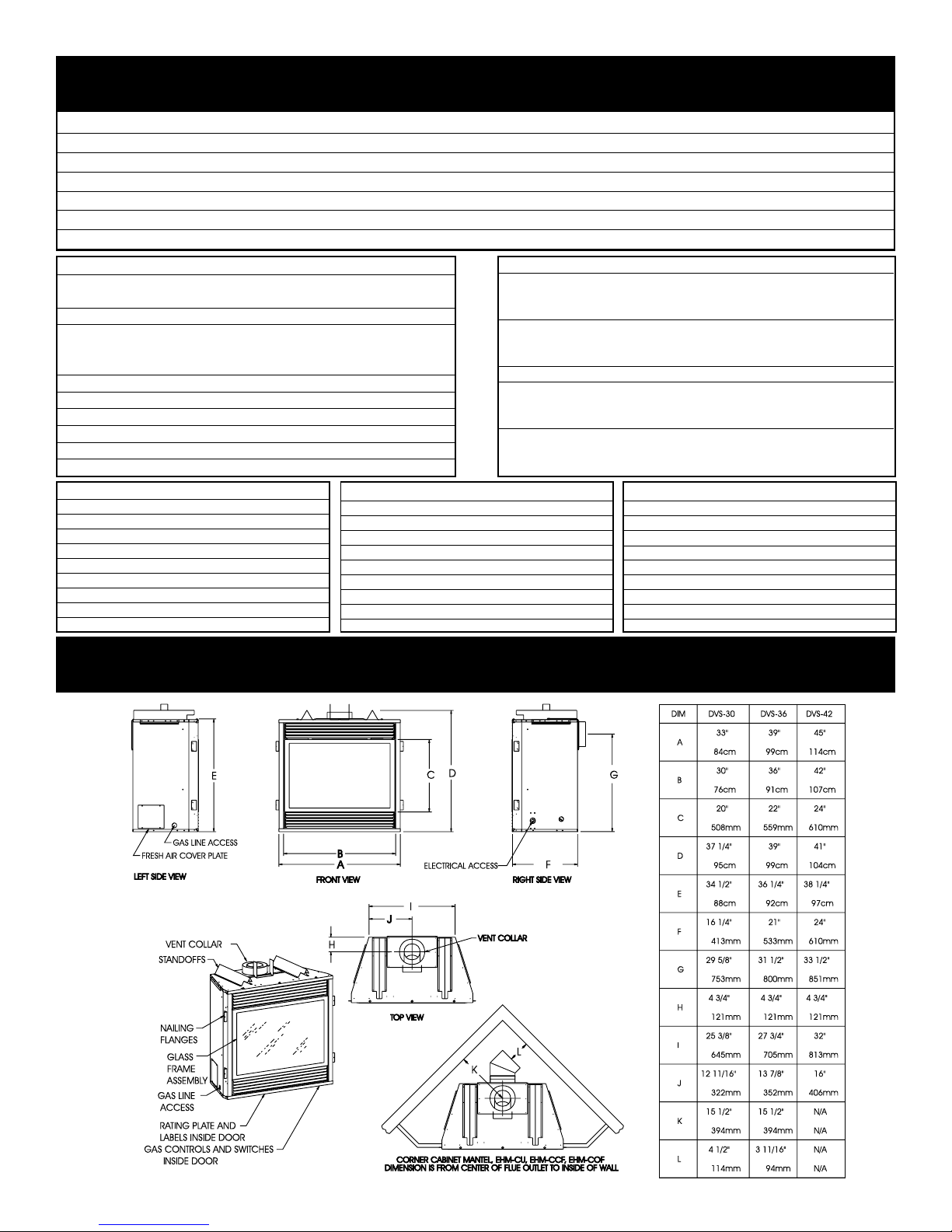

Figure 1
SPECIFICATIONS
FIREPLACE DIMENSIONS MODEL DVS-30/DVS-36/DVS-42
DVS-36 Accessories Only
FB-AK-2 Kit for Fresh Air Plus
DVS-BL-36-2 Brick Liner
DVP1A-36-1 Ceramic Aged Brick Liner
FBF-36BL-2 Black Frame
DVFBF-36BR-1 Polished Brass Frame
FBF-36BP-2 Black Porcelain Frame
FBL-36BR-2 Polished Brass Louvers
FBL-36BP-2 Black Porcelain Louvers
DVWT-36BR Brass Window Trim
DVS-30 Accessories Only
DVFB-AK-30 Kit for Fresh Air Plus
DVS-BL-30-2 Brick Liner
DVP1A-30-1 Ceramic Aged Brick Liner
FBF-30BL-2 Black Frame
DVFBF-30BR-1 Polished Brass Frame
FBF-30BP-2 Black Porcelain Frame
FBL-30BR-2 Polished Brass Louvers
FBL-30BP-2 Black Porcelain Louvers
DVWT-30BR Brass Window Trim
Control Options & Accessories for AllDVS-30,DVS-36&DVS-42
GWSG-T 750MillivoltWallThermostat(OnlyusedwhenDVS-
36 or DVS-42 fireplace is converted into a heater.)
FRBC-1 Battery Operated Remote Control
FRBTC-1 Battery Operated Remote Control with Thermostat
(Only used when DVS-36 or DVS-42 fireplace is
converted into a heater)
FREC-1 Electric Remote Control
FWS-1 Wall Switch
EK-1 Embers Kit
FB-BK-2 Variable Speed Automatic Blower
FBB1A Single Speed Automatic Blower
FBJB-1 Junction Box (for non-IP models only)
Venting Options for All DVS-30
DVVK-4T-1 DirectVentFireplaceVentKit(TopVent)(standard
through the wall venting) (Includes SD-990B SD-
911B, SD-985, SD-947)
DVVK-4R-1 DirectVentFireplaceVentKit(RearVent)(standard
through the wall venting) (Includes SD-908, SD-
947, SD-985)
Venting Options for All DVS-36 & DVS-42
DVVK-5T-1 DirectVentFireplaceVentKit(TopVent)(standard
through the wall venting) (Includes SD-1208, SD-
1284, SD-1290 and Firestop)
DVVK-5R-1 DirectVentFireplaceVentKit(RearVent)(standard
through the wall venting) (Includes SD-1208, SD-
1284 and Firestop)
DVS-42 Accessories Only
FB-AK-2 Kit for Fresh Air Plus
DVS-BL-42-2 Brick Liner
DVP1A-42-1 Ceramic Aged Brick Liner
FBF-42BL-2 Black Frame
DVFBF-42BR-1 Polished Brass Frame
FBF-42BP-2 Black Porcelain Frame
FBL-42BR-2 Polished Brass Louvers
FBL-42BP-2 Black Porcelain Louvers
DVWT-42BR Brass Window Trim

13369-1-0203 Page 7
InstallationofUpperClearance SpacerforVerticalVent(Figure 2)
Included with every fireplace is the upper clearance spacer. The upper
clearance spacer must be attached to the top of the firebox before
installation of fireplace in a vertical vent configuration.
1. Remove screw in firebox top that is behind 1/4" flange on vent
cover plate and directly in front of adapter pipe.
2. Placethe notchedportionofupper clearancespacerfacing the 1/4"
flange on vent cover plate.
3. Flex firebox top and slide upper clearance spacer beneath vent
cover plate.
4. Attach upper clearance spacer to firebox top with screw from Step 1.
5. Installation of upper clearance spacer is completed.
The upper clearance spacer will prevent combustible material from
contacting adapter pipe.
VENT COVER
VENT COVER
PLATE
ADAPTER PIPE
ADAPTER PIPE
UPPER
UPPER
CLEARANCE
CLEARANCE
SPACER
SPACER
Figure 2
Installation of Heater Baffle for DVS-36 or DVS-42 (Figure 3)
Your DVS-36 or DVS-42 fireplace is a direct vent gas fireplace. To
convert your direct vent gas fireplace into a direct vent gas fireplace
heater you will install the heater baffle into the fireplace.
The heater baffle, part number 10993 is included with every DVS-36 or
DVS-42.
Attention: For DVS-36/42 only, Propane (LP) gas, on horizontal,
straight out rear installation, the heater baffle shall not be used. The
DVS-36/42 must remain a decorative appliance.
Installation of heater baffle:
1. Push up and outward to remove top louver.
2. Lower door assembly.
3. Release two door latches at bottom of firebox.
4. Grasp bottom of glass frame, lift glass frame upward in order to
release glass frame from lip on top of firebox.
5. Insert heater baffle into interior, top of fireplace. The heater baffle
will be installed in front of 5" diameter vent outlet. Align two (2)
clearance holes on heater baffle with two (2) screws within interior,
top of fireplace. Remove two (2) screws from fireplace.
6. Attach heater baffle to interior, top of fireplace with two (2) screws
from Step 5.
7. Align and place top of glass frame over lip on top of firebox.
8. Grasp bottom of glass frame, push inward and place glass frame
onto firebox.
9. Attach two door latches onto bottom of glass frame.
10. Align and insert (4) mounting tabs on top louver with (4) slots on
casing top. Push downward to lock the top louver into position.
11. Installation of heater baffle is completed.
Adapter Pipe Horizontal Outlet
Adapter Pipe Vertical Outlet
Figure 4
FIREPLACE COMPONENT INSTALLATION
HEATER BAFFLE IS USED ON DVS-36 & DVS-42 ONLY
Figure 3
Reversible Vertical or Horizontal Adapter Pipe (Figure 4)
Thisfireplacehasareversibleadapterpipe.Theadapterpipeisinstalled
in the vertical position at the factory. Use the following steps to change
the adapter pipe from the vertical position to the horizontal position.
1. Remove screws from vent cover.
2. Lift upward to remove vent cover from adapter pipe.
3. Graspadapterpipeandrotateadapterpipeclockwisetothehorizontal
position.
4. Replaceventcoveroveradapterpipe.Attachventcoverwithscrews
from Step 1.
5. Repositioning of the adapter pipe is completed.
HEATER BAFFLE
HEATER BAFFLE
VENT COVER
VENT COVER
TOP STANDOFFS REMOVED FOR CLARITY
TOP STANDOFFS REMOVED FOR CLARITY

Page 8 13369-1-0203
MANTEL
MANTEL
4" (102mm)
4" (102mm)
2 1/2"(64mm)
2 1/2"(64mm)
10 1/2"
10 1/2"
(267mm)
12"
(305mm)
TOP EDGE OF FIREPLACE
TOP EDGE OF FIREPLACE
11 1/4"
11 1/4"
(286mm)
9 3/4"
93/4"
(248mm) 9"
(229mm)
6" (152mm)
6" (152mm)
10" (254mm)
10" (254mm)
8" (203mm)
8" (203mm)
12" (305mm)
12" (305mm)
12 3/4"
12 3/4"
(324mm)
LOCATING FIREPLACE
Figure 8
Note:** Island (C) and Room
Divider(D)installationispossible
aslongasthehorizontalportionof
theventsystem(H)doesnotexceed
20 feet with a minimum vertical
runof8feet.SeedetailsinVenting
Section.
*WhenyouinstallyourDirectVent
Fireplace in (D) Room divider or
(E)Flatonwallcornerpositions,a
minimum of 6 inches clearance
must be maintained from the
perpendicular wall and the front
edge of the appliance.
CLEARANCES
2" x 4" HEADER
2" x 4" HEADER
STAND OFF
STAND OFF
3" (76mm) HEIGHT
3" (76mm) HEIGHT
ABOVE TOP OF
FIREPLACE
GLASS FRONT
GLASS FRONT
TOP FRAMING
LEDGE
FINISHED WALL
FINISHED WALL
ADJUSTABLE
NAILING
FLANGES
SEE MANTLE CHART
SEE MANTLE CHART
FOR MAXIMUM MANTLE
FOR MAXIMUM MANTLE
DEPTH
SEE MANTLE CHART
SEE MANTLE CHART
FOR MINIMUM HEIGHT
FOR MINIMUM HEIGHT
OF MANTLE ABOVE UNIT
OF MANTLE ABOVE UNIT
CLEARANCE TO COMBUSTIBLES
BACK 0" (0 mm)
SIDE 0" (0 mm)
FLOOR 0” (O mm)
TOP STAND OFF 0" (0 mm)
TOP FRAMING LEDGE 0" (0 mm)
Figure 5
Combustible Material
Nogreetingcards,stockingsor ornamentationofanytypeshould
be placed on or attached to the fireplace. The flow of heat can
ignite combustibles.
CLEARANCES TO COMBUSTIBLES
BACK SPACER 0" (0MM)
SIDE SPACER 0" (0MM)
FLOOR 0" (0MM)
TOP STAND OFF 0" (0MM)
TOP FRAMING LEDGE 0" (0MM)
Mantel Chart (Figure 6)
Figure 6
Clearances (Figure 7)
Clearance from top of fireplace to ceiling is 36"
Clearance from side of fireplace to adjacent sidewall is 6".
Figure 7

13369-1-0203 Page 9
GAS SUPPLY
The gas pipeline can be brought in through the right or left side of
the appliance. Consult the current National Fuel Gas Code, ANSI
Z223.1 CAN/CGA-B149 (.1 or .2) installation code.
Recommended Gas Pipe Diameter
Pipe Length Schedule 40 Pipe Tubing, Type L
(Feet) Inside Diameter Outside Diameter
Nat. L.P. Nat. L.P.
0-10 1/2" 3/8" 1/2" 3/8"
1.3 cm 1.0 cm 1.3 cm 1.0 cm
10-40 1/2" 1/2" 5/8" 1/2"
1.3 cm 1.3 cm 1.6 cm 1.3 cm
40-100 1/2" 1/2" 3/4" 1/2"
1.3 cm 1.3 cm 1.9 cm 1.3 cm
100-150 3/4" 1/2" 7/8" 3/4"
1.9 cm 1.3 cm 2.2 cm 1.9 cm
Note:Neveruseplasticpipe.Checktoconfirmwhetheryourlocal
codes allow copper tubing or galvanized.
Note:Since some municipalities have additional local codes, it is
always best to consult your local authority and installation code.
The use of the following gas connectors is recommended:
— ANS Z21.24 Appliance Connectors of Corrugated Metal
Tubing and Fittings
— ANS Z21.45 Assembled Flexible Appliance Connectors of
Other Than All-Metal Construction
The above connectors may be used if acceptable by the authority
having jurisdiction. The state of Massachusetts requires that a
flexible appliance connector cannot exceed three feet in length.
Figure 9
Consult the current National Fuel Gas Code, ANSI Z223.1 CAN/
CGA-B149 (.1 or .2) installation code.
Installing a New Main Gas Cock
Each appliance should have its own manual gas cock.
In the state of Massachusetts the gas cock must be a T handle
type.
Amanualmaingascockshouldbelocatedinthevicinityofthe
unit. Where none exists, or where its size or location is not
adequate, contact your local authorized installer for installa-
tion or relocation.
Compoundsusedonthreadedjointsofgaspipingshallberesistant
to the action of liquefied petroleum gases. The gas lines must be
checkedforleaksbythe installer.Thisshouldbedone withasoap
solution watching for bubbles on all exposed connections, and if
unexposed, a pressure test should be made.
Neveruseanexposedflametocheckforleaks.Appliancemust
be disconnected from piping at inlet of control valve and pipe
capped or plugged for pressure test. Never pressure test with
appliance connected; control valve will sustain damage!
NOTE: The gas control is equipped with a captured screw type
pressure test point, therefore it is not necessary to provide a 1/8"
test point up stream of the control.
A gas valve and ground joint union should be installed in the gas
line upstream of the gas control to aid in servicing. It is required
bythe NationalFuelGasCodethatadrip linebe installednearthe
gas inlet. This should consist of a vertical length of pipe tee
connected into the gas line that is capped on the bottom in which
condensation and foreign particles may collect.
When using copper or flex connector use only approved fittings.
Alwaysprovideaunionsothatgaslinecanbeeasilydisconnected
for burner or fan servicing. See gas specification for pressure
details and ratings.
Theapplianceandit'sindividualshutoffvalvemustbedisconnected
from supply piping system during any pressure testing of that
system at test pressures in excess of 1/2 psig (3.5kPa).
Theappliancemust beisolatedfrom thegassupply pipingsystem
byclosingitsindividualmanualshutoffvalveduringanypressure
testing of the gas supply piping system at test pressures equal to
or less than 1/2 psig (3.5kPa).
Attention! If one of the procedures results in pressures in excess
of 1/2 psig (14" w.c.) (3.5 kPa) on the fireplace gas valve, it will
result in a hazardous condition.
Checking Manifold Pressures
Both Propane and Natural gas valves have a built-in pressure
regulator in the gas valve. Natural gas models will have a
manifold pressure of approximately 3.5" w.c. (.871kPa) at the
valve outlet with the inlet pressure to the valve from a minimum
of 4.5" w.c. (1.120kPa) for the purpose of input adjustment to a
maximum of 10.5" w.c. (2.615kPa). Propane gas models will
have a manifold pressure approximately 10.0" w.c. (2.49kPa) at
the valve outlet with the inlet pressure to the valve from a
minimum of 11.0" w.c. (2.739kPa) for the purpose of input
adjustment to a maximum of 13.0" w.c. (3.237kPa).

Page 10 13369-1-0203
Framing and Finishing
1. Choose unit location.
2. Frameinfireplace withaheader acrossthetop. It isimportant
to allow for finished face when setting the depth of the frame.
3. Attachfireplace toframeusingadjustableframe.Presetdepth
tosuitfacingmaterial(adjustableto1/2",5/8"or3/4"depths).
4. Use (8) 1/2" hex-head screws supplied in hardware package,
to screw through slotted holes in drywall strip and then screw
into pre-drilled holes on fireplace side. Measure from face of
fireplace to face of drywall strip to determine final depth.
VENTING FIREPLACE
INSTALLATION
To Use the Vent Graph (Figure 10)
1. Determine the height of the center of the horizontal vent
pipe. Using this dimension on the Sidewall Vent Graph,
locate the point it intersects with the slanted graph line.
2. From the point of this intersection, draw a vertical line to
the bottom of the graph.
3. Select the indicated dimension, and position the unit in
accordance with same.
EXAMPLE A:
If the vertical dimension from the floor of the unit is 22.5 feet,
the horizontal run to the outer wall flange must not exceed 6.5
feet.
EXAMPLE B:
If the vertical dimension from the floor of the unit is 6.5 feet,
thehorizontalruntotheouterwallflangemustnotexceed14.5
feet.
SPECIAL NOTE: For each 45 degree elbow installed in the
horizontal run, the length of the horizontal run MUST be
reduced by 18" (45cm). This does not apply if the 45 degree
elbows are installed on the vertical part of the vent system.
Example: According to the chart the maximum horizontal
vent length is 20' and if two 45 degree elbows are required in
the horizontal vent it must be reduced to 17'.
Themaximumnumberof45degreeelbowspermitted perside
wall installation is two (2). These elbows can be installed in
either the vertical or horizontal run.
Venting Graph (Dimensions in Feet)
Figure 10
Acceptable vertical and horizontal vent run.
Unacceptable vertical and horizontal vent run.
DVS-36/42 Shown
Figure 11
B
20181716 1915141311109 12
A
24
23
21
20
22
18
17
16
14
15
19
25
11
13
12
9
10
6
7
4
3
5
8
76543
VERTICAL DIMENSION FROM THE BOTTOM OF THE UNIT
VERTICAL DIMENSION FROM THE BOTTOM OF THE UNIT
TO THE CENTER OF THE HORIZONTAL PIPE
TO THE CENTER OF THE HORIZONTAL PIPE
SIDEWALL VENTING GRAPH
SIDEWALL VENTING GRAPH
(DIMENSIONS IN FEET)
(DIMENSIONS IN FEET)
HORIZONTAL RUN
HORIZONTAL RUN
8

13369-1-0203 Page 11
Attention: When fireplace is installed in optional full cabinet
mantel or corner mantel the (4) four nailing flanges shown in
Figure11willnotbeinstalledonthesideofoutercasing.TheDVS
willbeattachedtothefullcabinetmantelorcornermantelwiththe
(2) two nailing flanges located on the top of the outer casing
assembly.
Framing (Figure 12)
Fireplaceframingcan bebuiltbefore orafterthe fireplaceisset in
place.Framingshouldbepositionedtoaccommodatewallcovering
and fireplace facing material. The fireplace framing should
constructed of 2 x 4 lumber or heavier. The framing headers may
rest on the fireplace standoffs. Refer to Figure 12 for framing
reference dimensions.
CAUTION: MEASURE FIREPLACE DIMENSIONS AND
VERIFYFRAMINGMETHODS,ANDWALLCOVERING
DETAILSBEFOREFRAMINGCONSTRUCTIONBEGINS.
Framing dimension A includes a three inch clearance for
standoffs on firebox. After installing firebox into framing,
the finished wall surface must cover the three inch opening
above the firebox.
Figure 12
Attention: If a base or mantel is not used and the appliance is
installed directly on carpeting, tile or other combustible material
other than wood flooring, it shall be installed on a metal or wood
panel extending the full width and depth of the appliance. The
vertical dimension in Figure 12 must be adjusted when a metal or
wood panel is placed beneath the appliance.
Finishing (Figure 13)
Finish the walls with the material of your choice. Figure 6 shows
the minimum vertical and corresponding maximum horizontal
dimensionsofmantelsorothercombustibleprojections abovethe
top front edge of the fireplace.
Only non-combustible materials may be used to cover the black
fireplace front.
WARNING: When finishing the fireplace never obstruct
or modify the air inlet/outlet louvers in any manner.
Provideadequateclearancesaroundair openings into the
combustion chamber.
Caution: If the joints between the finished wall and the
fireplace surround (top and sides) are sealed, a 300°F mini-
mum sealant material must be used. These joints are not
required to be sealed. Only non-combustible material (using
300°F minimum adhesive ifneeded),canbeappliedasfacing
to the fireplace surround.
FINISHED WALL
FINISHED WALL
2X4
2 X 4
HEADER
STAND OFF
STAND OFF
FRONT TRIM OR
FRONT TRIM OR
NON-COMBUSTIBLE MATERIAL
NON-COMBUSTIBLE MATERIAL
(INSTALLATION IS OPTIONAL)
(INSTALLATION IS OPTIONAL)
JOINT BETWEEN FINISHED
JOINT BETWEEN FINISHED
WALL AND UNIT SEALED
WALL AND UNIT SEALED
WITH 300°F, 149°C SEALANT
WITH 300°F, 149°CSEALANT
MATERIAL
Figure 13
Attention:
Cold climate installation recommendation: When installing
this unit against a non-insulated exterior wall, it is mandatory
that the outer walls be insulated to conform to applicable
insulation codes.
Vent Runs (Figures 14, 15, 16, 17 and 18)
In planning the installation for the fireplace, it is necessary to
install certain components before the appliance is completely
positionedandinstalled.Theseincludethedirectventsystem,gas
piping for the appliance and the electrical wiring. (If the fan
option is used.)
The appliance can be mounted on any of the following surfaces:
1. A flat, hard combustible (burnable) surface.
2. A raised wooden platform.
3. Four(4)cornersupports.(Example:Four(4)concretemasonry
blocks.) These supports must be positioned so they contact all
four (4) perimeter edges on the bottom of the unit.
Three (3) basic types of installations
1. Straight out (4" - 8" wall thickness).
2. Extended straight out (8" - 36" wall thickness).
3. Vertical installations.

Page 12 13369-1-0203
VERTICAL, 90°ELBOW WITH HORIZONTAL
TERMINATION
Figure 14
HORIZONTAL ONLY, STRAIGHT OUT THE BACK
WALL FIRESTOP
NO
PIPE
359mm TO 448mm
359mm TO 448mm
283mm TO 371mm
283mm TO 371mm
143mm TO 295mm
143mm TO 295mm
102mm TO 143mm
102mm TO 143mm
14 1/8"" TO 17 5/8"
14 1/8"" TO 17 5/8"
11 1/8"" TO 14 5/8"
11 1/8"" TO 14 5/8"
5 5/8"" TO 11 5/8"
5 5/8"" TO 11 5/8"
4" TO 5 5/8"
4" TO 5 5/8"
Figure 15
VERTICAL, 90°ELBOW TO HORIZONTAL OUT THE
WALL
WALL FIRESTOPWALL FIRESTOP
275mm TO 344mm275mm TO 344mm
240mm TO 268mm240mm TO 268mm
356mm TO 421mm356mm TO 421mm
14" TO 16 9/16"14" TO 16 9/16"
10 13/16" TO 13 9/16"10 13/16" TO 13 9/16"
9 7/16" TO 10 9/16"97/16" TO 10 9/16"
Figure 16
INSTALLATION (continued)

13369-1-0203 Page 13
CORNER INSTALLATION VERTICAL, 90°ELBOW TO
HORIZONTAL OUT THE WALL
Figure 17
CORNER INSTALLATION HORIZONTAL, 45°ELBOW
TO HORIZONTAL OUT THE WALL
WALL FIRESTOP
WALL FIRESTOP
194mm TO 270mm
194mm TO 270mm
102mm TO 191mm
102mm TO 191mm
7 5/8"" TO 10 5/8"
7 5/8"" TO 10 5/8"
4" TO 7 1/2"
4" TO 7 1/2"
"B"
Figure 18
Vertical Sidewall Application
Figure 19
Figure 20 and Chart 1 lists examples of possible venting systems
using one (1) 90°elbow. Eight (8) feet is listed as maximum
vertical vent run with 20 feet of maximum horizontal vent run.
Verticaldimensionsare based on centerlinetocenterline of pipe.
Horizontal dimensions are based on centerline of pipe to end of
termination.
SEE CHART FOR PERMISSIBLE "H" AND "V" DIMENSIONS
SEE CHART FOR PERMISSIBLE "H" AND "V" DIMENSIONS
Figure 20

Page 14 13369-1-0203
Figure 22
Figure 23
Positioning the Fireplace
Determine the exact position of the appliance so the direct vent
termination will be centered (if possible) between two (2) studs.
This will avoid any extra framing. All vent kit pipes should be
assembled on the unit after the unit is moved into the final
position.
CHART 1 (Figures 20 and 21)
Venting with One (1) 90°Elbow or Two (2) 90°Elbows
Total Vertical Total Horizontal
(With Fire Box) V H1or H1+ H2
4.5' minimum 3' maximum
4.5' minimum 4' maximum
5' minimum 8' maximum
6' minimum 12' maximum
7' minimum 15' maximum
8' minimum 20' maximum
25' maximum vertical
20' maximum horizontal run
Figure 21 and Chart 1 list examples of possible venting systems
using two (2) 90°elbows. V is listed as minimum vertical
dimensionsandH1+ H2 islistedastotal of maximum horizontal
dimensions. The maximum vertical and horizontal distances for
two (2) 90°elbows as shown in Figure 21 are 20 feet.
Attention:RefertoFigure10foradditionalventingrequirements.
SEE CHART FOR PERMISSIBLE "H" AND "V" DIMENSIONS
NOTE: H1 AND H2 MUST BE ADDED TOGETHER TO USE CHART
Figure 21
INSTALLATION (continued)
12 3/8"
10 3/8"
DVS-36 44 3/4" 114cm
DVS-42 46 3/4" 118cm
CENTER OF ELBOW
STRAIGHT OUT
DVS-30 37 5/8" ( 956mm)
CENTER OF ELBOW
STRAIGHT OUT

13369-1-0203 Page 15
Cutting the Hole (Figures 22 and 23)
After the fireplace has been positioned in its permanent location,
the hole through the exterior wall of the house can be cut. This
hole must be 10" high x 10" wide for DVS-30 or 12 3/8" high x
103/8"wideforDVS-36/42withitscenterlinedeterminedbythe
amount of vertical arise and horizontal run of the termination.
(See Figures 22 and 23) When locating the hole it must be noted
thatthebottomofthecapmustbe12"abovethegroundlevel,and
top of the cap must be no less than 18" below a combustible
projection, and no closer than 9" to any wall running parallel to
vent termination. (See Figure 24)
Figure 24
3'
(914 mm)
(914 mm)
20' (6.1 M)
20' (6.1 M)
MAX.
MAX.
8' (244 cm)
8' (244 cm)
TO BOTTOM
TO BOTTOM
OF UNIT
OF UNIT
PIPE STRAPS
PIPE STRAPS
EVERY 3' (91cm)
EVERY 3' (91cm)
Figure 25
MAXIMUM HORIZONTAL
RUN WITH NO VERTICAL
RISE AND 90°ELBOW
MAXIMUM
HORIZONTAL RUN
WITH MINIMUM
VERTICAL RISE AND
90°ELBOW

Page 16 13369-1-0203
Termination clearance for buildings with combustible and noncombustible exteriors.
Figure 26
Vertical Sidewall Installations
Important! Minimum clearance between vent pipes and combustible materials is three (3") (76mm) on top, and (1") (25mm) on bottom
and sides.
Important! When vent termination exits through foundation less than 20" below siding outcrop, the vent pipe must flush up with the
siding. SD-985 for DVS-30 or SD-1284 for DVS-36/42 termination cap must be used.
Information on Various Venting Routes and Components
Important: It is always best to locate the fireplace in such a way that minimizes the number of offsets and horizontal vent length.
Since it is very important that the venting system maintain its balance between the combustion air intake and the flue gas exhaust, certain
limitations as to vent configurations apply and must be strictly adhered to.
The graph showing the relationship between vertical and horizontal side wall venting will help to determine the various vent lengths
allowable.
The horizontal vent run refers to the total length of vent pipe from the flue collar of the fireplace to the face of the outer wall.
The maximum horizontal vent run is 20 feet (457 cm) when the vertical vent rise is 8 feet (244 cm) (See Figure 25)
Venting terminals shall not be recessed into wall or siding.

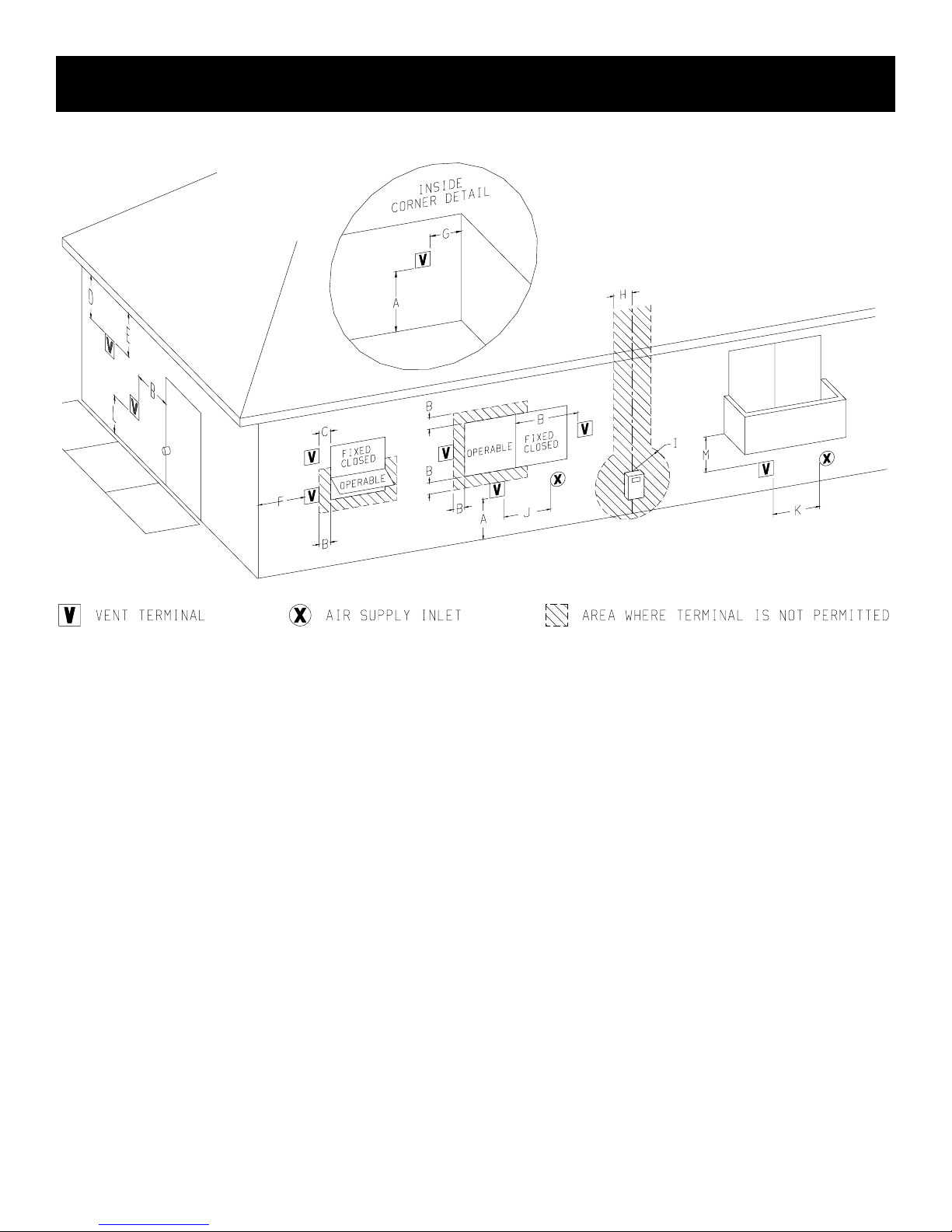

TERMINATION CLEARANCES

13369-1-0203 Page 17
Figure 27
A = *Clearanceabovegrade,veranda,porch, deckorbalcony
[*12 inches (30cm) minimum]
B = clearance to window or door that may be opened [*12
inches (30cm) minimum for appliances < 100,000 Btuh
(30kW)
36 inches (90cm) minimum for appliances > 100,000
Btuh (30kW)]
C = clearance to permanently closed window [minimum 12
inches (30cm) recommended to prevent condensation on
window]
D = vertical clearance to ventilated soffit located above the
terminalwithinahorizontaldistanceof18inches(46cm)
from the top of the terminal
E = clearancetounventilatedsoffit[12inches30cm)minimum]
F = clearance to outside corner [12 inches (30cm) minimum]
G = clearance to inside corner [9 inches (22.5cm) minimum]
H = *not to be installed above a meter/regulator assembly
within 3 feet (90cm) horizontally from the center-line of
the regulator
I = clearance to service regulator vent outlet [*6 feet (1.8m)
minimum]
J = clearancetonon-mechanicalair supplyinlettobuildingor
thecombustion airinlettoanyother appliance[*12inches
(30cm) minimum for appliances ≤100,000 Btuh (30 kW)
36inches(90cm)minimumforappliances>100,000Btuh
(30kW)]
K = clearance to a mechanical air supply inlet [* 6 feet (1.8m)
minimum]
L = †clearance above paved sidewalk or a paved driveway
located on public property [*7 feet (2.1m) minimum]
M= clearance under veranda, porch, deck, or balcony [*12
inches (30cm) minimum ¥]
† a vent shall not terminate directly above a sidewalk or
paved driveway which is located between two single
family dwellings and serves both dwellings*
¥ onlypermittedif veranda,porch,deck, orbalcony,is fully
open on a minimum of 2 sides beneath the floor*
* as specified in CGA B149 Installations Codes or ANSI
Z223.1. Note: Local Codes or Regulations may require
different clearances.
VENT CLEARANCES

Page 18 13369-1-0203
Installing Vent Components (Figure 28)
Begintheventsysteminstallationbyinstallingthefirstcomponent,
90°elbow to the starting collars or straight pipe on the top of the
appliance, then the straight pipe length and then horizontal or
vertical termination kit.
NOTE: All outer connection joints must be sealed with
aluminum tape or silicone sealant rated above 300°F/149°C.
The inner flue joints do not require any sealant.
All vent system components lock into place by sliding the
concentric pipe section with four (4) equally spaced interior
beadsontotheappliancecollarorpreviouslyinstalledcomponent
end with four (4) equally spaced indented sections. When the
internal beads of each starting outer pipe line up, rotate pipe
section clockwise 90°(approximately 3 inches). The vent pipe is
now locked together.
Continue adding components per the pre-planned vent system
configuration.Becertainthateachsucceedingventcomponentis
securely fitted and locked into the preceding component in the
vent system.
Figure 28
Venting Components
Simpson Dura-Vent
Part Number Part Number Description
DVS-30 DVS-36/DVS-42
SD-908B SD-1208 6" Pipe Length
SD-907B SD-1207 9" Pipe Length
SD-906B SD-1206 12" Pipe Length
SD-904B SD-1204 24" Pipe Length
SD-903B SD-1203 36" Pipe Length
SD-902B SD-1202 48" Pipe Length
SD-911B SD-1211 Adjustable Pipe Length 11 - 14 5/8"
SD-985 SD-1284 Horizontal Square Termination Cap
SD-950 SD-1250 Vinyl Siding Standoff
SD-945B SD-1245 45°Elbow
SD-990B SD-1290 90°Elbow
SD-947 SD-1249 Wall Firestop
SD-963 SD-1263 Ceiling Firestop
SD-943 SD-1243 Roof Flashing - 0/12 to 6/12 Roof Pitch
SD-953 SD-1253 Storm Collar
SD-991 SD-1291 High Wind Vertical Top
SD-981 SD-1281 36" Snorkel
SD-982 SD-1282 14" Firestop Snorkel
SD-988 SD-1288 Wall Strap
VENT SYSTEM IDENTIFICATION

13369-1-0203 Page 19

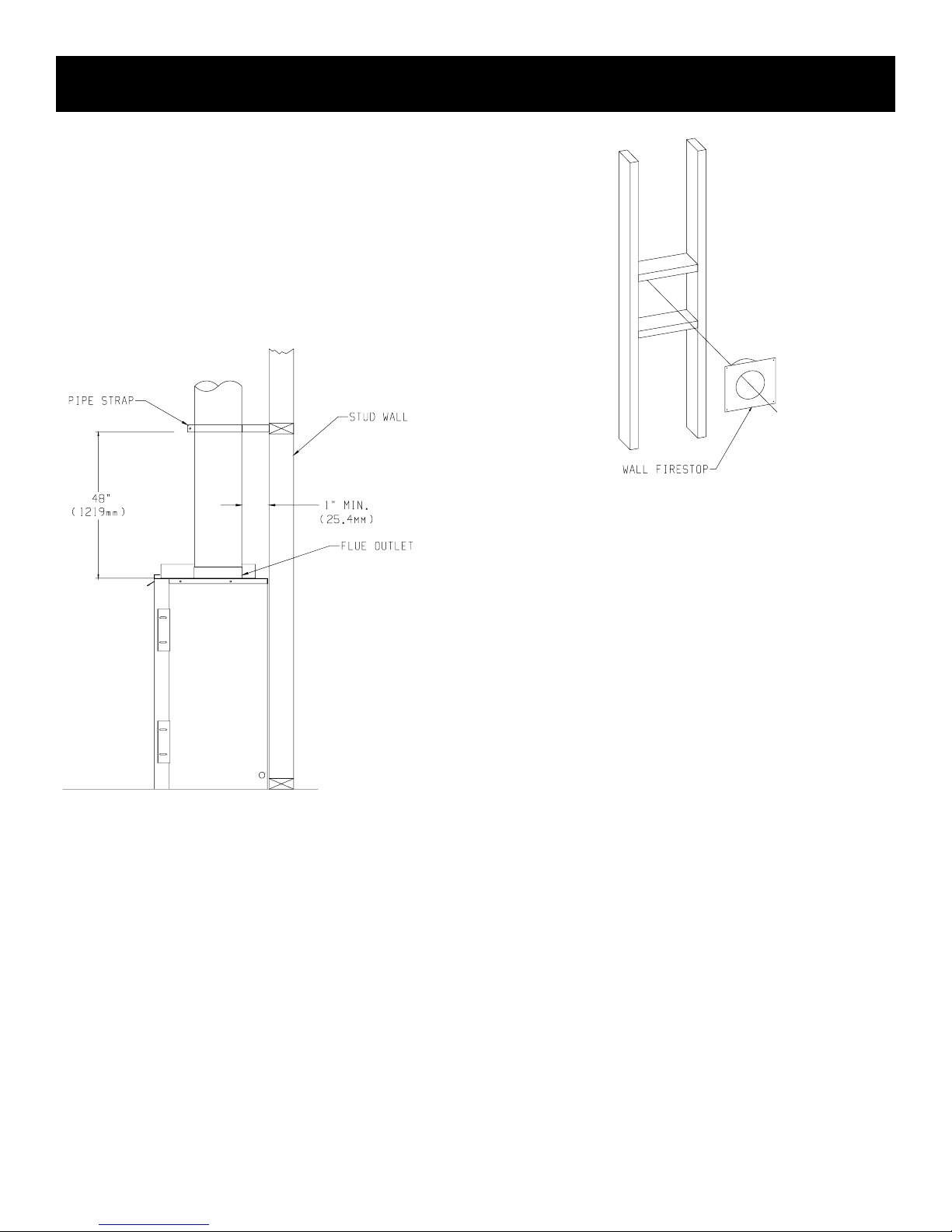

DVS-30 FRAMINGAND FINISHING
Installing Support Brackets (Figure 29)
A horizontal pipe support MUST BE used for each 3 feet of
horizontal run. The pipe supports should be placed around 8 inch
diameter pipe and nailed in place to framing members. There
MUST BE a 3 inch clearance to combustibles above 6 5/8 inch
diameter pipe and elbows and 1 inch clearance on both sides and
bottom of 6 5/8 inch pipe to combustibles on all horizontal pipe
sections and elbows.
Vertical runs of this vent systems must be supported every 4
feet above the appliance flue outlet by wall brackets attached
to the 6 5/8 inch vent pipe and secured with nails or screws
to structural framing members.
Figure 29
Installing Firestops (Figures 30, 31, 32 and 33)
Firestopsarerequiredforsafetywhenevertheventsystempasses
through an interior wall, an exterior wall, or a ceiling. These
firestopsactasafirebreakheatshieldandasameanstoinsurethat
minimum clearances are maintained to the vent system.
Horizontal runs in the vent system which pass through either
interiororexterior walls, requirethe use ofwallfirestops onboth
sides of the wall through which the vent passes.
Position the firestops on both sides of the 10 inch x 10 inch hole,
previously cut. Secure with nails or screws. The heat shields of
the firestops MUST BE placed towards the top of the hole.
Continue the vent run through the firestops. (Figure 30)
Figure 30
Vertical runs of this system which pass through ceilings require
the use of ONE (1) ceiling firestop at the hole in each ceiling
through which the vent passes.
Position a plumb bob directly over the center of the vertical vent
component and mark the ceiling to establish the center point of
the vent. Drill a hole or drive a nail through this center point and
check the floor above for any obstructions such as wiring or
plumbing runs. Reposition the appliance and vent system, if
necessary, to accommodate ceiling joists and/or obstructions.
Cut a 10 inch x 10 inch hole through the ceiling, using the center
pointpreviouslymarked.Frametheholewithframinglumberthe
same size as the ceiling joists. (See Figure 31) If the area above
theceilingisNOTanattic,positionandsecuretheceilingfirestop
(SD-963) on the ceiling side of the previously cut and framed
hole. (See Figure 32) If the area above the ceiling IS an attic,
position and secure the firestop on top of the previously framed
hole. (See Figure 33)
NOTE: Remove insulation from the framed area in the attic
before installing the firestop and/or vent pipes.

Page 20 13369-1-0203

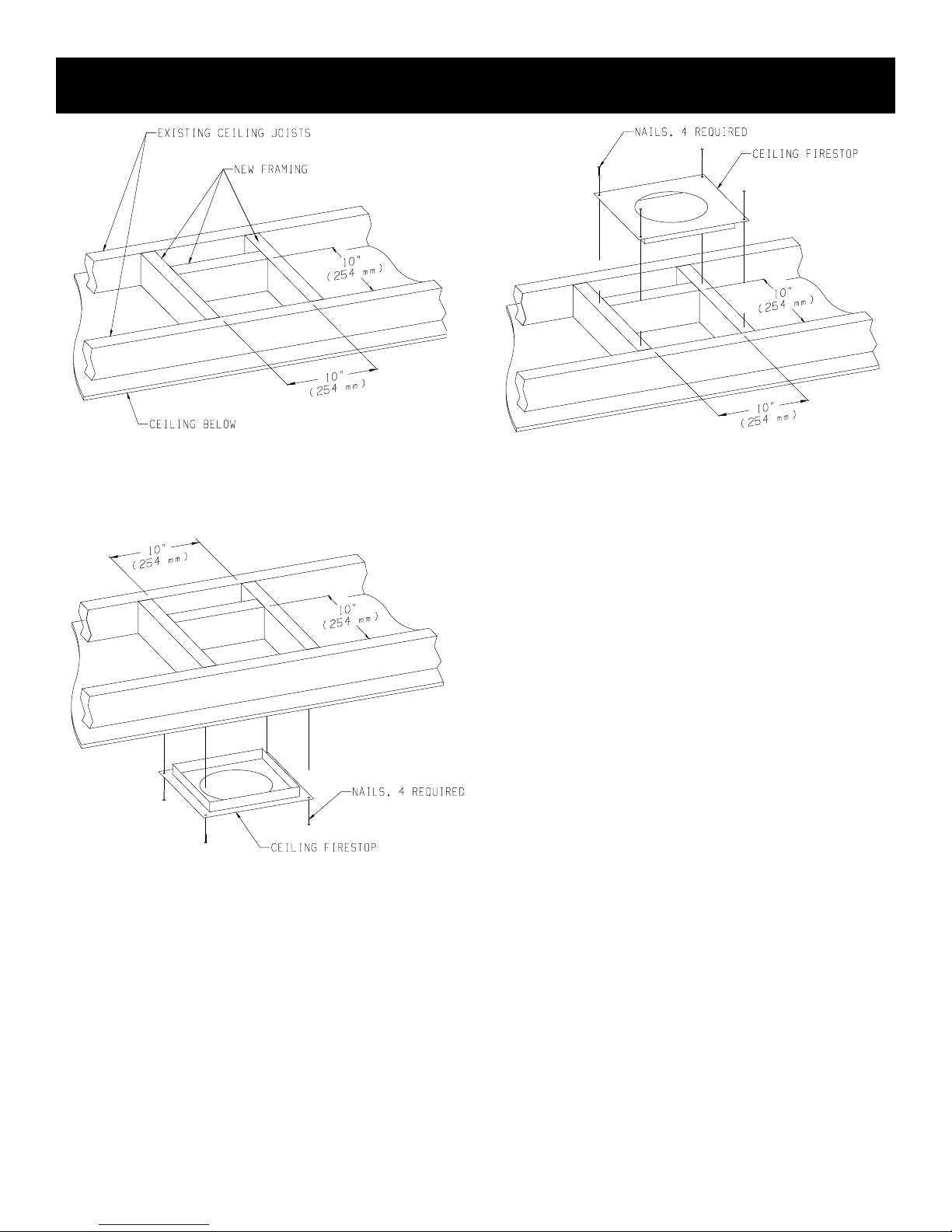

Figure 31
Figure 32
Figure 33
See "Horizontal Termination (for all Models)" Page 22 and
"Vertical Termination (for all Models)" Page 23-24.
DVS-30 FRAMINGAND FINISHING (continued)
