White Mountain Hearth DVTL27FP90N-1 Quick start guide

Page 1
INSTALLATION INSTRUCTIONS
AND OWNER’S MANUAL
DIRECT VENT ZERO CLEARANCE GAS
FIREPLACE MODEL SERIES:
MULTIFUNCTION REMOTE (MF)
DVTL27FP90(N,P)-1
UL FILE NO. MH45034
This appliance may be installed in
an aftermarket, permanently located,
manufactured home (USA only) or mobile
home, where not prohibited by state or local
codes.
This appliance is only for use with the type
of gas indicated on the rating plate. This
appliance is not convertible for use with other
gases, unless a certied kit is used.
WARNING
If not installed, operated and maintained in accordance
with the manufacturer’s instructions, this product could
expose you to substances in fuel or from fuel combus-
tion which can cause death or serious illness.
WARNING
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly
could result in serious injury, death or
property damage.
— Do not store or use gasoline or other am-
mable vapors and liquids in the vicinity of
this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do
not use any phone in your building.
• Leave the building immediately.
• Immediately call your gas supplier
from a neighbor’s phone. Follow the
gas supplier’s instructions.
• If you cannot reach your gas supplier,
call the re department.
— Installation and service must be per-
formed by a qualied installer, service
agency or the gas supplier.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
GAS-FIRED
HOT GLASS
DO NOT TOUCH
NEVER
WILL
CAUSE BURNS.
GLASS
UNTIL COOLED.
ALLOW CHILDREN
TO TOUCH GLASS.
WARNING
A barrier designed to reduce the risk of burns from the
hot viewing glass is provided with this appliance and shall
be installed for the protection of children and other at-risk
individuals.

33740-7-0515Page 2
BEFORE YOU START
1. Gas Supply see page 12.
2. Locating Fireplace see page 13.
3. Electrical Considerations see page 14.
4. Installation see pages 15-19.
5. VentSystemIdenticationseepage20.
6. Venting Fireplace see pages 21-27.
7. Framing and Finishing see pages 28-29.
8. InstallFiberPanelsseepage30.
9. Placing Glowing Embers see page 31
10. LogPlacementseepages32-41.
11. MultifunctionRemoteOperatinginstructionsseepages43-50.
12. Lighting Instructions see page 53.
13. Maintenance and Service see pages 56-59.
14. ReadtheImportantSafetyInformationseepages60-61.
15. Requirements for Massachusetts, please note the special requirements on page 62.
1
2
3
6
5
7
4
CARTON CONTENTS
INDEX
NUMBER DESCRIPTION PART NUMBER
QUANTITY
SUPPLIED
1Latch Tool 28932 1
2 Product Registration Card — 1
3 AA Battery R10592 4
4 AAA Battery R10600 3
5Wall Thimble Spacer 33331 1
6 Cover Plate, Battery Box R11783 1
7 Remote R11550 1

33740-7-0515 Page 3
TABLE OF CONTENTS
INTRODUCTION .............................................................................................................................................................................. 4
SPECIFICATIONS ............................................................................................................................................................................ 5
ACCESSORIES................................................................................................................................................................................ 6

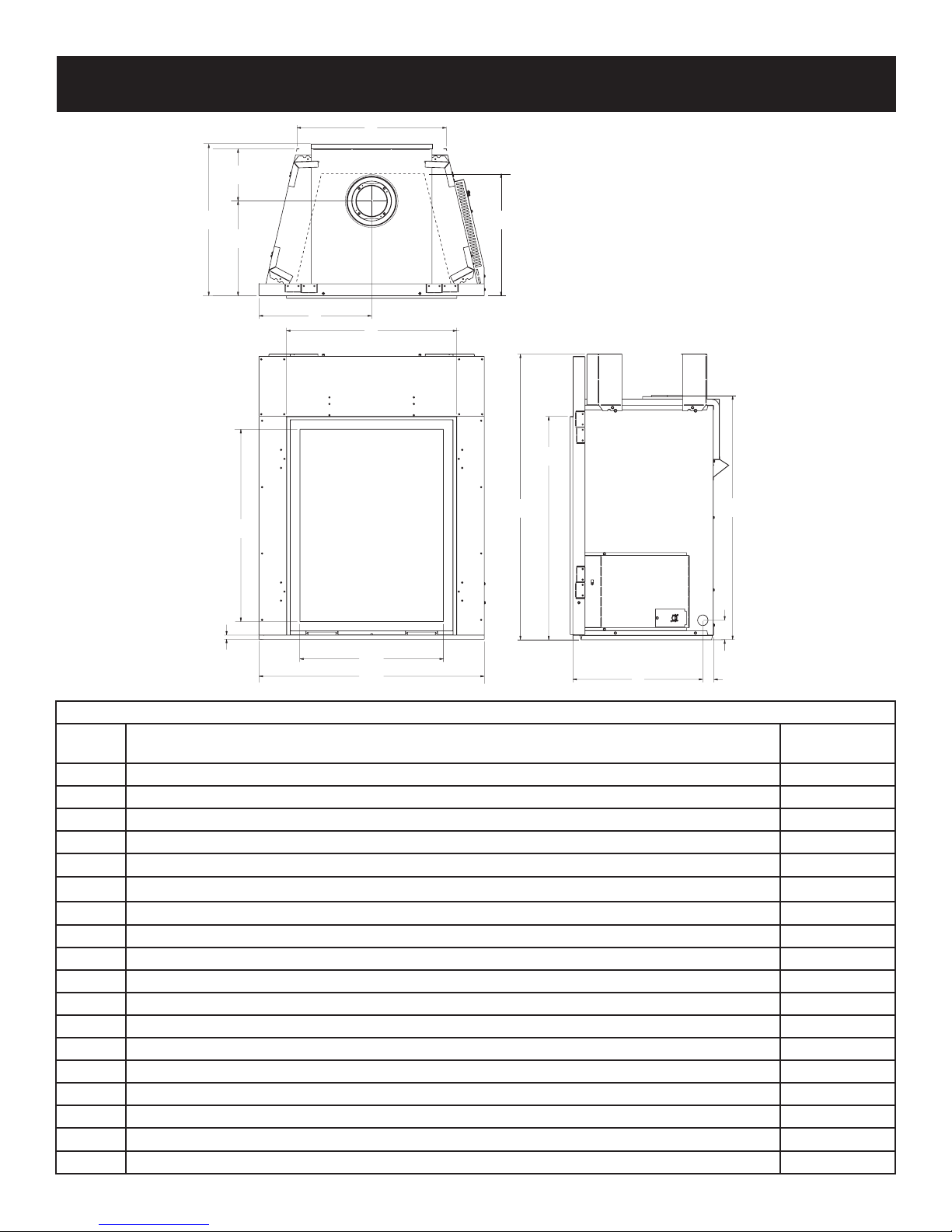

FIREPLACE DIMENSIONS .............................................................................................................................................................. 7
CLEARANCES............................................................................................................................................................................... 8-9

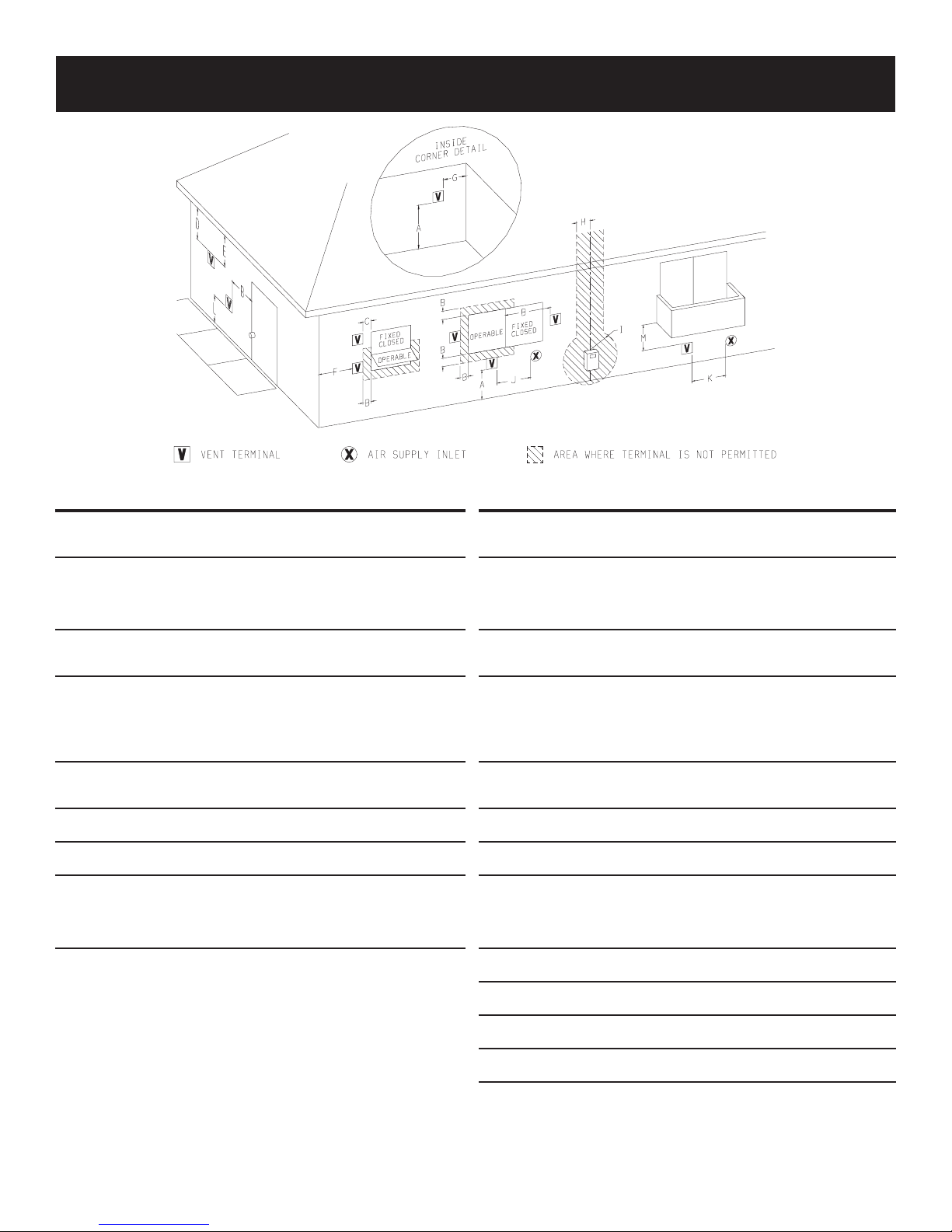

TERMINATION CLEARANCES ...................................................................................................................................................... 10
VENT TERMINAL CLEARANCES ...................................................................................................................................................11
GAS SUPPLY ............................................................................................................................................................................ 12-13
LOCATING FIREPLACE................................................................................................................................................................. 13
ELECTRICAL CONSIDERATIONS................................................................................................................................................. 14
INSTALLATION.......................................................................................................................................................................... 15-19
VENT SYSTEM IDENTIFICATION ................................................................................................................................................. 20
VENTING FIREPLACE.............................................................................................................................................................. 20-22
TOP VENT - HORIZONTAL TERMINATION................................................................................................................................... 23
TOP VENT - VERTICAL TERMINATION ........................................................................................................................................ 24
VERTICAL TERMINATION ........................................................................................................................................................ 25-27
FRAMING AND FINISHING....................................................................................................................................................... 28-29
FIBER PANEL PLACEMENT .......................................................................................................................................................... 30
GLOWING EMBERS ...................................................................................................................................................................... 31
LOG PLACEMENT .................................................................................................................................................................... 32-41

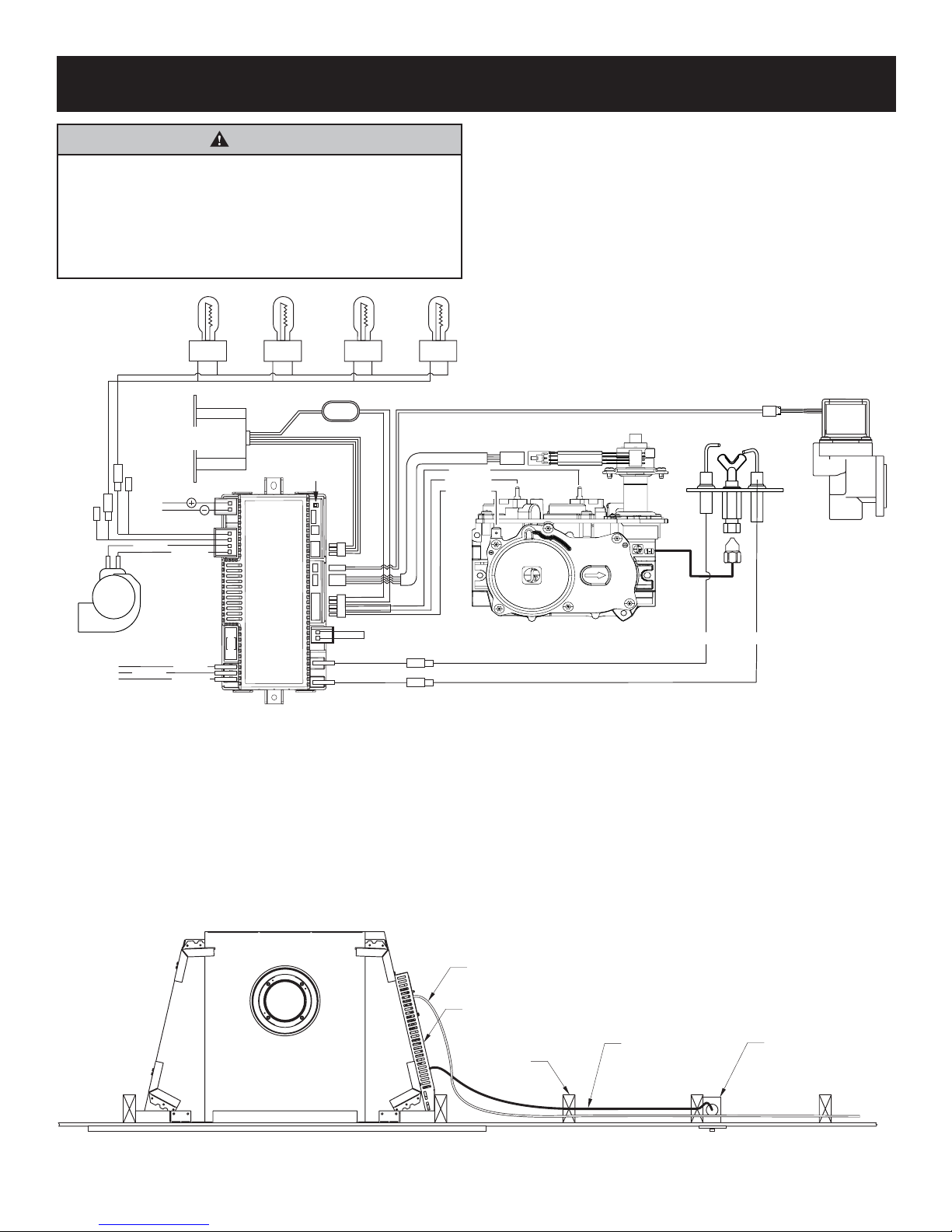

COMPONENT WIRING DIAGRAM ................................................................................................................................................ 42
MULTIFUNCTION REMOTE OPERATING INSTRUCTIONS ................................................................................................... 43-50
CONTROL SYSTEM TROUBLESHOOTING............................................................................................................................. 51-52
LIGHTING INSTRUCTIONS........................................................................................................................................................... 53
FIREPLACE PARTS VIEW ............................................................................................................................................................. 54
FIREPLACE PARTS LIST............................................................................................................................................................... 55
MAINTENANCE AND SERVICE................................................................................................................................................ 56-59
IMPORTANT SAFETY INFORMATION .......................................................................................................................................... 60
SAFETY INFORMATION FOR USERS OF LP GAS ...................................................................................................................... 61
REQUIREMENTS FOR MASSACHUSETTS ................................................................................................................................. 62
MASTER PARTS DISTRIBUTOR LIST .......................................................................................................................................... 63
HOW TO ORDER REPAIR PARTS ................................................................................................................................................ 63
WARRANTY.................................................................................................................................................................................... 64
SECTION PAGE

33740-7-0515Page 4
Instructions to Installer
1. Installer must leave instruction manual with owner after
installation.
2. Installermusthaveownerlloutandmailwarrantycardsupplied
withthereplace.
3. Installer should show owner how to start and operate the
replace.
This direct vent gas replace is designed to operate with all
combustion air being siphoned from the outside of the building
and all exhaust gases expelled to the outside of the building. The
information contained in this manual pertains to all models and gas
control systems unless otherwise noted.
Appliance Certication
WARNING
This unit is not for use with solid fuels.
ThisreplaceisdesigncertiedinaccordancewithAmerican
NationalStandardANSIZ21.50andbyUnderwritersLaboratories
as a Direct Vent Gas Fireplace and shall be installed according to
these instructions.
Consult your local building code agency, prior to installation, to ensure
compliance with local codes-including permits and inspections.
The replace, when installed, must be electrically grounded in
accordance with local codes or, in absence of local codes, with
the National Electric Code ANSI/NFPA 70, if an external electrical
source is utilized.
These models may be installed in a bedroom or bed-sitting room
in the U.S.A..
Qualied Installing Agency
Installation and replacement of gas piping, gas utilization equipment
or accessories and repair and servicing of equipment shall be
performedonlybyaqualiedagency.Theterm“qualiedagency”
meansanyindividual,rm,corporationorcompanywhicheitherin
person or through a representative is engaged in and is responsible for
(a) the installation or replacement of gas piping or (b) the connection,
installation, repair or servicing of equipment, who is experienced in
such work, familiar with all precautions required and has complied
with all the requirements of the authority having jurisdiction.
State of Massachusetts: The installation must be made
byalicensedplumberorgastterintheCommonwealthof
Massachusetts.
WARNING
ANY CHANGE TO THIS FIREPLACE OR ITS CONTROLS
CAN BE DANGEROUS.
Improperinstallationoruseofthereplacecancauseserious
injuryordeathfromre,burns,explosions,orcarbonmonoxide
poisoning.
WARNING
This appliance is equipped for natural gas or propane gas. Field
conversion is not permitted.
The installation must conform with local codes or, in the absence of
local codes, with the National Fuel Gas Code ANSI Z223.1/NFPA
54* Natural Gas and Propane Installation Code *Available from the
American National Standards Institute, Inc. 11 West 42nd St., New
York, N.Y. 10036.
Any alteration of the original design, installed other than as
shown in these instructions or use with a type of gas not
shown on the rating plate is the responsibility of the person
and company making the change.
Important
All correspondence should refer to complete Model Number, Serial
Number and type of gas.
High Altitude
Wheninstallingthisunit at an elevation above 2000 feet (in the
United States) it may be necessary to decrease the input rating by
changingthe existing burner oricetoasmaller size. Generally,
inputshouldbereduced4percentforeach1000feetabovesea
level. However, if the heating value of the gas has been reduced,
this general rule may not apply. Check with Empire Comfort Systems
forproperoricesizeidentication.
Preparation
Thisdirectventgasreplaceanditscomponentsaretestedand
safe when installed in accordance with this Installation Manual.
Reporttoyourdealeranypartsdamagedinshipment,specically
check glass condition. Do not install unit with damaged, incomplete,
or substitute parts. Read all instructions before starting installation
and follow these instructions carefully during installation to insure
maximumbenetandsafety.Failuretofollowthemwillvoidyour
warrantyandmaypresentarehazard.
The warranty will be voided by, and the warranter disclaims any
responsibility for the following actions:
• Installationofanydamagedreplaceorventsystemcomponent.
• Modicationofthereplaceordirectventsystem.
• InstallationotherthanasinstructedbyEmpireComfortSystems
Inc.
• Improperpositioningoflogsorembers.
• Installationand/oruseofanycomponentpartnotmanufactured
or approved by manufacturer.
INTRODUCTION

33740-7-0515 Page 5
SPECIFICATIONS
DVTL27FP92N
(NAT)
DVTL27FP92P
(LP)
InputBTU/HrMaximum 36,000 36,000
InputBTU/HrMinimum 11,500 11,000
KWH (Maximum) 10.55 10.55
KWH (Minimum) 3.37 3.22
Orice(Front) 1.90mm #57
Orice(Back) #43 1.45mm
Air Shutter Opening (Front) 1/4” Full Open
Air Shutter Opening (Back) 3/16” Full Open
Height without standoff 47-3/8” 47-3/8”
Width 37-3/8” 37-3/8”
Depth 24-3/8” 24-3/8”
Gas Inlet Shutoff Valve (pipe) 1/2NPT 1/2NPT
NOTE: Airshuttersettingsare factory minimum settings. Some venting congurations may require minorair shutter adjustments for
optimum performance.
GAS SUPPLY PRESSURES
GAS TYPE MAXIMUM MINIMUM MANIFOLD
NAT 14.0” 4.5” 3.5”
LP 14.0” 10.8” 10.0”

33740-7-0515Page 6
MODEL NUMBER DESCRIPTION
DF272NB Decorative Front - Beveled Window Frame, Brushed Nickel
DF274NB Decorative Front - Floating Front, Brushed Nickel
DF27CTBL DecorativeFront-“Cathedral”,HammeredBlackCopper
DF27PTBL DecorativeFront-“Portico”,HammeredBlack
DVFS27BL Fireplace Screen, Black
FBB12 Remote Operated, Variable Speed Blower Kit
DCA1ABL Decorative Forged Andirons
*
{
DVP27PKR PorcelainLiner,BlackReective
DVP27PMB Fiber Liner, Rustic Banded Brick
DVP27PWS Fiber Liner, Old World Stone
*A liner kit must be purchased and installed in order to operate the unit.
The following accessory parts can be obtained from your Empire Comfort Systems dealer. If you need additional information beyond what
yourdealercanfurnish,contactEmpireComfortSystemsInc.,918FreeburgAve.,Belleville,Illinois62220-2623.
ACCESSORIES
FIREPLACE BARRIER SCREENS
SCREEN MODEL DESCRIPTION FIREPLACE MODELS USED ON
DFQ272NB Beveled Window Frame with Barrier Screen DVTL27FP
DFQ274NB Floating Front Frame with Barrier Screen DVTL27FP
DFQ27BL Barrier Front DVTL27FP
DVFQ27CTBL Fireplace Screen DVTL27FP
DVFQ27PTBL Fireplace Screen DVTL27FP
Note:Arescreenisrequiredforoperationoftheappliance,butaresoldseparately.Followtheinstructionsthatcomewithyourrescreen
for proper installation.

33740-7-0515 Page 7
FIREPLACE DIMENSIONS
C
G
P
E
I
R
K
N
O
BLM
J
F
K
Q
A
D
DIMENSIONS (in inches)
INDEX
LETTER DIMENSION DESCRIPTION DVTL27
AThemaximumheightofreboxface(excludingstandoffs) 47-3/8”
BThemaximumwidthofthereboxface(excludingnailinganges) 37-3/8”
CThemaximumdepthoftherebox 26”
DTheheightofthereboxopening 37”
EThewidthofthereboxopening 28-1/4”
FTheinteriordepthoftherebox 20-1/2”
GTherearexteriorwidthoftherebox 23-3/4”
HTheheighttothereboxstandoffs N/A
I Width from the left side of the box to the centerline of vent 18-11/16”
J Depth from back of box to centerline of top vent 8-11/16”
K Height from the bottom of the box to the gas line opening 3-1/4”
L Depth from the front of the box to gas line opening 22”
M Depth from rear of box to gas line opening 1-3/4”
N Glass frame opening height 31-7/8”
O Glass frame opening width 23-3/4”
P Depth from front of box to centerline of vent 15-3/4”
QDistancefromoortoreplaceopening 3/4”
RHeightfromoortoventcollar 40-1/4”

33740-7-0515Page 8
CLEARANCES
CLEARANCE TO COMBUSTIBLES
Back 2-3/4"
Side 2-3/4”
Floor 0"
Top Framing Edge 0"
NOTE A: See Figure 3 for maximum mantel depth and minimum
height above unit.
Figure 1
Television Considerations
Installingatelevisionaboveareplacehasbecomeincreasingly
popular;however,theareaaboveanyreplacegetshotandmost
TV manufacturers recommend against placing their products near
a heat source.
Ifyouinstallatelevisionabovethisreplace,EmpireComfortSys-
tems accepts no responsibility for damage or injuries. Follow the
television manufacturer’s installation instructions, including any
recommendations regarding proximity to heat sources.
Ifyouhave aTVaboveyourreplace,turnoffthereplaceand
let it cool completely before servicing or touching any buttons on
the TV.
6" FROM FACE OPENING
TO COMBUSTIBLES, BOTH SIDES
2-3/4”
3/4"
2-3/4"
6"
NON-COMBUSTIBLE FINISH MATERIAL
MUST COVER THE SURFACE OF THE
FIREPLACE FACE
FRAMING HEADER
DRYWALL
SURFACE OF FACE
COMBUSTIBLES
ALLOWED
COMBUSTIBLES
ALLOWED
COMBUSTIBLES
ALLOWED
26”
FROM SURFACE
OF FACE TO
COMBUSTIBLES
2-3/4”
Figure 2

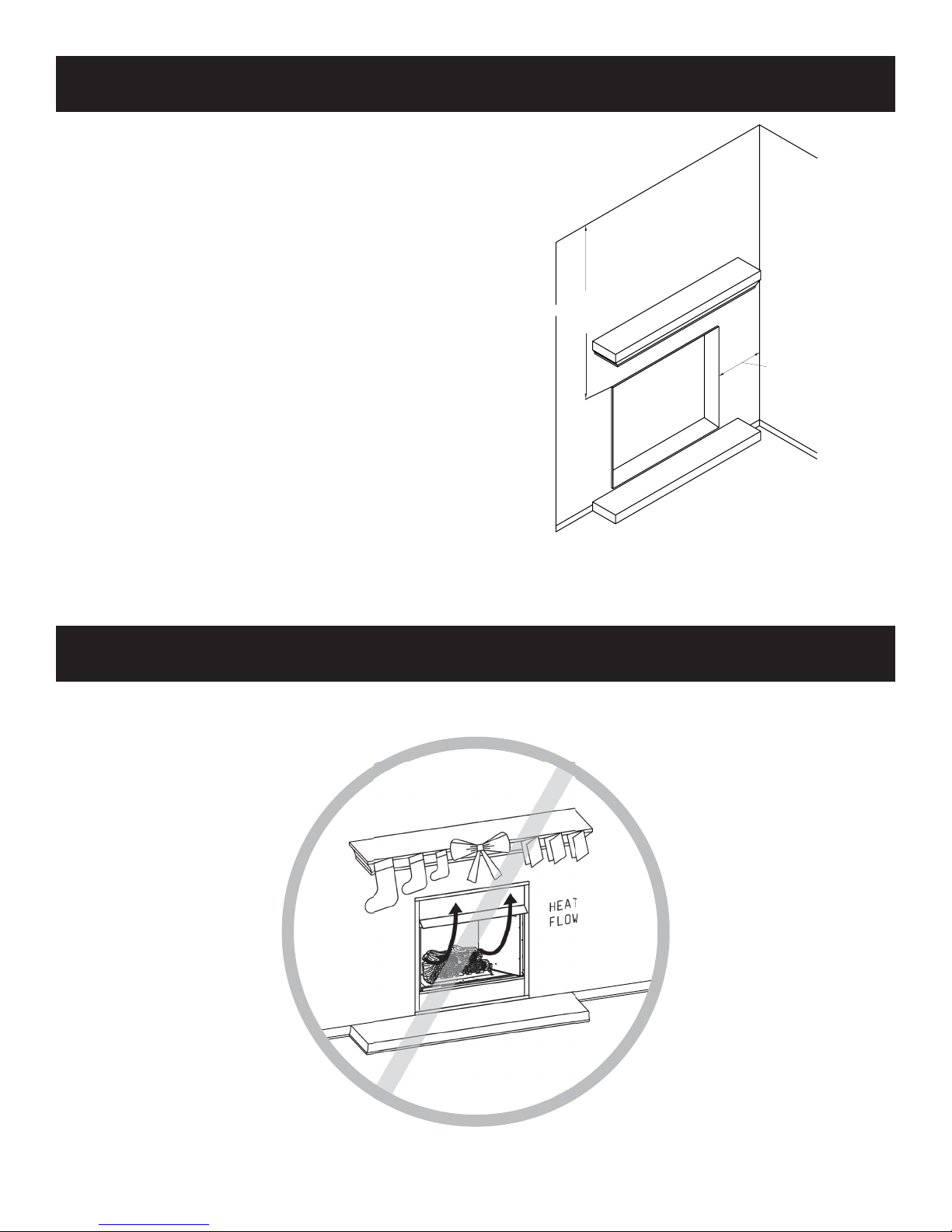

Mantel Chart
MANTEL
COMBUSTIBLE TRIM
AND MANTELS
ALLOWED IN
SHADED AREA
OPENING OF
FIREPLACE
G
B
C
D
E
A
A
F
NON-
COMBUSTIBLE
FINISH
MATERIAL
MUST COVER
THE SURFACE
OF THE
FIREPLACE
FACE
INDEX
LETTER
DISTANCE FROM
FIREPLACE OPENING
DISTANCE FROM
FINISHED WALL
A28” 12”
B26-3/4” 8”
C24” 6”
D22” 4-1/2”
E19” 2-1/4”
F18” 1-1/2”
G16” 0”
Figure 3

33740-7-0515 Page 9
Clearances
Clearancefromtopfrontedgeofreplacetoceilingis40inches.
Clearancefromsideofreplacetoadjacentsidewallis6inches.
CLEARANCES
Nogreetingcards,stockingsorornamentationofanytypeshouldbeplacedonorattachedtothereplace.Theowofheatoutofthe
appliance can ignite combustibles.
Figure 5
COMBUSTIBLE MATERIAL
▼
6”
TO FIREPLACE
OPENING
40”
TO FIREPLACE
OPENING
Figure 4

33740-7-0515Page10
Termination clearance for buildings with combustible and noncombustible exteriors.
Vertical Sidewall Installations
Important! Minimum clearance between vent pipes and combustible
materials is 3 inch on top, and 1 inch (on bottom and sides).
Important! When vent termination exits through foundation less
than20inches below siding outcrop, the vent pipe must extend
outwardsothatthehorizontalventterminationislocatedushto,
or beyond the outcrop siding.
Information on Various Venting Routes and Components
Important:Itisalwaysbesttolocatethereplaceinsuchaway
that minimizes the number of offsets and horizontal vent length.
Since it is very important that the venting system maintain its balance
betweenthecombustionairintakeandtheuegasexhaust,certain
limitations as to vent congurations apply and must be strictly
adhered to.
Figure 6
TERMINATION CLEARANCES
The graph showing the relationship between vertical and horizontal
side wall venting will help to determine the various vent lengths
allowable.
The horizontal vent run refers to the total length of vent pipe from
theuecollarofthereplacetothefaceoftheouterwall.
Venting termination shall not be recessed into wall or siding.

33740-7-0515 Page 11
VENT TERMINATION CLEARANCES
Canadian Installations US Installations Canadian Installations US Installations
A= Clearance above grade,
veranda, porch, deck, or
balcony
12in(30cm)minimum 12in(30cm)minimum I= Clearance to service
regulator vent outlet 3 ft (91 cm) minimum 6 ft (183 cm) minimum
B= Clearance to window or
door that may be open
12in(30cm)minimum
forappliances>10,000
Btuh(3kW)and≤
100,000Btuh(30kW),
9 in (23 cm) minimum
forappliances>10,000
Btuh(3kW)and≤
50,000Btuh(15kW)
J= Clearance to nonme-
chanical air supply
inlet to building or the
combustion air inlet to
any other appliance
12in(30cm)minimumfor
appliances>10,000Btuh
(3kW)and≤100,000Btuh
(30kW)
9 in (23 cm) minimum
for appliances >
10,000Btuh(3kW)
and≤50,000Btuh
(15 kW)
C= Clearance to perma-
nently closed window 12in(30cm)minimum 12in(30cm)minimum K= Clearance to a mechani- cal air supply inlet 6 ft (1.83 m) minimum
3 ft (91 cm) minimum
aboveifwithin10ft
horizontally
D= Vertical clearance
ventilatedsoftlocated
above the terminal within
a horizontal distance of 2
feet (61 cm) from the cen-
ter line of the terminal
18 in (45 cm) minimum 18 in (45 cm) minimum
L= Clearance above paved
sidewalk or paved drive-
way located on public
property
7 ft (2.13 m) minimum † 7 ft (2.13 m) minimum
E= Clearance to unventi-
latedsoft 12in(30cm)minimum 12in(30cm)minimum
M= Clearance under
veranda, porch deck, or
balcony
12in(30cm)minimum‡ 12(30cm)inches
minimum
F= Clearance to outside
corner Seepage10 Seepage10 1In accordance with the current CSA B149.1, Natural Gas and Propane Instal- lation Code
G= Clearance inside corner Seepage10 Seepage10 2InAccordancewiththecurrentANSIZ223.1/NFPA54,NationalFuelGas
Code
H= Clearance to each side
of center line extended
abovemeter/regulator
assembly
3 ft (91 cm) minimum
within a height 15 ft
(4.5 m) above the
meter/regulator
assembly
3 ft (91 cm) minimum † A vent shall not terminate directly above a sidewalk or paved driveway that is
located between two single family dwellings and serves both dwellings
‡Permitted only if veranda,, porch, deck, or balcony is fully open on a minimum
oftwosidesbeneaththeoor.
*ForclearancesnotspeciedinANSIZ223.1/NFPA54orCSAB149.1,oneof
the following shall be indicated:
a) A minimum clearance value determined by testing in accordance with section
2.23.5, or;
b) Areferencetothefollowingfootnote:“Clearanceinaccordancewithlocal
installationcodesandtherequirementsofthegassupplier.”
Figure 7

33740-7-0515Page 12
GAS SUPPLY
The gas pipeline can be brought in through the right side of the
appliance only. Consult the current National Fuel Gas Code, ANSI
Z223.1 installation code.
RECOMMENDED GAS PIPE DIAMETER
PIPE
LENGTH
SCHEDULE40PIPE
INSIDE DIAMETER
TUBING, TYPE L
OUTSIDE DIAMETER
NAT LP NAT LP
0-10feet 1/2” 3/8” 1/2” 3/8”
10-40feet 1/2” 1/2” 5/8” 1/2”
40-100feet 1/2” 1/2” 3/4” 1/2”
100-150feet 3/4” 1/2” 7/8” 3/4”
NOTE:Neveruseplasticpipe.Checktoconrmwhetheryour
local codes allow copper tubing or galvanized.
NOTE: Since some municipalities have additional local codes, it
is always best to consult your local authority and installation code.
The use of the following gas connectors is recommended:
— ANSI Z21.24Appliance Connectors of Corrugated Metal Tubing
and Fittings.
— ANSI Z21.45 Assembled Flexible Appliance Connectors of
Other Than All-Metal Construction
The above connectors may be used if acceptable by the authority
having jurisdiction. The state of Massachusetts requires that a
exibleapplianceconnectorcannotexceedthreefeetinlength.
Figure 8
Access to and positioning of the gas pipeline is shown in Figures
9,10,and11.
Figure 9
Figure 10
Figure 11
GAS SUPPLY PRESSURE (INCHES W.C.)
MINIMUM NORMAL MAXIMUM
Natural Gas 4.5" 7.0" 14.0"
LP (Propane) 10.8" 11.0" 14.0"
Manifold Pressure (inches w.c.)
Normal (HI)
Natural Gas 3.5"
LP (Propane) 10.0"

33740-7-0515 Page 13
Figure 12
NOTE: Island and room divider installation is possible as long as
thehorizontalportionoftheventsystemdoesnotexceed20feet
with a minimum vertical run of 8 feet (measured from bottom of
appliance). See details in Venting Section.
NOTE: When installing this appliance against exterior wall, insulate
to applicable insulation codes.
LOCATING FIREPLACE
When you install your Direct Vent Fireplace in room divider or Flat
on wall corner positions, a minimum of 6 inches clearance must
bemaintainedfromtheperpendicularwalltothereplaceopening.
GAS SUPPLY
Installing a New Main Gas Cock (Check Local Code)
Each appliance should have its own manual gas cock.
A manual main gas cock should be located in the vicinity of the unit.
Where none exists, or where its size or location is not adequate,
contact your local authorized installer for installation or relocation.
Compounds used on threaded joints of gas piping shall be resistant
totheactionofliqueedpetroleumgases.Thegaslinesmustbe
checked for leaks by the installer. This should be done with a soap
solution watching for bubbles on all exposed connections, and if
unexposed, a pressure test should be made.
Never use an exposed ame to check for leaks. Appliance must
be disconnected from piping at inlet of control valve and pipe
capped or plugged for pressure test. Never pressure test with
appliance connected; control valve will sustain damage!
NOTE: Whenusingcopperorexconnectoruse,onlyapproved
ttings.
The appliance and its individual shut off valve must be disconnected
from supply piping system during any pressure testing of that system
attestpressuresinexcessof1/2psig(3.5kPa).
The appliance must be isolated from the gas supply piping system
by closing its individual manual shut off valve during any pressure
testing of the gas supply piping system at test pressures equal to
orlessthan1/2psig(3.5kPa).
CAUTION
Ifoneoftheproceduresresultsinpressuresinexcessof1/2psig
(14”w.c.)(3.5kPa)onthereplacegasvalve,itwillresultina
hazardous condition.
Checking Manifold Pressures
Both Propane and Natural gas valves have a built-in pressure
regulator in the gas valve. Natural gas models will have a manifold
pressureofapproximately3.5”w.c.(.871kPa)atthevalveoutlet
withtheinletpressure to the valve from a minimum of 4.5” w.c.
(1.120kPa)forthepurposeofinputadjustmenttoamaximumof
14.0”w.c.(3.484kPa).Propanegasmodelswillhaveamanifold
pressure approximately 10.0” w.c. (2.49kPa) at the valve outlet
withtheinletpressuretothevalvefromaminimumof10.8”w.c.
(2.68 kPa) for the purpose of input adjustment to a maximum of
14.0”w.c.(3.484kPa).

33740-7-0515Page 14
ELECTRICAL CONSIDERATIONS
CAUTION
Allwiringshouldbedonebyaqualiedelectricianandshallbe
in compliance with all local, city and state building codes. Before
making the electrical connection, make sure the main power
supply is disconnected. The appliance, when installed, must be
electrically grounded in accordance with local codes, or in the
absenceoflocalcodes,withtheNationalElectricalCodeANSI/
NFPA70(LatestEdition).
ORANGE
PILOT
GAS CONTROL VALVE
ORANGE
GREEN
YELLOW
WHITE
BLACK
WHITE
OPTIONAL
BLOWER
FUSE
BLACK L
N
G
WHITE GREEN
TO JUNCTION
BOX
AUX.
LOOP
RECEIVER
MODULE
SPLIT FLOW SOLENOID
SLEEVE
USER INTERFACE/
BATTERY HOLDER
LEARN
BUTTON
IGNITOR
FLAME SENSOR
3.15
AMP
Theuserinterface/batteryholdermustbemountedwithinadistance
allowed by the attached 12 foot harness. As shipped, this harness is
already fed through a strain relief on the bottom of the component
accessboxandisattachedtotheUserInterface/BatteryHolder.
NOTE: If an auxiliary device is to be used, its wiring may be fed
through the junction box strain relief. Auxiliary device amperage
limit is 5 amps.
NOTE: A one inch diameter hole should be use to pass wiring through
studs.
VERTICAL
FRAMING
MEMBER
USER INTERFACE
HARNESS
USER INTERFACE/
BATTERY HOLDER
MUST BE INSTALLED
INTO WALL
JUNCTION
BOX. (ORANGE LOW-
VOLTAGE BOX
RECOMMENDED.)
COMPONENT
ACCESS BOX
ELECTRICAL POWER TO UNIT
JUNCTION BOX / CONTROL MODULE
Figure 13
Figure 14
A factory installed junction box is located on the lower right side of
thereplace.Wiringmustbefedtothejunctionboxandattached
with wire nuts to the control module power leads already fed into
the junction box.
Attach black to black and white to white. The ground wire should
be attached to the green control module lead.

33740-7-0515 Page 15
INSTALLATION
Framing and Finishing
CAUTION
MEASURE FIREPLACE DIMENSIONS AND VERIFY FRAMING
METHODS, AND WALL COVERING DETAILS BEFORE
FRAMING CONSTRUCTION BEGINS.
1. Choose unit location.
2. Frameinreplacewithaheaderacrossthetop.
NOTE:Fireplaceframingcanbebuiltbeforeorafterthereplace
is set in place. Framing should be positioned to accommodate
wallcoveringandreplacefacingmaterial.Thereplaceframing
should be constructed of 2 x 4 lumber. The framing headers
mayrestonthereplacestandoffs.RefertoFigures 15 and
16 for minimum framing dimensions.
NOTE: When installing this unit against exterior wall, insulate to
applicable insulation codes.
3. Remove two screws which are accessed through the clearance
holes in the rear heat shield. See Figure 17. Hand bend the
rear stand-off as shown in Figure 18 and Figure 19. Replace
the two screws previously removed to secure stand-off to unit.
3. Attachreplacetoframeusingnailingange.Presetdepthto
suitfacingmaterial(adjustableto1/2inchor5/8inchdepths).
See Figures 20 to 22.
*Adjustaccordinglyifchaseisnishedwithdrywallorothermaterial.
Figure 15
Figure 16
Figure 17

33740-7-0515Page 16
INSTALLATION
Figure 18
Figure 19
Figure 20
Figure 21

33740-7-0515 Page 17
Figure 22

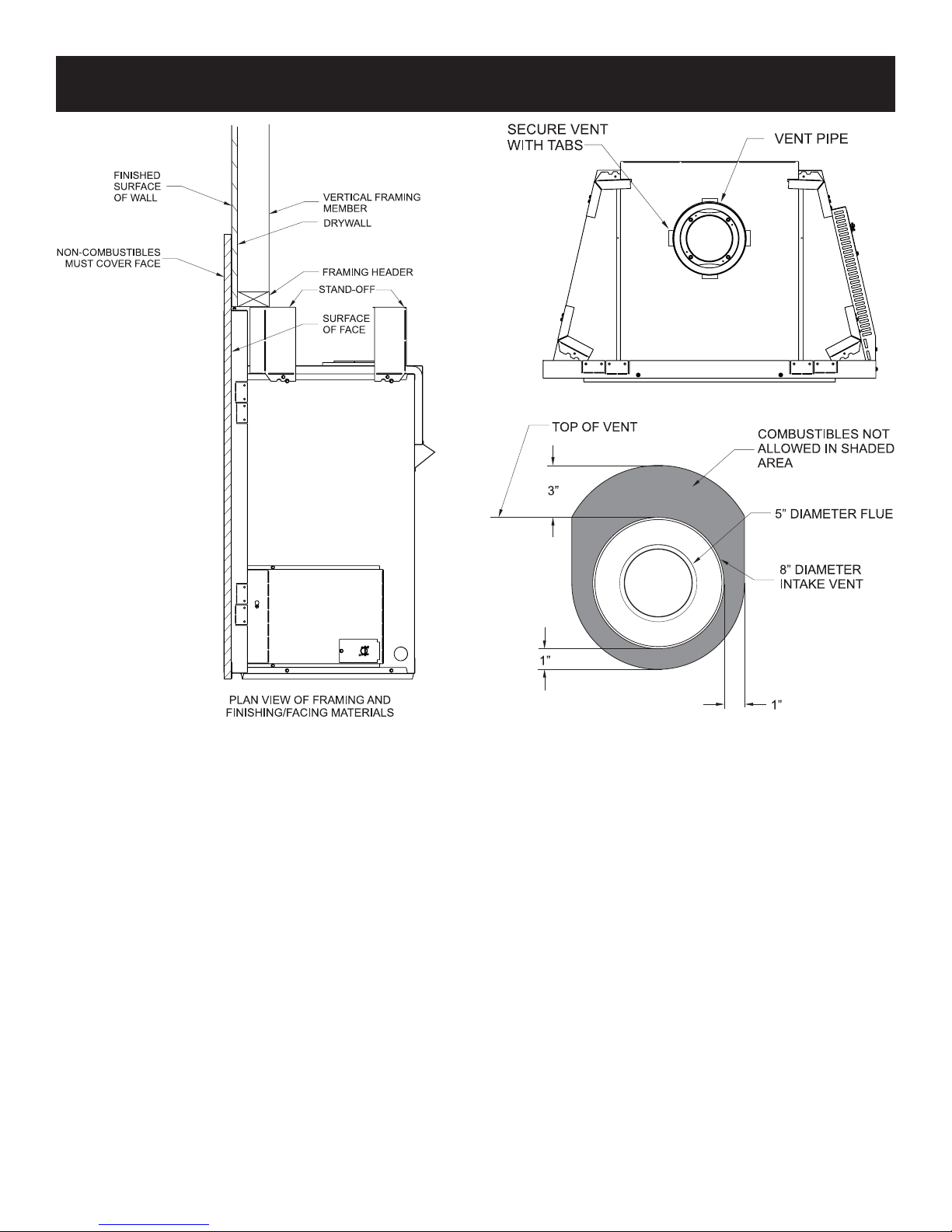

Vent Pipe Clearance
Note: Maintain all clearances to combustibles as shown in
Figures 1 and 2 on page 8.
For horizontal vent, maintain a minimum 1 inch clearance to
the bottom and sides of the vent, and 3 inches of clearance to
combustibles above the vent pipe. See Figure 24.
INSTALLATION (continued)
Figure 23
HORIZONTAL VENT CLEARANCES
Figure 24

33740-7-0515Page 18
INSTALLATION (continued)
Vent Runs
Inplanningtheinstallationforthereplace,itisnecessarytoinstall
certain components before the appliance is completely positioned
and installed. These include the direct vent system, gas piping for
the appliance and the electrical wiring.
The appliance can be mounted on any of the following surfaces:
1. Aat,hardsurface
2. A raised wooden platform
3. Four corner supports (Example: Four concrete masonry blocks.)
These supports must be positioned adequate is made with
bottom standoffs). See local codes.
Note For Horizontal Vent Runs (Figure 25):
Aspecicwallthimble(seepartslistpage55)mustbeused
for horizontal vent installations through combustible wall.
Figure 25
VERTICAL, 90° ELBOW WITH HORIZONTAL TERMINATION
(12 inches minimum vertical rise shown)
Figure 26

33740-7-0515 Page 19
INSTALLATION (continued)

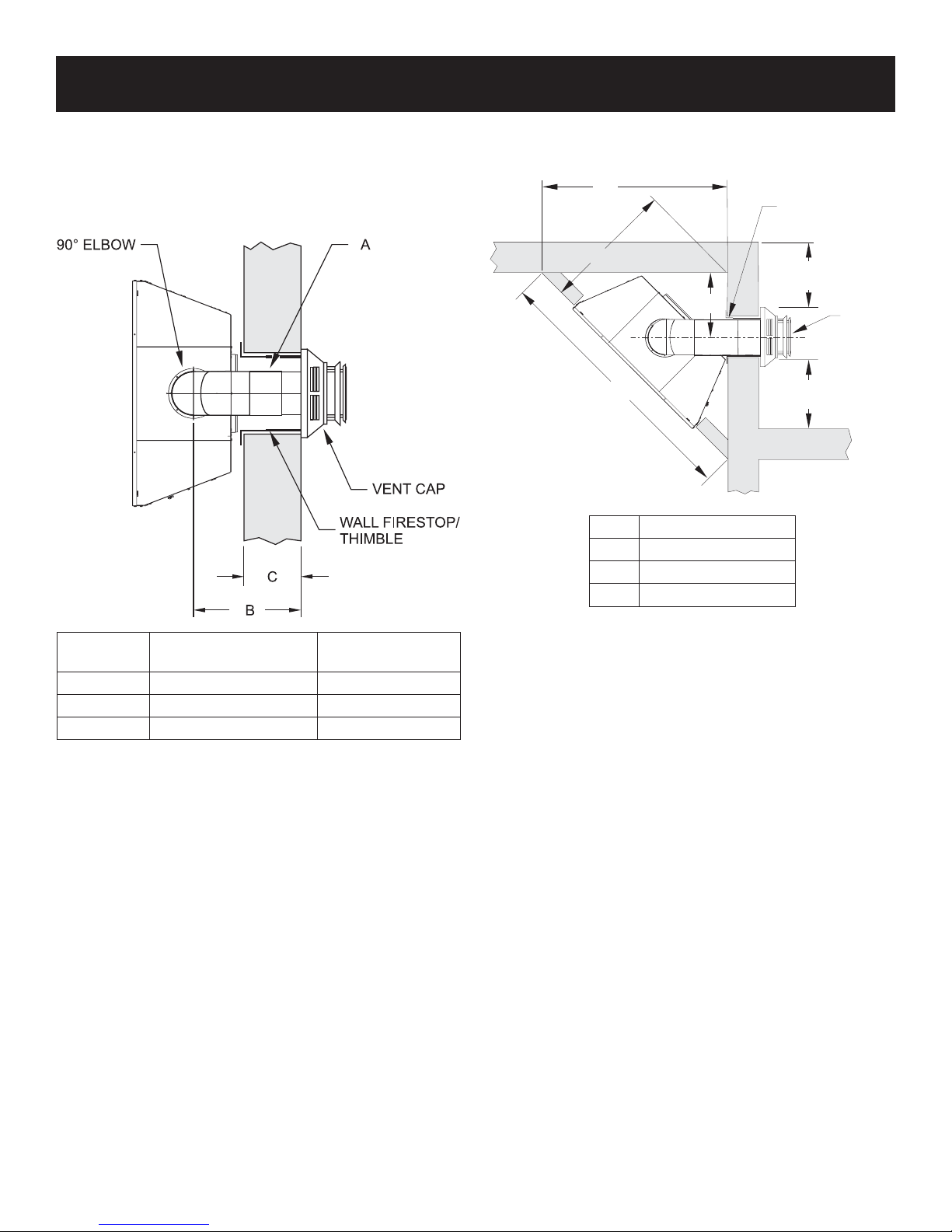

VERTICAL, 90°ELBOW TO HORIZONTAL OUT THE WALL
(12 inches minimum rise before elbow)
NOTE: A“B”dimensiongreaterthan18incheswillrequirea
vertical rise before the elbow that is greater than 12 inches. See
Venting graph on page 22.
PIPE
LENGTH (A)
VENT TO EXTERIOR
WALL (B)
WALL
THICKNESS (C)
6” 15”to16-1/2” 4-3/4”to6-1/4”
9” 18”to19-1/2” 7-3/4”to9-1/4”
12” 21”to22-1/2” 10-3/4”to12-1/4”
Figure 27
CORNER INSTALLATION - VERTICAL, 90°ELBOW TO
HORIZONTAL OUT THE WALL
WALL FIRESTOP/
THIMBLE
VENT
CAP
6”
MINIMUM
9”
MINIMUM
D
B
A
C
A52-1/2”
B37-1/16”
C15-1/16”
D74-1/8”
Figure 28
Note: Ahorizontal vent with the minimum required vertical rise (using
a 12 inch section of vent before the elbow) will use a maximum 9
inch section of horizontal vent before the termination.

33740-7-0515Page20
Begin the vent system installation by selecting the type of venting
to be installed and the path that it will take. Verify that clearances
are met throughout the path of the venting system.
Determine how the vent system will be terminated out the side of
the house or through the roof. Verify clearances for the termination.
Whenselectingaventsystemforusewiththereplace,refertothe
“VentFireplace”sectioninthismanualtodeterminewhatsystems
are acceptable. Check all clearances and venting components.
Identifyproblemsexistingintheventsystem,ifany.Usepages20
to 27 for venting to eliminate issues after installation. Check pipe
diameteronventsystemandreplacetoverifythesizeisthesame.
NOTICE: All outer connection joints must be sealed with
aluminum tape, screws or silicone sealant rated above
300°F/149°C. The inner ue joints do not require any sealant.
Figure 29
FLASHING
STORM
COLLAR
VERTICAL
TERMINATION
(THREE 90°
ELBOWS MAX)
WALL
THIMBLE
HORIZONTAL
TERMINATION
(THREE 90°
ELBOWS MAX)
90° ELBOW
OR
45° ELBOW
90° ELBOW
CEILING
FIRE STOP
WALL STRAP
PIPE LENGTH
VENT SYSTEM IDENTIFICATION

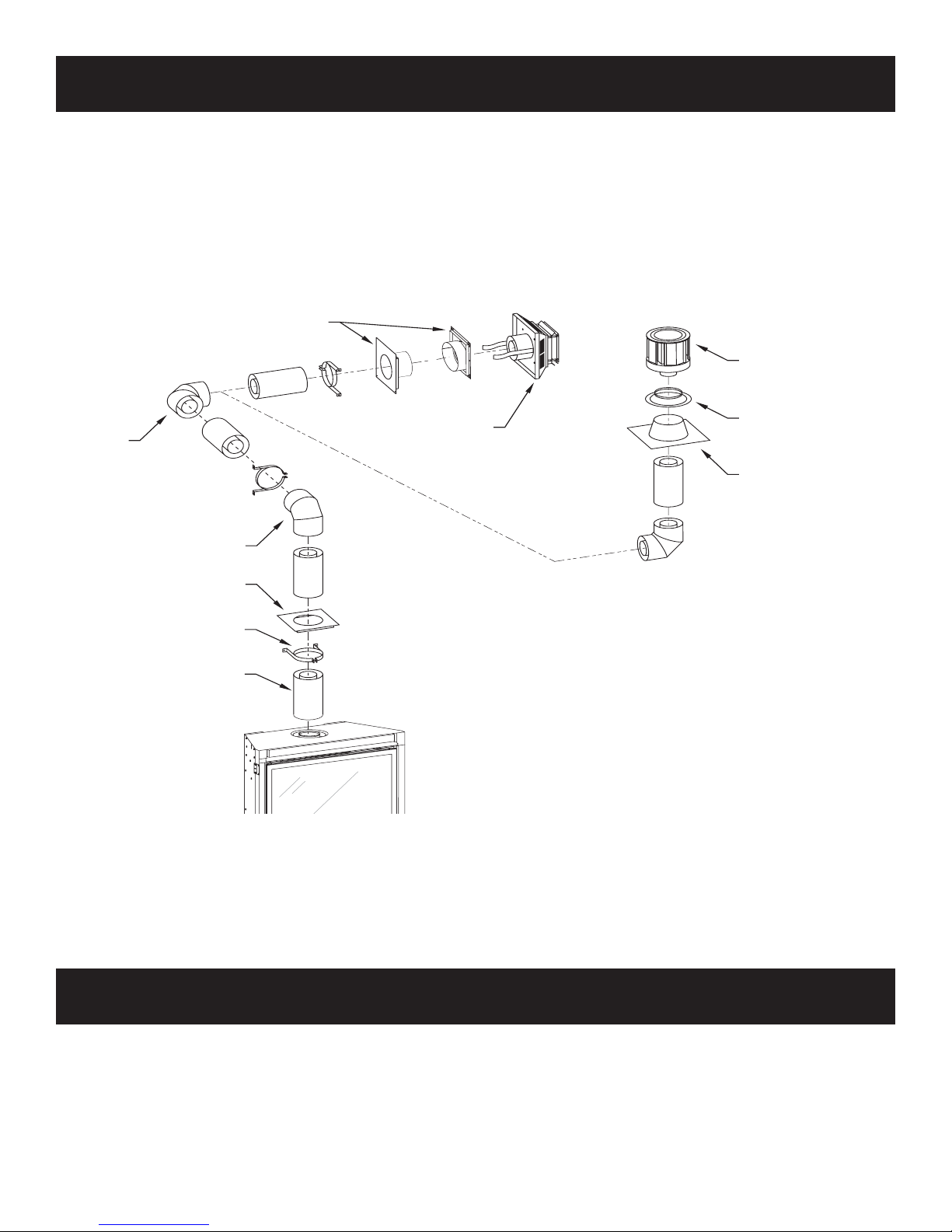

VENT SYSTEMS
The following vent systems are acceptable:
SimpsonDuravent®GS5”-8”
AmericanMetalProducts5”-8”
SelkirkDirect-Temp®5”-8”
SecuritySecureVent®5”-8”
ExcelDVVenting5”-8”
BDM5”-8”
