White Mountain Hearth MILLIVOLT DVCX FP30-3 Series Quick start guide

Page 1
This appliance may be installed in
an aftermarket, permanently located,
manufactured home (USA only) or mobile
home, where not prohibited by state or
local codes.
This appliance is only for use with the type
of gas indicated on the rating plate. This
appliance is not convertible for use with
other gases, unless a certied kit is used.
WARNING
If not installed, operated and maintained in
accordance with the manufacturer’s instruc-
tions, this product could expose you to sub-
stancesinfuelorfromfuelcombustionwhich
can cause death or serious illness.
HOT GLASS
DO NOT TOUCH
NEVER
WILL
CAUSE BURNS.
GLASS
UNTIL COOLED.
ALLOW CHILDREN
TO TOUCH GLASS.
WARNING
A barrier designed to reduce the risk of burns from the
hot viewing glass is provided with this appliance and shall
be installed for the protection of children and other at-risk
individuals.
NOTICE: Barrier required, but may be sold separately.
WARNING
FIRE OR EXPLOSION HAZARD
If the information in this manual is not
followed exactly, a re or explosion may
result causing property damage, personal
injury or loss of life.
— Do not store or use gasoline or other
ammable vapors and liquids in the
vicinity of this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do
not use any phone in your building.
• Leave the building immediately.
• Immediately call your gas supplier
from a neighbor’s phone. Follow the
gas supplier’s instructions.
• If you cannot reach your gas supplier,
call the re department.
— Installation and service must be
performed by a qualied installer,
service agency or the gas supplier.
INSTALLER:
Leave this manual with the appliance.
CONSUMER:
Retain this manual for future reference.
INSTALLATION INSTRUCTIONS
AND OWNER’S MANUAL
DIRECT VENT ZERO
CLEARANCE GAS FIREPLACE
HEATER MODEL SERIES:
MILLIVOLT (MV)
DVCX(36,42)FP30(N,P)-3
INTERMITTENT PILOT (IPI)
DVCX(36,42)FP70(N,P)-3
GAS-FIRED
MH30033

39634-0-0918Page 2
BEFORE YOU START
1. Read the safety information on Pages 64 - 66.
2. If located in the Commonwealth of Massachusetts, please note the special requirements on Page 67.
3. Where are you going to install the unit? See Pages 8-10 & 14.
4. Frame the opening. See Page 16.
5. Install the gas lines. See Page 13.
6. Install the wiring. See Pages 15, 46, and 53.
7. Install the venting. See Pages 11-12.
8. Installthereplace.SeePages16-19.
9. Connectthegas.SeePage13.
10. Connect the electricity. See Page 15.
11. Connect the venting system. See Page 20.
12. Install the optional remote system. See Page 46 for Millivolt Systems and Page 52 for Intermittent Pilot Systems.
13. Install the logs. See Page 32 - 43.
14. Lightthereplaceandtroubleshoot.SeePages47-48forMillivoltSystemsand54-57forIntermittentPilotSystems.
15. Install trim and other accessories. See Page 7.
16. Showthehomeownerhowtooperatethereplace.
17. Show the homeowner how to do the basic maintenance.

39634-0-0918 Page 3
TABLE OF CONTENTS
All Appliances........................................................................................................................................................4-43
Carton Contents................................................................................................................................................................................4
Introduction.......................................................................................................................................................................................5
Specications....................................................................................................................................................................................6
Hardware Package ...........................................................................................................................................................................7
Accessories.......................................................................................................................................................................................7

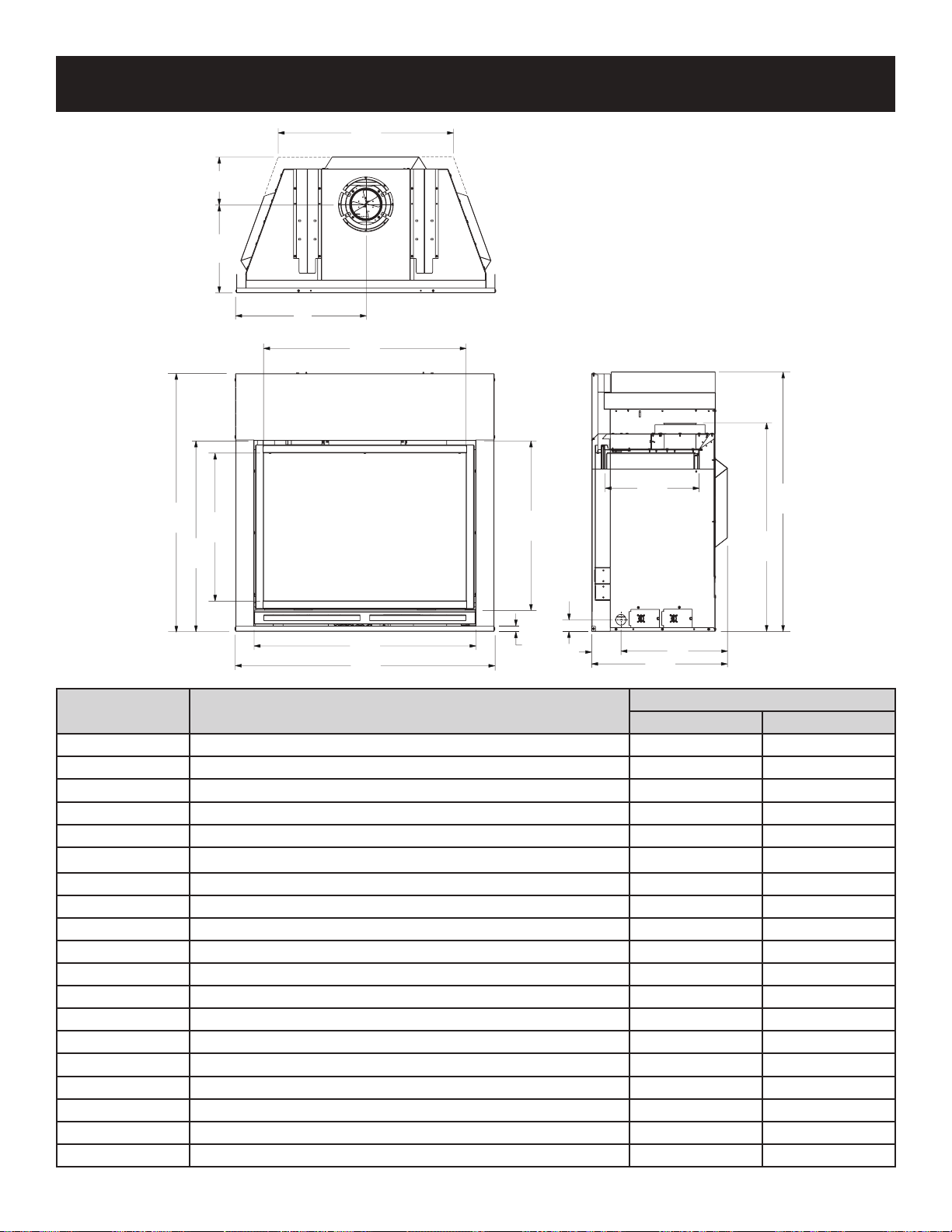

Fireplace Dimensions .......................................................................................................................................................................8
Clearances...................................................................................................................................................................................9-10
Combustible Material......................................................................................................................................................................10
Vent Termination Clearances.....................................................................................................................................................11-12
Gas Supply .....................................................................................................................................................................................13
Locating Fireplace...........................................................................................................................................................................14
Electrical Considerations ................................................................................................................................................................15
Installation..................................................................................................................................................................................16-19
VentSystemIdentication...............................................................................................................................................................20
Vent Systems..................................................................................................................................................................................20
Venting Fireplace.......................................................................................................................................................................21-23
Top Vent - Horizontal Termination...................................................................................................................................................24
Top Vent - Vertical Termination .......................................................................................................................................................25
Vertical Termination....................................................................................................................................................................26-27
Framing and Finishing ...............................................................................................................................................................28-29
DVVK-5F Flex Vent Instructions ................................................................................................................................................30-31
Liner Placement..............................................................................................................................................................................32
Glowing Embers..............................................................................................................................................................................32
LogIdentication.............................................................................................................................................................................33
Log Placement...........................................................................................................................................................................34-43
Millivolt System Appliances...............................................................................................................................44-51
Operating Instructions................................................................................................................................................................44-45
Wiring Diagram...............................................................................................................................................................................46
Lighting Instructions........................................................................................................................................................................47
Troubleshooting..............................................................................................................................................................................48
Parts View.......................................................................................................................................................................................50
Parts List.........................................................................................................................................................................................51
Intermittent Pilot Appliances..............................................................................................................................52-59
Operating Instructions.....................................................................................................................................................................52
Wiring Diagram...............................................................................................................................................................................53
Lighting Instructions........................................................................................................................................................................54
Troubleshooting.........................................................................................................................................................................55-57
Parts View.......................................................................................................................................................................................58
Parts List.........................................................................................................................................................................................59
All Appliances......................................................................................................................................................60-68
Fireplace - All Units Parts View.......................................................................................................................................................60
Fireplace - All Units Parts List.........................................................................................................................................................61
Maintenance and Service (Screen & Glass Removal) ..............................................................................................................62-63
Important Safety Information......................................................................................................................................................64-65
Safety Information for Users of Propane Gas.................................................................................................................................66
Requirements for Massachusetts ...................................................................................................................................................67
Master Parts Distributor List............................................................................................................................................................68
How To Order Repair Parts.............................................................................................................................................................68
Appliance Service History..........................................................................................................................................................69-71
Warranty .........................................................................................................................................................................................72
SECTION PAGE

39634-0-0918Page 4
CARTON CONTENTS
INDEX
NUMBER DESCRIPTION QTY SUPPLIED
1 Rock Wool 2
2 Receptical Cover 1
3 Receptical 1
4 Flue Restrictor Assembly -
Natural or Propane
1
5 Hardware Pack 1
Not Shown Log Set (see Page 33) 1 set
Not Shown Fireplace 1
Not Shown Accessory Sheet 1
Not Shown Product Registration Card 1
See Parts Lists on Pages 50 - 51 and 58 - 62 for ordering
replacement parts. Do not order batteries, bolts, screws,
washers or nuts. They are standard hardware items and can
be purchased at any local hardware store.
DVCX(36,42)FP3 SERIES DVCX(36,42)FP7 SERIES
INDEX
NUMBER DESCRIPTION QTY SUPPLIED
1 Rock Wool 2
2 Receptical Cover 2
3 Receptical 2
4 Flue Restrictor Assembly -
Natural or Propane
1
5 Hardware Pack 1
6 AA Battery 4
7AC Adaptor 1
Not Shown Log Set (see Page 33) 1 set
Not Shown Fireplace 1
Not Shown Accessory Sheet 1
Not Shown Product Registration Card 1
See Parts Lists on Pages 50 - 51 and 58 - 62 for ordering
replacement parts. Do not order batteries, bolts, screws,
washers or nuts. They are standard hardware items and can
be purchased at any local hardware store.
NATURAL PROPANE NATURAL PROPANE

39634-0-0918 Page 5
Instructions to Installer
1. Installer must leave instruction manual with owner after
installation.
2. Installer must have owner ll out and mail product
registrationcardsuppliedwiththereplace.
3. Installershould showownerhowtostartandoperatethe
replace.
Thisdirectventgasreplaceheaterisdesignedtooperate
withallcombustionairbeingsiphonedfromtheoutsideofthe
building and all exhaust gases expelled to the outside of the
building.Theinformationcontainedinthismanualpertainsto
all models and gas control systems unless otherwise noted.
Appliance Certication
WARNING
This unit is not for use with solid fuels.
ThisreplaceisdesigncertiedinaccordancewithAmerican
NationalStandard/CSAStandardANSIZ21.88/CSA2.33and
byUnderwriters Laboratories as aDirect VentGasFireplace
Heaterandshall be installed accordingto theseinstructions.
Consult your local building code agency, prior to installation,
toensurecompliancewith local codes-including permitsand
inspections.
Thereplace,wheninstalled,mustbeelectricallygrounded
in accordance with local codes or, in absence of local codes,
with the National Electric Code ANSI/NFPA 70 or Canadian
Electric code, CSA C22.1, if an external electrical source is
utilized.
These models may be installed in a bedroom or bed-sitting
room in the U.S.A. and Canada.
Qualied Installing Agency
Installation and replacement of gas piping, gas utilization
equipment or accessories and repair and servicing of
equipmentshallbeperformedonlybyaqualiedagency.The
term“qualiedagency”meansanyindividual,rm,corporation
orcompanywhicheitherinpersonorthrougharepresentative
is engaged in and is responsible for (a) the installation or
replacement of gas piping or (b) the connection, installation,
repair or servicing of equipment, who is experienced in such
work,familiarwithallprecautionsrequiredandhascomplied
with all the requirements of the authority having jurisdiction.
Commonwealth of Massachusetts: The installation
mustbemadebyalicensedplumberorgastterinthe
Commonwealth of Massachusetts.
WARNING
ANY CHANGE TO THIS FIREPLACE OR ITS
CONTROLS CAN BE DANGEROUS.
Improper installation or use of the replace can cause
serious injury or death from re, burns, explosions,
or carbon monoxide poisoning.
The installation must conform with local codes or, in the
absence of local codes, with the National Fuel Gas Code
ANSIZ223.1/NFPA54*NaturalGasandPropaneInstallation
Code, or CSA B149.1 in Canada. *Available from the American
National Standards Institute, Inc. 11 West 42nd St., New York, N.Y. 10036.
Anyalteration ofthe originaldesign, installedother than
as shown in these instructions or use with a type of gas
not shown on the rating plate is the responsibility of the
person and company making the change.
Important
Allcorrespondenceshould refer to complete Model Number,
Serial Number and type of gas.
High Altitude
When installing this unit at an elevation above 2000 feet (in
theUnited States) itmay benecessaryto decrease theinput
ratingby changing the existing burner orice to a smaller
size. Generally, input should be reduced 4 percent for each
1000 feet above sea level. However, if the heating value of
the gas has been reduced, this general rule may not apply.
CheckwithEmpireComfortSystemsforproperoricesize
identication.
Canadian High Altitude
Altitude: 0-4500 feet (0-1370 m)
When installing this unit at an elevation above 4500 feet (in
Canada), check with Empire Comfort Systems.
Consult your Empire Comfort Systems for assistance in
determiningtheproperoriceforlocation.
Preparation
Thisdirectventgasreplaceanditscomponentsaretested
and safe when installed in accordance with this Installation
Manual.Reporttoyourdealeranypartsdamagedinshipment,
specically check glass condition. Do not install unit with
damaged,incomplete,orsubstituteparts.Readallinstructions
before starting installation and follow these instructions
carefullyduringinstallationtoinsuremaximumbenetand
safety.Failure to follow them willvoidyourwarranty and may
presentarehazard.
The warranty will be voided by, and the warranter disclaims
any responsibility for the following actions:
• Installation of any damaged replace or vent system
component.
• Modicationofthereplaceordirectventsystem.
• InstallationotherthanasinstructedbyEmpireComfort
Systems Inc.
• Improperpositioningofthelogs,glassdoorordecorative
rock.
• Installation and/or use of any component part not
manufactured or approved by manufacturer.
INTRODUCTION

39634-0-0918Page 6
SPECIFICATIONS
DVCX36NAT DVCX36LP DVCX42NAT DVCX42LP
Input BTU/Hr Maximum 37,000 34,000 40,000 36,000
Input BTU/Hr Minimum 26,000 27,000 27,000 29,000
KWH (Maximum) 10.84 9.96 11.72 10.55
KWH (Minimum) 7.62 7.91 7.91 8.5
Orice(Front/Rear) 47 / 42 58 / 1.45 44 / 40 57 / 1.45
Air Shutter Opening 3/16 FULL OPEN 3/16 FULL OPEN
Height without standoff 36-7/8 36-7/8 36-7/8 36-7/8
Width 39-5/16 39-5/16 43-5/16 43-5/16
Depth 21-1/16 21-1/16 21-1/16 21-1/16
Gas Inlet Shutoff Valve (pipe) 1/2 NPT 1/2 NPT 1/2 NPT 1/2 NPT
Vent Size 5 x 8 5 x 8 5 x 8 5 x 8
NOTE: Airshutter settings are factory minimumsettings. Some venting congurations mayrequire minor air shutter adjustmentsfor
optimum performance.
NOTE:Theglassusedinyourreplaceisceramicglass.Iftheglassiscrackedordamagedinanyway,itshouldbereplacedonlywitha
complete glass frame assembly from Empire. See parts list on Pages 60 - 61 for ordering.
GAS SUPPLY PRESSURES
GAS TYPE MAXIMUM MINIMUM MANIFOLD
Natural Gas 14 4.5 3.5
Propane gas 14 11 10
NOTE: For gas pipe dimensions, see Page 13.

39634-0-0918 Page 7
HARDWARE PACKAGE
DVCX(36,42)FP(3,7) SERIES
HEX HEAD SCREW 10 X 1/2
The following accessory parts can be obtained from your Empire Comfort Systems dealer. Contact your Empire Dealer for more acces-
soryoptions.Ifyouneedadditionalinformationbeyondwhatyourdealercanfurnish,contactEmpireComfortSystemsInc.,918Freeburg
Ave., Belleville, Illinois 62220-2623.
ACCESSORIES
MODEL NUMBER DESCRIPTION USED ON
DF362NB Beveled Window Frame, Brushed Nickel DVCX36
DF422NB Beveled Window Frame, Brushed Nickel DVCX42
DF362BZ Beveled Window Frame, Oil Rubbed Bronze DVCX36
DF422BZ Beveled Window Frame, Oil Rubbed Bronze DVCX42
DVD36XBLNB Decorative Door, Brushed Nickel DVCX36
DVD42XBLNB Decorative Door, Brushed Nickel DVCX42
DVP36XRB Ceramic Fiber Liner, Rustic Brick DVCX36
DVP42XRB Ceramic Fiber Liner, Rustic Brick DVCX42
DVP36XWS Ceramic Fiber Liner and Floor, Old World Stone DVCX36
DVP42XWS Ceramic Fiber Liner and Floor, Old World Stone DVCX42
DVP36XKR ReectiveLiner,Black DVCX36
DVP42XKR ReectiveLiner,Black DVCX42
DVF36XKR ReectiveFloor,Black DVCX36
DVF42XKQ ReectiveFloor,Black DVCX42
FBB10 Blower, Auto Variable Speed DVCX(36,42)
LK6 Lighting Kit, 120V DVCX(36,42)
DCA1ABL Decorative Forged Andirons, Black DVCX(36,42)
REMOTE CONTROL
ACCESSORIES DESCRIPTION MODELS USED ON
FRBC Battery Remote ON/OFF DVCX(36,42)FP(3,7)
FRBTC Battery Remote Thermostat DVCX(36,42)FP(3,7)
TMW Wireless Wall Thermostat DVCX(36,42)FP(3,7)
TRW Reed Switch Wall Thermostat DVCX(36,42)FP(3,7)
FWS-1 Wall Switch DVCX(36,42)FP(3,7)
FRBTP Battery Operated Remote Control with Programmable Thermostat DVCX(36,42)FP(3,7)
RVKN-1 Remote Kit, Natural (Stepper Motor) - IPAppliances Only DVCX(36,42)FP7N
RVKP-1 Remote Kit, Propane (Stepper Motor) - IPAppliances Only DVCX(36,42)FP7P
CONVERSION KITS DESCRIPTION USED ON
33768 Conversion Kit, DV (Natural to Propane) DVCX36FP30
33769 Conversion Kit, DV (Propane to Natural) DVCX36FP30
33770 Conversion Kit, DV (Natural to Propane) DVCX42FP30
33771 Conversion Kit, DV (Propane to Natural) DVCX42FP30
32941 Conversion Kit, DV (Natural to Propane) DVCX36FP70
32942 Conversion Kit, DV (Propane to Natural) DVCX36FP70
32943 Conversion Kit, DV (Natural to Propane) DVCX42FP70
32944 Conversion Kit, DV (Propane to Natural) DVCX42FP70

39634-0-0918Page 8
FIREPLACE DIMENSIONS
INDEX LETTER DIMENSION DESCRIPTION DIMENSIONS (in inches)
DVCX36FP DVCX42FP
AThemaximumheightofreboxface(excludingstandoffs) 41-7/8 41-7/8
BThemaximumwidthofthereboxface(excludingnailinganges) 42-1/4 46-1/4
CThemaximumdepthoftherebox 22-1/16 22-1/16
DTheheightofthereboxopening 27-1/2 27-1/2
EThewidthofthereboxopening 35-15/16 39-15/16
FTheinteriordepthoftherebox 15-1/4 15-1/4
GTherearexteriorwidthoftherebox 28-3/8 32-3/8
HTheheighttothereboxstandoffs 42-1/8 42-1/8
I Width from the left side of the box to the centerline of vent 19-1/8 23-1/8
J Depth from back of box to centerline of top vent 7-11/16 7-11/16
K Height from the bottom of the box to the gas line opening 2 2
L Depth from the front of the box to gas line opening 4-1/2 4-1/2
M Depth from rear of box to gas line opening 17-1/2 17-1/2
N Glass frame opening height 24 24
O Glass frame opening width 32-7/8 36-7/8
P Depth from front of box to centerline of vent 14-3/8 14-3/8
QDistancefromoortoreplaceopening 31 31
RHeightfromoortoventcollar 33-9/16 33-9/16
S Maximum hearth size 1 1
G
J
P
I
O
A
Q
N
B
E
D
FH
R
KLM
C
S

39634-0-0918 Page9
CLEARANCES
Clearance to Combustibles
Back Stand-off 0" (0 mm)
Side Stand-off 0" (0 mm)
Floor 0" (0 mm)
Top Stand-off 0" (0 mm)
Top Framing Edge 6”(152mm)
GLASS FRONT
TOPFRAMING
LEDGE
FINISHED WALL
(COMBUSTIBLE)
2" x 4" HEADER
NAILING
FLANGES
SEE MANTEL CHART FOR
MAXIMUM MANTEL DEPTH
SEE MANTEL CHART
FOR MINIMUM HEIGHT
OF MANTELABOVE UNIT
STAND-OFF
6” (152mm) HEIGHT
ABOVE TOPOF
FIREPLACE
REAR
STAND-OFF
SIDE
STAND-OFF
Figure 1
NOTE: Generic Firebox shown.
Mantel Chart
TOP EDGE OF FIREPLACE OPENING
INDEX
LETTER
DIMENSIONS (in inches)
DISTANCE FROM TOP
EDGE OF FIREPLACE
OPENING
(HORIZONTAL)
DISTANCE FROM
FIREPLACE FRONT
(VERTICAL)
A 12 25-1/2
B 10 25-1/2
C 8 23-3/4
D 6 22-1/8
E 4 20-3/8
F 2 18-3/4
G 0 17
Figure 2

39634-0-0918Page 10
Clearances
WARNING
This replace is not been tested nor approved to have a
television or other electrical appliance installed above it.
Clearancefrombottomofreplacetoceilingis84”
Clearancefromsideofreplacetoadjacentsidewallis6”.
Television Considerations
Installingatelevisionaboveareplacehasbecomeincreasingly
popular;however,theareaaboveanyreplacegetshotandmost
TV manufacturers recommend against placing their products near
a heat source.
Ifyouinstallatelevisionabovethisreplace,EmpireComfortSys-
tems accepts no responsibility for damage or injuries. Follow the
television manufacturer’s installation instructions, including any
recommendations regarding proximity to heat sources.
IfyouhaveaTVaboveyourreplace,turnoffthereplaceand
let it cool completely before servicing or touching any buttons on
the TV.
CLEARANCES (CONT’D)
Donotattachcombustiblematerialtothemantelofyourreplace.
Thisisarehazard.
Figure 5
NOTE: Generic Firebox shown.
Nogreetingcard, stockings orornamentationof anytypeshould be
placedonorattachedtothereplace.Thisisaheatingappliance.
Theowofheatcanignitecombustibles.
Figure 6
NOTE: Generic Firebox shown.
COMBUSTIBLE MATERIAL
Figure 3
Figure 4

39634-0-0918 Page 11
Termination clearance for buildings with combustible and noncombustible exteriors.
Vertical Sidewall Installations
Important!Minimumclearancebetweenventpipesandcombustible
materialsis3inches(76 mm) on top,and1inch(25 mm)on bottom
and sides.
Important! When vent termination exits through foundation less
than 20 inches (508 mm) below siding outcrop, the vent pipe must
extend outward so that the horizontal vent termination is located
ushto,orbeyondtheoutcropsiding.
Information on Various Venting Routes and Components
Important:Itisalwaysbesttolocatethereplaceinsuchaway
that minimizes the number of offsets and horizontal vent length.
Sinceitisveryimportantthattheventingsystemmaintainitsbalance
betweenthecombustionairintakeandtheuegasexhaust,certain
limitations as to vent congurations apply and must be strictly
adhered to.
Figure 7
VENT TERMINATION CLEARANCES
Thegraphshowing therelationshipbetween verticalandhorizontal
side wall venting will help to determine the various vent lengths
allowable.
The horizontal vent run refers to the total length of vent pipe from
theuecollarofthereplacetothefaceoftheouterwall.
The maximum horizontal vent run is 20 feet (6.10 m) when the
vertical vent rise is 8 feet (2.44 m). See Page 23, Figure 35.
Venting termination shall not be recessed into wall or siding.
ATTENTION: Vinyl Soft, Vinyl Ceiling, Vinyl Overhang
Disclaimer
Clearances are to heat resistant material (i.e. wood, metal). This
doesnotincludevinyl.EmpireComfortSystemsInc.willnotbeheld
responsibleforheatdamagecausedfromterminatingundervinyl
overhangs,vinylceilingsorvinylventilated/unventilatedsofts.
RECESSED LOCATION
OUTSIDE CORNER
INSIDE CORNER
“A”=COMBUSTIBLE 9” (229mm)
= NONCOMBUSTIBLE 2” (51mm) “F”=COMBUSTIBLE 6” (152mm)
= NONCOMBUSTIBLE 6” (152mm)
BALCONY
WITH PERPENDICULAR SIDE WALL BALCONY WITH NO SIDE WALL
“C”=CLEARANCE FROM CORNER
IN RECESSED LOCATION
COMBUSTIBLE 9” (229mm)
NONCOMBUSTIBLE 2” (51mm)
“D”=MINIMUM WIDTH FOR BACK WALL
OF A RECESSED LOCATION
COMBUSTIBLE 38” (965mm)
NONCOMBUSTIBLE 24” (610mm)
“E”=MAXIMUM DEPTH OF 48” (1219mm)
FOR RECESSED LOCATION
“G”=COMBUSTIBLE 9” (229mm)
= NONCOMBUSTIBLE 2” (51mm)
“H”=COMBUSTIBLE 18” (457mm)
= NONCOMBUSTIBLE 12” (305mm)
“I” = COMBUSTIBLE 12” (457mm)
= NONCOMBUSTIBLE 12” (305mm)

39634-0-0918Page 12
VENT TERMINATION CLEARANCES
Figure 8
Canadian Installations1 US Installations2 Canadian Installations1 US Installations2
A= Clearance above grade,
veranda, porch, deck, or
balcony
12 in (30 cm) 12 in (30cm) I= Clearance to service
regulator vent outlet 3ft(91cm) 6 ft
B= Clearance to window or
door that may be open 6 in (15 cm) for appli- ances≤10,000Btuh
(3 kW), 12 in (30 cm)
for appliances > 10,000
Btuh(3kW)and≤
100,000 Btuh (30 kW),
36in(91cm)forappli-
ances > 100,000 Btuh
(30 kW)
6 in (15 cm) for appli-
ances≤10,000Btuh(3
kW),9in(23cm)forap-
pliances > 10,000 Btuh
(3kW)and≤50,000
Btuh (15 kW), 12 in
(30 cm) for appliances >
50,000 Btuh (15 kW)
J= Clearance to nonme-
chanical air supply
inlet to building or the
combustion air inlet to
any other appliance
6 in (15 cm) for appli-
ances≤10,000Btuh(3
kW), 12 in (30 cm) for
appliances > 10,000
Btuh(3kW)and≤
100,000 Btuh (30 kW),
36in(91cm)forappli-
ances > 100,000 Btuh
(30 kW)
6 in (15 cm) for appli-
ances≤10,000Btuh
(3kW),9in(23cm)for
appliances > 10,000 Btuh
(3kW)and≤50,000Btuh
(15 kW), 12 in (30 cm) for
appliances > 50,000 Btuh
(15 kW)
C= Clearance to perma-
nently closed window 12 in (30 cm) 12 in (30 cm) K= Clearance to a mechani- cal air supply inlet 6 ft (1.83 m) 3ft(91cm)aboveif within 10 ft (3 m) hori-
zontally
D= Vertical clearance
ventilatedsoftlocated
above the terminal within
a horizontal distance of 2
feet (61 cm) from the cen-
ter line of the terminal
24 in (61 cm) 24 in (61 cm)
L= Clearance above paved
sidewalk or paved drive-
way located on public
property 7 ft (2.13 m) † 7 ft (2.13 m) †
E= Clearance to unventi-
latedsoft 12 in (30 cm) 12 in (30 cm) M= Clearance under veranda, porch deck, or
balcony 12 in (30 cm) ‡ 12 in (30 cm) ‡
F= Clearance to outside
corner 6 in (15 cm) 6 in (15 cm) 1InaccordancewiththecurrentCSAB149.1,NaturalGasandPropaneInstal- lation Code
G= Clearance inside corner 9in(23cm) 9in(23cm) 2 In Accordance with the current ANSI Z223.1/NFPA 54, National Fuel Gas
Code
H= Clearance to each side
of center line extended
above meter/regulator
assembly
3ft(91cm)withina
height 15 ft (4.5 m)
above the meter/regula-
tor assembly
3ft(91cm)
† Avent shall not terminate directly above a sidewalk or paved driveway that is
located between two single family dwellings and serves both dwellings
ATTENTION: Vinyl Soft, Vinyl Ceiling, Vinyl Overhang
Disclaimer
Clearances are to heat resistant material (i.e. wood, metal). This
doesnotincludevinyl.EmpireComfortSystemsInc.willnotbeheld
responsibleforheatdamagecausedfromterminatingundervinyl
overhangs,vinylceilingsorvinylventilated/unventilatedsofts.
‡Permitted only if veranda,, porch, deck, or balcony is fully open on a minimum
oftwosidesbeneaththeoor.
*ForclearancesnotspeciedinANSIZ223.1/NFPA54orCSAB149.1,oneof
the following shall be indicated:
Clearance in accordance with local installation codes and the requirements of the
gas supplier.

39634-0-0918 Page 13
GAS SUPPLY
The gas pipeline can be brought in through the right or left side of
the appliance. Consult the current National Fuel Gas Code, ANSI
Z223.1CAN/CGA-B149(.1or.2)installationcode.
Recommended Gas Pipe Diameter
Pipe
Length
Schedule 40 Pipe
Inside Diameter Tubing, Type L Outside Diameter
Natural Propane Natural Propane
0-10 feet 1/2” 3/8” 1/2” 3/8”
10-40 feet 1/2” 1/2” 5/8” 1/2”
40-100 feet 1/2” 1/2” 3/4” 1/2”
100-150 feet 3/4” 1/2” 7/8” 3/4”
NOTE:Neveruseplasticpipe.Checktoconrmwhetheryour
local codes allow copper tubing or galvanized.
NOTE: Since some municipalities have additional local codes, it
is always best to consult your local authority and installation code.
The use of the following gas connectors is recommended:
— ANSZ21.24ApplianceConnectorsofCorrugatedMetalTubing
and Fittings.
— ANSZ21.45AssembledFlexibleApplianceConnectorsofOther
Than All-Metal Construction
The above connectors may be used if acceptable by the authority
having jurisdiction. The Commonwealth of Massachusetts requires
thataexibleapplianceconnectorcannotexceedthreefeetinlength.
Figure 9
Gas Supply Pressure (inches w.c.)
Minimum Normal Maximum
Natural Gas 4.5" 7.0" 14.0"
Propane gas 11” 11.0" 14.0"
Manifold Pressure (inches w.c.)
Normal (HI)
Natural Gas 3.5"
Propane Gas 10.0"
Installing a New Main Gas Shut-Off (Check Local Code)
Each appliance should have its own manual gas shut-off.
A manual main gas shut-off should be located in the vicinity of the
unit.Wherenoneexists,orwhereitssizeorlocationisnotadequate,
contact your local authorized installer for installation or relocation.
Compoundsusedon threadedjointsof gas pipingshallbe resistant
totheactionofliqueedpetroleumgases.Thegaslinesmustbe
checked for leaks by the installer. This should be done with a soap
solution watching for bubbles on all exposed connections, and if
unexposed, a pressure test should be made.
Never use an exposed ame to check for leaks. Appliance must
be disconnected from piping at inlet of control valve and pipe
capped or plugged for pressure test. Never pressure test with
appliance connected; control valve will sustain damage!
NOTE:Themillivoltgascontrolsareequippedwithacapturedscrew
type pressure test point, therefore it is not necessary to provide a
1/8 inch test point up stream of the control.
Figure 10
Ondirectignitionvalves,hexplugsmaybereplacedwithhosettings
forpressurechecks,thenreinstalledbeforeoperatingreplace.
Whenusingcopperorexconnectoruseonlyapprovedttings.
Theapplianceanditsindividualshutoffvalvemustbedisconnected
fromsupplypipingsystemduringanypressuretestingofthatsystem
at test pressures in excess of 1/2 psig (3.5 kPa).
The appliance must be isolated from the gas supply piping system
by closing its individual manual shut-off valve during any pressure
testing of the gas supply piping system at test pressures equal to
or less than 1/2 psig (3.5 kPa).
Attention! If one of the procedures results in pressures in excess
of1/2psig(14”w.c.)(3.5kPa)onthereplacegasvalve,itwill
result in a hazardous condition.
Checking Manifold Pressures
Both Propane and Natural Gas valves have a built-in pressure
regulator in the gas valve. Natural Gas models will have a manifold
pressureofapproximately3.5inchw.c.(.871 kPa)atthevalveoutlet
with the inlet pressure to the valve from a minimum of 4.5 inch w.c.
(1.120 kPa) for the purpose of input adjustment to a maximum
of 14.0 inch w.c. (3.484 kPa). Propane Gas models will have a
manifoldpressureapproximately10.0inchw.c.(2.49kPa)atthe
valve outlet with the inlet pressure to the valve from a minimum of
10.8 inch w.c. (2.68 kPa) for the purpose of input adjustment to a
maximum of 14.0 inch w.c. (3.484 kPa).
2” 4 1/2”
Figure 11

39634-0-0918Page 14
Figure 12
NOTE: Island and Room Divider installation is possible as long as the horizontal portion of the vent system does not exceed 20 feet with
a minimum vertical run of 8 feet. See details in Venting Section.
NOTE: When installing this appliance against an exterior wall, insulate to applicable insulation codes.
When you install your Direct Vent Fireplace in Room divider or Flat on wall corner positions, a minimum of 6 inches clearance must be
maintained from the perpendicular wall and the front edge of the appliance.
LOCATING FIREPLACE

39634-0-0918 Page 15
ELECTRICAL CONSIDERATIONS
CAUTION
All wiring should be done by a qualied electrician and
shall be in compliance with all local, city and state building
codes. Before making the electrical connection, make sure
that the main power supply is disconnected. The appliance,
when installed, must be electrically grounded in accordance
with local codes, or in the absence of local codes, with the
National Electrical Code ANSI/NFPA 70 (Latest Edition).
Millivolt System Valve Models
Afactory installed junction box is located on the lower right side of
thereplace.Wiringmustbefedtothejunctionboxandattached
to the receptacle that is provided. Leave approximately 6" of wire
in the junction box for connection.
Attach black wire to one side of the receptacle and white wire to
opposite side of receptacle. The ground wire should be attached
to the green (ground) screw.
Install the receptacle into the junction box. Attach cover plate.
Figure 13
IPI System Valve Models
1. Powerfor switchedandlive sidesofreceptacle mustcomefrom
the same power source. (One circuit breaker on main panel
must switch all power off.)
2. From the wall box to the replace a 3-wire conductor with
ground is recommended, however two 2-wire conductors with
grounds may be used in place of a 3-wire conductor with a
groundif theblack wires from the thermostatand blowerswitch
areidentied.
3. Two wallswitches maybe usedto activate thereceptacle plugs
independently.
GROUND
TO 120V
CIRCUIT
BREAKER
DOUBLE SWITCH BOX
(INSTALLER PROVIDED)
3 WIRE, GROUNDED
CONDUCTOR
(BY OTHERS)
DUAL SWITCH ELECTRICAL WIRING TO FIREPLACE RECEPTACLE
FIREPLACE
CONTROL
COMPARTMENT
BLACK
BLACK
WHITE
WHITE
Figure 14

39634-0-0918Page 16
INSTALLATION
Framing
Fireplaceframingcanbebuiltbeforeorafterthereplaceisset
in place. Framing should be positioned to accommodate wall
coveringandreplacefacingmaterial.Thereplaceframingshould
be constructed of 2 x 4 lumber. The framing headers may rest on
thereplace standoffs.Refer to Figure 15 for minimum framing
dimensions.
ATTENTION: Measure replace dimensions and verify framing
methods and wall covering details before framing construction be-
gins.
Framing dimension "A" includes a six inch clearance for
standoffs on rebox. After installing rebox into framing,
the nished wall surface must cover the six inch opening
above the rebox.
Dim. DIMENSIONS (in inches)
DVCX36 DVCX42
A 42-5/16 42-5/16
B 42-3/8 46-3/8
C 21-1/2 21-1/2
Figure 15
Framing and Finishing
1. Choose unit location.
2. Frameinreplacewithaheaderacrossthetop.Itisimportant
toallowfornishedfacewhensettingthedepthoftheframe.
3. Attachreplacetoframeusingadjustableframe.Presetdepth
tosuitfacingmaterial(adjustableto1/2,5/8or3/4-inchdepths).
4. Locatethenailingangesonthesidesofthe rebox (two
each side).
6. Measurefromfaceofreplacetofaceofdrywallstriptodetermine
naldepthandadjustnailingangesasshowninFigure 16.
3/4”
1/2”
3/4”
1/2”
Figure 16
8. Bendthenailinganges90degrees.
Figure 17

39634-0-0918 Page 17
INSTALLATION (CONT’D)
Vent Pipe Clearance
NOTICE:Maintaintwoinchesofclearancearoundverticalventpipe
onrsttwelveinches.See Figure 18.
For horizontal vent, maintain a minimum one-inch clearance to
the bottom and sides of the vent, and three-inch clearance to
combustibles above the vent pipe. See Figure 19.
NOTICE:Atwo-inchclearancearoundpipeforthersttwelveinches
abovethereplaceisrequired.
Finishthejointbetweenthereplaceandwallwithsealantrated
at 300 degrees F, or tile/stone over the joint.
Figure 18
Horizontal Vent Clearances - Figure 19
Flush Wall Installation - Figure 20
Combustible Surround Installation - Figure 21
Attention: Cold climate installation recommendation: When
installing this unit against a non-insulated exterior wall, the outer
walls should be insulated to conform to applicable codes.

39634-0-0918Page 18
INSTALLATION (CONT’D)
Vent Runs
Inplanningtheinstallationforthereplace,itisnecessarytoinstall
certain components before the appliance is completely positioned
and installed. These include the direct vent system, gas piping for
the appliance and the electrical wiring. (If the fan option is used.)
The appliance can be mounted on any of the following surfaces:
1. Aat,hardcombustible(burnable)surface.
2. A raised wooden platform.
3. Fourcornersupports.(Example:Fourconcretemasonryblocks.)
These supports must be positioned so they contact all four
perimeter edges on the bottom of the unit.
Securing the Vent Pipe to the Fireplace
1. Hand bend the tabs up on the Outer Wrapper Top Assembly
as shown in Figure 22.
Figure 22
2. Inserttherstpieceofpipeandsecurewith4screwsthrough
the tabs and into the pipe. See Figures 23 and 24.
Figure 23
Figure 24
VERTICAL, 90-DEGREE ELBOW WITH HORIZONTAL
TERMINATION
3” (76mm)
MINIMUM CLEARANCE
TO COMBUSTIBLES
VENT CAP/
THIMBLE
WALL FIRESTOP
“A”
DISTANCE
TO BOTTOM
OF UNIT
12 INCH
RISE
REQUIRED
A DIMENSION (in inches)
DVCX36 57-1/2
DVCX42 57-1/2
Figure 25

39634-0-0918 Page19
INSTALLATION (CONT’D)
VERTICAL, 90-DEGREE ELBOW TO HORIZONTAL OUT THE
WALL (12” minimum rise before elbow)
Dimensions (in inches)
A B C
914 to 15-1/2 4-3/4 to 6-1/4
12 17 to 18-1/2 4-3/4to9-1/4
18 20 to 21-1/2 10-3/4 to 12-1/4
Figure 26
CORNER INSTALLATION - VERTICAL, 90-DEGREE ELBOW TO
HORIZONTAL OUT THE WALL (12” minimum rise before elbow)
DIMENSIONS (in inches)
Dim. DVCX36 DVCX42
A 47 49-7/8
B 33-1/4 35-1/4
C 13-3/4 15-1/8
D 66-3/8 70-1/2
Figure 27
After installing the vent system, install ue heat shield.
1. Handbendtabsonueheatshieldout90°.
2. Attach to insulation box as shown in Figure 26.
Figure 28 (vent pipe removed for clarity)

• Simpson Duravent® GS
• Simpson Duravent® DVA-H2
• American Metal Products (round cap only)
• Selkirk Direct-Temp®
• Security Secure Vent®
• Excel DV Venting
• Empire Horizontal Flex Vent Kit DVVK-5F
– 6 inch piece of hard pipe is required.
 (Seeexventinstructionsection)
• Metal Fab Sure Seal®
– Adapter is required to use this vent
Contact Metal Fab
Use one of the following 5 inch x 8 inch vent systems:
39634-0-0918Page 20
Begin the vent system installation by selecting the type of venting
to be installed and the path that it will take. Verify that clearances
are met throughout the path of the venting system.
Determine how the vent system will be terminated out the side of
thehouse or throughthe roof. Verify clearances for the termination.
Whenselectingaventsystemforusewiththereplace,referto
the “Special Vent Systems” section in this manual to determine
what systems are acceptable. Check all clearances and venting
components. Identify if any problems existing in the vent system.
Use (Figure 35) on Page 23 for venting to eliminate issues after
installation.Checkpipediameteronventsystemandreplaceto
verify the size is the same.
NOTICE: All outer connection joints must be sealed with aluminum
tape,screwsorsiliconesealantratedabove300°F/149°C.Theinner
uejointsdonotrequireanysealant.
Figure 29
VENT SYSTEM IDENTIFICATION
Special DV Vent Kits
Available from Empire Comfort Systems, Inc. dealers.
DVVK-5TP
Direct-Vent Fireplace Vent Kit for Top Vent,
Thru-the-wall, 4 to 6 inch wall thickness, Includes
58DVA-E90,58DVA-HC,58DVA-06,and58DVA-
WTEC
DVVK-5VP Direct Vent Fireplace Vent Kit - Vertical, Includes
58DVA-VCH, 58DVA-SC, and 58DVA-F6
DVVK-5F Horizontal Flex Vent Kit (4' Flex) (1.22m)
(requires 58DVA-06 pipe)
Forventingareplacethroughthetop,seePage23.
VENT SYSTEMS
