INSTALLATION INSTRUCTIONS
AND
OWNER’S MANUAL
INNSBROOK FIREPLACE INSERT DIRECT VENT
GAS FIREPLACE HEATER
MODEL SERIES
DV25IN33L(N,P)-1
DV33IN33L(N,P)-1
DV35IN33L(N,P)-1
UL FILE NO. MH30033
WARNING: If not installed, operated and main-
tained in accordance with the manufacturer’s
instructions, this product could expose you to
substances in fuel or from fuel combustion which
can cause death or serious illness.
This appliance may be installed in an aftermarket,
permanently located, manufactured home (USA
only) or mobile home, where not prohibited by
state or local codes.
This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is
not convertible for use with other gases, unless a
certified kit is used.
GAS-FIRED
Installer: Leave this manual with the appli-
ance.
Consumer: Retain this manual for future refer-
ence.
— Do not store or use gasoline or other flamma-
ble vapors and liquids in the vicinity of this or
any other appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not
use any phone in your building.
• Immediately call your gas supplier from a
neighbor’s phone. Follow the gas suppli-
er’s instructions.
• If you cannot reach your gas supplier, call
the fire department.
— Installation and service must be performed by
a qualified installer, service agency or the gas
supplier.
WARNING: If the information in these instruc-
tions are not followed exactly, a fire or explosion
may result causing property damage, personal
injury or loss of life.

23015-3-0707Page 2
TABLE OF CONTENTS
Important Safety Information .................................................................................................3
Safety Information for Users of LP Gas .................................................................................4
Introduction ............................................................................................................................5
Specifications .........................................................................................................................6

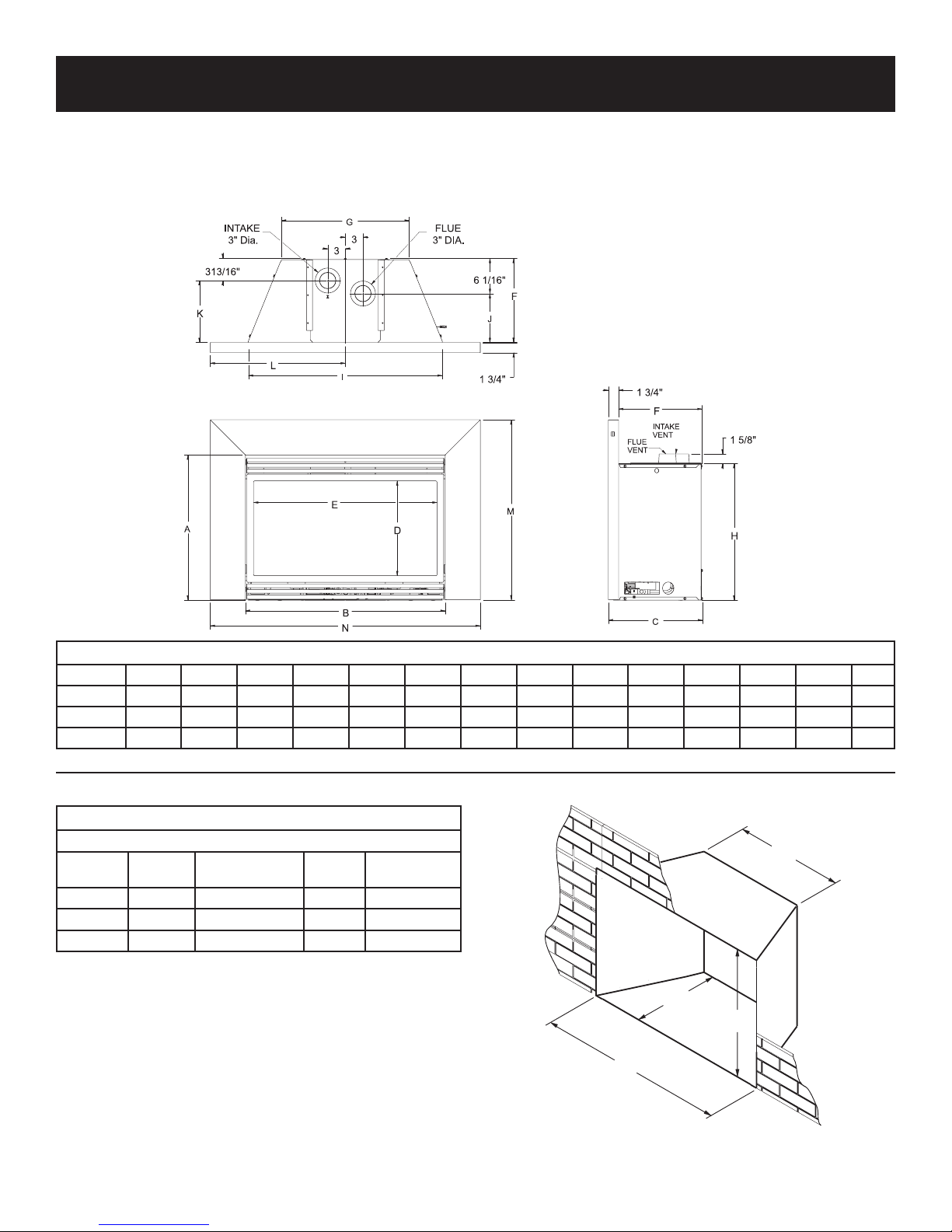

Fireplace Insert Dimensions ...................................................................................................7

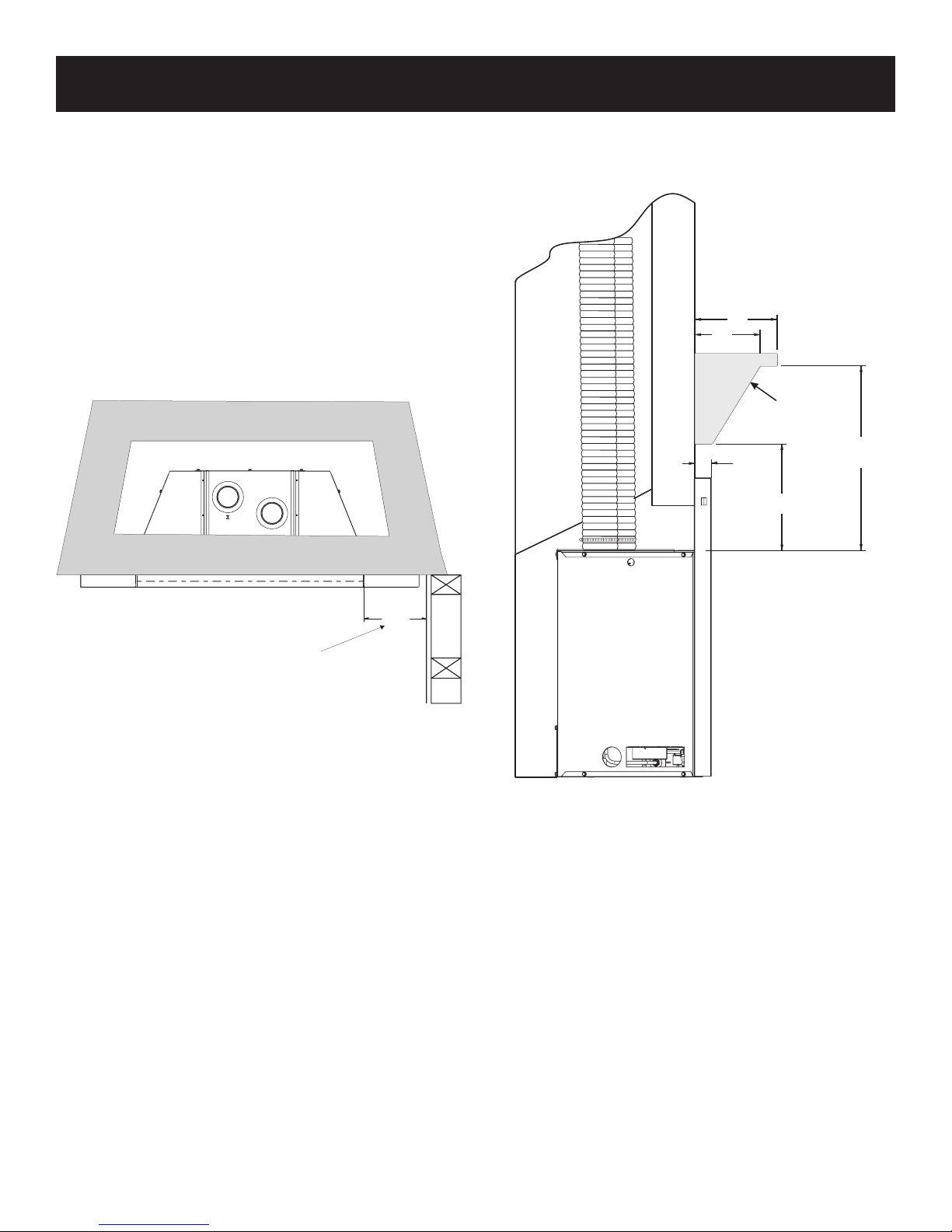

Mantle and Trim Clearances ..................................................................................................8

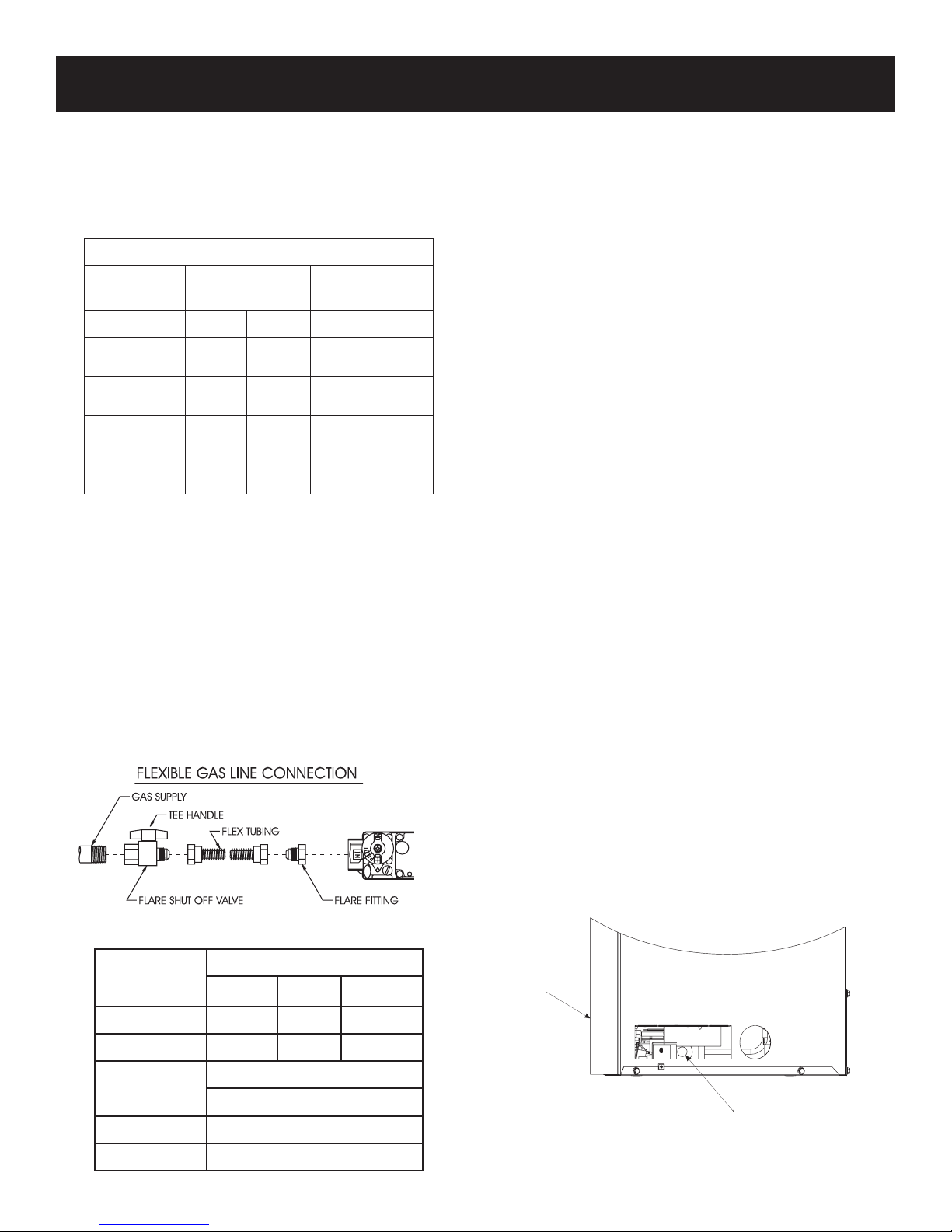

Gas Supply .............................................................................................................................9

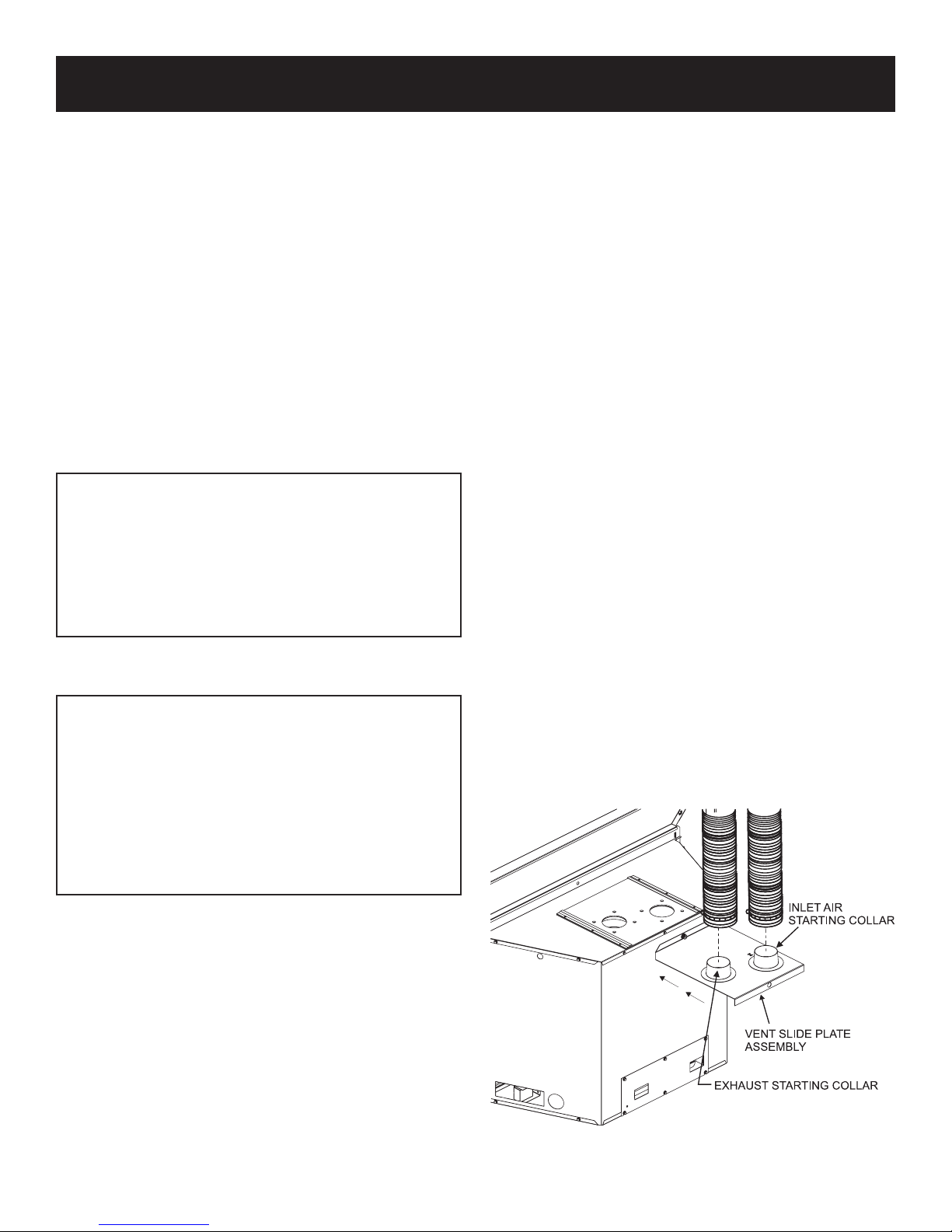

Venting and Installation .................................................................................................. 10-12

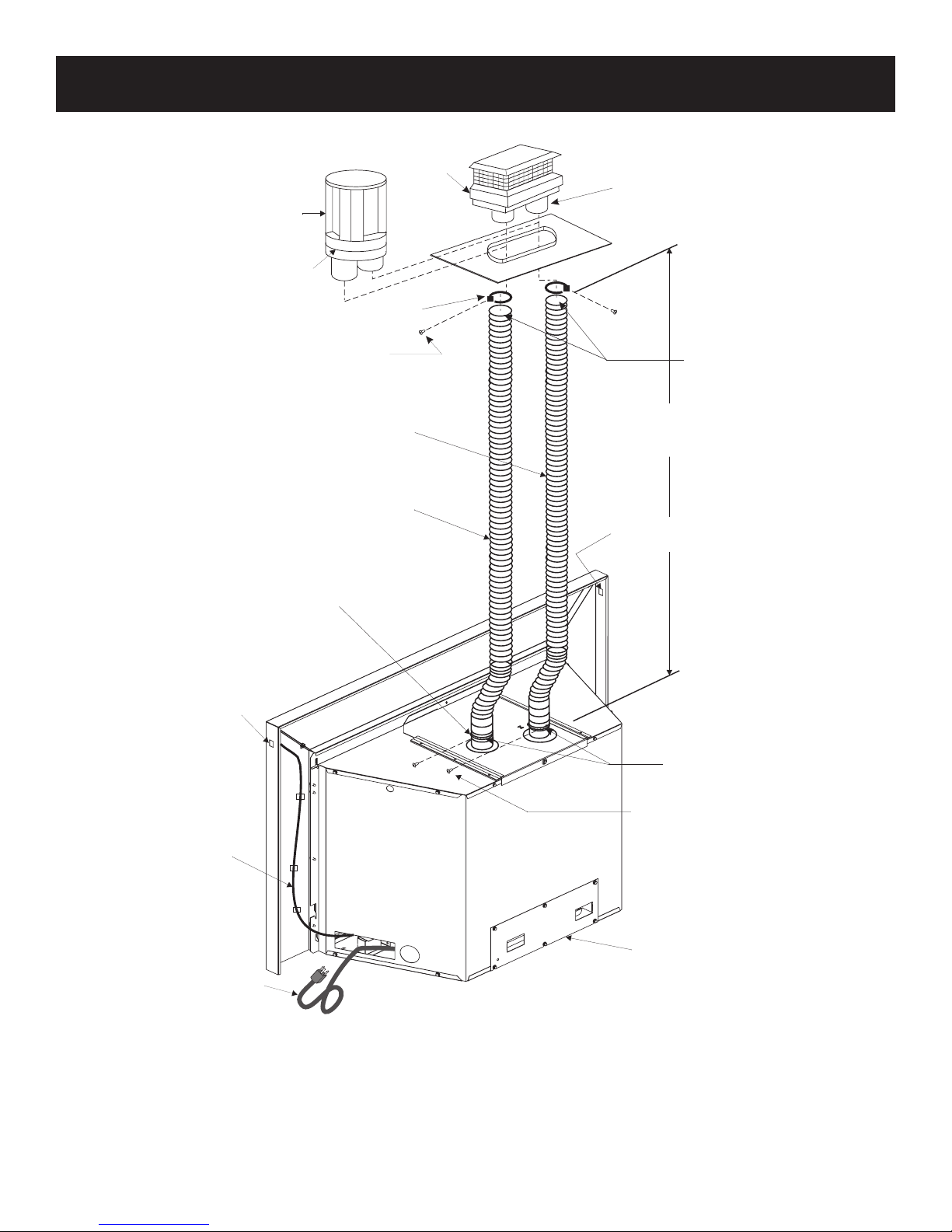

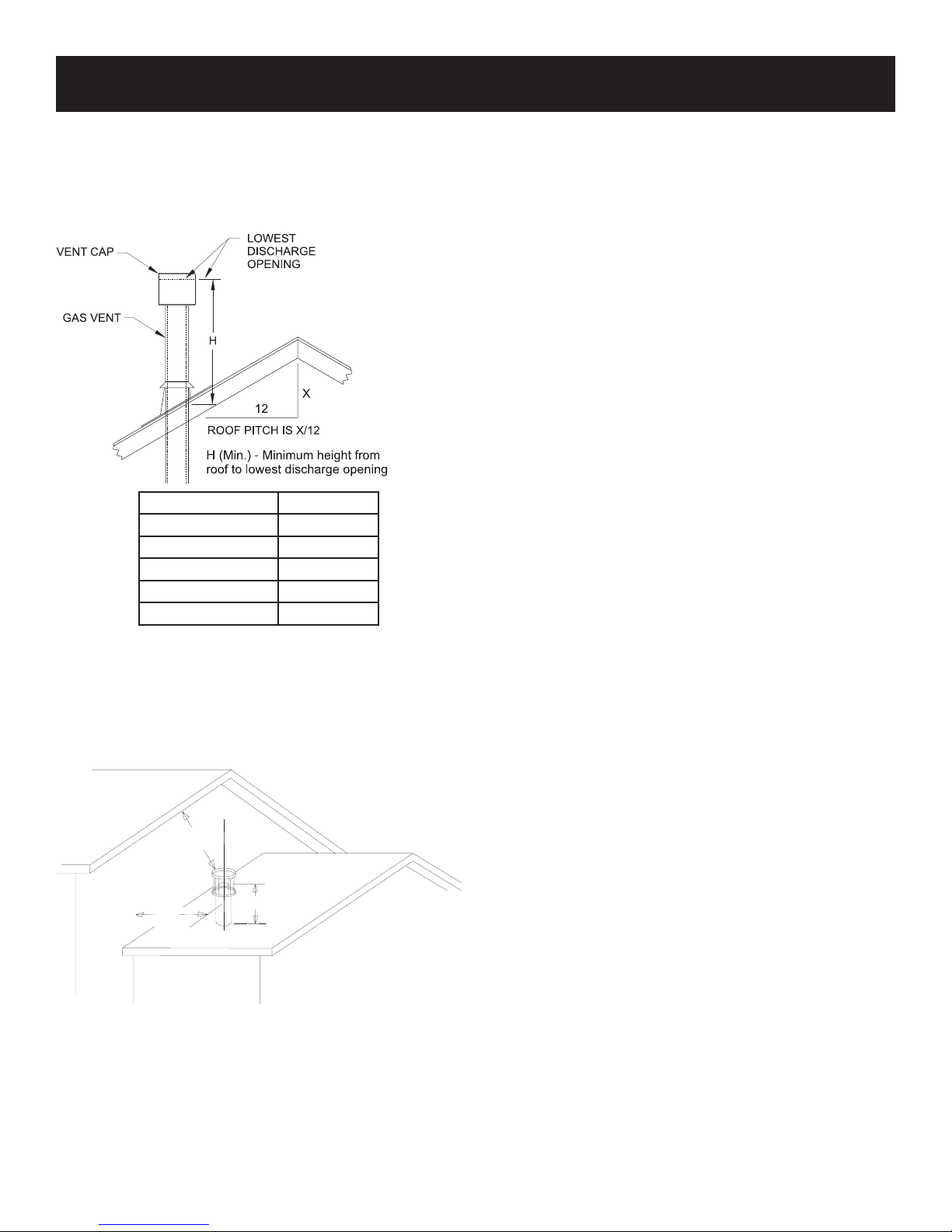

Vertical Termination .............................................................................................................13

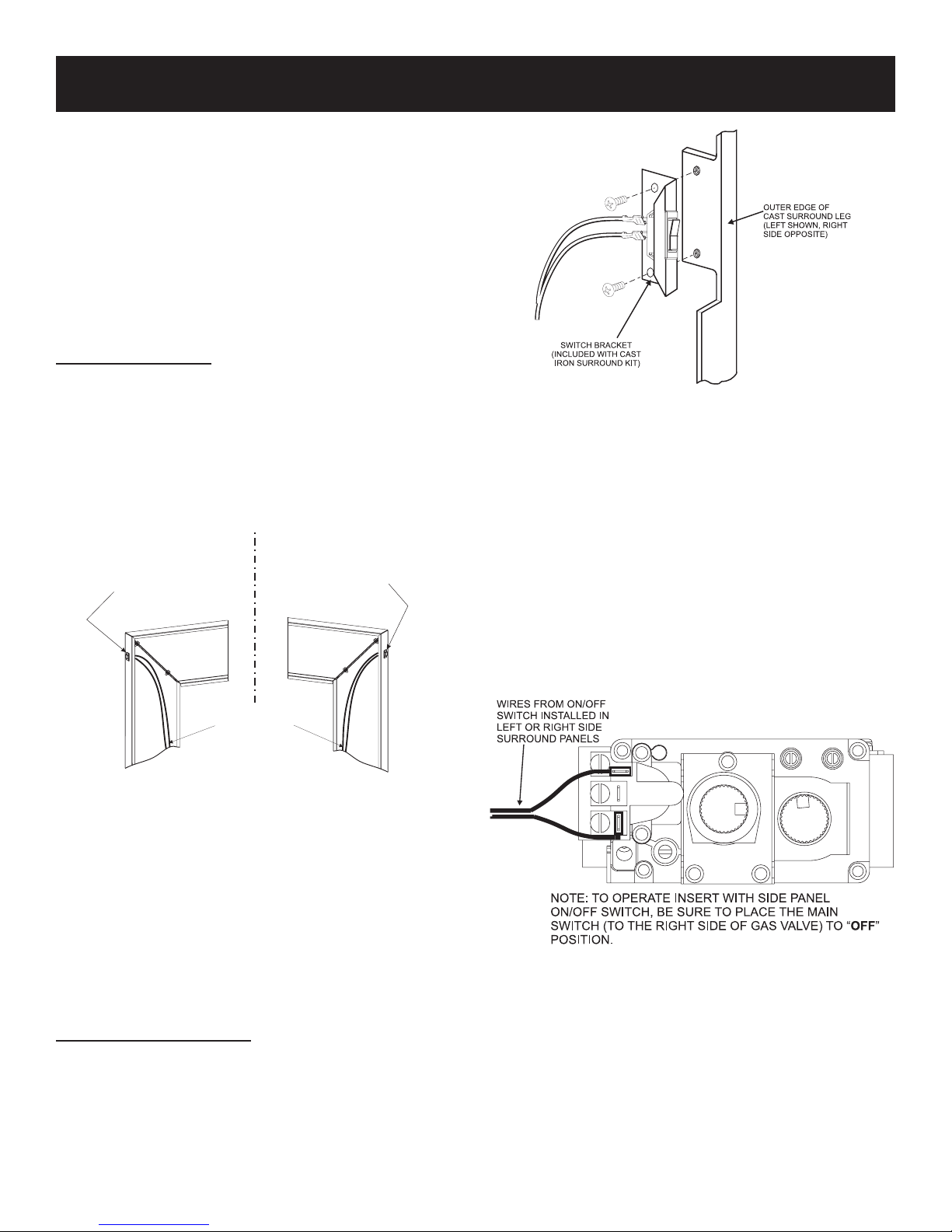

Alternate ON/OFF Switch Installation .................................................................................14
Surround Panel Installation ..................................................................................................15
Blower Accessory Information .............................................................................................16
Log Placement ......................................................................................................................17
Operating Instructions ..........................................................................................................18

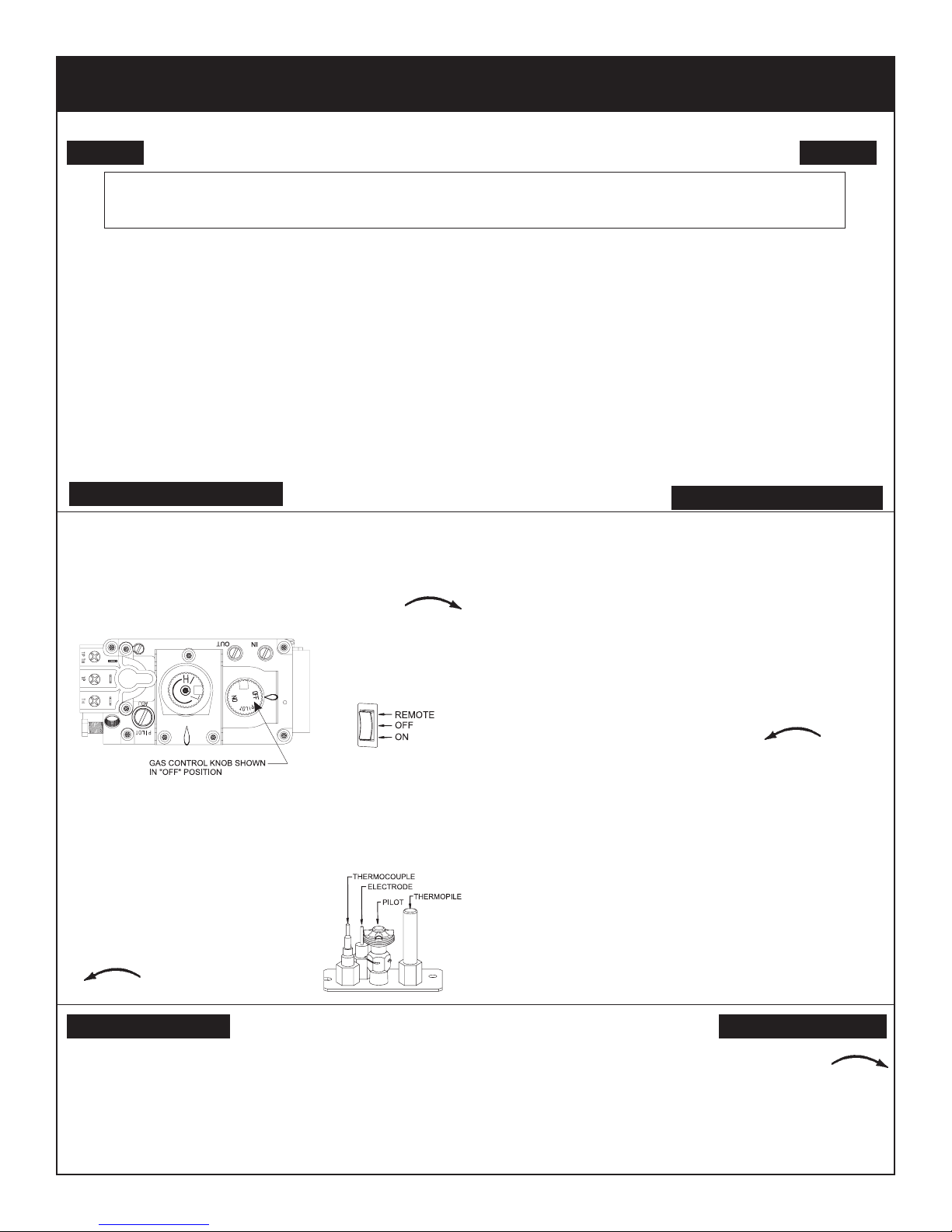

Standing Pilot Lighting Instructions ....................................................................................19

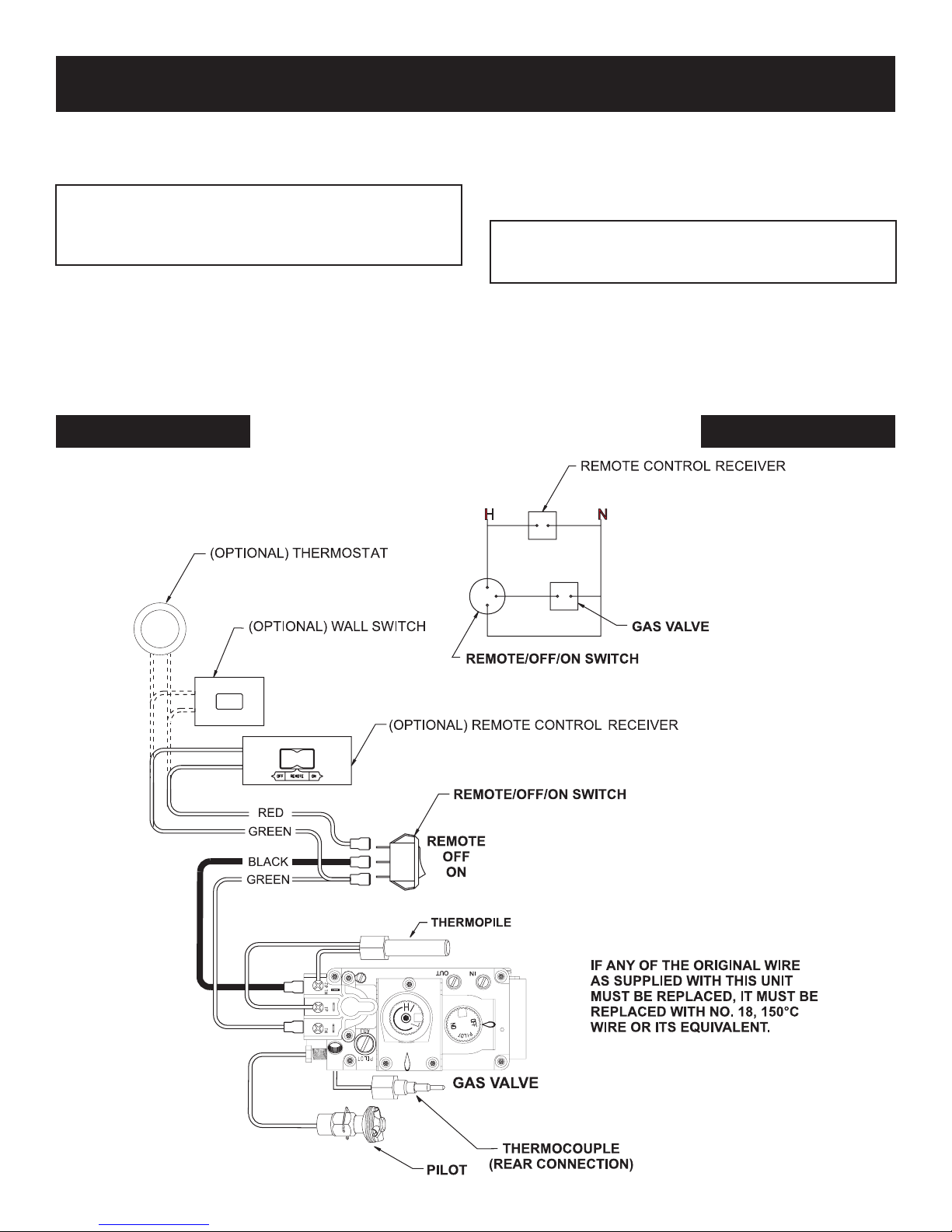

Standing Pilot Wiring ...........................................................................................................20
Standing Pilot Troubleshooting ............................................................................................21
Insert Maintenance and Service ...........................................................................................22
Decorative Accessories .........................................................................................................23
Insert Parts View ..................................................................................................................24
Insert Parts List .....................................................................................................................25
How to Order Repair Parts ...................................................................................................26
Service Notes .................................................................................................................. 26-27
SECTION PAGE

23015-3-0707 Page 3
DO NOT OPERATE THIS APPLIANCE WITHOUT GLASS FRONT PANEL INSTALLED
Before enclosing the vent pipe assembly, operate the appliance to ensure it is venting properly.
• Children and adults should be alerted to the hazards
of high surface temperatures and should stay away
to avoid burns or clothing ignition.
• Young children should be carefully supervised when
they are in the same room as the appliance.
• Clothing or other flammable material should not be
placed on or near the appliance.
• Adequate accessibility clearances for servicing and
proper operation should be maintained.
• This appliance must not share or be connected to a flue
serving a separate solid-fuel burning appliance.
• Keep the area around your appliance clear of
combustible materials, gasoline and other flammable
vapor and liquids.
• Under no circumstances should any solid fuels (wood,
coal, paper or cardboard etc.) be used in this appli-
ance.
• The flow of combustion and ventilation air must not
be obstructed in any way.
• Due to high temperatures the appliance should be
located out of traffic and away from furniture and
draperies.
• The glass front or any part removed for servicing
the appliance must be replaced prior to operating
the appliance. Work should be done by a qualified
service person.
• Keep burner and control compartment clean.
• Vent cap is hot while fireplace is in operation.
• Installation and repair should be done by a
QUALIFIED SERVICE PERSON. The appliance
should be inspected before use and at least annually
by a qualified service person. More frequent
cleaning may be required due to excessive lint from
carpeting, bedding materials, etc. It is imperative
that control compartments, burners and circulating
air passageways of the appliance be kept clean.
• DO NOT put anything around the fireplace insert
that will obstruct the flow of ventilation air.
• Maintain clearances in accordance with local
installation codes and the requirements of the gas
supplier.
• DO keep the appliance area clear and free from
combustible material, gasoline and other flammable
vapors and liquids.
• DO examine venting system periodically and replace
damaged parts.
• DO make a periodic visual check of pilot and burners.
Clean and replace damaged parts.
• CAUTION: The glass used in your fireplace insert is
ceramic glass. If the glass is cracked or damaged in
any way, it should be replaced only with a complete
glass frame assembly from Empire. See parts list on
Page 25 for ordering.
• DO NOT use this fireplace insert if any part has been
under water. Immediately call a qualified service
technician to inspect the heater and to replace any
part of the control system and any gas control which
has been under water.
• Any safety screen or guard removed for servicing an
appliance must be replaced prior to operating the
appliance.
IMPORTANT SAFETY INFORMATION

23015-3-0707Page 4
Some people cannot smell well. Some people cannot smell the
odor of the chemical put into the gas. You must find out if you
can smell the odorant in propane. Smoking can decrease your
ability to smell. Being around an odor for a time can affect your
sensitivity or ability to detect that odor. Sometimes other odors
in the area mask the gas odor. People may not smell the gas odor
or their minds are on something else. Thinking about smelling a
gas odor can make it easier to smell.
The odorant in LP-Gas is colorless, and it can fade under some
circumstances. For example, if there is an underground leak, the
movement of the gas through soil can filter the odorant. Odorants
in LP-Gas also are subject to oxidation. This fading can occur if
there is rust inside the storage tank or in iron gas pipes.
The odorant in escaped gas can adsorb or absorb onto or into walls,
masonry and other materials and fabrics in a room. That will take
some of the odorant out of the gas, reducing its odor intensity.
LP-Gas may stratify in a closed area, and the odor intensity could
vary at different levels. Since it is heavier than air, there may be
more odor at lower levels. Always be sensitive to the slightest gas
odor. If you detect any odor, treat it as a serious leak. Immediately
go into action as instructed earlier.
Propane (LP-Gas) is a flammable gas which can cause fires
and explosions. In its natural state, propane is odorless and
colorless. You may not know all the following safety precau-
tions which can protect both you and your family from an
accident. Read them carefully now, then review them point
by point with the members of your household. Someday
when there may not be a minute to lose, everyone’s safety
will depend on knowing exactly what to do. If, after read-
ing the following information, you feel you still need more
information, please contact your gas supplier.
• Learn to recognize the odor of LP-Gas. Your local LP-Gas
Dealer can give you a “Scratch and Sniff” pamphlet. Use it to
find out what the propane odor smells like. If you suspect that
your LP-Gas has a weak or abnormal odor, call your LP-Gas
Dealer.
• If you are not qualified, do not light pilot lights, perform service,
or make adjustments to appliances on the LP-Gas system. If
you are qualified, consciously think about the odor of LP-Gas
prior to and while lighting pilot lights or performing service
or making adjustments.
• Sometimes a basement or a closed-up house has a musty smell
that can cover up the LP-Gas odor. Do not try to light pilot
lights, perform service, or make adjustments in an area where
the conditions are such that you may not detect the odor if
there has been a leak of LP-Gas.
• Odor fade, due to oxidation by rust or adsorption on walls of
new cylinders and tanks, is possible. Therefore, people should
be particularly alert and careful when new tanks or cylinders
are placed in service. Odor fade can occur in new tanks, or
reinstalled old tanks, if they are filled and allowed to set too
long before refilling. Cylinders and tanks which have been
out of service for a time may develop internal rust which will
cause odor fade. If such conditions are suspected to exist, a
periodic sniff test of the gas is advisable. If you have any
question about the gas odor, call your LP-Gas dealer. A
periodic sniff test of the LP-Gas is a good safety measure
under any condition.
• If, at any time, you do not smell the LP-Gas odorant and you
think you should, assume you have a leak. Then take the same
immediate action recommended above for the occasion when
you do detect the odorized LP-Gas.
• If you experience a complete “gas out,” (the container is under
no vapor pressure), turn the tank valve off immediately. If the
container valve is left on, the container may draw in some air
through openings such as pilot light orifices. If this occurs,
some new internal rusting could occur. If the valve is left
open, then treat the container as a new tank. Always be sure
your container is under vapor pressure by turning it off at the
container before it goes completely empty or having it refilled
before it is completely empty.
• Do not operate electric switches, light matches, use your phone.
Do not do anything that could ignite the gas.
• Get everyone out of the building, vehicle, trailer, or area. Do
that IMMEDIATELY.
• Close all gas tank or cylinder supply valves.
• LP-Gas is heavier than air and may settle in low areas such as
basements. When you have reason to suspect a gas leak, keep
out of basements and other low areas. Stay out until firefighters
declare them to be safe.
• Use your neighbor’s phone and call a trained LP-Gas service
person and the fire department. Even though you may not
continue to smell gas, do not turn on the gas again. Do not
re-enter the building, vehicle, trailer, or area.
• Finally, let the service man and firefighters check for escaped
gas. Have them air out the area before you return. Properly
trained LP-Gas service people should repair the leak, then
check and relight the gas appliance for you.
SOME POINTS TO REMEMBER
NO ODOR DETECTED - ODOR FADE
LP-GAS WARNING ODOR
If a gas leak happens, you should be able to smell the gas because of the odorant put in the LP-Gas.
That’s your signal to go into immediate action!
SAFETY INFORMATION FOR USERS OF LP GAS

23015-3-0707 Page 5
Warning: ANY CHANGE TO THIS FIREPLACE OR ITS
CONTROLS CAN BE DANGEROUS.
Improper installation or use of the fireplace can cause
serious injury or death from fire, burns, explosions, or
carbon monoxide poisoning.
Instructions to Installer
1. Installer must leave instruction manual with owner after
installation.
2. Installer must have owner fill out and mail warranty card supplied
with the fireplace.
3. Installer should show owner how to start and operate the
fireplace.
This direct vent gas fireplace heater is designed to operate with all
combustion air being siphoned from the outside of the building
and all exhaust gases expelled to the outside of the building. The
information contained in this manual pertains to all models and gas
control systems unless otherwise noted.
Warning: This unit is not for use with solid fuels.
Appliance Certification
This fireplace is design certified in accordance with American
National Standard/CSA Standard ANSI Z.21-88/CSA 2.33 and by
Underwriters Laboratories as a Direct Vent Gas Fireplace Heater
and shall be installed according to these instructions.
Consult your local building code agency, prior to installation,
to ensure compliance with local codes-including permits and
inspections.
The fireplace insert, when installed, must be electrically grounded
in accordance with local codes or, in absence of local codes, with
the National Electric Code ANSI/NFPA 70 or Canadian Electric
code, CSA C22.1, if an external electrical source is utilized.
These models may be installed in a bedroom or bed-sitting room
in the U.S.A. and Canada.
Qualified Installing Agency
Installation and replacement of gas piping, gas utilization equipment
or accessories and repair and servicing of equipment shall be
performed only by a qualified agency. The term “qualified agency”
means any individual, firm, corporation or company which either in
person or through a representative is engaged in and is responsible
for (a) the installation or replacement of gas piping or (b) the
connection, installation, repair or servicing of equipment, who is
experienced in such work, familiar with all precautions required
and has complied with all the requirements of the authority having
jurisdiction.
State of Massachusetts: The installation must be made by
a licensed plumber or gas fitter in the Commonwealth of
Massachusetts.
The installation must conform with local codes or, in the absence of
local codes, with the National Fuel Gas Code ANSI Z223.1/NFPA
54* Natural Gas and Propane Installation Code, or CSA B149.1
in Canada. *Available from the American National Standards Institute, Inc. 11
West 42nd St., New York, N.Y. 10036.
Any alteration of the original design, installed other than as
shown in these instructions or use with a type of gas not shown on
the rating plate is the responsibility of the person and company
making the change.
Important
All correspondence should refer to complete Model Number, Serial
Number and type of gas.
High Altitude
When installing this unit at an elevation above 2000 feet (in the
United States) it may be necessary to decrease the input rating by
changing the existing burner orifice to a smaller size. Generally,
input should be reduced 4 percent for each 1000 feet above sea
level. However, if the heating value of the gas has been reduced,
this general rule may not apply. Check with local gas utility for
proper orifice size identification.
Canadian High Altitude
Altitude: 0-4500 feet (0-1370 m)
When installing this unit at an elevation above 4500 feet (in Canada),
check with local authorities.
Consult your local gas utility for assistance in determining the
proper orifice for location.
Preparation
This direct vent gas fireplace insert and its components are tested
and safe when installed in accordance with this Installation Manual.
Report to your dealer any parts damaged in shipment, specifically
check glass condition. Do not install unit with damaged, incomplete,
or substitute parts. Read all instructions before starting installation
and follow these instructions carefully during installation to insure
maximum benefit and safety. Failure to follow them will void your
warranty and may present a fire hazard.
The warranty will be voided by, and the warranter disclaims any
responsibility for the following actions:
• Installation of any damaged fireplace insert or vent system
component.
• Modification of the fireplace insert or direct vent system.
• Installation other than as instructed by Empire Comfort Systems,
Inc.
• Improper positioning of the logs or glass door assembly.
• Installation and/or use of any component part not manufactured
or approved by manufacturer.
INTRODUCTION

23015-3-0707Page 6
SPECIFICATIONS
DV25IN33L MODELS LP Nat
Input Btu/hr Maximum 25,000 25,000
Btu/hr Minimum 17,000 17,000
KWH (Maximum) 7.30 7.30
(Minimum) 5.00 5.00
Orifice #53 (0.0596) #42 (0.0935)
Air Shutter Opening Full Open 1/8”
DV33IN33L MODELS LP Nat
Input Btu/hr Maximum 33,000 33,000
Btu/hr Minimum 25,000 25,000
KWH (Maximum) 9.57 9.57
(Minimum) 7.30 6.67
Orifice #51 (0.067) #34 (0.111)
Air Shutter Opening Full Open 3/16”
DV35IN33L MODELS LP Nat
Input Btu/hr Maximum 35,000 35,000
Minimum 27,000 25,000
KWH (Maximum) 10.15 10.15
(Minimum) 7.83 7.30
Orifice #50 (0.070) #33 (0.113)
Air Shutter Opening Full Open 3/16”
Venting Kits Description Contents
DVKI Vertical Vent Kit - 17 1/2’ One piece of 35’ FlexVent (split for 17 1/2’ vent run), Round Cap, Flashing,
connectors, and clamps.
Recommended when installing to an existing round fireplace chimney pipe.
DVVK3FV Vertical Vent Kit - 25’ Two pieces of 25’ FlexVent, Rectangle Cap, Flashing, connectors, and clamps
Recommended when installing to a square or rectangular clay flue.
DVK35 Vent Extension Kit 35’ flex vent extension section with 2 connectors and 4 clamps
Note: When installing vent caps, special locally made flashings may be required to properly seal the vent system to the existing
chimney termination.
Remote Control
Accessories
Description
FRBC Millivolt Battery Remote ON/OFF
FRBTC Millivolt Battery Remote T-Stat
TMV Millivolt WIRELESS Wall Thermostat
TRW Millivolt Reed Switch Wall Thermostat
Surround Kits Description
Contemporary
S256BL 6” Wide, black for use on DV25IN models
S336BL 6” Wide, black for use on DV33IN models
S356BL 6” Wide, black for use on DV35IN models
Traditional Cast Iron
SC256BL 6” Wide, black for use on DV25IN models
SC336BL 6” Wide, black for use on DV33IN models
SC356BL 6” Wide, black for use on DV35IN models

23015-3-0707 Page 7
FIREPLACE INSERT DIMENSIONS
Figure 1
When planning a fireplace insert installation, it’s necessary to
determine:
• The vent system configuration to be used.
• Gas supply piping.
• Whether optional accessories - devices such as a wall switch
or remote control - are desired.
• Electrical supply requirements for blower.
• Proper opening size of fireplace required for installation of
the fireplace insert.
DV FIREPLACE INSERT DIMENSIONS
MODEL A B C D E F G H I J K L M N
DV25IN 19 3/8” 28 14 1/2” 11 1/8” 25 1/4” 12 3/4” 17” 18 5/16” 27” 6 3/4” 9” 20” 25 3/8” 40”
DV33IN 22 3/8” 31 16 14 1/8” 28 1/4” 14 1/4” 18 3/4” 21 5/16” 30” 8 1/4” 10 1/2” 21 1/2” 28 3/8” 43”
DV35IN 24 3/8” 34 16 16 1/8” 31 1/4” 14 1/4” 21 3/4” 23 5/16” 33” 8 1/4” 10 1/2” 23” 30 3/8” 46”
A
D
C
B
Figure 2
Fireplace Opening Dimensional Information/Sizing
MINIMUM FIREPLACE OPENING DIMENSIONS
MODEL
NO.
HEIGHT
A*
FRONT WIDTH
B
DEPTH
C
REAR WIDTH
D
DV25IN 18 3/8” 27 1/2” 12 3/4” 17 1/4”
DV33IN 21 3/8” 30 1/2” 14 1/4” 19”
DV35IN 23 3/8” 33 1/2” 14 1/4” 22”
*Note: If the fireplace lintel is wider than 8” (203mm), the
height of the fireplace opening must be increased a few inches to
allow for a gradual offset in the exhaust and/or intake vent pipes.

23015-3-0707Page 8
MANTLE AND TRIM CLEARANCES
COMBUSTIBLE
MANTEL/TRIM
AREA
12”
10”
1 3/4”
23”
11”
Combustible Material
No greeting cards, stockings or ornamentation of any type
should be placed on or attached to the fireplace. The flow of heat
can ignite combustibles.
Figure 4
8”
MINIMUM CLEARANCE TO PERPENDICULAR
COMBUSTIBLE SIDE-WALL
(FROM EDGE OF DOOR FRAME)
Figure 3

23015-3-0707 Page 9
Figure 5
The gas pipeline can be brought in through the right or left side of
the appliance. The insert has a Flexline with shutoff valve located
on the right side when facing the unit. See Figures 5 and 6. Consult
the current National Fuel Gas Code, ANSI Z223.1 CAN/CGA-B149
(.1 or .2) installation code.
Installing the Main Gas Cock
Each appliance should have its own manual gas cock.
A manual main gas cock should be located in the vicinity of the
unit. Where none exists, or where its size or location is not ad-
equate, contact your local authorized installer for installation or
relocation.
Compounds used on threaded joints of gas piping shall be resistant
to the action of liquefied petroleum gases. The gas lines must be
checked for leaks by the installer. This should be done with a soap
solution watching for bubbles on all exposed connections, and if
unexposed, a pressure test should be made.
Never use an exposed flame to check for leaks. Appliance must
be disconnected from piping at inlet of control valve and pipe
capped or plugged for pressure test. Never pressure test with
appliance connected; control valve will sustain damage!
NOTE: The millivolt gas controls are equipped with a captured
screw type pressure test point, therefore it is not necessary to provide
a 1/8" test point up stream of the control.
When using copper or flex connector use only approved fittings.
The appliance and it’s individual shut off valve must be disconnected
from supply piping system during any pressure testing of that system
at test pressures in excess of 1/2 psig (3.5kPa).
The appliance must be isolated from the gas supply piping system
by closing its individual manual shut off valve during any pressure
testing of the gas supply piping system at test pressures equal to or
less than 1/2 psig (3.5kPa).
Attention! If one of the procedures results in pressures in excess
of 1/2 psig (14" w.c.) (3.5 kPa) on the fireplace gas valve, it will
result in a hazardous condition.
Checking Manifold Pressures
Both Propane and Natural gas valves have a built-in pressure
regulator in the gas valve. Natural gas models will have a manifold
pressure of approximately 3.5" w.c. (.871kPa) at the valve outlet
with the inlet pressure to the valve from a minimum of 4.5" w.c.
(1.120kPa) for the purpose of input adjustment to a maximum of
14.0" w.c. (3.484kPa). Propane gas models will have a manifold
pressure approximately 10.0" w.c. (2.49kPa) at the valve outlet
with the inlet pressure to the valve from a minimum of 10.8" w.c.
(2.68kPa) for the purpose of input adjustment to a maximum of
14.0" w.c. (3.484kPa).
Gas Supply Pressure (inches w.c.)
Minimum Normal Maximum
Natural Gas 4.5" 7.0" 14.0"
LP (Propane) 10.8" 11.0" 14.0"
Manifold Pressure (inches w.c.)
Normal (HI)
Natural Gas 3.5"
LP (Propane) 10.0"
Note: Never use plastic pipe. Check to confirm whether your
local codes allow copper tubing or galvanized.
Note: Since some municipalities have additional local codes, it is
always best to consult your local authority and installation code.
The use of the following gas connectors is recommended:
— ANS Z21.24 Appliance Connectors of Corrugated Metal Tubing
and Fittings.
— ANS Z21.45 Assembled Flexible Appliance Connectors of
Other Than All-Metal Construction
The above connectors may be used if acceptable by the authority
having jurisdiction. The state of Massachusetts requires that a flexible
appliance connector cannot exceed three feet in length.
Recommended Gas Pipe Diameter
Pipe Length Schedule 40 Pipe
Inside Diameter
Tubing, Type L
Outside Diameter
Nat. L.P. Nat. L.P.
0-10ft
0-3m
1/2"
12.7mm
3/8"
9.5mm
1/2"
12.7mm
3/8"
9.5mm
11-40ft
4-12m
1/2"
12.7mm
1/2"
12.7mm
5/8"
15.9mm
1/2"
12.7mm
41-100ft
13-30m
1/2"
12.7mm
1/2"
12.7mm
3/4"
19mm
1/2"
12.7mm
101-150ft
31-46m
3/4"
19mm
1/2"
12.7mm
7/8"
22.2mm
3/4"
1.9 mm
GAS SUPPLY
GAS FLEX LINE WITH
SHUTOFF VALVE
(PROVIDED)
FRONT OF
INSERT
RIGHT SIDE OF INSERT
Figure 6

23015-3-0707Page 10
VENTING AND INSTALLATION
1. Before beginning, remove glass door and log package from
unit. Also check to make sure there is no hidden damage to
the unit. Take a minute and plan out the gas, venting and elec-
trical route. It is best to start with the gas line first, followed
by the chimney liner and electrical supply requirements.
2. Minimum fireplace opening requirements are shown in
Figure 2 of this installation manual. The firebrick (refrac-
tory), glass doors, screen rails, screen mesh and log grates
can be removed from a factory built fireplace in order to gain
minimum gas insert opening requirements prior to installing
the gas fireplace insert.
3. This insert requires no hearth extensions. Combustible ma-
terial on the floor may be installed up to the insert. Do not
obstruct the lower louver of the insert. The original fireplace
cannot be returned to solid fuel in this condition.
4. The metal floor of the solid fuel firebox may be removed to
facilitate the installation of the insert. CLEARANCE TO
COMBUSTIBLE MATERIAL UNDER THE INSERT IS
1/4”. YOU MUST USE THE LEVELING LEGS TO RAISE
THE INSERT A MINIMUM OF 1/4” IF THE INSERT IS
TO SIT ON COMBUSTIBLE MATERIAL. The side walls
and top structure of the firebox may not be altered with the
exception of removable baffles and dampers. Smoke shields,
shelves and baffles may be removed if attached with me-
chanical fasteners. The original fireplace cannot be returned
to solid fuel in this condition.
5. Combustible facing material may be installed over the
original combustible facing material on the solid fuel fire-
place. The original specified clearances of a factory-built
fireplace must be maintained, with the exception of the
hearth. Clearances on a masonry fireplace must be main-
tained at 12” from the opening for combustible projections
over 1 1/2”. Clearances for combustible projections under
1 1/2” must be maintained at 6” from the opening per
NFPA211. Plan the surround size accordingly. A surround
must be used with the insert. UNDER NO CIRCUMSTANCE
CAN COMBUSTIBLE MATERIAL BE PLACED BEHIND
THE SURROUND!
6. The insert surround is tested and approved with this gas insert
and may cover existing air circulation vents or grills on the
solid fuel fireplace it is installed into. If the surround does
not cover the entire ventilation grill surface, the exposed grill
area should be left open.
NOTE: Surround panel kits have been tested and approved to
cover existing air circulation vents or grills.
NOTE: Cutting of sheet metal parts of a fireplace in order to
install the fireplace insert is prohibited.
WARNING: Only the surround as supplied may be used
to cover integral grills on the solid fuel-burning fireplace.
No other components such as shrouds, sheet metal plates,
etc. may be used to seal off vents.
7. To assure top performance, safety and efficiency, inserts must
be installed with an approved flue liner as per CAN/CGA
B-149 or National Fuel Code ANSI Z223 and these instruc-
tions.
Note: The following statement is also provided on a separate
label plate in the instruction packet. Prior to installation of
the fireplace insert, the installer must mechanically secure this
warning plate to the inside of the fireplace for future reference
as required.
WARNING: The solid fuel fireplace has been converted
for use with gas only and cannot be used for burning wood
or solid fuels unless all original parts have been replaced
and the fireplace has been reapproved by the authority
having jurisdiction.
8. The solid fuel fireplaces’ flue damper must be fully locked
in the open position or removed for installation of the gas
fireplace insert.
9. The fireplace and fireplace chimney must be cleaned and in
good working order and constructed of noncombustible ma-
terials.
10. Make sure that all chimney cleanouts fit properly so air can-
not leak into the chimney.
11. Install the insert without the surround panels attached and
make all gas, venting, and electrical connections.
If the factory built fireplace does not have gas access holes
provided, an access hole of 1 1/2” diameter (37.5mm) or
less may be drilled through the lower sides or bottom of
the firebox in a proper workmanship like manner. This
access hole must be plugged with a non-combustible insu-
lation after the gas supply line has been installed.
12. To complete the installation, install surround panel assembly.
Please refer to instructions included with the surround panel
kit.
Ensure there are no obstructions to side air passages of
decorative trim once installed on insert.
INSTALLING THE VENT SYSTEM
Vent System Installation Precautions
Before starting installation of vent kits, the installer should read
these instructions and the Vent Kit Instructions to ensure that a
proper vent installation is completed. Consult your local Building
Codes before beginning the Installation.
WARNING: THIS GAS INSERT AND VENT ASSEMBLY
MUST BE VENTED DIRECTLY TO THE OUTSIDE
AND MUST NEVER BE ATTACHED TO A CHIMNEY
SERVING A SEPARATE SOLID FUEL BURNING
APPLIANCE. EACH GAS APPLIANCE MUST USE
A SEPARATE VENT SYSTEM. COMMON VENT
SYSTEMS ARE PROHIBITED.

23015-3-0707 Page 11
VENTING AND INSTALLATION
Vent System Approvals
Figure 8 shows the vent termination caps and systems approved
for use with these models. Approved vent system terminations
are labeled for identification. 3-inch diameter listed flexible
aluminum or stainless steel gas vent is used for both the incoming
combustion air and exhaust vent pipes. NO OTHER VENTING
SYSTEMS OR COMPONENTS MAY BE USED. Detailed
installation instructions are included with each vent termination
kit and should be used in conjunction with this manual.
Horizontal Venting
The vent system on this model CANNOT be terminated
horizontally.
Vertical Venting
The inlet and exhaust vent pipes MUST be connected to the
proper collars on the unit AND to the termination cap or the unit
will not operate. The intake vent collar is identified by a stamped
“I” on the top collar sliding vent plate assembly.
WARNING: MAJOR U.S. BUILDING CODES SPECIFY
MINIMUM CHIMNEY AND/OR VENT HEIGHT
ABOVE THE ROOF TOP. THESE MINIMUM HEIGHTS
ARE NECESSARY IN THE INTEREST OF SAFETY.
SEE FIGURES 8 THROUGH 10 FOR MINIMUM
HEIGHTS, PROVIDED THE TERMINATION CAP IS
AT LEAST 2-FEET FROM A VERTICAL WALL AND
2-FEET BELOW A HORIZONTAL OVERHANG.
Note: This also pertains to vertical vent systems installed on the
outside of the building.
WARNING: THE EXHAUST PIPE MUST ONLY
BE CONNECTED TO THE EXHAUST STARTING
COLLAR OF THE UNIT AND TO THE EXHAUST
COLLAR OF THE TERMINATION CAP.
THE INLET AIR PIPE MUST ONLY BE CONNECTED
TO THE INLET AIR STARTING COLLAR OF THE
UNIT AND TO THE INLET AIR COLLAR OF THE
TERMINATION CAP. BOTH THE INLET VENT AND
THE FLUE VENT MUST BE CONNECTED FROM
THE INSERT TO THE VENT TERMINATION CAP.
NOTE: The minimum vertical vent rise is 12 feet and the
maximum vertical vent rise is 35 feet. These dimensions are
measured from the starting collars of the unit to the end of the last
section of vent pipe. See Figure 8.
NOTE: The damper of the masonry chimney may need to be
removed to allow installation of the flexible-vent pipe.
When installing into a zero clearance, factory built wood-burning
fireplaces, the use of the DVKI Round Vertical Termination Kit
should allow you to mount the vent adaptor and cap to the exposed
round chimney pipe easily.
Connecting the Vent Pipe
Caution: Sharp edges. Always use gloves when installing.
Install the 3-inch flexible vent pipes down through the chimney.
Attach the pipe-to-cap adaptor to the termination cap and the
top of the flexible vent pipe, then install the cap to the top of the
chimney.
Remove the vent slide plate assembly from the top of the insert.
See Figure 7. Trim off excess venting then attach and secure
the bottom ends of the flex pipes to the starting collars with the
adjustable band clamps provided. Slide the gas insert into place,
and position any excess flex vent pipe back up into the chimney.
Begin installation of the insert into the fireplace opening. Align
the vent slide plate assembly with the guides located on top of
the insert. Work the insert inch by inch into the fireplace cavity
as you pull forward on the vent slide plate assembly. Do not use
excessive force on the vent slide plate. Once the vent slide plate
is close to seating, install the vent bolt through the center hole
of the insert top flange, and into the vent slide plate nut. Using
a wrench or socket, tighten the bolt until the vent slide plate is
seated forward completely.
Positioning, Leveling, and Securing Insert
1. Place the insert into position.
Note: The front flanges of the insert (without surround panels)
should be set at approximately 1”(inch) in front of the face of the
fireplace.
2. Level the insert from side to side and front to back.
3. If necessary, use the leveling bolts included in the instruction
pack. Screw the legs into the nuts installed in the bottom of
the insert. Turn legs in until insert is level.
CAUTION: TO AVOID DOWNDRAFTS AND/OR COLD AIR
PROBLEMS, IT IS RECOMMENDED TO SEAL OFF THE
AREA BETWEEN THE TERMINATION CAP AND THE TOP
OF THE SOLID-FUEL CHIMNEY OPENING INTO WHICH
THE VENT CAP HAS BEEN INSTALLED.
Figure 7

23015-3-0707Page 12
Figure 8
VENTING AND INSTALLATION
RECTANGULAR
TERMINATION CAP
(DVVK3FV KIT)
VENT CLAMPS
INTAKE VENT
FLUE EXHAUST VENT
OPTIONAL ON/OFF
SWITCH LOCATION
10’ MINIMUM
35’ MAXIMUM
VENT CLAMPS
NOTE: LONG EXTENSION
TUBE FOR INLET VENT
CONNECTION.
RETAINER SCREWS MAY
BE INSTALLED THROUGH
THE VENT CLAMPS TO
ENSURE POSITIVE SECUREMENT
OF VENTING.
SCREWS ADDED THROUGH
VENT CLAMPS TO RETAIN
VENTING TO COLLARS
RECOMMENDED.
USE HIGH TEMP
SEALANT ON VENT
CONNECTIONS
USE HIGH TEMP
SEALANT ON VENT
CONNECTIONS
ROUND
TERMINATION CAP
(DVKI KIT)
ROUND CO-LINEAR TO
CO-AXIAL ADAPTOR
BLOWER ACCESS
COVER PLATE
BLOWER
POWER CORD
OPTIONAL
LOW VOLTAGE
WIRES
OPTIONAL ON/OFF
SWITCH LOCATION

23015-3-0707 Page 13
Vertical Through the Roof Applications
The Gas Fireplace Insert has been approved for:
a) Vertical installations up to 35 feet in height (top of insert to
cap).
b) Two sets of 45 degree elbow offsets (bends in flexvent) within
the vertical installation. From 0 to a maximum of 8 ft. of vent
pipe can be used between elbows.
c) Wall straps must be used to support offset pipe every 4'.
This application will require that you first determine the roof pitch
and use the appropriate venting components.
General Maintenance
Conduct an inspection of the venting system semi-annually.
Recommended areas to inspect are as follows:
1. Check areas of the venting system which are exposed to the
elements for corrosion. These will appear as rust spots or
streaks and, in extreme cases, holes. These components should
immediately be replaced.
2. Remove the cap and shine a flashlight down the vent. Remove
any bird nests or other foreign material.
3. Check for evidence of excessive condensate, such as water
droplets forming in the flex venting and subsequently dripping
out at joints or seams. Condensate can cause corrosion of caps,
pipe and fittings. It may be caused by having excessive lateral
runs, or having exterior portions of the system exposed to cold
weather.
4. Inspect joints to verify that no pipe sections or fittings have been
disturbed and, consequently, loosened. Also, check mechanical
supports, such as wall straps or plumbers’ tape for rigidity.
Determining Minimum Vent Height Above the Roof.
WARNING: Major U.S. building codes specify minimum
chimney and/or vent height above the roof top. These minimum
heights are necessary in the interest of safety. These specifica-
tions are summarized in Figure 9.
Figure 9
Note that for steep roof pitches, the vent height must be increased.
In high wind conditions, nearby trees, adjoining roof lines, steep
pitched roofs, and other similar factors can result in poor draft,
or down-drafting. In these cases, increasing the vent height may
solve this problem.
When terminating the vent cap near an exterior wall or overhang,
maintain minimum clearances as shown in Figure 10.
ROOF PITCH H (Min.)
Flat to 6/12 12" (305 mm)
6/12 to 7/12 15" (381 mm)
Over 7/12 to 8/12 18" (457 mm)
Over 8/12 to 16/12 24" (610 mm)
Over 16/12 to 21/12 36" (914 mm)
VERTICAL TERMINATION
Figure 10
MIN.
12" MIN.
24"
24"
MIN.
C
L

23015-3-0707Page 14
ALTERNATE ON/OFF SWITCH INSTALLATION
WIRING THE FIREPLACE
Note: Electrical wiring must be installed by a licensed electrician.
CAUTION: DISCONNECT REMOTE CONTROLS IF YOU ARE AB-
SENT FOR EXTENDED TIME PERIODS. THIS WILL PREVENT
ACCIDENTAL FIREPLACE OPERATION.
Installation of Alternate Surround Panel ON/OFF Switch
An ON/OFF switch and wire assembly are provided. They are included
in the instruction packet.
Do not cut wire or insulation on metal edges.
Note: Refer to surround panel installation section on page 15 for ad-
ditional information on attachment.
Contemporary Surrounds
1. Find the coiled low voltage wire assembly and ON/OFF switch lo-
cated in the instruction packet.
2. Attach the flag terminal ends to the “TH/TP” and “TH” terminals on
the front terminal block of the gas valve. See Figure 13.
3. Run the low voltage alternate switch wires up the back of the right
or left surround panel. Then secure the wires with wire clips pro-
vided. See Figure 11.
Figure 11
Insert ON/OFF switch into side panel then attach wire assembly
from valve terminals.
4. Remove the switch knockout on the side surround panel, then install
the ON/OFF switch.
5. Connect the low voltage wires from the gas valve to the
ON/OFF switch.
6. Attach the surround panel assembly to the insert. Place the surround
panel assembly against the face of the insert and align the lower
retaining tabs with the notches on the insert sides. Lift the surround
panel assembly slightly until the bottom return flange (top panel)
is positioned over the top flange on the insert. This secures the sur-
round panel assembly to the insert without screws.
Traditional Cast Iron Surrounds
1. Find the coiled low voltage wire assembly and ON/OFF switch lo-
cated in the instruction packet.
2. Attach the flag terminal ends to the “TH/TP” and “TH” terminals on
the front terminal block of the gas valve. See Figure 13.
WIRING FROM
MILLIVOLT GAS
VALVE
ON/OFF
SWITCH
ASSEMBLY
Right Side Installation Left Side Installation
ON/OFF
SWITCH
ASSEMBLY
Figure 12
Note: For right side leg installation, reverse switch position in
bracket.
3. Run the low voltage alternate switch wires up the back of the right
or left cast surround leg. Then secure them with the wire clips pro-
vided.
4. Install the switch bracket with screws as shown in Figure 12 to the
back of the cast surround leg.
5. Install ON/OFF switch, and connect low-voltage wires from gas
valve.
6. Attach cast surround panel assembly to the insert. Place the cast
surround assembly against the face of the insert and align the lower
retaining tabs with the notches on the insert sides. Lift the cast sur-
round assembly slightly until the bottom return flange (top panel)
is positioned over the top flange on the insert. This secures the cast
surround assembly to the insert without screws.
Figure 13

23015-3-0707 Page 15
SURROUND PANEL INSTALLATION
INSTALLING THE TRIM SURROUNDS
Combustible materials MUST NEVER overlap onto the front
face.
WARNING: WHEN FINISHING THE FIREPLACE
INSERT, NEVER OBSTRUCT OR MODIFY THE AIR
INLET/OUTLET LOUVERS ON THE FIREPLACE IN-
SERT IN ANY MANNER.
NOTE: INSTALL SURROUND PANELS
SO THAT THE TOP PANEL
RETURN FLANGE SLIDE’S
OVER THE TOP FLANGE ON
THE INSERT
1” Ref.
SURROUND PANEL ASSEMBLY
ENGAGE SIDE PANEL
HOOKS WITH THE
NOTCHES PROVIDED ON
THE SIDE FLANGES
Figure 14
Figure 15

23015-3-0707Page 16
BLOWER ACCESSORY INFORMATION
The appliance, when installed must be electrically connected
and grounded in accordance with local codes or, in the absence
of local codes, with the current CSA C22.1 Canadian Electrical
Code.
U.S. Installations, follow local codes and the National Electrical
Code, ANSI/NFPA No. 70.
Should this blower require servicing, the power supply must be
disconnected. For rewiring of any replacement components, re-
fer to Figures 16 and 17 and the parts list on page 25.
BLOWER ACCESSORY
Operation
The fireplace insert is equipped with a factory installed blower accessory
that includes a fan control switch, plus a rheostat (speed control).
The speed control knob is located behind the lower louver at the right
side of the insert.
From a cold start, the temperature activated fan control switch will
normally take 5-10 minutes to heat up and energize the blower.
Once the blower is energized, adjust the blower speed control as desired,
then replace the lower louver.
When the insert is shut off, it may take 30-40 minutes for the heated unit
to dissipate (cool down) enough for the blower to shut off automatically.
Note: The blower shut off times will vary on blower speed and BTU
input level setting control by adjustment of the HI/LO knob located on
the gas valve.
Blower removal instructions
Servicing or removal of the blower system must be performed by a
qualified service person.
If the blower assembly (Item 45, page 24) must be replaced, the following
steps are recommended for removal:
1. Turn off gas and disconnect the electrical supply.
2. Remove the glass door assembly.
3. Remove the log set.
4. Remove the front surround panel assembly by lifting upward and
outward to detach.
5. Remove the 5/16” x 2-1/2” center bolt that retains the Vent Slide
plate assembly.
6. Remove the insert from the fireplace cavity by pulling forward on
the insert, and at the same time, sliding the vent plate rearward until
disengaged.
7. As the insert is moved outward, the gas line may need to be
disconnected at the insert shut off valve. If so, make sure the main
gas line is shut off that supplies gas to the insert.
8. Once the insert is pulled out, the blower assembly can be removed
by locating the (6) screws on the lower back of the insert that retains
the blower base plate.
9. When the screws are removed, gently pull the blower assembly
outward.
10. Disconnect the two ¼” wire terminals from the motor.
11. Remove the (4) screws that retain the blower assembly to the base
plate, and set blower aside.
12. Install the replacement blower, and re-install the insert by reversing
above steps.
Figure 16
Figure 17

23015-3-0707 Page 17
LOG PLACEMENT
BACK
LOG
LEFT
TWIG
RIGHT
TWIG
RIGHT
CENTER
LOG
RIGHT FRONT
LOG
LEFT FRONT
LOG
LEFT
CENTER
LOG
Figure 18
Figure 19
Note: Center the front two logs on the front log support ledge. Then make
sure they are positioned all the way forward and touching the back edges
of the grate tang uprights. The bottom of the two front logs are flat and
must sit on top of the front log support ledge.
Before you begin: This fireplace insert is supplied with a set of seven ce-
ramic fiber logs. Do not handle these logs with your bare hands. Always
wear gloves to prevent skin irritation from ceramic fibers. After handling
logs, wash your hands gently with soap and water to remove any traces
of fiber.
The positioning of logs is critical to safe and clean operation of this
fireplace. Sooting and other problems may result if the logs are not
properly and firmly positioned in the fireplace. Refer to Figure 18 and
Figure 19 and corresponding WARNING when completing following
log placement steps.
1. Remove top louver, grasp louver, lift and pull forward.
2. Lower bottom louver, lift and hinge forward.
3. Release two glass frame spring clamps at bottom of the glass door
assembly.
4. Swing the bottom of the glass door outward approximately 10-15
degrees, then grasping the edges, gently lift upward to remove the
door assembly, and set aside.
5. Remove the foam packaging that contains the log set from inside the
firebox.
6. Carefully unpack the logs and twigs. Spread them out for easy
identification.
7. Begin with the front left and front right logs. Place these so that
they are centered left to right on the front log support ledge. The flat
bottoms will rest on top of the front log support ledge, and they must
be position all the way forward and touching the back of the grate
tangs. Important: The front right log has a small knot as shown in
Figure 18.
8. Next install the large rear log. It will be centered left to right and
placed all the way to the back of the firebox, on top of the rear log
support. Note: DV25IN models incorporate two small tabs in the
rear log support that keep the back log positioned correctly. DV33IN
models have one small tab in the rear log support to ensure the back
log is in the correct position. The DV35IN models will have two
tabs bent forward in the rear log support to ensure proper left to right
positioning of the log, plus one small tab near the center that keeps
the back log from shifting forward.
9. Locate the center left log. It will have two locator pin holes on the
bottom flat surface. Align the two holes with the two left pins on
the burner assembly. Make sure this log is not raised up off of the
burner. The flat bottom surface must be completely resting flat on
the top of the burner surface.
10. Install the center right log. It will also have two locator pin holes on
the bottom flat surface. Align these two holes with the two right pins
on the burner assembly. Make sure this log is not raised up off of
the burner. The flat bottom surface must be completely resting flat
on the top of the burner surface.
11. Add the right twig by placing the locator pin hole on the bottom of
the twig with the pin on top of the center right log. The tip of the
right twig will rest on top of the rear log near the right end.
12. Add the left twig by placing the locator pin hole on the bottom of
the twig with the pin on top of the center left log. The long branch
of the left twig will rest in a small groove on top of the rear log. This
groove is near the left end of the rear log.
Warning: Failure to position the parts in accordance with this dia-
gram or failure to use only parts specifically approved with this
appliance may result in property damage or personal injury.
13. Replace the glass door assembly onto the fireplace insert.
14. Secure the glass door with the two spring clamps located under the
firebox.
15. Re-install the upper and lower louver assemblies by aligning the end
tabs with the slots provided in the outer face flanges of the insert.
Note: Decorative Rock is not included with the Fireplace Insert,
however it may be purchased separately and placed only on the firebox
floor.
Do Not place decorative rock or rock wool on the logs or burner
assembly.

23015-3-0707Page 18
OPERATING INSTRUCTIONS
Initial Lighting
Upon completing the gas line or turning the gas valve on after it
has been in the “OFF” position, a small amount of air will be in the
lines. When first lighting the fireplace, it will take a few minutes
for the lines to purge themselves of this air. Once the purging is
complete, the fireplace will light and operate satisfactorily.
Subsequent lightings of the appliance will not require such purging
if the gas valve is not turned to “OFF.”
Pilot Flame (Figure 21)
The thermopile/thermocouple (standing pilot) tips should be
covered with flame.
Figure 21
750 Millivolt System
The standing pilot (750 millivolt system) is a continuous burning
pilot. The pilot remains ON even when the main burner is OFF.
When you ignite the pilot, the thermopile produces millivolts
(electrical current) which energizes the magnet in the gas valve.
After 30 seconds to 1 minute time period you can release the gas
control knob and the pilot will stay ON. Allow your pilot flame to
operate an additional one (1) to two (2) minutes before you turn the
gas control knob from the PILOT position to the ON position. This
time period allows the millivolts (electrical current) to build-up to
a sufficient level allowing the gas control to operate properly.
1. Follow the SAFETY and LIGHTING INSTRUCTIONS for
standing pilot controls found in this manual and on labels found
in control compartment behind the door assembly.
CAUTION: During the initial purging and subsequent lightings,
never allow the gas valve control knob to remain depressed in
the “pilot” position without pushing the piezo ignitor button
at least once every second.
2. During the operating season, leave the control valve knob in the
“ON” position. This will allow the pilot flame to remain lit. Turn
the burner flame on or off with the fireplace REMOTE/OFF/ON
switch, wall switch or remote controls.
NOTE: The gas control valve allows you to increase or decrease the
height of the main burner flame. The control valve has a pressure
regulator with a knob as shown in Figure 20. Rotate the knob
clockwise to “HI” to increase the flame height and counterclockwise
to “LO” to decrease the flame height.
3. When the operating season is over, turn the REMOTE/OFF/ON
switch to “OFF” and the control valve to “OFF”. The system,
including the pilot light, will be shut down.
Figure 20
The OWNER should carefully read and follow these operating
instructions at all times. Lower the door assembly to view the gas
controls for the fireplace.

23015-3-0707 Page 19
1. Stop! Read the safety information above.
2. Set REMOTE/OFF/ON switch to OFF.
3. Turn off all electric power to the appliance (if applicable).
4. Lower bottom louver assembly.
5. Push in gas control knob slightly and turn clockwise
to "OFF."
Note: Knob cannot be turned from "PILOT" to "OFF" unless
knob is pushed in slightly. Do not force.
6. Wait ten (10) minutes to clear out any gas. Then smell for gas,
including near the floor. If you then smell gas, STOP! Follow
"B" in the safety information above. If you do not smell gas,
go to the next step.
7. Find pilot - Follow metal tube from gas
control. The pilot is behind the burner
on the right side.
8. Turn gas control knob counterclockwise
to "PILOT."
9. Push in control knob all the way and hold in. Repeatedly push
the piezo ignitor button until the pilot is lit. Continue to hold
the control knob in the for about one (1) minute after the pilot is
lit. Release knob, and it will pop back up. Pilot should remain
lit. If it goes out, repeat steps 5 through 9.
• If the control knob does not pop up when released,
STOP and IMMEDIATELY call a qualified service technician
or gas supplier.
• If the pilot will not stay lit after several tries, turn the
gas control knob to "OFF" and call your service technician
or gas supplier.
10. Turn gas control knob counterclockwise to "ON."
11. Close bottom louver assembly.
12. Turn on all electric power to the appliance (if applicable).
13. Set REMOTE/OFF/ON switch to desired setting.
FOR YOUR SAFETY READ BEFORE LIGHTING
WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property
damage, personal injury or loss of life.
A. This appliance has a pilot which must be lighted by hand.
When lighting the pilot, follow these instructions exactly.
B. Before lighting smell all around the appliance area for gas.
Be sure to smell next to the floor because some gas is heavier
than air and will settle on the floor.
What To Do If You Smell Gas
• Do not try to light any appliance.
• Do not touch any electrical switch;
• Do not use any phone in your building.
• Immediately call your gas supplier from a neighbor's
phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire depart-
ment.
C. Use only your hand to push in or turn the gas control knob.
Never use tools. If the knob will not push in or turn by hand,
don't try to repair it; call a qualified service technician. Force
or attempted repair may result in a fire or explosion.
D. Do not use this appliance if any part has been under water.
Immediately call a qualified service technician to inspect the
appliance and to replace any part of the control system and
any gas control which has been under water.
LIGHTING INSTRUCTIONS
1. Set REMOTE/OFF/ON switch to OFF.
2. Turn off all electric power to the appliance if service is to be
performed (if applicable).
3. Lower bottom louver assembly.
4. Push in gas control knob slightly and turn clockwise
to "OFF." Do not force.
5. Close bottom louver assembly.
TO TURN OFF GAS TO FIREPLACE
STANDING PILOT LIGHTING INSTRUCTIONS

23015-3-0707Page 20
STANDING PILOT WIRING
STANDING PILOT WIRING DIAGRAM
For Standing Pilot Ignition Wiring
Appliance Requirements
WARNING: DO NOT CONNECT 110-120 VAC TO THE
GAS CONTROL VALVE OR THE APPLIANCE WILL
MALFUNCTION AND THE VALVE WILL BE DE-
STROYED.
Optional Wall Switch
Position the wall switch in the desired position on a wall. Run a
maximum of 25 feet (7.8m) or less length of 18 A.W.G. minimum
wire and connect it to the fireplace valve pigtails.
WARNING: DO NOT CONNECT THE 110-120 VAC
TO THE WALL SWITCH OR THE CONTROL VALVE
WILL BE DESTROYED.
CAUTION: LABEL ALL WIRES PRIOR TO DISCONNEC-
TION WHEN SERVICING CONTROL. WIRING ERRORS
CAN CAUSE IMPROPER AND DANGEROUS OPERATION.
VERIFY PROPER OPERATION AFTER SERVICING.
