Whittier Wood 1254LSOc User manual

P.O. Box 2827
Eugene, OR 97402 USA
Production Code:
VN 05/17
Prairie City Mantel Beds
LSO = Summer Oak finish
DAO = Autumn Oak finish
Assembly Instructions
Model #
IMPORTANT NOTES:
•For normal household use only. Not recommended for commercial use.
•Remove items before you move this unit.
•Do not overload the drawers.
•This assembly requires two people.
WARNING
Drilling, sawing, sanding or machining wood products can expose you to
wood dust, a substance known to the state of California to cause cancer.
Avoid
inhaling wood dust or use a dust mask or other safeguards for
personal protection.
For more information go to: www.p65warnings.ca.gov/wood
This product can expose you to chemicals, including formaldehyde,
which are known to the State of California to cause cancer.
For more information go to: www.p65warnings.ca.gov/furniture
DESIGN SUBJECT TO CHANGE WITHOUT NOTICE.
CUSTOMER SERVICE
If you ever have questions about your furniture, please do not hesitate to contact us. In the unlikely event you need a
replacement part; we can make those parts available through an authorized Whittier Wood Furniture dealer. If you
cannot order replacement parts through your dealer, please contact our customer service department.
Hours: Our friendly customer service staff can be reached:
Monday-Friday 8:00 a.m. to 5:00 p.m. (Pacific Time).
You may leave a message 24 hours a day, seven days a week.
Customer Service: 800-653-3336 • Outside the U.S.: 541-687-0213
Fax: [phone]• Email: [email protected]
1254LSOc
1254DAOc
Prairie City Queen
Mantel Storage Bed
1259LSOc
1259DAOc
Prairie City King
Mantel Storage Bed
1274LSO
1274DAO
Prairie City Queen
Mantel Bed
1277LSO
1277DAO
Prairie City King
Mantel Bed
Thank you for allowing us to help you furnish your
home. We are certain you will be delighted with
your new furniture for many years to come.

1254LSOc 1254DAOc Prairie City Queen Mantel Storage Bed
1259LSOc 1259DAOc Prairie City King Mantel Storage Bed
1274LSO 1274DAO Prairie City Queen Mantel Bed
1277LSO 1277DAO Prairie City King Mantel Bed
Parts List
1254LSOc_1254DAOc_1259LSOc_1259DAOc_1274LSO_1274DAO_1277LSO_1277DAO
Page 2 — 05/17
Please identify the parts and check that the quantities received match those on this list. If you need
to replace a part, refer to the model number, part letter and name.
1257LSO 1257DAO
Queen Headboard/Footboard Kit (x1)
Part
Description
Quantity
A
Headboard Assembly
1
B
Footboard Assembly
1
U
#8 x 1" Black Screw (inserted)
16
ZN
#8 x 2" Black Screw (inserted)
4
ZO
Left Bed Bracket (attached)
2
ZP
Right Bed Bracket (attached)
2
ZV
#8 x 1-5/8" Black Screw (inserted)
8
Please note this Assembly Instruction is for Prairie City Mantel Storage Beds (#1254
Queen and #1259 King), and Prairie City Mantel Rail Beds (#1274 Queen and #1277
King). The Parts Lists for each component follow.

1254LSOc 1254DAOc Prairie City Queen Mantel Storage Bed
1259LSOc 1259DAOc Prairie City King Mantel Storage Bed
1274LSO 1274DAO Prairie City Queen Mantel Bed
1277LSO 1277DAO Prairie City King Mantel Bed
Parts List
1254LSOc_1254DAOc_1259LSOc_1259DAOc_1274LSO_1274DAO_1277LSO_1277DAO
Page 3 — 05/17
1261LSO 1261DAO
King Headboard/Footboard Kit (x1)
Part
Description
Quantity
A
Headboard Assembly
1
B
Footboard Assembly
1
C
King Trestle (27-9/16")
4
D
Center Deckboard
1
S
#8 x 1-1/4" Black Screw
12
U
#8 x 1" Black Screw (inserted)
16
YA
Top Assembly
1
YB
#8 x 1-1/4" Pan Head Screw
2
YC
Cam Connector (inserted)
2
YD
Cam Housing
2
ZN
#8 x 2" Black Screw (inserted)
4
ZO
Left Bed Bracket (attached)
2
ZP
Right Bed Bracket (attached)
2
ZV
#8 x 1-5/8" Black Screw (inserted)
4

1254LSOc 1254DAOc Prairie City Queen Mantel Storage Bed
1259LSOc 1259DAOc Prairie City King Mantel Storage Bed
1274LSO 1274DAO Prairie City Queen Mantel Bed
1277LSO 1277DAO Prairie City King Mantel Bed
Parts List
1254LSOc_1254DAOc_1259LSOc_1259DAOc_1274LSO_1274DAO_1277LSO_1277DAO
Page 4 — 05/17

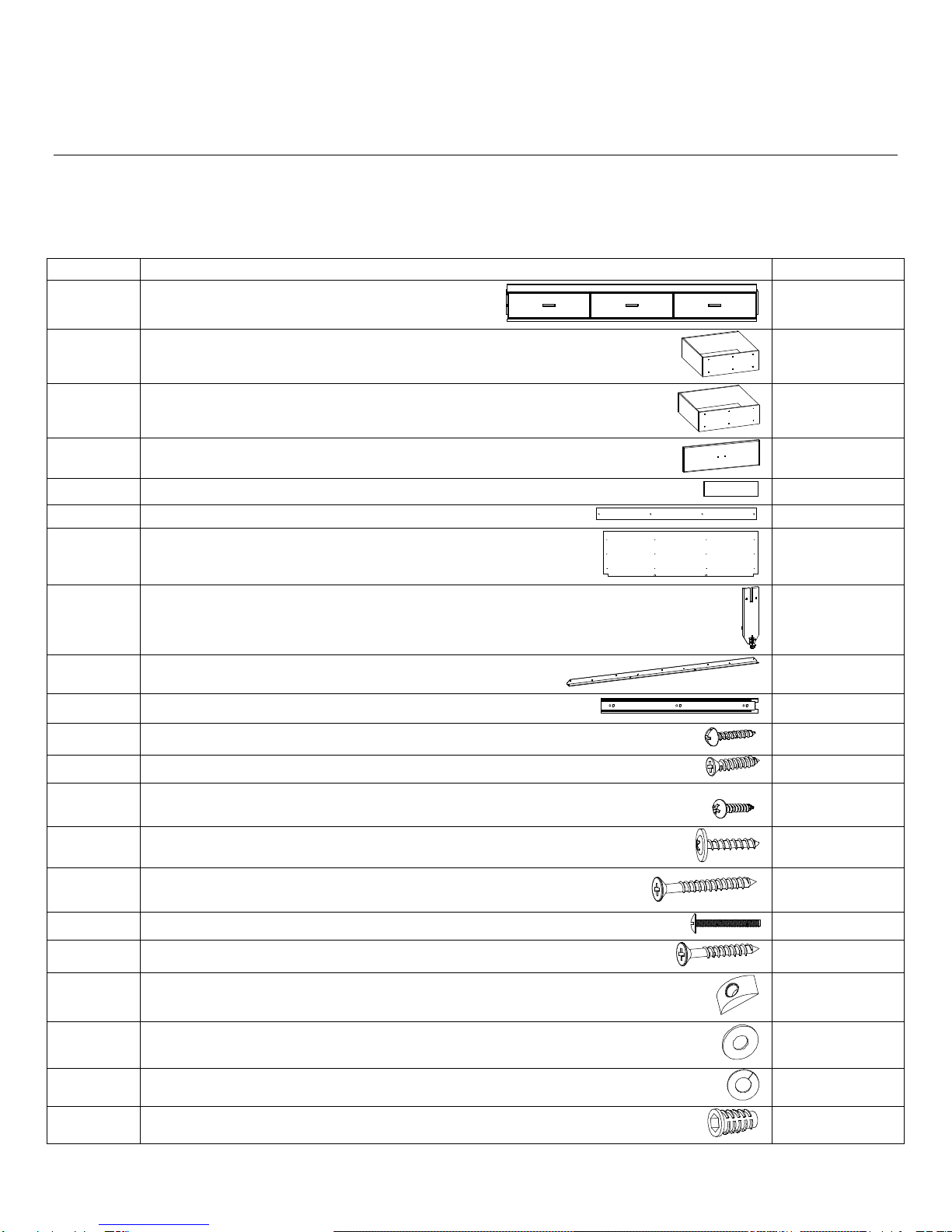

1255LSOc 1255DAOc Pedestal Kit (x2)
Part
Description
Quantity
Ea
Pedestal
1
F
Small Drawer Box (assembled)
2
Ga
Large Drawer Box (assembled)
1
H
Drawer Face (attached)
3
I
Queen Trestle (11-9/16")
2
J
Left/Right Center Deckboard
1
K
Notched Deckboard (attached)
1
L
Assembled Foot
3
M
Long Angle Iron (attached)
1
N
20” Drawer Slides (pre-installed sets)
3
O
#6 x 3/4" Philtruss Screw (inserted)
18
P
#6 x 3/4" Flat Head Screw (inserted)
10
Q
#6 x 1/2" Philtruss Screw
22
(18 inserted)
Ra
#8 x 7/8" Black Lo-Profile Screw (inserted)
18
S
#8 x 1-1/4" Black Screw
52
(48 inserted)
Tb
#8 x 1-1/2" Machine Screw Tuscan (installed)
6
U
#8 x 1" Black Screw (inserted)
9
V
Arched Washer (inserted)
4
W
1/4" Flat Washer
10
(4 inserted)
X
1/4" Lock Washer (inserted)
4
Y
1/4" x 20mm Insert Nut (inserted)
8

1254LSOc 1254DAOc Prairie City Queen Mantel Storage Bed
1259LSOc 1259DAOc Prairie City King Mantel Storage Bed
1274LSO 1274DAO Prairie City Queen Mantel Bed
1277LSO 1277DAO Prairie City King Mantel Bed
Parts List
1254LSOc_1254DAOc_1259LSOc_1259DAOc_1274LSO_1274DAO_1277LSO_1277DAO
Page 5 — 05/17
Part
Description
Quantity
YE
#10 x 3/4" Pan Head Screw (inserted)
12
ZA
1/4" Hex Nut (inserted)
4
ZB
1/4" T-Nut (inserted)
2
ZC
1/4" x 80mm Hex Bolt
1
ZD
1/4" x 2-1/2" Hex Bolt (inserted)
4
ZE
1/4" x 1-3/4" Hex Bolt
6
ZF
Pull (attached)
3
ZH
Foot Bracket (attached)
3
ZI
Adjustable Glide (installed)
3
ZJ
Left Pedestal Angle Bracket (inserted)
1
ZK
Right Pedestal Angle Bracket (inserted)
1
ZL
90
o
Bracket
1
ZM
Hex Wrench
1

1254LSOc 1254DAOc Prairie City Queen Mantel Storage Bed
1259LSOc 1259DAOc Prairie City King Mantel Storage Bed
1274LSO 1274DAO Prairie City Queen Mantel Bed
1277LSO 1277DAO Prairie City King Mantel Bed
Parts List
1254LSOc_1254DAOc_1259LSOc_1259DAOc_1274LSO_1274DAO_1277LSO_1277DAO
Page 6 — 05/17
1275LSO 1275DAO Queen Rail Kit (x1)
1278LSO 1278DAO King Rail Kit (x1)
Part
Description
Quantity
S
#8 x 1-1/4" Black Screw
10
U
#8 x 1" Black Screw (inserted)
16
ZB
1/4" T-Nut (inserted)
9
ZC
1/4" x 80mm Hex Bolt
2
ZM
Hex Wrench
1
ZN
#8 x 2" Black Screw (inserted)
22
ZO
Left Bed Bracket (attached)
2
ZP
Right Bed Bracket (attached)
2
ZQ
Side Rail
2
ZR
Slat
5
ZS
Slat Support
2
ZT
Assembled Foot
4
ZU
Adjustable Glide with Hex Nut (installed)
4
ZV
#8 x 1-5/8" Black Screw
4
ZW
5/16" x 3/4" Insert Nut (inserted)
4
ZX
1/4" x 45mm Hanger Bolt (inserted)
4

1254LSOc 1254DAOc Prairie City Queen Mantel Storage Bed
1259LSOc 1259DAOc Prairie City King Mantel Storage Bed
1274LSO 1274DAO Prairie City Queen Mantel Bed
1277LSO 1277DAO Prairie City King Mantel Bed
Assembly Instructions
This assembly requires two people.
1254LSOc_1254DAOc_1259LSOc_1259DAOc_1274LSO_1274DAO_1277LSO_1277DAO
Page 7 — 05/17
Tools Required: 4mm Hex Wrench (provided), Phillips screwdriver, Slotted screwdriver, 1/2" &
7/16" open end or box end wrench and Tape measure
Notes:
Steps 1 through 14 are for the Prairie City Queen Mantel Storage Bed (#1254) and the Prairie
City King Mantel Storage Bed (#1259).
Steps 15 through 25 are for the Prairie City Queen Mantel Bed (#1274) and the Prairie City King
Mantel Bed (#1277).
Steps 1, 2 & 3 are for the Prairie City King Mantel Storage Bed (#1259)

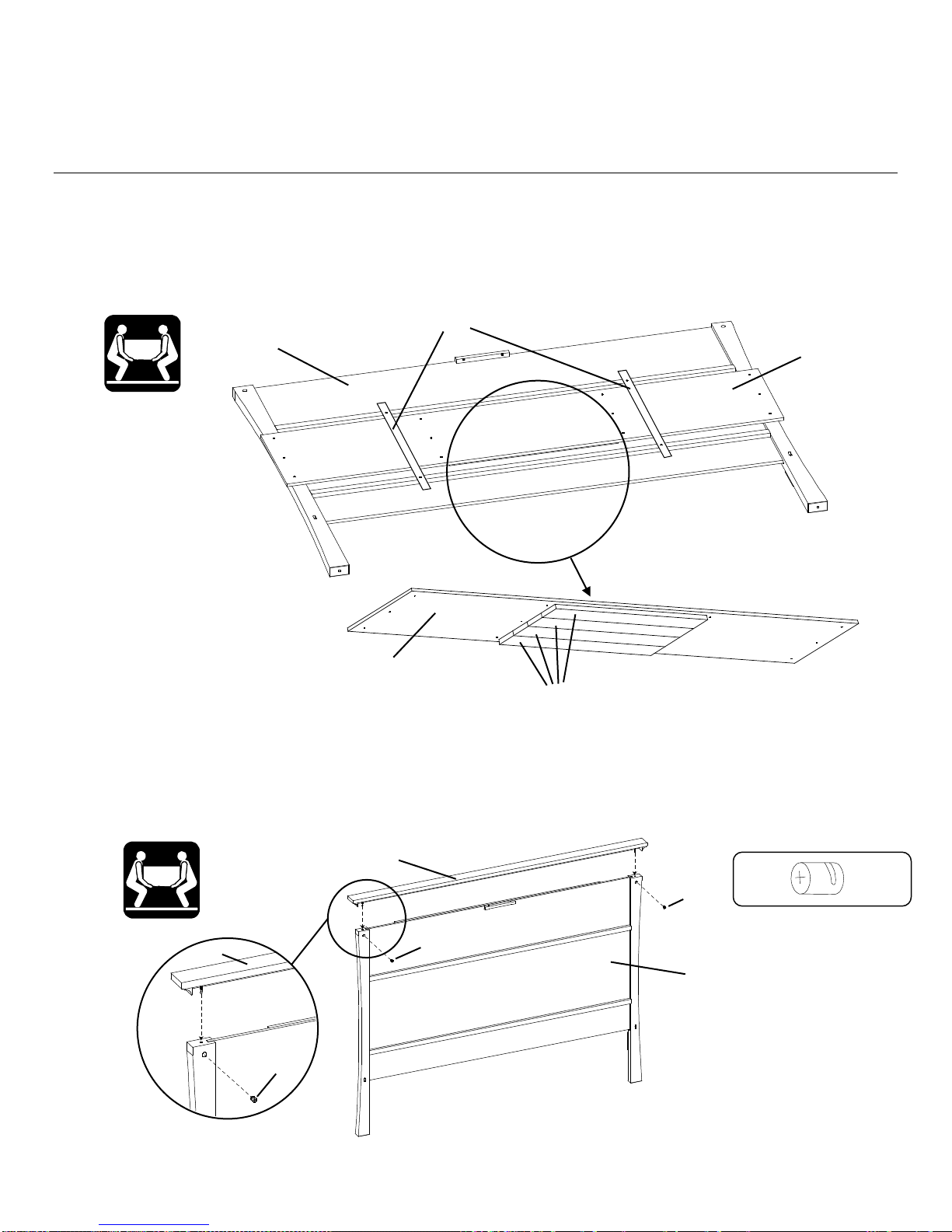

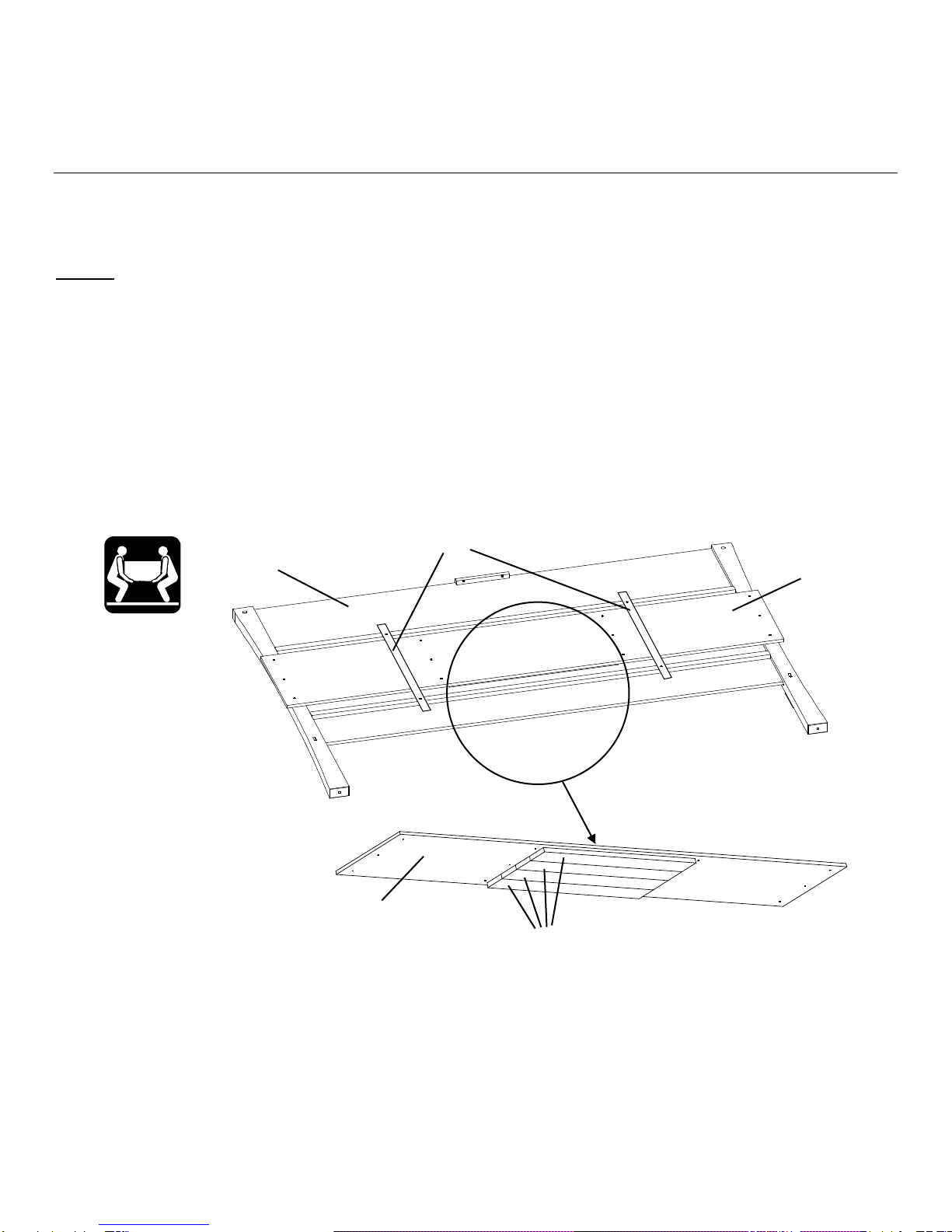

1. Remove the Center Deckboard (D) and King Trestles (C) from the back of the Headboard (A)
and place to the side. See Figure 1.
D
Fig. 1
A
Fig. 1a
D
Shipping Straps
C

1254LSOc 1254DAOc Prairie City Queen Mantel Storage Bed
1259LSOc 1259DAOc Prairie City King Mantel Storage Bed
1274LSO 1274DAO Prairie City Queen Mantel Bed
1277LSO 1277DAO Prairie City King Mantel Bed
Assembly Instructions
This assembly requires two people.
1254LSOc_1254DAOc_1259LSOc_1259DAOc_1274LSO_1274DAO_1277LSO_1277DAO
Page 8 — 05/17

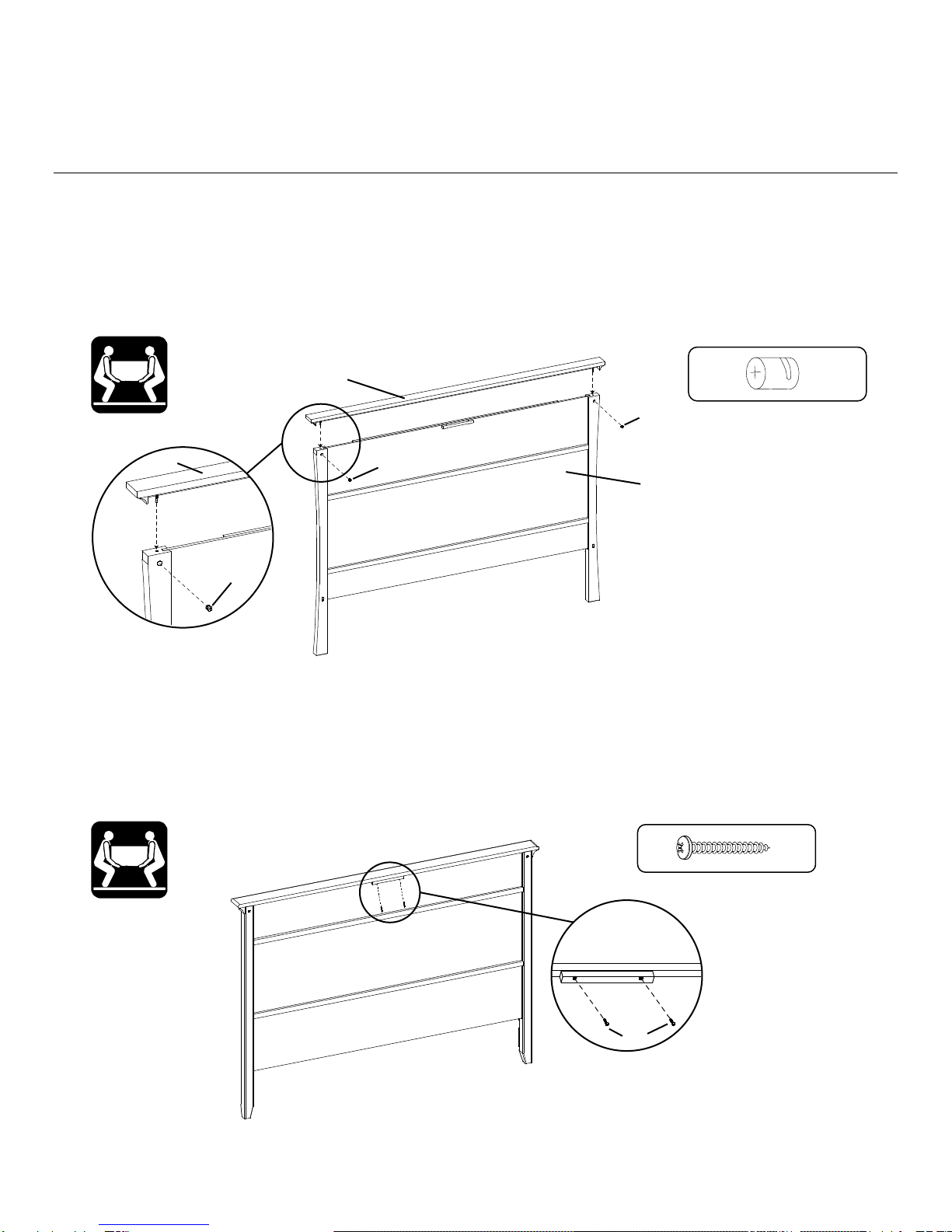

2. NOTE: READ CAM INSTRUCTIONS NOW BEFORE YOU BEGIN THE FOLLOWING STEP.
Insert Cam Housings (YD) into the two pre-drilled holes on the Headboard Assembly (A) as
shown in Figure 2. Lower Top Assembly (YA) so that the Cam Connectors (YC) fit into the
housings (YD) tighten the cam housings as indicated in the Cam-lock System instructions.
See Figures 2 and 2a.
3. Attach the Top Assembly (YA) to the Headboard Assembly (A) by inserting two #8x1-1/4" Pan
Head Screws (YB) into the predrilled holes in the block that is attached to the Headboard
Assembly (A). See Figures 3 and 3a.
Fig. 3
YB
x 2
Fig. 3a
YB
Fig. 2
A
YA
YD
x 2
YD
YD
Fig. 2a
YD
YA

1254LSOc 1254DAOc Prairie City Queen Mantel Storage Bed
1259LSOc 1259DAOc Prairie City King Mantel Storage Bed
1274LSO 1274DAO Prairie City Queen Mantel Bed
1277LSO 1277DAO Prairie City King Mantel Bed
Assembly Instructions
This assembly requires two people.
1254LSOc_1254DAOc_1259LSOc_1259DAOc_1274LSO_1274DAO_1277LSO_1277DAO
Page 9 — 05/17

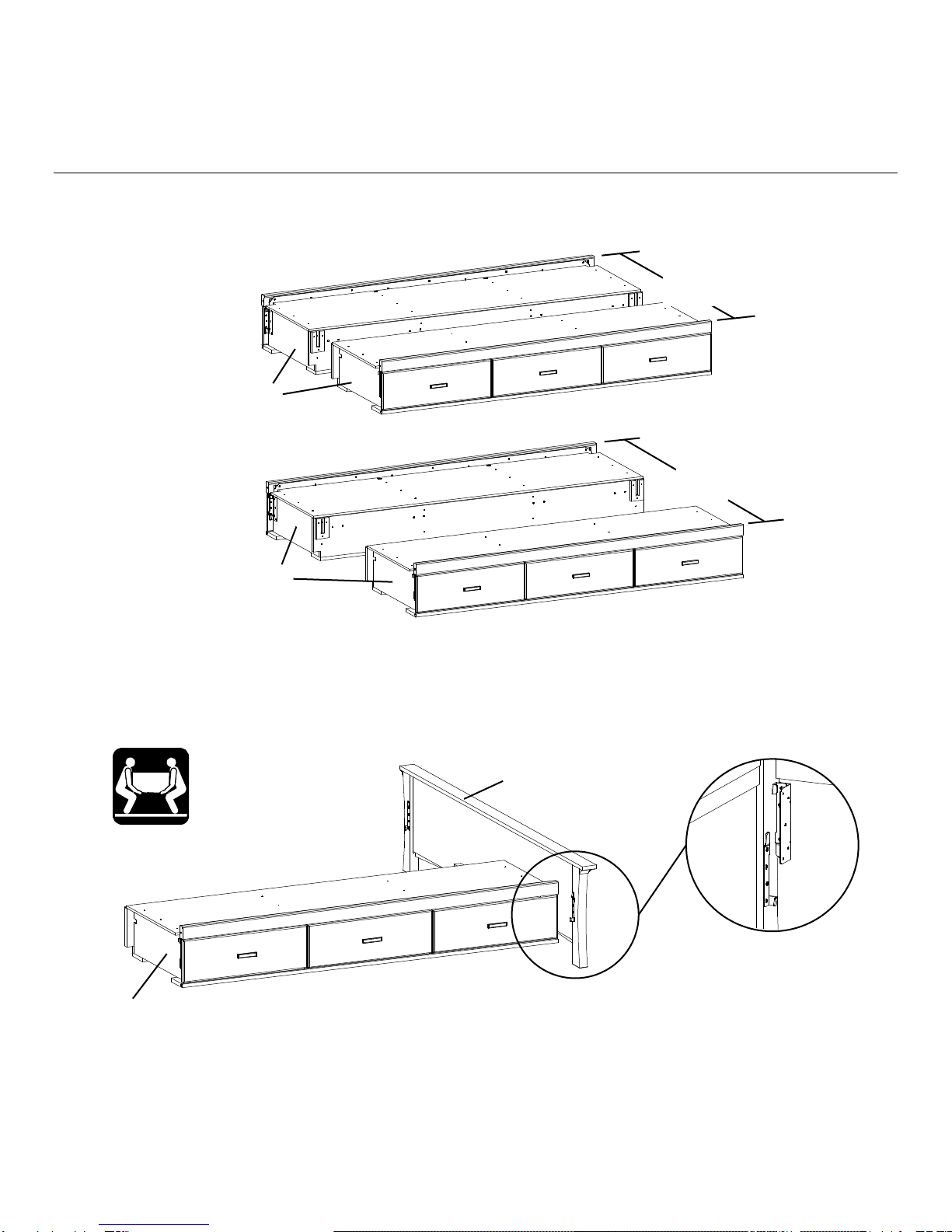

4. Place both Pedestals (Ea) approximately 63" apart for #1254 Queen Bed, or 79" apart for #1259
King Bed as shown in Figures 4 and 4a.
5. To attach the Footboard (B) to the Pedestal (Ea), align the Brackets and slide the Pedestal
down on to the Footboard (B). See Figures 5 and 5a.
Fig. 5
Ea
B
Fig. 5a
Fig. 4
63"
(For #1254
Queen)
Ea
Fig. 4a
79"
(For #1259
King)
Ea

1254LSOc 1254DAOc Prairie City Queen Mantel Storage Bed
1259LSOc 1259DAOc Prairie City King Mantel Storage Bed
1274LSO 1274DAO Prairie City Queen Mantel Bed
1277LSO 1277DAO Prairie City King Mantel Bed
Assembly Instructions
This assembly requires two people.
1254LSOc_1254DAOc_1259LSOc_1259DAOc_1274LSO_1274DAO_1277LSO_1277DAO
Page 10 — 05/17
6. Repeat step five for the other side. See Figures 6 and 6a.
7. Align the Brackets on both sides and slide the Pedestal/Footboard assembly down on to the
Headboard (A). See Figure 7.
Fig. 7
A
Fig. 6
Ea
Fig. 6a

1254LSOc 1254DAOc Prairie City Queen Mantel Storage Bed
1259LSOc 1259DAOc Prairie City King Mantel Storage Bed
1274LSO 1274DAO Prairie City Queen Mantel Bed
1277LSO 1277DAO Prairie City King Mantel Bed
Assembly Instructions
This assembly requires two people.
1254LSOc_1254DAOc_1259LSOc_1259DAOc_1274LSO_1274DAO_1277LSO_1277DAO
Page 11 — 05/17

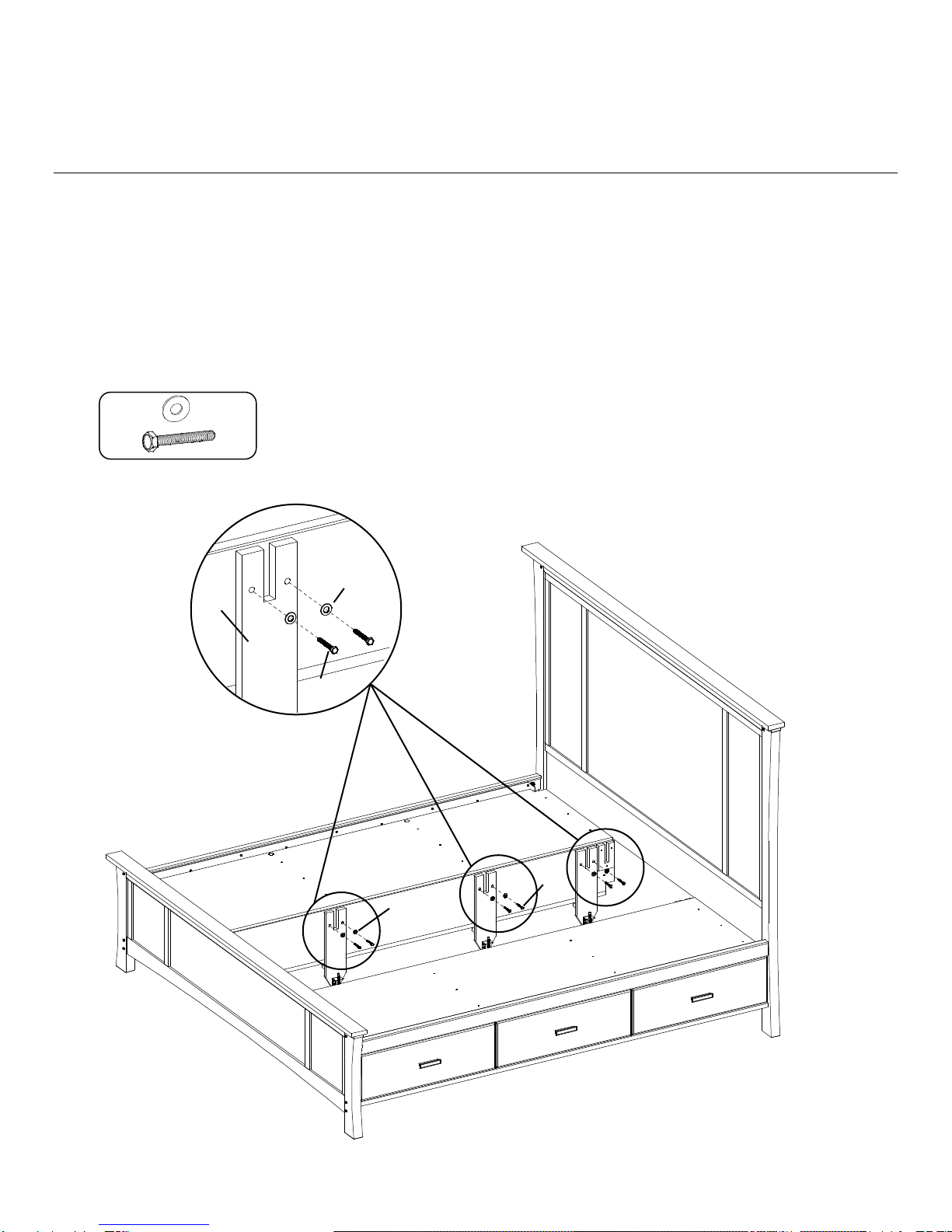

8. NOTE: There are blocks mounted on the back side of the Footboard to support the end of
the pedestal eliminating the need for an Assembled Foot in this position where it would
be easily visible. Do not attach an Assembled Foot in the position near the footboard.
Align three Assembled Feet (L) over the insert nuts that are on the back of the Pedestal. Make
sure the Adjustable Glides are on the outside face of the Pedestal. See Figures 8 and 8a. Attach
to the Pedestal with 1/4" x 1-3/4" Hex Bolts (ZE) and 1/4" Flat Washers (W).
Fig. 8
Fig. 8a
L
ZE
W
ZE
W
W
ZE
x 6
x 6

1254LSOc 1254DAOc Prairie City Queen Mantel Storage Bed
1259LSOc 1259DAOc Prairie City King Mantel Storage Bed
1274LSO 1274DAO Prairie City Queen Mantel Bed
1277LSO 1277DAO Prairie City King Mantel Bed
Assembly Instructions
This assembly requires two people.
1254LSOc_1254DAOc_1259LSOc_1259DAOc_1274LSO_1274DAO_1277LSO_1277DAO
Page 12 — 05/17

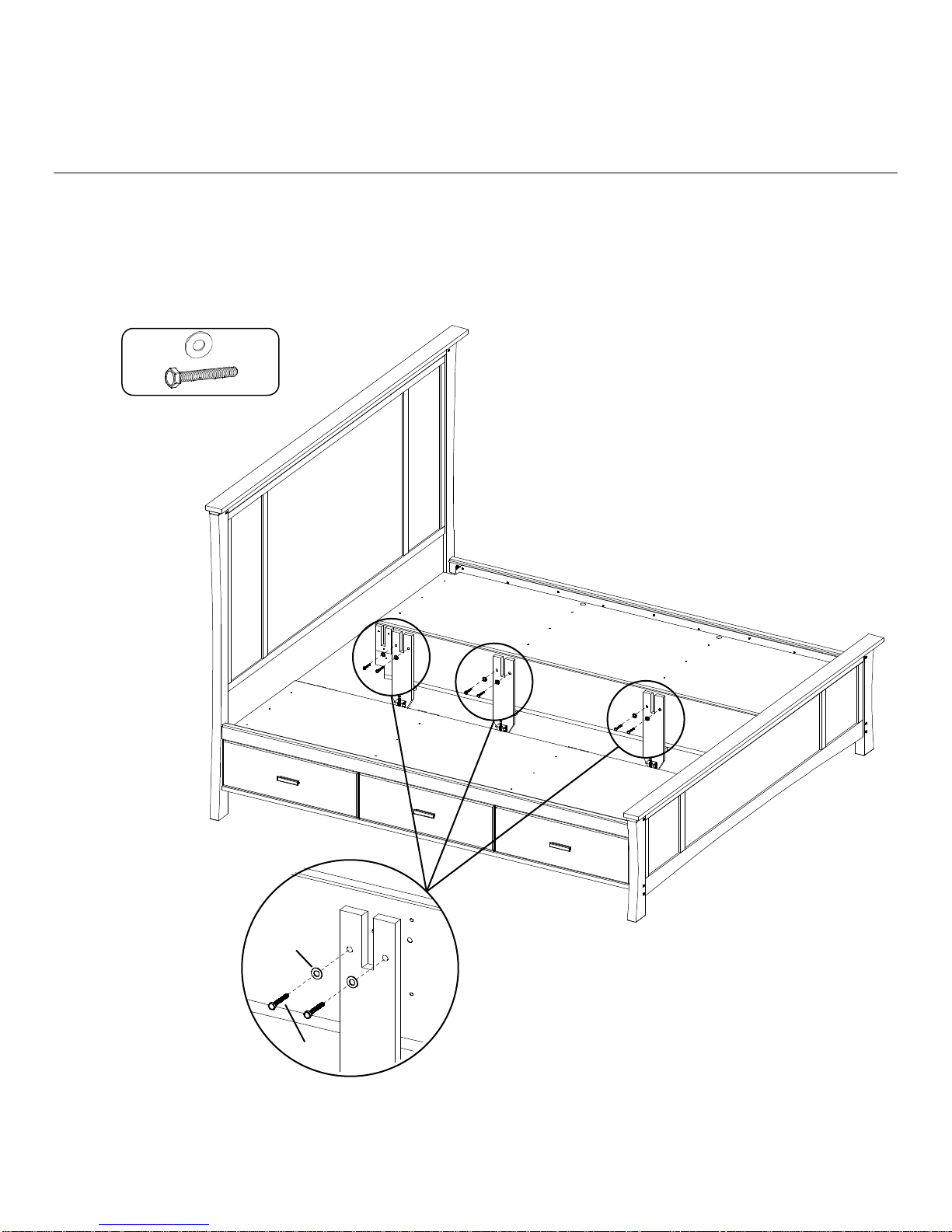

9. Repeat by attaching three additional Assembled Feet (L) to the other Pedestal with 1/4" x 1-3/4"
Hex Bolts (ZE) and 1/4" Flat Washers (W). See Figures 9 and 9a. Using a 1/2" wrench or
Slotted screwdriver adjust the Adjustable Glides (ZI) on the bottoms of the Assembled Feet (L)
so that the top surfaces of both Pedestal decks are 16" from the floor.
Fig. 9
Fig. 9a
ZE
W
W
ZE
x 6
x 6
Pedestal
Deck

1254LSOc 1254DAOc Prairie City Queen Mantel Storage Bed
1259LSOc 1259DAOc Prairie City King Mantel Storage Bed
1274LSO 1274DAO Prairie City Queen Mantel Bed
1277LSO 1277DAO Prairie City King Mantel Bed
Assembly Instructions
This assembly requires two people.
1254LSOc_1254DAOc_1259LSOc_1259DAOc_1274LSO_1274DAO_1277LSO_1277DAO
Page 13 — 05/17

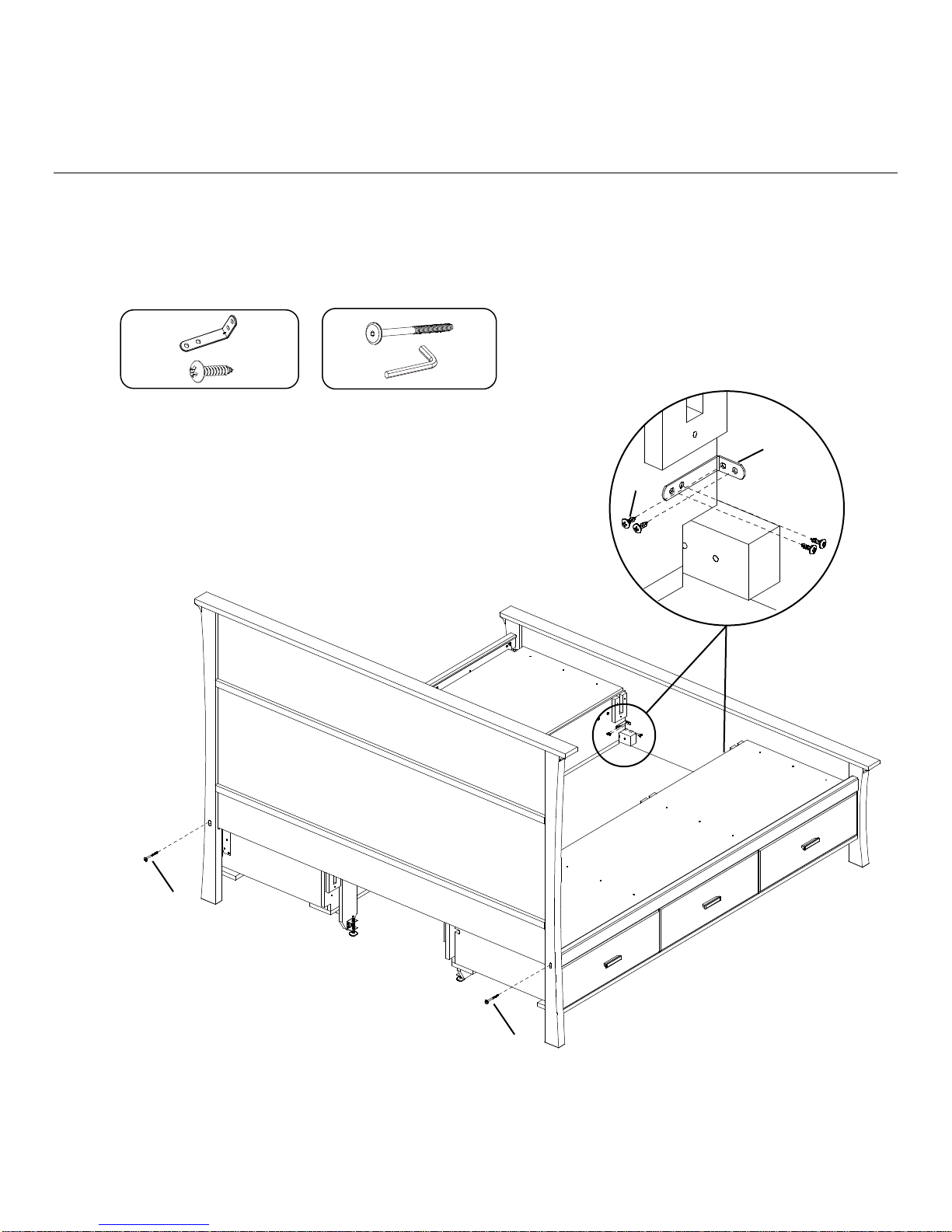

10. Facing the Footboard, attach the Pedestal Assembly to the Footboard with a 90º Bracket (ZL)
and four #6 x 1/2" Philtruss Screws (Q). Repeat for the other side. See Figures 10 and 10a.
Using the Hex Wrench (ZM), attach the Headboard to the Pedestals with two 1/4" x 80mm Hex
Bolts (ZC). See Figure 10.
Fig. 10
Fig. 10a
ZL
Q
ZL
Q
x 2
x 8
ZC
x 2
ZM
x 1
ZC
ZC

1254LSOc 1254DAOc Prairie City Queen Mantel Storage Bed
1259LSOc 1259DAOc Prairie City King Mantel Storage Bed
1274LSO 1274DAO Prairie City Queen Mantel Bed
1277LSO 1277DAO Prairie City King Mantel Bed
Assembly Instructions
This assembly requires two people.
1254LSOc_1254DAOc_1259LSOc_1259DAOc_1274LSO_1274DAO_1277LSO_1277DAO
Page 14 — 05/17

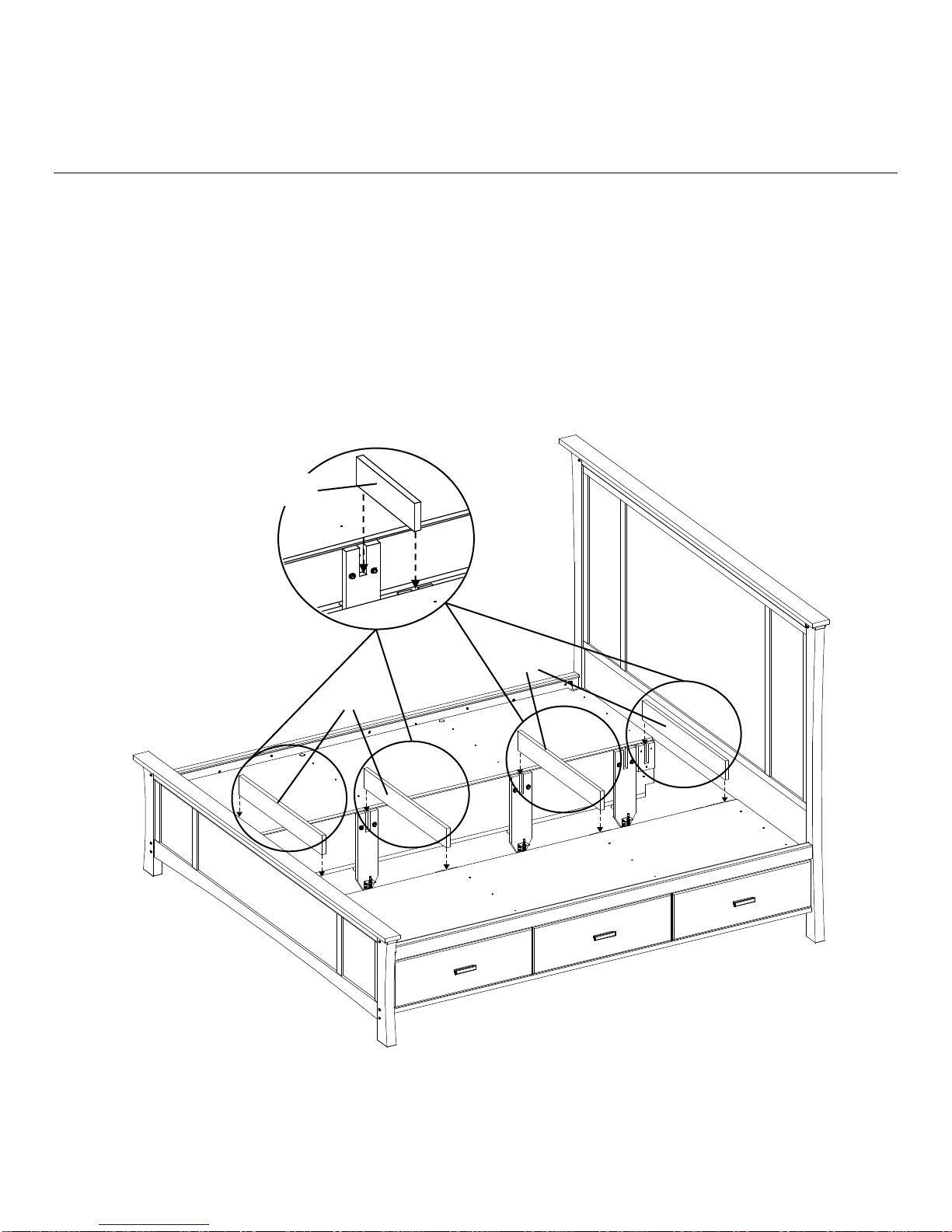

11. Move the bed assembly to its final position; if necessary readjust the glides at the bottom of the
Assembled Feet so that all are touching the floor and support weight. Place the four Queen
Trestles (I) or King Trestles (C) into the bed assembly as shown in Figures 11 and 11a. If you
have purchased a 1259 King storage bed Recycle/discard the Queen bed trestles that were
include with your pedestals.
IMPORTANT: the center two trestles nest into the notches at the top of the Assembled
Feet, the trestles at each end must nest into the notches in the cleats which are attached
closer to the ends of the Pedestals.
Fig. 11
Fig. 11a
I or C
I or C
I or C

1254LSOc 1254DAOc Prairie City Queen Mantel Storage Bed
1259LSOc 1259DAOc Prairie City King Mantel Storage Bed
1274LSO 1274DAO Prairie City Queen Mantel Bed
1277LSO 1277DAO Prairie City King Mantel Bed
Assembly Instructions
This assembly requires two people.
1254LSOc_1254DAOc_1259LSOc_1259DAOc_1274LSO_1274DAO_1277LSO_1277DAO
Page 15 — 05/17
12. To make sure the bed is square, measure the distance between opposing corners. If one of the
measurements is larger, tap on a footboard leg until the measurement is equal. See Figure 12.
13. Place the Left/Right Center Deckboards (J) as shown in Figure 13 and secure with
eight #8x1-1/4" Black Screws (S). There should be a small gap between each deckboard.
Fig. 13
S
S
x 8
J
Fig. 12

1254LSOc 1254DAOc Prairie City Queen Mantel Storage Bed
1259LSOc 1259DAOc Prairie City King Mantel Storage Bed
1274LSO 1274DAO Prairie City Queen Mantel Bed
1277LSO 1277DAO Prairie City King Mantel Bed
Assembly Instructions
This assembly requires two people.
1254LSOc_1254DAOc_1259LSOc_1259DAOc_1274LSO_1274DAO_1277LSO_1277DAO
Page 16 — 05/17
Step 14 is for the Prairie King Mantel Storage Bed (#1259)
14. Place the Center Deckboard (D) as shown in Figure 14 and secure with twelve #8 x 1-1/4" Black
Screws (S). If you need to adjust the Assembled Feet, remove the Center Deckboard, adjust the
glides and reattach the deckboard.
This concludes the assembly process for Prairie City Storage Bed, if
you have purchased a Prairie City Rail Bed please refer to the
instructions beginning on page 17.
Fig. 14
S
D
S
x 12

1254LSOc 1254DAOc Prairie City Queen Mantel Storage Bed
1259LSOc 1259DAOc Prairie City King Mantel Storage Bed
1274LSO 1274DAO Prairie City Queen Mantel Bed
1277LSO 1277DAO Prairie City King Mantel Bed
Assembly Instructions
This assembly requires two people.
1254LSOc_1254DAOc_1259LSOc_1259DAOc_1274LSO_1274DAO_1277LSO_1277DAO
Page 17 — 05/17
Step 15, 16 & 17 are for the 1277 Prairie City King Mantel Bed only.
15. Your 1261 Headboard/Footboard kit contains a Center Deckboard (D) and King Trestles (C) that
are used for a storage bed option; remove these parts from the back of the Headboard (A) and
discard or recycle them. See Figure 15.
16. NOTE: READ CAM INSTRUCTIONS NOW BEFORE YOU BEGIN THE FOLLOWING STEP.
Insert Cam Housings (YD) into the two pre-drilled holes on the Headboard Assembly (A) as
shown in Figure 16. Lower Top Assembly (YA) so that the Cam Connectors (YC) fit into the
housings (YD) tighten the cam housings as indicated in the Cam-lock System instructions.
See Figures 16 and 16a.
Fig. 16
A
YA
YD
x 2
YD
YD
Fig. 16a
YD
YA
D
Fig. 15
A
Fig. 15a
D
Shipping Straps
C

1254LSOc 1254DAOc Prairie City Queen Mantel Storage Bed
1259LSOc 1259DAOc Prairie City King Mantel Storage Bed
1274LSO 1274DAO Prairie City Queen Mantel Bed
1277LSO 1277DAO Prairie City King Mantel Bed
Assembly Instructions
This assembly requires two people.
1254LSOc_1254DAOc_1259LSOc_1259DAOc_1274LSO_1274DAO_1277LSO_1277DAO
Page 18 — 05/17
17. Attach the Top Assembly (YA) to the Headboard Assembly (A) by inserting two #8x1-1/4" Pan
Head Screws (YB) into the predrilled holes in the block that is attached to the Headboard
Assembly (A). See Figures 17 and 17a.
18. Position the two Slat Support (ZS) over the blocks that are mounted onto back side of the
Footboard (B) and attach with four #8 x 1-5/8" Black Screws (ZV) through the predrilled holes in
the slat supports and into the location punches on the blocks. See Figure 18.
Fig. 18
ZS
B
ZS
ZV
x 4
ZV
Pre-attached blocks
Fig. 17
YB
x 2
Fig. 17a
YB

1254LSOc 1254DAOc Prairie City Queen Mantel Storage Bed
1259LSOc 1259DAOc Prairie City King Mantel Storage Bed
1274LSO 1274DAO Prairie City Queen Mantel Bed
1277LSO 1277DAO Prairie City King Mantel Bed
Assembly Instructions
This assembly requires two people.
1254LSOc_1254DAOc_1259LSOc_1259DAOc_1274LSO_1274DAO_1277LSO_1277DAO
Page 19 — 05/17

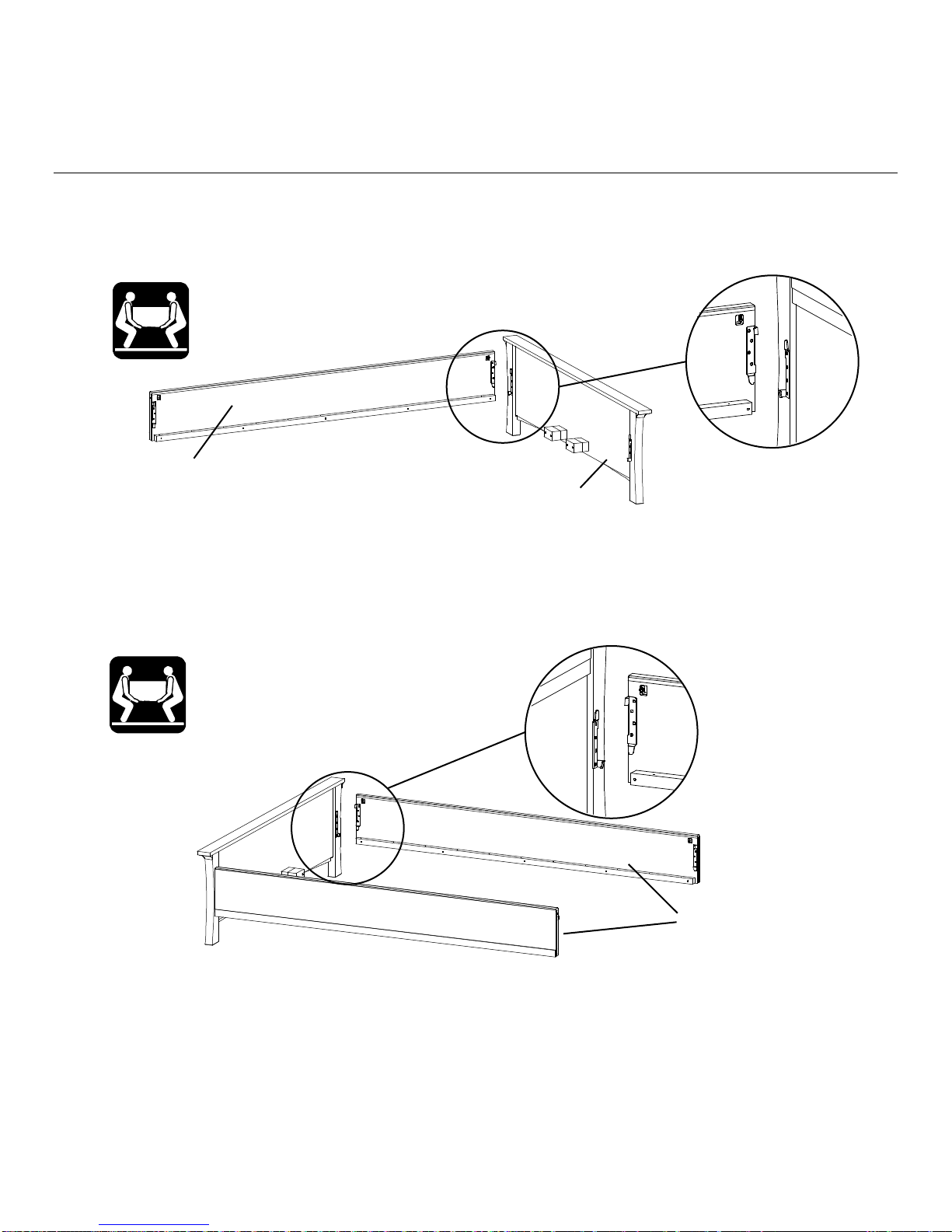

19. To attach the Footboard (B) to the Side Rail (ZQ), align the Brackets and slide the Side Rail
down on to the Footboard (B). See Figures 19 and 19a.
20. Repeat step nineteen for the other side. See Figures 20 and 20a.
Fig. 20
ZQ
Fig. 20a
Fig. 19
ZQ
B
Fig. 19a

1254LSOc 1254DAOc Prairie City Queen Mantel Storage Bed
1259LSOc 1259DAOc Prairie City King Mantel Storage Bed
1274LSO 1274DAO Prairie City Queen Mantel Bed
1277LSO 1277DAO Prairie City King Mantel Bed
Assembly Instructions
This assembly requires two people.
1254LSOc_1254DAOc_1259LSOc_1259DAOc_1274LSO_1274DAO_1277LSO_1277DAO
Page 20 — 05/17

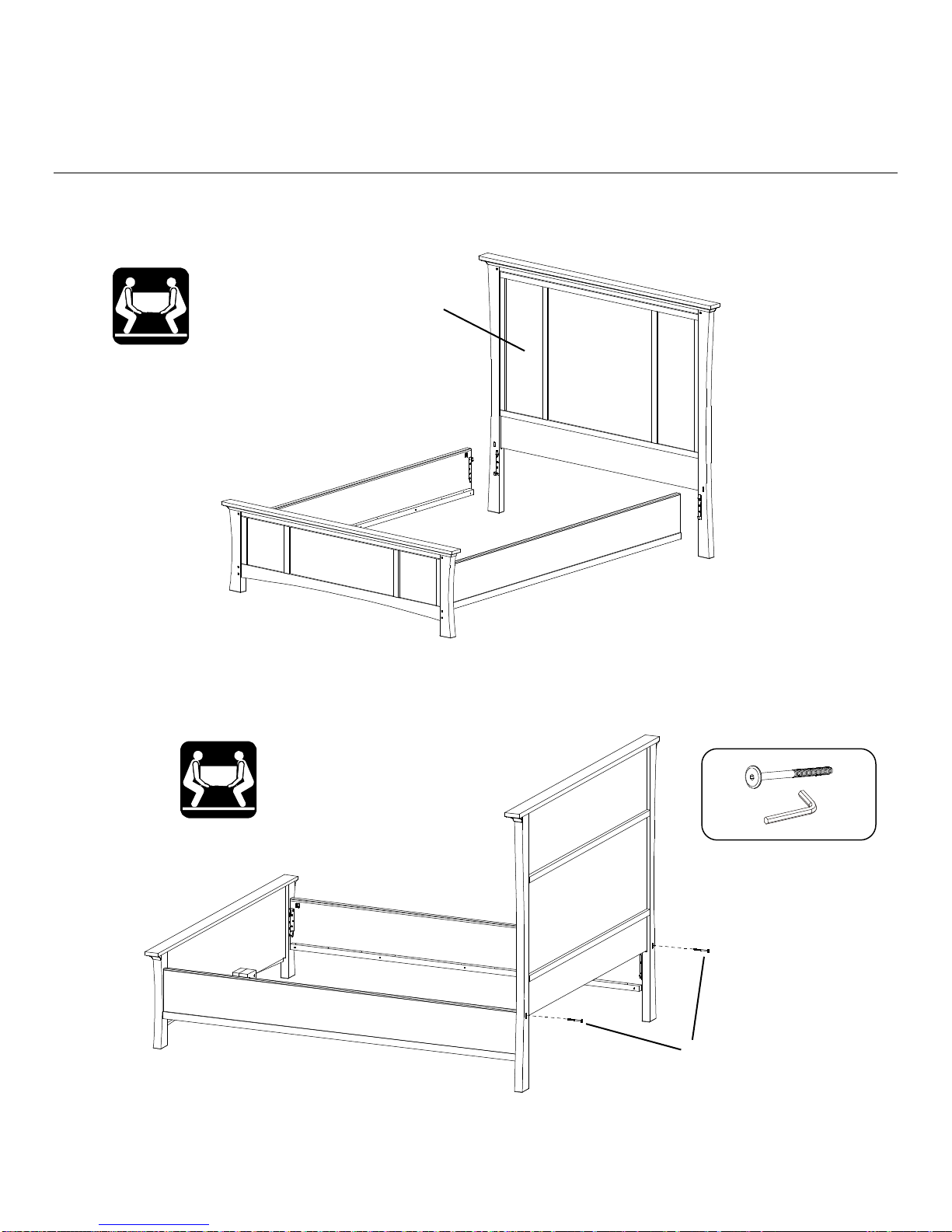

21. Align the Brackets on both sides and slide the Side Rail/Footboard assembly down on to the
Headboard (A). See Figure 21.
22. Using the Hex Wrench (ZM), attach the Headboard to the Side Rails with two 1/4" x 80mm Hex
Bolts (ZC). See Figure 22.
Fig. 22
ZC
ZC
x 2
ZM
x 1
Fig. 21
A
