Whittier Wood 2322GACd User manual

P.O. Box 2827
Eugene, OR 97402 USA
Production Code:
VN 05/17
McKenzie Mantel Storage Beds
for Adjustable Bed Bases
GAC = Glazed Antique Cherry finish
CAF = Caffè finish
Assembly Instructions
COMPATIBILITY NOTICE:
This bed is designed to accommodate zero clearance
adjustable bed foundations. To be compatible, the
foundation must be able to sit on a floor or deck without leg
or foot supports and must be powered by a DC motor. Be
sure to consult a mattress expert for more information.
IMPORTANT NOTES:
•For normal household use only. Not recommended for commercial use.
•Remove items before you move this unit.
•Do not overload the drawers.
•This assembly requires two people.
WARNING
Drilling, sawing, sanding or machining wood products can expose you to
wood dust, a substance known to the state of California to cause cancer.
Avoid inhaling wood dust or use a dust mask or other safeguards for
personal protection.
For more information go to: www.p65warnings.ca.gov/wood
This product can expose you to chemicals, including formaldehyde,
which are known to the State of California to cause cancer.
For more information go to: www.p65warnings.ca.gov/furniture
DESIGN SUBJECT TO CHANGE WITHOUT NOTICE.
CUSTOMER SERVICE
If you ever have questions about your furniture, please do not hesitate to contact us. In the unlikely event you need a
replacement part; we can make those parts available through an authorized Whittier Wood Furniture dealer. If you
cannot order replacement parts through your dealer, please contact our customer service department.
Hours: Our friendly customer service staff can be reached:
Monday-Friday 8:00 a.m. to 5:00 p.m. (Pacific Time).
You may leave a message 24 hours a day, seven days a week.
Customer Service: 800-653-3336 • Outside the U.S.: 541-687-0213
Fax: [phone]• Email: [email protected]
Model #
2322GACd
2322CAFd
McKenzie Queen
Mantel Storage Bed
for Adjustable Bed
Bases
Model #
2325GACd
2325CAFd
McKenzie King
Mantel Storage Bed
for Adjustable Bed
Bases
Thank you for allowing us to help you furnish your
home. We are certain you will be delighted with
your new furniture for many years to come.

2322GACd 2322CAFd
McKenzie Queen Mantel Storage Bed for Adjustable Bed Bases
& 2325GACd 2325CAFd
McKenzie King Mantel Storage Bed for Adjustable Bed Bases

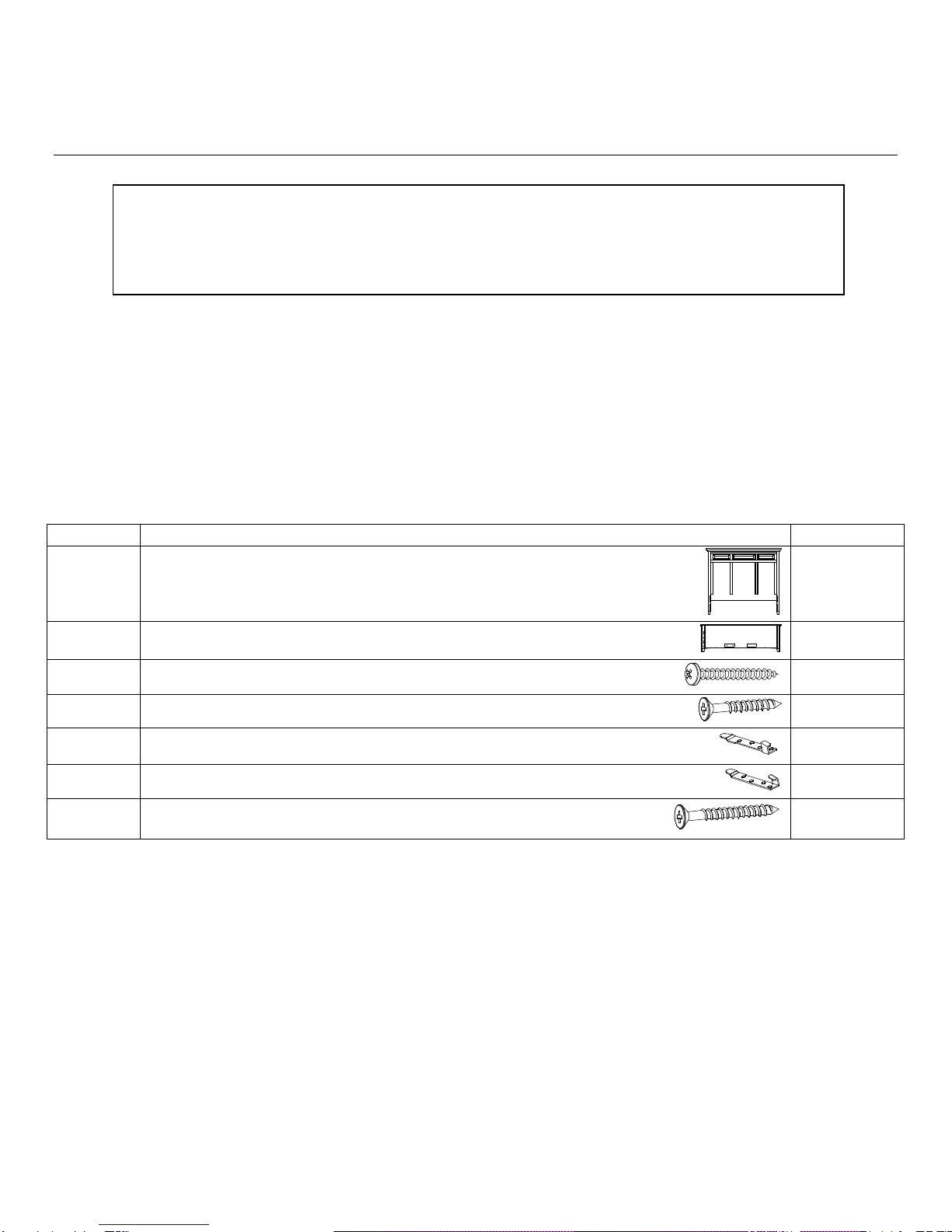

Parts List
2322GACd_2322CAFd_2325GACd_2325CAFd — Page 2 — 05/17
Please identify the parts and check that quantities received match those on this list.
If you need to replace a part, refer to the following letter and part name.
2317GAC 2317CAF
Queen Mantel Headboard/Footboard Kit (x1)
Part
Description
Quantity
A
Headboard Assembly
1
B
Footboard Assembly
1
YI
#8x 1-1/4" Pan Head Screw (inserted)
8
ZP
#8 x 1" Black Screw (inserted)
32
ZQ
Left Bed Bracket (attached)
4
ZR
Right Bed Bracket (attached)
4
ZX
#8 x 1-5/8" Black Screw (inserted)
4
Please note this Assembly Instruction is for either the McKenzie Queen Mantel
Storage Bed for Adjustable Bed Bases (2322) or the McKenzie King Mantel
Storage Bed for Adjustable Bed Bases (2325).
The Parts list for each headboard follows on pages 2 and 3.

2322GACd 2322CAFd
McKenzie Queen Mantel Storage Bed for Adjustable Bed Bases
& 2325GACd 2325CAFd
McKenzie King Mantel Storage Bed for Adjustable Bed Bases
Parts List
2322GACd_2322CAFd_2325GACd_2325CAFd — Page 3 — 05/17
2320GACa 2320CAFa
King Mantel Headboard/Footboard Kit (x1)
Part
Description
Quantity
Aa
Headboard Assembly
1
B
Footboard Assembly
1
Rb
Center Deckboard
1
YH
Top Assembly
1
YI
#8 x 1-1/4" Pan Head Screw
6
(4 inserted)
YJ
Cam Connector (inserted)
2
YK
Cam Housing
2
ZP
#8 x 1" Black Screw (inserted)
32
ZQ
Left Bed Bracket (attached)
4
ZR
Right Bed Bracket (attached)
4
ZX
#8 x 1-5/8" Black Screw (inserted)
4

2322GACd 2322CAFd
McKenzie Queen Mantel Storage Bed for Adjustable Bed Bases
& 2325GACd 2325CAFd
McKenzie King Mantel Storage Bed for Adjustable Bed Bases
Parts List
2322GACd_2322CAFd_2325GACd_2325CAFd — Page 4 — 05/17
2323GACd 2323CAFd
Adjustable Bed Pedestal Kit (x2)
Part
Description
Quantity
E
Pedestal
1
F
Drawer Box (assembled)
3
G
Drawer Face (attached)
3
H
Notched Deckboard (attached)
1
I
Left/Right Center Deckboard
1
J
Queen Trestle (11-9/16")
2
K
King Trestle (27-9/16")
2
L
Assembled Foot
3
M
Foot Bracket (attached)
3
N
Adjustable Glide (installed)
3
P
Knob (attached)
3
Qb
#8 x 1-1/2" Machine Screw Tuscan (installed)
3
R
20" Drawer Slides (installed)
3 sets
S
#6 x 1/2" Philtruss Screw (inserted)
22
(18 inserted)
T
#6 x 3/4" Philtruss Screw (inserted)
18
U
1/4" x 1-3/4" Hex Bolt
6
V
1/4" Flat Washer
10
(4 inserted)
W
90
o
Bracket
1
Xb
#8 x 7/8" Black Lo-Profile Screw (inserted)
18
Y
#8 x 1-1/4" Black Screw
58
(48 inserted)

2322GACd 2322CAFd
McKenzie Queen Mantel Storage Bed for Adjustable Bed Bases
& 2325GACd 2325CAFd
McKenzie King Mantel Storage Bed for Adjustable Bed Bases
Parts List
2322GACd_2322CAFd_2325GACd_2325CAFd — Page 5 — 05/17
Part
Description
Quantity
YL
1/4" x 20mm Insert Nut (inserted)
8
YM
#10 x 3/4" Pan Head Screw (inserted)
12
ZA
Left Pedestal Angle Bracket (inserted)
2
ZB
Right Pedestal Angle Bracket (inserted)
2
ZC
Left Pedestal Bracket (inserted)
1
ZD
Right Pedestal Bracket (inserted)
1
ZE
#6 x 3/4" Flat Head Screw (inserted)
8
ZF
1/4" x 2-1/2" Hex Bolt (inserted)
4
ZG
Arched Washer (inserted)
4
ZH
1/4" Lock Washer (inserted)
4
ZI
1/4" Hex Nut (inserted)
4
ZP
#8 x 1" Black Screw (inserted)
26
ZQ
Left Bed Bracket (attached)
2
ZR
Right Bed Bracket (attached)
2

2322GACd 2322CAFd
McKenzie Queen Mantel Storage Bed for Adjustable Bed Bases
& 2325GACd 2325CAFd
McKenzie King Mantel Storage Bed for Adjustable Bed Bases
Assembly Instructions
This assembly requires two people.
2322GACd_2322CAFd_2325GACd_2325CAFd — Page 6 — 05/17
Tools Required: Phillips screwdriver, 7/16" open end or box end wrench and Tape measure
Steps 1, 2 & 3 are for the McKenzie King Mantel Storage Bed for Adjustable Bed Bases (#2325)

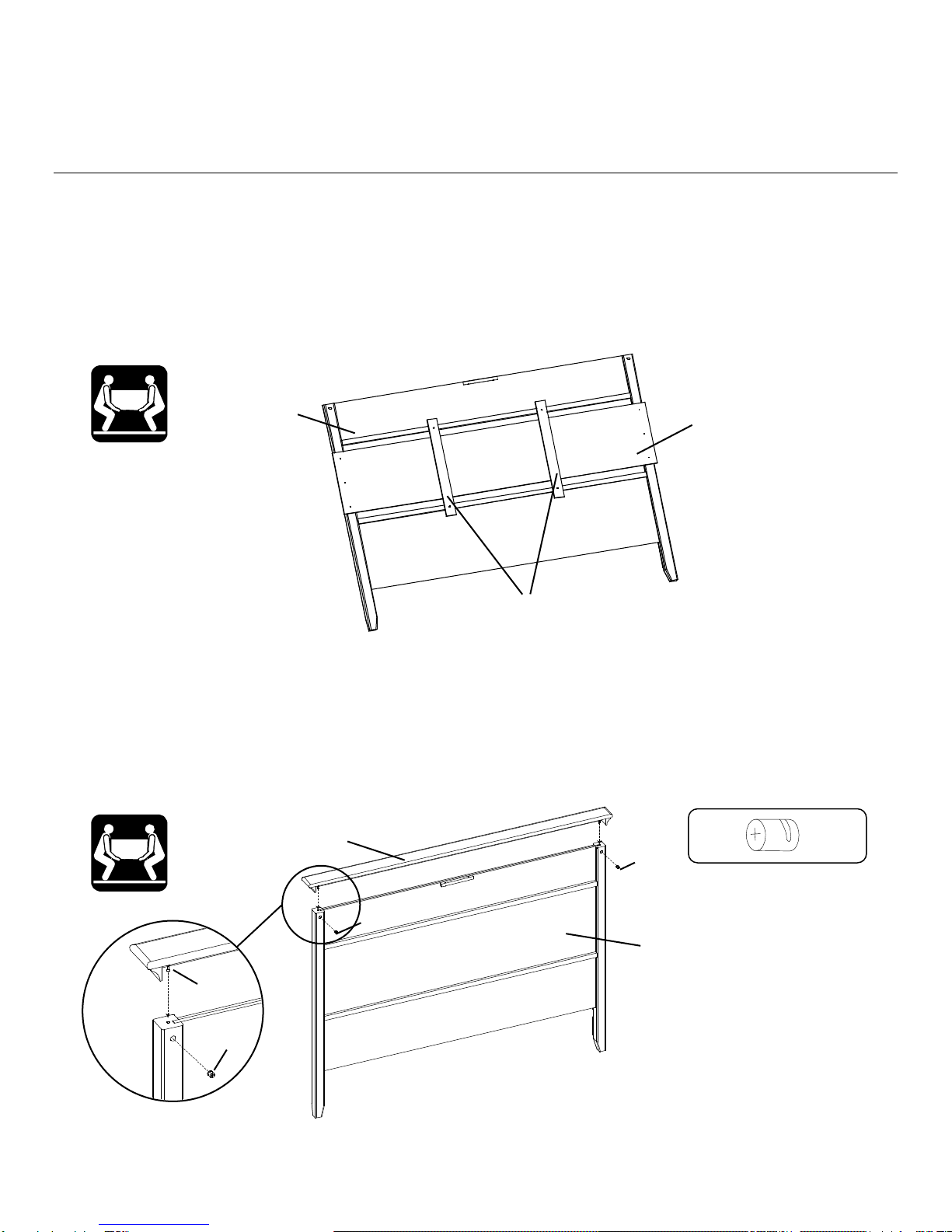

1. Remove the Center Deckboard (Rb) from the back of the Headboard (Aa) and place to the side.
See Figure 1.
2. NOTE: READ CAM INSTRUCTIONS NOW BEFORE YOU BEGIN THE FOLLOWING STEP.
Insert Cam Housings (YK) into the two pre-drilled holes on the Headboard Assembly (Aa) as
shown in Figure 2. Lower Top Assembly (YH) so that the Cam Connectors (YJ) fit into the
housings (YK) tighten the cam housings as indicated in the Cam-lock System instructions. See
Figures 2 and 2a.
Fig. 2
Aa
YH
YK
x 2
YK
YK
Fig. 2a
YK
YJ
Fig. 1
Shipping Straps
Rb
Aa

2322GACd 2322CAFd
McKenzie Queen Mantel Storage Bed for Adjustable Bed Bases
& 2325GACd 2325CAFd
McKenzie King Mantel Storage Bed for Adjustable Bed Bases
Assembly Instructions
This assembly requires two people.
2322GACd_2322CAFd_2325GACd_2325CAFd — Page 7 — 05/17
3. Attach the Top Assembly (YH) to the Headboard Assembly (Aa) by inserting two #8x1-1/4" Pan
Head Screws (YI) into the predrilled holes in the block that is attached to the Headboard
Assembly (Aa). See Figures 3 and 3a.
4. Place both Pedestals (E) approximately 63" apart for #2322 Queen Bed, or 79" apart for #2325
King Bed as shown in Figures 4 and 4a.
Fig. 4
E
63"
(For 2322)
E
Fig. 4a
79"
(For 2325)
E
E
Fig. 3
YI
x 2
Fig. 3a
YI

2322GACd 2322CAFd
McKenzie Queen Mantel Storage Bed for Adjustable Bed Bases
& 2325GACd 2325CAFd
McKenzie King Mantel Storage Bed for Adjustable Bed Bases
Assembly Instructions
This assembly requires two people.
2322GACd_2322CAFd_2325GACd_2325CAFd — Page 8 — 05/17

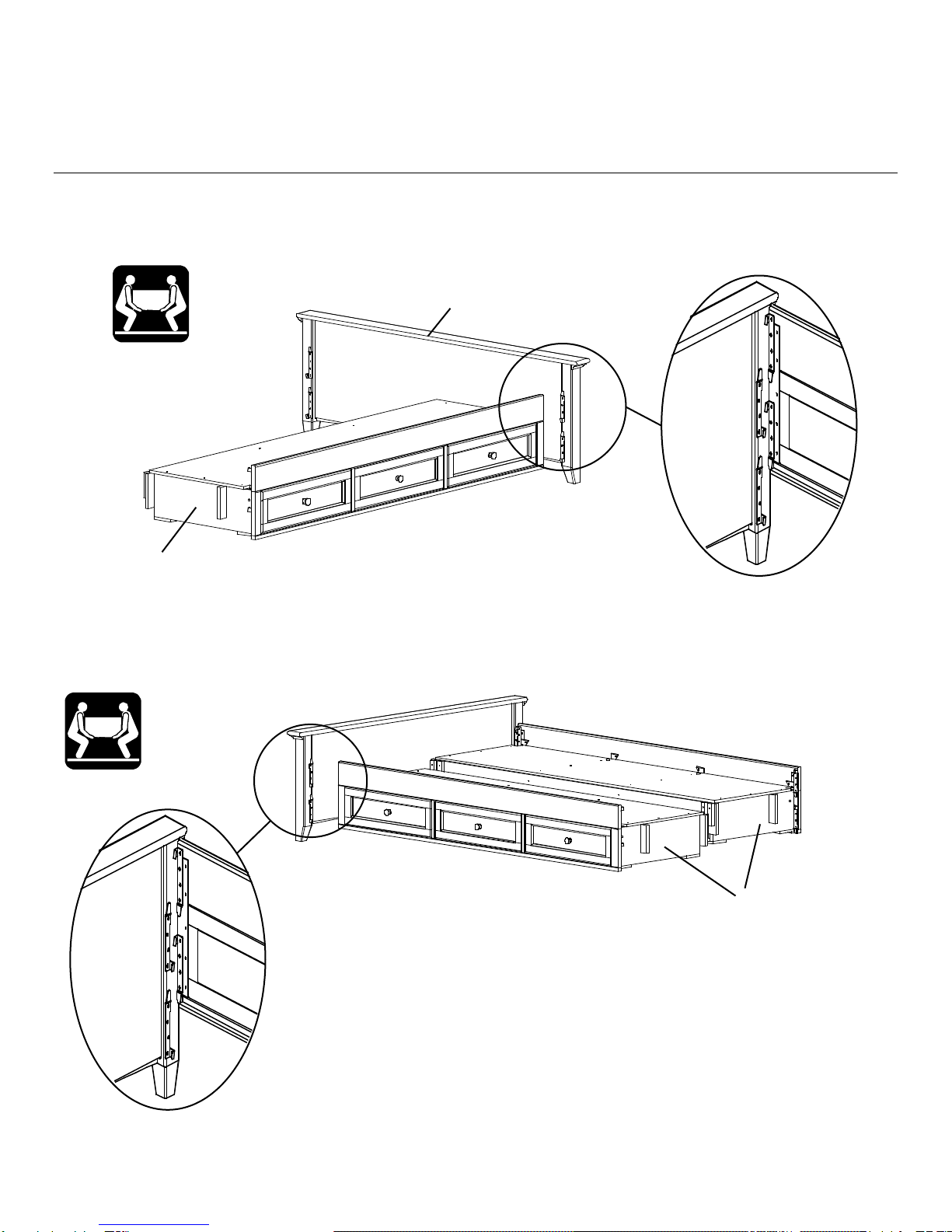

5. To attach the Footboard (B) to the Pedestal (E), align the Brackets and slide the Pedestal down
on to the Footboard (B). See Figures 5 and 5a.
6. Repeat step five for the left side. See Figures 6 and 6a.
Fig. 6
E
Fig. 6a
Fig. 5
E
B
Fig. 5a

2322GACd 2322CAFd
McKenzie Queen Mantel Storage Bed for Adjustable Bed Bases
& 2325GACd 2325CAFd
McKenzie King Mantel Storage Bed for Adjustable Bed Bases
Assembly Instructions
This assembly requires two people.
2322GACd_2322CAFd_2325GACd_2325CAFd — Page 9 — 05/17

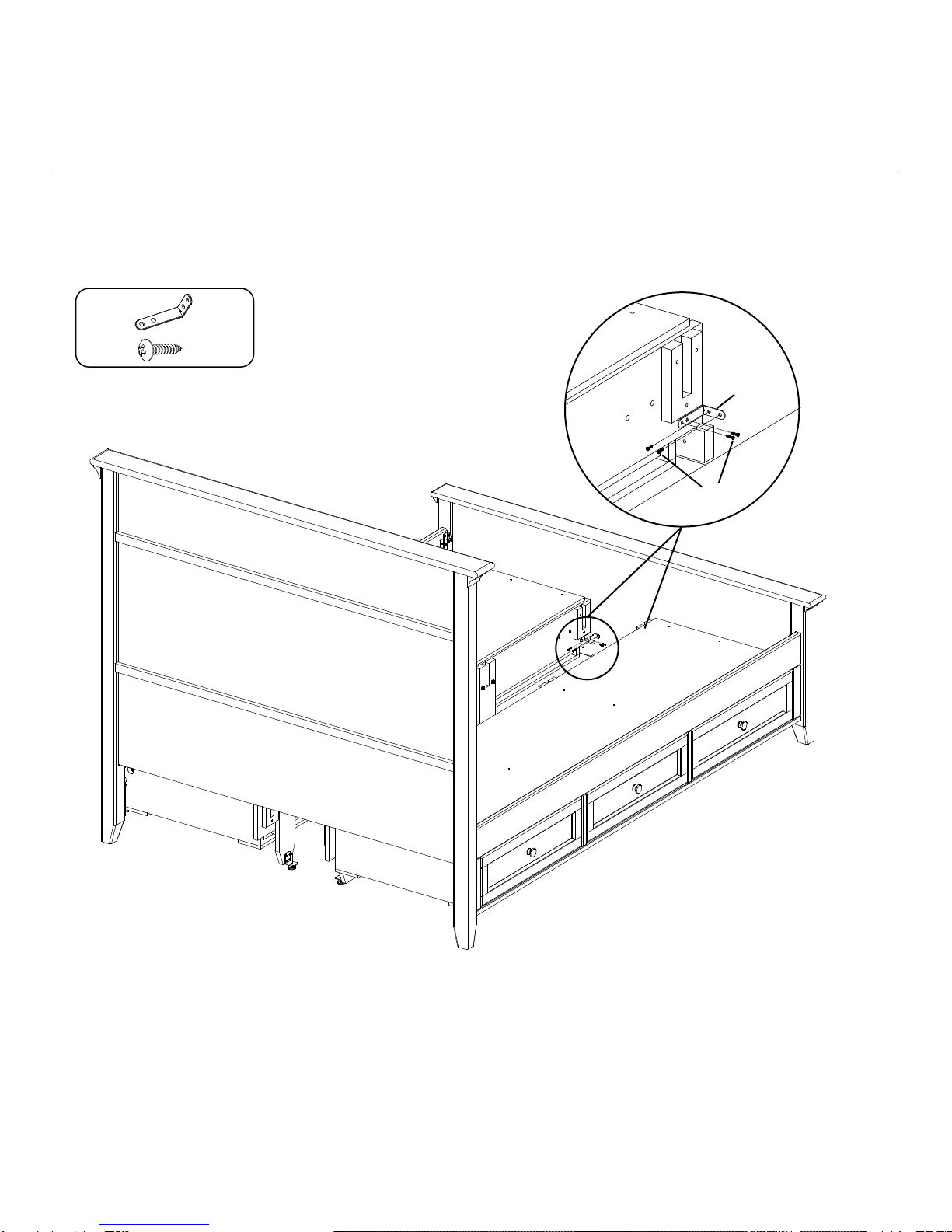

7. Align the Brackets on both sides and slide the Pedestal/Footboard assembly down on to the
Headboard (A or Aa). See Figure 7.
Fig. 7
A or Aa

2322GACd 2322CAFd
McKenzie Queen Mantel Storage Bed for Adjustable Bed Bases
& 2325GACd 2325CAFd
McKenzie King Mantel Storage Bed for Adjustable Bed Bases
Assembly Instructions
This assembly requires two people.
2322GACd_2322CAFd_2325GACd_2325CAFd — Page 10 — 05/17
8. NOTE: There are blocks mounted on the back side of the Footboard to support the end of
the pedestal eliminating the need for an Assembled Foot in this position where it would
be easily visible. Do not attach an Assembled Foot in the position near the footboard.
Position three Assembled Feet (L) onto the Left Pedestal as shown in Figures 8 and 8a. Attach
to the Pedestal with 1/4" x 1-3/4" Hex Bolts (U) and 1/4" Flat Washers (V). See Figures 8 and
8a.
Fig. 8
U
V
x 6
x 6
Fig. 8a
L
U
V
U
V

2322GACd 2322CAFd
McKenzie Queen Mantel Storage Bed for Adjustable Bed Bases
& 2325GACd 2325CAFd
McKenzie King Mantel Storage Bed for Adjustable Bed Bases
Assembly Instructions
This assembly requires two people.
2322GACd_2322CAFd_2325GACd_2325CAFd — Page 11 — 05/17
9. NOTE: There are blocks mounted on the back side of the Footboard to support the end of
the pedestal eliminating the need for an Assembled Foot in this position where it would
be easily visible. Do not attach an Assembled Foot in the position near the footboard.
Attach three additional Assembled Feet (L) to the Right Pedestal with 1/4" x 1-3/4" Hex Bolts (U)
and 1/4" Flat Washers (V). See Figures 9 and 9a.
IMPORTANT: Make sure the Glides touch the floor and carry weight.
Fig. 9
Fig. 9a
U
V
x 6
x 6
U
V

2322GACd 2322CAFd
McKenzie Queen Mantel Storage Bed for Adjustable Bed Bases
& 2325GACd 2325CAFd
McKenzie King Mantel Storage Bed for Adjustable Bed Bases
Assembly Instructions
This assembly requires two people.
2322GACd_2322CAFd_2325GACd_2325CAFd — Page 12 — 05/17
10. Facing the Footboard, attach the Pedestal Assembly to the Footboard with a 90º Bracket (W)
and four #6 x 1/2" Philtruss Screws (S). Repeat for the other side. See Figures 10 and 10a.
Fig. 10
Fig. 10a
W
S
W
S
x 2
x 8

2322GACd 2322CAFd
McKenzie Queen Mantel Storage Bed for Adjustable Bed Bases
& 2325GACd 2325CAFd
McKenzie King Mantel Storage Bed for Adjustable Bed Bases
Assembly Instructions
This assembly requires two people.
2322GACd_2322CAFd_2325GACd_2325CAFd — Page 13 — 05/17
11. Place the four Queen Trestles (J) or King Trestles (K) into the bed assembly as shown in
Figures 11 and 11a. Recycle/discard the Trestles for the size of bed not purchased.
IMPORTANT: the center two trestles nest into the notches at the top of the Foot
Assemblies. The trestles at each end must nest into the notches in the cleats which are
attached closer to the ends of the Pedestals.
12. To make sure the bed is square, measure the distance between opposing corners. If one of the
measurements is larger, tap on a footboard leg until the measurement is equal. See Figure 12.
Fig. 12
Fig. 11
Fig. 11a
J or K
J or K
J or K

2322GACd 2322CAFd
McKenzie Queen Mantel Storage Bed for Adjustable Bed Bases
& 2325GACd 2325CAFd
McKenzie King Mantel Storage Bed for Adjustable Bed Bases
Assembly Instructions
This assembly requires two people.
2322GACd_2322CAFd_2325GACd_2325CAFd — Page 14 — 05/17

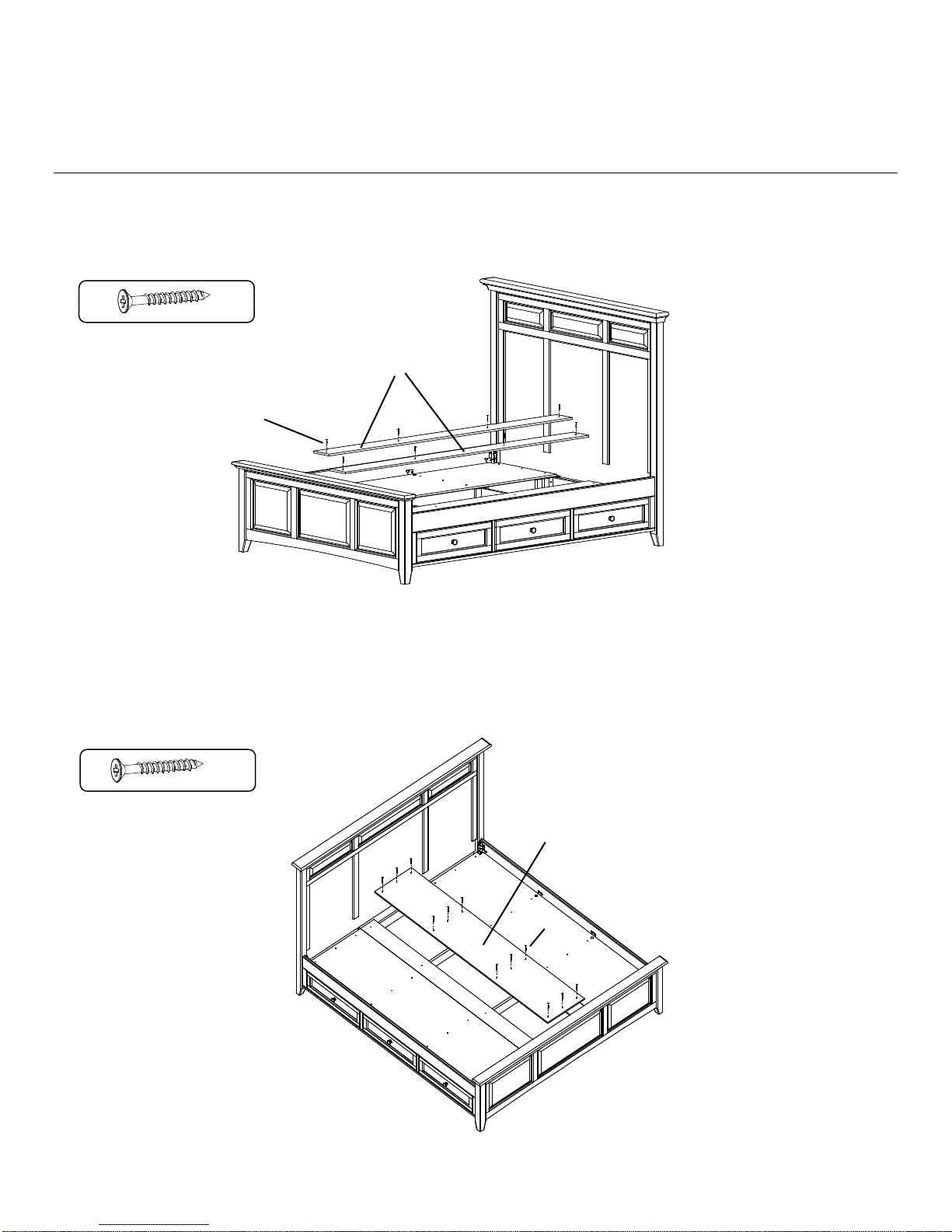

13. Place the Left/Right Center Deckboards (I) as shown in Figure 13 and secure with
eight #8x1-1/4" Black Screws (Y). There should be a small gap between each deckboard.
Step 14 is for the McKenzie King Mantel Storage Bed for Adjustable Bed Bases (#2325)
14. Place the Center Deckboard (Rb) as shown in Figure 14 and secure with twelve #8 x 1-1/4"
Black Screws (Y). If you need to adjust the center feet, remove the Center Deckboard, adjust
the glides and reattach the deckboard.
Fig. 14
Y
Y
x 12
Rb
Fig. 13
Y
Y
x 8
I

CAM - LOCK SYSTEM INSTRUCTIONS
P.O. Box 2827
Eugene, OR 97402 USA
Toll Free: 800
-653-3336
Ph: 541
-687-0213
Fax: 541
-687-2060
www.whittierwood.com
Page 1 of 1
Rev. 01/13
NOTE: To avoid scratching the surface of the
wood, assemble the unit and place face-down
on a clean, protected surface.
12
1
2
3
4
5
6
7
8
9
10
11
Optimum
tightness
Face of
Cam Housing
Correct way to tighten
your Cam-Lock system.
Cam Connector
Shoulder must be
flush with the surface
of the wood.
DO NOT embed
the shoulder into the wood!
1. Insert the Cam Housing so the arrow faces the Cam
Connector. To achieve tension and holding power,
you MUST TURN the Cam Housing clockwise at
LEAST 1/4 turn to the 9:00 position. Turning the
Cam Housing between 1/4 and 1/2 turn should be
enough to ensure rigid tension. Tension should be
initiated as soon as 10:00. You should receive
optimum tightness at 11:00. IF this does not occur,
tighten or loosen the Cam Connector to achieve
proper tension.
2. You may need extra tension if:
A. The Cam Connector was screwed in deeper or
not as deep as if should.
B. If the furniture is repeatedly assembled and
disassembled.
C. If you place a heavy load in the unit.
To achieve extra tension,tighten the Cam
Connector between the 11:00 and 12:00
positions.
Shelf
Side Panel
Cam
Connector
Cam
Housing
Install the Cam
Housing so the
arrow is directly
over the bolt.
Lock the Cam
Housing with:
Phillips
Screwdriver
Slotted
Screwdriver
