Whittier Wood 5600RGB User manual

P.O. Box 2827
Eugene, OR 97402 USA
Production Code:
VN 08/18
Stonewood Manor Upholstered Beds
RGB = Rustic Glazed Brown finish
Assembly Instructions
Model #
IMPORTANT NOTES:
For normal household use only. Not recommended for commercial use.
Remove items before you move this unit.
Do not overload the drawers.
This assembly requires two people.
WARNING
Drilling, sawing, sanding or machining wood products can expose you to
wood dust, a substance known to the state of California to cause cancer.
Avoid inhaling wood dust or use a dust mask or other safeguards for
personal protection.
For more information go to: www.p65warnings.ca.gov/wood
This product can expose you to chemicals, including formaldehyde,
which are known to the State of California to cause cancer.
For more information go to: www.p65warnings.ca.gov/furniture
DESIGN SUBJECT TO CHANGE WITHOUT NOTICE.
CUSTOMER SERVICE
If you ever have questions about your furniture, please do not hesitate to contact us. In the unlikely event you need a
replacement part; we can make those parts available through an authorized Whittier Wood Furniture dealer. If you
cannot order replacement parts through your dealer, please contact our customer service department.
Hours: Our friendly customer service staff can be reached:
Monday-Friday 8:00 a.m. to 5:00 p.m. (Pacific Time).
You may leave a message 24 hours a day, seven days a week.
Customer Service: 800-653-3336 • Outside the U.S.: 541-687-0213
Fax: [phone]• Email: in[email protected]
5600RGB
Stonewood Queen Manor
Upholstered Storage Bed
5627RGBc
Stonewood Queen
Manor Upholstered Bed
5635RGBc
Stonewood King
Manor Upholstered Bed
5609RGB
Stonewood King
Manor Upholstered
Storage Bed
Thank you for allowing us to help you furnish your
home. We are certain you will be delighted with
your new furniture for many years to come.

5600RGB Stonewood Queen Manor Upholstered Storage Bed
5609RGB Stonewood King Manor Upholstered Storage Bed
5627RGBc Stonewood Queen Manor Upholstered Bed
5635RGBc Stonewood King Manor Upholstered Bed
Parts List
5600RGB_5609RGB_5627RGBc_5635RGBc
Page 2 —08/18

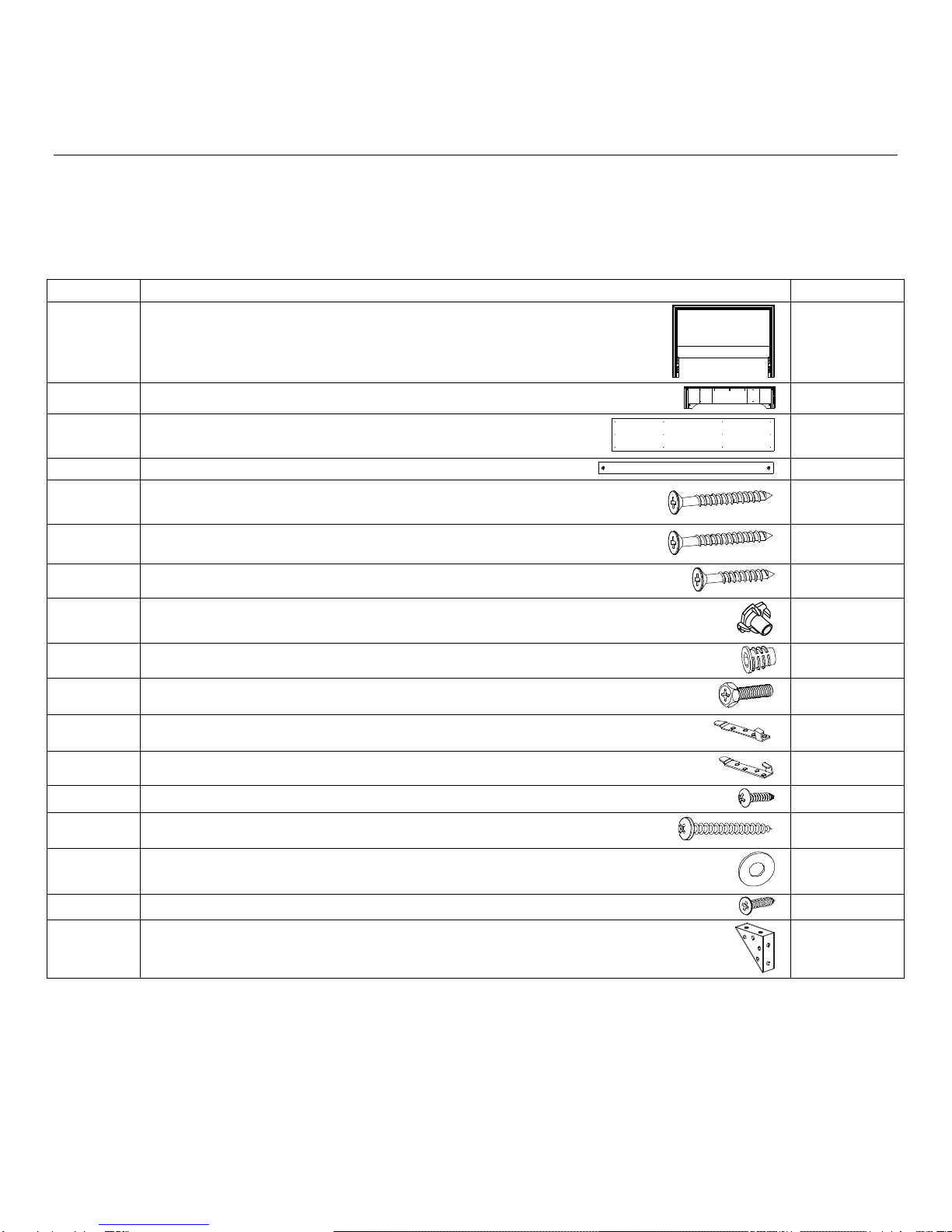

Please identify the parts and check that the quantities received match those on this list. If you need
to replace a part, refer to the model number, part letter and name.
5608RGB
Queen Headboard/Footboard Kit (x1)
Part
Description
Quantity
A
Headboard Assembly
1
B
Footboard Assembly
1
I
Queen Trestle with T-Nuts (24-3/8")
4
R
#8 x 1-1/4" Black Screw (inserted)
4
S
#8 x 1-5/8" Black Screw (inserted)
5
U
#8 x 1" Black Screw (inserted)
32
Y
1/4" T-Nut (inserted)
8
YA
1/4" x 13.5mm Insert Nut (inserted)
16
YB
1/4" x 1" Hex Bolt
16
ZD
Left Bed Bracket (attached)
4
ZE
Right Bed Bracket (attached)
4
ZH
#6 x 5/8" Philtruss Screw (inserted)
20
ZI
#8 x 1-1/4" Pan Head Screw (inserted)
10
ZT
18mm Flat Washer
16
ZY
#5 x 5/8" Flat Head Screw (inserted)
16
ZZ
Triangle Bracket (attached)
2
Please note this Assembly Instruction is for Stonewood Manor Upholstered Storage
Beds (#5600 Queen and #5609 King), and Stonewood Manor Upholstered Rail Beds
(#5627 Queen and #5635 King.) The Parts Lists for each component follow.

5600RGB Stonewood Queen Manor Upholstered Storage Bed
5609RGB Stonewood King Manor Upholstered Storage Bed
5627RGBc Stonewood Queen Manor Upholstered Bed
5635RGBc Stonewood King Manor Upholstered Bed
Parts List
5600RGB_5609RGB_5627RGBc_5635RGBc
Page 3 —08/18
5617RGB
King Headboard/Footboard Kit (x1)
Part
Description
Quantity
A
Headboard Assembly
1
B
Footboard Assembly
1
C
Center Deckboard
1
J
King Trestle with T-Nuts (40-1/2")
4
R
#8 x 1-1/4" Black Screw
16
(4 inserted)
S
#8 x 1-5/8" Black Screw (inserted)
5
U
#8 x 1" Black Screw (inserted)
32
Y
1/4" T-Nut (inserted)
8
YA
1/4" x 13.5mm Insert Nut (inserted)
16
YB
1/4" x 1" Hex Bolt
16
ZD
Left Bed Bracket (attached)
4
ZE
Right Bed Bracket (attached)
4
ZH
#6 x 5/8" Philtruss Screw (inserted)
24
ZI
#8 x 1-1/4" Pan Head Screw (inserted)
10
ZT
18mm Flat Washer
16
ZY
#5 x 5/8" Flat Head Screw (inserted)
16
ZZ
Triangle Bracket (attached)
2

5600RGB Stonewood Queen Manor Upholstered Storage Bed
5609RGB Stonewood King Manor Upholstered Storage Bed
5627RGBc Stonewood Queen Manor Upholstered Bed
5635RGBc Stonewood King Manor Upholstered Bed
Parts List
5600RGB_5609RGB_5627RGBc_5635RGBc
Page 4 —08/18

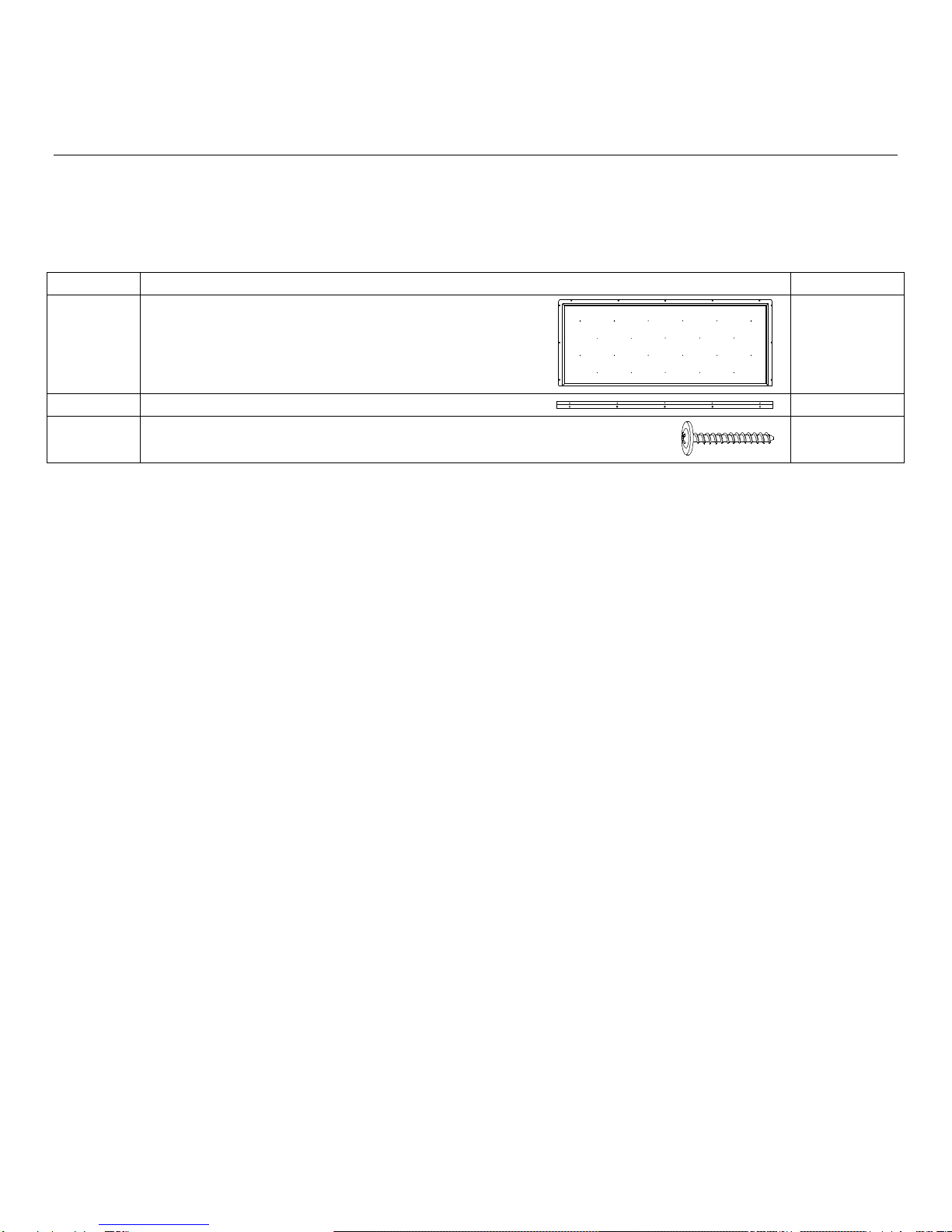

5666UWT Stonewood Queen Manor Insert –Woven Taupe (x1)
5667UWT Stonewood King Manor Insert –Woven Taupe (x1)
Part
Description
Quantity
YC
Upholstered Headboard Insert
1
YD
Back Support Assembly (attached)
1
YE
#8 x 1-1/8" Lo-Profile Screw (inserted)
5
5667 shown in the illustrations.

5600RGB Stonewood Queen Manor Upholstered Storage Bed
5609RGB Stonewood King Manor Upholstered Storage Bed
5627RGBc Stonewood Queen Manor Upholstered Bed
5635RGBc Stonewood King Manor Upholstered Bed
Parts List
5600RGB_5609RGB_5627RGBc_5635RGBc
Page 5 —08/18
1718RGBb Pedestal Kit (x2)
Part
Description
Quantity
Db
Pedestal
1
E
Small Drawer Box (assembled)
2
F
Large Drawer Box (assembled)
1
Gb
Small Drawer Face (attached)
2
Hb
Large Drawer Face (attached)
1
K
Left/Right Center Deckboard
1
L
Notched Deckboard (attached)
1
M
Assembled Foot (attached)
2
N
20" Drawer Slides (pre-installed sets)
3
O
#6 x 3/4" Philtruss Screw (inserted)
18
P
#6 x 1/2" Philtruss Screw (inserted)
18
Q
#8 x 7/8" Black Lo-Profile Screw (inserted)
20
R
#8 x 1-1/4" Black Screw
26
(18 inserted)
S
#8 x 1-5/8" Black Screw (inserted)
24
T
#8 x 2" Black Screw (inserted)
12
U
#8 x 1" Black Screw (inserted)
36
V
#8 x 1-1/2" Machine Screw Tuscan (installed)
3
W
#10 x 3/4" Pan Head Screw (inserted)
16
ZA
1/4" x 1-1/2" Hex Bolt
4
ZB
Knob (attached)
3
ZC
Knob Plate (attached)
3

5600RGB Stonewood Queen Manor Upholstered Storage Bed
5609RGB Stonewood King Manor Upholstered Storage Bed
5627RGBc Stonewood Queen Manor Upholstered Bed
5635RGBc Stonewood King Manor Upholstered Bed
Parts List
5600RGB_5609RGB_5627RGBc_5635RGBc
Page 6 —08/18

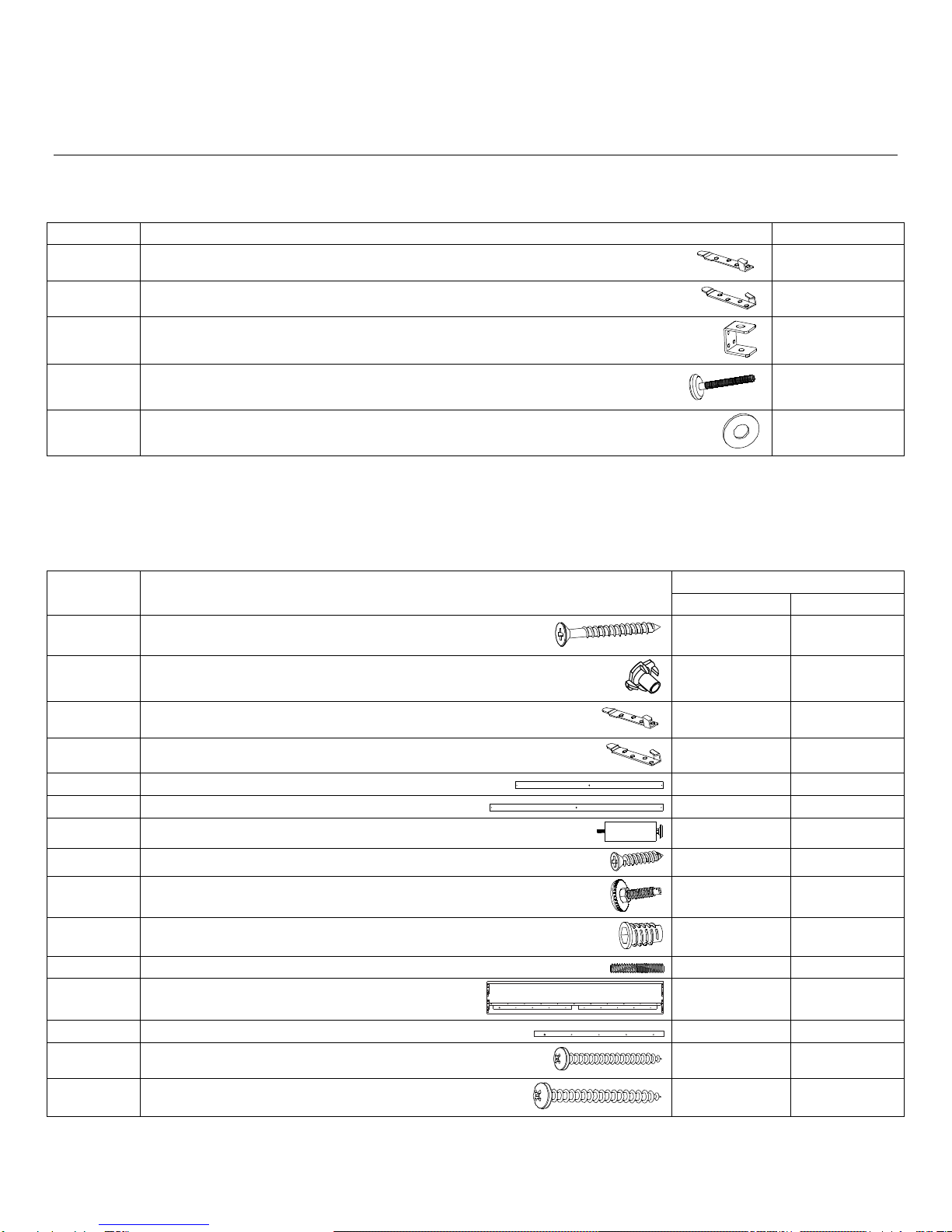

1718RGBb Pedestal Kit (x2)_Cont.
Part
Description
Quantity
ZD
Left Bed Bracket (attached)
2
ZE
Right Bed Bracket (attached)
2
ZF
Foot Bracket (attached)
4
ZG
Adjustable Glide (installed)
4
ZT
18mm Washer
4
1748RGBc Queen Rail Kit (x1)
1740RGBc King Rail Kit (x1)
Part
Description
Quantity
1748RGBc
1740RGBc
R
#8 x 1-1/4" Black Screw
10
10
Y
1/4" T-Nut (inserted)
5
5
ZD
Left Bed Bracket (attached)
4
4
ZE
Right Bed Bracket (attached)
4
4
ZK
Queen Slat
5
0
ZL
King Slat
0
5
ZM
Assembled Foot
5
5
ZN
#6 x 3/4" Flat Head Screw (inserted)
32
32
ZO
Adjustable Glide with Hex Nut (installed)
5
5
ZP
5/16" x 3/4" Insert Nut (inserted)
5
5
ZQ
1/4" x 45mm Hanger Bolt (inserted)
5
5
ZU
Side Rail
2
2
ZV
Cleat (attached)
4
4
ZW
#8 x 1-3/4" Pan Head Screw (inserted)
22
22
ZX
#10 x 2" Pan Head Screw (inserted)
20
20

5600RGB Stonewood Queen Manor Upholstered Storage Bed;
5609RGB Stonewood King Manor Upholstered Storage Bed;
5627RGBc Stonewood Queen Manor Upholstered Bed;
5635RGBc Stonewood King Manor Upholstered Bed
Assembly Instructions
This assembly requires two people.
5600RGB_5609RGB_5627RGBc_5635RGBc
Page 7 —08/18
Tools Required: Phillips screwdriver, Slotted screwdriver, 1/2" & 7/16" open end or box end
wrench and Tape measure
Notes:
Steps 1 through 11 are for the Stonewood Queen Manor Upholstered Storage Bed (#5600) and
the Stonewood King Manor Upholstered Storage Bed (#5609).
Steps 12 through 19 are for the Stonewood Queen Manor Upholstered Bed (#5627) and the
Stonewood King Manor Upholstered Bed (#5635).

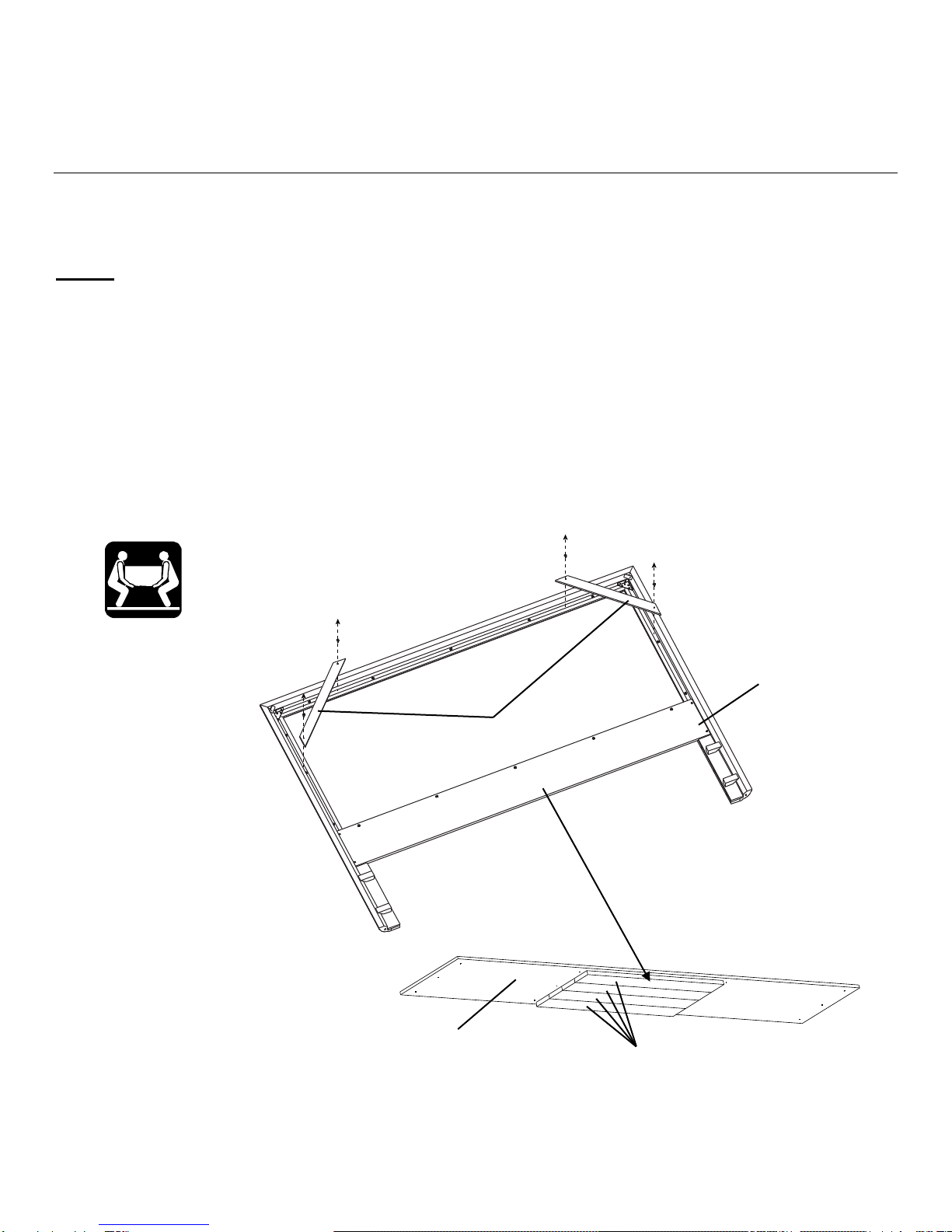

For the Stonewood King Manor Upholstered Bed (#5635)
Remove the Center Deckboard (C) and King Trestles (J) from the back of the Headboard (A) and
place to the side. See Figures 1, 1a.
1. Remove the diagonal braces from the back of the Headboard (A). See Figure 1.
Fig. 1
A
Diagonal braces
Fig. 1a
C
J

5600RGB Stonewood Queen Manor Upholstered Storage Bed;
5609RGB Stonewood King Manor Upholstered Storage Bed;
5627RGBc Stonewood Queen Manor Upholstered Bed;
5635RGBc Stonewood King Manor Upholstered Bed
Assembly Instructions
This assembly requires two people.
5600RGB_5609RGB_5627RGBc_5635RGBc
Page 8 —08/18

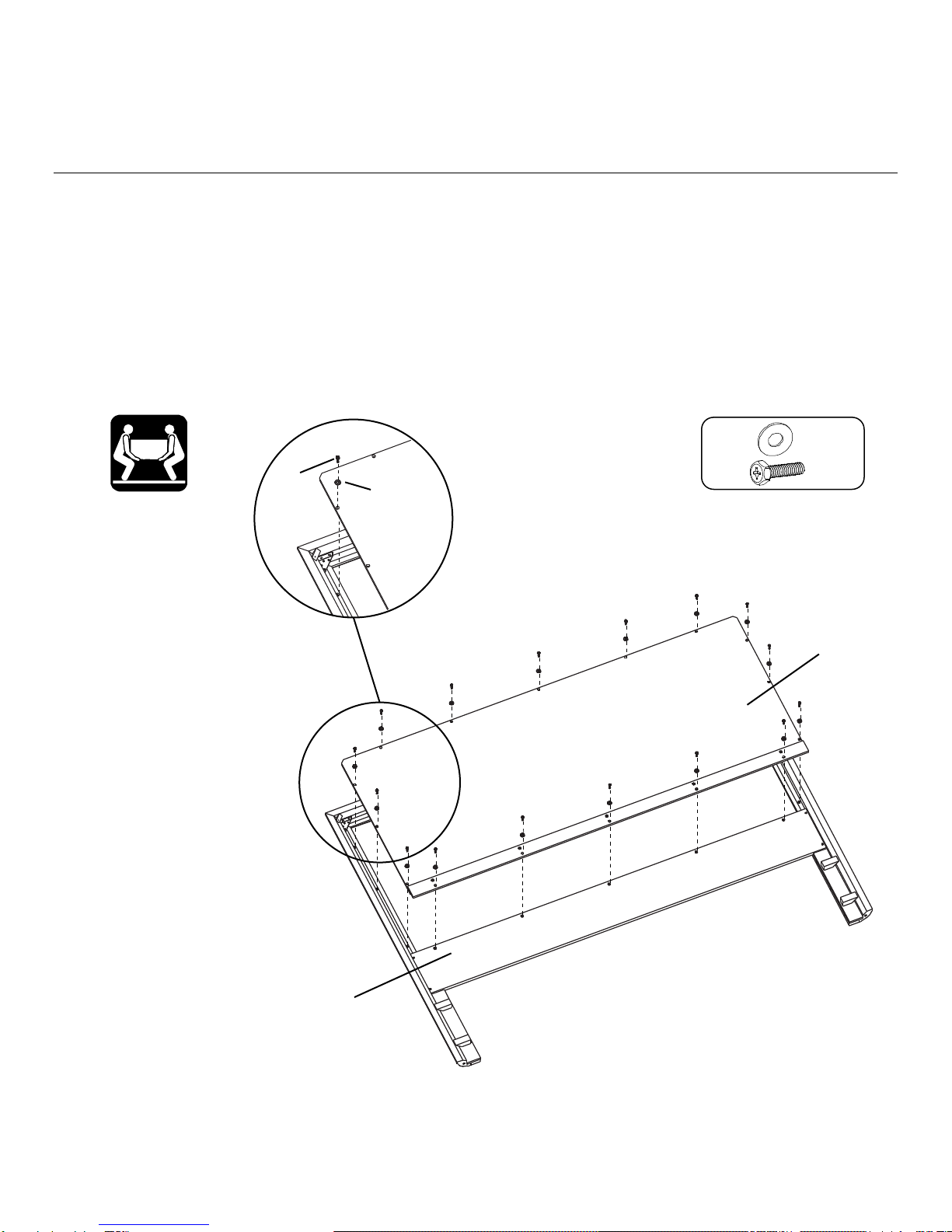

2. Place the Headboard Assembly (A) face down on a clean, protected surface. Remove two
pieces of foam blocks from the packaging and place them under the legs of the Headboard
Assembly (A) so that the Upholstered Headboard Insert (YC) can be set into place within the
framework. Use a slotted screwdriver to align the holes of the Upholstered Headboard Insert
(YC) with the holes in the Headboard Assembly (A). Insert only halfway all sixteen 1/4" x 1" Hex
Bolts (YB) and Washers (ZT). Slight downward pressure on the Upholstered Headboard Insert
(YC) will help engage the 1/4" x 1" Hex Bolts (YB) and Washers (ZT). Once the two components
are joined, tighten all the Hex Bolts with a wrench. See Figures 2 and 2a.
YC
Fig. 2
A
Fig. 2a
YB
ZT
x 16
x 16
ZT
YB

5600RGB Stonewood Queen Manor Upholstered Storage Bed;
5609RGB Stonewood King Manor Upholstered Storage Bed;
5627RGBc Stonewood Queen Manor Upholstered Bed;
5635RGBc Stonewood King Manor Upholstered Bed
Assembly Instructions
This assembly requires two people.
5600RGB_5609RGB_5627RGBc_5635RGBc
Page 9 —08/18
3. Place both Pedestals (Db) approximately 63" apart for #5600 Queen Bed, or 79" apart for #5609
King Bed as shown in Figures 3 and 3a.
4. To attach the Footboard (B) to the Pedestal (Db), align the Brackets and slide the Pedestal
down on to the Footboard (B). See Figures 4 and 4a.
Fig. 4
Db
B
Fig. 4a
Fig. 3
63"
(For #5600
Queen)
Db
Fig. 3a
79"
(For #5609
King)
Db

5600RGB Stonewood Queen Manor Upholstered Storage Bed;
5609RGB Stonewood King Manor Upholstered Storage Bed;
5627RGBc Stonewood Queen Manor Upholstered Bed;
5635RGBc Stonewood King Manor Upholstered Bed
Assembly Instructions
This assembly requires two people.
5600RGB_5609RGB_5627RGBc_5635RGBc
Page 10 —08/18
5. Repeat step four for the other side. See Figures 5 and 5a.
6. Align the Brackets on both sides and slide the Pedestal/Footboard assembly down on to the
Headboard (A). See Figure 6.
Fig. 6
A
Fig. 5
Db
Fig. 5a

5600RGB Stonewood Queen Manor Upholstered Storage Bed;
5609RGB Stonewood King Manor Upholstered Storage Bed;
5627RGBc Stonewood Queen Manor Upholstered Bed;
5635RGBc Stonewood King Manor Upholstered Bed
Assembly Instructions
This assembly requires two people.
5600RGB_5609RGB_5627RGBc_5635RGBc
Page 11 —08/18

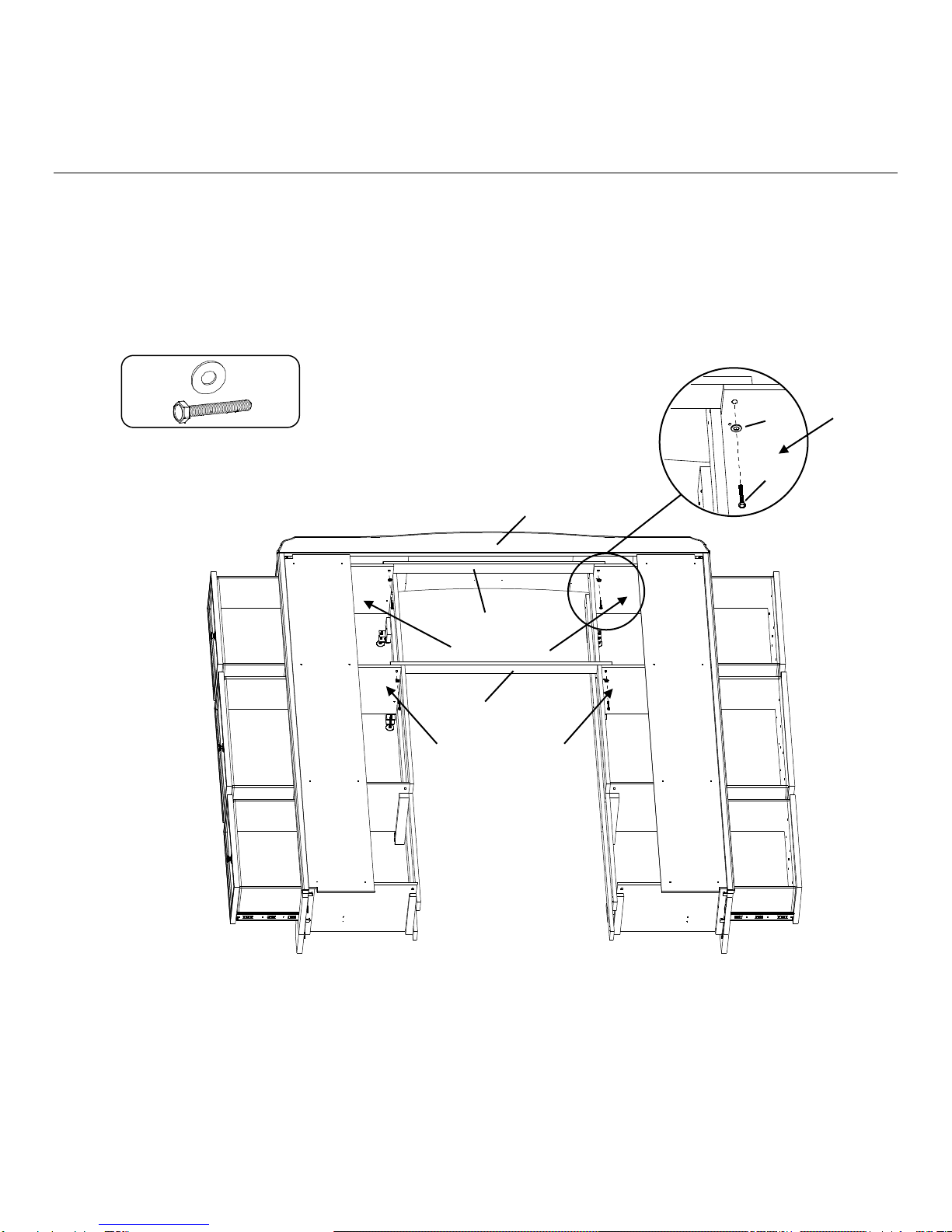

7. Open the drawers. Face the Footboard and stand in between the first and second braces.
Place a Queen Trestle with T-Nuts (I) or King Trestles with T-Nuts (J) on the outside surfaces of
the first upper left and right braces so that the T-Nuts (Y) sit near the top. See Figure 6a. Line up
the upper edges of the trestle and braces so they are nearly flush. Insert two 1/4" x 1-1/2" Hex
Bolts (ZA) and Washers (ZT) and tighten. Repeat for the second upper brace.
See Figures 7 and 7a.
Fig. 7
I or J
First brace
Second brace
Footboard
Headboard removed for illustration purposes.
Fig. 7a
ZT
Brace
ZA
ZT
x 4
x 4
ZA
I or J

5600RGB Stonewood Queen Manor Upholstered Storage Bed;
5609RGB Stonewood King Manor Upholstered Storage Bed;
5627RGBc Stonewood Queen Manor Upholstered Bed;
5635RGBc Stonewood King Manor Upholstered Bed
Assembly Instructions
This assembly requires two people.
5600RGB_5609RGB_5627RGBc_5635RGBc
Page 12 —08/18
8. Face the Headboard and stand in between the third and fourth braces. Place a Queen Trestle
with T-Nuts (I) or King Trestles with T-Nuts (J) on the outside surfaces of the third upper left and
right braces so that the T-Nuts (Y) sit near the top. See Figures 8 and 8a. Line up the upper
edges of the trestle and braces so they are nearly flush. Insert two 1/4" x 1-1/2" Hex Bolts (ZA)
and Washers (ZT) and tighten.
Repeat for the fourth braces.
Fig. 8
Fourth brace
Third brace
I or J
Fig. 8a
ZT
ZA
ZA
ZT
x 4
x 4
Brace
Trestle with T-Nuts (I or J)

5600RGB Stonewood Queen Manor Upholstered Storage Bed;
5609RGB Stonewood King Manor Upholstered Storage Bed;
5627RGBc Stonewood Queen Manor Upholstered Bed;
5635RGBc Stonewood King Manor Upholstered Bed
Assembly Instructions
This assembly requires two people.
5600RGB_5609RGB_5627RGBc_5635RGBc
Page 13 —08/18
9. Place your bed in its final position. Using a 1/2" wrench or Slotted screwdriver adjust the
Adjustable Glides (ZG) on the bottoms of the Assembled Feet (M) so that the top edge of the
trestles are 17" from the floor.
IMPORTANT: Make sure the Glides touch the floor and carry weight.
To make sure the bed is square, measure the distance between opposing corners. If one of the
measurements is larger, tap on a footboard leg until the measurement is equal. See Figure 9.
10. Place the Left/Right Center Deckboards (K) as shown in Figure 10 and secure with
sixteen #8x1-1/4" Black Screws (R). There should be a small gap between each deckboard.
Fig. 10
R
R
x 16
K
Fig. 9

5600RGB Stonewood Queen Manor Upholstered Storage Bed;
5609RGB Stonewood King Manor Upholstered Storage Bed;
5627RGBc Stonewood Queen Manor Upholstered Bed;
5635RGBc Stonewood King Manor Upholstered Bed
Assembly Instructions
This assembly requires two people.
5600RGB_5609RGB_5627RGBc_5635RGBc
Page 14 —08/18
Step 11 is for the Stonewood King Manor Upholstered Storage Bed (#5609)

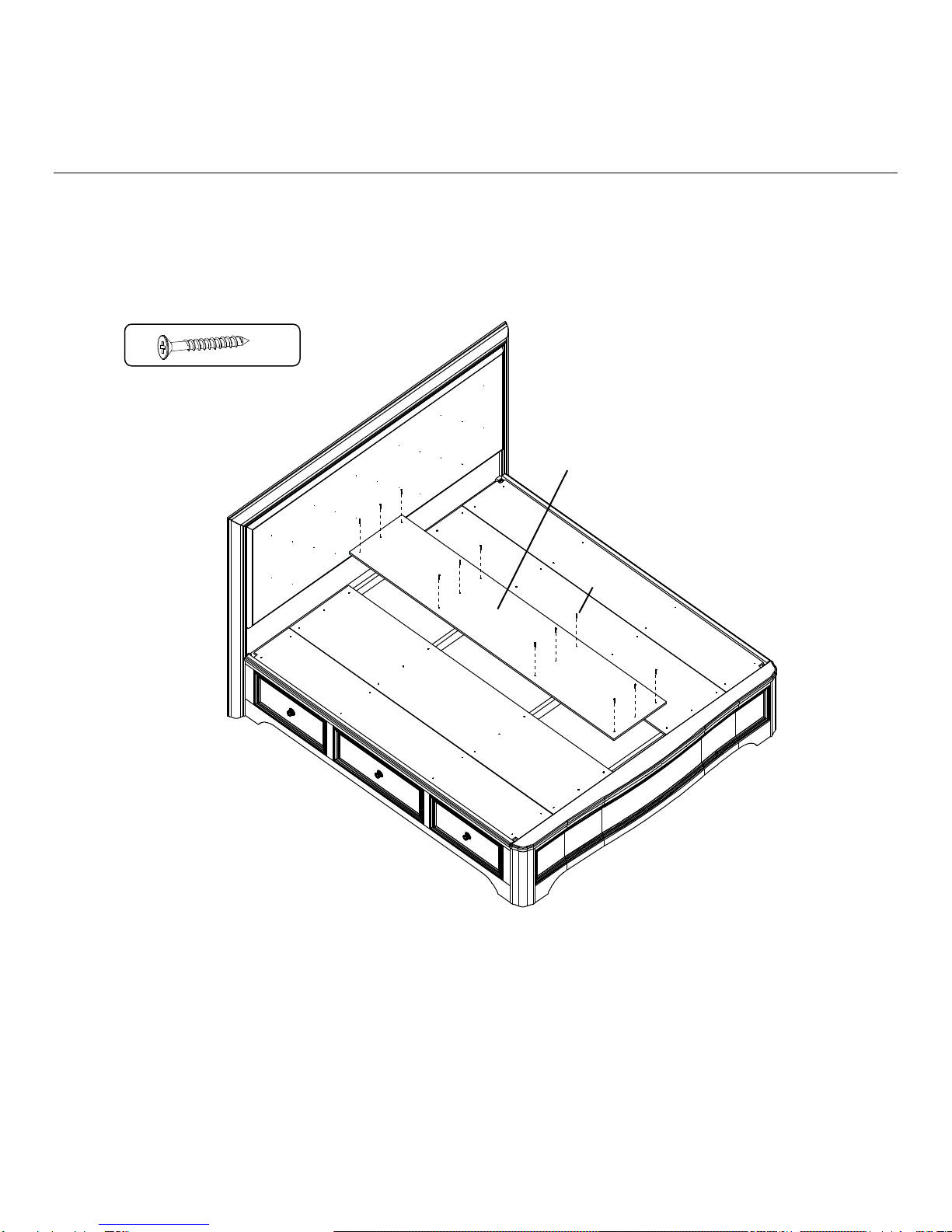

11. Place the Center Deckboard (C) as shown in Figure 11 and secure with twelve #8 x 1-1/4" Black
Screws (R). If you need to adjust the Assembled Feet, remove the Center Deckboard, adjust the
glides and reattach the deckboard.
This concludes the assembly process for the Stonewood Manor
Upholstered Storage Bed, if you have purchased a Stonewood Manor
Upholstered Rail Bed please refer to the instructions beginning on
page 15.
Fig. 11
R
C
R
x 12

5600RGB Stonewood Queen Manor Upholstered Storage Bed;
5609RGB Stonewood King Manor Upholstered Storage Bed;
5627RGBc Stonewood Queen Manor Upholstered Bed;
5635RGBc Stonewood King Manor Upholstered Bed
Assembly Instructions
This assembly requires two people.
5600RGB_5609RGB_5627RGBc_5635RGBc
Page 15 —08/18
12. Remove the diagonal braces from the back of the Headboard (A). See Figure 12.
Continued on Page 16
Fig. 12
A
Diagonal braces

5600RGB Stonewood Queen Manor Upholstered Storage Bed;
5609RGB Stonewood King Manor Upholstered Storage Bed;
5627RGBc Stonewood Queen Manor Upholstered Bed;
5635RGBc Stonewood King Manor Upholstered Bed
Assembly Instructions
This assembly requires two people.
5600RGB_5609RGB_5627RGBc_5635RGBc
Page 16 —08/18
13. Place the Headboard Assembly (A) face down on a clean, protected surface. Remove two
pieces of foam blocks from the packaging and place them under the legs of the Headboard
Assembly (A) so that the Upholstered Headboard Insert (YC) can be set into place within the
framework. Use a slotted screwdriver to align the holes of the Upholstered Headboard Insert
(YC) with the holes in the Headboard Assembly (A). Insert only halfway all sixteen 1/4" x 1" Hex
Bolts (YB) and Washers (ZT). Slight downward pressure on the Upholstered Headboard Insert
(YC) will help engage the 1/4" x 1" Hex Bolts (YB) and Washers (ZT). Once the two components
are joined, tighten all the Hex Bolts with a wrench. See Figures 13 and 13a.
YC
Fig. 13
A
Fig. 13a
YB
ZT
x 16
x 16
ZT
YB

5600RGB Stonewood Queen Manor Upholstered Storage Bed;
5609RGB Stonewood King Manor Upholstered Storage Bed;
5627RGBc Stonewood Queen Manor Upholstered Bed;
5635RGBc Stonewood King Manor Upholstered Bed
Assembly Instructions
This assembly requires two people.
5600RGB_5609RGB_5627RGBc_5635RGBc
Page 17 —08/18

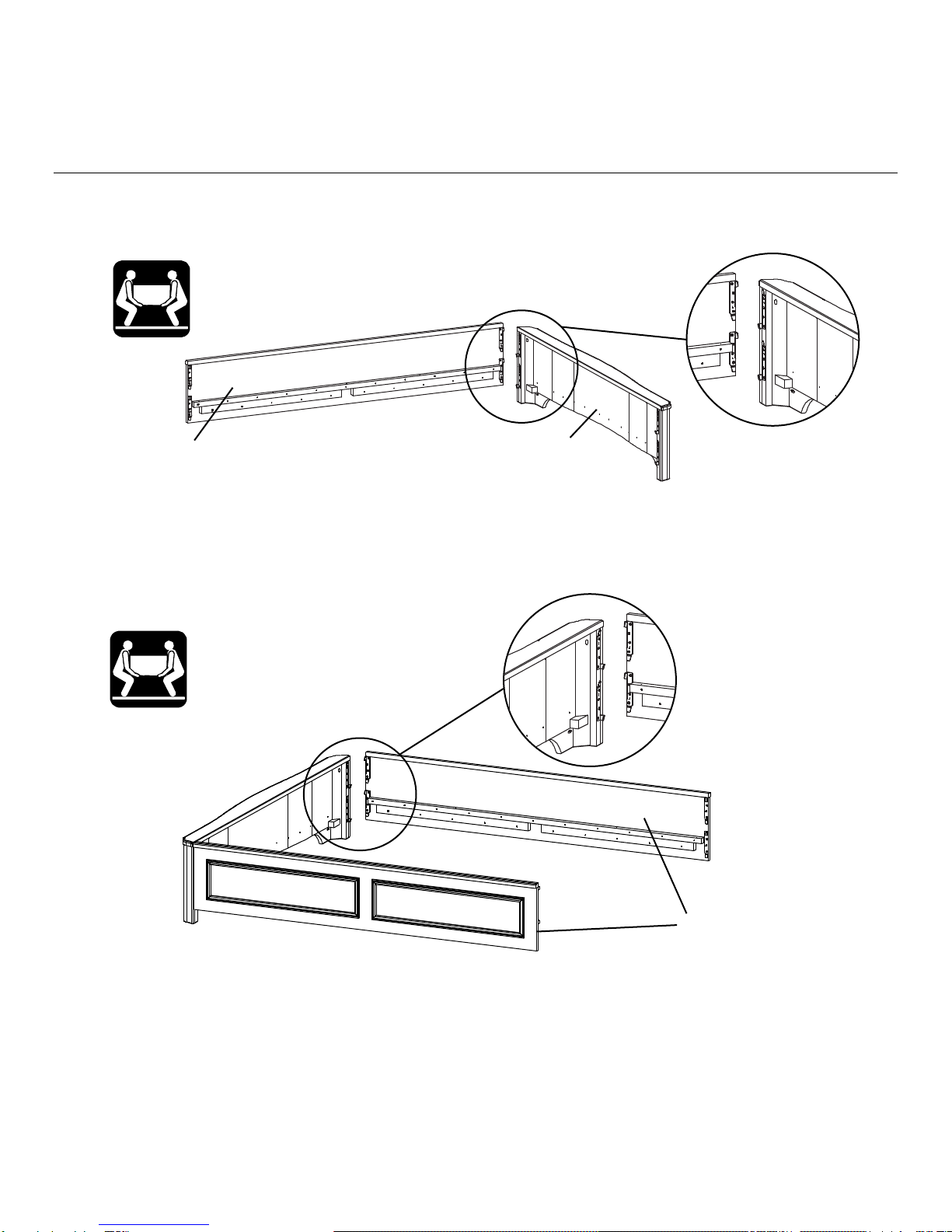

14. To attach the Footboard (B) to the Side Rail (ZU), align the Brackets and slide the Side Rail
(ZU) down on to the Footboard (B). See Figures 14 and 14a.
15. Repeat step fourteen for the other side. See Figures 15 and 15a.
Fig. 15
ZU
Fig. 15a
Fig. 14
ZU
B
Fig. 14a

5600RGB Stonewood Queen Manor Upholstered Storage Bed;
5609RGB Stonewood King Manor Upholstered Storage Bed;
5627RGBc Stonewood Queen Manor Upholstered Bed;
5635RGBc Stonewood King Manor Upholstered Bed
Assembly Instructions
This assembly requires two people.
5600RGB_5609RGB_5627RGBc_5635RGBc
Page 18 —08/18

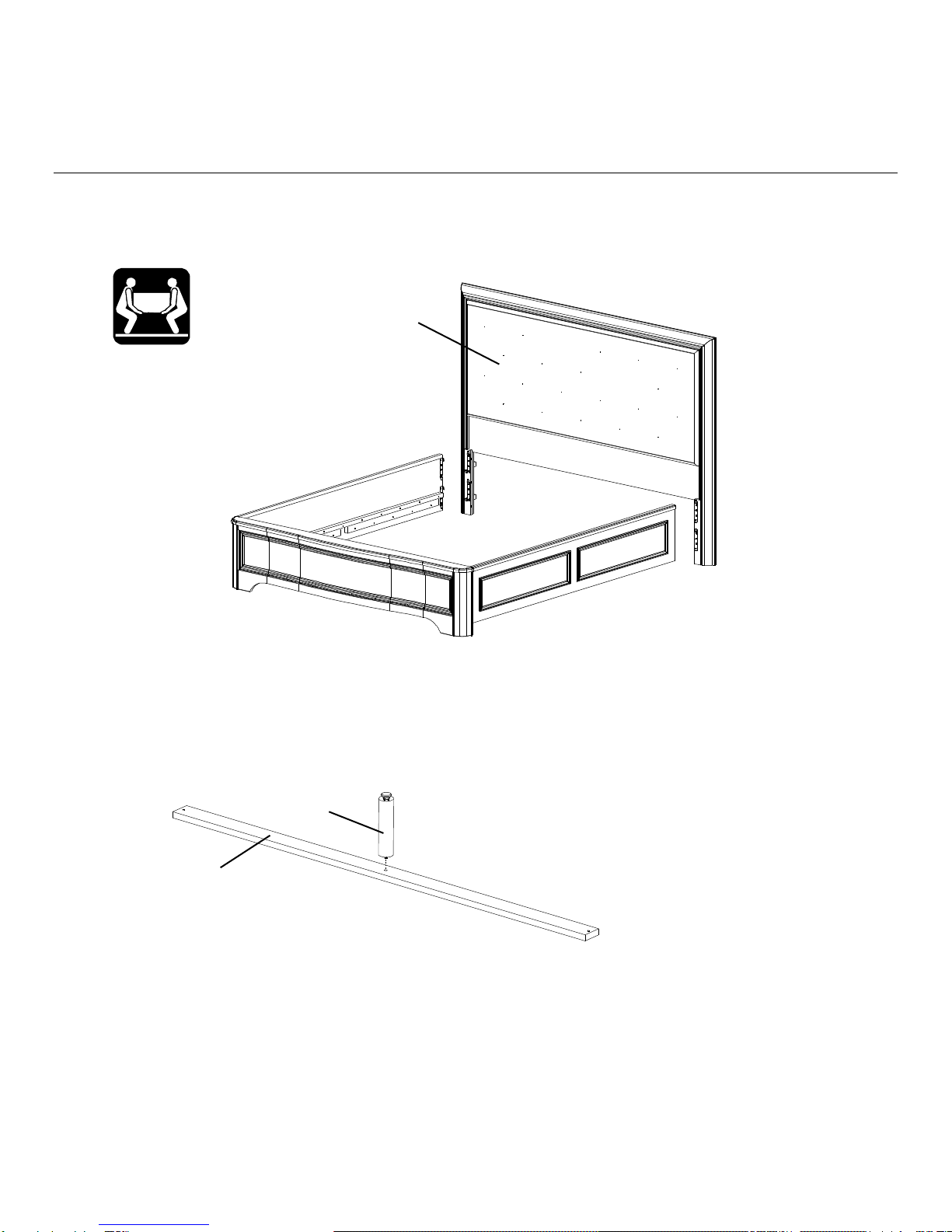

16. Align the Brackets on both sides and slide the Side Rail/Footboard assembly down on to the
Headboard (A). See Figure 16.
17. Attach Assembled Feet (ZM) to five Queen Slats (ZK) or King Slats (ZL) as shown in Figure 17.
ZK or ZL
Fig. 17
ZM
Fig. 16
A

5600RGB Stonewood Queen Manor Upholstered Storage Bed;
5609RGB Stonewood King Manor Upholstered Storage Bed;
5627RGBc Stonewood Queen Manor Upholstered Bed;
5635RGBc Stonewood King Manor Upholstered Bed
Assembly Instructions
This assembly requires two people.
5600RGB_5609RGB_5627RGBc_5635RGBc
Page 19 —08/18
18. Move the bed assembly to its final position. Position the Queen Slats (ZK) or the King Slats (ZL)
on the bottom edges of the rails. Attach with #8 x 1-1/4" Black Screws (R). See Figure 18.
19. Adjust the Adjustable Glides with Hex Nut (ZO) on the Assembled Feet (ZM) so the Glides just
touch the floor, making sure the Assembled Feet bear weight. See Figure 19.
ZO
Fig. 19
ZM
R
x 10
Fig. 18
R
ZK or ZL
