Wickes PDN122 User manual

PDN122
223738
PADDLE MIXER
1220W

2
CONTENTS
GENERAL POWER TOOL SAFETY WARNINGS 3
5
5
6
6
7
8
9
9
10
10
10
11
ACCESSORIES
COMPONENT LIST
SYMBOLS
NOISE INFORMATION
TECHNICAL DATA
OPERATING INSTRUCTIONS
WORKING HINTS FOR YOUR MIXER
ENVIRONMENTAL PROTECTION
TROUBLESHOOTING
PLUG REPLACEMENT (ONLY FOR REWIRABLE PLUG OF UK & IRELAND)
MAINTENANCE
DECLARATION OF CONFORMITY

3
ORIGINAL INSTRUCTION
GENERAL POWER TOOL SAFETY WARNINGS
WARNING! Read all safety warnings,
instructions, illustrations and specications
provided with this power tool. Failure to follow all
instructions listed below may result in electric shock, re and/
or serious injury.
SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE
REFERENCE.
The term “power tool” in the warnings refers to your mains-
operated (corded) power tool or battery-operated (cordless)
power tool.
1. WORK AREA SAFETY
a) Keep work area clean and well lit. Cluttered or dark
areas invite accidents.
b) Do not operate power tools in explosive
atmospheres, such as in the presence of
ammable liquids, gases or dust. Power tools create
sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while
operating a power tool. Distractions can cause you to
lose control.
2. ELECTRICAL SAFETY
a) Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any adapter
plugs with earthed (grounded) power tools.
Unmodied plugs and matching outlets will reduce risk of
electric shock.
b) Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock
if your body is earthed or grounded.
c) Do not expose power tools to rain or wet
conditions. Water entering a power tool will increase the
risk of electric shock.
d) Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords increase the
risk of electric shock.
e) When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of electric
shock.
f) If operating a power tool in a damp location is
unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of
electric shock.
3. PERSONAL SAFETY
a) Stay alert, watch what you are doing and use
common sense when operating a power tool. Do
not use a power tool while you are tired or under
the inuence of drugs, alcohol or medication. A
moment of inattention while operating power tools may
result in serious personal injury.
b) Use personal protective equipment. Always wear
eye protection. Protective equipment such as dust mask,
non-skid safety shoes, hard hat, or hearing protection used
for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch
is in the off-position before connecting to power
source and/or battery pack, picking up or carrying
the tool. Carrying power tools with your nger on the
switch or energising power tools that have the switch on
invites accidents.
d) Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result in
personal injury.
e) Do not overreach. Keep proper footing and balance
at all times. This enables better control of the power tool
in unexpected situations.
f) Dress properly. Do not wear loose clothing or
jewellery. Keep your hair and clothing away from
moving parts. Loose clothes, jewellery or long hair can
be caught in moving parts.
g) If devices are provided for the connection of dust
extraction and collection facilities, ensure these
are connected and properly used. Use of dust
collection can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of
tools allow you to become complacent and ignore
tool safety principles. A careless action can cause
severe injury within a fraction of a second.
4. POWER TOOL USE AND CARE
a) Do not force the power tool. Use the correct power
tool for your application. The correct power tool will
do the job better and safer at the rate for which it was
designed.
b) Do not use the power tool if the switch does
not turn it on and off. Any power tool that cannot
be controlled with the switch is dangerous and must be
repaired.
c) Disconnect the plug from the power source and/
or remove the battery pack, if detachable, from

4
GENERAL POWER TOOL SAFETY WARNINGS
the power tool before making any adjustments,
changing accessories, or storing power tools. Such
preventive safety measures reduce the risk of starting the
power tool accidentally.
d) Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the
power tool or these instructions to operate the
power tool. Power tools are dangerous in the hands of
untrained users.
e) Maintain power tools and accessories. Check for
misalignment or binding of moving parts, breakage
of parts and any other condition that may affect
the power tool’s operation. If damaged, have the
power tool repaired before use. Many accidents are
caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges are less
likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc.
in accordance with these instructions, taking into
account the working conditions and the work to be
performed. Use of the power tool for operations different
from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean
and free from oil and grease. Slippery handles and
grasping surfaces do not allow for safe handling and
control of the tool in unexpected situations.
5. SERVICE
a) Have your power tool serviced by a qualied repair
person using only identical replacement parts. This
will ensure that the safety of the power tool is maintained.
MIXER SAFETY INSTRUCTIONS
a) Hold the tool with both hands at the intended handles. Loss of control can cause personal injury.
b) Ensure sufcient ventilation when mixing ammable materials to avoid a hazardous atmosphere. Developing
vapour may be inhaled or be ignited by the sparks the power tool produces.
c) Do not mix food. Power tools and their accessories are not designed for processing food.
d) Keep the cord away from the working area. The cord may be entangled by the mixer basket.
e) Ensure that the mixing container is placed in a rm and secure position. A container that is not properly secured
may move unexpectedly.
f) Ensure that no liquid splashes against the housing of the power tool. Liquid that has penetrated the power tool can
cause damage and lead to electric shock.
g) Follow the instructions and warnings for the material to be mixed. Material to be mixed may be harmful.
h) If the power tool falls into the material to be mixed, unplug the tool immediately and have the power tool
checked by a qualied repair person. Reaching into the bucket with the tool still plugged in can lead to electric shock.
i) Do not reach into the mixing container with your hands or insert any other objects into it while mixing. Contact
with the mixer basket may lead to serious personal injury.
j) Start up and run down the tool in the mixing container only. The mixer basket may bend or spin in an uncontrolled
manner.

5

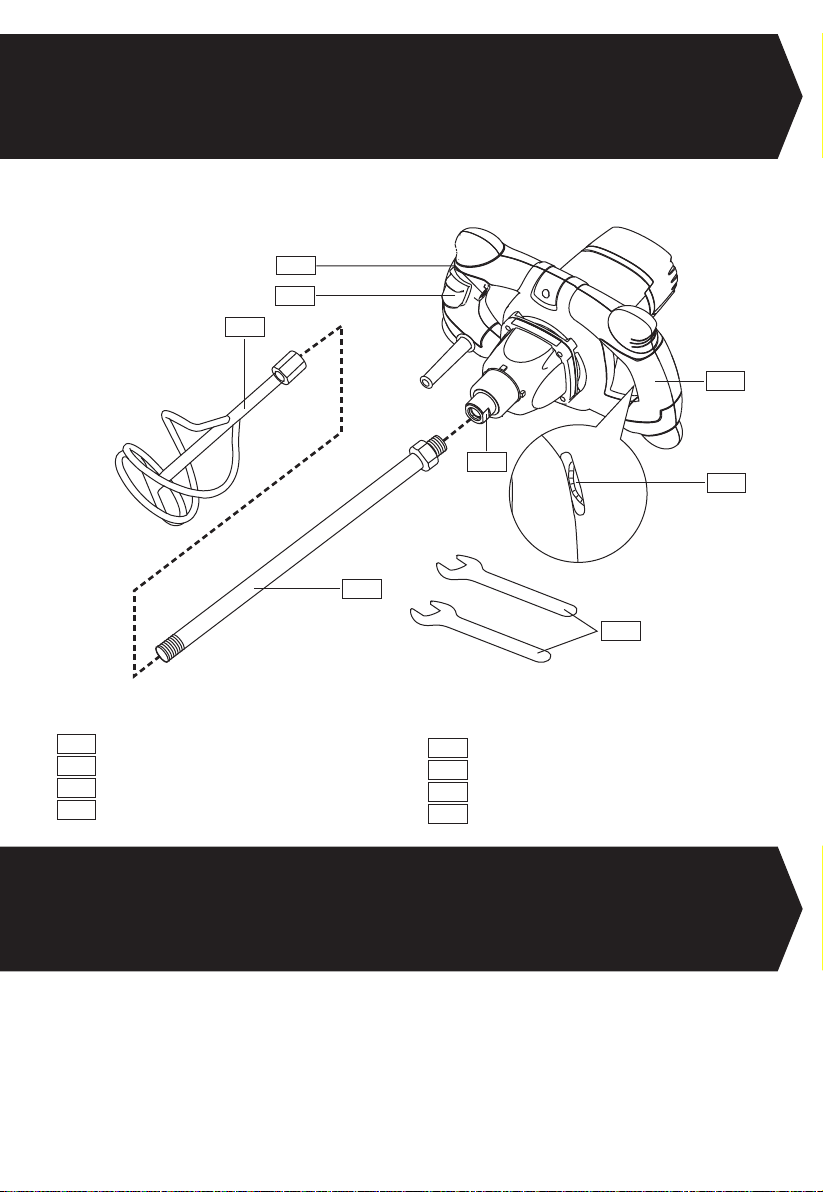

COMPONENT LIST
Mixing paddle
On/off switch
Lock button
Hand grip areas
Variable speed control
Drive spindle
Spanner
Extension tube
4
1
3
2
4
5
7
8
6
1
2
3
6
7
8
Spanner 2
Mixing paddle 1
We recommend that you purchase your accessories from the same store that sold you the tool. Use good quality
accessories marked with a well-known brand name. Choose the type according to the work you intend to undertake.
Refer to the accessory packaging for further details. Store personnel can assist you and offer advice.
ACCESSORIES
5

6
SYMBOLS
To reduce the risk of injury, read all of this
instruction manual
Warning
Wear ear protection
Wear eye protection
TECHNICAL DATA
Rated Voltage
Rated Power
Rated No-load speed
Mixing volume
Spindle thread
Machine weight
Protection class
230-240V~50Hz
1220W
0-800 /min
60-80L
M14
4.37 Kg
/ II
Wear dust mask
Double insulated
Waste electrical products must not be
disposed of with household waste. Please
recycle where facilities exist. Check with
your local authorities or retailer for recycling
advice.

7
NOISE INFORMATION
A weighted sound pressure LpA: 84 dB(A)
A weighted sound power LwA: 95 dB(A)
KpA & KwA 3.0dB(A)
Wear ear protection.
Vibration total values (triax vector sum) determined according to EN 62841:
Vibration emission value ah,D = 4.24 m/s²
Uncertainty K = 1.5 m/s²
The declared vibration total value and the declared noise emission value have been measured in accordance with a
standard test method and may be used for comparing one tool with another.
The declared vibration total value and the declared noise emission value may also be used in a preliminary assessment
of exposure.
WARNING! The vibration and noise emissions during actual use of the power tool can differ from the declared
value depending on the ways in which the tool is used especially what kind of workpiece is processed dependant
on the following examples and other variations on how the tool is used:
How the tool is used and the materials being cut or drilled.
The tool being in good condition and well maintained.
The use of the correct accessory for the tool and ensuring it is sharp and in good condition.
The tightness of the grip on the handles and if any anti vibration and noise accessories are used.
And the tool is being used as intended by its design and these instructions.
This tool may cause hand-arm vibration syndrome if its use is not adequately managed.
WARNING! To be accurate, an estimation of exposure level in the actual conditions of use should also take
account of all parts of the operating cycle such as the times when the tool is switched off and when it is running
idle but not actually doing the job. This may signicantly reduce the exposure level over the total working period, helping
to minimize your vibration exposure risk.
Always use sharp chisels, drills and blades.
Maintain this tool in accordance with these instructions and keep well lubricated (where appropriate).
If the tool is to be used regularly then invest in anti vibration and noise accessories.
Plan your work schedule to spread any high vibration tool use across a number of days.
VIBRATION INFORMATION

8
OPERATING INSTRUCTIONS
NOTE: Before using the tool, read the instruction book carefully.
Intended Use
This machine is designed to mix liquid and powdery building materials such as paint, mortar, adhesive, plaster and
similar substances. It must be tted with the correct mixing tool for the consistency and quantity of material in question
in order to achieve the required mixing effect.
Assemble the paddle and extension bar, tighten the
joint using the two spanners supplied. Applying some
lubricant to the threads when you assemble will help
disassembly when you need to store the machine or
change the paddle.
Fit the paddle with extension to the mixer head. Again,
tighten using the two spanners provided.
To remove the mixing paddle, loosen it in reverse
direction with the spanners.

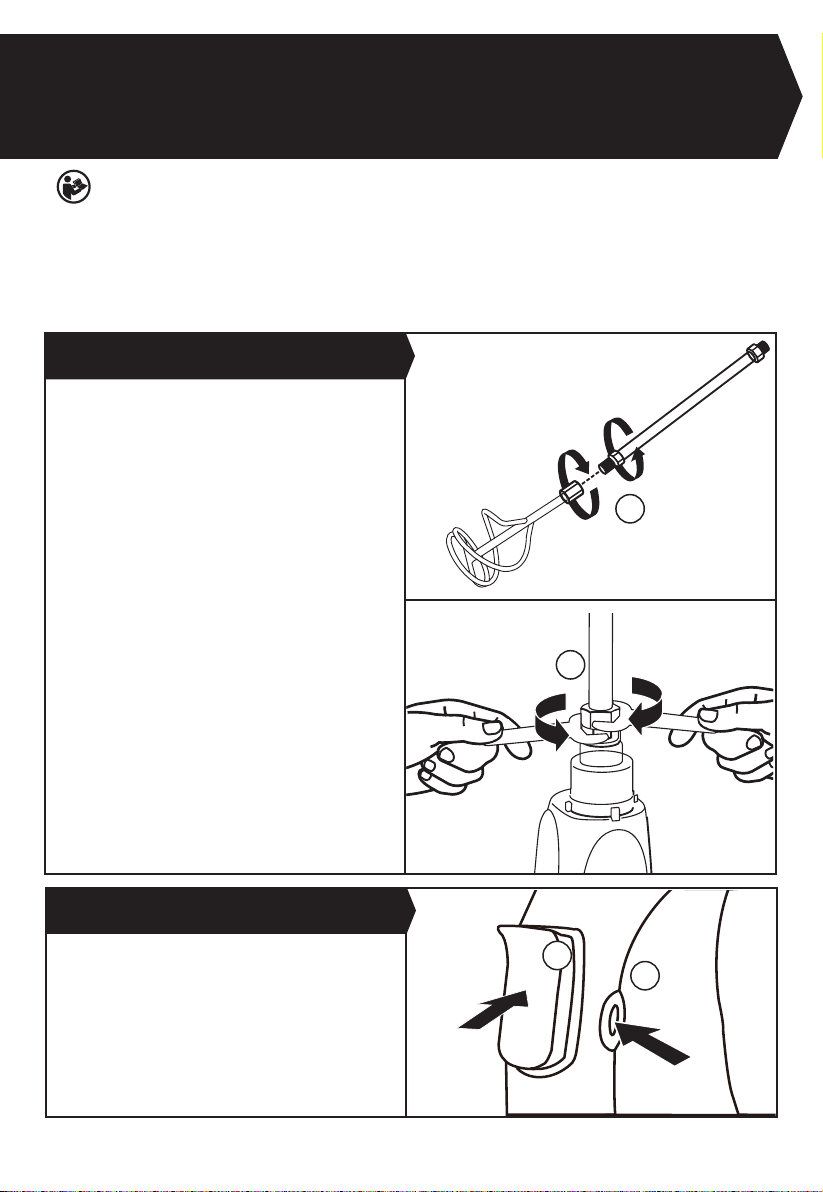

1. INSTALL / REPLACE THE MIXING PADDLE
(See Fig. A1,A2)
Fig. A1
Fig. A2
Depress the lock button (3) then on/off switch (2), release
the on/off switch (2) then lock button (3). Your switch
is now locked on for continuous use. To switch off your
tool just depress and release on/off switch.
2. ON/OFF SWITCH (See Fig. B)
2
1
Fig. B
b
a

9
The variable speed control (5) allows you to vary the
speed of the mixer. The speed increases as you turn
the switch towards high speed symbol direction and
decreases for the low speed symbol direction. Just turn
variable speed control to adjust speed.
3. VARIABLE SPEED CONTROL (See Fig. C)
Fig. C
1. Keep connection nut clean, and apply some lubrication on thread when you install the mixing paddle (1).
2. Guide the machine through the mixing vessel. Continue mixing the material until it is fully homogenized.
3. When you insert the mixer into the material to be mixed or take it out, reduce the speed.
4. When you have nished the mixing work, clean the mixer.
5. If your power tool becomes hot, set the speed to maximum and run with no load for 2-3 minutes to cool the motor.
WORKING HINTS FOR YOUR MIXER
1. If your power tool does not start, check the plug on the power supply rst.
2. If there is difculty loosening the mixing paddle (1), apply lubrication.
3. If a fault can not be rectied, return the tool to an authorized dealer for repair.
TROUBLESHOOTING
Always hold your tool rmly with both hands when operating and take a secure stance.
4. HAND GRIP AREAS

10
Remove the plug from the socket before carrying out any adjustment, servicing or maintenance.
There are no user serviceable parts in your power tool. Never use water or chemical cleaners to clean your power tool.
Wipe clean with a dry cloth. Always store your power tool in a dry place. Keep the motor ventilation slots clean. Keep all
working controls free of dust. Occasionally you may see sparks through the ventilation slots. This is normal and will not
damage your power tool.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualied persons in
order to avoid a hazard.
Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist.
Check with your local authorities or retailer for recycling advice.
MAINTENANCE
ENVIRONMENTAL PROTECTION
PLUG REPLACEMENT (ONLY FOR REWIRABLE PLUG OF UK &
IRELAND)
If you need to replace the tted plug then follow the instructions below.
IMPORTANT
The wires in the mains lead are colored in accordance with the following code:
Blue = Neutral
Brown = Live
As the colors of the wires in the mains lead of this appliance may not correspond with the colored markings
identifying the terminals in your plug, proceed as follows. The wire which is colored blue must be connected to
the terminal which is marked with N. The wire which is colored brown must be connected to the terminal which is
marked with L.
WARNING:
Never connect live or neutral wires to the earth terminal of the plug. Only t an approved 13A BS1363/A plug
and the correct rated fuse.
Note: If a moulded plug is tted and has to be removed take great care in disposing of the plug and severed cable, it
must be destroyed to prevent engaging into a socket.
13 Amp fuse approved
to BS1362
Connect
Blue to N
(neutral)
Outer sleeve
rmly clamped
Brown L(live)
Cable grip

11
DECLARATION OF CONFORMITY
We,
Wickes Building Supplies Limited
Declare that this product: PADDLE MIXER
Description and SKU code: 223738
Complies with the following Directives and Regulations:
2006/42/EC, Machinery Directive
2014/30/EU, Electromagnetic Compatibility Directive
2011/65/EU & (EU)2015/863 (RoHS),Restriction of Hazardous Substances Directive
and conforms to the following standards:
Standards specic to this product:
EN 62841-1
EN 62841-2-10
EN 55014-1
EN 55014-2
EN 61000-3-2
EN 61000-3-3
28th January, 2021
Philip Ansell
Category Technical Manager
Wickes
Vision House
19 Colonial Way
Watford
WD24 4JL”

Customer Helpline 0345 2005409
