Widearea AEC-B4P-D48 User manual

Widearea Telecommunication Technology Co., Ltd
Add: 2nd,3rd East Round Longtan Industry Garden 10#,Chengdu, Sichuan, China
Tel: [phone] Fax: [phone]
E-mail: [e-mail] Web Site: http://www.widearea.com.cn
ADSLLoop Extender Power Supply
AEC-B4P-D48
Installation Manual
Version:002
Please read this
document carefully
before installation!

ADSL Loop Extender Power Supply Installation Manual Page 1
This publication may not be reproduced in whole or in part without the express written permission of
Widearea.
Preface
This manual provides information on how to use this product. To
make the best use of this product, read this manual thoroughly before
use. Please keep this manual handy for ease of reference.
The contents of this document may be changed in the future,
without prior notice.
This booklet was created with thorough attention to the content.
If, however, you have a question, spot an error, or find a
description lacking, please refer to the end of this booklet for
information on how to contact us.
All brand names and trademarks are the property of their
respective owners.

ADSL Loop Extender Power Supply Installation Manual Page 2
This publication may not be reproduced in whole or in part without the express written permission of
Widearea.
Contents
General Description................................................3
Benefits...................................................................4
Technical Specifications.........................................4
Application .............................................................4
Installation Environment ........................................5
Installation Procedure.............................................5
Troubleshooting......................................................7

ADSL Loop Extender Power Supply Installation Manual Page 3
This publication may not be reproduced in whole or in part without the express written permission of
Widearea.
General Description
ADSL technology has great advantages in terms of bandwidth and performance;
however, long loops can create difficulties providing consistent broadband
services.
ADSL Loop Extender can extend the coverage of ADSL lines. It will
provide systems with higher performance-to-cost ratio, improve the equipment
utilization rate, optimize the network. This product will allow you to double the
number of subscribers that you can reach while offering more consistent high
bandwidth services to your existing customers.
ADSL Loop Extender is an active element installed in the outside loop plant.
It operates as an amplifier and equalizes the signal. Generally, it is span-powered.
You can use the ADSL Loop Extender Power Supply to provide the span-power.
AEC-B4P-D48 is one type of the Power Supply. It can convert DC48V to 4х
DC116V. It can support one AER800-8P-O, or 4 AER800-1Ps, or 4
AER800-2Ps.

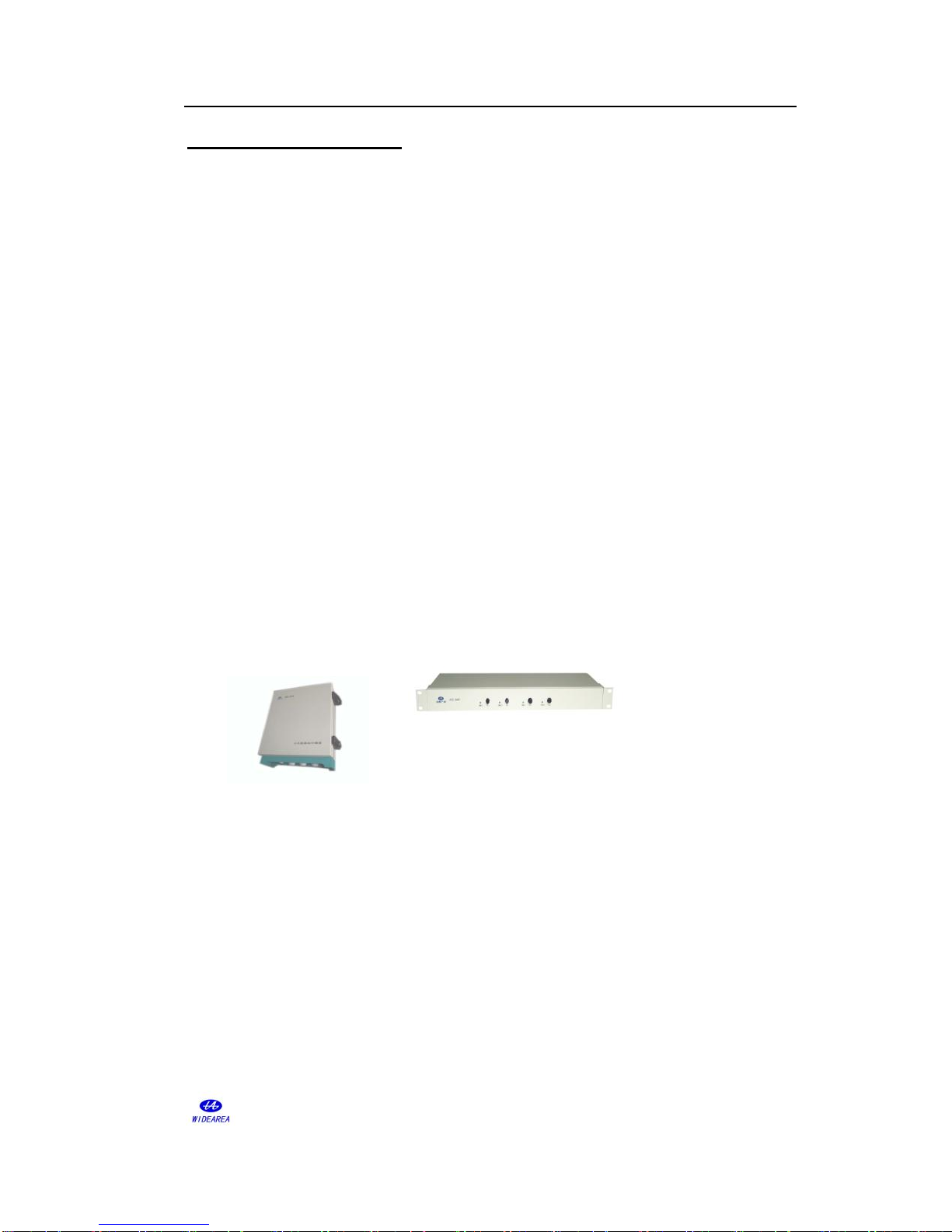

AER800-8P
AEC-B4P-D48

ADSL Loop Extender Power Supply Installation Manual Page 4
This publication may not be reproduced in whole or in part without the express written permission of
Widearea.
Benefits
Double the customers you can reach.
Deliver 2-10 times the bandwidth.
Avoid customer loss due to broadband service unavailability caused by
extra long distance.
Improve service quality.
Comprehensive over-voltage protection.
Easy to install, deploy and maintain.
Fully compatible with ADSL/ADSL2+ systems.
Fully compatible with analog voice.
Technical Specifications
Table 1 –Technical Specifications of AEC-B4P-D48
Operating Environment
Temperature
-35℃～+50℃
Relative Humidity
5%～95%
(Non-condensing)
Input Voltage
DC -48V（-36V～-72V）
Output Voltage
DC 116V
Output Current
Less than 50mA
Fuse Rating
2A
Output Port
4
Dimension
480 mm×160 mm×44mm
Application
L1
ADSL+POTS
DSLAM
switch
splitter
ADSL
ADSL
Modem
L2
ADSL+POTS
ADSL
L3
power supply
splitter
POTS
ADSL
Loop Extender
ADSL Loop Extender
Power Supply
POTS
ADSL

ADSL Loop Extender Power Supply Installation Manual Page 5
This publication may not be reproduced in whole or in part without the express written permission of
Widearea.
Figure 1 ADSLLoop Extender power supplyApplication Diagram
L1: The signal wire pair connecting ADSL Loop Extender to DSLAM.
L2: The signal wire pair connecting ADSL Loop Extender to Modem.
L3: The power wire pair connecting ADSL Loop Extender to power supply.
ADSL Loop Extender with remote power supply from central office, additional
copper line required to power the Extender.
Installation Environment
Before installation, the DC 48V power supply and reliable ground connection
should be assured. The customer should order the corresponding type of power
supply according to the available power source.
If any difficulties are encountered during the installation process, contact
supplier.
Installation Procedure
UNPACK
Unpack equipment carefully; check for completeness against the purchase order.
Notify supplier if items are missing.
Note: Save packing material. All equipment returned must be packed in the
original packing material.
Inspect equipment for shipping damage, including bent or loose hardware, and
broken connectors.
If equipment was damaged in transit, contact supplier.
BEFORE INSTALLINGTHE POWER SUPPLY
Attention: ADSL Loop Extender’s power supply should NOT be turned on
until the Extender installation is finished. When the power supply wire is
active, wires carry DC 116V. Do not touch wire A and wire B simultaneously, or
allow wires to contact anything!

ADSL Loop Extender Power Supply Installation Manual Page 6
This publication may not be reproduced in whole or in part without the express written permission of
Widearea.
Install the power supply
Figure 2 the front panel of AEC-B4P-D48
In figure 2, the indicators PWR11~PWR22 indicates the status of the equipment.
After power supply is connected, press the button K11~K22, and the
corresponding PWR indicator should be solid on. Flashing indicator indicates
short circuits or over-current alarm condition.
Figure 3 the back panel of AEC-B4P-D48
In figure 3, the outlet J1 and J2 are the 116V output terminal. You can get 2х
116V(no polarized) from each outlet. You can connect DC48V through the 2×
3-core power cord.
Table 2- the Description of the buttons, indicators and outlets
Buttons, Indicators and Outlets
description
K11
PWR11
J1
First group and first output.
A11
B11
K12
PWR12
J2
First group and second output.
A12
B12
K21
PWR21
J3
Second group and first output.
A21
B21
K22
PWR22
J4
Second group and second output.
A22
B22
PWR11~PWR22 indicators should be solid on. Flashing indicator indicates short circuits or
over-current alarm condition.
①Connect the power supply cable

ADSL Loop Extender Power Supply Installation Manual Page 7
This publication may not be reproduced in whole or in part without the express written permission of
Widearea.
If the ADSL Loop Extender is installed in a remote location without local power
available, an additional copper pair(L3 as shown in Fig. 1) is required for power.
The supply voltage will pass through power converter and feed to this additional
pair.
②Ground
Connect the power supply ground.
③Connect power cord(do not apply power yet)
The supplied accessories include power cord for DC 48V. Connect it to the DC
48V power source with good connection.
Attention: ADSL Loop Extender’s power supply should NOT be turned on
until the Loop Extender installation is finished.
Troubleshooting
Table 3 AEC-B4P-D48 Troubleshooting
Problem Description
Possible Reason
Suggested Resolution
Equipment does not work after
power-up. Status LED is OFF.
Power supply cable is
not correctly
connected.
Check power supply cable connection.
Power indicator flashes.
Power output
circuitry fails.
Check whether the connection is shorted. Or
check whether the connection between
Extender and Modem is OK.
Output is OK but the Extender
does not work.
Power output cable
connection is error or
short.
Correct the power output connection or check
cable. Or check whether the distance between
DSLAM, Extender, Modem is proper.
