ADSLLoop Extender Power Supply
AEC-RACK
AEC-C2P & AEC-C1PL
Installation Manual
Version: 6.1
Please read this
document carefully
before installation!

ADSL Loop Extender Power Supply Installation Manual Page 1
This publication may not be reproduced in whole or in part without the express
written permission of Widearea.
Preface
This manual provides information on how to use this product. To
make the best use of this product, read this manual thoroughly
before use and keep this manual handy for ease of reference.
The contents of this document may be updated in the future,
without prior notice.
This booklet was created with thorough attention to the content.
If, however, you have a question, spot an error, or find a
description lacking, please refer to the end of this booklet for
information on how to contact us.
All brand names and trademarks are the property of their
respective owners.

ADSL Loop Extender Power Supply Installation Manual Page 2
This publication may not be reproduced in whole or in part without the express
written permission of Widearea.
Contents
1. General Description...........................................................3
2. Technical Specifications ....................................................4
3. Physical Structure ..............................................................4
4. Application.........................................................................7
5. Installation Procedure........................................................8
6. Troubleshooting...............................................................11

ADSL Loop Extender Power Supply Installation Manual Page 3
This publication may not be reproduced in whole or in part without the express
written permission of Widearea.
1. General Description
ADSL Loop Extender can extend the coverage of ADSL lines. It will provide
systems with higher performance-to-cost ratio, improve the equipment utilization
rate, optimize the network. This product will allow you to double the number of
subscribers that you can reach while offering more consistent high bandwidth
services to your existing customers.
ADSL Loop Extender is an active element installed in the outside loop plant. It
operates as an amplifier and equalizes the signal. Generally, it is span-powered.
You can use the ADSL Loop Extender Power Supply to provide the span-power.

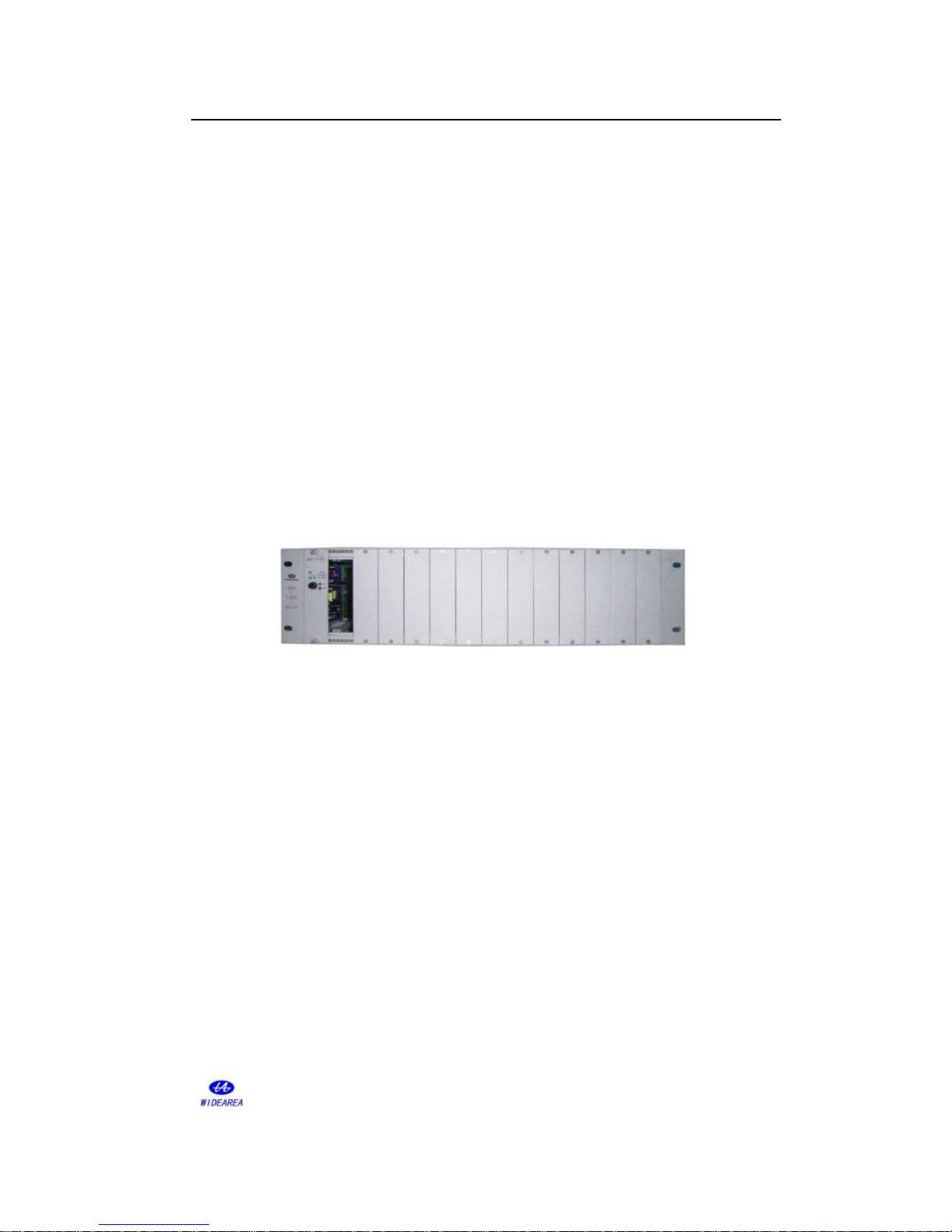

Figure 1 AEC-RACK and the power card
AEC-RACK is a rack for AEC-C2P or AEC-C1PL embedded. One rack
can be inserted into 13 cards.
AEC-C2P is two output power supply for express power supply ADSL
Loop Extender AER800-xP. Each outlet can supply for one AER800-1P or
AER800-2P, or two ports Extender and additional copper pairs are
required to supply power.
AEC-C1PL is one outlet power supply for line power supply ADSL Loop
Extender AER800-xPL. Each outlet can supply for one port line power
Extender. no additional copper pairs are required to supply power.

ADSL Loop Extender Power Supply Installation Manual Page 4
This publication may not be reproduced in whole or in part without the express
written permission of Widearea.
Benefits
Centralized and regular power supply, make the CO clean
Comprehensive over-voltage protection.
Easy to install, deploy and maintain
2. Technical Specifications
Table 1 –Technical Specifications of AEC-RACK, AEC-C2P & AEC-C1PL
Operating Environment
Temperature
-10℃～+45℃
Relative Humidity
5%～95%
(Non-condensing)
Input Voltage
DC48V（36V～72V）
Output Voltage
DC 122V o155V per port
Output Current
Less than 50mA
Fuse Rating
10A
Dimension of RACK
485mm（L）×153mm（W）×133mm（H）
3. Physical Structure
AEC-RACK
Figure 2 the back panel of AEC-RACK
In figure 2, you can input DC48V through the 2×3 cords “DC48V-I”. The
“DC48V-II”is only used in testing in the factory. In the lower right hand corner,

ADSL Loop Extender Power Supply Installation Manual Page 5
This publication may not be reproduced in whole or in part without the express
written permission of Widearea.
there is a screw through which the rack is grounded. “COM ALM”In the higher
left hand corner is only used in testing in the factory.
The outlet “J1～J13”are the DC122V or DC155V output terminal.
When the card is AEC-C2P, you can get 2хDC122V or 2хDC155V
from each card, supply power for express Extender. The instruction
of the DC122V/DC155V switch of AEC-C2P, please see the
remark below.
when the card is AEC-C1PL, you can get 1х155V and ADSL signal
from “A2,B2”outlet, supply power for the signal line power
Extender.
AEC-C2P
Figure 3 the panel of AEC-C2P
In figure 3, indicators “PWR1”and “PWR2”indicates the status of the equipment.
After power supply is connected, press the button “K1”and “K2”, and the
corresponding PWR indicator should be solid on. Flashing indicator indicates short
circuits or over-current alarm condition.

ADSL Loop Extender Power Supply Installation Manual Page 6
This publication may not be reproduced in whole or in part without the express
written permission of Widearea.

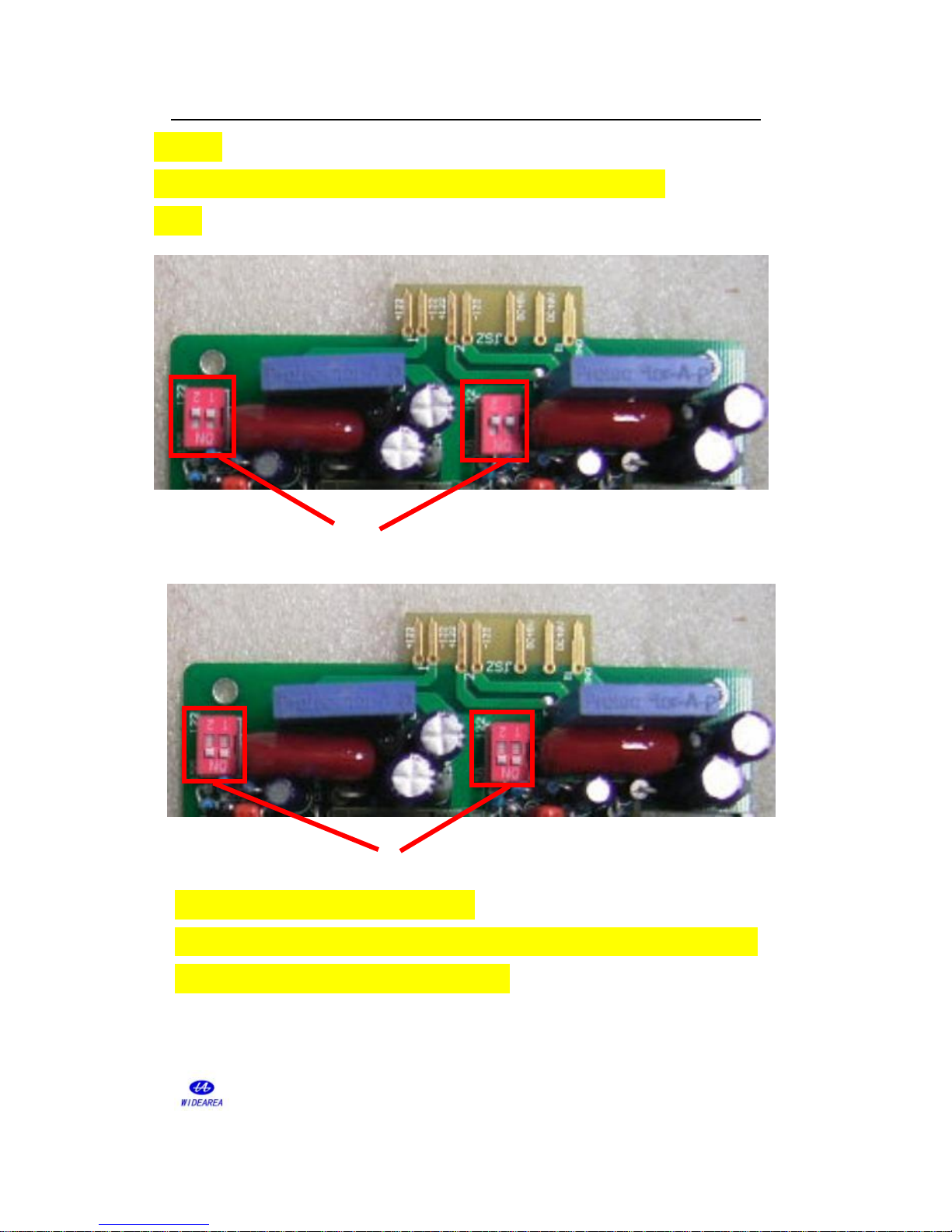

Remark:
In the inner of AEC-C2P, there is two switch setting positions as shown
below:
The application of DC122V and DC155V:
DC122V can power for one port or two ports ADSLLoop Extender, and DC155V
can power for four ports ADSL Loop Extender.
Switch: In this status, the Output is DC155V
Switch: In this status, the Output is DC122V

ADSL Loop Extender Power Supply Installation Manual Page 7
This publication may not be reproduced in whole or in part without the express
written permission of Widearea.
AEC-C1PL

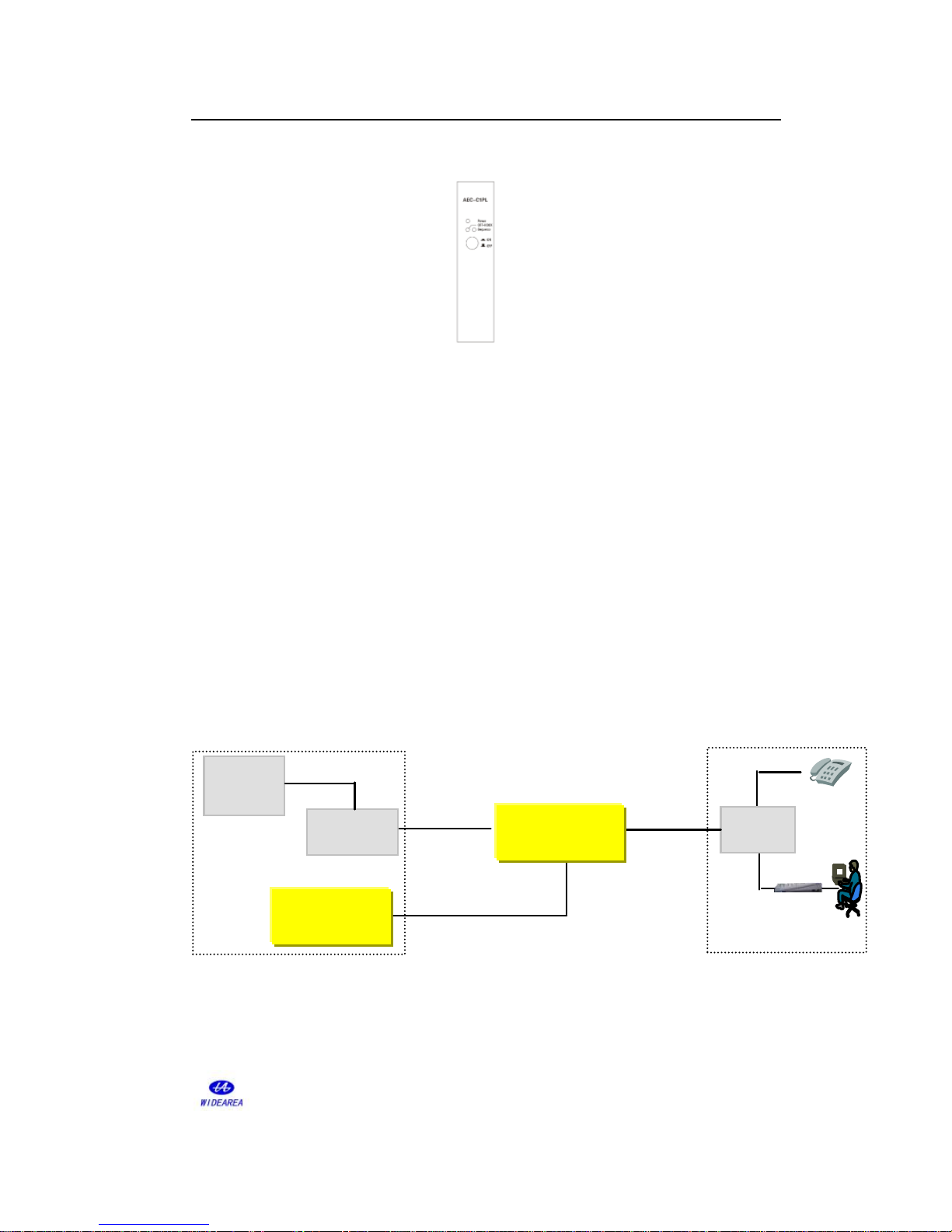

Figure 4 the panel of AEC-C1PL
In figure 4, “PWR”indicates the status of the equipment. After power
supply is connected, press the button “K”, and the corresponding PWR
indicator should be solid on. Flashing indicator indicates short circuits or
over-current alarm condition. “OFF-HOOK” is on indicates the telephone
is picking, the light will be on. “Sequence” is on indicates that line
sequence inputted incorrectly, please exchange “A1, B1”line sequence, to
input correctly, the light will be off.
4. Application
Figure 2 AEC-C2PApplication Diagram
L1: The signal wire pair connecting ADSL Loop Extender to DSLAM.
Modem
L2
ADSL+POTS
ADSL
L3
power supply
L1
ADSL+POTS
splitter
ADSL
Loop Extender
switch
DSLAM
AEC-RACK
AEC-C2P
POTS
ADSL

ADSL Loop Extender Power Supply Installation Manual Page 8
This publication may not be reproduced in whole or in part without the express
written permission of Widearea.
L2: The signal wire pair connecting ADSL Loop Extender to Modem.
L3: The power wire pair connecting ADSL Loop Extender to power supply.
Note: ADSL Loop Extender with remote power supply AEC-C2P from
central office, additional copper pairs are required to power the Extender.
Figure 3 AEC-C1PLApplication Diagram
L1: The signal twist pair connecting power supply to Extender
L2: The signal twist pair connecting ADSL Loop Extender to Modem.
Note: Signal line power supply Extender with remote power supply
AEC-C1PL from central office, no additional copper pair required to power
the Extender.
5. Installation Procedure
1. Unpack
Unpack equipment carefully; check for completeness against the purchase order.
Notify the supplier if items are missing.
Note: Save packing material. All equipment returned must be packed in
the original packing material.
Inspect equipment for shipping damage, including bent or loose hardware, and
broken connectors.
If equipment was damaged in transit, contact the supplier.
Mode
m
CPE
L2
ADSL+PO
TS
ADS
L
L1
Power
Supply
ADSL+POT
S
AEC-RACK
AEC-C1PL
switch
POT
S
CO
ADSL
Loop
Extender
splitter
DSLAM

ADSL Loop Extender Power Supply Installation Manual Page 9
This publication may not be reproduced in whole or in part without the express
written permission of Widearea.
2. Install the power supply
Attention: ADSL Loop Extender’s power supply should NOT be turned on
until the Extender installation is finished. When the power supply wire is
active, wires carry DC122V or DC155V. Do not touch wire A and wire B
simultaneously, or allow wires to contact anything!
⑴Fix the AEC-RACK in the 19’cabinet, ground the RACK through the grounding
screw in the lower right hand corner at the back of the RACK.
Attention: Copper-core wire with no less than 2.5mm2section area is
required as ground wire. One end of the wire should connect to Loop
Extender’s ground terminal. The other end of the wire should connect to a
good ground point.
⑵Insert Power Supply card AEC-C2P or AEC-C1PL into AEC-RACK.
⑶Connect the power supply cable
Attention: The cable connecting of AEC-C2P and AEC-C1PL is different,
please make sure the type of your card and follow the respective method
below.
AEC-C2P
An additional copper pair(L3 as shown in Fig. 1) is required for one output power.
The supply voltage will pass through power converter and feed to this additional
pair.
Table 2- the Description of the buttons, indicators and outlets
Buttons, Indicators and Outlets
description
K
1
PWR1
J
First output, connect the twist
pair to Extender through an
additional twist pair.
A1
B1

ADSL Loop Extender Power Supply Installation Manual Page 10
This publication may not be reproduced in whole or in part without the express
written permission of Widearea.
K2
PWR2
J
Second output, connect the twist
pair to Extender through an
additional twist pair.
A2
B2
Note: 1. In this table, the “J”indicates any of the outlet “J1～J13”
PWR11~PWR22 indicators should be on. Flashing indicator indicates short
circuits or over-current alarm condition.
AEC-C1PL
No additional copper pair is required for power. Choose the signal line from the
DSLAM/Switch, connect it to the “A1, B1” terminal of AEC-C1PL. Choose the
signal line linked to the Extender, connect it to “A2, B2” terminal of AEC-C1PL.
Attention: Do not connect the cable linked to the Extender to the “A1, B1”
terminal, and do not connect the cable of the DSLAM /Switch to the “A2,
B2” terminal, or else, the equipment would be damaged.
Table 3- the Description of the buttons, indicators and outlets
Buttons, Indicators and Outlets
description
J
A1
B1
Signal line input, connect the twist pair from
DSLAM.
A2
B2
Signal and Power supply output, connect the
twist pair to Extender.
Power
Power indicator
OFF-HOOK
The status of telephone indicator
Sequence
The signal line sequence inputted indicator
Note: 1. In this table, the “J”indicates any of the outlet “J1～J13”
PWR11~PWR22 indicators should be on. Flashing indicator indicates short
circuits or over-current alarm condition.

ADSL Loop Extender Power Supply Installation Manual Page 11
This publication may not be reproduced in whole or in part without the express
written permission of Widearea.
⑷Connect power cord(do not apply power yet)
The supplied accessories include power cord for DC48V. Connect it to the DC
48V power source with good connection. Please connect the cord according to the
sign of polarization.
Attention: ADSL Loop Extender’s power supply should NOT be turned on
until the Loop Extender installation is finished.
6. Troubleshooting
Table 4 AEC-C2P Troubleshooting
Problem Description
Possible Reason
Suggested Resolution
Equipment does not work
after power-up. Status
LED is OFF.
Power cord is not
correctly connected.
Check power cord
connection.
Power indicator flashes.
Power output circuitry
fails.
Check whether the
connection is shorted.
Output is OK but the
Extender does not work.
Power output cable
connection is error or short.
Correct the power output
connection or check cable.
Table 5 AEC-C1PL Troubleshooting
Problem Description
Possible Reason
Suggested Resolution
“Power”is off
Power cord is not correctly
connected.
Check power cord
connection.
Power switch is not open
Press the power switch

ADSL Loop Extender Power Supply Installation Manual Page 12
This publication may not be reproduced in whole or in part without the express
written permission of Widearea.
“sequence”is on
The line sequence
connected incorrectly
Exchange line sequence of
“A1”and “B1”.
Output is OK but ADSL
extender does not work.
Signal cable connection is
error or short
Correct the Signal cable
connection or check cable.
