Wildeboer EK90 User manual

User Manual 5.32 (2018-05) 1
Subject to change The German original version of this document shall prevail
Maintenance-free
EK90 smoke control dampers
meet all requirements in accordance with European
standards and are universal for all applications.
Further uses and extended fire classification
EI 90 (vedw - hodw - i ↔ o) S1500 Cmod HOT400/30 MA multi

E
A
A
A
A
E
EE
D
D
C
A
B
1
2
3
4
5
User Manual 5.32 (2018-05) 2
Subject to change
Series EK92
EK90 smoke control dampers
Application examples for smoke extraction and for ventilation, as required, in the form of "combi-dampers"
A
B
C
D
E
1
2
3
4
5
Closed smoke control damper
Opened smoke control damper
Ventilator for smoke extraction and also for ventilation
Smoke extraction duct with fire resistance period
Smoke extraction duct without fire resistance period
Smoke control damper in an air intake
Smoke control damper suspended underneath ceilings
Smoke control damper in a shaft wall
Smoke control damper in a vertical smoke extraction duct
Smoke control damper in a horizontal smoke extraction duct
A
B
C
D
E
1
2
3
4
5

User Manual 5.32 (2018-05) 3
Subject to change Series EK92
EK90 smoke control dampers
Description, properties, sizes
Fire classification
EI 90 (vedw - hodw - i ↔o) S1500 Cmod HOT400/30 MA multi
•EI90 Fire resistance period of 90 minutes
Installation:
ve d in and on horizontal smoke extraction ducts.
ho d in and on vertical smoke extraction ducts.
ve w in rigid walls and in flexible walls.
ho w in rigid ceilings.
i ↔ o Fire exposure has been verified on both sides.
• S1500 For smoke extraction systems with operating pressures
between 1500 Pa negative pressure and 500 Pa overpres-
sure (pressure class 3). Smokeproof at up to 1500 Pa differ-
ential pressure.
• Cmod For systems designed only for smoke extraction and also for
combined ventilation systems that was as heating, ventila-
tion and air conditioning systems.Intermediate damper blade
positions for volume flow adjustment are permitted (modula-
tion mode).
The service life is verified by 20,000 weight-loaded cycles.
• HOT The smoke control dampers close and open again at least
after 30 minutes of fire exposure at 400°C.
• MA Closed smoke control dampers can be opened after 25 min-
utes of full exposure to fire (> 800°C).
• multi The smoke control dampers may be used between fire com-
partments (multi) and in individual areas (single).
Maintenance-free
EK90 smoke control dampers EN 12101-8 – Series EK92 –
With casing and damper blades made from abrasion-proof, safe,
corrosion-resistant calcium silicate that is suitable for higher
temperatures. The edge protection profiles are made from gal-
vanized steel and include connection holes.
Opening and closing is carried out by means of stainless steel
shafts using electric motor drives for 24 V AC/DC or 230 V AC
even when the fan is running and at inflow velocities of up to
20 m/s.
Special seals without any additional stops allow for large free
cross-sections and thus extremely low pressure drops and
sound power levels.
Widths B: 200 mm to 1500 mm
Heights H:: 200 mm to 800 mm
Lengths L: 350 mm to 850 mm
All dimensions are available in 5-mm
increments!

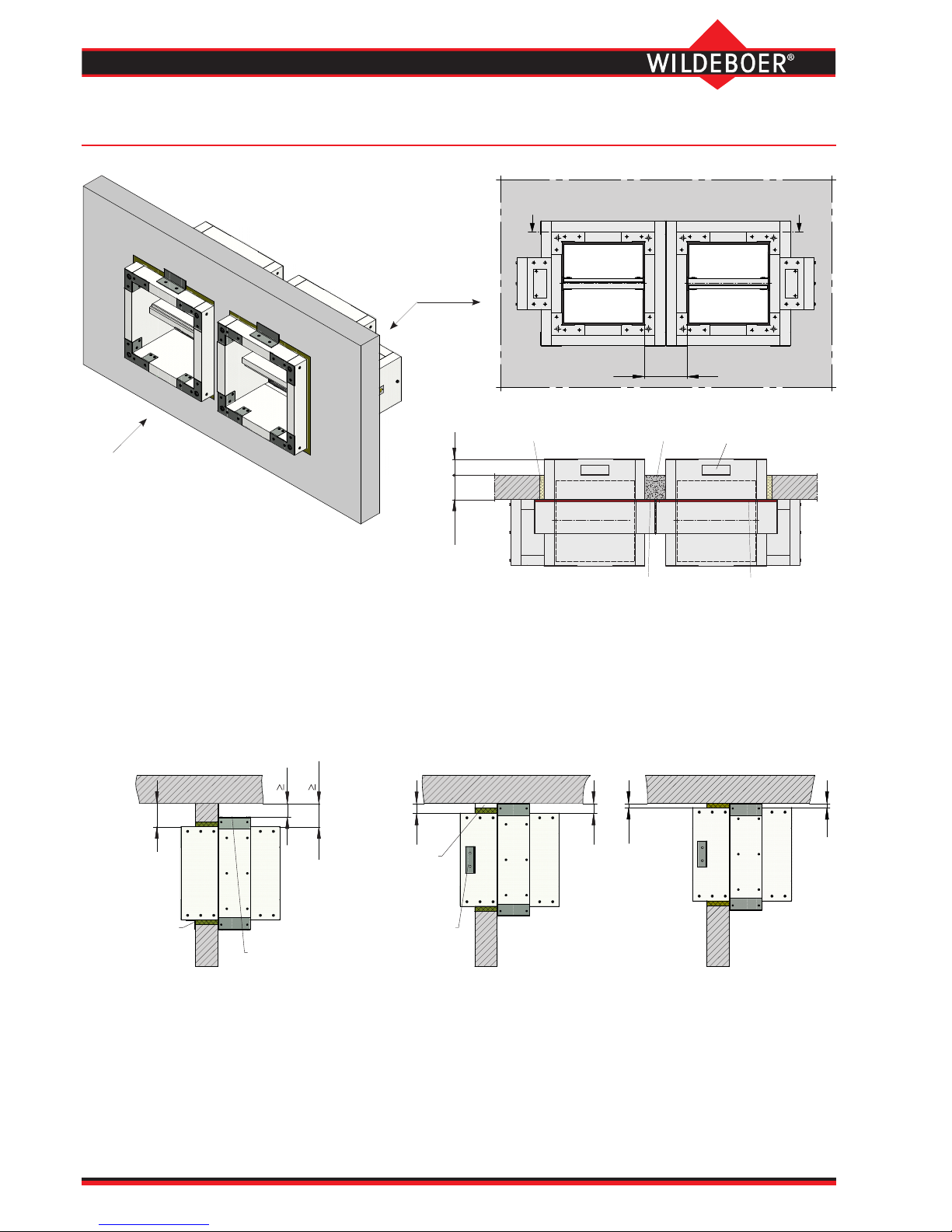

Installation with horizontal or vertical damper
blade:
• in rigid walls and ceilings, ≥100 mm thick and
≥ 450 kg/m³ bulk density.Wet installation with
mortar or a dry installation with mineral wool
≥ 100 kg/m³ are possible.
• in metal stud walls, ≥95 mm thick, with or with-
out mineral wool ≤ 100 kg/m³ inside.
• on and between horizontal or vertical smoke
extraction ducts.
Can be connected:
• in single or double-sided arrangement on
smoke extraction ducts with fire resistance
period,
• in single-sided arrangement on smoke extrac-
tion ducts without fire resistance period,
• in single or double-sided arrangement on pro-
tective grille
⇒see also page 34
Declaration of performance DoP no. CPR/EK90/003
German approval Z 56.4212 – 1007
Environmental Product Declaration according to ISO 14025 and
EN 15804 EPD-WIL-20160047-ICC1-DE
Casing leak tightness class C according to EN 1751

B+100
H+100
B
H
User Manual 5.32 (2018-05) 4
Subject to change
Series EK92

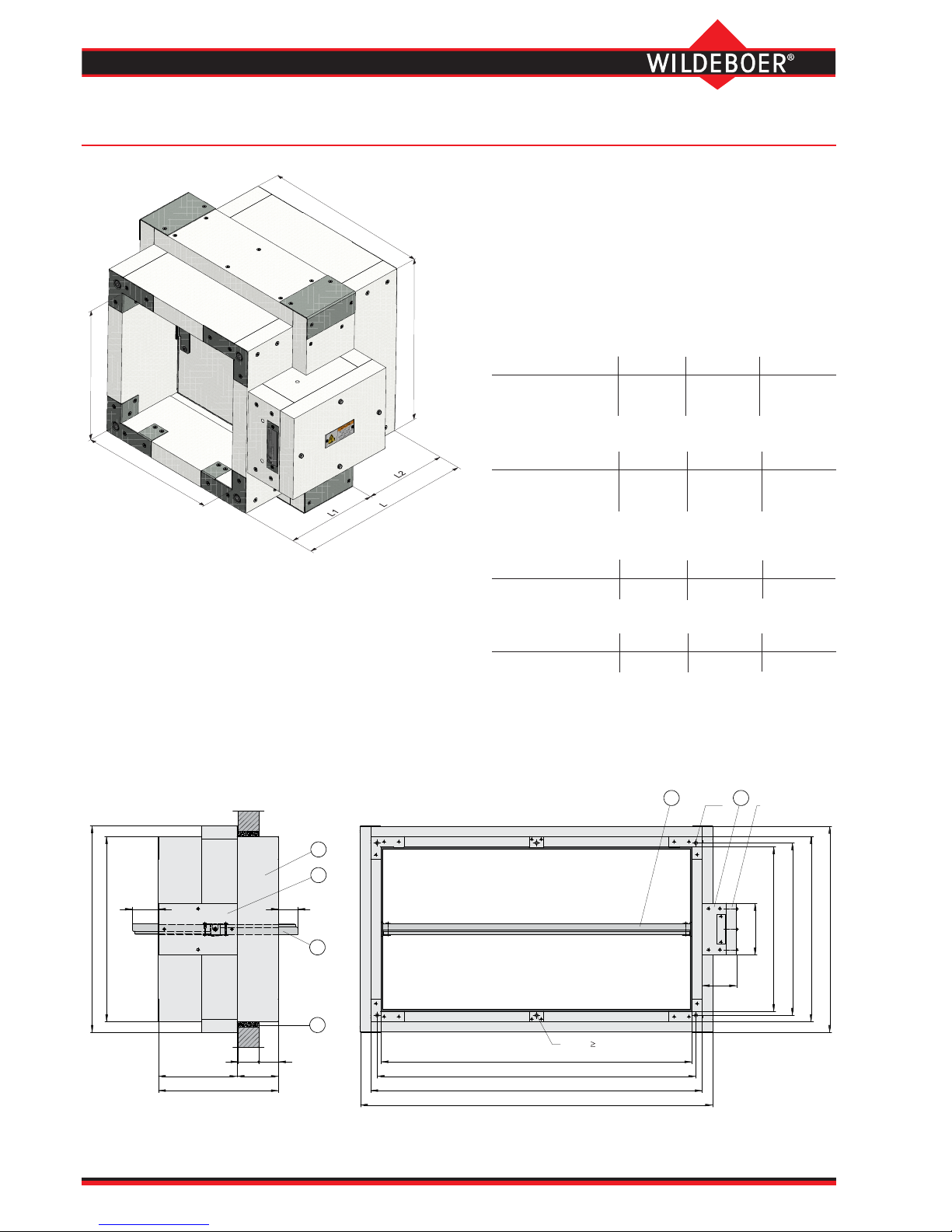

1 Casing
2 Damper blade
3 Protective casing with opening for motor drive cover
4 Installation gap filled with mortar or mineral wool ≥100 kg/m³
W: Wall thickness / D: Ceiling thickness / Z: Casing excess length
EK90 smoke control dampers
Data sheet
Calculating damper blade excess lengths:
•Ü1 = ½ · H - L1 + 105 mm; Ü2 = ½ · H - L2 - 107 mm
• If Ü1 ≤0 or Ü2 ≤0, there is no damper blade excess length!
If protective grilles are mounted directly on the casings,
then Ü1 or Ü2 should be at least -20 mm, which equates to a
20-mm freedom of movement. Hence, L1 ≥½ · H + 125 mm and
L2 ≥½ · H - 87 mm should be applied!
L2 ≥W(D) + Z is also necessary! Here, W= thickness of the wall,
D = thickness of the ceiling. Zis the necessary casing excess
length.

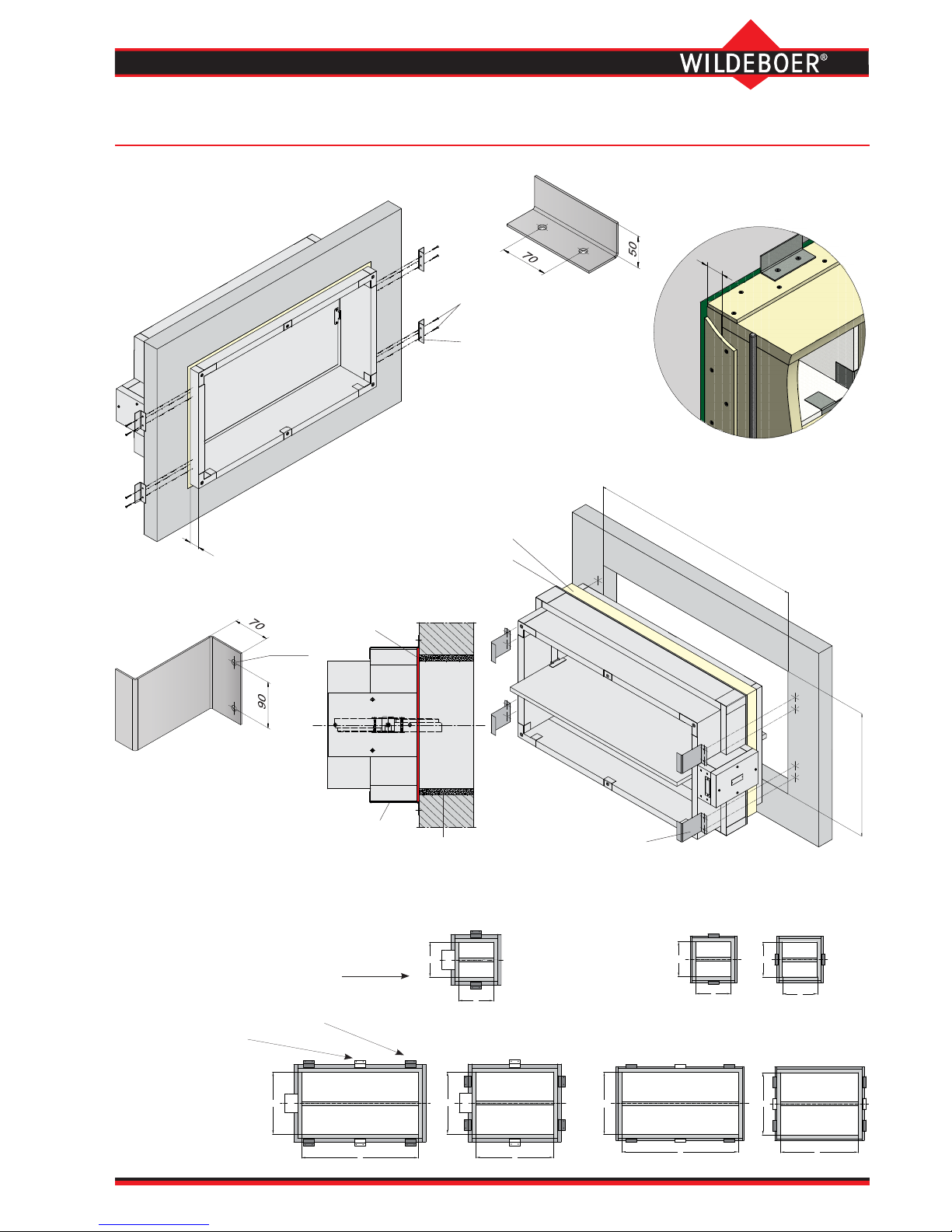

Examples: • Fitting of shear protection brackets A.⇒see page 19
• Connection of smoke extraction ducts.⇒see page 23
Smallest lengths for lateral mounting on smoke extraction ducts
for heights H Length L Length L1 Length L2
up to 450 mm: 350 mm 330 mm 20 mm
larger than 450 mm: 400 mm 380 mm 20 mm
Standard widths B [mm]
200 - 225 - 250 - 275 - 300 - 325 - 350 - 375 - 400 - 450
500 - 550 - 600 - 650 - 700 - 750 - 800 - 850 - 900 - 950
1000 - 1050 - 1100 - 1150 - 1200 - 1250 - 1300 - 1400 - 1500
Standard heights H [mm]
200 - 225 - 250 - 275 - 300 - 325 - 350 - 375 - 400 - 450
500 - 550 - 600 - 650 - 700 - 750 - 800
Lengths for double-sided mounting of protective
grilles
⇒see page 34
Standard lengths [mm]
for heights H Length L Length L1 Length L2
up to 450 mm: 500 mm 330 mm 170 mm
larger than 450 mm: 550 mm 380 mm 170 mm
Intermediate dimensions for B, H, L, L1 and L2 are avail-
able in 5 mm increments. L is always = L1 + L2.
All dimensions in mm
Smallest lengths for lateral mounting on smoke extraction ducts
for all heights H Length L Length L1 Length L2
200 to 800 mm 400 mm 380 mm 20 mm
Standard lengths of special electrical connection
design
for all heights H Length L Length L1 Length L2
200 to 800 mm: 550 mm 380 mm 170 mm
1
3
23
L1
L2
W, D
L
2Ü1Ü
B+38
B+200
B
from B 1000
165
250
H
83+H
001+H
Cover
M10
Z
)001+B(x)001+H(
)002+B(x)002+H(
2
4
002+H
B+100

User Manual 5.32 (2018-05) 5
Subject to change Series EK92
H B = 750 800 850 900 950 1000 1050 1100 1150 1200 1250 1300 1400 1500
200 0.842 0.837 0.832 0.828 0.824 0.821 0.818 0.815 0.812 0.810 0.808 0.806 0.803 0.800
225 0.670 0.666 0.662 0.658 0.655 0.652 0.649 0.647 0.645 0.643 0.641 0.639 0.636 0.634
250 0.556 0.552 0.548 0.545 0.542 0.539 0.537 0.535 0.533 0.531 0.530 0.528 0.525 0.523
275 0.475 0.471 0.467 0.464 0.462 0.459 0.457 0.455 0.454 0.452 0.451 0.449 0.447 0.445
300 0.414 0.411 0.408 0.405 0.402 0.400 0.398 0.397 0.395 0.393 0.392 0.391 0.389 0.387
325 0.368 0.365 0.362 0.359 0.357 0.355 0.353 0.351 0.350 0.348 0.347 0.346 0.344 0.342
350 0.331 0.328 0.325 0.323 0.321 0.319 0.317 0.315 0.314 0.312 0.311 0.310 0.308 0.306
375 0.301 0.298 0.296 0.293 0.291 0.289 0.288 0.286 0.285 0.284 0.282 0.281 0.279 0.278
400 0.277 0.274 0.271 0.269 0.267 0.265 0.264 0.262 0.261 0.260 0.259 0.257 0.256 0.254
450 0.239 0.236 0.233 0.231 0.229 0.228 0.226 0.225 0.224 0.223 0.221 0.221 0.219 0.217
500 0.210 0.208 0.205 0.203 0.202 0.200 0.199 0.197 0.196 0.195 0.194 0.193 0.192 0.190
550 0.189 0.186 0.184 0.182 0.180 0.179 0.178 0.176 0.175 0.174 0.173 0.172 0.171 0.169
600 0.172 0.169 0.167 0.165 0.164 0.162 0.161 0.160 0.158 0.157 0.157 0.156 0.154 0.153
650 0.158 0.155 0.153 0.151 0.150 0.148 0.147 0.146 0.145 0.144 0.143 0.142 0.141 0.140
700 0.146 0.144 0.142 0.140 0.139 0.137 0.136 0.135 0.134 0.133 0.132 0.131 0.130 0.129
750 0.137 0.134 0.132 0.131 0.129 0.128 0.127 0.125 0.124 0.123 0.123 0.122 0.120 0.119
800 0.128 0.126 0.124 0.123 0.121 0.120 0.119 0.117 0.116 0.116 0.115 0.114 0.113 0.111
H B = 200 225 250 275 300 325 350 375 400 450 500 550 600 650 700
200 1.118 1.071 1.035 1.006 0.983 0.964 0.948 0.934 0.922 0.902 0.887 0.875 0.864 0.856 0.849
225 0.908 0.868 0.837 0.812 0.792 0.775 0.761 0.749 0.739 0.722 0.709 0.698 0.689 0.682 0.676
250 0.768 0.732 0.704 0.682 0.664 0.649 0.637 0.626 0.617 0.602 0.590 0.581 0.573 0.566 0.561
275 0.669 0.636 0.610 0.590 0.574 0.560 0.549 0.539 0.531 0.517 0.506 0.497 0.490 0.484 0.479
300 0.595 0.564 0.540 0.521 0.506 0.494 0.483 0.474 0.466 0.453 0.443 0.435 0.429 0.423 0.418
325 0.537 0.508 0.486 0.469 0.454 0.442 0.432 0.424 0.417 0.405 0.395 0.388 0.381 0.376 0.372
350 0.492 0.464 0.443 0.427 0.413 0.402 0.392 0.384 0.377 0.366 0.357 0.350 0.344 0.339 0.335
375 0.455 0.429 0.409 0.393 0.380 0.369 0.360 0.352 0.345 0.335 0.326 0.319 0.314 0.309 0.305
400 0.425 0.399 0.380 0.365 0.352 0.342 0.333 0.326 0.319 0.309 0.300 0.294 0.288 0.284 0.280
450 0.377 0.354 0.335 0.321 0.309 0.299 0.291 0.284 0.278 0.269 0.261 0.255 0.250 0.245 0.242
500 0.342 0.320 0.302 0.289 0.277 0.268 0.260 0.254 0.248 0.239 0.231 0.226 0.221 0.217 0.213
550 0.315 0.294 0.277 0.264 0.253 0.244 0.237 0.230 0.225 0.216 0.209 0.203 0.199 0.195 0.191
600 0.294 0.273 0.257 0.244 0.234 0.225 0.218 0.212 0.207 0.198 0.191 0.186 0.181 0.177 0.174
650 0.277 0.256 0.240 0.228 0.218 0.210 0.203 0.197 0.192 0.183 0.177 0.171 0.167 0.163 0.160
700 0.262 0.242 0.227 0.215 0.205 0.197 0.190 0.184 0.179 0.171 0.165 0.160 0.155 0.152 0.149
750 0.250 0.231 0.216 0.204 0.194 0.186 0.180 0.174 0.169 0.161 0.155 0.150 0.145 0.142 0.139
800 0.240 0.221 0.206 0.194 0.185 0.177 0.171 0.165 0.160 0.152 0.146 0.141 0.137 0.134 0.131
EK90 smoke control dampers
Pressure drop coefficients z/ nomenclature
B [mm] Clear width of the smoke control damper
H [mm] Clear height of the smoke control damper
AA[m²] Inflow cross-section AA= B [m] · H [m]
Afree [m²] Free cross-section ⇒ see table on page 16
v0[m/s] Flow velocity in Afree
vA[m/s] Flow velocity in AA
Inflow velocity
V [m³/h] Volume flow
z  Pressure drop coefficient
DpS[Pa] Pressure drop with smoke control damper fully open
DpS [Pa] = ½ · 1.2 [kg/m³] · z· vA [m/s] ²
LWA [dB(A)] A-weighted sound power level (area-corrected)
LW-Oct [dB] Octave sound power level LW-Oct = LWA + DL
DL [dB] Relative sound power level
f [Hz] Octave mid frequency
Nomenclature

User Manual 5.32 (2018-05) 6
Subject to change
Series EK92
EK90 smoke control dampers

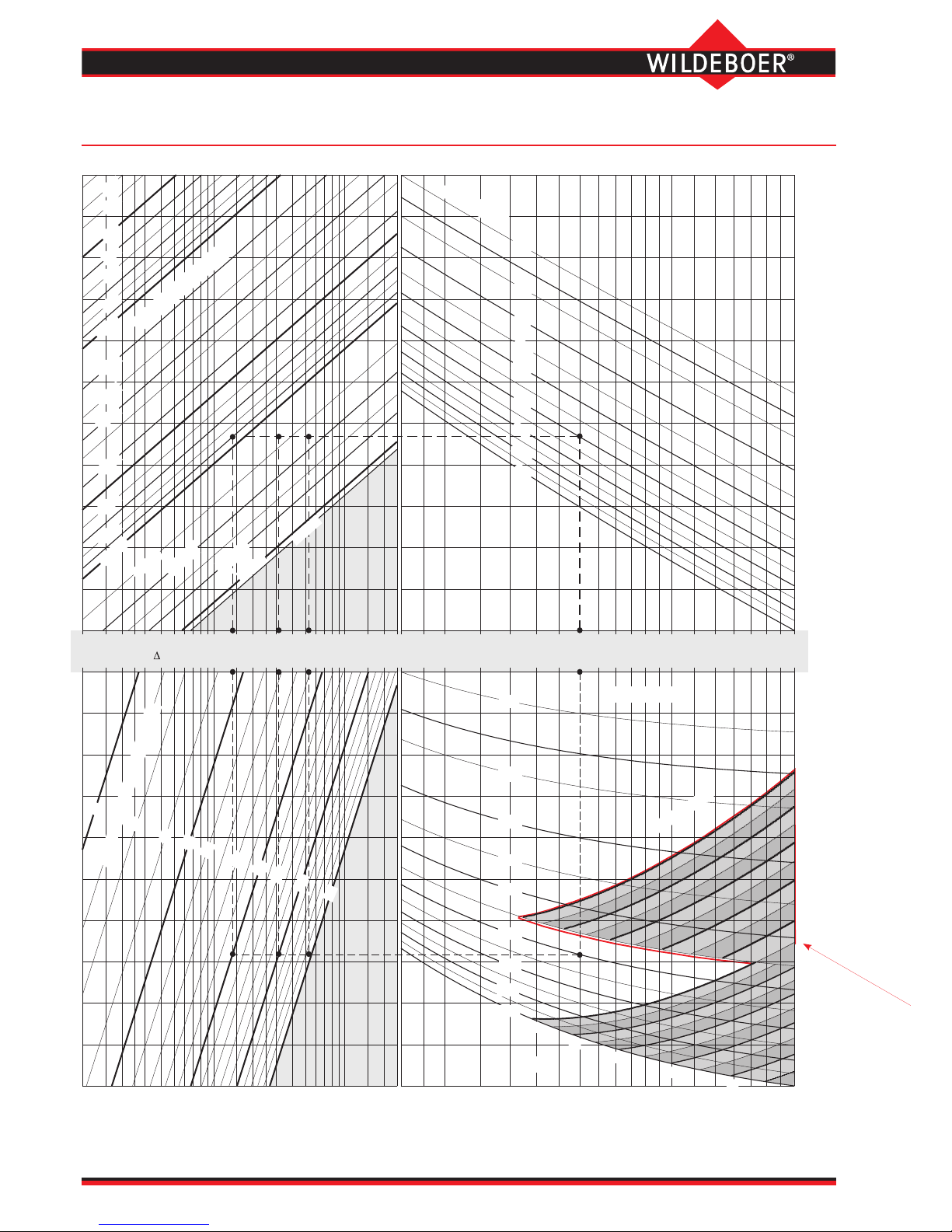

Volume flow V, pressure drop Dp, inflow velocity vA
With inflow velocities vA Max = 10 to 20 m/s, depending on the width and height of the EK90 smoke control damper,
the inflow velocity limits the opening of the smoke control damper. It may need to be reduced temporarily!
Example: The intersection point B = 500 mm with H = 500 mm lies in the field A Max = 20 m/s. There is no restriction here! ⇒see also table on page 7!
vA Max [m/s]
6
5
55
3
2
120 30 70 100
7
200
250 300 350 400 500 600 700 800 1000 1200 1500
Height H [mm]
Pressure drop p [Pa]
S
3
4
8
10
12
2
Inflow velocity v [m/s]
A
200
250
300
350
400
800
500
600
Width B [mm]
200
250
300
350
400
500
600
700
800
Height H [mm]
Volume flow V [m³/h]
225
300
400
500
600
800
1000
2000
2500
4000
6000
8000
10000
20000
30000
40000
43200
250
1500
50 150 250
700
15
15000
20
v = 20 m/s
A Max
20
18
16
14
12
10
20
18
16
14
12 10
v[m/s]
A Max

H \ B 400 450 500 550 600 650 700 750 800 850 900 950 1000 1050 1100 1150 1200 1250 1300 1400 1500
250 19 19 18
275 19 19 18 18 18 17 16
300 19 19 18 18 17 17 17 16 16 15 15
325 19 18 18 17 17 17 16 16 15 15 15 14 14
350 19 19 18 18 17 17 16 16 15 15 15 14 14 14 13 13
375 19 18 18 17 16 16 15 15 15 14 14 14 13 13 13 12 12
400 19 19 18 17 16 16 15 15 14 14 14 13 13 13 13 12 12 12 11
450 19 18 17 16 16 15 15 14 14 13 13 13 12 12 12 11 11 11 11 10 10
500 19 19 18 18 18 17 16
550 19 19 18 18 17 17 17 16 16 15 15
600 19 19 18 18 17 17 16 16 16 15 15 15 14 14
650 19 18 18 17 17 16 16 15 15 15 14 14 14 13 13 13
700 19 18 18 17 16 16 15 15 15 14 14 14 13 13 13 13 12 12
750 19 18 17 17 16 15 15 14 14 14 13 13 13 12 12 12 12 11 11
800 19 18 17 16 16 15 14 14 14 13 13 12 12 12 12 11 11 11 11 10
User Manual 5.32 (2018-05) 7
Subject to change Series EK92
Example 63 125 250 500 1000 2000 4000 8000 Hz
159 53 50 45 43 40 37 33 [dB]
265 62 60 56 54 53 49 45 [dB]
370 67 66 63 62 61 57 54 [dB]
EK90 smoke control dampers
Sound power level LWA / examples / inflow velocities vA
Relative sound power level DL [dB]
f [Hz] 63 125 250 500 1000 2000 4000 8000
vA= 5 m/s 16 8 2 -4 -8 -12 -15 -19
vA= 10 m/s 10 4 1 -4 -6 -9 -12 -16
vA= 15 m/s 5 2 0 -4 -6 -7 -11 -15
vA= 20 m/s 2 -1 -2 -5 -6 -7 -11 -14
Examples 1 2 3
Width B x height H =
Inflow velocity vA = 10 15 20 m/s
Volume flow V = 9000 13500 18000 m³/h
Pressure drop DpS= 14 31 56 Pa
Sound power level LWA =49 60 68 dB(A)
Sound power level LW-Oct = LWA + DL =
Inflow velocity vA= 10 m/sInflow velocity vA= 5 m/s
Inflow velocity vA= 15 m/s
v
A
≤20 m/s
EK90 smoke control dampers can be used, opened and closed with inflow velocities of vA ≤20 m/s.
The inflow velocities for opening are limited to the values given in the table and in the diagrams:
Nomenclature ⇒see page 5
500 mm x 500 mm
Example
In these ranges surrounded by the red border, opening is possible at an inflow velocity of vA up to 20 m/s with a specially designed electrical connection! ⇒ see page 34
v
A
≤20 m/s
250
200 250 300 400 500 600
700
Width B [mm]
700
300
900
600
200
500
]mm[HHeight
400
800
1200
1000800 1500
29
31
33
34
35
36
37
30
Sound
power level
L
W
= 32 dB(A)
A
250
200 250 300 400 500 600
700
Width B [mm]
700
300
900
600
200
500
]mm[HehöH
Height
400
800
1200
1000800 1500
48
49
51
52
53
54
47
A
Sound
power level
250
200 250 300 400 500 600
700
Width [mm]
700
300
900
600
200
500
]mm[HehöH
400
800
1200
1000800 1500
58
61
62
63
64
450
64
65
L
W
=
6
0
d
B
(
A
)
59
A
Sound
power level
Height

User Manual 5.32 (2018-05) 8
Subject to change
Series EK92
H B = 200 225 250 275 300 325 350 375 400 450 500 550 600 650 700
200 m³/h 720 810 900 990 1080 1170 1260 1350 1440 1620 1800 1980 2160 2340 2520
Pa 17 16 16 15 15 15 14 14 14 14 13 13 13 13 13
dB(A) 38 37 37 37 37 37 37 37 37 37 37 37 37 36 36
225 m³/h 810 911 1013 1114 1215 1316 1418 1519 1620 1823 2025 2228 2430 2633 2835
Pa 14 13 13 12 12 12 11 11 11 11 11 11 10 10 10
dB(A) 37 37 36 36 36 36 36 36 36 36 36 36 36 36 36
250 m³/h 900 1013 1125 1238 1350 1463 1575 1688 1800 2025 2250 2475 2700 2925 3150
Pa 12 11 11 10 10 10 10 9 9 9 9 9 9 9 8
dB(A) 36 36 36 36 35 35 35 35 35 35 35 35 35 35 35
275 m³/h 990 1114 1238 1361 1485 1609 1733 1856 1980 2228 2475 2723 2970 3218 3465
Pa 10 10 9 9 9 8 8 8 8 8 8 7 7 7 7
dB(A) 35 35 35 35 35 35 35 35 35 34 34 34 34 34 34
300 m³/h 1080 1215 1350 1485 1620 1755 1890 2025 2160 2430 2700 2970 3240 3510 3780
Pa 9 8 8 8 8 7 7 7 7 7 7 7 6 6 6
dB(A) 35 35 35 34 34 34 34 34 34 34 34 34 34 34 34
325 m³/h 1170 1316 1463 1609 1755 1901 2048 2194 2340 2633 2925 3218 3510 3803 4095
Pa 8 8 7 7 7 7 7 6 6 6 6 6 6 6 6
dB(A) 35 34 34 34 34 34 34 34 34 34 33 33 33 33 33
350 m³/h 1260 1418 1575 1733 1890 2048 2205 2363 2520 2835 3150 3465 3780 4095 4410
Pa 7 7 7 6 6 6 6 6 6 6 5 5 5 5 5
dB(A) 34 34 34 34 34 34 33 33 33 33 33 33 33 33 33
375 m³/h 1350 1519 1688 1856 2025 2194 2363 2531 2700 3038 3375 3713 4050 4388 4725
Pa 7 6 6 6 6 6 5 5 5 5 5 5 5 5 5
dB(A) 34 34 34 33 33 33 33 33 33 33 33 33 33 33 33
400 m³/h 1440 1620 1800 1980 2160 2340 2520 2700 2880 3240 3600 3960 4320 4680 5040
Pa 6 6 6 5 5 5 5 5 5 5 5 4 4 4 4
dB(A) 34 33 33 33 33 33 33 33 33 33 32 32 32 32 32
450 m³/h 1620 1823 2025 2228 2430 2633 2835 3038 3240 3645 4050 4455 4860 5265 5670
Pa 6 5 5 5 5 5 4 4 4 4 4 4 4 4 4
dB(A) 33 33 33 33 33 32 32 32 32 32 32 32 32 32 32
500 m³/h 1800 2025 2250 2475 2700 2925 3150 3375 3600 4050 4500 4950 5400 5850 6300
Pa 5 5 5 4 4 4 4 4 4 4 3 3 3 3 3
dB(A) 33 33 33 32 32 32 32 32 32 32 32 32 31 31 31
550 m³/h 1980 2228 2475 2723 2970 3218 3465 3713 3960 4455 4950 5445 5940 6435 6930
Pa 5 4 4 4 4 4 4 3 3 3 3 3 3 3 3
dB(A) 33 32 32 32 32 32 32 32 32 31 31 31 31 31 31
600 m³/h 2160 2430 2700 2970 3240 3510 3780 4050 4320 4860 5400 5940 6480 7020 7560
Pa 4 4 4 4 4 3 3 3 3 3 3 3 3 3 3
dB(A) 32 32 32 32 32 32 31 31 31 31 31 31 31 31 31
650 m³/h 2340 2633 2925 3218 3510 3803 4095 4388 4680 5265 5850 6435 7020 7605 8190
Pa 4 4 4 3 3 3 3 3 3 3 3 3 3 2 2
dB(A) 32 32 32 32 31 31 31 31 31 31 31 31 31 31 31
700 m³/h 2520 2835 3150 3465 3780 4095 4410 4725 5040 5670 6300 6930 7560 8190 8820
Pa 4 4 3 3 3 3 3 3 3 3 2 2 2 2 2
dB(A) 32 32 32 31 31 31 31 31 31 31 31 31 30 30 30
750 m³/h 2700 3038 3375 3713 4050 4388 4725 5063 5400 6075 6750 7425 8100 8775 9450
Pa 4 3 3 3 3 3 3 3 3 2 2 2 2 2 2
dB(A) 32 32 31 31 31 31 31 31 31 31 30 30 30 30 30
800 m³/h 2880 3240 3600 3960 4320 4680 5040 5400 5760 6480 7200 7920 8640 9360 10080
Pa 4 3 3 3 3 3 3 2 2 2 2 2 2 2 2
dB(A) 32 31 31 31 31 31 31 31 31 30 30 30 30 30 30
EK90 smoke control dampers
Volume flow, pressure drop, sound power level at 5 m/s inflow velocity (1)

User Manual 5.32 (2018-05) 9
Subject to change Series EK92
H B = 750 800 850 900 950 1000 1050 1100 1150 1200 1250 1300 1400 1500
200 m³/h 2700 2880 3060 3240 3420 3600 3780 3960 4140 4320 4500 4680 5040 5400
Pa 13 13 13 12 12 12 12 12 12 12 12 12 12 12
dB(A) 36 36 36 36 36 36 36 36 36 36 36 36 36 36
225 m³/h 3038 3240 3443 3645 3848 4050 4253 4455 4658 4860 5063 5265 5670 6075
Pa 10 10 10 10 10 10 10 10 10 10 10 10 10 10
dB(A) 35 35 35 35 35 35 35 35 35 35 35 35 35 35
250 m³/h 3375 3600 3825 4050 4275 4500 4725 4950 5175 5400 5625 5850 6300 6750
Pa 8 8 8 8 8 8 8 8 8 8 8 8 8 8
dB(A) 35 35 35 35 35 35 35 35 35 35 35 35 35 34
275 m³/h 3713 3960 4208 4455 4703 4950 5198 5445 5693 5940 6188 6435 6930 7425
Pa 7 7 7 7 7 7 7 7 7 7 7 7 7 7
dB(A) 34 34 34 34 34 34 34 34 34 34 34 34 34 34
300 m³/h 4050 4320 4590 4860 5130 5400 5670 5940 6210 6480 6750 7020 7560 8100
Pa 6 6 6 6 6 6 6 6 6 6 6 6 6 6
dB(A) 34 34 34 34 34 33 33 33 33 33 33 33 33 33
325 m³/h 4388 4680 4973 5265 5558 5850 6143 6435 6728 7020 7313 7605 8190 8775
Pa 6 5 5 5 5 5 5 5 5 5 5 5 5 5
dB(A) 33 33 33 33 33 33 33 33 33 33 33 33 33 33
350 m³/h 4725 5040 5355 5670 5985 6300 6615 6930 7245 7560 7875 8190 8820 9450
Pa 5 5 5 5 5 5 5 5 5 5 5 5 5 5
dB(A) 33 33 33 33 33 33 33 33 33 33 33 33 33 33
375 m³/h 5063 5400 5738 6075 6413 6750 7088 7425 7763 8100 8438 8775 9450 10125
Pa 5 4 4 4 4 4 4 4 4 4 4 4 4 4
dB(A) 33 32 32 32 32 32 32 32 32 32 32 32 32 32
400 m³/h 5400 5760 6120 6480 6840 7200 7560 7920 8280 8640 9000 9360 10080 10800
Pa 4 4 4 4 4 4 4 4 4 4 4 4 4 4
dB(A) 32 32 32 32 32 32 32 32 32 32 32 32 32 32
450 m³/h 6075 6480 6885 7290 7695 8100 8505 8910 9315 9720 10125 10530 11340 12150
Pa 4 4 4 3 3 3 3 3 3 3 3 3 3 3
dB(A) 32 32 32 32 32 32 32 32 32 32 32 31 31 31
500 m³/h 6750 7200 7650 8100 8550 9000 9450 9900 10350 10800 11250 11700 12600 13500
Pa 3 3 3 3 3 3 3 3 3 3 3 3 3 3
dB(A) 31 31 31 31 31 31 31 31 31 31 31 31 31 31
550 m³/h 7425 7920 8415 8910 9405 9900 10395 10890 11385 11880 12375 12870 13860 14850
Pa 3 3 3 3 3 3 3 3 3 3 3 3 3 3
dB(A) 31 31 31 31 31 31 31 31 31 31 31 31 31 31
600 m³/h 8100 8640 9180 9720 10260 10800 11340 11880 12420 12960 13500 14040 15120 16200
Pa 3 3 3 2 2 2 2 2 2 2 2 2 2 2
dB(A) 31 31 31 31 31 31 31 31 31 31 30 30 30 30
650 m³/h 8775 9360 9945 10530 11115 11700 12285 12870 13455 14040 14625 15210 16380 17550
Pa 2 2 2 2 2 2 2 2 2 2 2 2 2 2
dB(A) 31 30 30 30 30 30 30 30 30 30 30 30 30 30
700 m³/h 9450 10080 10710 11340 11970 12600 13230 13860 14490 15120 15750 16380 17640 18900
Pa 2 2 2 2 2 2 2 2 2 2 2 2 2 2
dB(A) 30 30 30 30 30 30 30 30 30 30 30 30 30 30
750 m³/h 10125 10800 11475 12150 12825 13500 14175 14850 15525 16200 16875 17550 18900 20250
Pa 2 2 2 2 2 2 2 2 2 2 2 2 2 2
dB(A) 30 30 30 30 30 30 30 30 30 30 30 30 30 30
800 m³/h 10800 11520 12240 12960 13680 14400 15120 15840 16560 17280 18000 18720 20160 21600
Pa 2 2 2 2 2 2 2 2 2 2 2 2 2 2
dB(A) 30 30 30 30 30 30 30 30 30 30 30 30 30 30
EK90 smoke control dampers
Volume flow, pressure drop, sound power level at 5 m/s inflow velocity (2)

User Manual 5.32 (2018-05) 10
Subject to change
Series EK92
H B = 200 225 250 275 300 325 350 375 400 450 500 550 600 650 700
200 m³/h 1440 1620 1800 1980 2160 2340 2520 2700 2880 3240 3600 3960 4320 4680 5040
Pa 67 64 62 61 59 58 57 56 56 54 53 53 52 52 51
dB(A) 55 55 55 55 55 55 55 55 55 54 54 54 54 54 54
225 m³/h 1620 1823 2025 2228 2430 2633 2835 3038 3240 3645 4050 4455 4860 5265 5670
Pa 55 52 50 49 48 47 46 45 44 43 43 42 41 41 41
dB(A) 54 54 54 54 54 54 54 54 54 53 53 53 53 53 53
250 m³/h 1800 2025 2250 2475 2700 2925 3150 3375 3600 4050 4500 4950 5400 5850 6300
Pa 46 44 42 41 40 39 38 38 37 36 36 35 34 34 34
dB(A) 54 54 53 53 53 53 53 53 53 53 53 53 53 53 52
275 m³/h 1980 2228 2475 2723 2970 3218 3465 3713 3960 4455 4950 5445 5940 6435 6930
Pa 40 38 37 36 35 34 33 32 32 31 30 30 30 29 29
dB(A) 53 53 53 53 53 52 52 52 52 52 52 52 52 52 52
300 m³/h 2160 2430 2700 2970 3240 3510 3780 4050 4320 4860 5400 5940 6480 7020 7560
Pa 36 34 33 31 30 30 29 29 28 27 27 26 26 25 25
dB(A) 53 53 52 52 52 52 52 52 52 52 52 52 51 51 51
325 m³/h 2340 2633 2925 3218 3510 3803 4095 4388 4680 5265 5850 6435 7020 7605 8190
Pa 32 31 29 28 27 27 26 26 25 24 24 23 23 23 22
dB(A) 52 52 52 52 52 52 51 51 51 51 51 51 51 51 51
350 m³/h 2520 2835 3150 3465 3780 4095 4410 4725 5040 5670 6300 6930 7560 8190 8820
Pa 30 28 27 26 25 24 24 23 23 22 21 21 21 20 20
dB(A) 52 52 52 51 51 51 51 51 51 51 51 51 51 51 51
375 m³/h 2700 3038 3375 3713 4050 4388 4725 5063 5400 6075 6750 7425 8100 8775 9450
Pa 27 26 25 24 23 22 22 21 21 20 20 19 19 19 18
dB(A) 52 51 51 51 51 51 51 51 51 51 50 50 50 50 50
400 m³/h 2880 3240 3600 3960 4320 4680 5040 5400 5760 6480 7200 7920 8640 9360 10080
Pa 26 24 23 22 21 21 20 20 19 19 18 18 17 17 17
dB(A) 51 51 51 51 51 51 51 50 50 50 50 50 50 50 50
450 m³/h 3240 3645 4050 4455 4860 5265 5670 6075 6480 7290 8100 8910 9720 10530 11340
Pa 23 21 20 19 19 18 18 17 17 16 16 15 15 15 15
dB(A) 51 51 51 50 50 50 50 50 50 50 50 50 50 49 49
500 m³/h 3600 4050 4500 4950 5400 5850 6300 6750 7200 8100 9000 9900 10800 11700 12600
Pa 21 19 18 17 17 16 16 15 15 14 14 14 13 13 13
dB(A) 51 50 50 50 50 50 50 50 50 49 49 49 49 49 49
550 m³/h 3960 4455 4950 5445 5940 6435 6930 7425 7920 8910 9900 10890 11880 12870 13860
Pa 19 18 17 16 15 15 14 14 14 13 13 12 12 12 12
dB(A) 50 50 50 50 50 49 49 49 49 49 49 49 49 49 49
600 m³/h 4320 4860 5400 5940 6480 7020 7560 8100 8640 9720 10800 11880 12960 14040 15120
Pa 18 16 15 15 14 14 13 13 12 12 12 11 11 11 10
dB(A) 50 50 50 49 49 49 49 49 49 49 49 49 48 48 48
650 m³/h 4680 5265 5850 6435 7020 7605 8190 8775 9360 10530 11700 12870 14040 15210 16380
Pa 17 15 14 14 13 13 12 12 12 11 11 10 10 10 10
dB(A) 50 50 49 49 49 49 49 49 49 49 48 48 48 48 48
700 m³/h 5040 5670 6300 6930 7560 8190 8820 9450 10080 11340 12600 13860 15120 16380 17640
Pa 16 15 14 13 12 12 11 11 11 10 10 10 9 9 9
dB(A) 50 49 49 49 49 49 49 49 48 48 48 48 48 48 48
750 m³/h 5400 6075 6750 7425 8100 8775 9450 10125 10800 12150 13500 14850 16200 17550 18900
Pa 15 14 13 12 12 11 11 10 10 10 9 9 9 9 8
dB(A) 50 49 49 49 49 49 48 48 48 48 48 48 48 48 48
800 m³/h 5760 6480 7200 7920 8640 9360 10080 10800 11520 12960 14400 15840 17280 18720 20160
Pa 14 13 12 12 11 11 10 10 10 9 9 8 8 8 8
dB(A) 49 49 49 49 49 48 48 48 48 48 48 48 48 48 48
EK90 smoke control dampers
Volume flow, pressure drop, sound power level at 10 m/s inflow velocity (1)

User Manual 5.32 (2018-05) 11
Subject to change Series EK92
H B = 750 800 850 900 950 1000 1050 1100 1150 1200 1250 1300 1400 1500
200 m³/h 5400 5760 6120 6480 6840 7200 7560 7920 8280 8640 9000 9360 10080 10800
Pa 51 50 50 50 50 49 49 49 49 49 49 49 48 48
dB(A) 54 54 54 54 54 54 54 54 54 54 54 54 54 54
225 m³/h 6075 6480 6885 7290 7695 8100 8505 8910 9315 9720 10125 10530 11340 12150
Pa 40 40 40 40 39 39 39 39 39 39 39 38 38 38
dB(A) 53 53 53 53 53 53 53 53 53 53 53 53 53 53
250 m³/h 6750 7200 7650 8100 8550 9000 9450 9900 10350 10800 11250 11700 12600 13500
Pa 33 33 33 33 33 32 32 32 32 32 32 32 32 31
dB(A) 52 52 52 52 52 52 52 52 52 52 52 52 52 52
275 m³/h 7425 7920 8415 8910 9405 9900 10395 10890 11385 11880 12375 12870 13860 14850
Pa 29 28 28 28 28 28 28 27 27 27 27 27 27 27
dB(A) 52 52 52 52 52 52 52 52 52 52 52 52 52 52
300 m³/h 8100 8640 9180 9720 10260 10800 11340 11880 12420 12960 13500 14040 15120 16200
Pa 25 25 25 24 24 24 24 24 24 24 24 24 23 23
dB(A) 51 51 51 51 51 51 51 51 51 51 51 51 51 51
325 m³/h 8775 9360 9945 10530 11115 11700 12285 12870 13455 14040 14625 15210 16380 17550
Pa 22 22 22 22 21 21 21 21 21 21 21 21 21 21
dB(A) 51 51 51 51 51 51 51 51 51 51 51 51 51 51
350 m³/h 9450 10080 10710 11340 11970 12600 13230 13860 14490 15120 15750 16380 17640 18900
Pa 20 20 20 19 19 19 19 19 19 19 19 19 19 18
dB(A) 51 50 50 50 50 50 50 50 50 50 50 50 50 50
375 m³/h 10125 10800 11475 12150 12825 13500 14175 14850 15525 16200 16875 17550 18900 20250
Pa 18 18 18 18 18 17 17 17 17 17 17 17 17 17
dB(A) 50 50 50 50 50 50 50 50 50 50 50 50 50 50
400 m³/h 10800 11520 12240 12960 13680 14400 15120 15840 16560 17280 18000 18720 20160 21600
Pa 17 16 16 16 16 16 16 16 16 16 16 16 15 15
dB(A) 50 50 50 50 50 50 50 50 50 50 50 50 50 50
450 m³/h 12150 12960 13770 14580 15390 16200 17010 17820 18630 19440 20250 21060 22680 24300
Pa 14 14 14 14 14 14 14 14 13 13 13 13 13 13
dB(A) 49 49 49 49 49 49 49 49 49 49 49 49 49 49
500 m³/h 13500 14400 15300 16200 17100 18000 18900 19800 20700 21600 22500 23400 25200 27000
Pa 13 13 12 12 12 12 12 12 12 12 12 12 12 11
dB(A) 49 49 49 49 49 49 49 49 49 49 49 49 49 49
550 m³/h 14850 15840 16830 17820 18810 19800 20790 21780 22770 23760 24750 25740 27720 29700
Pa 11 11 11 11 11 11 11 11 11 10 10 10 10 10
dB(A) 49 49 49 49 48 48 48 48 48 48 48 48 48 48
600 m³/h 16200 17280 18360 19440 20520 21600 22680 23760 24840 25920 27000 28080 30240 32400
Pa 10 10 10 10 10 10 10 10 10 9 9 9 9 9
dB(A) 48 48 48 48 48 48 48 48 48 48 48 48 48 48
650 m³/h 17550 18720 19890 21060 22230 23400 24570 25740 26910 28080 29250 30420 32760 35100
Pa 9 9 9 9 9 9 9 9 9 9 9 9 8 8
dB(A) 48 48 48 48 48 48 48 48 48 48 48 48 48 48
700 m³/h 18900 20160 21420 22680 23940 25200 26460 27720 28980 30240 31500 32760 35280 37800
Pa 9 9 9 8 8 8 8 8 8 8 8 8 8 8
dB(A) 48 48 48 48 48 48 48 48 48 48 48 48 47 47
750 m³/h 20250 21600 22950 24300 25650 27000 28350 29700 31050 32400 33750 35100 37800 40500
Pa 8 8 8 8 8 8 8 8 7 7 7 7 7 7
dB(A) 48 48 48 47 47 47 47 47 47 47 47 47 47 47
800 m³/h 21600 23040 24480 25920 27360 28800 30240 31680 33120 34560 36000 37440 40320 43200
Pa 8 8 7 7 7 7 7 7 7 7 7 7 7 7
dB(A) 47 47 47 47 47 47 47 47 47 47 47 47 47 47
EK90 smoke control dampers
Volume flow, pressure drop, sound power level at 10 m/s inflow velocity (2)

User Manual 5.32 (2018-05) 12
Subject to change
Series EK92
EK90 smoke control dampers
Volume flow, pressure drop, sound power level at 15 m/s inflow velocity (1)
H B = 200 225 250 275 300 325 350 375 400 450 500 550 600 650 700
200 m³/h 2160 2430 2700 2970 3240 3510 3780 4050 4320 4860 5400 5940 6480 7020 7560
Pa 151 145 140 136 133 131 128 127 125 122 120 118 117 116 115
dB(A) 66 66 66 66 66 65 65 65 65 65 65 65 65 65 65
225 m³/h 2430 2734 3038 3341 3645 3949 4253 4556 4860 5468 6075 6683 7290 7898 8505
Pa 123 118 113 110 107 105 103 101 100 98 96 95 93 92 92
dB(A) 65 65 65 65 65 65 65 64 64 64 64 64 64 64 64
250 m³/h 2700 3038 3375 3713 4050 4388 4725 5063 5400 6075 6750 7425 8100 8775 9450
Pa 104 99 95 92 90 88 86 85 84 82 80 79 78 77 76
dB(A) 65 64 64 64 64 64 64 64 64 64 64 63 63 63 63
275 m³/h 2970 3341 3713 4084 4455 4826 5198 5569 5940 6683 7425 8168 8910 9653 10395
Pa 91 86 83 80 78 76 74 73 72 70 69 67 66 66 65
dB(A) 64 64 64 64 63 63 63 63 63 63 63 63 63 63 63
300 m³/h 3240 3645 4050 4455 4860 5265 5670 6075 6480 7290 8100 8910 9720 10530 11340
Pa 81 76 73 71 69 67 65 64 63 61 60 59 58 57 57
dB(A) 64 63 63 63 63 63 63 63 63 63 62 62 62 62 62
325 m³/h 3510 3949 4388 4826 5265 5704 6143 6581 7020 7898 8775 9653 10530 11408 12285
Pa 73 69 66 63 62 60 59 57 56 55 54 52 52 51 50
dB(A) 63 63 63 63 63 62 62 62 62 62 62 62 62 62 62
350 m³/h 3780 4253 4725 5198 5670 6143 6615 7088 7560 8505 9450 10395 11340 12285 13230
Pa 67 63 60 58 56 54 53 52 51 50 48 47 47 46 45
dB(A) 63 63 62 62 62 62 62 62 62 62 62 62 62 62 61
375 m³/h 4050 4556 5063 5569 6075 6581 7088 7594 8100 9113 10125 11138 12150 13163 14175
Pa 62 58 55 53 51 50 49 48 47 45 44 43 42 42 41
dB(A) 63 62 62 62 62 62 62 62 62 61 61 61 61 61 61
400 m³/h 4320 4860 5400 5940 6480 7020 7560 8100 8640 9720 10800 11880 12960 14040 15120
Pa 58 54 51 49 48 46 45 44 43 42 41 40 39 38 38
dB(A) 62 62 62 62 62 62 61 61 61 61 61 61 61 61 61
450 m³/h 4860 5468 6075 6683 7290 7898 8505 9113 9720 10935 12150 13365 14580 15795 17010
Pa 51 48 45 43 42 41 39 39 38 36 35 34 34 33 33
dB(A) 62 62 61 61 61 61 61 61 61 61 61 61 60 60 60
500 m³/h 5400 6075 6750 7425 8100 8775 9450 10125 10800 12150 13500 14850 16200 17550 18900
Pa 46 43 41 39 38 36 35 34 34 32 31 31 30 29 29
dB(A) 62 61 61 61 61 61 61 61 60 60 60 60 60 60 60
550 m³/h 5940 6683 7425 8168 8910 9653 10395 11138 11880 13365 14850 16335 17820 19305 20790
Pa 43 40 38 36 34 33 32 31 30 29 28 28 27 26 26
dB(A) 61 61 61 61 61 60 60 60 60 60 60 60 60 60 60
600 m³/h 6480 7290 8100 8910 9720 10530 11340 12150 12960 14580 16200 17820 19440 21060 22680
Pa 40 37 35 33 32 30 30 29 28 27 26 25 25 24 24
dB(A) 61 61 61 60 60 60 60 60 60 60 60 60 59 59 59
650 m³/h 7020 7898 8775 9653 10530 11408 12285 13163 14040 15795 17550 19305 21060 22815 24570
Pa 37 35 33 31 30 28 27 27 26 25 24 23 23 22 22
dB(A) 61 61 60 60 60 60 60 60 60 59 59 59 59 59 59
700 m³/h 7560 8505 9450 10395 11340 12285 13230 14175 15120 17010 18900 20790 22680 24570 26460
Pa 36 33 31 29 28 27 26 25 24 23 22 22 21 21 20
dB(A) 61 60 60 60 60 60 60 59 59 59 59 59 59 59 59
750 m³/h 8100 9113 10125 11138 12150 13163 14175 15188 16200 18225 20250 22275 24300 26325 28350
Pa 34 31 29 28 26 25 24 24 23 22 21 20 20 19 19
dB(A) 60 60 60 60 60 60 59 59 59 59 59 59 59 59 59
800 m³/h 8640 9720 10800 11880 12960 14040 15120 16200 17280 19440 21600 23760 25920 28080
Pa 32 30 28 26 25 24 23 22 22 21 20 19 19 18
dB(A) 60 60 60 60 59 59 59 59 59 59 59 59 59 59
This volume flow requires a special
electrical connection design!⇒ page 34

The volume flows in the areas marked require
a special electrical connection design!
⇒see page 34
User Manual 5.32 (2018-05) 13
Subject to change Series EK92
H B = 750 800 850 900 950 1000 1050 1100 1150 1200 1250 1300 1400 1500
200 m³/h 8100 8640 9180 9720 10260 10800 11340 11880 12420 12960 13500 14040 15120 16200
Pa 114 113 113 112 112 111 111 110 110 110 109 109 109 108
dB(A) 65 65 65 65 65 65 65 65 65 65 65 65 65 65
225 m³/h 9113 9720 10328 10935 11543 12150 12758 13365 13973 14580 15188 15795 17010 18225
Pa 91 90 90 89 89 88 88 88 87 87 87 87 86 86
dB(A) 64 64 64 64 64 64 64 64 64 64 64 64 64 64
250 m³/h 10125 10800 11475 12150 12825 13500 14175 14850 15525 16200 16875 17550 18900 20250
Pa 75 75 74 74 73 73 73 72 72 72 72 72 71 71
dB(A) 63 63 63 63 63 63 63 63 63 63 63 63 63 63
275 m³/h 11138 11880 12623 13365 14108 14850 15593 16335 17078 17820 18563 19305 20790 22275
Pa 64 64 63 63 63 62 62 62 61 61 61 61 61 60
dB(A) 63 63 63 63 63 63 63 63 63 63 63 63 62 62
300 m³/h 12150 12960 13770 14580 15390 16200 17010 17820 18630 19440 20250 21060 22680 24300
Pa 56 56 55 55 55 54 54 54 53 53 53 53 53 52
dB(A) 62 62 62 62 62 62 62 62 62 62 62 62 62 62
325 m³/h 13163 14040 14918 15795 16673 17550 18428 19305 20183 21060 21938 22815 24570 26325
Pa 50 49 49 49 48 48 48 48 47 47 47 47 47 46
dB(A) 62 62 62 62 62 62 62 62 62 62 62 62 62 62
350 m³/h 14175 15120 16065 17010 17955 18900 19845 20790 21735 22680 23625 24570 26460 28350
Pa 45 44 44 44 43 43 43 43 43 42 42 42 42 42
dB(A) 61 61 61 61 61 61 61 61 61 61 61 61 61 61
375 m³/h 15188 16200 17213 18225 19238 20250 21263 22275 23288 24300 25313 26325 28350 30375
Pa 41 40 40 40 39 39 39 39 39 38 38 38 38 38
dB(A) 61 61 61 61 61 61 61 61 61 61 61 61 61 61
400 m³/h 16200 17280 18360 19440 20520 21600 22680 23760 24840 25920 27000 28080 30240 32400
Pa 37 37 37 36 36 36 36 36 35 35 35 35 35 34
dB(A) 61 61 61 61 61 61 61 61 61 61 61 61 61 61
450 m³/h 18225 19440 20655 21870 23085 24300 25515 26730 27945 29160 30375 31590 34020 36450
Pa 32 32 32 31 31 31 31 30 30 30 30 30 30 29
dB(A) 60 60 60 60 60 60 60 60 60 60 60 60 60 60
500 m³/h 20250 21600 22950 24300 25650 27000 28350 29700 31050 32400 33750 35100 37800 40500
Pa 28 28 28 28 27 27 27 27 27 26 26 26 26 26
dB(A) 60 60 60 60 60 60 60 60 60 60 60 60 60 60
550 m³/h 22275 23760 25245 26730 28215 29700 31185 32670 34155 35640 37125 38610 41580
Pa 26 25 25 25 24 24 24 24 24 24 23 23 23
dB(A) 60 60 59 59 59 59 59 59 59 59 59 59 59
600 m³/h 24300 25920 27540 29160 30780 32400 34020 35640 37260 38880
Pa 23 23 23 22 22 22 22 22 21 21
dB(A) 59 59 59 59 59 59 59 59 59 59
650 m³/h 26325 28080 29835 31590 33345 35100 36855
Pa 21 21 21 21 20 20 20
dB(A) 59 59 59 59 59 59 59
700 m³/h 28350 30240 32130 34020
Pa 20 19 19 19
dB(A) 59 59 59 59
750 m³/h 30375
Pa 18
dB(A) 59
EK90 smoke control dampers
Volume flow, pressure drop, sound power level at 15 m/s inflow velocity (2)

The volume flows in the areas marked require
a special electrical connection design!
⇒see page 34
User Manual 5.32 (2018-05) 14
Subject to change
Series EK92
EK90 smoke control dampers
Volume flow, pressure drop, sound power level at 20 m/s inflow velocity (1)
H B = 200 225 250 275 300 325 350 375 400 450 500 550 600 650 700
200 m³/h 2880 3240 3600 3960 4320 4680 5040 5400 5760 6480 7200 7920 8640 9360 10080
Pa 269 258 249 242 237 232 228 225 222 217 214 211 208 206 204
dB(A) 74 74 74 73 73 73 73 73 73 73 73 73 73 73 73
225 m³/h 3240 3645 4050 4455 4860 5265 5670 6075 6480 7290 8100 8910 9720 10530 11340
Pa 219 209 201 196 191 187 183 180 178 174 171 168 166 164 163
dB(A) 73 73 73 73 73 72 72 72 72 72 72 72 72 72 72
250 m³/h 3600 4050 4500 4950 5400 5850 6300 6750 7200 8100 9000 9900 10800 11700 12600
Pa 185 176 170 164 160 156 153 151 149 145 142 140 138 136 135
dB(A) 72 72 72 72 72 72 72 72 72 71 71 71 71 71 71
275 m³/h 3960 4455 4950 5445 5940 6435 6930 7425 7920 8910 9900 10890 11880 12870 13860
Pa 161 153 147 142 138 135 132 130 128 124 122 120 118 117 115
dB(A) 72 72 72 71 71 71 71 71 71 71 71 71 71 71 71
300 m³/h 4320 4860 5400 5940 6480 7020 7560 8100 8640 9720 10800 11880 12960 14040 15120
Pa 143 136 130 126 122 119 116 114 112 109 107 105 103 102 101
dB(A) 71 71 71 71 71 71 71 71 71 70 70 70 70 70 70
325 m³/h 4680 5265 5850 6435 7020 7605 8190 8775 9360 10530 11700 12870 14040 15210 16380
Pa 129 122 117 113 109 107 104 102 100 97 95 93 92 91 89
dB(A) 71 71 71 71 70 70 70 70 70 70 70 70 70 70 70
350 m³/h 5040 5670 6300 6930 7560 8190 8820 9450 10080 11340 12600 13860 15120 16380 17640
Pa 118 112 107 103 99 97 94 93 91 88 86 84 83 82 81
dB(A) 71 71 70 70 70 70 70 70 70 70 70 70 69 69 69
375 m³/h 5400 6075 6750 7425 8100 8775 9450 10125 10800 12150 13500 14850 16200 17550 18900
Pa 110 103 98 95 91 89 87 85 83 81 79 77 75 74 73
dB(A) 70 70 70 70 70 70 70 70 69 69 69 69 69 69 69
400 m³/h 5760 6480 7200 7920 8640 9360 10080 10800 11520 12960 14400 15840 17280 18720 20160
Pa 102 96 91 88 85 82 80 78 77 74 72 71 69 68 67
dB(A) 70 70 70 70 70 69 69 69 69 69 69 69 69 69 69
450 m³/h 6480 7290 8100 8910 9720 10530 11340 12150 12960 14580 16200 17820 19440 21060 22680
Pa 91 85 81 77 74 72 70 68 67 65 63 61 60 59 58
dB(A) 70 70 69 69 69 69 69 69 69 69 69 68 68 68 68
500 m³/h 7200 8100 9000 9900 10800 11700 12600 13500 14400 16200 18000 19800 21600 23400 25200
Pa 82 77 73 69 67 65 63 61 60 58 56 54 53 52 51
dB(A) 69 69 69 69 69 69 69 68 68 68 68 68 68 68 68
550 m³/h 7920 8910 9900 10890 11880 12870 13860 14850 15840 17820 19800 21780 23760 25740 27720
Pa 76 71 67 63 61 59 57 55 54 52 50 49 48 47 46
dB(A) 69 69 69 69 68 68 68 68 68 68 68 68 68 68 68
600 m³/h 8640 9720 10800 11880 12960 14040 15120 16200 17280 19440 21600 23760 25920 28080
Pa 71 66 62 59 56 54 52 51 50 48 46 45 44 43
dB(A) 69 69 68 68 68 68 68 68 68 68 68 67 67 67
650 m³/h 9360 10530 11700 12870 14040 15210 16380 17550 18720 21060 23400 25740
Pa 67 62 58 55 52 50 49 47 46 44 43 41
dB(A) 69 68 68 68 68 68 68 68 68 67 67 67
700 m³/h 10080 11340 12600 13860 15120 16380 17640 18900 20160 22680 25200
Pa 63 58 55 52 49 47 46 44 43 41 40
dB(A) 69 68 68 68 68 68 68 67 67 67 67
750 m³/h 10800 12150 13500 14850 16200 17550 18900 20250 21600
Pa 60 56 52 49 47 45 43 42 41
dB(A) 68 68 68 68 68 67 67 67 67
800 m³/h 11520 12960 14400 15840 17280 18720 20160 21600
Pa 58 53 50 47 45 43 41 40
dB(A) 68 68 68 68 67 67 67 67

The volume flows in the areas marked require
a special electrical connection design!
⇒see page 34
User Manual 5.32 (2018-05) 15
Subject to change Series EK92
H B = 750 800 850 900 950 1000 1050 1100 1150 1200 1250 1300 1400 1500
200 m³/h 10800 11520 12240 12960 13680 14400 15120 15840 16560 17280 18000 18720 20160 21600
Pa 203 202 200 199 198 198 197 196 196 195 195 194 193 193
dB(A) 73 73 73 73 73 73 73 73 73 73 73 73 73 73
225 m³/h 12150 12960 13770 14580 15390 16200 17010 17820 18630 19440 20250 21060 22680 24300
Pa 161 160 159 158 158 157 156 156 155 155 154 154 153 153
dB(A) 72 72 72 72 72 72 72 72 72 72 72 72 72 72
250 m³/h 13500 14400 15300 16200 17100 18000 18900 19800 20700 21600 22500 23400 25200 27000
Pa 134 133 132 131 130 130 129 129 128 128 128 127 127 126
dB(A) 71 71 71 71 71 71 71 71 71 71 71 71 71 71
275 m³/h 14850 15840 16830 17820 18810 19800 20790 21780 22770 23760 24750 25740 27720 29700
Pa 114 113 113 112 111 111 110 110 109 109 109 108 108 107
dB(A) 71 71 71 71 71 70 70 70 70 70 70 70 70 70
300 m³/h 16200 17280 18360 19440 20520 21600 22680 23760 24840 25920 27000 28080 30240 32400
Pa 100 99 98 97 97 96 96 95 95 95 94 94 94 93
dB(A) 70 70 70 70 70 70 70 70 70 70 70 70 70 70
325 m³/h 17550 18720 19890 21060 22230 23400 24570 25740 26910 28080 29250 30420 32760 35100
Pa 89 88 87 86 86 85 85 85 84 84 84 83 83 82
dB(A) 70 70 70 70 70 70 70 70 70 70 69 69 69 69
350 m³/h 18900 20160 21420 22680 23940 25200 26460 27720 28980 30240 31500 32760 35280 37800
Pa 80 79 78 78 77 77 76 76 76 75 75 75 74 74
dB(A) 69 69 69 69 69 69 69 69 69 69 69 69 69 69
375 m³/h 20250 21600 22950 24300 25650 27000 28350 29700 31050 32400 33750 35100 37800 40500
Pa 73 72 71 71 70 70 69 69 69 68 68 68 67 67
dB(A) 69 69 69 69 69 69 69 69 69 69 69 69 69 69
400 m³/h 21600 23040 24480 25920 27360 28800 30240 31680 33120 34560 36000 37440 40320 43200
Pa 67 66 65 65 64 64 63 63 63 63 62 62 62 61
dB(A) 69 69 69 69 69 69 69 69 69 69 69 68 68 68
450 m³/h 24300 25920 27540 29160 30780 32400 34020 35640 37260 38880
Pa 57 57 56 56 55 55 54 54 54 54
dB(A) 68 68 68 68 68 68 68 68 68 68
500 m³/h 27000 28800 30600 32400 34200 36000
Pa 51 50 49 49 49 48
dB(A) 68 68 68 68 68 68
550 m³/h 29700 31680
Pa 45 45
dB(A) 68 67
EK90 smoke control dampers
Volume flow, pressure drop, sound power level at 20 m/s inflow velocity (2)

User Manual 5.32 (2018-05) 16
Subject to change
Series EK92
H B = 750 800 850 900 950 1000 1050 1100 1150 1200 1250 1300 1400 1500
200 0.095 0.101 0.108 0.114 0.121 0.127 0.134 0.140 0.147 0.153 0.160 0.166 0.179 0.192
225 0.113 0.121 0.129 0.136 0.144 0.152 0.160 0.167 0.175 0.183 0.191 0.198 0.214 0.229
250 0.131 0.140 0.149 0.158 0.167 0.176 0.185 0.194 0.203 0.212 0.221 0.230 0.248 0.266
275 0.150 0.160 0.170 0.180 0.191 0.201 0.211 0.221 0.232 0.242 0.252 0.262 0.283 0.303
300 0.168 0.179 0.191 0.202 0.214 0.225 0.237 0.248 0.260 0.271 0.283 0.294 0.317 0.340
325 0.186 0.199 0.212 0.224 0.237 0.250 0.263 0.275 0.288 0.301 0.314 0.326 0.352 0.377
350 0.204 0.218 0.232 0.246 0.260 0.274 0.288 0.302 0.316 0.330 0.344 0.358 0.386 0.414
375 0.223 0.238 0.253 0.268 0.284 0.299 0.314 0.329 0.345 0.360 0.375 0.390 0.421 0.451
400 0.241 0.257 0.274 0.290 0.307 0.323 0.340 0.356 0.373 0.389 0.406 0.422 0.455 0.488
450 0.277 0.296 0.315 0.334 0.353 0.372 0.391 0.410 0.429 0.448 0.467 0.486 0.524 0.562
500 0.314 0.335 0.357 0.378 0.400 0.421 0.443 0.464 0.486 0.507 0.529 0.550 0.593 0.636
550 0.350 0.374 0.398 0.422 0.446 0.470 0.494 0.518 0.542 0.566 0.590 0.614 0.662 0.710
600 0.387 0.413 0.440 0.466 0.493 0.519 0.546 0.572 0.599 0.625 0.652 0.678 0.731 0.784
650 0.423 0.452 0.481 0.510 0.539 0.568 0.597 0.626 0.655 0.684 0.713 0.742 0.800 0.858
700 0.460 0.491 0.523 0.554 0.586 0.617 0.649 0.680 0.712 0.743 0.775 0.806 0.869 0.932
750 0.496 0.530 0.564 0.598 0.632 0.666 0.700 0.734 0.768 0.802 0.836 0.870 0.938 1.006
800 0.533 0.569 0.606 0.642 0.679 0.715 0.752 0.788 0.825 0.861 0.898 0.934 1.007 1.080
H B = 200 225 250 275 300 325 350 375 400 450 500 550 600 650 700
200 0.023 0.027 0.030 0.033 0.036 0.040 0.043 0.046 0.049 0.056 0.062 0.069 0.075 0.082 0.088
225 0.028 0.032 0.036 0.040 0.043 0.047 0.051 0.055 0.059 0.067 0.074 0.082 0.090 0.098 0.105
250 0.032 0.037 0.041 0.046 0.050 0.055 0.059 0.064 0.068 0.077 0.086 0.095 0.104 0.113 0.122
275 0.037 0.042 0.047 0.052 0.057 0.063 0.068 0.073 0.078 0.088 0.098 0.109 0.119 0.129 0.139
300 0.041 0.047 0.053 0.059 0.064 0.070 0.076 0.082 0.087 0.099 0.110 0.122 0.133 0.145 0.156
325 0.046 0.052 0.059 0.065 0.071 0.078 0.084 0.091 0.097 0.110 0.122 0.135 0.148 0.161 0.173
350 0.050 0.057 0.064 0.071 0.078 0.085 0.092 0.099 0.106 0.120 0.134 0.148 0.162 0.176 0.190
375 0.055 0.063 0.070 0.078 0.085 0.093 0.101 0.108 0.116 0.131 0.146 0.162 0.177 0.192 0.207
400 0.059 0.068 0.076 0.084 0.092 0.101 0.109 0.117 0.125 0.142 0.158 0.175 0.191 0.208 0.224
450 0.068 0.078 0.087 0.097 0.106 0.116 0.125 0.135 0.144 0.163 0.182 0.201 0.220 0.239 0.258
500 0.077 0.088 0.099 0.110 0.120 0.131 0.142 0.153 0.163 0.185 0.206 0.228 0.249 0.271 0.292
550 0.086 0.098 0.110 0.122 0.134 0.146 0.158 0.170 0.182 0.206 0.230 0.254 0.278 0.302 0.326
600 0.095 0.109 0.122 0.135 0.148 0.162 0.175 0.188 0.201 0.228 0.254 0.281 0.307 0.334 0.360
650 0.104 0.119 0.133 0.148 0.162 0.177 0.191 0.206 0.220 0.249 0.278 0.307 0.336 0.365 0.394
700 0.113 0.129 0.145 0.161 0.176 0.192 0.208 0.224 0.239 0.271 0.302 0.334 0.365 0.397 0.428
750 0.122 0.139 0.156 0.173 0.190 0.207 0.224 0.241 0.258 0.292 0.326 0.360 0.394 0.428 0.462
800 0.131 0.150 0.168 0.186 0.204 0.223 0.241 0.259 0.277 0.314 0.350 0.387 0.423 0.460 0.496
EK90 smoke control dampers
Free cross-sections
Free cross-sections Afree [m²]

User Manual 5.32 (2018-05) 17
Subject to change Series EK92
H B = 200 225 250 275 300 325 350 375 400 450 500 550 600 650 700
200 39 40 41 42 44 45 46 47 49 51 53 56 58 61 63
225 40 41 42 44 45 46 47 49 50 52 55 57 60 62 65
250 41 42 44 45 46 48 49 50 51 54 56 59 61 64 67
275 42 44 45 46 48 49 50 51 53 55 58 60 63 66 68
300 44 45 46 48 49 50 52 53 54 57 59 62 65 67 70
325 45 46 48 49 50 52 53 54 55 58 61 63 66 69 71
350 46 47 49 50 52 53 54 56 57 60 62 65 68 70 73
375 47 49 50 51 53 54 56 57 58 61 64 66 69 72 75
400 49 50 51 53 54 55 57 58 60 62 65 68 71 73 76
450 51 52 54 55 57 58 60 61 62 65 68 71 74 77 80
500 53 55 56 58 59 61 62 64 65 68 71 74 77 80 83
550 56 57 59 60 62 63 65 66 68 71 74 77 80 83 86
600 58 60 61 63 65 66 68 69 71 74 77 80 83 86 89
650 61 62 64 66 67 69 70 72 73 77 80 83 86 89 92
700 63 65 67 68 70 71 73 75 76 80 83 86 89 92 96
750 66 67 69 71 72 74 76 77 79 82 86 89 92 96 99
800 68 70 72 73 75 77 78 80 82 85 89 92 95 99 102
H B = 750 800 850 900 950 1000 1050 1100 1150 1200 1250 1300 1400 1500
200 66 68 71 73 76 78 80 83 85 88 90 93 98 102
225 67 70 72 75 77 80 82 85 87 90 92 95 100 105
250 69 72 74 77 79 82 84 87 89 92 94 97 102 107
275 71 73 76 78 81 84 86 89 91 94 96 99 104 109
300 72 75 78 80 83 85 88 91 93 96 98 101 106 111
325 74 77 79 82 85 87 90 93 95 98 101 103 108 114
350 76 78 81 84 86 89 92 95 97 100 103 105 111 116
375 77 80 83 86 88 91 94 96 99 102 105 107 113 118
400 79 82 85 87 90 93 96 98 101 104 107 109 115 121
450 82 85 88 91 94 97 99 102 105 108 111 114 119 125
500 86 89 92 94 97 100 103 106 109 112 115 118 124 130
550 89 92 95 98 101 104 107 110 113 116 119 122 128 134
600 92 95 99 102 105 108 111 114 117 120 123 126 132 139
650 96 99 102 105 108 112 115 118 121 124 127 131 137 143
700 99 102 105 109 112 115 118 122 125 128 131 135 141 148
750 102 106 109 112 116 119 122 126 129 132 136 139 146 152
800 106 109 112 116 119 123 126 130 133 136 140 143 150 157
EK90 smoke control dampers
Weights
The weights for other lengths L can be
calculated with sufficient accuracy:
Length L: 350 mm: Factor 0.85 or -15%
400 mm: Factor 0.90 or -10%
450 mm: Factor 0.95 or -5%
500 mm: Factor 1.00 or 0%
600 mm: Factor 1.10 or +10%
700 mm: Factor 1.20 or +20%
800 mm: Factor 1.30 or +30%
850 mm: Factor 1.35 or +35%
Weights [kg] for the length L = 500 mm

User Manual 5.32 (2018-05) 18
Subject to change
Series EK92
EK90 smoke control dampers
Installation in rigid walls and ceilings (1) General
The installation in rigid walls and ceilings from a thickness of 100 mm is performed as wet installation using mortar.
Gaps of up to 25 mm in width can also be filled with mineral wool ≥100 kg/m³ and ≥1000°C melting point. Shear pro-
tection brackets A protect installation at the rear. Alternatively, shear protection brackets B can be used, especially if
the installation openings are only accessible from the front, i.e. from the drive side, such as is the case with shaft walls.
Suspended installation in ceilings (motor drive underneath the ceiling)
Vertical installation in ceilings (motor drive above ceiling)
All dimensions in mm
Installation in rigid walls and ceilings
•Outer dimensions of the smoke control dampers in the installa-
tion area of the wall or ceiling: (B + 100 mm) x (H + 100 mm).
• Installation opening in rigid walls and ceilingsb x h = (B +
100 mm + 2 · s [mm]) x (H + 100 mm + 2 · s [mm])
• Mortar gap for wet installation s ≥25 mm.
• Gap for mineral wool filling s = 10 to 25 mm.
• Calcium silicate support bearings with the dimensions 100 mm
x 100 mm x 25 mm for gaps s = 25 mm are included in delivery.
Support bearings must always be used as supports when
performing dry installation with mineral wool in walls, and as
centring devices in ceilings. In other circumstances, support
bearings can be used as installation aids, except in metal stud
walls.
Installation in rigid walls
D
Drywall screws
Ø6x50
Shear protection
brackets A
Mortar or
mineral wool
Rigid ceiling
Alternative shear protection brackets B
Stopper seal
Z
b x h
Mortar or
mineral wool
Rigid ceiling
D
Shear protection
brackets A
Drywall screws
Ø6x50
Alternative
shear protection
brackets B
Stopper seal
Z
Shear protection
brackets A
100
100
Always fit
(for s = 25 mm)
support bearing
so it is flush with
the casing wall
Mortar or
mineral wool
L1
L2
WZ
Stopper seal
L
Alternative
shear protection
brackets B
s
Installation opening
Support bearings
Installation gap
Casing wall
s
The casing should be supported
on the B-side before filling the
installation gap with mineral
wool or mortar!
Support bearings
Support bearings
Drywall screws 4x45
Installation direction
Stopper seal b
h

H
B
B
H
H
B
M
Z
10.5
B
H
H
B
H
B
M
H
B
M
User Manual 5.32 (2018-05) 19
Subject to change Series EK92
EK90 smoke control dampers in the sizes B x H
•up to a maximum of 450 mm x 450 mm each damper
features 1 shear protection bracket at the centre of the
two B-sides or the two H-sides.
• with B > 450 mm or H > 450 mm each damper features
2 shear protection brackets, one on each end of the
B-sides or the H-sides.
lengths L > 600 mm,
each damper features 1
additional shear protec-
tion bracket at the cen-
tre of the B- or H-sides.
Shear protection brackets
A and B can also be used
in combination, while
retaining the same total
number of brackets!
EK90 smoke control dampers
Installation in rigid walls and ceilings (2) Attachment with shear protection brackets A and B
Shear protection brackets B are fitted onto the oper-
ation-side (front) of the smoke control damper and are
attached using M8 threaded rods
and nuts that pass through
the wall or ceiling.
Dowel attachment
⇒see page 28
Shear protection brackets B
View of the front side
Shear protection brackets A
View of the rear side
Number and arrangement of shear protection brackets A and B
Shear protection brackets A are fitted onto the non-drive
operation (rear) of the smoke control
damper and are attached to the
casing or the smoke extrac-
tion duct with 2 drywall
screws measuring
6 x 50 mm.
To fit the shear protection brackets A, a casing
excess length of Z ≥50 mm is required!
⇒see page 4!
Shear protection brackets A can also
be fitted to flashing strips on connected
smoke extraction ducts.
All dimensions in mm
Stopper seal
Shear protection brackets B
Mortar or
mineral wool
Shear protection brackets A
Drywall screws Ø6x50
Z
b
h
Mineral wool
Stopper seal
Shear protection brackets B

205
AA
DA
22
User Manual 5.32 (2018-05) 20
Subject to change
Series EK92
Rear side
(Non-operation side) with
shear protection bracket A
EK90 smoke control dampers
Installation in rigid walls and ceilings (3)
Operation
side (front)
EK90 smoke control dampers
next to or on top of one another in
rigid walls or ceilings.
EK90 smoke control dampers underneath rigid ceilings
Installation gaps s ≤ 25 mm can be filled with mineral wool. Otherwise, installation gaps should be completely filled with mortar!
Shear protection brackets are required for installation with mineral wool, but can be omitted for installation with mortar!
Section A-A
All dimensions in mm
• Spacing DA ≥180 mm:
Shear protection brackets A and B can
also be used above, below and laterally;
and combined as A and B.
⇒see page 19
• Spacing DA ≥125 mm up to ≤180 mm:
Shear protection brackets A can be used
laterally, and shear protection brackets B
above and below.
• Spacing DA = 22 mm:
Shear protection brackets A or B
can be used laterally.
• Spacing DA ≥52 mm up to ≤125 mm:
Shear protection brackets A or B can
be used laterally.
Depending on the spacing DA, thick
filling strips from 25 to 75 mm, made
from calcium silicate boards, are
required with approx. ≥500 kg/m³ bulk
thickness.
They should be fastened to the ceiling
with screws or bolts with a diameter of
5 mm or more.
Installation under a rigid lintel Installation with small spacing Installation of NL or NR versions
⇒see page 29
Installation with mortar can be implemented
without shear protection brackets, suspen-
sions may however be necessary.
Mortar or
mineral wool Mortar
D,W Z
Shear protection brackets A
Static reinforcement as required Stopper seal
Shear protection
brackets A
AD
Stop strip
25 ... 50 mm
52
AD
72
Shear protection
brackets B
125
Shear protection
brackets A
