Wildfire WF24-E User manual

WF24-E
Owner’s Manual
Have a problem - Need parts - Please call Toll Free [phone]
Fax: [phone] • Email: parts@wildremotors.com

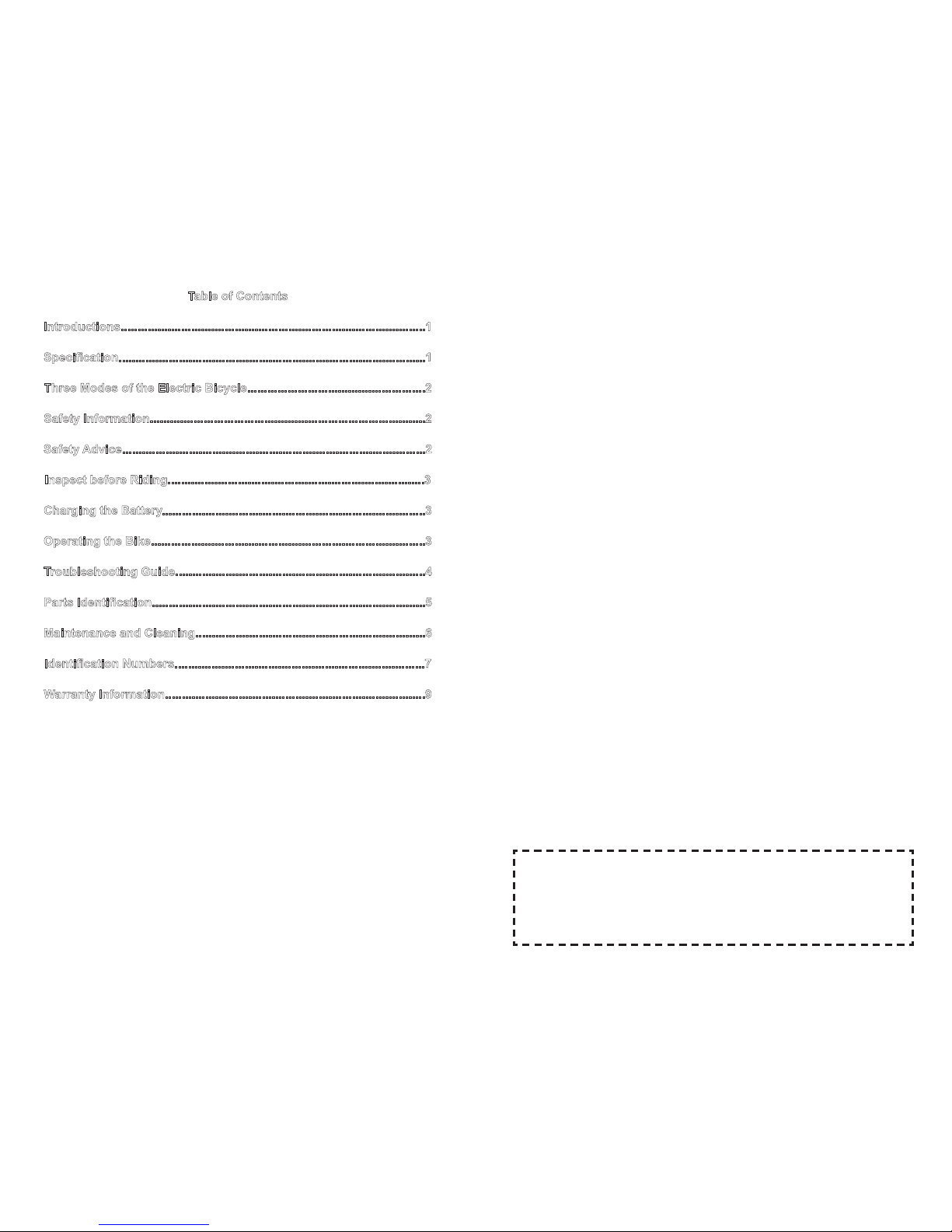

Table of Contents
Introductions...........................................................................................1
Specication............................................................................................1
Three Modes of the Electric Bicycle.....................................................2
Safety Information..................................................................................2
Safety Advice...........................................................................................2
Inspect before Riding.............................................................................3
Charging the Battery...............................................................................3
Operating the Bike..................................................................................3
Troubleshooting Guide...........................................................................4
Parts Identication..................................................................................5
Maintenance and Cleaning.....................................................................6
Identication Numbers...........................................................................7
Warranty Information..............................................................................9
! Warranty valid only when purchased from an authorized Wildre dealer !
Wildre products are sold as is without warranty, except for a 90 day
replacement parts only warranty against manufacture defects. Your warranty
does not cover labor, misuse, abuse or damage in shipping. Assembly, labor,
disassembly and reassembly are not the responsibility of Wildre Motors.
Registration must be completed and sent in within seven (7) days of purchase
with a copy of your receipt to validate the warranty. No refunds or exchanges.
NOTE: If there is any shipping damage to your unit, you must report this to the
delivery company immediately; you must le a claim with the delivery company.
Within 90 days of purchase, Wildre Motors will replace any defective part at no
charge plus a $10.00 shipping and handling fee after the consumer sends back
the defective warranty part to Wildre Motors. After 90 days from the date of
purchase, replacement parts may be purchased from Wildre Motors plus a
$10.00 shipping and handling fee. When warranty is conrmed, Wildre Motors
will ship all parts via DHL ground only. For replacement parts, please call
Wildre Motors toll free at 866-658-7300 or email parts@wildremotors.com
NOTE: Absolutely no warranty for consumable and normal wear items such as
spark plugs, oil and oil lters, fuel system cleaning, engine tune-up, belt or
chain adjustments (including replacement), lubrication, light bulbs, clutches,
lubricants, air lters, hoses, brake shoes, tires/tubes, plastic, battery, fuses,
cosmetic problems or problems occurring due to lack of proper assembly and
maintenance, or consumer abuse. Any and all modications to the vehicle will
void the manufactures warranty. Defective parts are subject to be recalled by
WILDFIRE MOTORS.
Disclaimer:
Wildre Motors disclaims the warranty of merchantability and tness for any
particular use. This disclaimer shall be effective as to all claims of any kind
made by or through any wholesaler, retailer, consumer or any other persons or
entity. Some states do not permit this disclaimer of implied warranties. Hence,
this disclaimer may not apply to you.
Limitation of Remedies:
Consumer’s remedy is limited to replacement parts only and in no event shall
exceed the purchase price. Absolutely no returns or exchanges. Incidental,
consequential and/or indirect damages are expressly disclaimed. NO person or
entity is authorized to alter, amend or increase this limited
Warranty Validation:
Please ll out this form and mail it in to Wildre Motors 11 Technology Way,
Steubenville, Ohio 43952 to register your warranty.
Name___________________________________________________________
Address_______________________City__________ State______ Zip_______
Dealer Name______________ Model #__________ Date of Purchase________
Address_______________________City__________ State______ Zip_______
Page 9
Please have your model number and the last 7 digits of your VIN# ready when you call for parts.
Have a problem - Need parts - Please call Toll Free [phone] • Email: parts@wildremotors.com

Please have your model number and the last 7 digits of your VIN# ready when you call for parts.
Have a problem - Need parts - Please call Toll Free [phone] • Email: parts@wildremotors.com
Page 8 Page 1
INTRODUCTION
Thank you for purchasing a Wildre Motors electric bicycle. Wildre Motors
specializes in affordable fun for everyone. We are continuously improving our
quality, design and product range to satisfy customer demands.The Wildre
Motor’s low cost, sturdy design and sporty look make it an instant hit with the
whole family. This bicycle will provide you with hours of fun and enjoyment. It is a
practical means for short-distance transportation and will help you to get some
healthy exercise. All Wildre Motor electric bicycles are environmentally friendly,
pollution free, quiet, and involve a cost of electricity of only a few pennies per day
of use.
The Wildre Electric Bicycle is equipped with a powerful motor, but it is
recommended that you should also assist the bike by pedaling as you would a
conventional bike. Always ride your bike safely and keep aware of pedestrians
around you at all times. It is strongly recommended that you learn more about
your Community’s Laws concerning the use of Electric Bikes, and also pay close
attentions to all the warnings and cautions in this manual.
Please read this manual completely before proceeding to the rst step.
Important information is distinguished in this manual by IMPORTANT
IMPORTANT!
It is the owners responsability to check every nut and bolt for tightness BEFORE
every ride and AFTER 4 - 5 hours of riding (EXCEPT FOR ENGINE BOLTS).
IMPORTANT: Failure to follow WARNING instructions could result in severe
injury or death to the electic bicycle operator, a bystander, or a person inspecting
or repairing the electric bicycle.
IMPORTANT: A CAUTION indicates that special precautions must be taken to
avoid damage to the electric bicycle or rider.
CAUTION - CAUTION - CAUTION - CAUTION - CAUTION - CAUTION
Riders must comply with local allowable age rules, all local laws and regulations.
Minors should never operate this product without the supervision of an adult. DO
NOT operate this under the inuence of alcohol or while receiving medical
treatment. DO NOT ride this product without protective equipment, such as hel-
mets, long pants, long sleeve shirt and any other protection that local regulations
or laws require. Read the instructions carefully and always respect this product
until you can safely start, stop, turn, and yield to all obstacles in the environment.
This product is not intended for use in inclement weather conditions.
• 36V 10AH SLA Battery
• Side Kick Stand
• 24” Tires
• Power Assist Motor
• Front and Rear brakes
• Safety Features: Headlight
Reectors
Taillight
Horn
Specications
Please have your model number and the last 7 digits of your VIN# ready when you call for parts.
Have a problem - Need parts - Please call Toll Free [phone] • Email: parts@wildremotors.com

Please have your model number and the last 7 digits of your VIN# ready when you call for parts.
Have a problem - Need parts - Please call Toll Free [phone] • Email: parts@wildremotors.com
Please have your model number and the last 7 digits of your VIN# ready when you call for parts.
Have a problem - Need parts - Please call Toll Free [phone] • Email: parts@wildremotors.com
Page 2 Page 7
Three Modes of the Electric Bike
Mode 1
Use as a conventional bike
• 6 speed Shimano push button shifter
Mode 2
• Use as an electric bicycle (use throttle)
Mode 3
Power Assist Motor
• The harder you pedal, the harder motor works to help you.
SAFETY INFORMATION
Safety is extremely important when allowing rst time riders to ride. It is essential
that the parents realize that rst time riders safety rests entirely in their hands.
Children and adults of the same age have different skill levels and coordination.
Only a parent can understand their child’s capabilities. The bicycle must always
be chosen to match the capabilities of the person riding. The parent must be
responsible for the safety of the child or person they allow to ride. The owner
assumes sole responsibility and risk. THE FIRST TIME RIDER MUST ALWAYS
BE SUPERVISED! Please read and apply all safety information in this manual.
SAFETY ADVICE AND WARNING
• Remember-Safety First
• Check the local laws to determine the approved areas for the use of the electric bicycle.
The maximum weight of the user is 240lbs
• Always wear a certied helmet and shoes when operating the bicycle. We also
recommend sunglasses, gloves, knee and elbow pads.
• Never ride on jumps or curbs. Such use may injure or even kill.
• Always turn off the bike and remove the key when leaving it unattended.
• Never store the battery in an area of high temperature or close to an open
ame. do not expose the charger to moisture or use it if it is damaged. Check
the cord, the plug and the enclosure regularly. If damaged, wet or broken, the
charger should not be used until it is repaired.
• IMPORTANT: Never carry passengers.
• IMPORTANT: Never exceed the recommended load capacity. Cargo should be
properly distributed and securely attached. If carrying a load greater than the
total of 240lbs, allow greater distance for braking and reduce your speed. Over
loading or improper loading can cause mechanical failure, loss of control and
unnecessary danger.
• IMPORTANT: Always keep both hands and both feet securely on the bicycles.
• Never t unauthorized accessories on the bicycle.
• Never attempt stunts, jumps, wheelies or other tricks.
• Never ride faster than your skill or conditions permit.
• Be especially careful going down hills.
• IMPORTANT: Never ride when tired, under the inuence of drugs or alcohol, or
with a medical condition.
• IMPORTANT: This electric bicycle requires a suitable basic knowledge of bi
cycle assembly. Improper assembly may also cause accidents, or even death.
Be sure it is properly assembled and maintained.
1
ELECTRIC BICYCLE INFORMATION AND SPECIFICATIONS
Identication Numbers

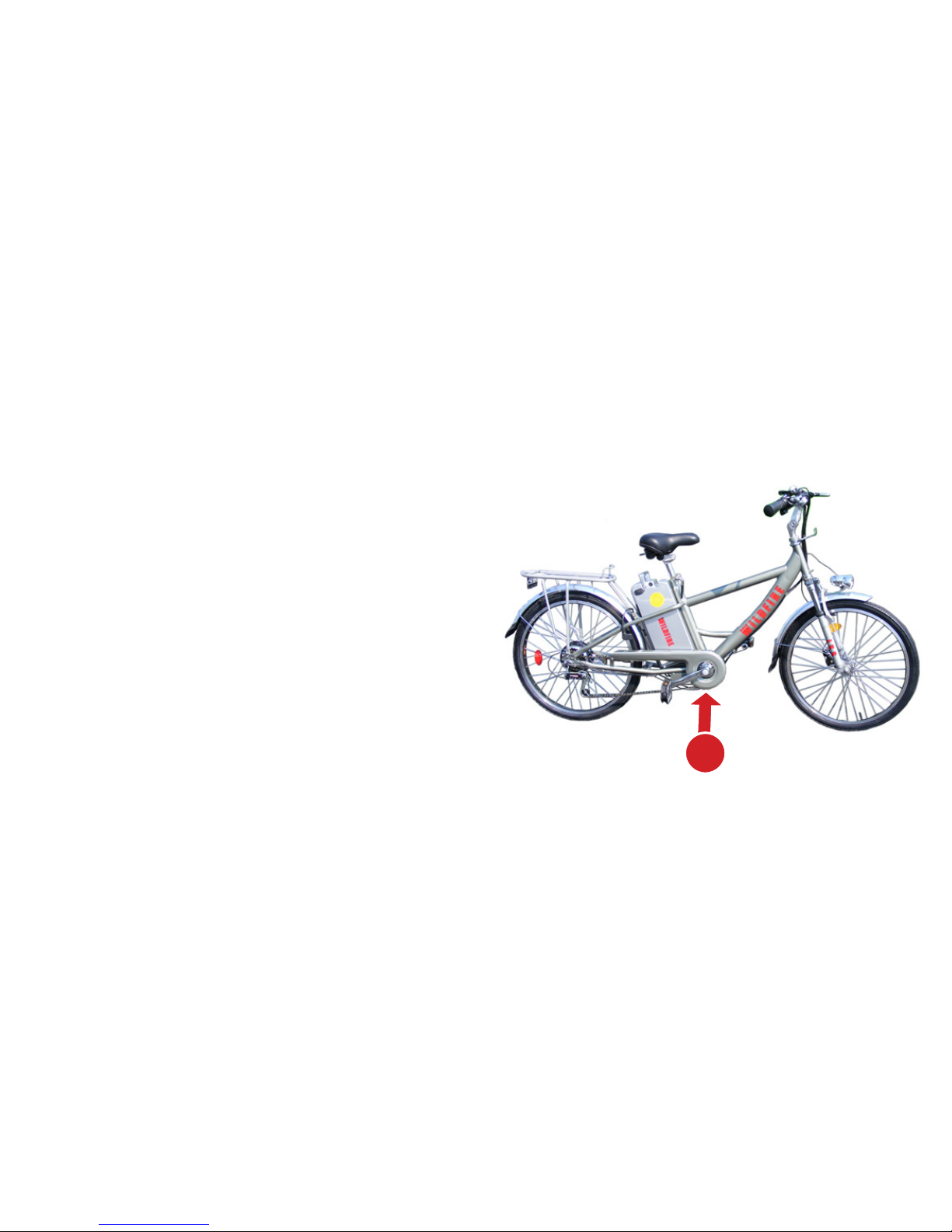

#1 The 17 digit vehicle identication number ( V.I.N.).
#2 The engine identication number (E.I.N.) is located inside the engine.

Please have your model number and the last 7 digits of your VIN# ready when you call for parts.
Have a problem - Need parts - Please call Toll Free [phone] • Email: parts@wildremotors.com
Please have your model number and the last 7 digits of your VIN# ready when you call for parts.
Have a problem - Need parts - Please call Toll Free [phone] • Email: parts@wildremotors.com
Page 6 Page 3
Maintenance Check
Periodic checks and maintenance
• Check if the nuts of the front and rear wheel are tight
• Check if the pattern of the tire is frayed
• Check if the shifting gear system works smoothly
• Check if the pressure of the front and rear tire is maintained to the maximum
allowance printed on the tire
• Check if the horn and rear reector are in good condition
• Check if all the bolts and nuts are tight
• Check if the brake cables are oiled
• If you don’t ride the bike for long periods of time, please keep the battery
charged periodically. At least once a month.
Cleaning
IMPORTANT: Never use a high pressured hose to clean the bike. The water
could damage electrical parts.
• Use a soft cleaner to wipe the surface of painted areas and plastic parts, then
use a dry cloth to wipe it down.
• Use a lubricant to wipe the metallic areas.
• Do not oil the front and rear brakes, spokes and tires.
Inspect Before Riding
Please check before riding in order to ensure your own personal safety.
• Check if tire pressure is in good condition.
• Check if the nuts of the front and rear hubs are screwed rmly in place.
• Check if there is enough power. If it is your rst start, please fully charge the
battery before operating.
• Check if the brake system was adjusted right
• Check the handle bar and seat to see if they are in good condition.
• If there are any mistakes after checking, please contact us through e-mail
parts@wildremotors.com or call Toll Free [phone]
Charging the Battery
• When charging, please keep children away from the battery and charger
• Do not use the battery unless it is fully charged.
• The charger contains a high-pressure circuit, do not dismantel it.
• When using and storing the battery, prevent liquid and salt-peter granules into
the charger. Do not drop or strike to avaid any damage.
• Please use in a dry enviroment.
Operating the Electric Bicycle
• To enable the motor, put the battery power switch and the main key switch to
the “ON” position.
• To engage the motor, start pedaling and then simply turn the throttle (right-hand
crip) toward you. The throttle is proportionally active to the rotation of the motor;
therefor, the more you turn the throttle toward you the greater the power of the motor.
• The motor is disengaged whenever the brake is used.
• When the bike starts, please speed up steadily: do not speed up quickly,
wasting the electricity or damaging the electric parts It is better to use pedals to
assist bicycle start.
• In a safe condition, it is better to reduce the starting or braking times in order to
save electricity.

Tips
• Remember to turn off the main and power switch when the bicycle is not in use.
• Remember to key lock the battery to avoid theft.
• Remember to recharge the battery well before it is completely empty, or while it
has to 50% of charge left.
• Use the throttle and apply the brakes to control speed. As you become more
experienced, you will be able to use a combination of the brakes and pedals for
optimal control.
Please have your model number and the last 7 digits of your VIN# ready when you call for parts.
Have a problem - Need parts - Please call Toll Free [phone] • Email: parts@wildremotors.com
Page 5
Page 4
PROBLEM PROBLEM CAUSES ACTIONS
Motor Does Not Start
Insufciant Range
Rear Wheel Does
Not Turn
Battery Switch is Off
Battery is not Connected
Chain is Broken
Motor Problem
Battery Not Entirely Charged
Inclined Ground
Battery is Cold
Battery is damaged or worn
Turn on Switch
Check Connections
Check Connections
Recharge Battery
Check all Connections
Battery is Discharged
Electric Fault
Replace Chain
Contact Tech Support
Propel Partly with Pedals
Let the Battery Heat
Replace the Battery
1.)Battery
2.)Seat height adjust
3.)Seat
4.)Throttle
5.)Handlebars
6.)Switch
7.)Headlight
14
1
2
34
5
6
7
8
9
10
1112
13
Please have your model number and the last 7 digits of your VIN# ready when you call for parts.
Have a problem - Need parts - Please call Toll Free [phone] • Email: parts@wildremotors.com
8.)Front Tire
9.)Front Brake
10.)Pedals
11.)Chain
12.)Gears
13.) Rear Tire
14.)Rear rack
