Wildland TENT05 User manual

Desert Cruiser Hard Shell Roof Top Tent
INSTRUCTION MANUAL

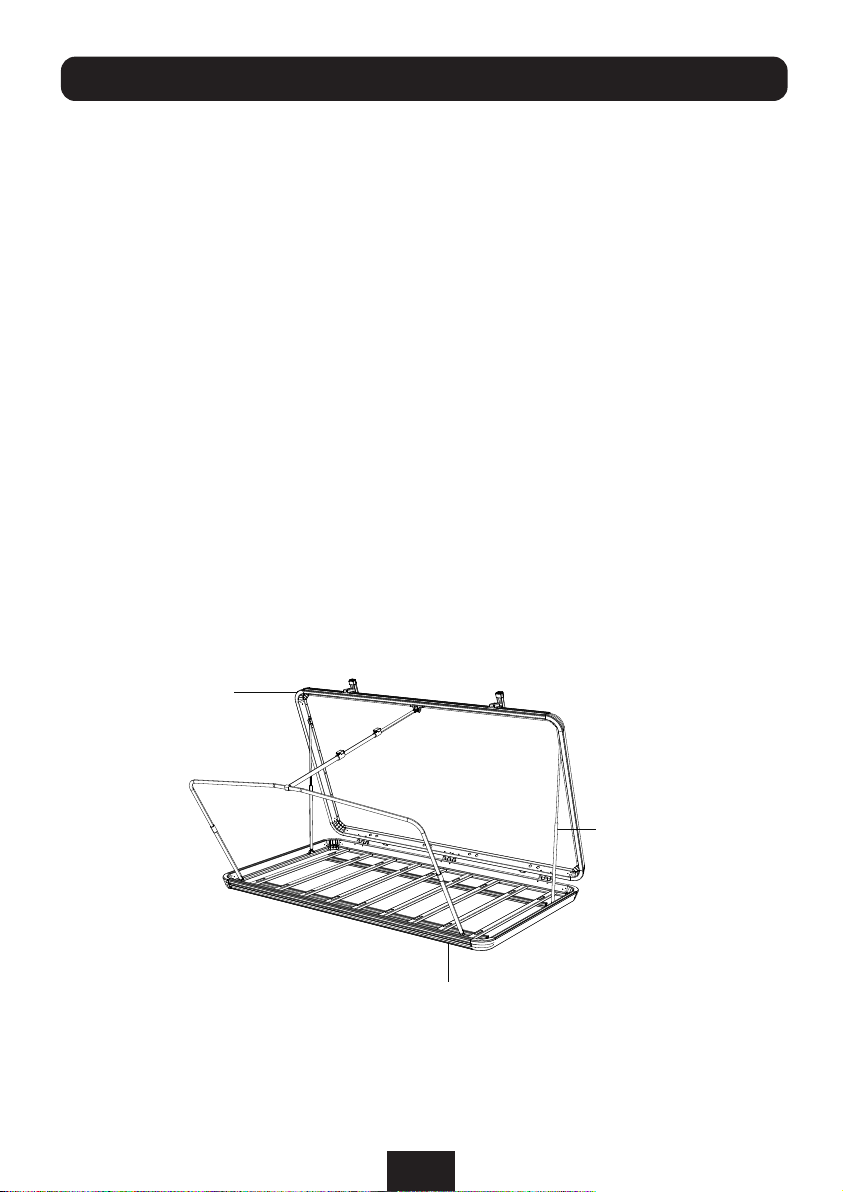

Main frame
Product description：
This semi-auto roof top tent could be set up easily by 2 persons, set up and fold down in seconds
with patented gas strut assisted opening mechanism. Enjoy the outdoor life in whatever weather !
Material and specification：
Product frame：
A. The whole frame uses aluminium alloy, parts of joints use strong nylon.
B. Double layer silver coating treatment for outer tent material to offer better heat insulation
and waterproof.
C. With good quality mattress provides comfortable sleep experience.
D. Telescopic aluminium alloy ladder is removable and could endure 150kg
1.2m:
Tent fully closed size: 213(L) X 136(W) X 19(H) cm
Fully open inner size: 205(L) X 120(W) X 103(H) cm
N.W.: 58KG(Not include the ladder) G.W.: 73KG
1.4m:
Tent fully closed size: 213(L) X 156(W) X 19(H) cm
Fully open inner size: 205(L) X 140(W) X 123(H) cm
N.W.: 65KG(Not include the ladder) G.W.: 80KG
Top hard shell
Gas Strut
-1-
EN

Two detachable bars could be install horizontally or vertically on shell as you need. Please
install the bars on roof tent before mounting tent on car top：
Horizontal installation
①Insert fixed parts of bar into slot of frame on both side.
Vertical installation
②Adjust the height of bar then screw tightly with M8x15mm Hex Bolt, M8 Flat Washer and
M8 Arc Washer.
③If install vertically, use Hex Wrench adjust the direction of fixed parts of bar as below, then
follow step 1 and 2.
Horizontal direction Vertical direction
Installation:
M8 Arc Washer
M8 Flat Washer
Note:Please make sure nothing loaded on the
top shell when opening/closing the tent.
-2-
EN

Installation:
1. Install your roof rack per the manufacturers instructions and in the
load bearing position on the vehicle.
2. Lift up the tent onto the rack from car side. Adjust the tent to
the roof center, ensuring the rear door can be opened/closed.
4. Slide T Shape Bolts into the middle hole of rail,
with U-Shape Stator, M8 Arc Washer, M8 Flat
Washer, and Plastic Nut lightly screwed in
advance.(as P2)
5. Screw the other side of U Shaped Stator with
component in order as above, and ensure Stator
tightened(as P3, same operation for rest).
3. Slide the T Shape Bolts into the rails from two
sides(as P1).
P3
M8 Arc Washer
M8 Flat Washer
P1
P2
-3-
EN

M8 Flat Washer
(4pcs)
INCLUDED TOOLS:
Tool Bag
6mm Hex Key(1pc)
M8x15mm Hex Bolt
(4pcs)
Aluminum Rivet(2pcs)
U Shape Stator(4pcs)
M8 Flat Washer(8pcs) M8 Arc Washer(8pcs)
Plastic Nut(8pcs)
M8 Arc Washer
(4pcs)
T shape bolts(8pcs)
-4-
EN

2. Push the tent shell upwards.
3. Hook the telescoping ladder over the base of
the tent and extend downwards..
1. Release all buckles around the tent.
Setting up:
-5-
EN

4. Push the button on each side of the
front u-pole and carefully extend it until
the buttons lock into the upper holes.
5. Unzip the ceiling fabric to expose
the dual tensioner pole. Carefully
stretch each side and lock each clasp
when proper tension is achieved.
6. Check all straps and buckles to
ensure they are snug before use.
Tent set-up is complete.
Press
Setting up:
-6-
EN

PVC PVC
1. Unzip the ceiling fabric and unlock
both clasps on the tensioner pole.
2. Push the buttons on the front u-pole
and carefully lower until it locks in the
lower position.
Folding down:
Press
②
3. Close all windows. Zip up the front door to two thirds position(as ①). Tuck shoes bags
inside(as ②). Push over the front U-pole(as ③). Then pull down the shell.
-7-
EN
③
①

4. Remove the telescopic ladder
and store it well in the car.
5. Lock all buckles around the tent.
6. The tent is closed.Plz visually
inspect the mounting hardware and
hand check for tightness.
Folding down:
-8-
EN

Once cylinder rod does not work , pls double check as below.
1. If cylinder rod is covered by any fabric.
2. If there is any air leaking from the cylinder rod. If
yes, the cylinder rods need to be replaced.
Loosen the scews of the cylinder rod with a
screwdriver, and change a new one. pls see
pictures below.
TROUBLESHOOTINS TIPS (IF NEEDED):
