WILMS EL 4 User manual

Operating Manual
Electric Heater
EL 4
Perfection is our aim.

EC –Declaration of Conformity
in sense of EC machine directive 2006 / 42 / EEC
Type of machine:
Electric Heater EL 4
is designed, constructed and manufactured in accordance with the above-mentioned
directive, the directive for low tension 2014 / 35 EEC and EMV directive 2014 / 30 EEC.
Furthermore, the directive 2011/65 EEC Rohs Directive and 2012/19 EEC WEEE.
The following harmonized standards have been used:
- EN 60335-2-30/ 2, Safety of electrical equipment
- EN 60335-1 Safety of electrical equipment
- EN 61000-3-2 Electromagnetic Compatibility
- EN 61000-3-3 Electromagnetic Compatibility
- EN 55014-1 Electromagnetic Compatibility
- EN 55014-2 Electromagnetic Compatibility
Mönchengladbach,
02.07.2018 Managing Director
______________ ______________________ ____________________________
Place, Date Signature

CONTENTS PAGE
1. SAFETY INFORMATION..................................................................................................................1
2. INSTALLATION................................................................................................................................5
3. TRANSPORT AND STORAGE ........................................................................................................5
4. INSTALLATION CONDITIONS.........................................................................................................6
5. OPERATING PRINCIPLES..............................................................................................................6
6. APPLICATION..................................................................................................................................6
7. DESCRIPTION.................................................................................................................................7
8. OPERATING INSTRUCTIONS.........................................................................................................7
9. TECHNICAL SPECIFICATIONS.......................................................................................................8
10. CLEANING AND MAINTENANCE..................................................................................................8
11. TROUBLESHOOTING....................................................................................................................9

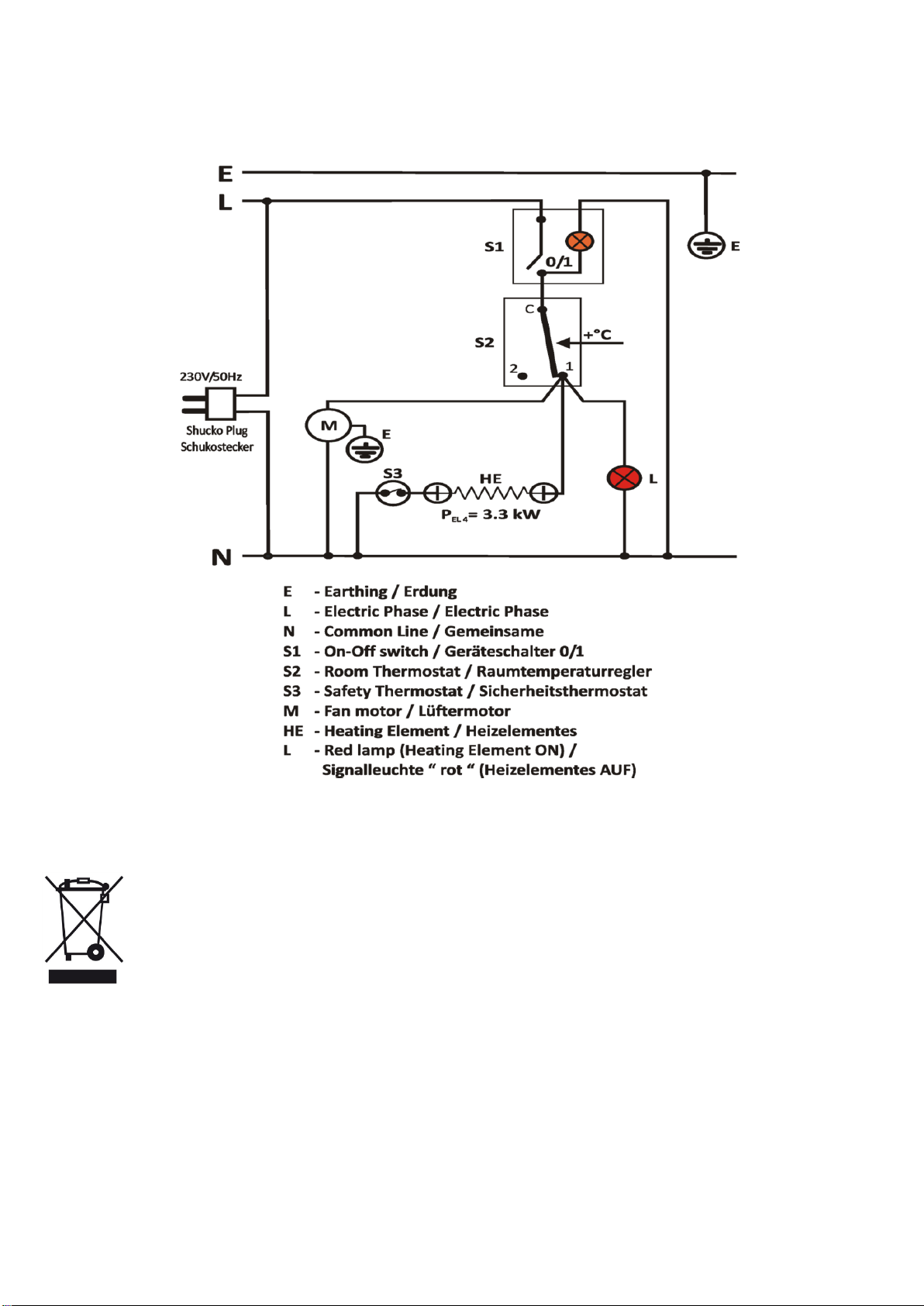

12. ELECTRIC DIAGRAM..................................................................................................................10
13. END-OF-LIFE OF THE APPLIANCE............................................................................................10
14. SPARE-PARTS-LIST....................................................................................................................11

This sign warns of a potential hazard that may occur if the described procedures are not taken into
account.
Note that this sign is always preceded by:
Danger: Risk of serious or fatal injury.
Warning: Risk of serious and irreparable injury.
Caution: Risk of material damage and further information that may be useful to users of the heater.
1. SAFETY INFORMATION
DANGER!
Risk of injury due to improper handling.
This appliance may only be put into operation by duly qualified personnel.
Risk of incorrect repair.
Never attempt to alter/modify or repair the heater.
This heater may only be altered/modified or repaired by a specialised technician.
Risk of injury.
Always unplug the appliance from the power outlet before
cleaning or performing maintenance.
- 1 of 11 -

WARNING!
Take due note of the following safety instructions!
Failure to follow them may result in serious consequences
for users, property and damage to the environment.
Some parts of this appliance may reach high temperatures, and may
cause burns to the operator.
Take particular care in the presence of children or vulnerable people.
•This appliance may be used by children over the age of 8 and by persons with physical,
sensory or mental limitations or a lack of experience and knowledge if supervised or
where they have received instructions regarding the safe use of the appliance and they
understand the risks involved.
•Children must never be allowed to play with the appliance.
•Cleaning and maintenance should not be performed by children unless under
supervision.
•Children under 3 years should be kept away from the appliance unless under continuous
supervision.
•Children between the ages of 3 and 8 may only switch the appliance on and off provided
it has been placed or installed in its intended normal operating position and they are
under supervision or have been given instructions as to how to use the appliance safely
and they understand the dangers involved.
•Children from 3 to 8 years should not connect, adjust or clean the appliance, or perform
any kind of maintenance.
Risk of Explosion!
•Do not install the heater in areas where there is a risk of fire and/or explosion.
•Take the environment into consideration at all times.
•Do not install the heater in areas where fuel is present.
•Remove flammable materials and chemicals.
- 2 of 11 -

Precautions for preventing possible damage!
•Check whether or not the appliance is switched on.
•Keep the air intake and exhaust outlet unobstructed.
•Do not cover the appliance during operation.
•Only unplug the appliance once the unit is completely idle.
•Do not use chemicals to clean the appliance.
•Never use the heater as a support base.
Injuries that may be caused by the use of defective parts!
•Before each use, check that all the accessories are connected correctly. Check for any
defective parts of the appliance.
•Check the power cord for damage. Any damage to the power cord poses a serious health
hazard.
Risk of electric shock!
•Only connect the appliance to power sources that correspond to the specifications of the
appliance.
•Never use damaged power outlets.
•Connect the appliance to a grounded power outlet.
•Disconnect the power cord from the outlet by carefully removing the plug.
•Do not touch the power cord with wet hands.
•Protect electrical wiring from damage caused by, for example, animals.
•Do not make any changes or repairs to the appliance!
•Do not allow any liquids to come into contact with the appliance.
•Do not allow any liquids to enter the appliance. Should this occur, unplug the power cord
and arrange for it to be checked by a qualified technician.
•The heater should not be located immediately below a power outlet.
•Do not use this heater in the immediate vicinity of a bathtub, shower, or pool.
- 3 of 11 -

Risk of injury!
•Changes and repairs to the heater must be performed by qualified personnel.
•If the power cord is damaged, to avoid hazards, it should be replaced by the
manufacturer, after-sales service or by qualified personnel.
•Do not insert any objects into the air intake or outlet of the appliance.
•Do not insert anything into its openings.
•Do not leave children or animals unattended near the appliance when it is in use.
CAUTION!
Overheating of the heater can damage the appliance.
Never unplug the appliance by the power cord as this may cause
the appliance to overheat.
- 4 of 11 -

2. INSTALLATION
Before operating your heater for the first time, you should carefully read the instructions manual.
After receiving the unit, you should check that your heater has been damaged during transport. In the
event of damage, you should inform the sender immediately.
Damage during transport should be reported after unpacking the equipment. The seller or specialised
reseller should be contacted immediately.
Keep the packaging of the heater in a safe place in order to be able to dispatch the heater safely should
it require servicing. In order to save space, you can simply cut through the adhesive tape using a knife
and fold up the cardboard box.
During installation and use, proceed as follows:
•Check the contents of the box of your electric heater. If the appliance is damaged or any of the
accessories are missing, contact the point of sale immediately.
•Check the unit for damage.
•Check the appliance before each use and that the conditions are suitable for proper operation.
•Carefully read the “Installation Requirements”, which describe what you need to install your heater.
•Make sure that the characteristics of the electrical system match the characteristics referred to in the
“Technical data”;
•Before connecting, make sure that there are no foreign objects in the unit preventing rotation of the
fan. If there are, you may try to remove them using compressed air.
Where this fails, contact a qualified technician. As described in “Maintenance and cleaning”, the
dismantling and repair of the equipment must only be carried out by qualified personnel!
•Plug the power cord into a power outlet (230 V / 50 Hz / 16 A).
•Place the heater in the desired location.
•Lock the front casters to ensure stability.
•The appliance is ready for use.
3. TRANSPORT AND STORAGE
Transport
•Turn off the power.
•Wait until the unit has cooled down.
•Transport the heater using the handle on the top of the heater.
•Ensure that the unit does not slip and remains stable during transport.
Storage
Where the heater is not used for an extended period of time, it must be properly covered and stored in
order to avoid damage.
You should therefore:
•Unplug the appliance from the power outlet.
•Choose a dust-free storage location and cover the appliance.
•Store the appliance in a dry place and prevent moisture from entering the appliance.
•Store the appliance at all times protected from lightning and other unpredictable atmospheric
conditions.
•Locate the appliance in a safe place to avoid possible falls that may endanger people or damage the
appliance.
- 5 of 11 -

4. INSTALLATION CONDITIONS
When installing the heater, you should take into account some specific technical conditions. Failure
to comply with these conditions could endanger people and property. Operation of the heater
and its accessories should be tested. When installing the heater, the following must be observed:
•The heater should be installed on a horizontal surface, safely and in a non-combustible
environment.
•The location must be dry and it must be ensured that no moisture enters the appliance. If any
fluid gets into the appliance, unplug it immediately from the power outlet and arrange for it to
be checked by a qualified service technician.
•The appliance must be connected to a power outlet in accordance with the required technical
specifications (see “Technical data”).
•The heater should not be placed in dusty environments.
•The appliance should be placed at least 2 metres away from any obstruction on all sides.
•It must be at least 50 cm from walls.
•The site should not be excessively humid so as not to cause condensation inside.
•The air intake and outlet of the appliance must not be obstructed.
5. OPERATING PRINCIPLE
The EL 4 electric heater is a mobile appliance used for heating ambient air. For improved heating,
thawing or drying of spaces, this area should be closed.
The built-in thermostat allows regulation to a constant ambient temperature.
Operating principles
The air to be heated is drawn through an axial fan and subsequently flows through the interior of
the appliance. It is warmed by flowing past a heating element. This air is then expelled by the air
outlet panel into the environment (see description).
The EL 4 electric heater has been designed and developed for professional use and is therefore
suitable for use in locations that are under construction or for heating and drying buildings,
greenhouses or other industrial areas.
The heater may be used to be in continuous operation.
6. APPLICATION
The EL 4 electric heater is designed for heating and air ventilation, and may be used indoors. It is
used for drying, thawing, heating or simply for ventilation.
For example, the appliance may be used to heat rooms, cellars, greenhouses and construction sites,
or to thaw machinery or pipelines.
- 6 of 11 -

7. DESCRIPTION
1Handle
2 Cover
3Air outlet grille
4Switch 0/1
5Power Cord
6Red warning lamp - Turns on when the
appliance is operating
7Thermostat
8Fan
9Air intake grille
10 Feet
8. OPERATING INSTRUCTIONS
Turning on the heater
To switch the appliance on, set the 0/I switch (1) to the “I”
position.
The switch lights up and the fan starts working.
Turning off the heater
To switch the appliance off, set the switch to “0”.
Adjusting ambient thermostat
Set the thermostat to the desired operating temperature by
turning the thermostat knob (3) - located on the back of the
appliance).
The red warning lamp (2) lights up when the appliance starts to operate.
• To raise the temperature: Turn the knob counter clockwise.
• To lower the temperature: Turn the knob clockwise.
Temperature setting may be adjusted during operation. When the ambient temperature reaches the
set point determined on the thermostat, the appliance will stop operating and the red warning lamp (2)
will turn off. The appliance will resume operation when the ambient temperature drops below the set
point, as indicated by the warning lamp (2), turning on the heating element and the fan.
- 7 of 11 -

9. TECHNICAL SPECIFICATIONS
SPECIFICATIONS
EL 4
Rated Power
3.3 kW
Nominal Voltage
230V~50 Hz
Nominal Current
14,35 A
Plug
Schuko 16 A
Air Flow
360 m³/h
Output temperature (ΔT)
75°C
Thermostat
Yes
Mobility
Portable
Noise
50 dB(A)
Depth
300 mm
Width
275 mm
Height
360 mm
Weight
11.2 kg
Protection class
IP 44
10. CLEANING AND MAINTENANCE
Cleaning
• Clean the exterior of the appliance with a damp cloth. Paint and plastic surfaces should not be
rubbed. Wait until it is completely dry before starting the appliance. Do not use solvent cleaners.
Make sure that the appliance has no moisture inside.
• To clean the inside, compressed air must be used. The inside may be cleaned through the air
intake or outlet openings.
Maintenance
•Check for any damage to the power cord or any damaged components before operating the
appliance.
•Check the entire structure of the appliance.
•Make sure it is working properly.
•If you hear any unusual noises, stop the heater immediately. Damage may be caused to the
ventilation propeller.
•In the event of malfunction, contact a qualified technician.
•Check before each use of the appliance that there are no objects that may prevent normal
rotation of the fan. Should you find any object, try to remove it with the aid of compressed air. If
you cannot remove it, you should contact a qualified technician.
- 8 of 11 -

11. TROUBLESHOOTING
Fault
Cause
Remedy
Heater not working
Plug connections
Connect the heater to the power outlet
No supply voltage
Connect heater to a compatible outlet
Consult technical specifications, as
described in the “technical data” section.
Installation fuse blown
Replace the fuse;
Warning! Fuses should not be repaired,
but rather replaced with new ones;
The circuit breaker may be off. Turn the
circuit breaker back on.
Faulty 0/I switch
Replace with a new switch. This operation
must be performed by a qualified
technician!
Faulty fan motor
Replace fan motor. This operation must
be performed by a qualified technician.
Abnormal noise
from the motorised
fan
Fan dirty
Clean the fan as described in the
“cleaning and maintenance” section.
Damaged fan blades
Replace the fan blades. This operation
must be performed by a qualified
technician!
Faulty fan motor
Replace the fan motor. This operation
must be performed by a qualified
technician!
Abnormal noise
Dirty fan blades or objects
preventing normal rotation
of the fan
Clean the fan blades and fan motor as
described in the “cleaning and
maintenance” section.
Damaged fan blades
Repair or replace the fan blades. This
operation must be performed by a
qualified technician!
Vibrations
The heater is on an
uneven surface
Place the heater on a level surface.
The hood is not adjusted
or the bolts are not
tightened properly.
Check the hood tightening bolts.
Air intake and/or outlet
blocked
Remove any parts that may be blocking
the air intake and exhaust.
- 9 of 11 -

12. ELECTRIC DIAGRAM
EL 4
Electric wiring diagram
13. END-OF-LIFE OF THE APPLIANCE
This appliance is marked with the symbol for compliance with European Directive
2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), which means that
this appliance should not be disposed of as household waste at the end of its life cycle.
The end user is responsible for complying with local law when recycling this product.
This equipment should be disposed of at a used electrical and electronic equipment
collection centre near you.
You may request further information regarding national recycling options from any local authority.
Separate collection of used electrical and electronic equipment enables re-use, recycling or the
reduction of adverse impacts from the production and management of such waste, reducing the
overall impact of resource use, improving the efficiency of such use and contributing towards
sustainable development.
- 10 of 11 -

14. SPARE-PARTS-LIST
EL 4 (from manufacturer year 49)
Pos. Part-No. Description Qty.
01 6164201 Housing air outlet 1
02 6164202 Housing air inlet 1
03 6164203 Side panel housing 2
04 6164204 Air outlet 1
05 6164231 Air cover 1
06 6164229 Control panel baseplate 1
07 6164230 Control panel 1
08 6164209 Fan reflecting shield 1
09 6164208 Fan motor 1
10 6164210 Heating element 1
11 6164211 Thermostat 1
12 6164212 Lamp - red 1
13 6164213 Handle 1
14 6164226 Motor fan brackets 3
15 6164215 Safety thermostat 1
16 6164216 Power cable 1
17 6164217 Switch 1
18 6164218 Strain relief bushing 1
19 6164228 Knob 1
20 6164220 Fan 1
21 6164232 Bracket for thermostat 1
22 6164222 Air outlet grille 1
23 3104701 Terminal block 1
24 3104558 Spacer 4
25 6164225 Clamp 2
- 11 of 11 -
