English
Installation and operating instructions Wilo-Stratos ECO 3
Installation and operating instructions
1General
1.1 About this document
These installation and operating instructions are an integral
part of the product. They must be kept readily available at the
place where the product is installed. Strict adherence to these
instructions is a precondition for the proper use and correct
operation of the product.
These installation and operating instructions conform to the
relevant version of the product and the underlying safety
standards valid at the time of going to press.
2Safety
These instructions contain important information which
must be followed when installing and operating the pump. It
is therefore imperative that they be read by both the installer
and the operator before the pump is installed or operated.
Both the general safety instructions in this section and the
more specific safety points in the following sections should
be observed.
2.1 Instruction symbols used in this operating manual
Symbols:
General danger symbol
Hazards from electrical causes
NOTE: ...

English
4WILO SE 06/2010
Signal words:
DANGER!
Imminently hazardous situation.
Will result in death or serious injury if not avoided.
WARNING!
Risk of (serious) injury. 'Warning' implies that failure to
comply with the safety instructions is likely to result in
(severe) personal injury.
CAUTION!
Risk of damage to the pump/installation. ‘Caution’ alerts to
user to potential product damage due to non-compliance
with the safety instructions
NOTE:
Useful information on the handling of the product. It alerts
the user to potential difficulties
2.2 Personnel qualification
The personnel installing the pump must have the appropriate
qualification for this work.
2.3 Risks incurred by failure to comply with the safety
instructions
Failure to comply with the safety precautions could result in
personal injury or damage to the pump or installation. Failure
to comply with the safety precautions could also invalidate
any claim for damages.
In particular, failure to comply with these safety instructions
could give rise, for example, to the following risks:
• Failure of important pump or system functions,
• Personal injury due to electrical and mechanical causes.

English
Installation and operating instructions Wilo-Stratos ECO 5
2.4 Safety instructions for the operator
The relevant accident precaution regulations must be
observed.
Potential dangers caused by electrical energy must be ex-
cluded. Local or general regulations [e.g. IEC, BSI, UL etc.] and
directives from local energy supply companies are to be
followed.
2.5 Safety instructions for inspection and assembly
The operator must ensure that all inspection and assembly
work is carried out by authorised and qualified specialists who
have carefully studied these instructions.
Work on a pump or installation should only be carried out
once the latter has been brought to a standstill.
2.6 Unauthorised modification and manufacture of spare parts
Changes to the pump/machinery may only be made in agree-
ment with the manufacturer. The use of original spare parts
and accessories authorised by the manufacturer will ensure
safety. The use of any other parts may invalidate claims
invoking the liability of the manufacturer for any conse-
quences.
2.7 Improper use
The operating safety of the pump or installation can only be
guaranteed if it is used in accordance with paragraph 4 of the
operating instructions. All values must neither exceed nor fall
below the limit values given in the catalogue or data sheet.

English
6WILO SE 06/2010
3 Transport and interim storage
Inspect the pump/system for transport damage immediately
upon arrival. Any transport damage found must be reported
to the carrier within the prescribed periods.
CAUTION! Risk of damage to the pump!
Risk of damage due to improper handling during transport
or storage.
• The pump is to be protected against moisture and mechan-
ical damage due to impact/shock.
• The pumps must not be exposed to temperatures outside
the range -10°C to +50°C.
4 Applications
Stratos ECO:
WARNING! Health hazard!
The pump must not be used for pumping liquids in the
fields of service/drinking water and food related liquids.
Series Wilo-Stratos ECO circulating pumps are intended for
use in conjunction with hot water heating or similar water cir-
culating systems of variable volume characteristics. The
pump-integrated electronic differential pressure control
provides infinitely-variable speed control to match pump
capacity to actual load demand.
Stratos ECO-Z:
Series Wilo-Stratos ECO-Z circulating pumps are also suita-
ble of handling liquids in the fields of service/drinking water
and food related liquids.

English
Installation and operating instructions Wilo-Stratos ECO 7
5 Product data
5.2 Suitable fluids:
• Heating water acc. to VDI 2035,
• water and water/glycol mixtures up to a 1:1 ratio. Use of gly-
col mixtures require a reassessment of the pump hydraulic
data in line with the increased viscosity at the various mixing
ratios. Only approved makes of additives with corrosion
inhibitors must be used in strict compliance with manufac-
turers’ instructions.
• For the use of other fluids contact Wilo first.
5.1 Technical Data StratosECO
25(30)/1-3
StratosECO
25(30)/1-5
StratosECO-Z
25/1-5
Mains power 1~230 V ± 10%, 50 Hz
Max. power input P1max refer to name plate data
Max. Speed refer to name plate data
Degree of protection IP 44
Water temperature range* from +15°C to +110°C
Service water temperature for
Stratos ECO-Z 25/1-5
from +15°C
to +110°C
Max. working pressure 10 bar
Max. ambient temperature* +40°C
Inf. variable head control 1-3m 1-5m 1-5m
Minimum static inlet pressure 0,3 bar / 1,0 bar
for Tmax +95°C / +110°C
Pipe connection size Rp 1 (1¼)
Port-to-port dimension 180 mm, 130 mm
* Water temperature rangemax. 110 °C at ambient temperature max. 25 °C
max. 95 °C at ambient temperature max. 40 °C

English
8WILO SE 06/2010
5.3 Scope of supply
• Circulating pump, complete,
• Installation and operating instruction.
6 Description and operation
6.1 Pump description

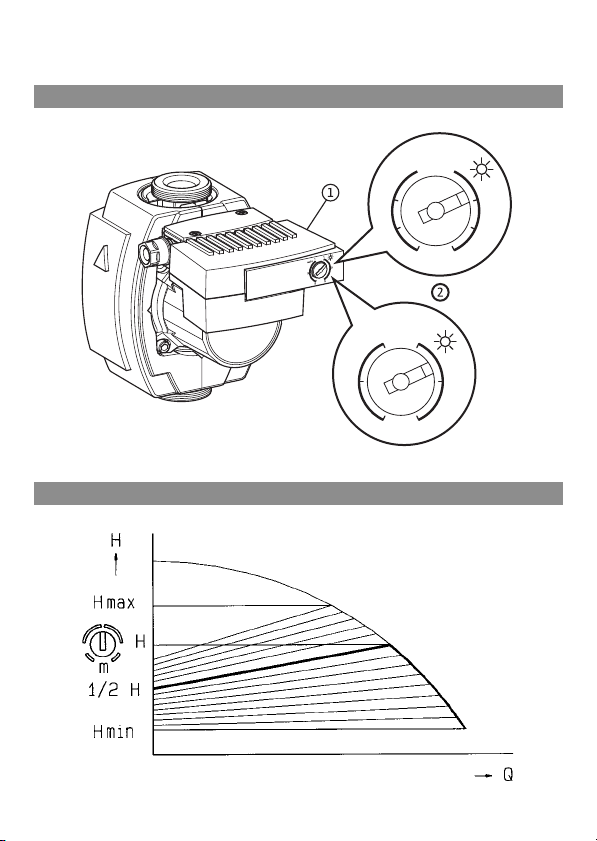

Pump (Fig 1)
The circulating pump is fitted with a wet (canned rotor)
motor.
The circulating water service pump Stratos ECO-Z 25/1-5 is
specially designed for use in conjunction with domestic/
drinking water service systems. It is by material selection and
design, corrosion proofed against any residual, parts in
domestic/drinking water.
For thermal insulation the pump housing is lagged with an
insulation shell.
The motor housing is with an electronic control modul
(Item 1) capable of maintaining the pump generated differ-
ential pressure constant at a preset value between 1 and 3 m,
or 1 and 5 m. Pump capacity is thus matched to the changing
load demand which is particularly significant when using
thermostatic control valves.
The essential advantages and benefits are:
• no bypass relief valves required,
•powersavings,
• reduction of flow noise.

English
Installation and operating instructions Wilo-Stratos ECO 9
Control mode (Fig 2):
Variable differential pressure (Δp-v): The differential pres-
sure setpoint levels being proportionally increased between
½H and H over the permissible flow range. The pump-gener-
ated differential pressure will thus be controlled to the
respective level.
The pump automatically responds to the night setback of
the central heating installation by electronic evaluation from
a temperature sensor. The pump will then switch to the min-
imum speed. On renewed boiler heat up the pump will switch
back to the previously adjusted setpoint level. The night set-
back control can be switched off (Fig. 1, Item 2):
•auto: Night setback ON, control operation to the preselected
setpoint value and automatic, temperature-activated night
setback (additional power savings).
• : Night setback OFF, control operation to the preselected
setpoint value.
Factory setting: Night setback OFF.
NOTE:
In the case of insufficient heating/cooling capacity of the
installation (too low a heat transfer) it must be checked
whether the night setback control is on. In this case it must be
switched off.
Operating elements (Fig 1):
• Dial knob for the differential pressure setpoint (Fig. 1, Item 2).
• Setting range:
• Stratos ECO 25(30)/1-3: Hmin = 1 m, Hmax = 3 m
• Stratos ECO 25(30)/1-5: Hmin = 1 m, Hmax = 5 m
• Stratos ECO-Z 25/1-5: Hmin = 1 m, Hmax = 5 m

English
10 WILO SE 06/2010
7 Installation and electrical connection
Installation and electrical connection should be carried out
in accordance with local regulations and only by qualified
personnel!
WARNING! Risk of personal injury!
The relevant accident precaution regulations must be
observed.
WARNING! Risk of electric shock!
Potential dangers caused by electrical energy must be
excluded.
Local or general regulations [e.g. IEC etc.] and directives
from local energy supply companies are to be followed.
7.1 Installation
• Install pump only after completion of all welding/soldering
and after the pipe system had been thoroughly flushed out.
• Mount the pump in an easily accessible location in order to
facilitate later inspections or exchange.
• When installed in the flow pipe of an open-vented system,
the safety vent must be connected on the inlet side of the
pump.
• Isolating valves should be provided and installed at both suc-
tion and discharge ports of the pump in order to facilitate a
possible pump exchange. They must belocated in such a way
to prevent valve spindle leakage from spilling onto the con-
trol module (upper valve turned sideways).
• Install pump free of stress and with the motor shaft horizon-
tally located. For module locations refer to Fig. 3. Other
arrangements on request.
• Directional arrows on pump body and the insulation shell
indicate the direction of flow.
• If the mounting location of the module is to be altered, turn
the motor housing as follows:

English
Installation and operating instructions Wilo-Stratos ECO 11
• Unclip insulation shell with the aid of a screwdriver and
remove,
• undo the 2 Allen screws,
• turn motor housing including control module.
CAUTION! Risk of damage to the pump!
When turning on the motor housing the gasket may be
damaged. Replace damaged gaskets immediately.
Size of gasket: ∅86 mm OD x ∅76 mm ID x2,0 mm thick,
EP.
• Reset and fix Allen screws,
• refit insulation shell.
7.2 Electrical connection
WARNING! Risk of electric shock!
Electrical connection must be carried out by an electrical
installer authorised by the local power supply company in
accordance with the applicable local regulations.
• Power supply must correspond to name plate data.
• Power wiring to be in accordance with Fig. 4:
• power connections: L, N, PE.
• max. line fuse: 10 A, slow action.
• The connecting cable can optionally be lead through the
cable gland on either right or left. The gland and the blank
plug (PG 11) must than be changed.
• Strictly comply with local earthing regulations.
• All wiring and external switchgear to comply with local regu-
lations (use of conduits, switch air gaps and allpole switches)
in strict accordance with locally ruling regulations.
• The incoming power cable must be of sufficiently large sized
to maintain protection from moisture ingress and to ensure a
tight gland grip (e.g. H05W-F3G1,5 or AVMH-3x1,5).
• Heat resisting cable must be used when installing the pump
in systems with water temperatures above 90°C.
• Cable leads to be routed such to avoid any contact with the
adjoining pipework and/or the pump or motor housings.

English
12 WILO SE 06/2010
8Starting-up
WARNING! Risk of burning!
Note the acute danger of the pump becoming very hot,
depending on the operating conditions of the pump or sys-
tem respectively (fluid temperature). Danger of burning
when touching the pump!
8.1 Initial start-up
Ensure that the pipe system is properly filled and air-vented.
The pump rotor space is automatically vented after a short
running period. Short-term dryrunning will not do harm to
the pump. If, however, manual venting of the pump may
become necessary (not apply for air-venting pump) the fol-
lowing procedure is to be adopted:
• switch-off pump,
• close discharge isolating valve,
WARNING! Risk of scalding!
Depending on fluid temperature and system pressure there
is the possibility of hot water in liquid or gaseous state
suddenly erupting under great force when opening the
vent plug. Note the severe danger of scalding!
• break through the perforation, centrically the name plate and
open the vent screw carefully,
• protect electrical parts from released water,
• carefully move and push pump shaft with a screwdriver,
CAUTION! Risk of damage to the pump!
There is the possibility, depending on the system pressure,
of the pump jamming with the vent plug open. Before
switching on the pump refit and tighten the vent plug.
• refit and tighten vent plug,
• reopen discharge valve,
•switchonpump.

English
Installation and operating instructions Wilo-Stratos ECO 13
8.2 Adjusting the pump capacity
• Select desired control mode (refer to chapter 6.1).
• Preselect pump capacity (head) at the dial button according
to requirements (Fig. 1, Item 2).
• If head requirements are not known it is recommended to
begin with a 1,5 m setting.
• If the heating capacity proves insufficient increase head set-
ting step by step.
• Reduce head setting step by step if the heating capacity is
too high or noise generation is excessive.
• Select night setback mode; switch either to On or Off (refer to
chapter 6.1).
9 Maintenance
Maintenance and repair work should only be carried out by
qualified personnel!
WARNING! Risk of electric shock!
Potential dangers caused by electrical energy must be
excluded.
• The pump must be switched off for all repair work and
secured against unauthorised operation.
• In principle, damage to the connecting cable should only be
repaired by a qualified electrician.

English
14 WILO SE 06/2010
10 Problems, causes and remedies
Pump is switched-on but does not run:
• check electrical fuses,
• check voltage available at the pump (note nameplate data),
• Locked rotor:
• switch off pump,
WARNING! Risk of scalding!
Depending on fluid temperature and system pressure there
is the possibility of hot water in liquid or gaseous state
suddenly erupting under great force when opening the
vent plug. Note the severe danger of scalding!
• close isolating valves at both pump ports and let pump cool
down. Remove vent plug, check freedom of rotation and re-
lock pump rotor by turning the shaft at its slotted end with
the aid of a screwdriver
•switchonpump.
• Should the blockage not be automatically resolved via the
automatic deblocking system, please consult the manual
procedural instructions as described above.
Noisy pump operation
• check differential pressure setting and adjust respectively.
• Heating capacity too low, possibilities to increase:
• Stepp-up setpoint value,
• switch off night setback,
To briefly switch off night setback mode (check on control
operations) it is sufficient to just turn the dial button a little.
• On cavitation, increase system pressure within the permissi-
ble limit.
If no solution can be found, please contact your plumbing
and heating specialist or your nearest Wilo Customer Serv-
ice or representative.

English
Installation and operating instructions Wilo-Stratos ECO 15
11 Spare parts
Spare parts are ordered via a local specialist dealer and/or
Wilo customer service.
In order to avoid queries and incorrect orders, make sure to
mention all data indicated on the rating plate when placing
your order.
Subject to technical alterations!

Deutsch
138 Wilo AG 05/2005 Änderungen vorbehalten
D EG - Konformitätserklärung
GB EC – Declaration of conformity
F Déclaration de conformité CE
(gemäß 2004/108/EG Anhang IV,2 und 2006/95/EG Anhang III,B,
according 2004/108/EC annex IV,2 and 2006/95/EC annex III,B,
conforme 2004/108/CE appendice IV,2 et 2006/95/CE appendice III B)
Hiermit erklären wir, dass die Bauarten der Baureihe : Stratos ECO
Herewith, we declare that this product: Stratos ECO Z
Par le présent, nous déclarons que cet agrégat : Stratos ECO L
Stratos ECO ST
Stratos ECO BMS
in der gelieferten Ausführung folgenden einschlägigen Bestimmungen entspricht:
in its delivered state complies with the following relevant provisions:
est conforme aux dispositions suivants dont il relève:
Elektromagnetische Verträglichkeit - Richtlinie 2004/108/EG
Electromagnetic compatibility - directive
Compatibilité électromagnétique- directive
Niederspannungsrichtlinie 2006/95/EG
Low voltage directive
Directive basse-tension
und entsprechender nationaler Gesetzgebung.
and with the relevant national legislation.
et aux législations nationales les transposant.
Angewendete harmonisierte Normen, insbesondere: EN 6035-2-51
Applied harmonized standards, in particular: EN 61000-6-2
Normes harmonisées, notamment: EN 61000-6-3
Bei einer mit uns nicht abgestimmten technischen Änderung der oben genannten Bauarten, verliert diese Erklärung ihre Gültigkeit.
If the above mentioned series are technically modified without our approval, this declaration shall no longer be applicable.
Si les gammes mentionnées ci-dessus sont modifiées sans notre approbation, cette déclaration perdra sa validité.
Dortmund, 20.05.2010
Erwin Prieß
Quality Manager
WILO SE
Nortkirchenstraße 100
44263 Dortmund
Germany
Document: 2109722.1
