Operating Manual
Pressure Sprayer 16 ℓ
62308
Illustration similar, may vary depending on model
Please read and follow the operating instructions and safety information prior to initial operation.
Technical changes reserved!
Illustrations, functional steps and technical data may deviate insignificantly due to continuous further
developments.

© by WilTec Wildanger Technik GmbH Item 62308 Page 2
http://www.WilTec.de
http://www.aoyue.eu 05 2021-1
http://www.teichtip.de
The information contained in this document may alter at any time without prior notice. No part of this
document may be copied or otherwise duplicated without prior written consent. All rights reserved.
WilTec Wildanger Technik GmbH cannot be held liable for any possible mistakes in this operating
manual, nor in the diagrams and illustrations shown.
Although WilTec Wildanger Technik GmbH has made every possible effort to ensure that this operat-
ing manual is complete, accurate and up-to-date, errors cannot be ruled out entirely.
If you have found an error or wish to suggest an improvement, we look forward to hearing from you.
Send us an e-mail to:
[email protected]
or use our contact form:
https://www.wiltec.de/contacts/
The most recent version of this manual in several languages can be found in our online shop:
https://www.wiltec.de/docsearch
Our postal address is:
WilTec Wildanger Technik GmbH
Königsbenden 12
52249 Eschweiler
Germany
Do you wish to collect your goods? Our address for collection is:
WilTec Wildanger Technik GmbH
Königsbenden 28
52249 Eschweiler
Germany
In order to shorten the waiting time and to allow for an easy on-site processing, we kindly ask you to
contact us briefly beforehand or to place your order via the webshop.
E-mail: [e-mail]
Phone: [phone]
Fax: [phone]
To return your goods for exchange, repair or other purposes, please use the following address. Atten-
tion! To allow for a trouble-free complaint or return, it is important to contact our customer service team
before returning your goods.
Retourenabteilung
WilTec Wildanger Technik GmbH
Königsbenden 28
52249 Eschweiler
Germany
E-mail: [email protected]o
Phone: [phone]
Fax: [phone])

© by WilTec Wildanger Technik GmbH Item 62308 Page 3
http://www.WilTec.de
http://www.aoyue.eu 05 2021-1
http://www.teichtip.de
Introduction
Thank you for choosing to purchase this quality product. To minimise the risk of injury, we ask you to
always take some basic safety precautions when using this product. Please read this operating manu-
al carefully and make sure that you understand it.
Keep these operation instructions in a safe place.
Exploded view

© by WilTec Wildanger Technik GmbH Item 62308 Page 4
http://www.WilTec.de
http://www.aoyue.eu 05 2021-1
http://www.teichtip.de

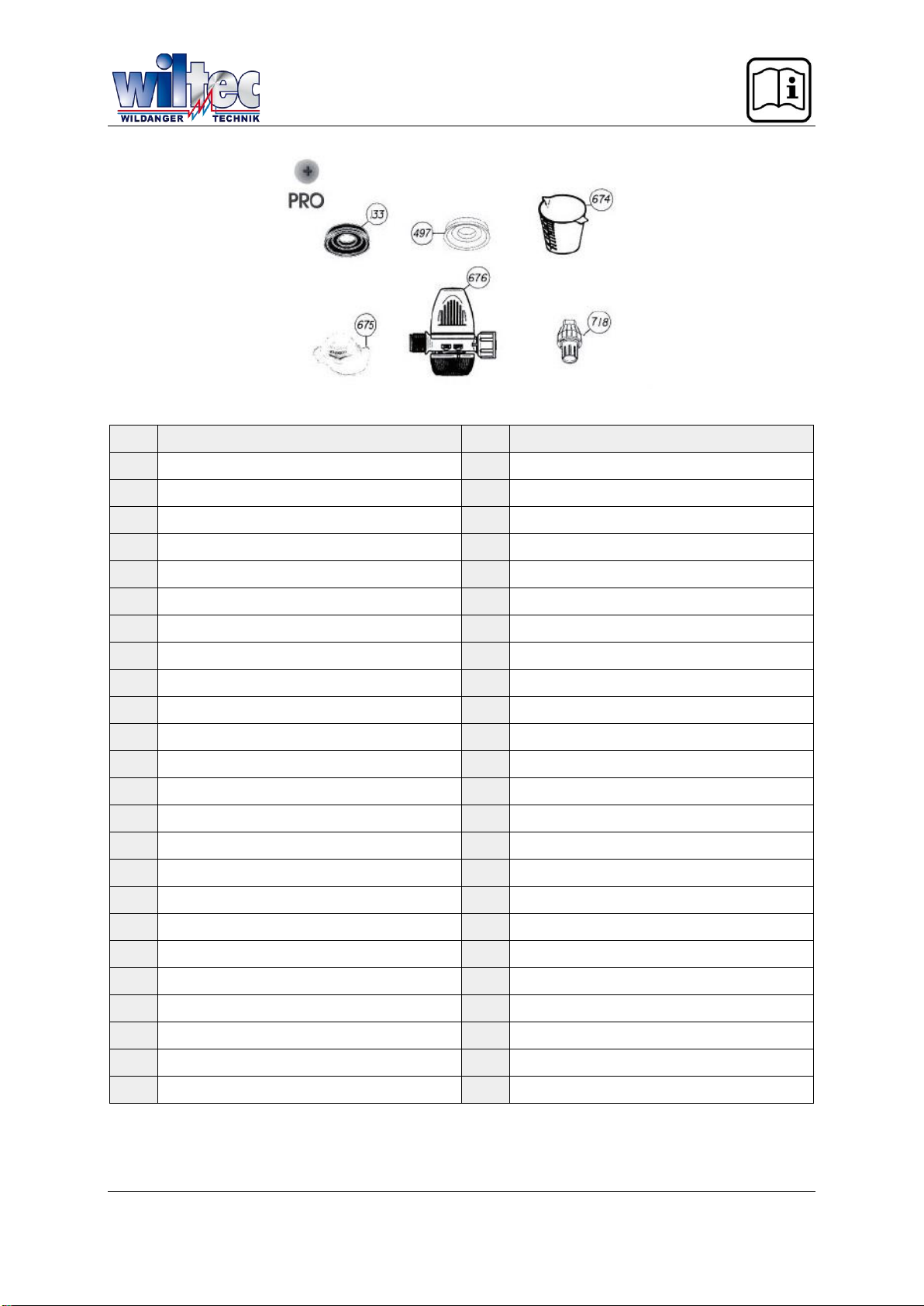

Parts List
№
Designation
№
Designation
100
Nozzle 1.5 mm
369
Belt
101
O-ring AN-8
495
Metal pin
102
Flat washer
497
Synthetic seal
105
Container filter
608
O-ring AN-6
106
Pump piston
672
Pump
115
Screw 8×40 and flat washer
674
Dosing unit 100 mℓ
119
INOX ball ⌀12 mm
675
Dust mask (not included)
126
Handle
676
Pressure controller
133
Rubber seal
700
Elbow (complete)
167
O-ring AN-14
701
Spray bend
290
Hose coupling
703
Hose (complete)
291
Nut
704
Container cap
318
Belt fixing
710
Cylinder with ball
338
Fastening clip
718
Herbicide nozzle
346
Filter
819
Belt fixing
349
O-ring AN-3
883
Spray handle (complete)
357
Handle
891
Conduit with sleeve
358
Spray handle
892
Spray gun (complete)
359
Hook
894
Pump lever (complete)
363
Filter spring
900
Handle cover
364
Container 16 ℓ
904
Filter tube with O-rings
365
Shut-off valve
953
Spray gun holder
366
Circlip
995
Pump (complete)
367
Screw cap

© by WilTec Wildanger Technik GmbH Item 62308 Page 5
http://www.WilTec.de
http://www.aoyue.eu 05 2021-1
http://www.teichtip.de
Features
•Resistant to treatment products (including copper derivatives)
•For left- and right-handed users
•Easy cleaning of built-in filter
•Continuous spraying thanks to lockable handle
•Easy level monitoring
•With exchangeable herbicide nozzles (718), dosing unit (674), pressure controller (676) and
sealing rings (133, 497).
Initial operation
•Connect the hose (703) to the spray gun (892) and the pump (672, 995). Attach the carrying
belts to the bottom of the container. Use the yellow belt fixing (318) to secure them (see fig-
ures 1-4). For transport reasons, the belt fixing (318) is stored inside the container filter (105).
•Unscrew the container cap (704) and fill in the fluid. Leave the filter in the container.
•Strap the sprayer to your back. Adjust the length of the carrying belts to your personal needs.
•Push the pump lever down 8–10 times to build up the required pressure. Then use the spray
handle (358) to spray the fluid. Set the desired spray jet on the nozzle (100). Note that 10–
12 strokes⁄min generate a flow rate of 0.6–0.9 ℓ⁄min.

© by WilTec Wildanger Technik GmbH Item 62308 Page 6
http://www.WilTec.de
http://www.aoyue.eu 05 2021-1
http://www.teichtip.de

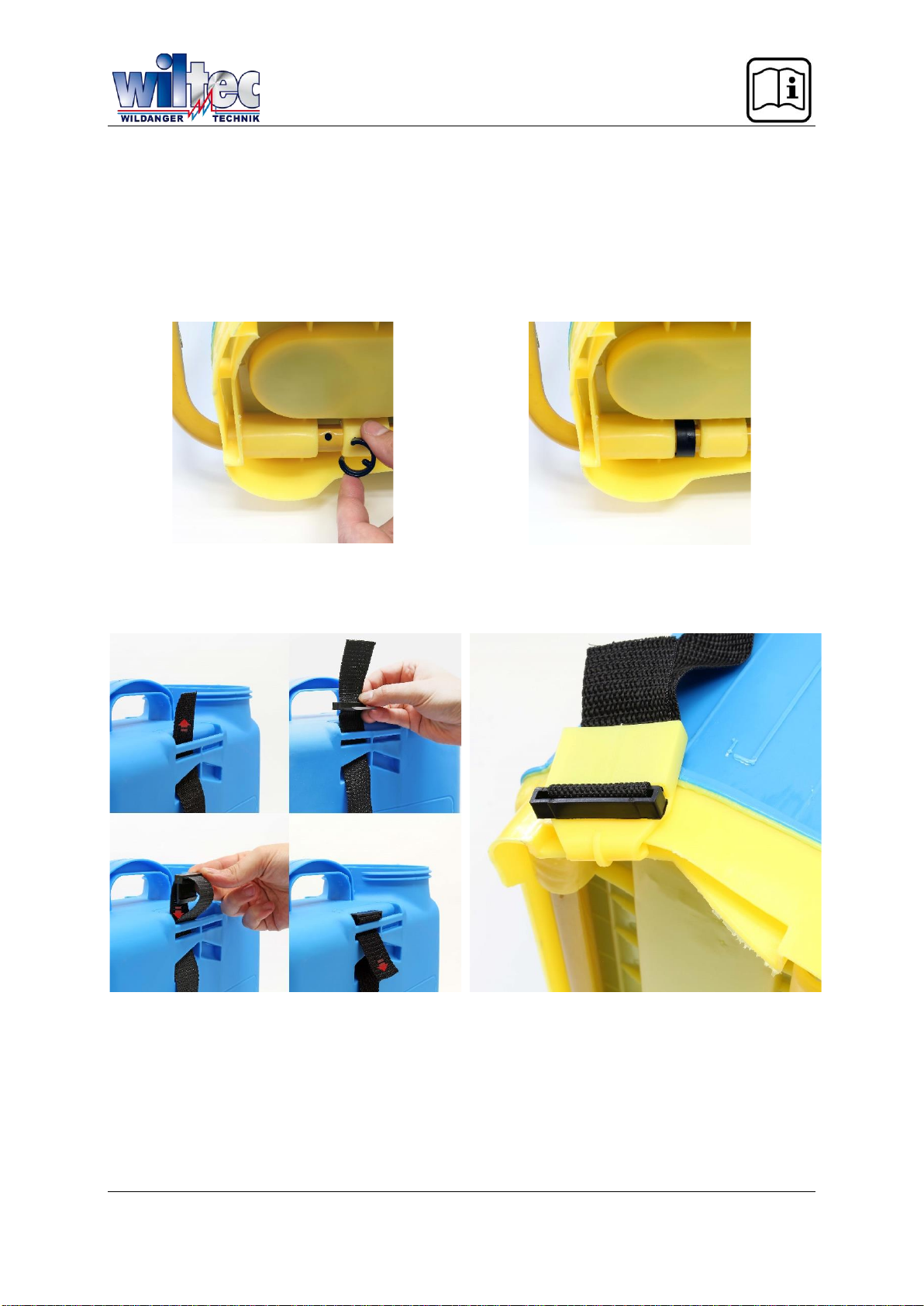

Note! The sprayer is pre-assembled with the pump lever for left-hand and the spray gun for right-hand
use. If you want a reverse arrangement, proceed as follows:
1. Use a fitting screwdriver to lift the spray gun holder (953) out of its fit on the vertical part of the
joint rod.
2. Remove the metal pin (495) and separate fastening clip (338) on the bottom side of the con-
tainer from the pump lever. Use a screwdriver if necessary.
3. Pull the pump lever out of the front fit on the side of the container and insert it into the back fit.
Then reinstall the spray gun holder (953), metal pin (495), and fastening clip (338).
4. Remove the carrying belts from their fixing. Thread the belts on the opposite side of the con-
tainer in the same way. Secure the belts to the bottom of the container with the belt fixing
(318, 819).

© by WilTec Wildanger Technik GmbH Item 62308 Page 7
http://www.WilTec.de
http://www.aoyue.eu 05 2021-1
http://www.teichtip.de
Maintenance and troubleshooting
•The appliance, the hose and the filter must be cleaned after every utilisation. Always use
clean water. If necessary, add some washing-up liquid to the water.
•Replace sealing rings (133, 497):
Use a fitting screwdriver to lift the spray gun holder (953) out of its fit on the vertical part of the
joint rod. Then release the metal pin (495) and pull out the pump (672, 995). While pulling out
the pump, the piston will fall into the container. Pick it up. Insert the cross at the bottom of the
piston into the slots of the valve (365) and unscrew the valve. Then remove the ball. Replace
the sealing rings (133, 497) and screw the valve back in. Don't forget to reinsert the ball into
the valve. Use the cross at the bottom of the piston to screw the valve (365) firmly back onto
the pump. Reinstall pump, spray gun holder, and pump piston.
•Nozzle (100) blocked:
Clean nozzle with a jet of water.
•Spray handle (358) stuck:
The integrated filter (346) may be polluted. Detach the handle (357) and pull out the filter.
Clean filter. Lubricate all sealing rings and reassemble all parts.

© by WilTec Wildanger Technik GmbH Item 62308 Page 8
http://www.WilTec.de
http://www.aoyue.eu 05 2021-1
http://www.teichtip.de
Safety standards in the handling of herbicides
Storage
•Herbicides may only be stored in a room specifically designated for this purpose.
•The room must have good ventilation and be lockable. It must also be inaccessible to children
and animals.
•Keep all equipment for mixing and preparing spray fluids and using the pressure sprayer in the
same room.
Preparing the fluid
•First, check the expiration date and condition of the product.
•Read the instructions on the labels of the packaging and in the manuals. Follow the manufac-
turer’s instructions precisely when using the product.
•Use only suitable and appropriately labelled equipment for mixing and preparing the fluid.
•After preparing, wash your hands and face carefully.
•Empty packaging or packaging with residues must be disposed of in accordance to regula-
tions.
During use
•Wear appropriate protective equipment.
•The product must not come into contact with skin and eyes.
•Do not eat, drink or smoke during use.
•Do not use the appliance in strong wind or headwind.
•The herbicide must not reach neighbouring estates or areas under cultivation. You must also
ensure that it does not reach wells, rivers or ponds.
•The spray handle can be locked to allow continuous spraying (see figure).
After use
•Dispose of empty packaging in accordance to regulations.
•Clean appliance and equipment thoroughly.
•Take care of personal hygiene and clean the clothes you wore during use.

© by WilTec Wildanger Technik GmbH Item 62308 Page 9
http://www.WilTec.de
http://www.aoyue.eu 05 2021-1
http://www.teichtip.de
Information in case of poisoning
•In case of poisoning or signs of poisoning, consult a doctor or a hospital immediately. If possi-
ble, take the packaging label of the herbicide with you.
•Clean affected skin areas with fresh water only. Do not use any household remedies.
Precautionary measures
•Strictly follow the instructions on the packaging labels that mark dangerous or toxic substanc-
es.
•For each product, observe the local regulations and the permitted period of application.
•If possible, do not use at high temperatures.
•Be careful near electrical equipment.
•Do not use combustible or flammable material.
•The appliance is intended for use only with water, herbicides, insecticides, or fungicides.
•Pressure sprayers must be subjected to a safety check by qualified personnel at least once a
year.
•The pressure sprayer must always be used with the original hose from the manufacturer (⌀6–
12 mm).
Important Note:
Reproduction and any commercial use (of parts) of this operating manual requires a written permission
of WilTec Wildanger Technik GmbH.
