Introduction
Thank you for purchasing this quality product. To minimi e the risk of injury we urge that our cli-
ents take some basic safety precautions when using this device. Please read the operation in-
structions carefully and make sure you have understood its content.
Keep these operation instructions safe.
Safety instructions
Before use, read the safety information and instructions in this manual carefully. Failure to observe the
information can lead to injuries and property damage.
Make sure that the screw connection is tight during assembly to ensure safe use.
Check the spreader for damage before each use. Do not use it if it is defective.
The spreader is intended for private use only. It is not suitable for commercial or industrial use.
Warning! This device may be used by people with limited physical, sensory or mental capabilities or a
lack of experience or the necessary specialist knowledge if they have been introduced to the use of
the device and are supervised by a person who is familiar with the device.
•Read the safety information for towing vehicle owners and towing vehicles. Know how to ope-
rate your tractor before using the spreader.
•Children must not use the device and must be supervised in its vicinity to ensure that they do
not play with the device.
•Read the safety instructions for towing vehicle owners and towing vehicles. Know how to ope-
rate your tractor before using the spreader.
•Wear appropriate protection, for example protective glasses, protective goggles, safety shoes,
etc.
•Keep body parts away from moving parts.
•When towing the spreader, do not drive too close to a stream or ditch and watch out for holes
and other hazards that could cause you to lose control of the spreader and tractor.
•Only use the spreader if it is safe to stand and in a stable working position. Pay particular at-
tention to safe use on black ice and in wet weather.
•The spreader is designed exclusively for spreading fertilizers, seeds or road salt. The use of
other filling materials is not permitted and contradicts proper use.
•When spreading fertilizer and road salt, observe the local regulations and the safety instructi-
ons from the grit manufacturer.
•Do not use the spreader near other people or animals.
•Only use the spreader at walking pace.
•Do not use the spreader in rain or strong wind. Never leave it out in the rain.
© by WilTec Wildanger Technik GmbH rtikel 50144 Seite 3
http://www.WilTec.de
http://www.aoyue.eu 11 2020-1
http://www.teichtip.de
Parts list
Part number Description Qty
1 Hopper 1
1-1 Control cable 1
2 wheel 2
3 Spinner disc 1
3-1 Gear casing 1
4 Steering link connector 2
5 Rear hopper support 2
6 Right hopper support 1
7 Left hopper support 1
8 Split bushing 2
9 Front bracket 1
10 xle 1
11 Cotter pin 1
12 Screw M6x35 1
14 Screw M6x50 5
15 Large flat washer 1
16 Small flat washer 15
17 Lock washer 2
18 Hex nut M6 14
19 Screw M6x55 1
20 Release pin 1
21 Screw M6x40 8
22 Cable lock nut 1
23 Slot 1
© by WilTec Wildanger Technik GmbH rtikel 50144 Seite 4
http://www.WilTec.de
http://www.aoyue.eu 11 2020-1
http://www.teichtip.de
Assembly
Step 1: Gear casing and axles assembly
Nr. Description Qty
3-1 Gear casing 1
10 xle 1
12 Screw M6x35 1
16 Small flat washer 1
18 Hex nut M6 1
Push the axle (10) through the gear casing (3-1)
and secure it with the M6x35 screw (12), the
small washer (16) and the hexagon nut (18).
Step 2: Frame and axle assembly
Nr. Description Qty
5 Rear hopper support 2
6 Right hopper support 1
7 Left hopper support 1
14 Screw M6x50 4
16 Small flat washer 4
18 Hex nut M6 4
Fasten the rear hopper supports (5) to the right
hopper support (6) and the left hopper support
(7), using the M6x50 screw (14), small washer
(16) and hexagon nut (18) as shown in the figure
above.
© by WilTec Wildanger Technik GmbH rtikel 50144 Seite 6
http://www.WilTec.de
http://www.aoyue.eu 11 2020-1
http://www.teichtip.de
Step 3
Nr. Description Qty
9 Front bracket 1
21 Screw M6x40 2
16 Small flat washer 2
18 Hex nut M6 2
Fasten the front bracket (9) with the M6x40 screw
(21), small washer (16) and M6 hexagon nut (18)
to the right support (6) and left hopper support (7).
Step 4
Nr. Description Qty
2 Wheel 2
15 Large flat washer 1
11 Cotter pin 1
14 Screw M6x50 1
16 Small large washer 1
18 Hex nut M6 1
Slide a wheel (2) over the left side of the xle (10), followed by a large flat washer (15). Insert the
cotter pin (11). Place the second wheel (2) on the right side of the axle (10) and secure it with the
M6x50 screw (14), small washer (16) and hexagon nut (18).
© by WilTec Wildanger Technik GmbH rtikel 50144 Seite 7
http://www.WilTec.de
http://www.aoyue.eu 11 2020-1
http://www.teichtip.de
Step 4-1
Nr. Description Qty
1 Hopper 1
23 Slot 1

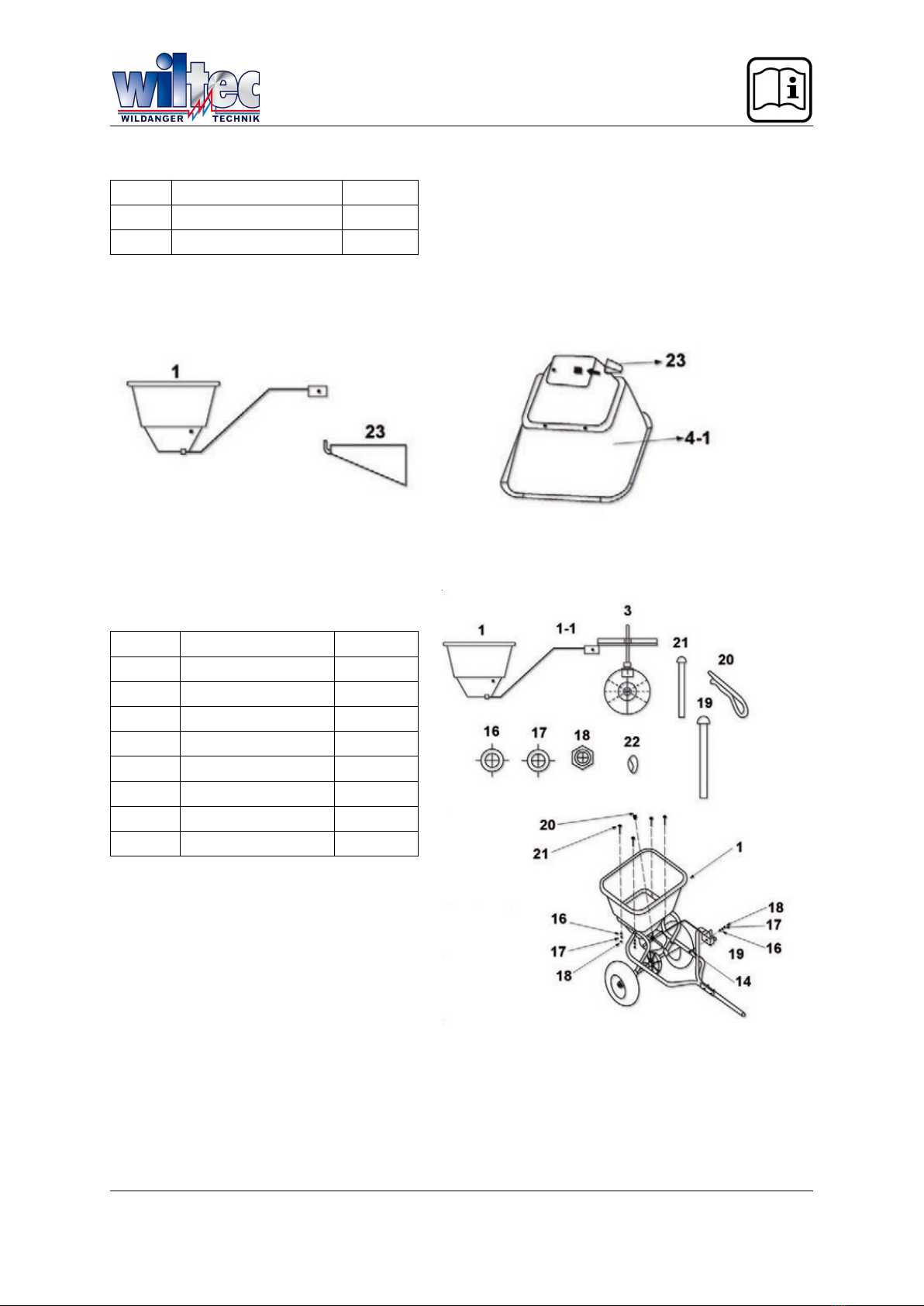

Turn the hopper (1) upside down and push the slot (23) completely into the guide channel on the un-
derside of the hopper.
Step 5
Nr. Description Qty
1 Hopper 1
21 Screw M6x40 4
16 Small flat washer 5
18 Hex nut M6 5
3 Spinner disc 1
20 Release pin 1
19 Screw M6x55 1
17 Lock washer 2
Fasten the hopper (1) to the supports (5,6,7)
with the M6x40 screw (21), small washer (16) and hexagon nut (18). Fasten the hopper to the sprea-
ding disc (3) with the release pin (20).
Fasten the control cable (1-1) to the front bracket (9) with an M6x55 screw (19), a small flat washer
(16), a lock washer (17) and a cable lock nut (22).
Note! The control cable (1-1) comes pre-installed on the hopper.
© by WilTec Wildanger Technik GmbH rtikel 50144 Seite 8
http://www.WilTec.de
http://www.aoyue.eu 11 2020-1
http://www.teichtip.de
Step 6
Nr. Description Qty
4Steering link connec-
tor
2
21 Screw M6x40 2
16 Small flat washer 2
14 Screw M6x50 2
18 Hex nut M6 2

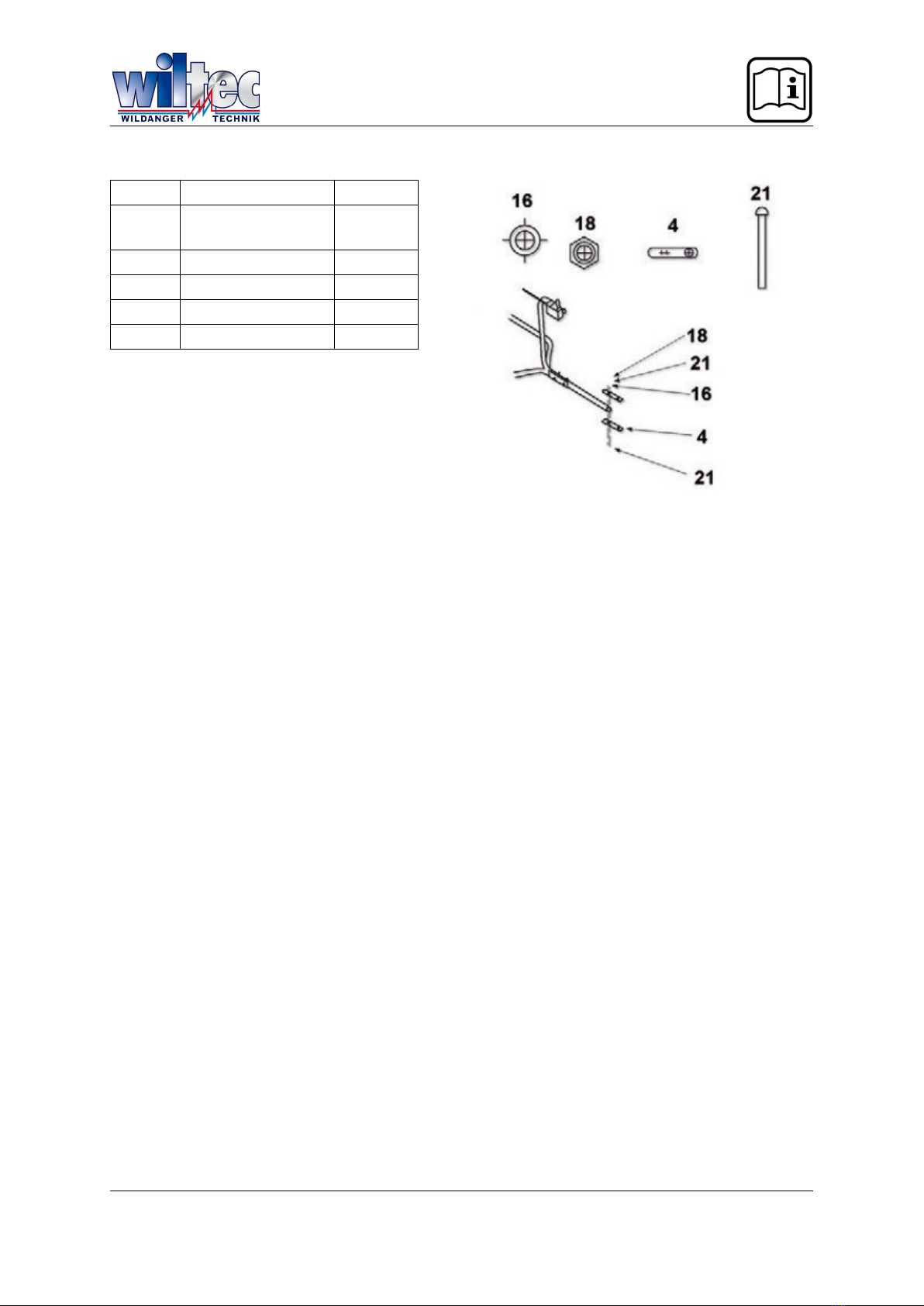

Fasten the steering link connector (4) to
the front bracket (9) with an M6x40 screw(21),
a small washer (16) anda hex nut (18).
