Wincor Nixdorf CINEO C1030 User manual

CINEO C1030
Mass Coin Recycling System
Installation (January 2015)

All product names mentioned in this document are registered trademarks.
Copyright © Wincor Nixdorf International GmbH, 2015
All rights including the rights to the translation, reprinting, and transmission or copying by any means, in whole or in
part, are reserved. Offenders will be liable for damages. All rights including rights resulting from a patent grant or
registration of a utility or design are reserved.
Refer to protection notice ISO 16016

Contents
Introduction................................................................................................................................ 1
About this manual................................................................................................................... 1
Spare Parts ................................................................................................................................. 1
Warranty .................................................................................................................................... 2
Unpacking and Checking the System ......................................................................................... 2
Setting Up the Device................................................................................................................. 3
Sketch of the Installation Area................................................................................................ 3
ESD (Electrostatic Sensitive Devices) ......................................................................................... 4
Important Notes......................................................................................................................... 5
Connecting Peripherals .............................................................................................................. 6
LCD Displays ............................................................................................................................ 6
Tools you need ........................................................................................................................... 7
Requirements ............................................................................................................................. 8

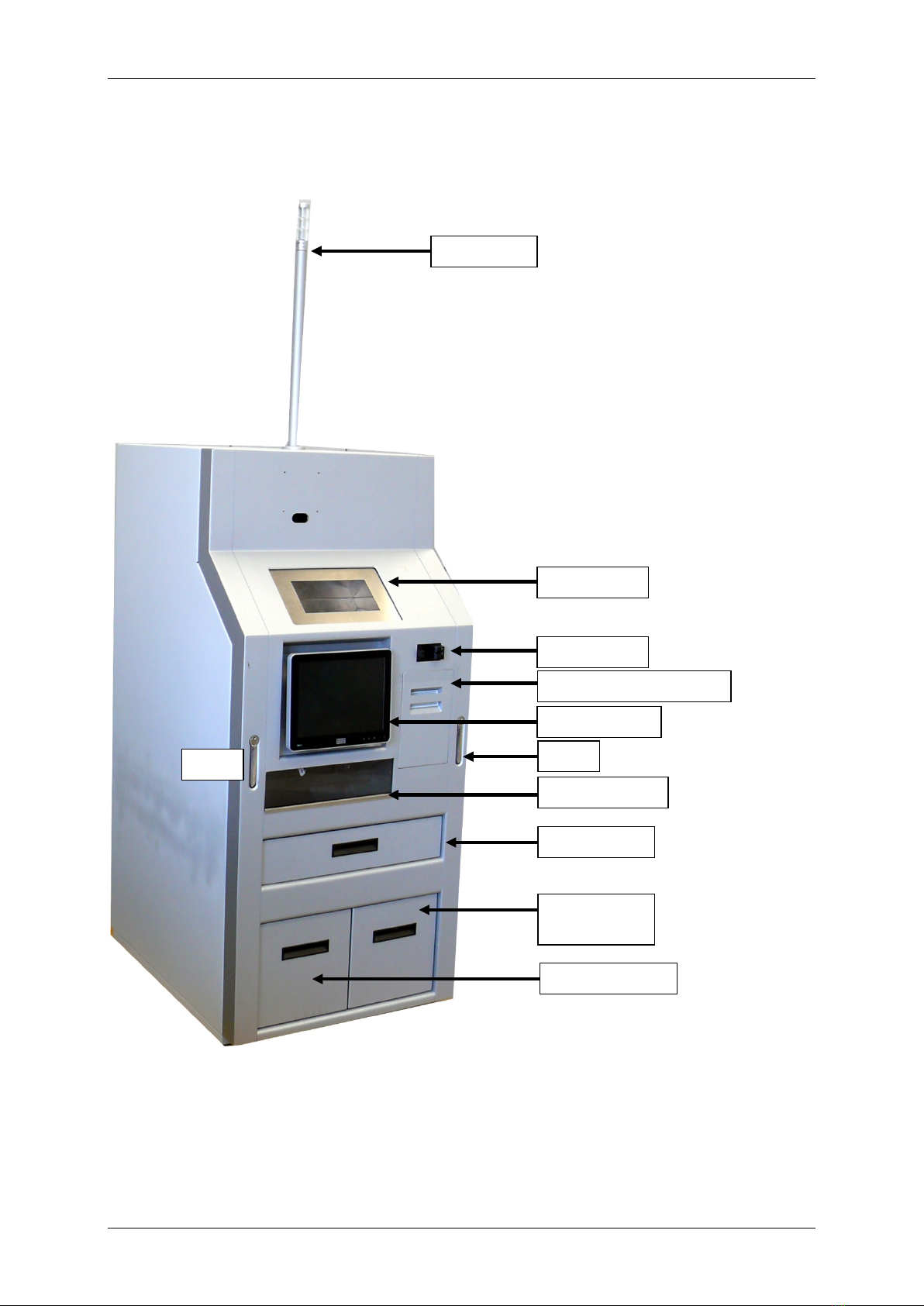

Components ............................................................................................................................... 9
Hopper .................................................................................................................................. 10
Installing the CINEO C1030 in the Store................................................................................... 11

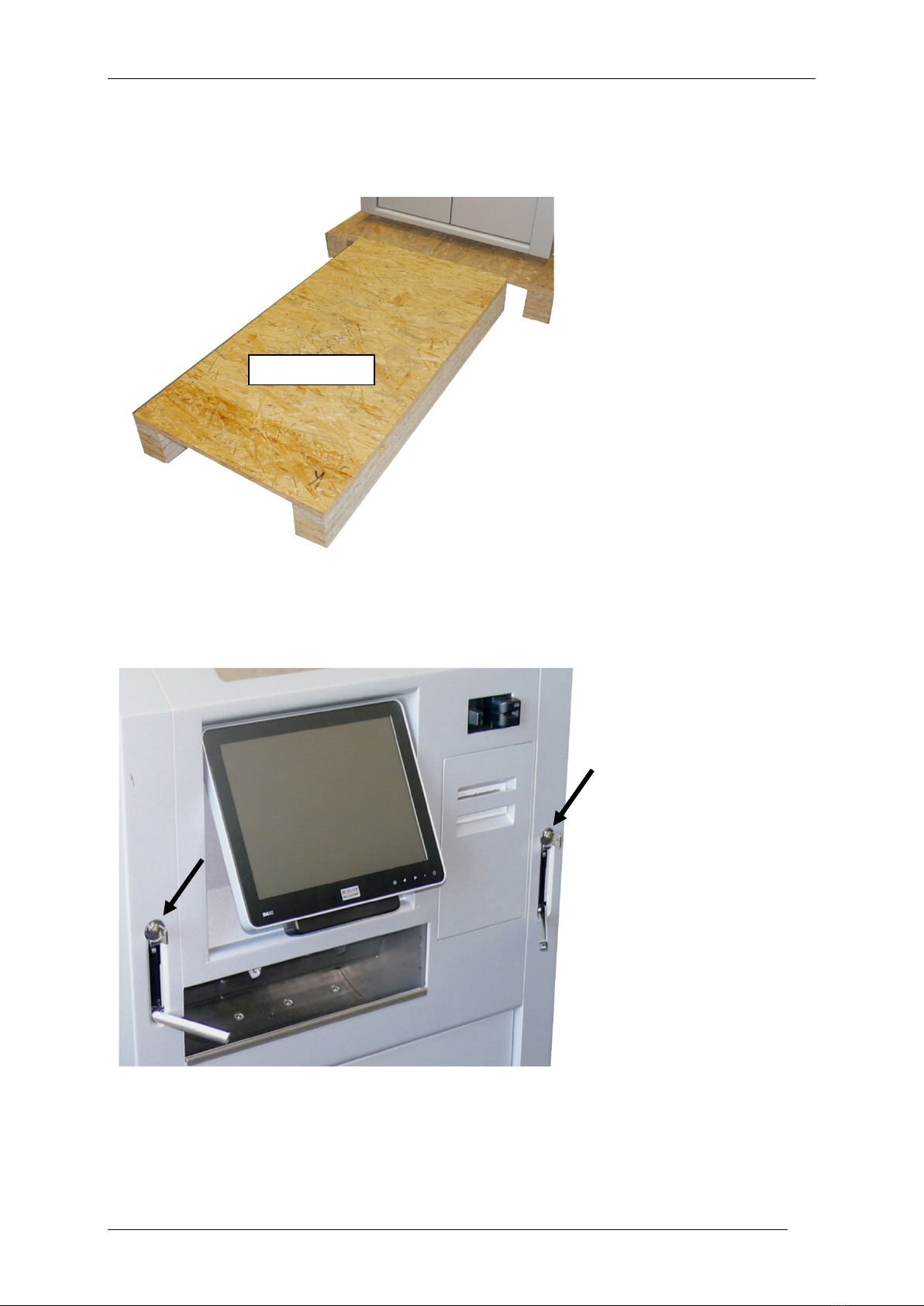

Removing the Transportation Locks ..................................................................................... 11
Safety Feature Conveyer Unit............................................................................................ 18
Connecting the CINEO C1030................................................................................................... 22
Start up.................................................................................................................................. 22
Power Connection and LAN Support .................................................................................... 22
Disconnecting the System from the Mains........................................................................... 23
Appendix................................................................................................................................... 24
Dimensions............................................................................................................................ 24
Block Diagram ....................................................................................................................... 25
Technical Data....................................................................................................................... 26
Environmental Requirements............................................................................................... 26
Further Documentation ........................................................................................................ 27
Cleaning Instructions ............................................................................................................ 27
Maintenance and Service .................................................................................................. 27
Approved Cleaning Materials ............................................................................................ 28
Certificates ............................................................................................................................ 29
CE Marking......................................................................................................................... 29
Tested Safety ..................................................................................................................... 29
FCC-Class A Declaration..................................................................................................... 29

Recycling the CINEO C1030................................................................................................... 30

Spare Parts
1
Introduction
With the CINEO C1030 Wincor Nixdorf offers an entry-level model for coin processing in cash
offices. This system processes up to 8 coin denominations and recycles them. Thus, coins are
available again for dispensing. Capacity per denomination averages 1,200 coins (based on
the 1 € coin).
The CINEO C1030 is suitable for use in midsize store formats such as supermarkets,
discounters or specialty stores.
About this manual
This manual refers to technically trained personnel only.
It provides all necessary information for installing the CINEO C1030 at site.
Notes are marked by this symbol.
Caution! Identifies action requiring caution.
The responsibility for all technical and special prerequisites for the installation of the
CINEO C1030 is borne by the customer. A detailed list of customer responsibilities
is given in this manual.
Installation as well as connection of CINEO C1030 may only be executed by technically
trained personnel.
Strictley follow the safety instructions given in this document when handling the
CINEO C1030. Find further safety, installation, and maintenance instructions in the manuals
supplied with the components.
In case of doubts or questions please contact Wincor Nixdorf International (WN).
Spare Parts
All information on the service-related spare parts and field replaceable units as well as
order numbers and prices can be found in the Wincor Nixdorf Partnernet for qualified
service partners (http://partnernet.wincor-nixdorf.com) under the menu option:
ProductsServicesSpare parts Spare part info tool "WNSpare_V4.4".
Orders can be made in the "Wincor Nixdorf Spare Part Portal":
https://logistics.wincor-nixdorf.com/index.html

Unpacking the System
2
Warranty
Wincor Nixdorf guarantees generally a warranty engagement for 12 months beginning with
the date of delivery. This warranty engagement covers all damages which occur despite a
normal use of the product.
Damages because of
improper or insufficient maintenance,
improper use of the product or unauthorized modifications of the product,
inadequate location or surroundings
will not be covered by the warranty.
For further information on the stipulation consult your contract.
All parts of the product which are subject to wear and tear are not included in the warranty
engagement. For detailed warranty arrangements please consult your contract documents.
Unpacking and Checking the System
Unpack the system and verify that the scope of delivery is identical to the information on the
delivery ticket.
Should you notice any
transport damages or
discrepancies between package contents and delivery ticket or
functional defects,
please inform your contracting parties or the branch office of Wincor Nixdorf immediately.
Please indicate the number of your delivery ticket and delivery ticket position and serial
number of the respective device.
It is absolutely necessary to check the function of the original equipment before
you
perform any changes. Only then it is possible to accept a functional defect as a
claim.
We recommend to save the original packaging for transport at a later time
(protection from impact and shock).

Sketch of the Installation Area
3
Setting Up the Device
Install the CINEO C1030 into an environment without extremly conditions. The device should
be placed on a level ground. Avoid vibrations, dust, moisture, heat and strong magnetic
fields.

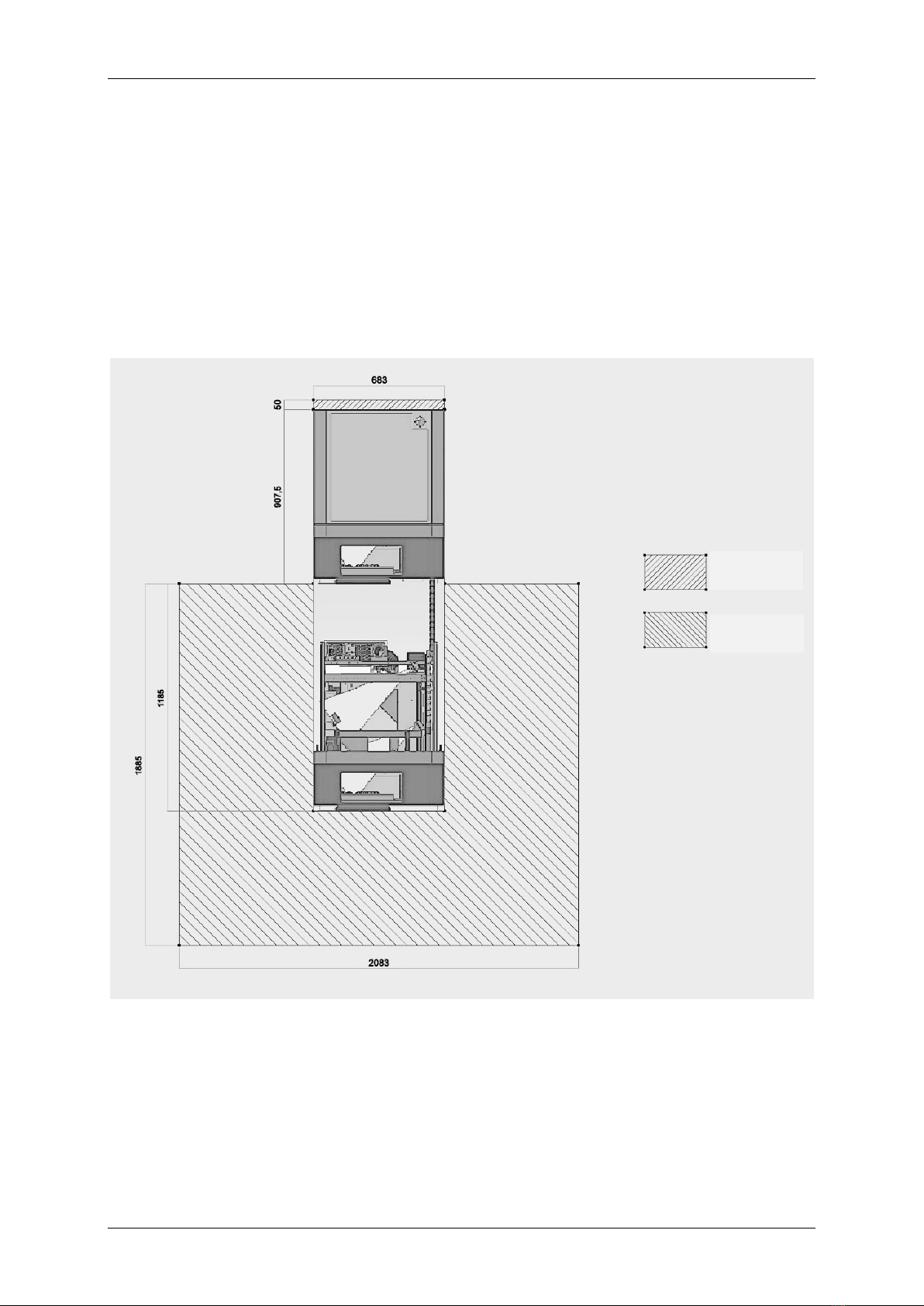

Sketch of the Installation Area
For carrying out connections and service work observe thefollowing dimensions of the
installation area!
Connection
clearance
Service area

ESD
4
ESD (Electrostatic Sensitive Devices)
Electrostatic sensitive devices (ESD) may be marked with this sticker.
When you handle components fitted with ESDs, you must observe the following points
under all circumstances:
Unplug the power before inserting or removing components containing ESDs.
While working with ESDs you must discharge yourself by using an ESD wrist strap or
grounding cable to connect yourself at all times to the earth connector of power
socket or a grounded object.
Place all components containing ESDs on a static-safe base.
The equipment and tools you use must be free of static charges.
Always hold boards with ESDs by their edges. Do not touch the components.
Never touch pins or conductors on boards fitted with ESDs.

Important Notes
5
Important Notes
Appliances supplied by Wincor Nixdorf International GmbH comply with the respective
safety regulations for data-processing installations and information technology installations,
including electrical office equipment for use within an office environment.
Whenever work of any kind is done on the device, as well as when data cables are
plugged and unplugged, the device must be completely disconnected from the line
voltage.
Appliances may only be repaired by authorized technicians.
Unauthorized opening of the housing or inexpert repairs can result not only in
considerable personal danger, but will also invalidate your warranty and liability
protection.
Always consult the enclosed documentation before doing any work with this
appliance.
If this device is brought from a cold environment into a heated place of business,
condensation may occur. Before operation, the device must be completely dry.
Therefore, an acclimatization period of at least two hours must be adhered to.
Always lay the supply leads and cables in such a way that they cannot be stepped on
or tripped over.
Only touch green marked handles and knobs for moving parts.
Exchange damaged cables immediately.
In order to completely disconnect the device from the power source, turn the device
off and use the separator in the fuse box\building installation.
Make sure that no objects (such as paper clips) can reach the interior of the device,
since electrical shocks or short-circuits could result.
To avoid overheating of the power supply unit ensure that the CINEO C1030 receives
adequate ventilation.
During an electrical storm, data cables should not be plugged in or unplugged.
Keep the device away from vibrations, airstreams/ventilations, dust, humidity and
heat.
Ensure that used parts are disposed of in an environmentally friendly manner.

Important Notes
6
In case of an accident (such as a damaged housing, entry of liquids or foreign
objects), switch the device off and use the separator to completely remove the
device from power.
CINEO C1030 is the result of state-of-the-art technology. Therefore, please also
ensure that the CINEO C1030 is operated under modern building and technical
conditions in order to ensure flawless and efficient operation. The appliance and
other information technology hardware should only be connected to electrical supply
networks with a separate protective earth wire (PE). This type of electrical supply
network is referred to as a TN-S network. Do not use PEN conductors.
Also follow the recommendations set forth in DIN VDE 0100 Part 540, Appendix C2 as
well as EN50174-2, §5.4.3, National Electrical Code ANSI/NFPA 70-2005 and Canadian
Electrical Code, Part I, CSA C22.1-02. This will help prevent malfunctions.
Turn off the device when working on the cutter of the printer.
Always keep the ventilation slots free of obstruction to ensure adequate air
circulation and avoid overheating.
Transport the appliance only in its original packaging (to protect it against
knocks and bumps).
If a lithium battery is supplied with the appliance, ensure that the battery is
replaced with an equivalent type. Otherwise there is danger of explosion!
Lithium batteries may only be replaced with identical types or other types
recommended by the manufacturer.
Batteries must be disposed of according to local regulations on the disposal of
special waste.
Connecting Peripherals
Use only shielded cables when connecting devices to the system to ensure compliance
with international Rules and Regulations for radiated emission as well as to achieve a
high immunity against external disturbances.
LCD Displays
If the display element is damaged and the liquid crystal solution leaks out onto your hands
or clothing, please wash your hands or clothing immediately under running water for at
least 15 minutes, using soap or alcohol. If the liquid comes into contact with your eyes, consult
a medical doctor immediately.
Before opening the device, make sure, that the device is disconnected from the main power
supply. Only authorized personnel is permitted to open the device.

Tools you need
7
Tools you need
Keep the following tools at hand for working on the CINEO C1030:
Socket wrench 7 mm (blind screen device front and compartment
front)
Open-end wrench 30 mm
Allen screw H6 (to remove the C1030 from the palett)
Flathead screwdrivers (two sizes) e.g. 1.0 x 6; mm (hinge printer flap)
Torx screwdrivers 6, 8, 10, 15, 20 and 25 mm
Phillips screwdriver PHO, 1
Antistatic kit
Air level

Customer Requierements
8
Requirements
Before the CINEO C1030 installation can be started, the customer is held responsible to
provide the following:
•Appropriate drawings concerning location of the equipment as well as site wiring
(power and communications, paths and lengths). Location of other equipment that
may generate electrical noise, electromagnetic interference or heat.
•Provision and installation of all communication cables wall jacks, special connectors
and associated hardware.
•Provision and installation of necessary power distribution boxes, conduits, grounds,
lightning protection devices and associated hardware
•Ensure that all applicable codes, regulations and laws (including, but not limited to,
electrical, building, safety and health) are adhered to.
•Provision and installation of auxiliary power or other equipment as required.
•Provision of storage or service as required.
•Provision of a level floor to locate the CINEO C1030. The system has to be stable and
must not tilt. The maximum incline must not exceed 2%. The feet of the unit can
overcome a height difference of up to 10 mm.
•Provision and installation of floor coverings and environmental systems that limit or
control static electricity build-up and discharge.
•Provision of appropriate equipment for the remote support.
The customer is responsible for relocating the CINEO C1030 equipment (check stand and
components) to the final placement/installation position.
Keep the Wincor Nixdorf equipment area free from dust, smoke, lint, and other particles.
Restrict smoking, eating, and drinking around the equipment. Avoid locating the equipment
near other machines that generate ink, carbon and paper dust particles.
Please note that Wincor Nixdorf will not take over any warranty/liability in case the
technical and environmental requirements are not met.

Components
9
Components
RejectedCoins
Pole Light
Coin Input
Card Reader
Receipt Printer TH230+
Display BA92
Lock
Lock
Cash Drawer
CIT Box
CIT Reject
Coins Overflow

Removing the Transpotation Locks
10
Hopper
Switch off the device befor removing a hopper. Otherwise damages may occur.
Set the hopper always to the same position as installed before.
The hopper must be set as shown in the picture below. The label must be visible
from outside.

Removing the Transpotation Locks
11
Installing the CINEO C1030 in the Store
The CINEO C1030 will be delivered on a pallet with a size in industry standard
800 mm x 1200 mm.
Caution! Always wear safety gloves and safety shoes with steel toe caps while
transporting heavy appliances.
Removing the Transportation Locks
Cut the green bands (1) and remove the paperboard container upwards (2).
1
2

Removing the Transpotation Locks
12
Remove foils and foam material.
Do not unwrap the pole light!
Keep packed

Removing the Transpotation Locks
13
Remove 3 screws with a Tx 20 screwdriver and release the transportation lock on the
bottom drawer.
Pick up the keys for the CINEO C1030 in the bottom drawer.

Removing the Transpotation Locks
14
Push the second pallet (scope of delivery) in front of the CINEO C1030 as shown in the
picture below.
Unlock the CINEO C1030….
Pull out the carrier completely.
Second Pallet

Removing the Transpotation Locks
15
Remove two black transport locks at the bottom of the CINEO C1030.
Two Transport Locks

Removing the Transpotation Locks
16
Remove two transport locks with a Tx20 screwdriver in the carrier nearby the cash tray.
Remove the four Inbus screws at the bottom of the CINEO C1030 which fixes the device at
the pallet.
Push in the carrier completely, close the CINEO C1030 and lock it.
Caution! Tilt the device (max. 15°) with at least four people very carefully at the
edge of the pallet and set it up at the designated site. Ensure that the installation
site has the required load-carrying capacity.
