Wind Crest CTG365D User manual

Copyright 2006 Wind Crest by CNP Industries 1
Install Quick Specs are for planning purposes only. Please refer to the detailed installation
instructions, prior to making any cutouts.

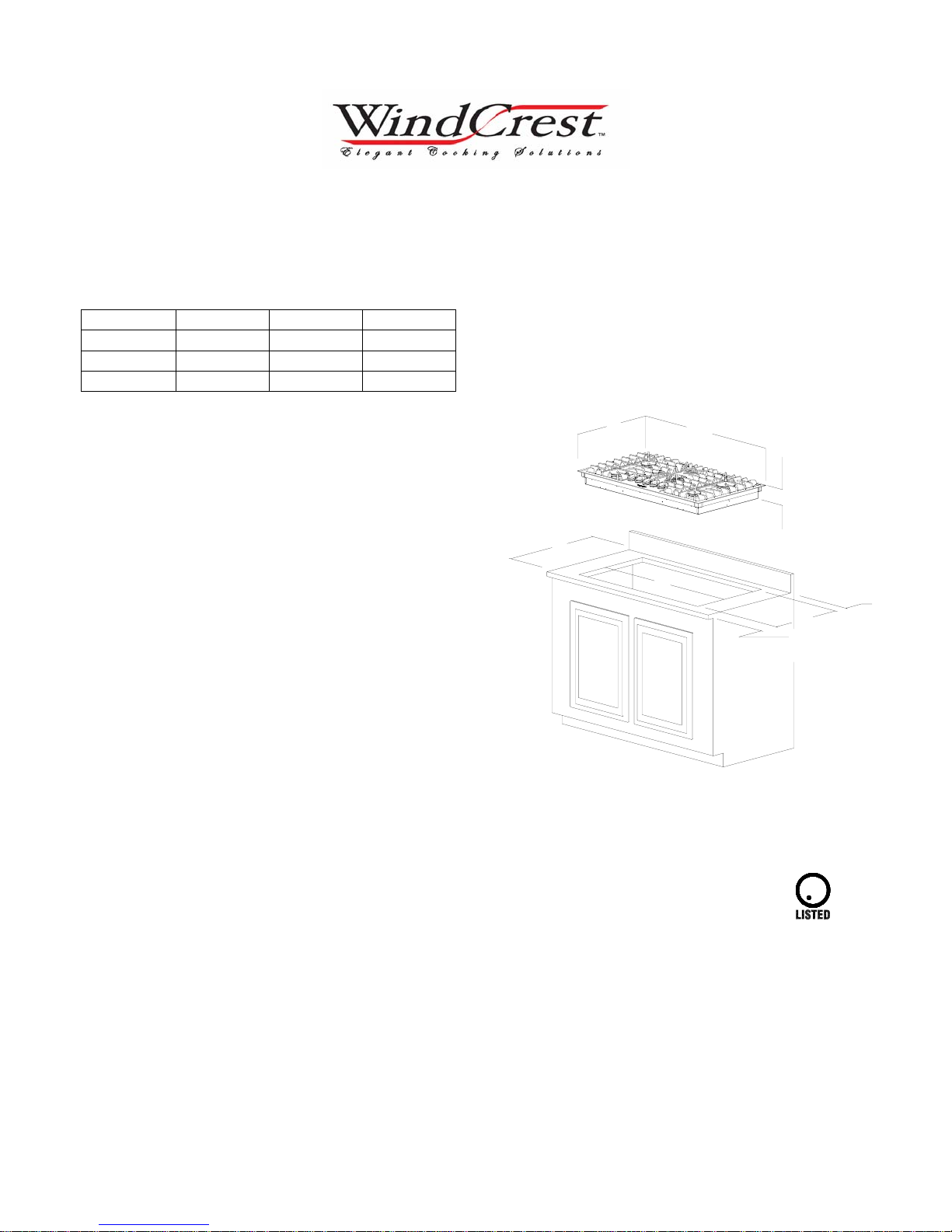

Drop in Gas Cooktops – Install Quick Specs
CTG 36” Wide
Installation Type
Drop into countertop opening
Overall & Cutout Dimension(s)
CTG365D A B C
Overall 36” 20 1/8” 2 29/32”
D E
Cutout 35 3/8” 19 1/2”
Standard Features
•304 Series, 18 gauge stainless steel
maintop and frame
•Five high output burners (Model:
CTG365D)
•Individual burner electronic ignition and re-
ignition system
•One-piece brass burner heads for durability
and more precise flame control
•Low grate profile of only ¾” above
countertop
•Shallow rough-in box depth for extra
cabinet storage
•Die cast, counter balanced control knobs
Finishes
•Stainless Steel (S)
Optional Upgrades
•Cast Wok Ring (Model: WOKRING)
•Liquid Propane (LP) models available
Gas Supply Requirements*
NG Standard: ½”regulator (6 to 14 inches
water column/Manifold at 4-inches)
LP Standard: ½” regulator (11 to 14 inches
water column/Manifold at 10-inches)
*Regulator ships in box with cooktop. LP gas tank
must have its own pressure regulator in addition to
the one provided with the cooktop
Maximum Power Supply Required
15 Amps @ 120 V AC, 60 Hz, single phase
Cooktop comes with a 4’ long, grounded cord.
A three-prong grounded receptacle is required.
Gas supply and electric are located off the right
rear of the cooktop.
Cooktop Carton Weight:
CTG365D = 83 lbs.
A
B
C
D
E
2-5/16
MIN
3-1/16 MIN TO
FRONT EDGE
