Windsor MB1500 User manual

MB1500 98804 10/19/02
G
HIGH SPEED BURNISHER
Operating Instructions (ENG)
Read these instructions before using the machine.
MODEL: MB1500

MB1500 98804 05/19/00
1
THIS PAGE LEFT BLANK INTENTIONALLY

MACHINE DATA LOG/OVERVIEW
MB1500 98804 05/19/00 2
For the name and address of your dealer contact: Windsor Industries
YOUR DEALER
Name: __________________________________________________________________________________________________
Address: _______________________________________________________________________________________________
Phone Number: _________________________________________________________________________________________
MODEL______________________________
DATE OF PURCHASE ________________
SERIAL NUMBER____________________

TABLE OF CONTENTS
MB1500 98804 01/29/02
3
Machine Data Log/Overview..........................2
Table of Contents...........................................3
HOW TO USE THIS MANUAL
How to use this Manual.................................1-1
SAFETY
Important Safety Instructions ........................2-1
Hazard Intensity Level...................................2-2
Grounding Instructions..................................2-3
OPERATION
Technical Specifications................................3-1
Handle Installation.........................................3-2
Operation.......................................................3-3
Pad Driver Installation....................................3-4
MAINTENANCE
Machine Troubleshooting..............................4-1
Wiring Diagram/Notes...................................4-2
GROUP PARTS LIST
Motor Group...................................................5-1
Frame Group.................................................5-3
Drive/Pad Lock Group...................................5-5
Handle Group.................................................5-7
Wiring Group..................................................5-9
Suggested Spare Parts ...............................5-11
Warranty......................................................5-12

HOW TO USE THIS MANUAL
MB1500 98804 05/19/00
1-1
This manual contains the following sections:
-HOW TO USE THIS MANUAL
-SAFETY
-OPERATIONS
-MAINTENANCE
-PARTS LIST
The HOW TO USE THIS MANUAL section will tell
you how to find important information for ordering
correct repair parts.
Parts may be ordered from authorized Windsor
dealers. When placing an order for parts, the
machine model and machine serial number are
important. Refer to the MACHINE DATA box which
is filled out during the installation of your machine.
The MACHINE DATA box is located on the inside of
the front cover of this manual.
The SAFETY section contains important information
regarding hazard or unsafe practices of the
machine. Levels of hazards is identified that could
result in product or personal injury, or severe injury
resulting in death.
The OPERATIONS section is to familiarize the
operator with the operation and function of the
machine.
The MAINTENANCE section contains preventive
maintenance to keep the machine and its
components in good working condition.
The PARTS LIST section contains assembled parts
illustrations and corresponding parts list. The parts
lists include a number of columns of information:
-REF – column refers to the reference
number on the parts illustration.
-PART NO. – column lists the part
number for the part.
-QTY – column lists the quantity of the
part used in that area of the machine.
-DESCRIPTION – column is a brief
description of the part.
-SERIAL NO. FROM – column indicates
the first machine the part number is
applicable to. When the machine design
has changed, this column will indicate
serial number of applicable machine.
The main illustration shows the most
current design of the machine. The
boxed illustrations show older designs.
-NOTES – column for information not
noted by the other columns.
NOTE: If a service or option kit is installed on your
machine, be sure to keep the KIT INSTRUCTIONS
which came with the kit. It contains replacement
parts numbers needed for ordering future parts.
MODEL _____________________________________
DATE OF PURCHASE ________________________
SERIAL NUMBER ____________________________
SALES REPRESENTATIVE # ___________________
DEALER NAME ______________________________
OPERATIONS GUIDE NUMBER __________________
PUBLISHED ________________________________

MB1500 98804 05/19/00
2-1
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic precaution
must always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE.
To reduce the risk of fire, electric shock, or injury:
Use only indoors. Do not use outdoors or expose to rain.
Use only as described in this manual. Use only manufacturer’s recommended components and attachments.
If the machine is not working properly, has been dropped, damaged, left outdoors, or dropped into water, return
it to an authorized service center.
Do not operate the machine with any openings blocked. Keep openings free of debris that may reduce airflow.
Machine can cause a fire when operating near flammable vapors or materials. Do not operate this machine near
flammable fluids, dust or vapors.
This machine is suitable for commercial use, for example in hotels, schools, hospitals, factories, shops
and offices for more than normal housekeeping purposes.
Maintenance and repairs must be done by qualified personnel.
During operation, attention shall be paid to other persons, especially children.
The machine shall only be operated by instructed and authorized persons.
When leaving unattended, unplug the machine.
Do not handle the plug or machine with wet hands.
Do not unplug machine by pulling on cord. To unplug, grasp the plug, not the cord.
Do not use with damaged cord or plug. Follow all instructions in this manual concerning grounding the machine.
Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or
corners.
Do not pull/run machine over cord. Keep cord away from heated surfaces.
Connect to a properly grounded outlet. See Grounding Instructions.
SAVE THESE INSTRUCTIONS
!
WARNING:

HAZARD INTENSITY LEVEL
MB1500 98804 05/19/00
2-2
The following symbols are used throughout this guide as indicated in their descriptions:
HAZARD INTENSITY LEVEL
There are three levels of hazard intensity identified by signal words -WARNING and CAUTION and FOR
SAFETY. The level of hazard intensity is determined by the following definitions:
WARNING - Hazards or unsafe practices which COULD result in severe personal injury or death.
CAUTION - Hazards or unsafe practices which could result in minor personal injury or product or property
damage.
FOR SAFETY: To Identify actions which must be followed for safe operation of equipment.
Report machine damage or faulty operation immediately. Do not use the machine if it is not in proper
operating condition. Following is information that signals some potentially dangerous conditions to the
operator or the equipment. Read this information carefully. Know when these conditions can exist. Locate
all safety devices on the machine. Please take the necessary steps to train the machine operating
personnel.
FOR SAFETY:
DO NOT OPERATE MACHINE:
Unless Trained and Authorized.
Unless Operation Guide is Read and understood.
In Flammable or Explosive areas.
In areas with possible falling objects.
WHEN SERVICING MACHINE:
Avoid moving parts. Do not wear loose clothing; jackets, shirts, or sleeves when working on the
machine. Use Windsor approved replacement parts.
!
WARNING
!CAUTION

GROUNDING INSTRUCTIONS
MB1500 98804 10/02/00
2-3
THIS PRODUCT IS FOR COMMERCIAL USE
ONLY.
ELECTRICAL:
In the USA this machine operates on a 15 amp
nominal 120V, 60 hz, A.C. power circuit. The
amp, hertz, and voltage are listed on the data
label found on each machine. Using voltages
above or below those indicated on the data label
will cause serious damage to the motors.
GROUNDING INSTRUCTIONS:
This appliance must be grounded. If it should
malfunction or break down, grounding provides a
path of least resistance for electric current to
reduce the risk of electric shock. This appliance
is equipped with a cord having an equipment-
grounding conductor and grounding plug. The
plug must be inserted into an appropriate outlet
that is properly installed and grounded in
accordance with all local codes and ordinances.
This appliance is for use on a nominal 120-volt

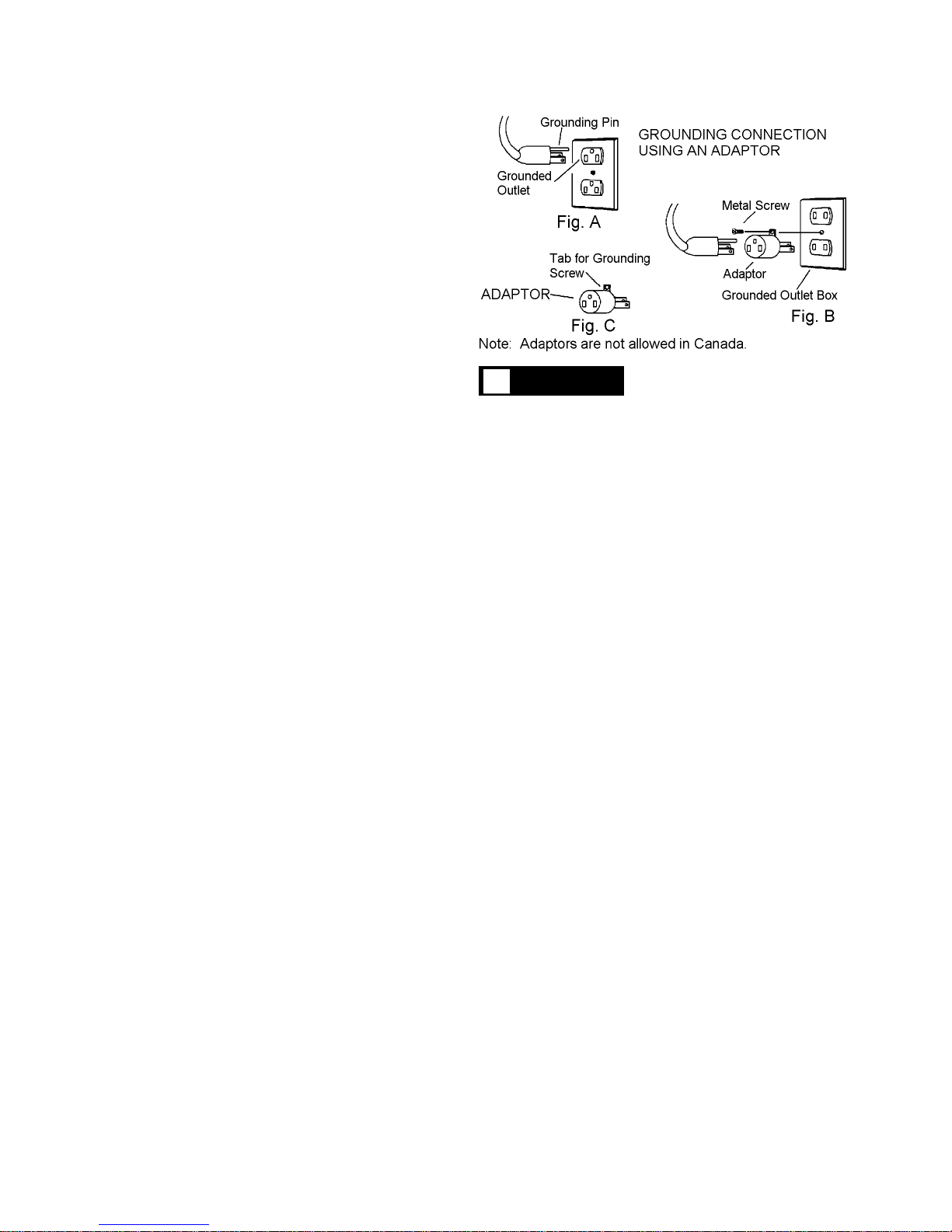

circuit, and has a grounded plug that looks like the
plug in “Fig. A”. A temporary adaptor that looks
like the adaptor in “Fig . C” may be used to
connect this plug to a 2-pole receptacle as shown
in “Fig. B”, if a properly grounded outlet is not
available. The temporary adaptor should be used
only until a properly grounded outlet (Fig. A) can
be installed by a qualified electrician. The green
colored rigid ear, lug, or the like extending from
the adaptor must be connected to a permanent
ground such as a properly grounded outlet box
cover. Whenever the adaptor is used, it must be
held in place by a metal screw.
Improper connection of the equipment-
grounding conductor can result in a risk of
electric shock. Check with a qualified
electrician or service person if you are in
doubt as to whether the outlet is properly
grounded. Do not modify the plug provided
with the appliance - if it will not fit the outlet,
have a proper outlet installed by a qualified
electrician.
!
WARNING

TECHNICAL SPECIFICATIONS
MB1500 98804 12/07/00
3-1
ITEM DIMENSION/CAPACITY
Construction Heavy-duty die cast aluminum deck
with heavy-duty rubber bumper,
tubular steel adjustable handle with
die cast aluminum handle housing
and belt driven pad.
Motor 1.75 hp
Pad speed 1500 rpm
Electrical system 115 volts, 60 Hz
Cable 50’ (23 m), 14/3, built in cord wrap
Switches Dual levers with safety lock
Wheels Four 5” (12.7 cm) dia., 1.25” (3 cm)
wide, non-marking tread
Handle 1.5” (4 cm) tubular steel,
adjustable, easy to use thumb
activated safety lock
Dimensions (L x W x H) 31.5” (80 cm) X 21.5” (54 cm) X
43.5” (111 cm)

HANDLE INSTALLATION
MB1500 98804 09/25/02
3-2
The machine is shipped with handle unassembled.
Follow these steps for installation:
1. Remove handle (38293) and deck assembly
(29230) from carton.
2. Attach handle assembly to base using hardware
kit (47331) (attached to handle in a plastic bag)
items 1, 2, and 3.
NOTE: The spacers (items 1) are required for the
correct operation of the handle. The spacers are
positioned completely inside the pivot holes in the
casting, and are held in place by tightening the bolts
and washers (items 2 and 3) against the spacer.
3. Remove bolt, nut and washers (items 4, 5 and
6) from lower block on handle assembly. Attach
links as shown. Tighten bolt and nut securely,
then back off 1/4 to 1/2 turn.
4. Check handle for movement up and down.
5. Plug motor cord into handle cord receptacle.
HANDLE
ASSEMBLY
HANDLE
RECEPTACLE
DECK
ASSEMBLY
4
5
6
3
2
1
HOLE
PIVOT
MOTOR
PLUG
SEE NOTE

OPERATION
MB1500 98804 01/24/02 3-3
CONTROLS
1. Safety Lock – Prevents unintended operation of
the machine.
2. Switch Levers – Turns machine on/off.
3. Adjustment Handle – Allows the handle to be
adjusted to a comfortable operating position.
The handle adjust bar (14344) for the Merit
polishers are individually preset at the factory for
optimum locking efficiency and minimum effort
of engaging. It should not be necessary to adjust
the handle adjust bar unless the relationship of
the handle adjust bar nut (57275) or fixed clamp
bolt (70692) and their corresponding nuts
(57275) and washer (87086) have been
disturbed. The handle can be positioned to be
locked with the handle adjust bar pointing either
up or down. In order to change the position the
handle and bolt must be removed and rotated
180 degrees. It is incorrect to make it lock
opposite from the way it was assembled by
applying more force to the nut. From the factory
the locking is in the up position when the
machine handle is locked. The pivot pin (66334)
on the handle adjust bar is off center, in
relationship of the screw to the axis of the (see
drawing). To adjust handle adjust bar, tighten
nut on handle while in the locked position. The
handle is locked when the screw is to the
outside of the machine and the flat on the
opposite side of the handle is flush to the
bracket.
1. To adjust handle lock, tighten nut on handle
while in the locked position. Optimum locking
force and ease of locking is accomplished when
the locking lever nut is set to a torque of 30 to 50
inch pounds in the locked position.
2. Gap between clamp halves at the front should
be to the gap in rear when the handle adjust bar
is adjusted properly and in the locked position
(gap approximately 1/16").
2 2
1
3
LOCK
UNLOCK
SHOWN HANDLE IS
IN LOCK POSITION
14344
67430
87202
57275 (2)
2
70692
87086
2
LOCKING SIDE FLAT
66334
PIVOT PIN C
L
HANDLE C
L
1

OPERATION
MB1500 98804 01/24/02
3-4
OPERATION
For indoor use only.
When using the pad, always keep the machine
moving when in contact with the floor.
High starting torque. Hold machine firmly with
both hands.
1. Ensure that the pad driver is in good shape.
Install or change pad if necessary.
2. Plug the machine into a wall outlet as described
in the grounding instructions.
3. Lower the handle by unlocking the adjustment
handle and moving the handle into position.
Relock the handle when it is in a comfortable
position.
Insure that handle is locked in position before
starting machine.
4. Push the safety lock forward, unlocking the
switch levers.
5. With the safety lock forward, squeeze one or
both of the switch levers, turning the machine
on. (These levers can be operated
independently of each other). The safety lock
will not re-engage until both levers are released.
6. To stop the machine, release the switch levers.
7. Do not let machine rest on pad. When finished
with the machine, return handle to the storage
position.
NOTE: The machine is equipped with a circuit
breaker to protect the motor in the event an overload
condition occurs. The circuit breaker is located on
the rear of the motor. Push the reset button to restart
the machine. If the breaker trips again, correct the
cause of overloading before proceeding.
DAILY MAINTENANCE
1. Inspect power cord for wear. To prevent
electrical shock replace cords with frayed or
cracked insulation immediately.
2. Place machine in the storage position.
3. Check pad condition. Change if soiled or torn.
PAD INSTALLATION
1. Lay machine back, exposing the under side.
!
CAUTION
!WARNING
!
WARNING

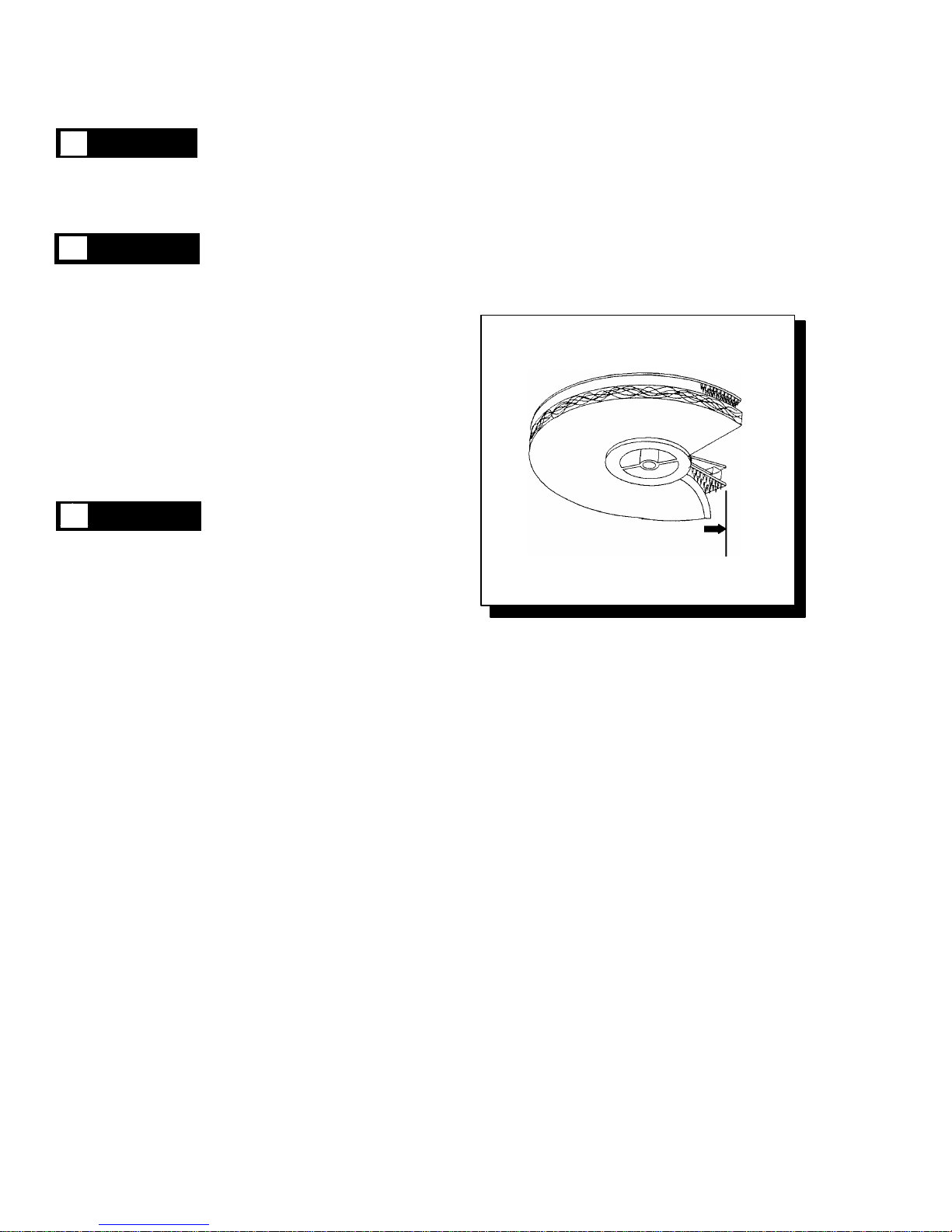

Ensure pad is centered on pad driver. Pull
pad to edge of pad driver in several
directions to check for proper engagement.
NOTE: Use care when replacing center lock
to prevent cross threading.

MB1500 98804 01/24/02
3-5
THIS PAGE LEFT BLANK INTENTIONALLY

MACHINE TROUBLESHOOTING
MB1500 98804 10/02/00
4-1
PROBLEM CAUSE SOLUTION
Machine will not run Circuit breaker tripped in
building. Check and reset
Power switch failure Test switch for continuity
and replace if necessary.
Tripped circuit breaker Reset
Faulty power cord Replace
Fuse in motor is blown Replace
CAUTION: To reduce the
risk of electrical shock,
unplug the machine before
opening fuse holder.
Fuse will only open under
extreme conditions.
Investigate cause before
replacing.
Electrical shock Equipment not grounded Follow grounding
instructions exactly.
Receptacle not grounded Have an electrician inspect
building’s wiring.
Internal wiring problem Ensure that the machine
wiring matches the
appropriate wiring
diagram. Replace any
wires or components which
are short circuiting.
Repeated cuicuit breaker tripping Mechanical problem Higher amp draws indicate
a mechanical problem, find
the problem before using
the machine.
Faulty circuit breaker Test circuit for continuity.
Replace circuit breaker if
necessary.
Excessive vibration Pad not centered Re-center pad.
Damaged or unevenly worn
pad. Replace pad. Do not rest machine on pad when not
in use.
Damaged pad driver. Replace.
Pad does not turn but motor is
running Belt is loose or broken Adjust or replace belt

WIRING DIAGRAM/SERVICE SCHEDULE
MB1500 98804 10/19/02
4-2
SERVICE SCHEDULE
MAINTENANCE DAILY MONTHLY
Check pad wear to prevent buildup of chemicals *
Check pad driver system for damage *
Check handles, switches, and knobs for damage *
Store with pad off the floor *
Check all bearings for noise *
Check skirt/bumpers for damage and replace as
necessary *
Check overall performance of machine *
NOTES:

MOTOR GROUP
MB1500 98804 09/28/00
5-1
1
2
3
4

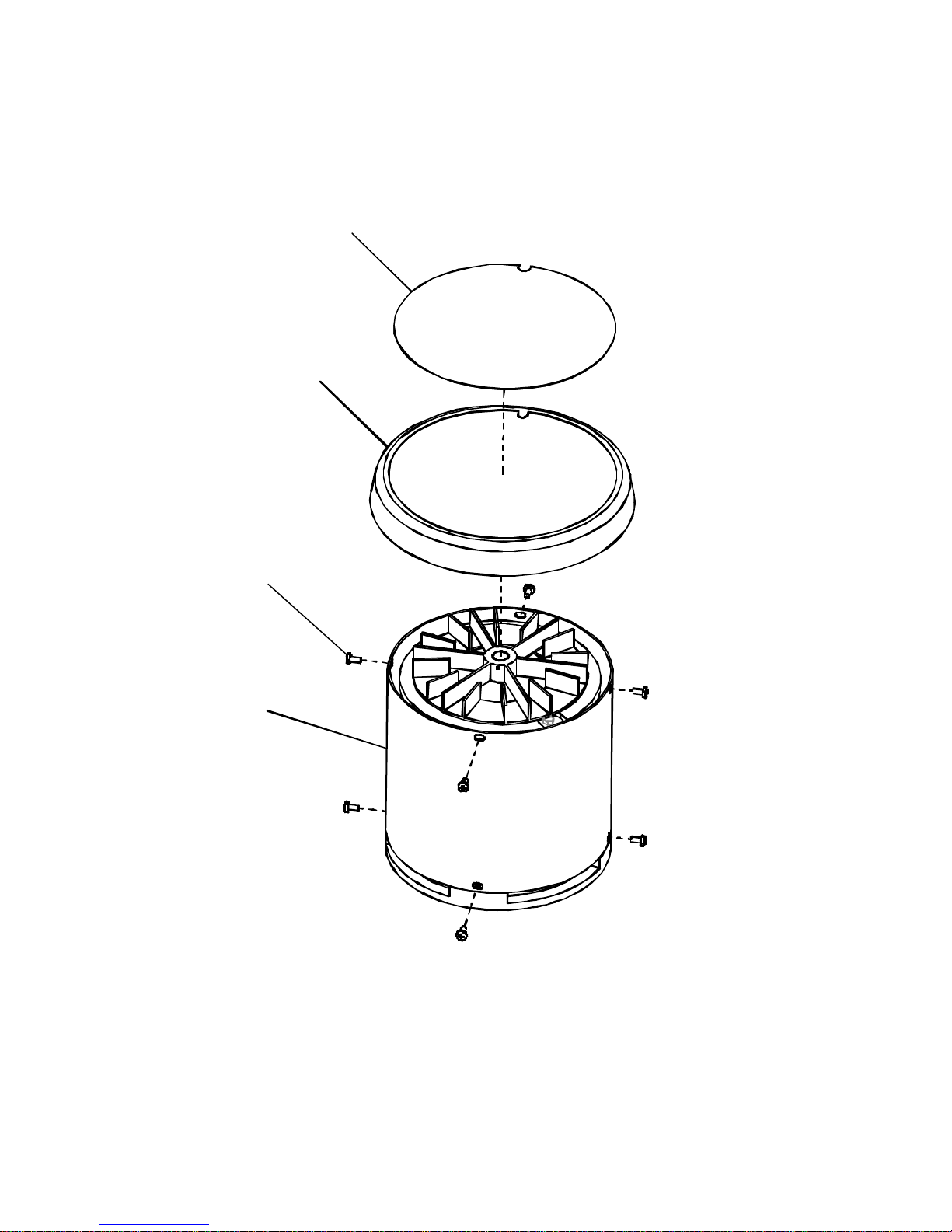

MOTOR GROUP
MB1500 98804 09/28/00 5-2
REF PART NO. QTY DESCRIPTION SERIAL NO.
FROM NOTES:
1500290 1LABEL, MB1500 MAIN
227892 1COVER ASM, MOTOR 1.75HP
370700 8SCR, M5 X .8 X 10MM PHMS BLK
453249 1MOTOR, 115V 1.75 HP
MOTOR COMPONENTS (NOT SHOWN)
REF PART NO. QTY DESCRIPTION SERIAL NO.
FROM NOTES:
140411 1CIRCUIT BREAKER, 20 AMP
67029 1RECTIFIER
14404 1BRUSH SET MP MOTOR (PKG OF 4)
34378 1FUSE
34379 1FUSE HOLDER
09135 2BEARING, MOTOR

FRAME GROUP
MB1500 98804 09/28/00
5-3
1
2
3
4
5
6
7
8
9
10
11
12
13
14
8
15
16

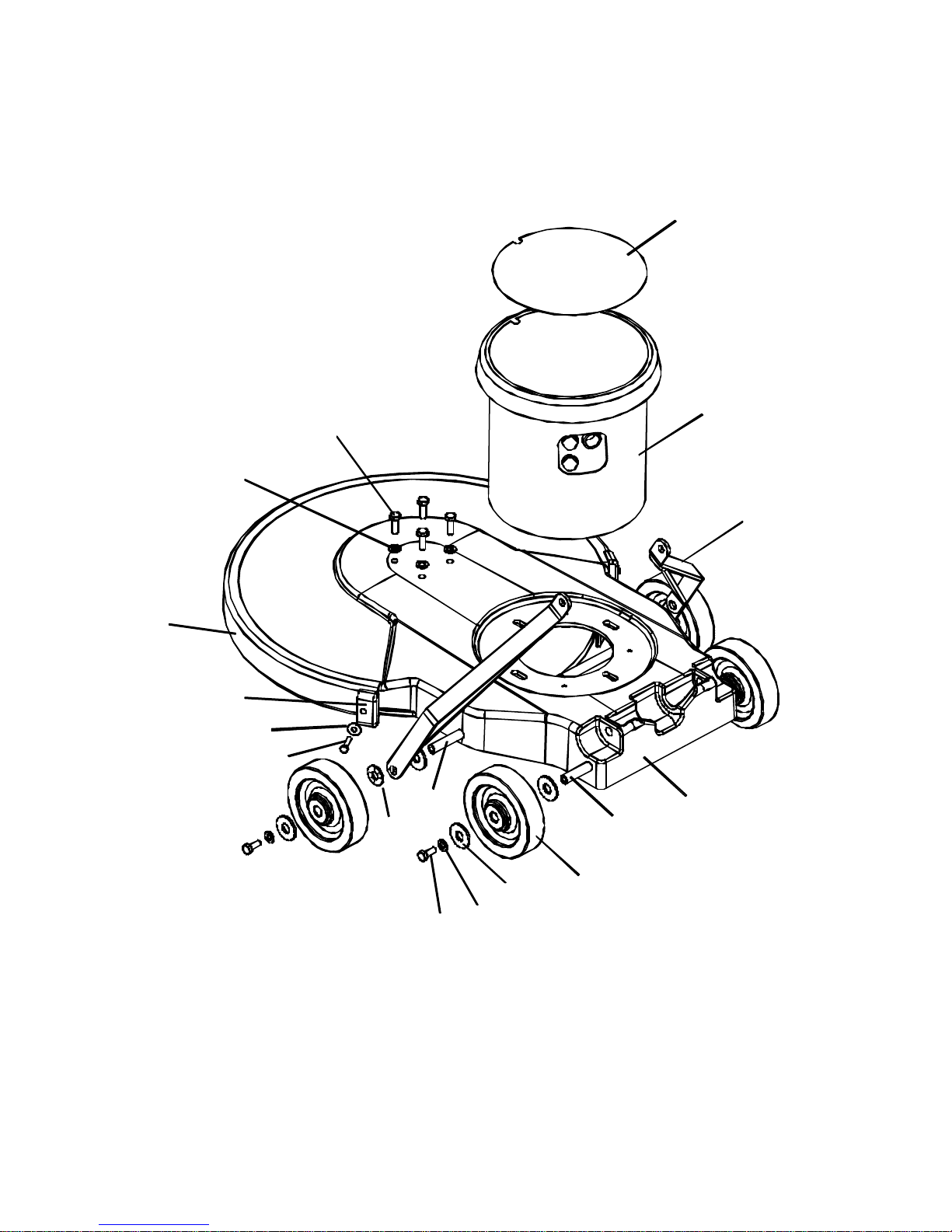

FRAME GROUP
MB1500 98804 09/28/00 5-4
REF PART NO. QTY DESCRIPTION SERIAL NO.
FROM NOTES:
1500290 1LABEL, MAIN
253249 1MOTOR, 115VOLT 1.75HP 3000RPM
3140397 2BRACKET, HANDLE LINK
429229BLU 1DECK, 20 IN BURNISHER, BLUE
503111 1AXLE, MAIN POLISHER
689206 4WHEEL, 5D X 1.25 X 13MM ID GRY
787203 8WASHER, 14MM ID X 36MM OD
887054 8WASHER, M8
970262 4SCR, M8 X 20 HHMS
10 03116 1AXLE, MAIN BURNISHER
11 70691 2SCR, M6 X 25 HHCS
12 87211 2WASHER, M6 FLAT
13 27871 2CAP, EXTRUSION
14 14423 1BUMPER, EXTRUSION 44.30 IN
15 70184 4SCR, M8 X 25HHCS
16 57276 2NUT, PUSH FLAT RD .51 ID

DRIVE/PAD LOCK GROUP
MB1500 98804 09/25/00
5-5
8
14
19
20
9
15
16
17
18
7
65
432 1
11
11
12
13
10
