Wine Corner WINE C18IN User manual

DEFYING
CONVENTION
WINE C18 IN
USER GUIDE

INSTRUCTIONS FOR USE
TABLE OF CONTENTS
Introduction : “From Vineyard to wine” ............................... Page 3
1. LAYOUT OF PREMISES ........................................ Page 4
1.1. HOT AIR OUTLET
............................................... Page 4
1.2 THE CELLAR
................................................... Page 4
1.2.1. INSULATION
................................................. Page 4
1.2.2. WALLS AND CELLING INSULATION
................................ Page 5
1.2.3. FLOOR INSULATION
........................................... Page 5
1.2.4. THE DOOR .................................................. Page 6
1.2.5. INSULATION OF OTHER ITEMS ................................... Page 6
2. INSTALLING THE WINEMASTER AIR-CONDITIONER ................ Page 6
2.1. DRILLING THE WALL ............................................. Page 6
2.1.1. GRIDS ......................................................... Page 6
2.1.2. WALL HOLDER ................................................... Page 6
2.2 DIMENSIONS .................................................... Page 7
2.3. FIXING THE WINEMASTER ........................................ Page 7
2.4. INSTALLING THE DUCTS ......................................... Page 8
2.5. INSTALLING THE WATER DRAINAGE SYSTEM ....................... Page 9
3. USING THE WINEMASTER AIR-CONDITIONER .................... Page 9
3.1. CONNECTING THE AIR-CONDITIONER
.............................. Page 9
3.2 SETTING THE TEMPERATURE
..................................... Page 9
3.3 AUTOMATIC DEFROST
........................................... Page 10
4. MAINTAINING THE WINEMASTER AIR-CONDITIONER ............... Page 10
4.1. CHANGING THE FILTER
........................................... Page 10
5. GUARANTEE ................................................. Page 11
5.1. TWO-YEAR CONTRACTUAL GUARANTEE
........................... Page 11
5.2. TERMS OF APPLICATION OF THE GUARANTEE
...................... Page 11
5.3. EXCLUSIONS AND LIMITS OF GUARANTEE
.......................... Page 11
WINEMASTER C18 IN USER GUIDE
Page 2
WARRANTY CERTIFICATE FONDIS : page 12

FROM VINEYARD TO WINE
In former times, good french cellars were built to maintain a temperature not
exceeding 14 to 16°C in all seasons.
Today, this is rarely the case.
Nevertheless, a cellar worthy of the name must be protected against wide
variations in temperature, be as damp as necessary and ventilated, dark and free
of vibration.
This is why, for more than fifteen years, we have used the expertise of specialists
and enthusiastic amateurs to design, develop, test and produce thousands of
air-conditioners destined to help in the storage and ageing of wine.
If you follow our advice and respect our recommendations Winemaster will
provide the optimal ageing conditions for your treasured wine collection.
Don't hesitate to read the installation and operating guide for your FONDIS
WINEMASTER cellar air-conditioner.
Contact us if you have any questions!
So… even if there may be long years to wait before the wine reaches perfection,
the great day will come when you face the delicate job of uncorking.
Hold the bottle carefully – do not remove the capsule on a level with the mouth –
use a good quality tool or lever – remove the cork without shaking the bottle and
examine the "mirror"..
But that's another story…
Attention : Wait for 24 hours before switching on the air-conditioner.
WINEMASTER C18 IN USER GUIDE
Page 3

CHARACTERISTICS
250 WHeating power
450 WElectrical power
230-240 C - 50 Hz - with earth connection
( supplied with 3 m cable )
Electricity supply
550 W at 15°C **Cooling power
35°C**Maximum outdoor temperature
Preset to 13°C, adjustable between 4 and 15°C*Setting the temperature
WINE C18IN
The circuit breaker must be at least 16 Amps.
* The insulation quality and thickness has to be in accordance with the volume of the cellar and the set temperature.
** The cooling performance is dependant from the outside temperature. Therefore, the set temperature of 12°C for the cellar cannot
be maintained if the outside temperature of the cellar is maintained at 35°C.
If the thermal safety functions to often, there is a risk for the condensator and starter to be damaged. In all the cases, it must be
avoided that the outside temperature remains at 35°C.
This high temperature should be limited to the summer period.
1. LAYOUT OF PREMISES
The air-conditioner is installed entirely in the wine cellar: it can be fitted on the floor or on a suitable support which can
bear the weight of the unit.
For a correct opération, the wine cellar reject outside some air arround 20°C, above aspiration temperature. This air si
rejected in indoors well ventilated or outside the house.
This opération is made with isolated’s ducts in the wine cellar.
1.1 HOT AIR OUTLET
- If the WINEMASTER hot air outlet is indoors, the room must be well-ventilated to ensure that the temperature
does not exceed 35°C. The ideal temperature is arround 20°C. It is preferable to discharge the hot air outside if
possible, via ducts.
- The air intake and outlet ducts must not be connected to each other nor obstructed, to avoid overheating the
unit.
The two openings (intake and outlet) must therefore be at least 200 mm apart. The maximum length of each duct
must not exceed 10 metres. This lengh as to be reduced according to number of bends (1 meter per bend). The
radius of the bends must be upper than 300 mm. The diamter of the ducts musn’t be reduced.
1.2 THE CELLAR
1.2.1 INSULATION
Insulation of the 4 walls, the door, the ceiling and the floor is essential for the Winemaster to work
properly. Adequate insulation helps to obtain the stability of the temperature and the humidity.
The board on the next page (choice of insulati ) can be used to determine the type and the thickness of
insulation needed according to the internal volume of the cellar and a cellar temperature of 12°C.
Insulation continuity :
Insulating components must be assembled preferably by interlocking panels or glueing the panels
together, to ensure perfect continuity of insulation.
WINEMASTER C18 IN USER GUIDE
Page 4

This is very important: it prevents heat and humidity entering from the outside which would counter the
effects of regulation.
CHOICE OF INSULATION
20
30
40
40
50
60
70
80
90
30
40
40
50
60
70
80
90
100
40
50
60
80
90
100
110
120
130
6
8
10
12
14
15
16
17
18
WINE C18 IN
POLYURETHANE
FOAM
λ= 0.025W/m°C
EXTRUDED
POLYSTYRENE
λ= 0.030W/m°C
EXPANDED
POLYSTYRENE
λ= 0.044W/m°C
CELLAR
VOLUME
(m3)
MINIMUM THICKNESS OF INSULATION (mm)
for 12°C cellar temperature
1.2.2 WALL AND CEILING INSULATION
The manufacturers propose their insulating panels in several forms:
- insulation alone
- complexes: the insulation is lined with a facing (plaster, mineral…)
- sandwiches: the insulation is lined on each side with a wooden or plaster panel.
The panel facing is important: it protects the insulation from shocks and guarantees long life.
Do not use mineral fibre insulation (Glasswool, stonewool,...) because it stores humidity and loose its
insulation capacity.
Protection against rodents
Some insulating materials are damaged by rodents (mice, rats…). It is therefore essential to make sure
that the walls of the cellar do not contain holes which would allow rodents access to the insulation.
This insulation must be lined, on the inner surface of the cellar, with a protective facing.
Polyurethane insulation, because of its chemical composition, is not attacked by rodents.
1.2.3 FLOOR INSULATION
The cellar floor must be able to support shelves and the wine stored on them.
You should therefore choose an insulating material with adequate compression resistance for this part.
Manufacturers recommend appropriate insulation or materials designed specifically for floor insulation, in
their documentation.
WINEMASTER C18 IN USER GUIDE
Page 5
IMPORTANT
The validity of the WINEMASTER guarantee depends on the values in the "Choice of insulation" table
being strictly respected, for all the cellar walls, including floor and ceiling + door, as well as perfect
continuity of insulation.

Puncture resistance (feet of shelves in particular) is provided:
- by using "complex" insulation panels lined, on the upper surface, with a strong panel.
- by facing the insulation with a panel of chipboard (approx. 15 mm thick), or any other suitable covering
(plaster and slab, for example).
1.2.4 THE DOOR
It is part of the continuity of insulation.
There are two possible solutions:
- to insulate the existing door using the same type as insulation as was used for the cellar walls.
Insert a seal such as foam, between the door panel and the frame, all around the edge.
- use a FONDIS ISOTHERMAL DOOR, lined with polyurethane foam. It includes a seal around its
periphery, with a magnetic closure.
1.2.5 INSULATION OF OTHER ITEMS
A fridge or another appliance producing heat must not be placed inside the cellar. For example, any hot
water pipe going through the cellar must also be insulated.
2. INSTALLING THE WINEMASTER AIR-CONDITIONER IN THE WINE CELLAR
Make sure you have chosen the best place for fitting the air-conditioner.
- chose the best place in order that the lengh of the flexible ducts will be shorter as possible,
- put the wine cellar on the ground or on his horizontal support,
- there should not be any obstacle in front of the ventilation grid, to facilitate air flow,
- the support or floor must be level and not transmit vibrations.
2.1 DRILLING THE WALL
2.1.1. GRIDS
- Draw the grid’s site on the wall which divide the wine cellar to the
reject indoor.
- Pierce 2 holes Ø 130 mm.
- Install the 2 grids in the wall.
- Connect the duct at the back of grids (§ 2.3).
- The seal between the ducts and the insulation must be filled (with
polyurethane foam for example).

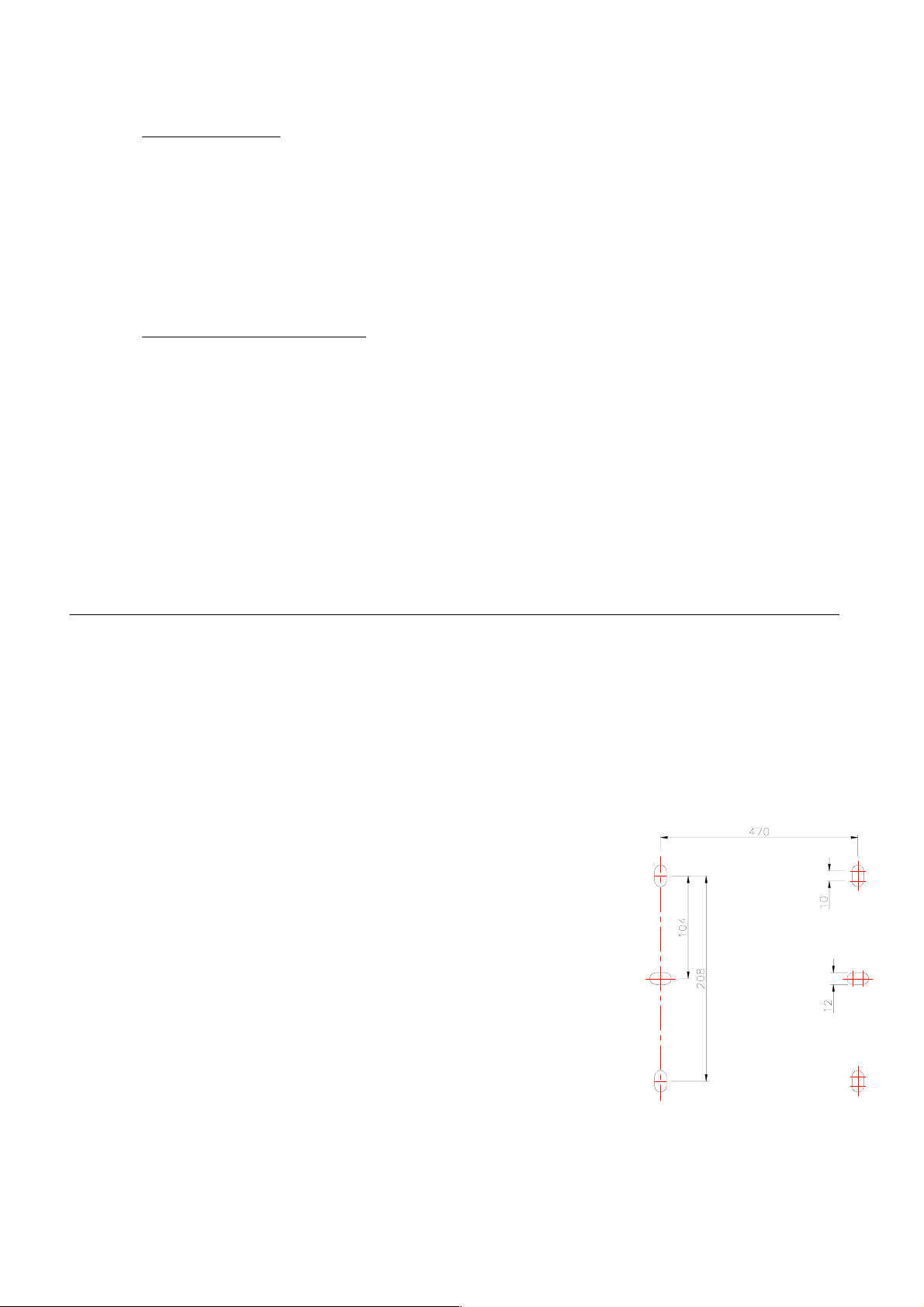

2.1.2. WALL HOLDER
Two squares are delivered together with the Winemaster.
Open them out and fix them as per herewith drawing.
Select the adequate screws with regards to the wall material you are
using.
WINEMASTER C18 IN USER GUIDE
Page 6

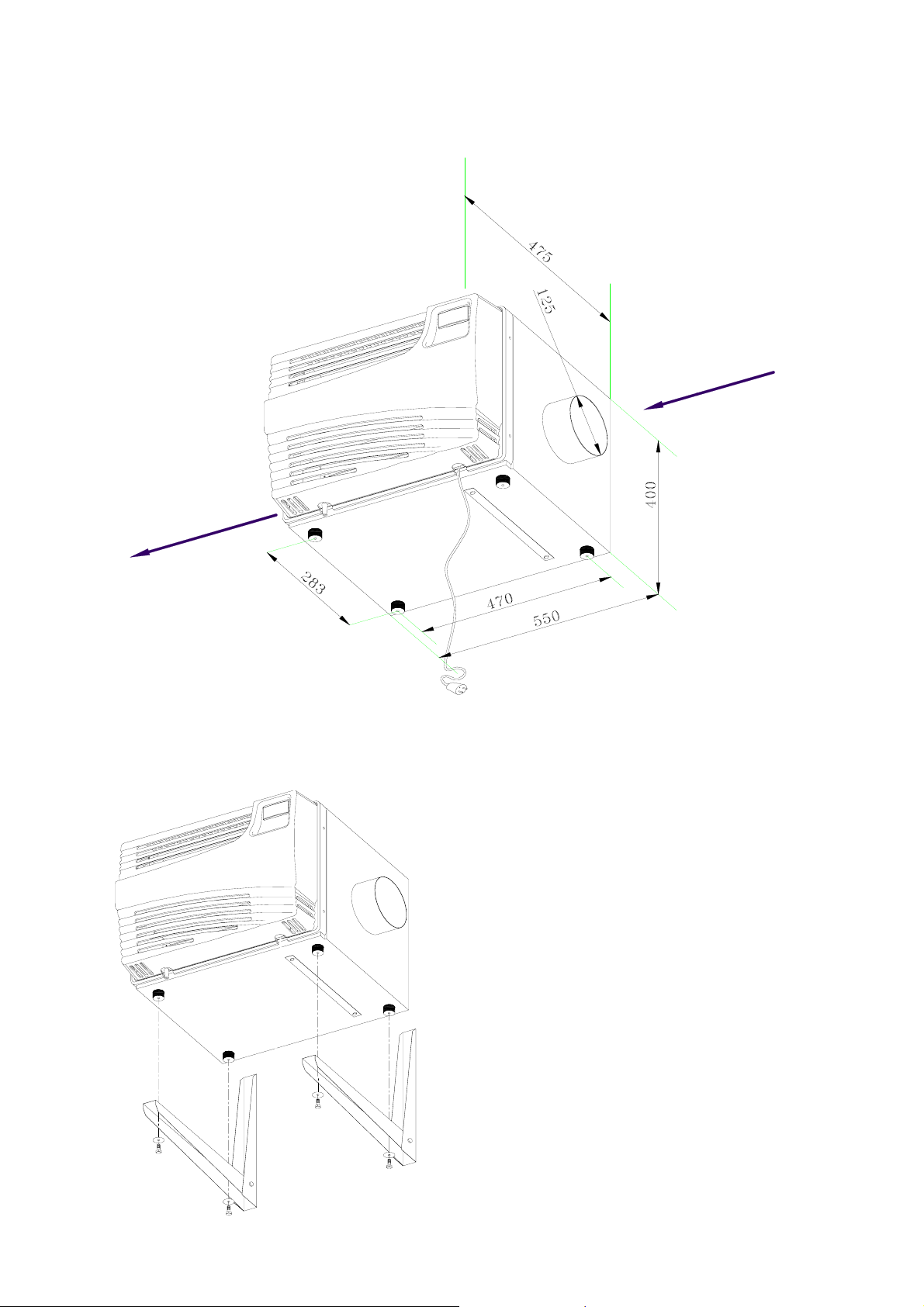

2.2 DIMENSIONS
2.3 FIXING THE WINEMASTER
Install the Winemaster on the wall holder.
Screw the unit with a 10 key.
WINEMASTER C18 IN USER GUIDE
Page 7
AIR OUTLET AIR INLET

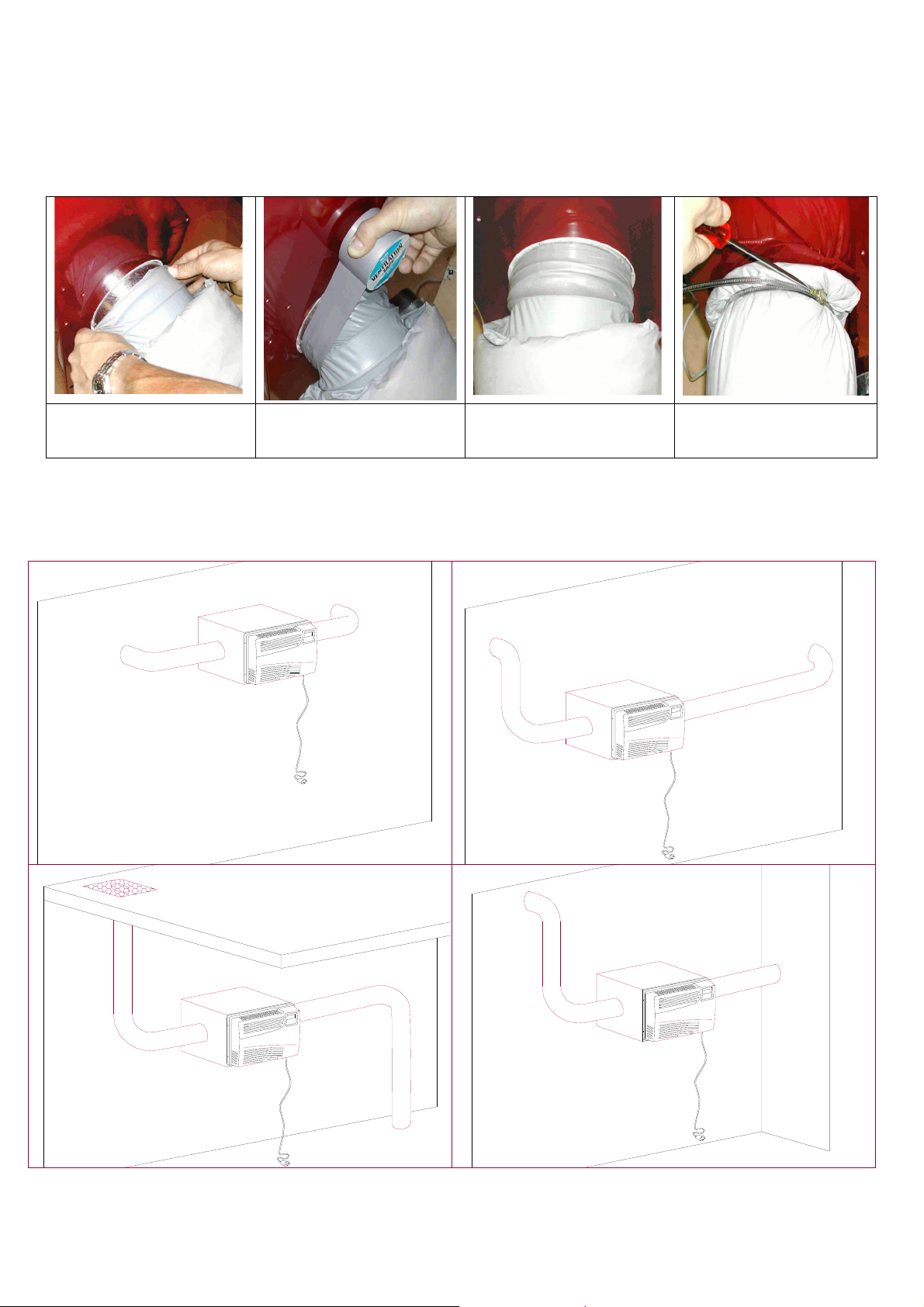

2.4. INSTALLING THE DUCTS
The connections must be sealed to prevent condensation forming on the walls of the air-conditioner.
Position the insulation duct
then the ring clamp.
Take it round several times
to ensure a good seal.
Stick the adhesive tape
across the flue collar and
the duct.
Place the inside duct on the
flue collar
Example
WINEMASTER C18 IN USER GUIDE
Page 8

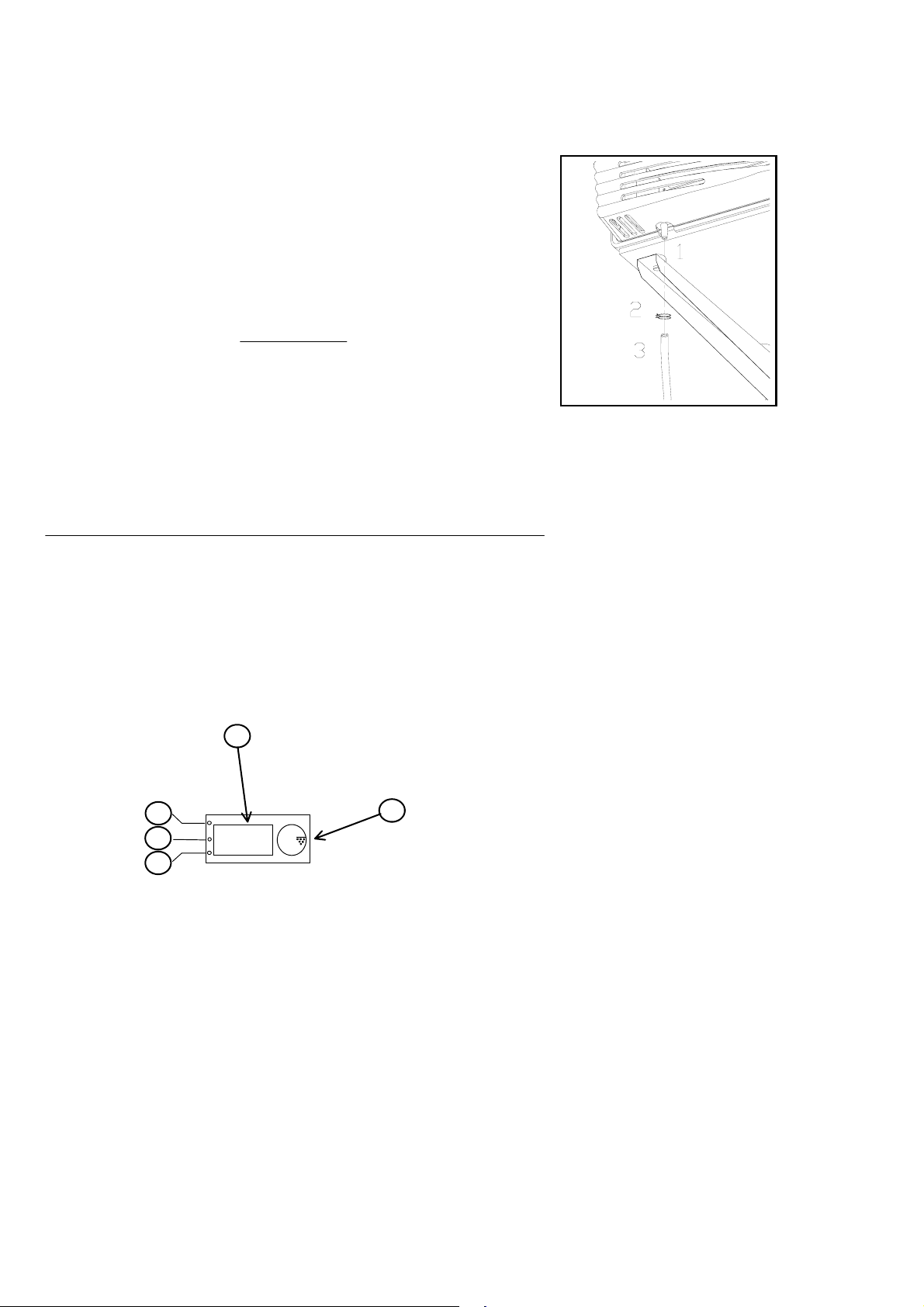

2.5 INSTALLING THE WATER DRAINAGE SYSTEM
Slide on the PVC tube 3 on the condensate container 1.
Open the ring 2 and slide along the tube 3.
Set the ring as near as possible.
Important :
Wait for 24 hours before switching
on the air-conditioner.
3. USING THE WINEMASTER AIR-CONDITIONER
3.1 CONNECTING THE AIR-CONDITIONER
When you plug it into the electrical socket. The fan in the cellar starts up immediately. The compressor may not
come on until 2 minutes later if the temperature of the cellar is higher than the set temperature. If the temperature
of the cellar is the same as the setting on the thermostat, the compressor will not come on.
3.2 SETTING THE TEMPERATURE
3
21
5
412 5


The thermostat is equipped with a joystick on the right hand side (ref. 1) which can be used to change the
setting. To change the setting, simply press on the symbol 5for 5 seconds. The display (ref. 5) then displays
SET. Press the symbol 5once again briefly.
The set temperature is displayed. To increase it, press the up arrow. To reduce it press the down arrow.
When The temperature on the display is correct, confirm by pressing to symbol 5until it shows again SET.
Light 2 indicates that the device is defrosting.
Light 3 indicates that it is in heating mode.
Light 4 indicates that the compressor is running. When there is no light lit, the cellar temperature is close to the
set temperature.
After changing a setting, because of a fitting which prevents it from starting up too frequently, the compressor will
only start up after a few minutes.
WINEMASTER C18 IN USER GUIDE
Page 9

3.3 AUTOMATIC DEFROST
The program of the thermostat will run an automatic defrost time several times a day.
During this position, the compressor cannot sart. Only the fan in the cellar can function.
The condensate water produced during this period will be evacuated through the tube
4. MAINTAINING THE WINEMASTER AIR-CONDITIONER
THE DUST FILTER
It is essential to replace the dust filter, which is outside the cellar, as soon as necessary and at least once a year. If it is
clogged, the air-conditioner may be seriously damaged.
4.1 CHANGING THE FILTER
Unscrew the 2 four black plastic screws under the
air-conditioner 1.
Remove the cover 2.
Pull the tab to release the filter.
Replace it with a FONDIS filter only!
You can then replace the cover.
WINEMASTER C18 IN USER GUIDE
Page 10

5. GUARANTEE
5.1. TWO-YEAR CONTRACTUAL GUARANTEE
The air-conditioner is guaranteed for two years against manufacturing defects.
During the contractual guarantee period, FONDIS will replace any part recognized as defective, following the
intervention of a qualified representative.
In the event of an electrical breakdown, FONDIS will replace any part recognized as defective following the
intervention of a qualified stockist or his representative.
In the event of cooling system breakdown, FONDIS can ask for the part to be returned for repair following the
intervention of a qualified representative. The equipment will be packed and held available for the FONDIS
carrier to collect it.
Operations and returns must be made with the written agreement of FONDIS after sales service.
5.2. TERMS OF APPLICATION OF THE GUARANTEE
The contractual guarantee applies to all devices installed and used in accordance with the "Installation and
operating guide". Application of the contractual guarantee depends on the guarantee card at the back of the
booklet being returned within 15 days of purchase.
5.3 EXCLUSIONS AND LIMITS OF GUARANTEE
The guarantee is refused in the following cases:
- The cellar and installation have not been insulated in accordance with this guide.
- The damage is due to negligence, poor maintenance, defective or inappropriate use of the WINEMASTER.
- Part exchanges or replacements under guarantee will not have the effect of extending it.
FONDIS SA cannot be held responsible, under any circumstances, for the direct or indirect consequences of the
air-conditioner's failure to function. The guarantee is limited only to the product supplied by FONDIS SA.
WINEMASTER C18 IN USER GUIDE
Page 11

WARRANTY CERTIFICATE FONDIS
In order to validate your 2 year contractual warranty in accordance with the specified warranty
conditions stated in the WineMaster user manual, please complete and return this warranty
certificate within 15 days from the date of purchase to the following address:
WINE CORNER
Unit 6, Harworth Enterprise Park, Brunel Industrial Estate, Harworth, South Yorkshire DN11 8SG
Model:______________________________________________
Serial number:_______________________________________
Purchase date:_______________________________________
Installation date:_____________________________________
Installer:____________________________________________
The volume of your wine cellar in meters squared: ________
FIRST NAME______________________________ LAST NAME_____________________________________
ADDRESS_________________________________________________________________________________
POSTAL CODE_______________ CITY_________________________ COUNTRY_______________________
In the following section, please specify the insulation characteristics of your cellar.
Door
Ceiling
Floor
Wall
Type of insulation and thicknessType of material and thickness
How did you learn about FONDIS WineMaster cellar air conditioning systems ?
through a trade show through a vendor
through an editorial article  through an advertisement
other (please specify) ______________________________________________________________________
___________________________________________________________________________________________________
POINT OF SALE STAMP
GB
Page 12
