WineEnthusiast 261 02 58 03 User manual

.1
Vinotheque
Beverage Cooler
User Manual
(Features and Size May Vary)
Models: 261 02 58 0Y
Y= 3 (Right Hinge) or 4 (Left Hinge)
PLEASE READ THIS MANUAL CAREFULLY BEFORE INSTALLING AND OPERATING

2
IMPORTANT SAFEGUARDS
When using this appliance, always exercise basic safety precautions,
including the following:
1. Read all of the instructions before using this appliance.
2. This appliance is not intended for use by persons (including children) with
reduced physical, sensory, or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning use
of the appliance by a person responsible for their safety.
3. Children should be supervised to ensure that they do not play with the
appliance.
4. Use this appliance only for its intended purpose as described in this use and
care guide.
5. This appliance must be properly installed in accordance with the installation
instructions before it is used. See grounding instructions in the installation section.
6. Never unplug your appliance by pulling on the power cord. Always grasp the
plug firmly and pull straight out from the outlet.
7. Unplug your appliance before cleaning or before making any repairs. Note: If for
any reason this product requires service, we strongly recommend that a certified
technician performs the service.
8. The SUPPLY CORD cannot be replaced. If the cord is damaged the appliance
should be scrapped.
9. This appliance is designed for free standing installation or can be recessed into
cabinetry.
10. If your old appliance is not being used, we recommend that you remove the
door and leave the shelves in place. This will reduce possibility of danger to
children.
11. Do not operate your appliance in the presence of explosive fumes.
12. Do not store foods in appliance as interior temperature may not be cool
enough to prevent spoilage or may cause bacteria growth.

3
SAVE THESE INSTRUCTIONS
DANGER
Risk of child entrapment.
Before you throw away your old appliance, take off the door.
Leave the shelves in place so that children may not easily climb inside.
Thank you for using our Wine Enthusiast
product. This easy-to-use manual
will guide you in getting the best use of
your appliance.
Please remember to record the model and
serial number, they are located inside the cabinet
on a label on the bottom right side.
Model number
Serial number
Date of purchase
Staple your receipt to your manual.
You will need the receipt to obtain warranty service.

4
Table of Contents
IMPORTANT SAFEGUARDS .................................................................................... 2
Appliance Features and Use.................................................................................. 5
Initial Setup ...................................................................................................... 5
Temperature Adjustment..................................................................................... 6
Shelving ........................................................................................................... 6
Replacement of Charcoal Filter ............................................................................. 7
Parts and Features................................................................................................ 7
Installation as a Built-In Cellar ............................................................................. 8
Reversing the Door Swing ................................................................................... 8
Installing the Handle .........................................................................................10
Operating Your Appliance ....................................................................................10
Before You Start ...............................................................................................11
Setting the Temperature Control .........................................................................12
Door Lock ........................................................................................................12
Interior Light....................................................................................................12
Temperature Alarm ...........................................................................................13
Normal Operating Sounds You May Hear ...............................................................13
Technical Data ....................................................................................................13
Proper Appliance Care and Cleaning ....................................................................14
Troubleshooting...................................................................................................15
Limited Warranty.................................................................................................17

5
Electrical Requirement
•Make sure there is a suitable power Outlet (115 volts, 15 amps outlet) with
proper grounding to power the appliance.
•Avoid the use of three plug adapters or cutting off the third grounding in order to
accommodate a two-plug outlet. This is a dangerous practice since it provides no
effective grounding for the appliance and may result in shock hazard.
Install Limitations
•Do not install your appliance in any location not properly insulated or heated
e.g., garage etc. Your appliance was not designed to operate in temperature
settings below 50° Fahrenheit.
•Select a suitable location for the appliance on a hard even surface away from
direct sunlight or heat source e.g., radiators, baseboard heaters, cooking
appliances etc. Any floor unevenness should be corrected with the leveling legs
located on the front and rear bottom corners of the appliance.
•This appliance is designed for free standing installation or can be recessed into
cabinetry.
Use of Extension Cords
•Avoid the use of an extension cord because of potential safety hazards under
certain conditions. If it is necessary to use an extension cord, use only a 3-wire
extension cord that has a 3-blade grounding plug and a 3-slot outlet that will
accept the plug. The marked rating of the extension cord must be equal to or
greater than the electrical rating of the appliance.
Appliance Features and Use
Initial Setup
•Before connecting the appliance to the power source, let it stand upright for
approximately 24 hours. This will reduce the possibility of a malfunction in the
cooling system from handling during transportation.

6
•Once you have plugged the unit into an electrical outlet, let the unit run for at
least 30 minutes to acclimate before making any adjustments.
Temperature Adjustment
•When the appliance is plugged in for the first time, the LED display will show the
factory preset temperature.
•The appliance can be set to accommodate your storage requirements. To set the
temperature, press the up or down arrow button to increase or decrease the
temperature setting until the desired temperature is attained. It may take some
time to reach the set temperature.
•The temperature will fluctuate more so when the appliance is empty.
Shelving
(Type and number of shelves will vary per model)
Your cabinet was designed to store a maximum number of bottles and cans
securely. We recommend that you observe the tips below to optimize loading:
•Remove tape from shelves once unit is stable and ready for storage.
•Disperse the bottles and cans evenly to avoid concentrating weight in one place.
They must not touch either the back of the cabinet or the step at the bottom.
•Make sure that the bottles and cans are not all grouped together either at the
top or bottom of the cabinet.
•Maximum weight capacity per shelf is 55 lbs.

7
Replacement of Charcoal Filter
Your cooler comes with a charcoal filter that helps to eliminate orders. It
should be replaced every 6 to 12 months for optimal protection. To replace the
filter:
1. Find the location of the charcoal filter on the back wall (air-duct plate).
2. Remove the shelf in front of the filter if necessary.
3. Remove the charcoal filter box from the two mounting holes on the air-
duct plate by hand pulling directly outward, remove the old charcoal
filter, and place the new one into the mounting box.
4. Snap the charcoal filter box into the mounting hole on the air-duct plate
5. Re-Install the shelf
Charcoal Filter and Filter Box Model:
#261 99 44 –single filter and box
#261 99 88 –2-Pack (2 each - filter and
box)
Parts and Features

8
Installation as a Built-In
These cut out dimensions show the minimum space required for your appliance to
perform as designed.
Reversing the Door Swing
Before you begin: Tape down shelves to avoid movement during the
process.
The door of this appliance can be hung to open on the left or right side. To
reverse the door swing of your cooler and open from the opposite side, please
follow the instructions and diagram below.
1. Put the cabinet on open area, with the door opened to the maximum
2. Use small knife to take off the decorative covers (1) on opposite side (Drawing 1);
3. Use the six angle screwdriver (Tool 5) to disassemble the screws (4) of door
support (3), then remove the door support. (Drawing 1)
4. Hold the door, use six angle screwdriver (Tool 5) to unscrew the door shaft core (6)
from the two ends of the top of the door. Take out the door and set aside. (Drawing
2)
5. Discharge the upper and lower door hinge(7&8) by M5 inner six angle screwdriver
(Tool 5) , then to assemble the door hinge on the opposite side. (Drawing 3 and 4)

9
6. Rotate the door 180 degrees, then Install the door on the right side of the
cabinet. (Drawing 5)
7. Finally, install the decorative covers and door support at the opposite side.
(Drawing 6)
1. Decorative cover 2. Knife 3. Door Support
4. M5 six angle 5. M5 six angle screwdriver 6. Door spindle core
7. Upper door hinge 8. Lower door hinge

10

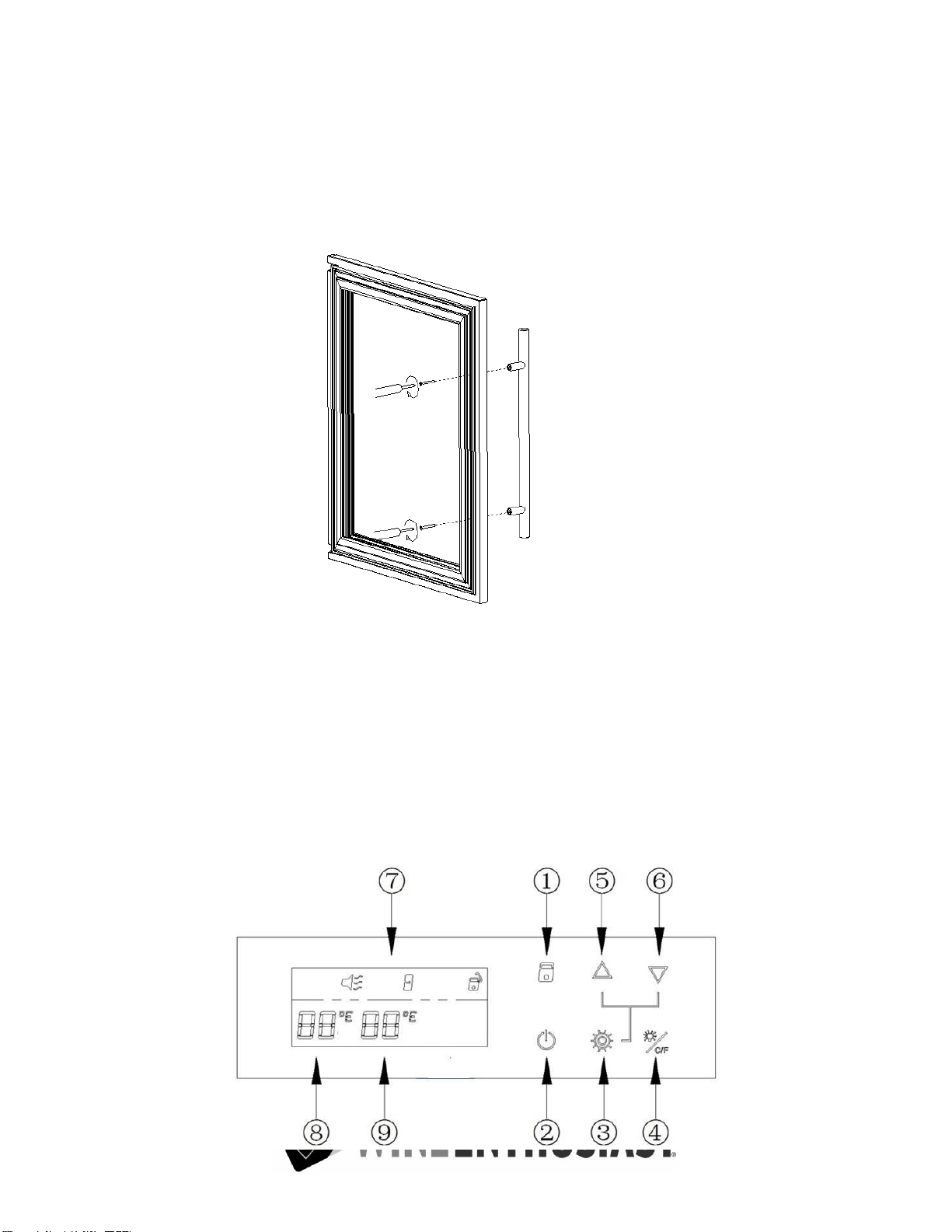

Installing the Handle
1. Pull back the door seal behind handle location.
2. Insert screws into pre-drilled screw holes.
3. Attach handle and tighten screws.
4. Press door seal back into place.
Operating Your Appliance
Each appliance includes an operating panel on the front of the unit. This operating
panel includes several features to operate and control the temperature.

11
1. Press and hold for 3 seconds to unlock the display.
2. Press and hold for 1 second to turn the Power ON or 3 seconds for OFF.
3. Function button: Activates the temperature set function.
4. Light button; Turns the interior lights ON and OFF.
Press and hold for 3 seconds to toggle the display between Fahrenheit and
Celsius.
5. Increases set temperature.
6. Decreases set temperature.
7. Display window
8. Displays the setting temperature.
9. Displays the actual temperature.
Power: Turns the Appliance System ON and OFF (Hold for 3 sec.)
Touch Lightly to Activate ‘Sleep Mode’
Lighting: Turns the Interior Light ON and OFF (3-Stage)
Control Panel Lock: Press Both POWER AND LIGHT for 3 Seconds to Lock or
Unlock the Control Panel
Display Window: Displays Set and Actual Temperature
Temp. Up: Increases Set Temperature
Temp. Down: Decreases Set Temperature
Temp Up & Down: Pressing Simultaneously when Controls are Locked Alters the
Temperature Display to Fahrenheit or Celsius
Before You Start
The appliance should be placed in a location where the ambient temperature is between
50-109° Fahrenheit. If the ambient temperature is above or below this range, the
performance of the unit may be affected. For example, placing your unit in extreme cold
or hot conditions may cause interior temperatures to fluctuate.

12
Setting the Temperature Control
1. Make sure power cord is connected to a properly grounded outlet.
2. Press and hold the POWER button for 1 second to turn the power ON.
3. Press and hold the LOCK button for 3 seconds to unlock the display.
4. Press the FUNCTION button to activate the temperature display.
5. Set the desired temperature by pushing the UP or DOWN buttons.
6. Temperatures increase or decrease 1°F with each push of the UP or DOWN
button.
7. NOTE: Temperatures may fluctuate depending on whether the interior light is
ON or OFF and depending on the position of the bottles and cans.
Lock or Unlock the Control Panel
To LOCK the control panel:
1. Simultaneously press the POWER and LIGHT buttons for 3 seconds.
2. The control panel will sound and the LOCK icon will illuminate
To UNLOCK the control panel:
1. Touch the control panel to wake it up from sleep mode.
2. Simultaneously press the POWER and LIGHT buttons for 3 seconds.
3. The control panel will sound, and the LOCK icon will darken
Interior Light
•To complement the look of your collection, LED lighting has been built into the
appliance. Simply push the LIGHT button on the control panel and the lights comes
on, push again for off. For maximum energy efficiency, leave light off when not
viewing your collection.
Door Lock
•This unit comes with key lock.
•The keys are located inside the plastic bag along with the user manual. To
unlock the door, insert the key into the lock and turn counterclockwise.
•To lock the door, simply reverse the operation making sure the metal pin is
engaged completely.
•Then remove the key and place it is a secure place for safekeeping.

13
Temperature Alarm
This unit comes with an audio temperature alarm. If the internal temperature
drops below 32°F or above 73°F an alarm will sound.
•If the temperature is too high/warm check to be sure if there is power in the AC
outlet, by checking the circuit breaker.
Normal Operating Sounds You May Hear
•Boiling water, gurgling sounds or slight vibrations that are the result of the
refrigerant circulating through the cooling coils.
•The thermostat control will click when it cycles on and off.
Technical Data
Model
261 02 58 03/04
Total Volume
5.15 Cu. Ft.
Installation
Free-Standing or Built-In
Power
115V~60Hz
Current
1.4A
Protection Class
I
Climate Class
N/ST/T/ST
Start-Up Amps
<5A
Running Amps
1.5 A
Ambient Temperature
50° - 109°F
Refrigerant
R600a –1.23 oz.
Temperature Control Range
34 to 50°F
Approx. Net Weight
98 LBS
Dimensions (W x D x H)
23-7/8” x 23-5/8” x 34-1/4”

14
Proper Appliance Care and Cleaning
Cleaning and Maintenance
Warning: To avoid electric shock always unplug your appliance before cleaning.
Ignoring this warning may result in death or injury.
Caution: Before using cleaning products, always read and follow manufacturer’s
instructions and warnings to avoid personal injury or product damage.
General: • Prepare a cleaning solution of 3-4 tablespoons of baking soda mixed
with warm water. Use sponge or soft cloth, dampened with the
cleaning solution, to wipe down your appliance.
•Rinse with clean warm water and dry with a soft cloth.
•Do not use harsh chemicals, abrasives, ammonia, chlorine bleach,
concentrated detergents, solvents or metal scouring pads. Some of
these chemicals may dissolve, damage and/or discolor your appliance.
Mold on the interior
Microscopic mold spores are naturally occurring and present in the ambient air.
When mold gets in your appliance it may grow within the humid environment.
Removal can be completed with mild solutions of commonly available products
such as Borax, vinegar, or baking soda.
Door Gaskets:
•Clean door gaskets every three months according to general instructions. Gaskets
must be kept clean and pliable to assure a proper seal.
•Petroleum jelly applied lightly on the hinge side of gaskets will keep the gasket
pliable and assure a good seal.

15
Power Interruptions
•Occasionally there may be power interruptions due to thunderstorms or other
causes. Remove the power cord from AC outlet when a power outage occurs.
When power has been restored, wait 3 to 5 minutes then re-plug the power cord
to AC outlet.
Vacation and Moving Care
•For long vacations or absences, unplug the appliance and clean the appliance and
door gaskets according to "General cleaning" section. Leave doors open, so air
can circulate inside.
•Always move the appliance vertically. Do not move with the unit lying down, as
possible damage to the sealed system could occur. Note: After moving, wait for
24 hours before plugging in the appliance.
Troubleshooting
Many common issues with your appliance can be easily solved. Try the
troubleshooting tips below if you experience any problems.
Appliance Does Not Operate:
•Check if appliance is plugged in.
•Check if there is power in the AC outlet, by checking the circuit breaker.
Beverage appears too warm:
•Frequent door openings.
•Allow time for recently added wine to reach desired temperature.
•Check gaskets for proper seal.
•Clean condenser coils.
•Adjust temperature control to colder setting

16
Beverage temperature is too cold:
•If temperature control setting is too cold, adjust to a warmer setting.
Appliance runs too frequently:
•This may be normal to maintain constant temperature during high
•temperature and humid days.
•Doors may have been opened frequently or for an extended period of time.
•Clean condenser coils.
•Check gasket for proper seal.
•Check to see if doors are completely closed.
Moisture build-up on interior or exterior of the appliance:
•This is normal during high humidity periods.
•Prolonged or frequent door openings.
•Check door gaskets for proper seal.
Appliance door does not shut properly:
•Level the appliance.
•Check for blockages e.g. bottles, shelves.

17
Limited Warranty
This Warranty Covers Appliances Within The
Continental United States Only.
Length of Warranty: This Limited Warranty lasts for one (1) year from date of receipt of
purchase of the appliance (“Limited Warranty Period”) and the sealed system (compressor,
condenser, evaporator) will be covered for three (3) years. Extended warranties may be available
for an additional cost at the time of purchase or up to 30 days from date of purchase. These
extended warranties would extend this one (1) year limited warranty to two (2), three (3), or five
(5) years. Details about our extended protection plans can be found @ wineenthusiast.com.
Who is Protected: This Limited Warranty protects the original purchaser during the Limited
Warranty Period, provided that such purchaser can present appropriate proof of original purchase.
What is Covered: This Limited Warranty covers any defects in workmanship or materials in your
new appliance under normal use.
What is Not Covered: The following are not covered by this Limited Warranty damage due to
such things as accident, misuse, abuse, mishandling, neglect, unauthorized repair, failure to
properly maintain, acts of God or any other cause beyond the reasonable control of the Wine
Enthusiast whether similar or dissimilar to the foregoing.
Commercial use or use other than normal household or small office.
Purchaser understands and acknowledges that the appliance is a wine refrigerator, which houses
wine. Purchaser assumes all the risk of using these units, including risk of spoilage, humidity
variations, temperature variations, leaks, fires, water damage, mold, mildew, dryness and similar
perils that may occur.
What We Will Do: During the Limited Warranty Period, Wine Enthusiast and/or the manufacturer
will, at its sole discretion, repair or replace any appliance not operating within the manufacturer’s
specifications. All costs for labor and materials thereto shall be covered during the Limited
Warranty Period. If Wine Enthusiast deems the appliance is not repairable, Wine Enthusiast will
use the value of your original order toward a replacement; provided, however, that the purchaser
will be responsible for all shipping and handling costs with respect to the replacement after the
initial ninety (90) days after the date of receipt of original purchase. After the initial ninety (90)

18
day period after the date of receipt of purchase, purchaser must pay any shipping and
handling charges that are incurred in shipping or transporting the appliance for service
under this Limited Warranty. Wine Enthusiast reserves the right to substitute materials of
substantially similar quality in the event that identical materials are not available at the time the
Limited Warranty services are performed. Wine Enthusiast reserves the right to request that
purchaser contact a local refrigeration company to service the appliance.
How to get Warranty Service: In the event your appliance is not operating within the
manufacturer’s specifications, during the Warranty Period, contact customer service by email at
[e-mail] or by phone [phone].
Limitation of Implied Warranties: All implied warranties, including warranties of
merchantability and fitness for a particular purpose, are limited in duration to the length of this
Limited Warranty.
Exclusion of Certain Damages: Wine Enthusiast’s liability is limited to replacement or repair of
the defective appliance. Wine Enthusiast shall not be liable for any damages, whether incidental,
consequential or otherwise, because of any defective appliance.
How State Law Applies: Some states do not allow limitations on how long an implied warranty
lasts and/or do not allow the exclusion of incidental or consequential damages, so the above
limitations and exclusions may not apply to you. The Limited Warranty gives you specific legal
rights, and you may also have other rights which vary from state to state.
Wine Enthusiast
Valhalla, NY 10595
