Winmate OMFA User manual

OMFA - OPS Module
Digital signage display Optional Pluggable Specification (OPS) enables
easy integration of a digital signage computing system or a pluggable
module into the display panel.
Freescale iMX6 Quad Core 1GHz Processor, DDR3 1GB system memory,
one USB2.0 OTG, two USB2.0 host, two audio jacks for microphone,
line-in and line-out, optional Wi-Fi or 3G.
User Manual
Version 1.0
Manual Number:
917111171004

User Manual
II
Preface
Copyright Notice
No part of this document may be reproduced, copied, translated, or transmitted in any
form or by any means, electronic or mechanical, for any purpose, without the prior
written permission of the original manufacturer.
Trademark Acknowledgement
Brand and product names are trademarks or registered trademarks of their respective
owners.
Disclaimer
We reserve the right to make changes, without notice, to any product, including circuits
and/or software described or contained in this manual in order to improve design and/or
performance. We assume no responsibility or liability for the use of the described
product(s), conveys no license or title under any patent, copyright, or masks work rights
to these products, and makes no representations or warranties that these products are
free from patent, copyright, or mask work right infringement, unless otherwise specified.
Applications that are described in this manual are for illustration purposes only. We
make no representation or warranty that such application will be suitable for the
specified use without further testing or modification.
Warranty
We warrant that each of its products will be free from material and workmanship defects
for a period of one year from the invoice date. (Standard is one year, extended warranty
will need to discuss with our sales representatives. If the customer discovers a defect, we
will, at its option, repair or replace the defective product at no charge to the customer,
provided it is returned during the warranty period of one year, with transportation
charges prepaid. The returned product must be properly packaged in its original
packaging to obtain warranty service.
If the serial number and the product shipping data differ by over 30 days, the
in-warranty service will be made according to the shipping date. In the serial numbers
the third and fourth two digits give the year of manufacture, and the fifth digit means
the month (e. g., with A for October, B for November and C for December).
For example, the serial number 1W16Axxxxxxxx means October of year 2016.

User Manual
III
Packing List
Before using this product, please make sure that all the items listed below are present in
your package:
OMFA - OPS Module
User Manual & Driver CD
If any of these items are missing or damaged, contact your distributor or sales
representative immediately.
Ordering Information
Standard
Freescale Cortex™-A9 i.MX 6 Series Quad Core 1GHz
RAM : DDR3 1 GB
Storage : On board 16GB eMMC
OS: Android 4.4
Optional
1 x 2.5" SATA HDD/SSD
Wi-Fi : (802.11 b/g/n) or 3G
Customer Service
We provide a service guide as below for any problem by the following steps: First, contact
your distributor, sales representative, or our customer service center for technical support if
you need additional assistance. You need to prepare the following information before you
call:
Product serial number
Peripheral attachments
Software (OS, version, application software, etc.)
Detailed problem description
The exact wording of any error messages
In addition, free technical support is available from our engineers every business day. We are
always ready to give advice on application requirements or specific information on the
installation and operation of any of our products. Please do not hesitate to call or e-mail us.
Advisory Conventions
Four types of advisories are used throughout the user manual to provide helpful information
or to alert you to the potential for hardware damage or personal injury. These are Notes,
Important, Cautions, and Warnings. The following is an example of each type of advisory.
NOTE:
A note is used to emphasize helpful information
IMPORTANT:
An important note indicates information that is important for you to know.

User Manual
IV
CAUTION
A Caution alert indicates potential damage to hardware and explains how to
avoid the potential problem.
WARNING!
An Electrical Shock Warning indicates the potential harm from electrical
hazards and how to avoid the potential problem.
Safety Precautions
WARNING!
Always completely disconnect the power from OPS module whenever
you work with the hardware. Do not make connections while the
power is on. Sensitive electronic components can be damaged by
sudden power surges.
CAUTION
Always ground yourself to remove any static charge before touching
the CPU card. Modern electronic devices are very sensitive to static
electric charges. As a safety precaution, use a grounding wrist strap at
all times. Place all electronic components in a static-dissipative surface
or static-shielded bag when they are not in the chassis.
Safety and Warranty
1. Please read these safety instructions carefully.
2. Please keep this user manual for later reference.
3. Please disconnect this equipment from any AC outlet before cleaning. Do not use
liquid or spray detergents for cleaning. Use a damp cloth.
4. For pluggable equipment, the power outlet must be installed near the equipment
and must be easily accessible.
5. Keep this equipment away from humidity.
6. Put this equipment on a reliable surface during installation. Dropping it or letting it
fall could cause damage.
7. Make sure the voltage of the power source is correct before connecting the
equipment to the power outlet.

User Manual
V
8. Position the power cord so that people cannot step on it. Do not place anything
over the power cord.
9. All cautions and warnings on the equipment should be noted.
10. If the equipment is not used for a long time, disconnect it from the power source to
avoid damage by transient over-voltage.
11. If any of the following situations arises, get the equipment checked by service
personnel:
A. The power cord or plug is damaged.
B. Liquid has penetrated into the equipment.
C. The equipment has been exposed to moisture.
D. The equipment does not work well, or you cannot get it to work according to
the user’s manual.
E. The equipment has been dropped and damaged.
F. The equipment has obvious signs of breakage.
Revision History
Version
Date
Note
Author
1.0
14-Mar-2016
Initial release
Austin Chang, edited by
Anna Kiseleva

User Manual
VI
Contents
PREFACE.....................................................................................................................................................I
CHAPTER 1 GENERAL INFORMATION....................................................................................................2
1.1 INTRODUCTION..........................................................................................................................................2
1.2 FEATURES .................................................................................................................................................2
1.3 SPECIFICATION ...........................................................................................................................................3
1.4 PHYSICAL DESCRIPTION ...............................................................................................................................4
1.4.1 Dimensions ....................................................................................................................................4
1.4.2 Appearance ...................................................................................................................................4
CHAPTER 2 HARDWARE INSTALLATION .....................................................................................................7
2.1 MOTHERBOARD COMPONENTS .....................................................................................................................7
2.1.1 Front Side ......................................................................................................................................7
2.1.2 Rear Side........................................................................................................................................7
2.1.3 I/O Side..........................................................................................................................................8
2.2CONNECTOR PIN ASSIGNMENTS ....................................................................................................................8
2.2.1 Front Side ......................................................................................................................................9
2.2.2 Rear Side......................................................................................................................................11
2.2.3 I/O Side........................................................................................................................................12
2.3HARDWARE MODIFICATION........................................................................................................................17
2.3.1 HDD/SSD Installation...................................................................................................................17
2.3.2 SIM Card Installation ...................................................................................................................18
2.3.3 Other Internal Parts.....................................................................................................................19
CHAPTER 3 SOFTWARE UPDATE .............................................................................................................. 22
3.1 ANDROID DEBUG BRIDGE (ADB) DRIVER INSTALLATION ..................................................................................22
3.1.1 Disabling Driver Signature on Windows 8 ...................................................................................22
3.1.2 ADB Driver Installation ................................................................................................................27
3.2 INSTALLING ANDROID DEBUG BRIDGE (ADB) ................................................................................................30
3.3 IMAGE TOOL DOWNLOAD ..........................................................................................................................32
3.4 OS IMAGE UPDATE...................................................................................................................................32
3.5 OTA UPDATE GUIDE .................................................................................................................................39
CHAPTER 4: TECHNICAL SUPPORT DOCUMENTS .....................................................................................44
4.1 OMFA SDK ...........................................................................................................................................44

OMFA OPS Pluggable Module General Information
User Manual
1
General Information
This chapter includes OMFA - OPS Module
background information.

OMFA OPS Pluggable Module General Information
User Manual
2
Chapter 1 General Information
This chapter includes OMFA - OPS module background information such as features,
hardware specification, dimensions and appearance.
1.1 Introduction
Thank you for choosing the OMFA - OPS Module. Digital signage display Optional
Pluggable Specification (OPS) enables easy integration of a digital signage computing
system or a pluggable module into the display panel. The module is powered by
Freescale iMX6 Quad Core 1GHz processor that allows running on Android 4.4 operating
system. Android provides many options for easy software integration.
Open Pluggable Specification (OPS) module that can be installed into the display panel
through a single and standard interfacing based on the 80 pin JAE plug and receptacle
connectors. The power supply to the motherboard together with the defined feature
interfaces are being routed through the set of connectors, and provide a functional
system level computing solution for digital signage.
There is an advanced full set of I/O ports including one USB2.0 OTG, two USB2.0 host,
two audio jacks for microphone, line-in and line-out. The current model allows adding
Wi-Fi or 3G models for better connectivity and information exchange.
1.2 Features
OMFA - OPS Module has the following features:
Freescale iMX6 Quad Core 1GHz processor
Android 4.4
DDR3 1GB system memory
Integrated graphics
1 x Power Button, 1 x Reset Button, 2 x USB2.0 Host, 1 x USB 2.0 OTG, 2 x Audio
Jack, 1 x RJ45
Wi-Fi / 3G modules (optional)

OMFA OPS Pluggable Module General Information
User Manual
3
1.3 Specification
System Specification:
CPU
Freescale Cortex™-A9 i.MX 6 Series Quad Core 1GHz
System Memory
DDR3 1GB
OS
Android 4.4
Storage
On board 16GB eMMC, 1 x 2.5" SATA HDD/SSD
Graphic Chipset
Integrated Graphics
Ethernet
Gigabit Ethernet LAN
Audio
Mic-in / Headphone
I/O Interface:
Front
1 x Power Button
1 x Reset button
2 x USB 2.0 Host
1 x USB 2.0 OTG
2 x Audio Jack (Line-in/ Line-out)
1 x RJ45
Rear (OPS Interconnector)

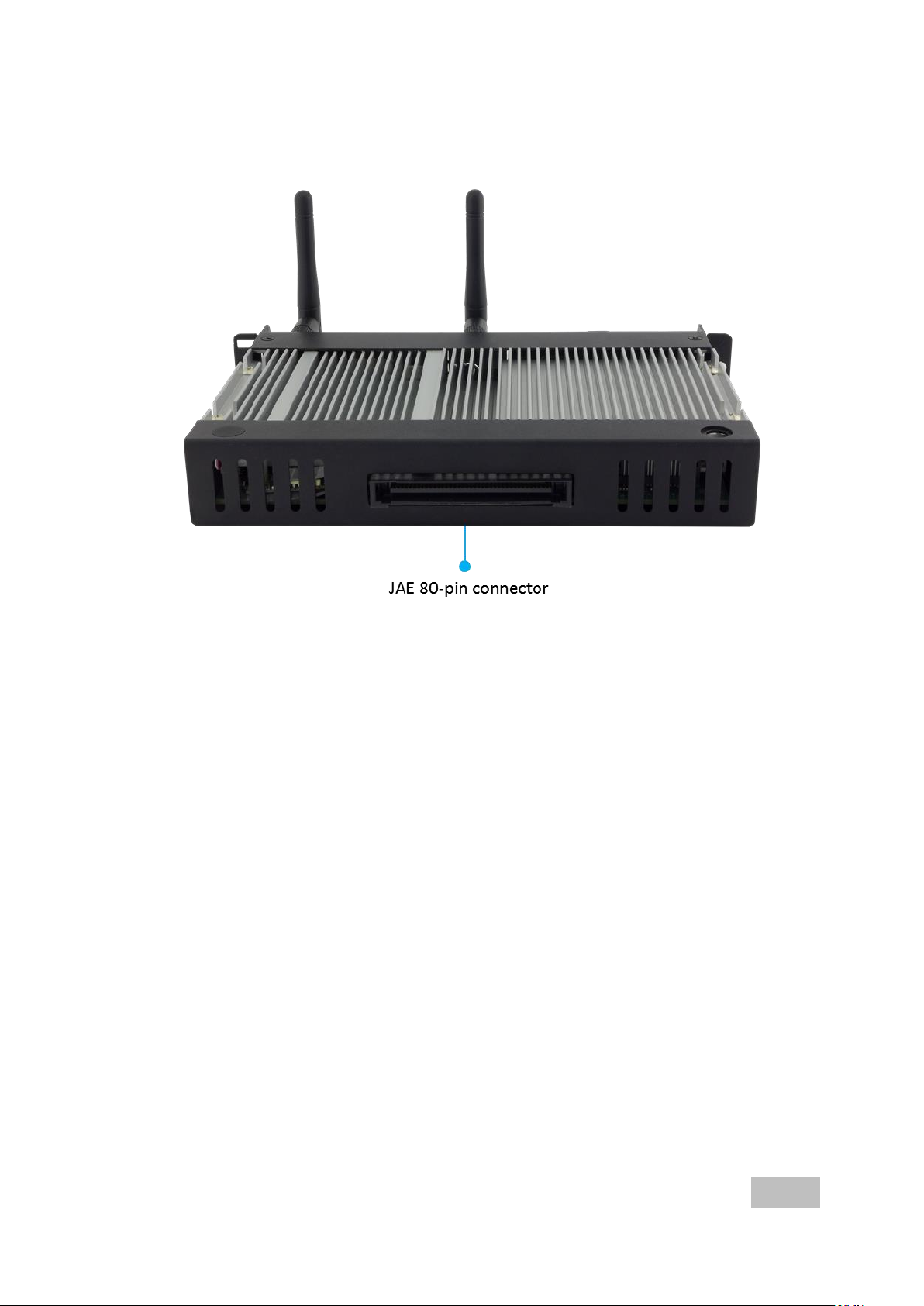

1 x JAE 80-Pin connector (OPS Standard)
Power Requirements:
Power Consumption
10W (burn in test)
Input Voltage
12V~19V DC in (via OPS interconnection)
Mechanical Dimensions:
Dimensions (W x H x D)
200 x 30 x 118mm (OPS compliant)
Environment:
Operating Temperature
-10°C to 60°C
Operating Humidity
30%~ 90% (non-condensing, RH)
Certification
Electromagnetic
CE, FCC
*Wireless Communication:
*Wi-Fi
USB Wi-Fi Module
*3G
Mini PCle 3G Module
*optional

OMFA OPS Pluggable Module General Information
User Manual
4
1.4 Physical Description
1.4.1 Dimensions
119 x 30 x 200 (unit: mm)
1.4.2 Appearance
Front Side
