Winmate I370 User manual

I370 Motherboard
Mini-ITX Fan SBC w/ Intel®Socket M
CPU, VGA, LCD, Giga Ethernet,
Mini-PCI and PCI-E x16 Interface.
USER MANUAL Version 1.5

I370 Motherboard User Manual
II
FCC Statement
This device complies with part 15 FCC rules. Operation is subject to
the following two conditions ：
This device may not cause harmful interference.
This device must accept any interference received including
interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a class "a"
digital device, pursuant to part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful int erference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio c ommunications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at hi m
own expense.

I370 Motherboard User Manual
III
Copyright Notice
Copyright © 2007 Winmate Technology Inc., AL L RIGHTS RESERVED. No part of
this document may be reproduced, copied, translated, or transmitted in any form or by
any means, electronic or mechanical, for any purpose, without the prior written
permission of the original manufacturer.
Trademark Acknowledgement
Brand and product names are trademarks or registered trademarks of their respective
owners.
Disclaimer
Winmate Communication Inc. reserves the right to make changes, without notice, to
any product, including circuits and/or software described or c ontained in this manual
in order to improve design and/or performance. Winmate Communication assumes no
responsibility or liability for the use of the described product(s), conveys no license or
title under any patent, copyright, or masks work rights to th ese products, and makes
no representations or warranties that these products are free from patent, copyright, or
mask work right infringement, unless otherwise specified. Applications that are
described in this manual are for illustration purposes only. Wi nmate Communication
Inc. makes no representation or warranty that such application will be suitable for the
specified use without further testing or modification.
Warranty
Winmate warrants that each of its products will be free from material and
workmanship defects for a period of one year from the invoice date . If the customer
discovers a defect, Winmate will, at its option, repair or replace the defective product
at no charge to the customer, provided it is returned during the warranty period of one
year, with transportation charges prepaid. The returned product must be properly
packaged in its original packaging to obtain warranty service.
If the serial number and the product shipping data differ by over 30 days, the
in-warranty service will be made ac cording to the shipping date. In the serial numbers
the third and fourth two digits give the year of manufacture, and the fifth digit means
the month (e. g., with A for October, B for November and C for December).
For example, the serial number 1W07Axxxxx xxx means October of year 2007.

I370 Motherboard User Manual
IV
Packing List
Before using this Motherboard, please make sure that all the items listed below are
present in your package ：
I370 Motherboard
I370 SBC User Manual
HDD SATA Cable
User’s Manual & Driver CD
RS232 Cable
If any of these items are missing or damaged, contact your distributor or sales
representative immediately.
Customer Service
We provide service guide for any pro blem as follow steps：First, visit the website at
http://www.winmate.com to find the update information about the product. Second,
contact with your distributor, sales representative, or our customer service center for
technical support if you need addition al assistance. You may have the following
information ready before you call ：
Product serial number
Peripheral attachments
Software (OS, version, application software, etc.)
Description of complete problem
The exact wording of any error messages
In addition, free technical support is available from our engineers every business day.
We are always ready to give advice on application requirements or specific
information on the installation and operation of any of our products. Please do not
hesitate to call or e-mail us.

I370 Motherboard User Manual
V
Safety Precautions
Warning!
Always completely disconnect the power cord from your chassis
whenever you work with the hardware. Do not make connections
while the power is on. Sensitive electronic components can be
damaged by sudden power surg es. Only experienced electronic
personnel should open the PC chassis.
Caution!
Always ground yourself to remove any static charge before
touching the CPU card. Modern electronic devices are very
sensitive to static electric charges. As a safety precau tion, use a
grounding wrist strap at all times. Place all electronic components
in a static-dissipative surface or static -shielded bag when they are
not in the chassis.

I370 Motherboard User Manual
VI
Safety and Warranty
1. Please read these safety instructions carefully.
2. Please keep this user's manual for later reference.
3. Please disconnect this equipment from any AC outlet before cleaning. Do not use
liquid or spray detergents for cleaning. Use a damp cloth.
4. For pluggable equipment, the power outlet must be installed near the equipment
and must be easily accessible.
5. Keep this equipment away from humidity.
6. Put this equipment on a reliable surface during installation. Dropping it or letting
it fall could cause damage.
7. The openings on the enclosure are for air convection. Protect the equipment from
overheating. DO NOT COVER THE OPENINGS.
8. Make sure the voltage of the power source is correct before connecting the
equipment to the power outlet.
9. Position the power cord so that people cannot step on it. Do not place anything
over the power cord.
10. All cautions and warnings on the equipment should be noted.
11. If the equipment is not used for a long time, disconnect it from the power source
to avoid damage by transient over -voltage.
12. Never pour any liquid into an opening. This could cause fire or electrical shock.
13. Never open the equipment. For safety reasons, only qualified service personnel
should open the equipment.
14. If any of the following situations arises, get the equipment checked by service
personnel:
A. The power cord or plug is damaged.
B. Liquid has penetrated into the equipment.
C. The equipment has been exposed to moisture.
D. The equipment does not work well, or you cannot get it to work according to
the user’s manual.
E. The equipment has been dropped and damaged.
F. The equipment has obvious signs of breakage.
15. Do not leave this equipment in an uncontrolled environment where the storage
temperature is below -20° C (-4°F) or above 60° C (140° F). It may damage the
equipment.

I370 Motherboard User Manual
VII
Revision History
Version
Date
Note
Author
0.1
2007.08.10
Initial Draft
Shawn Kuo
0.2
2007.08.16
Increase Driver
installation
Aladin Huang
0.3
2007.09.07
Increase BIOS
Aladin Huang
0.4
2007.09.12
Change COM3
and COM4.
Increase SDVO 2
Resolution
Aladin Huang
1.0
2007.09.17
Check Spec.
Aladin Huang
1.1
2007.09.20
Add new
Resolution
Aladin Huang
1.2
2007.10.04
BIOS Check
Aladin Huang
1.3
2007.10.05
Cancel Audio Jack
Aladin Huang
1.4
2007.10.23
Revised COM port
Chris Tsai
Revised 2.4.2
Add CF issue
Aladin Huang
Revised 2.5.14
Aladin Huang

I370 Motherboard User Manual
VIII
Revised 2.5.15
Aladin Huang

I370 Motherboard User Manual
IX
Contents
CHAPTER 1 GENERAL INFORMATION ................................ .....2
1.1 INTRODUCTION ............................................................................... 2
1.2 FEATURE ..................................................................................... 2
1.3 MOTHERBOARD SPECIFICATIONS ..................................................... 3
1.4 FUNCTION BLOCK ................................................................ ....... 4
1.5 BOARD DIMENSIONS .................................................................... 5
CHAPTER 2 INSTALLATIONS ................................ ...................... 7

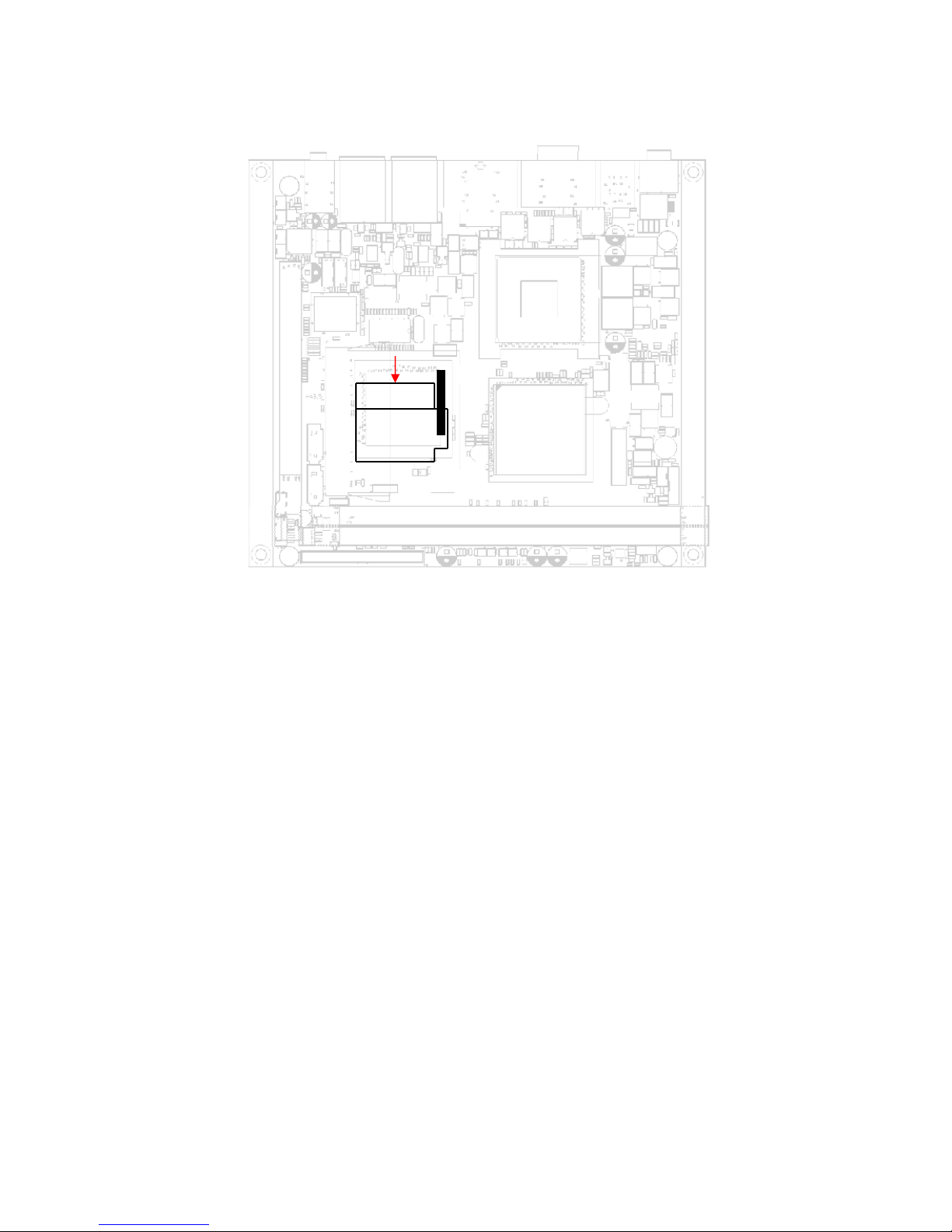

2.1 MEMORY MODULE（DIMM）INSTALLATION .............................. 7
2.2 I/O EQUIPMENT INSTALLATION .................................................... 8
2.3 JUMPERS AND CONNECTORS ...................................................... 10
2.4 JUMPER SETTING ................................ ....................................... 12
2.5 CONNECTORS AND PIN ASSIGNMENT .......................................... 14
CHAPTER 3 GRAPHIC DRIVER INSTA LLATION ...................23
3.1 STANDARD CMOS FEATURE ............................................................ 23
3.2 PANEL RESOLUTION SETTING......................................................... 27
CHAPTER 4 CHIPSET DRIVER INSTA LLATION .................... 30
4.1 STANDARD CMOS FEATURES ................................ ........................ 30
CHAPTER 5 ETHERNET DRIVER INSTALLATION .................35
5.1 INTRODUCTION ............................................................................. 35
5.2 INSTALLATION OF ETHERNET DRIVER......................................... 36
CHAPTER 6 AUDIO DRIVER INSTALLATION ........................ 40
6.1 INTRODUCTION ............................................................................. 40
6.2 INSTALLATION OF AUDIO DRIVER............................................... 40
CHAPTER 7 AWARD BIOS INSTALLATION .................................43
7.1 BIOS INTRODUCTION ...................................................................... 43
7.2 BIOS SETUP................................ .................................................... 43
7.3 STANDARD CMOS SETUP ................................................................ 44
7.4 ADVANCE BIOS FEATURE ................................ ................................ 46
7.5 ADVANCED BIOS FEATURE.............................................................. 49
7.6 ADVANCED CHIPSET FEATURE................................ .......................... 52
7.7 INTEGRATED PERIPHERALS .............................................................. 55
7.8 POWER MANAGEMENT SETUP................................ .......................... 58

I370 Motherboard User Manual
1
General Information
This chapter includes I370 Motherboard background
information.
Sections include:
Introduction
Feature
Motherboard Specification
Function Block
Board Dimensions
C H A P T E R
1

I370 Motherboard User Manual
2
Chapter 1 General Information
1.1 Introduction
I370 SBC is equipped with Intel 945GM E North Bridge and Intel ICH7M
South Bridge which are designed for use with Intel’s mobile platform,
Intel® Centrino® Duo mobile technology. Comparing to previous
generation chipset, the 945GME chipset's low power design enables up to
28% less average power consumption and the chipset delivers up to 2x
improvement in graphics performance and enables up to 25% higher data
transfer bus speed rate.
In peripheral connectivity, I370 SBC features PCI Express x16 slot and
Mini-PCI I/O ports, two Serial ATA connectors, and eight Hi-Speed USB
2.0 connectors. Additionally, I370 SBC build-in a 12V DC-IN power
adapter.
Thus, I370 SBC is designed to satisfy most of the applications in the
industrial computer market, such as Gaming, POS, KIOSK, Industrial
Automation, and Programmable Control System . It is a compact design to
meet the demanding performance requirements of today’s business and
industrial applications.
1.2 Feature
Mini-ITX Form Factor ( 170mm x 170mm)
Supports Socket M Intel® Core™2 Duo/Duo/Solo, Celeron M/ULV
processors
System memory up to 4GB DDR2 400/533/667, 2xDIMM
Integrated Intel 945GME + ICH7M Chipset
Intel® GMA 950 Integrated Graphics Engine supports LVDS, CRT
and SDVO
Dual Gigabit Ethernet
1 x PCI-E x16 slot, 1 x Mini PCI, 4 x COM, 8 x USB2.0, 2 x SATA,
1 x PATA and CF Card Type I/II ( optional )

I370 Motherboard User Manual
3
1.3 Motherboard Specifications
CPU Type
Intel Core 2 Duo, Core Duo, Core Solo, Celeron M ULV
CPU FSB
533MHz/667MHz
CPU Socket
Intel Socket M
Chipset
Intel 945GME / ICH7M
BIOS
Award 4MB Flash
VGA
Intel® GMA 950 Integrated Graphics Engine
Up to 224MB shared with system memory
LVDS
Intel® GMA 950 Integrated Graphics Engine built-in, single-
or dual-channel panel support up to 1600 x 1200, 18bit
LAN
2 x Giga LAN (Dual Realtek RTL8111B Controller )
Memory Type
2 x DDR2 DIMM socket, supports up to 4GB DDR2
533/667 SDRAM
LPC I/O
Winbond W83627EHG integrated hardware monitoring
Keyboard/Mouse
2 x PS/2 Keyboard/Mouse connectors
IDE Interface
One channels; supports Ultra DMA 33/66/100
Sound
Realtek ALC655 5.1 channel (Line-out, Line-in & Mic in)
USB
8 ports, USB 2.0 (4 x USB Connector, 4 x USB pin-header )
Edge Connectors
1 x DC-IN Jack
2 x PS/2 connector for keyboard/mouse
2 x DB9 for COM1 & COM2
1 x VGA out connector + 1 x DB9 for COM3
1 x Gigabit LAN RJ-45 + 1 x dual USB stack connector
1 x Gigabit LAN RJ-45 + 1 x dual USB stack connector
1 x Audio Jack for Audio (Line -Out, Line-In, Mic-in)
(Optional)
On Board
Pin-Header
Connectors
1 x 44 pins box-header
2 x SATA connector for SATAI/II 3.0 Gb/s
1 x 10pins pin-header for Front Panel(2x5)
1 x 8pins pin-header for 5V/12V external power
1 x 3pins pin-header for CPU Fan
1 x 3pins pin-header for System FAN
2 x 2pins pin-header for 5V external power
1 x 2pins pin-header for 12V external power
2 x 2pins pin-header for Front Audio
2 x 10pins pin-header for USB 5/6, 7/8(2x5)
1 x 10pins pin-header for COM4(RS232)
1 x 4pins ATX 12V connector
1 x 40pins DF13 Connector for LVDS
1 x 3pins digital panel backlight bright ness controller
1 x 7pins digital panel backlight controller
Power Connector
Input: 4-pin ATX 12V Power input
Expansion Slots
1 x PCIEx16, 1 x Mini-PCI, 1 x CF Card Type I/II(Option)
Form Factor
Mini-ITX
Dimensions
170mm x 170mm
Mechanical &
environmental
Operating temperature: 0 deg. C to 60 deg. C
Operating Humidity: 30 ~ 90% Relative humidity,
non-condensing
Certification: CE, FCC, RoHS

I370 Motherboard User Manual
4
1.4 Function Block
Intel Socket M
Mobile CPU
Yonah & Marom
Intel 945GME
QG82945GM
Core 2 Duo ( LV,ULV )
Core Duo ( LV,ULV )
Core Solo ULV
Celeron M ( ULV )
FSB 533/667
2GB/s
CRT
LVDS
PCI-E x16
1600*1200
18bit/Dual CH
8GB/s
DIMM 240 Pin x 2
DDR2 667/533 Max.4GB
IDE Host
SATA II 1, SATAII 2
ATA100
3GB/s
CF Card Slot
Mini PCI(Option)
33MHz
LAN
USB
1GB/s
480MB/s
Audio
Realtek ALC655
Super IO
Realtek ALC655
Secondary IO
Realtek ALC655
W
W8 83 32 26 67 7E EH HG G
F
Fi in nt te ek k8 81 12 21 16 6D D
ROM FWH
Realtek ALC655
R
Re ea al lt te ek kA AL LC C6 65 55 5
Intel ICH7M
NH82801GBM

I370 Motherboard User Manual
5
1.5 Board dimensions
Note: Audio Jack and CF slot is optional.

I370 Motherboard User Manual
6
Installations
This chapter provides information on how to use the
jumps and connectors on I370 Motherboard.
The Sections include:
Memory Module Installation
I / O Equipment Installation
Setting the Jumpers
Connectors on I370 Motherboard
C H A P T E R
2

I370 Motherboard User Manual
7
Chapter 2 Installations
2.1 Memory Module（DIMM）Installation
I370 motherboard supports two DDR2 memory socket for a maximum total memory
of 4GB in DDR2 memory type.
2.1.1 Installing and Removing Memory Modules
To install the DDR2 modules, locate the memory slot on the b oard and perform the
following steps:
1. Hold the DDR2 module so that the key of the DDR module align with those on
the memory slot.
2. Gently push the DDR2 module in an upright position until the clips of the slot
close to hold the DDR 2 module in place when the DDR module touches the
bottom of the slot.
3. To remove the DDR2 module, press the clips with both hands.
DDR2 Module
Lock Lock
Lock Lock

I370 Motherboard User Manual
8
2.2 I/O Equipment Installation
2.2.1 12V DC-IN
The Motherboard allows plugging 12V DC-IN jack on the board without another
power module converter under power consumption by Intel socket M processor in
945GME with ICH7M chipset.
2.2.2 PS/2 Keyboard and PS/2 Mouse
The Motherboard provides two PS/2 interface. The PS/2 connector supports Keyboard
and Mouse. In other cases, especially in embedded applications, a mouse is not used.
Therefore, the BIOS standard setup menu allows you to select* “All, But Keyboard”
under the “Halt On”. This allows no -keyboard operation in embedded system
applications without the system halting under POST.
2.2.3 Serial COM ports
Two RS-232 connectors build in the rear I/O . Three optional COM ports support
RS-232. When an optional touch -screen is ordered with PPC, serial com port can
connect to a serial or an optional touch -screen. One optional COM port supports
RS232/422/485 choice through jumper setting.
2.2.4 Internal VGA
The Motherboard has one VGA port that can be connected to an external CRT/ LCD
monitor. Use VGA cable to connect to an external CRT / LCD monitor, and connect
the power cable to the outlet . The VGA connector is a standard 15 -pin D-SUB
connector.
2.2.5 Ethernet interface
The Motherboard is equipped with Realtek RTL8111B + Realtek RTL81 11B chipset
which is fully compliant with the PCI 10/100 /1000 Mbps Ethernet protocol
compatible. It is supported by major network operating systems. The Ethe rnet ports
provide two standard RJ-45 jacks.
2.2.6 USB ports
Eight USB devices (four with pin headers) may be connected to the system though an
adapter cable. Various adapters may come with USB ports. USB usually connect the
external system to the system. The U SB ports support hot plug -in connection.
Whatever, you should install the device driver before you use the device.

I370 Motherboard User Manual
9
2.2.7 Audio function (Pin-header)
The Audio 5.1 channel capabilities are provided by a Realtek ALC655 chipset
supporting digital audio outputs. The audio interface includes Mic-in, line-in and
line-out.

I370 Motherboard User Manual
10

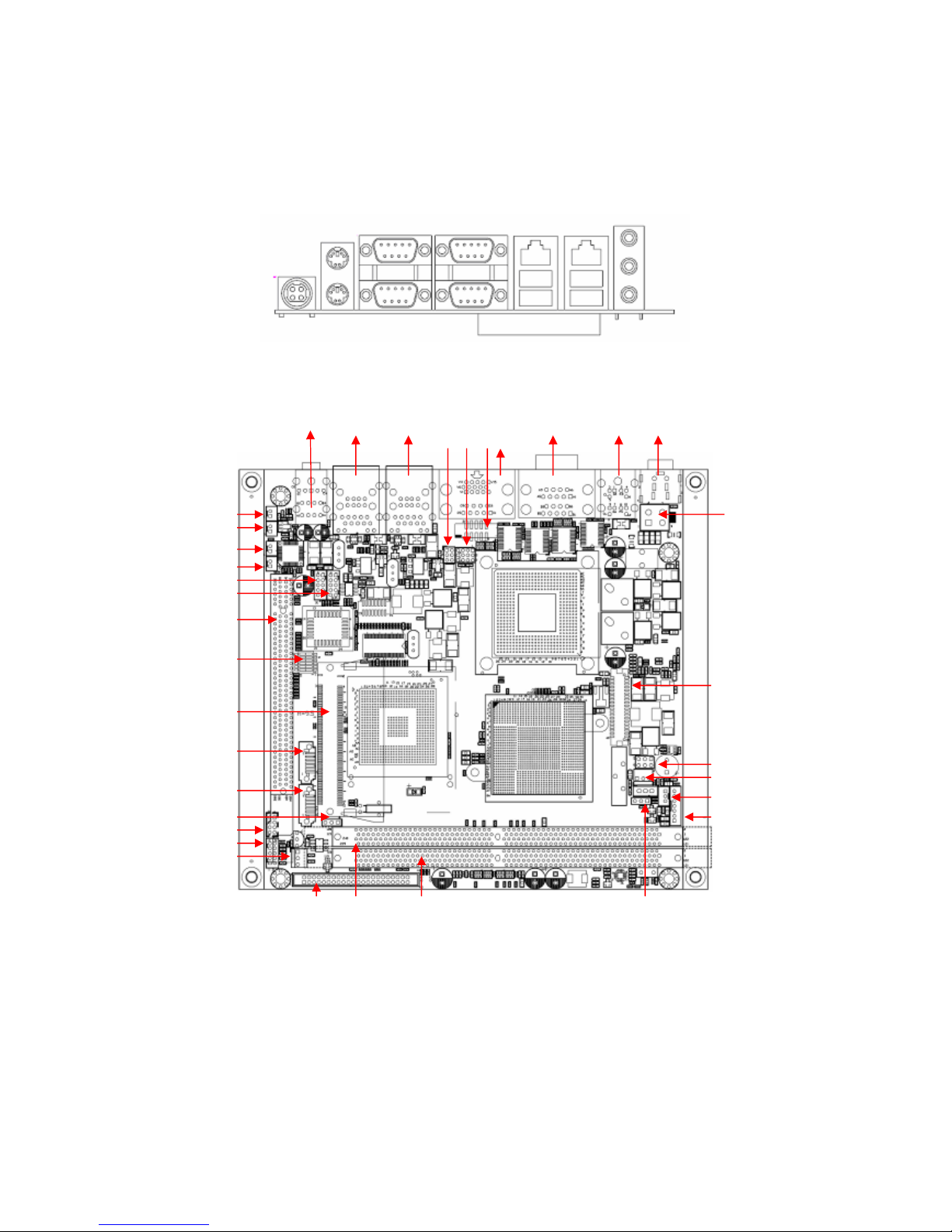

2.3 Jumpers and Connectors
TOP
Locating Jumpers and Connectors (front side)
USBLAN2
USBLAN１
CON902
CON901
PSKBM901
CON912
ATX12V901
CON909
JP603
JP602
J401
J402
CON905
CON906
PCIEX1
MINI_PCI901
SATA2
SATA1
JP901
J2
PANEL901
NB_FAN901
IDE901
DIMM1
DIMM2
JP301
CON904
CPU_FAN901
CON903
JP902
CON908
SW901
USB901
USB902
Audio Jack (Optional)

I370 Motherboard User Manual
11
BOTTOM
Locating Jumpers and Connectors (rear side)
CF Card Slot(Optional)
