Winmate IH70 User manual

IH70 Motherboard
Mini-ITX SBC with w/ Intel® 4th Generation Core i3/i5/i7 Processor, VG , LVDS,
Dual Giga Ethernet, USB 3.0 and Mini-PCIe Interface.
User Manual / Engineering Spec.
Version 1.0

IH70 Motherboard User Manual /
Engineering Spec.
IH70 Motherboard User Manual
II
FCC Statement
This device complies with part 15 FCC rules. Operation is subject to
the following two conditions：
 This device may not cause harmful interference.
 This device must accept any interference received including
interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a class "a"
digital device, pursuant to part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at him
own expense.

IH70 Motherboard User Manual /
Engineering Spec.
IH70 Motherboard User Manual
III
Copyright Notice
No part of this document may be reproduced, copied, translated, or transmitted in
any form or by any means, electronic or mechanical, for any purpose, without the
prior written permission of the original manufacturer.
Trademark Acknowledgement
Brand and product names are trademarks or registered trademarks of their
respective owners.
Disclaimer
We reserve the right to make changes, without notice, to any product, including
circuits and/or software described or contained in this manual in order to improve
design and/or performance. We assume no responsibility or liability for the use of
the described product(s), conveys no license or title under any patent, copyright, or
masks work rights to these products, and makes no representations or warranties
that these products are free from patent, copyright, or mask work right infringement,
unless otherwise specified. pplications that are described in this manual are for
illustration purposes only. Winmate Communication Inc. makes no representation or
warranty that such application will be suitable for the specified use without further
testing or modification.
Warranty
We warrant that each of its products will be free from material and workmanship
defects for a period of one year from the invoice date. If the customer discovers a
defect, We will, at its option, repair or replace the defective product at no charge to
the customer, provided it is returned during the warranty period of one year, with
transportation charges prepaid. The returned product must be properly packaged in
its original packaging to obtain warranty service.
If the serial number and the product shipping data differ by over 30 days, the
in-warranty service will be made according to the shipping date. In the serial
numbers the third and fourth two digits give the year of manufacture, and the fifth
digit means the month (e. g., with for October, B for November and C for
December).
For example, the serial number 1W11 xxxxxxxx means October of year 2011.

IH70 Motherboard User Manual /
Engineering Spec.
IH70 Motherboard User Manual
IV
Packing List
Before using this Motherboard, please make sure that all the items listed below are
present in your package：
IH70 Motherboard
HDD S T Cable
User’s Manual & Driver DVD
If any of these items are missing or damaged, contact your distributor or sales
representative immediately.
Customer Service
We provide service guide for any problem as follow steps： The first, contact with
your distributor, sales representative, or our customer service center for technical
support if you need additional assistance. You may have the following information
ready before you call：
Product serial number
Peripheral attachments
Software (OS, version, application software, etc.)
Description of complete problem
The exact wording of any error messages
In addition, free technical support is available from our engineers every business day.
We are always ready to give advice on application requirements or specific
information on the installation and operation of any of our products. Please do not
hesitate to call or e-mail us.

IH70 Motherboard User Manual /
Engineering Spec.
IH70 Motherboard User Manual
V
Safety Precautions
 Warning!
lways completely disconnect the power cord from your chassis
whenever you work with the hardware. Do not make connections
while the power is on. Sensitive electronic components can be
damaged by sudden power surges. Only experienced electronic
personnel should open the PC chassis.
 Caution!
lways ground yourself to remove any static charge before
touching the CPU card. Modern electronic devices are very
sensitive to static electric charges. s a safety precaution, use a
grounding wrist strap at all times. Place all electronic components
in a static-dissipative surface or static-shielded bag when they are
not in the chassis.

IH70 Motherboard User Manual /
Engineering Spec.
IH70 Motherboard User Manual
VI
Safety and Warranty
1. Please read these safety instructions carefully.
2. Please keep this user's manual for later reference.
3. Please disconnect this equipment from any C outlet before cleaning. Do not
use liquid or spray detergents for cleaning. Use a damp cloth.
4. For pluggable equipment, the power outlet must be installed near the
equipment and must be easily accessible.
5. Keep this equipment away from humidity.
6. Put this equipment on a reliable surface during installation. Dropping it or
letting it fall could cause damage.
7. The openings on the enclosure are for air convection. Protect the equipment
from overheating. DO NOT COVER THE OPENINGS.
8. Make sure the voltage of the power source is correct before connecting the
equipment to the power outlet.
9. Position the power cord so that people cannot step on it. Do not place anything
over the power cord.
10. ll cautions and warnings on the equipment should be noted.
11. If the equipment is not used for a long time, disconnect it from the power
source to avoid damage by transient over-voltage.
12. Never pour any liquid into an opening. This could cause fire or electrical shock.
13. Never open the equipment. For safety reasons, only qualified service personnel
should open the equipment.
14. If any of the following situations arises, get the equipment checked by service
personnel:
. The power cord or plug is damaged.
B. Liquid has penetrated into the equipment.
C. The equipment has been exposed to moisture.
D. The equipment does not work well, or you cannot get it to work according
to the user’s manual.
E. The equipment has been dropped and damaged.
F. The equipment has obvious signs of breakage.
15. Do not leave this equipment in an uncontrolled environment where the storage
temperature is below -20° C (-4°F) or above 60° C (140° F). It may damage the
equipment.

IH70 Motherboard User Manual /
Engineering Spec.
IH70 Motherboard User Manual
VII
Revision History
Version Date Note Author
1.0 2014.10.7 Initial Draft Patrick Hsien

IH70 Motherboard User Manual /
Engineering Spec.
IH70 Motherboard User Manual
VIII
Contents
CHAPTER 1 GENERAL INFORMATION.......................................2
1.1 I NTRODUCTION ...................................................................................2
1.2 F EATURE .............................................................................................2
1.3 M OTHERBOARD S PECIFICATIONS ........................................................3
CHAPTER 2 INSTALLATIONS.........................................................8

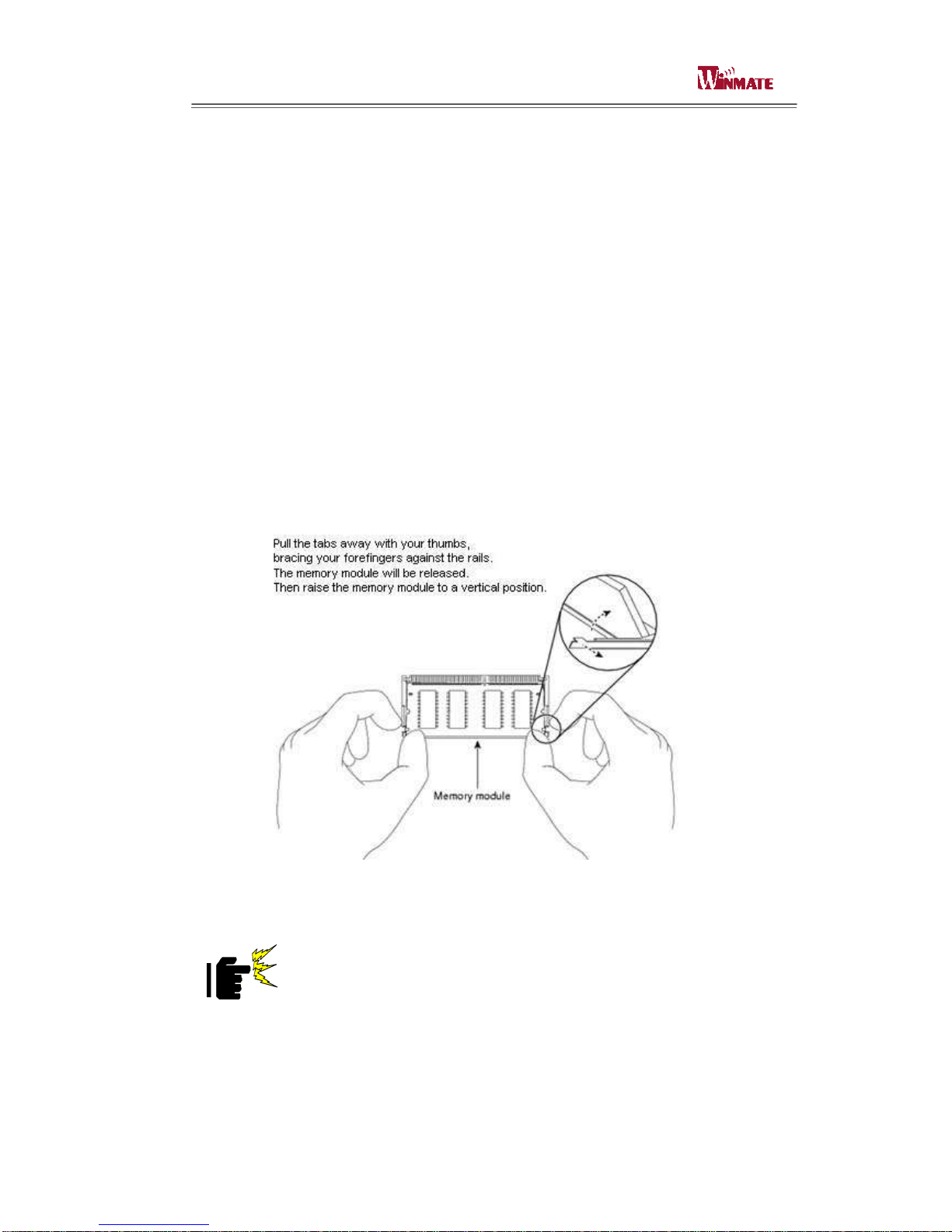

2.1 M EMORY M ODULE （SO-DIMM）I NSTALLATION .............................8
2.2 I/O E QUIPMENT I NSTALLATION ...........................................................9
2.2.1 12V DC-IN..........................................................................................................................9
2.2.2 Serial COM ports ...............................................................................................................9
2.2.3 External VGA .....................................................................................................................9
2.2.4 Ethernet interfa e .............................................................................................................9
2.2.5 USB ports.............................................................................................................................9
2.2.6 Audio fun tion...................................................................................................................10
2.3 J UMPERS AND C ONNECTORS .............................................................11
2.4 J UMPER S ETTING ...............................................................................13
2.4.1 SW1:Clear CMOS ...............................................................................................................14
2.4.2 JP1: RS232 / RS422 / RS485 Sele tor for COM port...........................................................14
2.4.3 JP2 : RS232 / RS422 / RS485 Sele tor for COM port..........................................................14
2.4.4 JP3 : Brightness Control(VR/Software)..............................................................................15
2.4.6 JP8 : Ba k Light PWR .........................................................................................................15
2.4.7 JP10: LCD Panel Voltage Sele t..........................................................................................15
2.4.8 JP14 : Brightness Control(DC/PWM) .................................................................................16
2.5 C ONNECTORS AND P IN A SSIGNMENT ................................................17
2.5.1 CON1: LVDS Conne tor......................................................................................................18
2.5.2 CN16: Digital Panel Ba klight Inverter Conne tor.............................................................19
2.5.3 CN17: Digital Panel Ba klight Brightness Control .............................................................19
2.5.4 CN14: Serial port COM2 ....................................................................................................20
2.5.5 CN12,CN11:COM5 、 COM6...............................................................................................20
2.5.6 USB1,2 : USB 2.0 Wafer.....................................................................................................21
2.5.7 CN27:USB 3.0 Wafer..........................................................................................................22
2.5.8 FAN1,FAN2:CPU & System FAN CONNECTOR ....................................................................22
2.5.9 PANEL1: Front Panel System Fun tion Conne tor..............................................................23
2.5.10 CN8,CN9:5V Output ........................................................................................................23
2.5.11 CN6:12V Output ..............................................................................................................23

IH70 Motherboard User Manual /
Engineering Spec.
IH70 Motherboard User Manual
IX
2.5.12 CN20: SATA POWER.........................................................................................................23
2.5.13 CN13:HDMI Output Conne tor........................................................................................24
2.5.14 CN21:DVI Output Conne tor ...........................................................................................25
2.5.15 CN26:eDP Output Conne tor...........................................................................................26
2.5.16 CN7: Digital I/O Conne tor..............................................................................................27
2.5.17 J1,J2: Amplifier ................................................................................................................27
2.5.18 CN10: Mini-PCIE Half ard Slot........................................................................................28
2.5.19 CN18: Mini-PCIE 3G Full Card Slot...................................................................................29
2.5.20 CN19: mSATA ard Slot ....................................................................................................30
2.5.21 CN24: SIM Card Daughter Board Conne tor ...................................................................31
2.5.22 LPT1:Printer Port .............................................................................................................31
CHAPTER 3 AMI BI S SETUP ...................................................................33
3.1 H OW AND W HEN TO U SE BIOS S ETUP ................................................33
3.2 BIOS F UNCTIONS ................................................................................34
3.2.1 Main Menu...........................................................................................................................34
3.2.2 Advan ed Setting..................................................................................................................35
3.2.3 Chipset Menu .......................................................................................................................51
3.2.4 Boot Menu............................................................................................................................57
3.2.5 Se urity Menu ......................................................................................................................58
3.2.6 Save & Exit ...........................................................................................................................59
3.3 U SING R ECOVERY W IZARD TO R ESTORE C OMPUTER ..........................61
CHAPTER 4 GRAPHIC DRIVER INSTALLATI N .........................................64
4.1 I NSTRUCTION ..........................................................................................64
CHAPTER 5 CHIPSET DRIVER INSTALLATI N...........................................68
5.1 I NSTRUCTION ..........................................................................................68
CHAPTER 6 ETHERNET DRIVER INSTALLATI N ........................................72
6.1 I NSTRUCTION ........................................................................................72
CHAPTER 7 AUDI DRIVER INSTALLATI N .............................................76
7.1 I NTRODUCTION .....................................................................................76
7.2 I NST LL TION OF UDIO D RIVER ..............................................................76
CHAPTER 8 FINTEK C M P RT DRIVER INSTALLATI N ..........................79
CHAPTER 9 INTEL® MANAGEMENT ENGINE S FTWARE INSTALLATI N
83

IH70 Motherboard User Manual /
Engineering Spec.
IH70 Motherboard User Manual
X
9.1 I NTRODUCTION .......................................................................................83
APPENDIX..............................................................................................87
N OTE 1: D IGITAL I/O S AMPLE C ODE ..........................................................87
N OTE 2: W ATCHDOG S AMPLE C ODE ..........................................................87

IH70 Motherboard User Manual /
Engineering Spec.
IH70 Motherboard User Manual
1
General Information
This chapter includes the IH70 Motherboard background
information.
Sections include:
 Introduction
 Feature
 Motherboard Specification
 Function Block
 Board Dimensions
C H A P T E R
1

IH70 Motherboard User Manual /
Engineering Spec.
IH70 Motherboard User Manual
2
Chapter 1 General Information
1.1 Introduction
The IH70 SBC is integrated with Intel®QM87 chipset, 17x17mm, and Socket
G3 Intel® 4
th
Generation Core i7i5/i3 Processor. The Intel®4
th
Generation Core™
processor based on 64-bit, multi-core processors built on 22-nanometer
process technology.
The processors are designed for a two-chip platform consisting of a processor
and Platform Controller Hub (PCH). The processors are designed to be used
with the Mobile chipset.
In peripheral connectivity, IH70 SBC features with three Mini-PCIe I/O ports, ,
two Serial T III (6Gb/s)connectors, six Serial Port (Three Connector; Three
Pin Header ) ,six Super-Speed USB 3.0 connectors(Four Connector ; Two Pin
Header ) and four Hi-Speed USB 2.0 connectors(Four Pin Header ) . dditionally,
IH70 SBC build-in a 12V DC-IN power adapter.
Thus, the IH70 SBC is designed to satisfy most of the applications in the
industrial computer market, such as Gaming, POS, KIOSK, Industrial
utomation, and Programmable Control System. It is a compact design to
meet the demanding performance requirements of today’s business and
industrial applications.
1.2 Feature
Mini-ITX Form Factor ( 170mm x 170mm)
Supports Socket G3 Intel® 4
th
Generation Core i3/i5/i7 Processor
System memory up to 16GB DDR3L 1333/1600, SO-DIMM
 Intel
®
QM87 Chipset
 Intel
®
HD Graphics 4600. Integrated Graphics Engine.
 Intel
®
I210IT Gigabit-L N Controller + I218LM Gigabit-L N PHY r
3 x Mini PCIe, 6 x COM, 6 x USB3.0, 4 x USB 2.0 ,2 x S T III, 8 x GPIO
ports, 1 x HDMI,1xeDP(By BOM Option),1 x PCIe x 16, 1 x LPT port

IH70 Motherboard User Manual /
Engineering Spec.
IH70 Motherboard User Manual
3
1.3 Motherboard Specifications
CPU Type
Intel® 4th Generation Core i3/i5/i7 Processor
Chipset
Intel® QM87
BI S
MI
System BIOS
Graphic
Intel®
HD
Graphic
s 4600
support
DX11, OGL4
.0
LCD interface
Dual
-
channel 24 bit LVDS Up to 1440 x 900 @ 60Hz
Resolution
VG mode： Up to 1920 x 1200 @ 60Hz
DVI： 1920 x 1200 @ 60Hz
HDMI： 1920 x 1200 @ 60Hz
LVDS ： 1920 x 1200 @ 60Hz ；co-lay eDP(by BOM Option)
Multiple Display
VG +LVDS(eDP)+HDMI,VG +LVDS(eDP)+DVI,VG +HDMI+DVI,
HDMI+LVDS(eDP)+DVI,VG +HDMI+HDMI,VG +DVI+DVI,
LVDS(eDP)+HDMI+HDMI, LVDS(eDP)+DVI+DVI
LAN 2 x Giga L N (Intel® I210IT Gigabit-L N Controller + I218LM
Gigabit
-
L N PHY
)
Memory Type
2
x
SO
-
DIMM socket, supports up to
16
GB
DDR3
L 1333/1600
Super
I/
Fintek F8186
7
Sound
Realtek LC886 HD udio Codec
USB 6 ports, USB 3.0 (4 x USB Connector, 2 x USB pin-header )
4 ports, USB 2.0 (4 x USB pin
-
header )
Edge Connectors
1 x DC-IN Jack (+12V)
1 x VG out connector
2 x Gigabit L N RJ-45
1 x RS232/422/485
2 x RS232
4 x USB 3.0 connector
2 x PS2
1 x udio Ja
ck(Line in, Line out, Mic in)
n Board
Pin-Header
Connectors
3 x RS-232 (COM2.COM5.COM6) 2x5 pin-header
4 x USB 2.0
2 x USB3.0
1 x DVI/HDMI by DF-13 20-pin connector
1 x LVDS by DF-13 40-pin connector
1 x eDP by DF-13 20-pin connector(Optional)
2 x S T III
1 x 2x4-pin wafer for S T power
2 x 2-pin pin-header for speaker (with mplifier): Left, Right
1 x 10-pin pin-header for DIO
1 x 3-pin digital panel backlight brightness controller
1 x 7-pin inverter
1 x 2x2-pin DC-in 12V connector
1 x 10-pin wafer for Front Panel(2x5)
2 x 2-pin wafer for +5V external power (Red)
1 x 2-pin wafer for 12V external power (Yellow)
1 x 3-pin pin-header for CPU Fan (smart fan)
1 x 20-pin box header for LPT Port
1 x 6
-
pin wafer for external SIM Card daughter board
Power Conn
ector
Input:
4
-
pin Power
-
input connector
Expansion Slots 3 x Mini PCIe slot
1 x PCI
e x 16
slot
Form Factor
Mini
-
ITX
Dimensions
1
70
mm
x 1
70
mm

IH70 Motherboard User Manual /
Engineering Spec.
IH70 Motherboard User Manual
4
Mechanical &
environmental
Operating temperature: 0 deg. C to 60 deg. C
Shock: Operating 15G, 11ms duration
Vibration: Operating 5 Hz~500Hz / 1Grms / 3 xis
Certification: CE, FCC, RoHS

IH70 Motherboard User Manual /
Engineering Spec.
IH70 Motherboard User Manual
5
Function Block

IH70 Motherboard User Manual /
Engineering Spec.
IH70 Motherboard User Manual
6

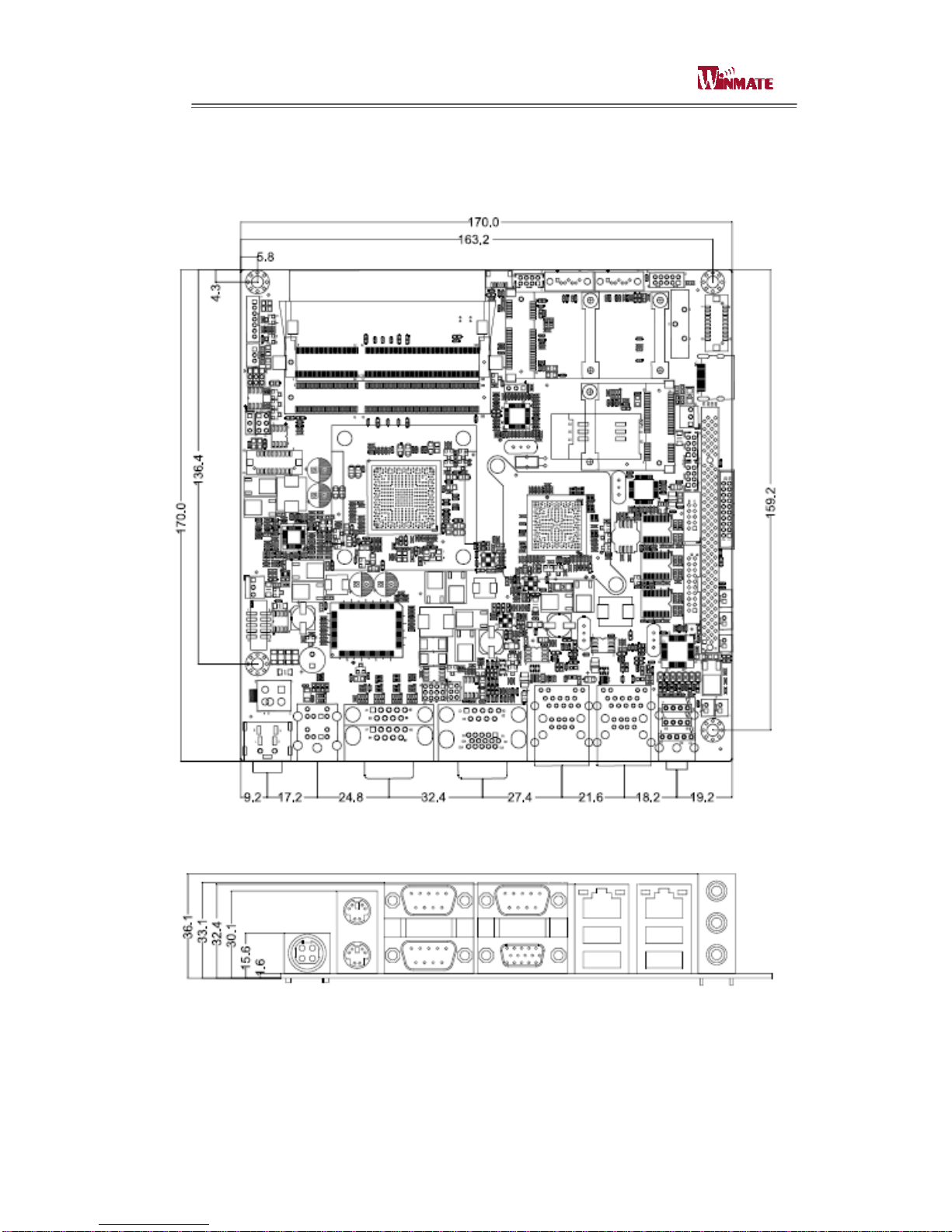

Board dimensions

IH70 Motherboard User Manual /
Engineering Spec.
IH70 Motherboard User Manual
7
Installations
This chapter provides information on how to use the
jumps and connectors on the IH70 Motherboard.
The Sections include:
 Memory Module Installation
 I / O Equipment Installation
 Setting the Jumpers
 Connectors on IH70 Motherboard
C H A P T E R
2

IH70 Motherboard User Manual /
Engineering Spec.
IH70 Motherboard User Manual
8
Chapter 2 Installations
2.1 Memory Module（
（（
（SO-DIMM）
））
）Installation
The IH70 Motherboard provides two 204-pin SODIMM slot. The socket supports up
to 16GB DDR3L 1333/1600 SDR M. When installing the Memory device, please follow
the steps below：
Step.1. Firmly insert the SO-DIMM at an angle into its slot. lign the SO-DIMM on the
slot such that the notch on the SO-DIMM matches the break on the slot.
Step.2. Press downwards on SO-DIMM until the retaining clips at both ends fully snap
back in place and the SO-DIMM is properly seated.
 Caution !
The SO-DIMM only fits in one correct orientation. It will cause
permanent damage to the development board and the SO-DIMM if
the SO-DIMM is forced into the slot at the incorrect orientation.

IH70 Motherboard User Manual /
Engineering Spec.
IH70 Motherboard User Manual
9
2.2 I/O Equipment Installation
2.2.1 12V DC-IN
The Motherboard allows plugging 12V DC-IN jack on the board without another
power module converter under power consumption by Intel® 4th Generation Core
i7/i5/i3 Processor and QM87 chipset.
2.2.2 Serial C M ports
Three RS-232 connectors build in the rear I/O. One optional COM ports support
RS-422/485. When an optional touch-screen is ordered with PPC, serial com port can
connect to a serial or an optional touch-screen.
2.2.3 External VGA
The Motherboard has one VG port that can be connected to an external CRT/ LCD
monitor. Use VG cable to connect to an external CRT / LCD monitor, and connect
the power cable to the outlet. The VG connector is a standard 15-pin D-SUB
connector.
2.2.4 Ethernet interface
The Motherboard is equipped with Intel® I210IT Gigabit-L N Controller + I218LM
Gigabit-L N PHY which is fully compliant with the PCI 10/100/1000 Mbps Ethernet
protocol compatible. It is supported by major network operating systems. The
Ethernet ports provide two standard RJ-45 jacks.
2.2.5 USB ports
Eight USB devices (Four with pin headers) may be connected to the system though an
adapter cable. Various adapters may come with USB ports. USB usually connect the
external system to the system. The USB ports support hot plug-in connection.
Whatever, you should install the device driver before you use the device.

IH70 Motherboard User Manual /
Engineering Spec.
IH70 Motherboard User Manual
10
2.2.6 Audio function
The udio 7.1 channel capabilities are provided by a Realtek LC886 chipset
supporting digital audio outputs. The audio interface includes three jacks: line-in,
line-out and mic in.
