Winmate IP32S User manual

Please read this instructions before operating the device and retain them for future reference.
3.5” SBC
Intel® Pentium® N4200 (2M Cache, up to 2.5 GHz)
IP32S
User Manual
Document Version 1.0
Board Version V100
Document Part No. 91711110101M

2
IP32S 3.5" SBC User Manual
Contents
PREFACE ............................................................................................................................................................................4
ABOUT THIS USER MANUAL ..............................................................................................................................................7
CHAPTER 1: GENERAL INFORMATION ................................................................................................................................8
1.1 INTRODUCTION ................................................................................................................................................................... 9
1.2 FEATURES........................................................................................................................................................................... 9
1.3 HARDWARE SPECIFICATIONS ................................................................................................................................................ 10

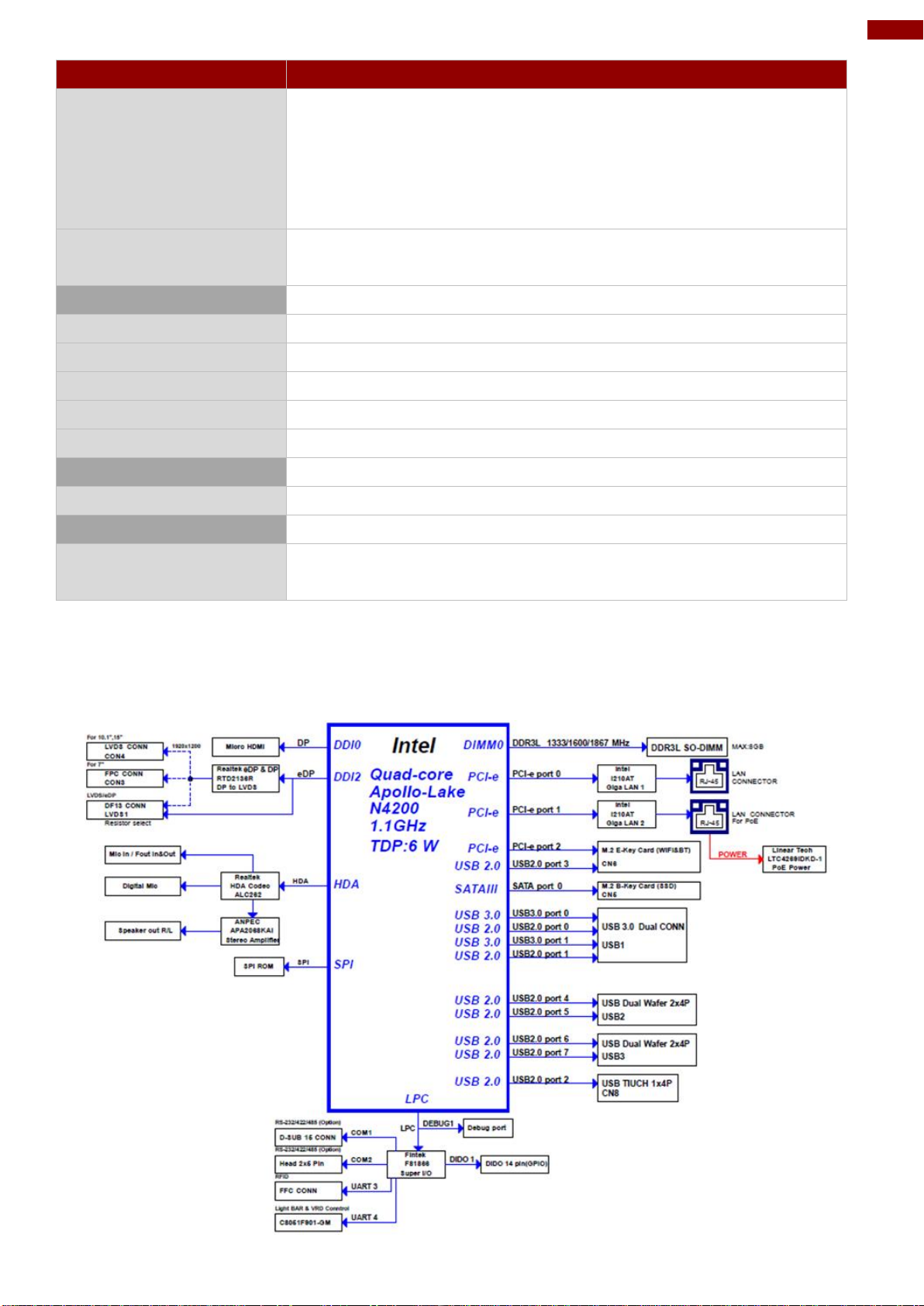

1.4 FUNCTIONAL DESCRIPTION.................................................................................................................................................. 11
1.5 DIMENSIONS .................................................................................................................................................................... 12
CHAPTER 2: HARDWARE INSTALLATION...........................................................................................................................13
2.1 MOTHERBOARD COMPONENTS ............................................................................................................................................ 14
2.1.1 Key Component Location ...................................................................................................................................... 14

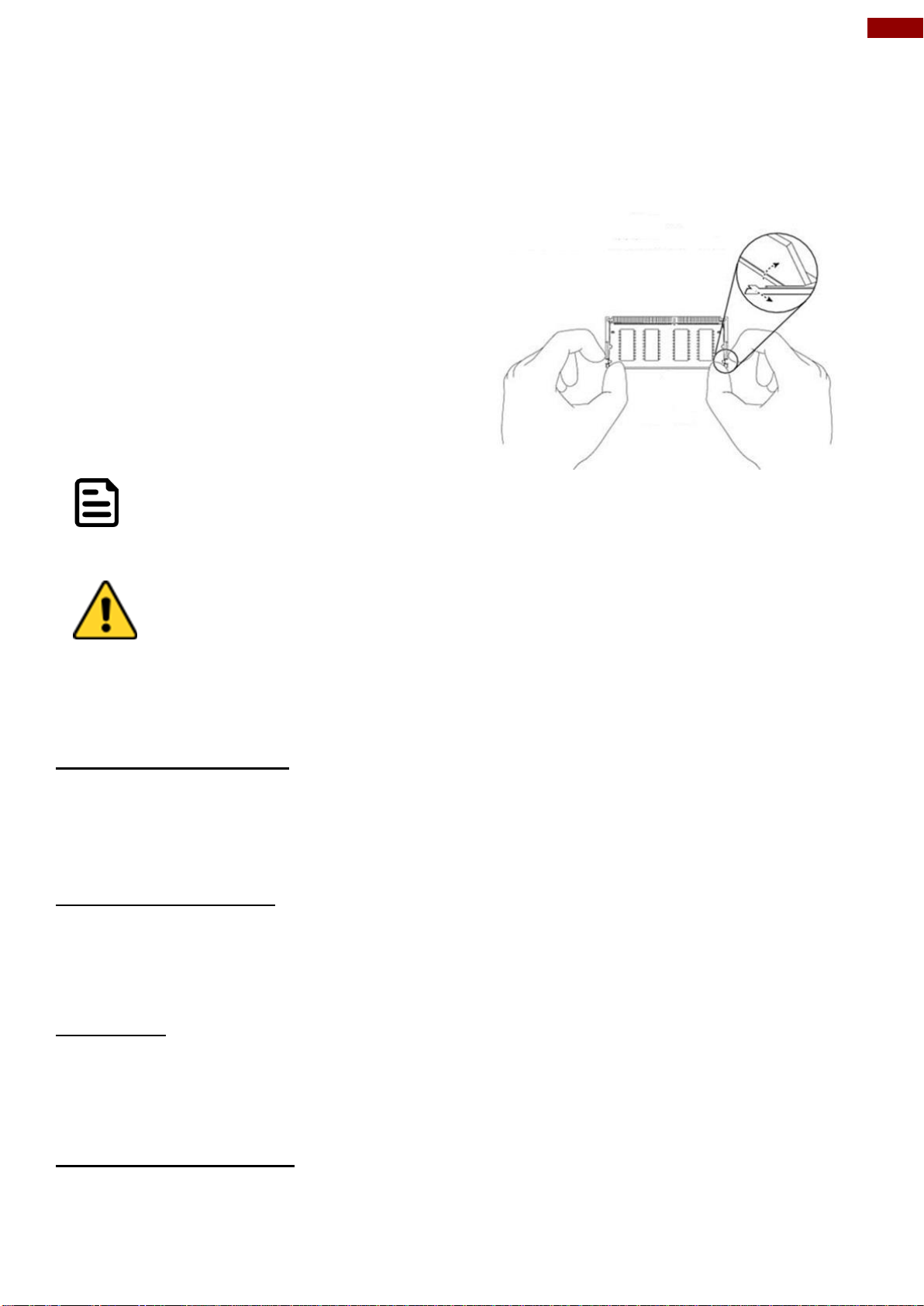

2.2 MEMORY MODULE (SO-DIMM) INSTALLATION...................................................................................................................... 15
2.3 I/O EQUIPMENT INSTALLATION ............................................................................................................................................ 15

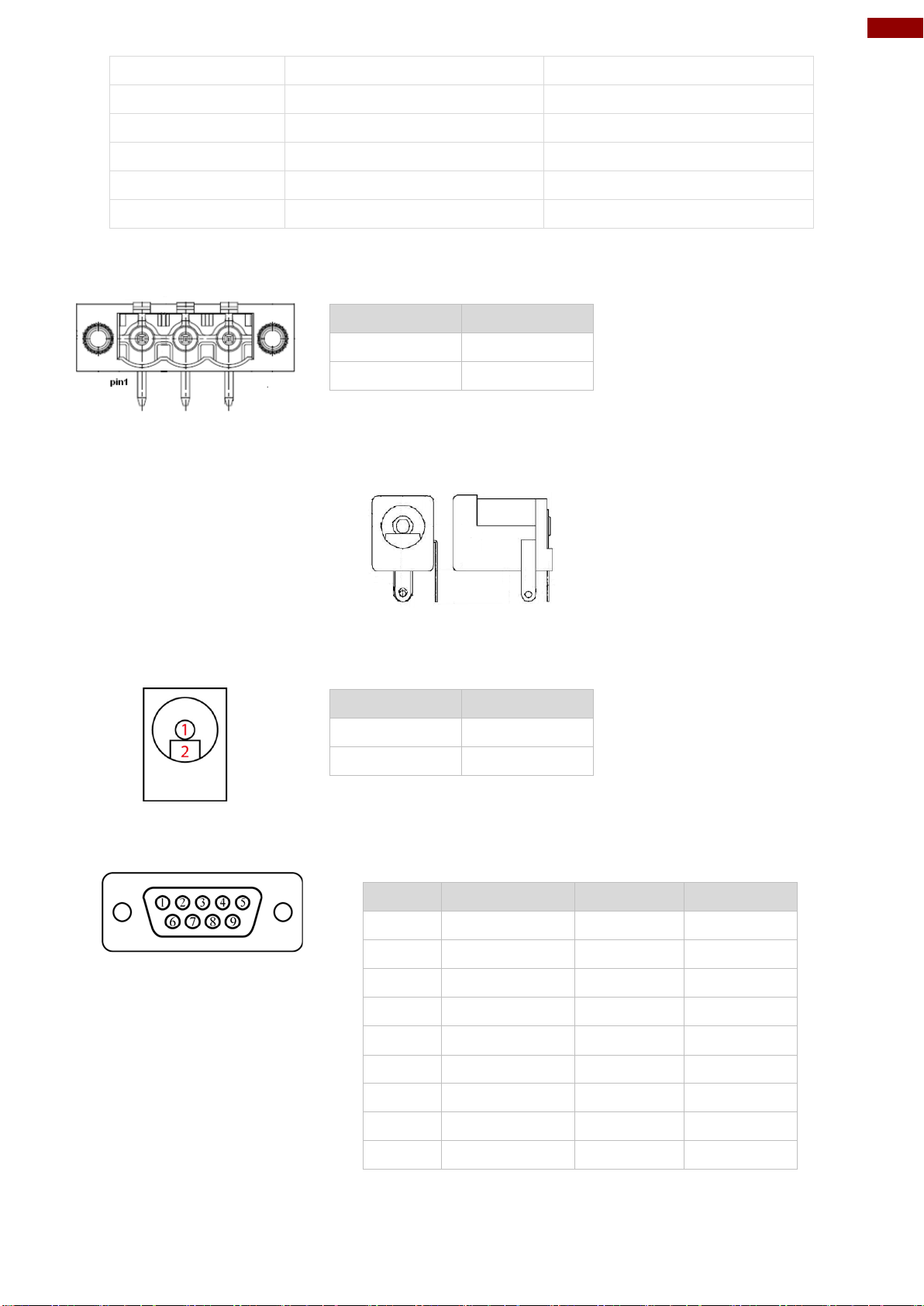

2.3.1 Power Input Jack................................................................................................................................................... 15
2.3.2 Serial COM Port .................................................................................................................................................... 15
2.3.3 HDMI .................................................................................................................................................................... 15
2.3.4 Ethernet Interface................................................................................................................................................. 15
2.3.5 USB Port................................................................................................................................................................ 16
2.3.6 Audio .................................................................................................................................................................... 16
2.4 MAINBOARD CONNECTORS ................................................................................................................................................. 16
2.4.1 Connectors............................................................................................................................................................ 16
CHAPTER 3: INSYDE H20 BIOS SETUP...............................................................................................................................27
3.1 HOW AND WHEN TO USE BIOS SETUP.................................................................................................................................. 28
3.2 BIOS FUNCTIONS.............................................................................................................................................................. 29
3.2.1 Main Menu ........................................................................................................................................................... 29
3.2.2 Advanced .............................................................................................................................................................. 30
3.2.3.Security ................................................................................................................................................................. 47
3.2.4 Power.................................................................................................................................................................... 48
3.2.5 Boot ...................................................................................................................................................................... 51
3.2.6 Exit........................................................................................................................................................................ 53
3.3 USING RECOVERY WIZARD TO RESTORE COMPUTER ................................................................................................................. 55
3.4 HOW TO ENABLE WATCHDOG .............................................................................................................................................. 56
CHAPTER 4: DRIVER INSTALLATION..................................................................................................................................58
4.1 CHIPSET DRIVER................................................................................................................................................................ 59
4.2 GRAPHICS DRIVER ............................................................................................................................................................. 62
4.3 AUDIO DRIVER.................................................................................................................................................................. 64
4.4 LAN DRIVER .................................................................................................................................................................... 65

3
Preface
4.5 TXE DRIVER INSTALLATION.................................................................................................................................................. 68
4.5WATCHDOG DRIVER INSTALLATION............................................................................................................................. 70
CHAPTER 5: TECHNICAL SUPPORT ...................................................................................................................................74
5.1 TECHNICAL SUPPORT.......................................................................................................................................................... 75
5.2DRIVERS .......................................................................................................................................................................... 75
5.3SOFTWARE DEVELOPMENT KIT (SDK).................................................................................................................................... 75

4
IP32S 3.5" SBC User Manual
Preface
Copyright Notice
No part of this document may be reproduced, copied, translated, or transmitted in any form or by any
means, electronic or mechanical, for any purpose, without the prior written permission of the original
manufacturer.
Trademark Acknowledgement
Brand and product names are trademarks or registered trademarks of their respective owners.
Disclaimer
We reserve the right to make changes, without notice, to any product, including circuits and/or software
described or contained in this manual in order to improve design and/or performance. We assume no
responsibility or liability for the use of the described product(s), conveys no license or title under any
patent, copyright, or masks work rights to these products, and makes no representations or warranties
that these products are free from patent, copyright, or mask work right infringement, unless otherwise
specified. Applications that are described in this manual are for illustration purposes only. We make no
representation or warranty that such application will be suitable for the specified use without further
testing or modification.
Warranty
We warrant that each of its products will be free from material and workmanship defects for a period of
one year from the invoice date. (Standard is one year, extended warranty will need to discuss with our
sales representatives. If the customer discovers a defect, we will, at its option, repair or replace the
defective product at no charge to the customer, provided it is returned during the warranty period of one
year, with transportation charges prepaid. The returned product must be properly packaged in its original
packaging to obtain warranty service.
If the serial number and the product shipping data differ by over 30 days, the in-warranty service will be
made according to the shipping date. In the serial numbers the third and fourth two digits give the year of
manufacture, and the fifth digit means the month (e. g., with A for October, B for November and C for
December).
For example, the serial number 1W18Axxxxxxxx means October of year 2018.
Packing List
Before using this Motherboard, please make sure that all the items listed below are present in your
package:
IP32S 3.5" SBC
User Manual & Driver CD
If any of these items are missing or damaged, contact your distributor or sales representative
immediately.
Customer Service
We provide a service guide as below for any problem by the following steps: First, contact your
distributor, sales representative, or our customer service center for technical support if you need
additional assistance.

5
Preface
You need to prepare the following information before you call:
Product serial number
Peripheral attachments
Software (OS, version, application software, etc.)
Detailed problem description
The exact wording of any error messages
In addition, free technical support is available from our engineers every business day. We are always
ready to give advice on application requirements or specific information on the installation and operation
of any of our products. Please do not hesitate to call or e-mail us.
Advisory Conventions
Four types of advisories are used throughout the user manual to provide helpful information or to alert
you to the potential for hardware damage or personal injury. These are Notes, Important, Cautions, and
Warnings. The following is an example of each type of advisory.
Note:
A note is used to emphasize helpful information
Important:
An important note indicates information that is important for you to know.
Caution
A Caution alert indicates potential damage to hardware and explains how to avoid the
potential problem.
Warning!
An Electrical Shock Warning indicates the potential harm from electrical hazards and
how to avoid the potential problem.
Safety Precautions
Caution
Always ground yourself to remove any static charge before touching the CPU card.
Modern electronic devices are very sensitive to static electric charges. As a safety
precaution, use a grounding wrist strap at all times. Place all electronic components in
a static-dissipative surface or static-shielded bag when they are not in the chassis.

6
IP32S 3.5" SBC User Manual
Safety and Warranty
1. Please read these safety instructions carefully.
2. Please keep this user manual for later reference.
3. Please disconnect this equipment from anyAC outlet before cleaning. Do not use liquid or spray
detergents for cleaning. Use a damp cloth.
4. For pluggable equipment, the power outlet must be installed near the equipment and must be easily
accessible.
5. Keep this equipment away from humidity.
6. Put this equipment on a reliable surface during installation. Dropping it or letting it fall could cause
damage.
7. Make sure the voltage of the power source is correct before connecting the equipment to the power
outlet.
8. Position the power cord so that people cannot step on it. Do not place anything over the power
cord.
9. All cautions and warnings on the equipment should be noted.
10. If the equipment is not used for a long time, disconnect it from the power source to avoid damage by
transient over-voltage.
11. If any of the following situations arises, get the equipment checked by service personnel:
a. The power cord or plug is damaged.
b. Liquid has penetrated into the equipment.
c. The equipment has been exposed to moisture.
d. The equipment does not work well, or you cannot get it to work according to the user’s manual.
e. The equipment has been dropped and damaged.
f. The equipment has obvious signs of breakage.

7
About This User Manual
About This User Manual
This User Manual provides information about using the IP32S 3.5" SBC. The documentation set for the
IP32S 3.5" SBC provides information for specific user needs, and includes:
IP32S 3.5" SBC User Manual –contains detailed description on how to use the motherboard, its
components and features.
Note:
Some pictures in this guide are samples and can differ from actual product.
Document Revision History
Version
Date
Note
1.0
6-Feb-2020
New document release.

8
Chapter 1: General Information
Chapter 1: General Information
This chapter includes the IP32S 3.5" SBC background information.
1.1 Introduction
1.2 Features
1.3 MotherboardSpecifications
1.4 Functional Description
1.5 Physical Description

9
Chapter 1: General Information
1.1 Introduction
Thank you for choosing Winmate’s IP32S 3.5" SBC. The IP32S 3.5" SBC is powered by Intel ®
Pentium® N4200 Apollo Lake processor 1.10 GHz; up to 2.50 GHz with turbo boost technology and
Intel® SOC chipset. The IP32S 3.5" SBC supports up to 8 GB of DDR3L SO-DIMM 1600 / 1866 MHz
system memory. High performance platform delivers the performance and high scalability cutting-edge
embedded computing application.
In terms of peripheral connectivity, the IP32S 3.5" SBC has two USB 3.0, one external RS232/422/485
serial port, and one Micro HDMI for video.IP32S 3.5" SBC supports two GigaLAN, one with PoE
function on. Designed for industrial applications, the IP32S 3.5" SBC supports 12V DC power input and
operates in a wide temperature range -20°C ~ 60°C.
Abundant I/O connectors and expandability makes IP32S 3.5" SBC to be the right fit in the majority of
industrial and commercial applications such as machine vision and control, gaming, POS, KIOSK
systems, industrial automation, and others. Powerful processor in a 3.5” form factor meets the
demanding performance requirements of modern Industrial IoT and Edge Computing applications.
1.2 Features
IP32S 3.5" SBC features:
3.5-inch Form Factor (146 mm x 102 mm)
Intel® Pentium® N4200 (2M Cache, up to 2.5 GHz)
System memory DDR3L 1600 / 1866 MHz, SO-DIMM ( up to 8 GB)
Intel® HD Graphics Engine
2 x Giga LAN, one with PoE function on
2 x USB 3.0, 1 x RS232/422/485, 1 x Micro HDMI
Operating temperature -20°C ~ 60°C

10
IP32S 3.5" SBC User Manual
1.3 Hardware Specifications
Model Name
IP32S 3.5" SBC
System Specifications
CPU
Intel® Pentium® N4200 (2M Cache, up to 2.5 GHz)
Chipset
Intel® SOC
System Memory
1 x DDR3L 1866 MHz SO-DIMM Slot, Max. 8 GB
BIOS
Insyde BIOS
Super IO Chipset
Fintek F81866A
Operating System
Windows 10 IoT Enterprise LTSC 2019
Display Specifications
Graphic
Intel® HD Graphics
LCD Interface
Dual-channel 18/24-bit LVDS Up to 1920 x 1200 @ 60Hz
Audio
Audio Codec
Realtek ALC262 HD Audio Codec
Audio Interface
Line-in, Line-out, analog Mic- in
Ethernet
LAN Controller
2 x Intel® Ethernet Controller I210-AT (PD 802.3at x1)
LAN Interface
1000 Base-Tx Gigabit Ethernet Compatible
I/O Ports Specification
External I/O
1 x Giga LAN RJ45 Connector with PoE (PD, 802.11at) (LAN2)
1 x Giga LAN RJ45 Connector (LAN1)
2 x USB3.0 Type-A (USB1)
1 x RS232/422/485, Default RS232 (COM1)
1 x micro HDMI D Type (HDMI1)
1 x 12V DC input, 3-Pin Terminal Block (J1)
Internal I/O
Power-input(J1) co-lay 2.5ψ DC Jack(DCJACK1) and 1x4 wafer( DCJACK2)
1 x SO-DIMM Slot (DIMM1)
2 x 2pin(1x2) for Speaker (CN2, CN3)
1 x Digital Mic-in (CN4)
1 x FPC connector for touch screen (CN8)
2 x 4pin(1x4) for LED light bar indicator(CN10,CN12)
1 x 6pin(1x6) for UART(CN11)
1 x 5pin(1x5) MCU debug port(CN15)
1 x 10pin(2x5) for RS232(CN16)
1 x 8pin(2x4) for SATA power(CN17)
1 x SATA III connector(SATA1)
1 x 7pin(1x7) for panel inverter(CON2)
1 x 40pin FPC connector Co-lay for LVDS(CON3)
1 x 40pin DF13 connector for LVDS(LVDS1)
2 x 8pin(2x4) for 4 x USB 2.0 (USB2, USB3)

11
Chapter 1: General Information
Model Name
IP32S 3.5" SBC
Internal I/O
1 x 12pin(2x6) for Line in/Line out/ Mic in(AUDIO1)
1 x 10pin(2x5) for OSD control(PANEL1)
1 x 14pin(2x7) for Digital input/output(DIDO1)
1 x 2pin(1x2) red wafer for 5V DC out(5V1)
1 x 2pin(1x2) for RTC battery(BT1)
Expansions Slot
1 x M.2 E-key for Wireless module(CN6)
1 x M.2 B-key (for SATA III SSD) (CN5)
Mechanical Specifications
Dimensions
146 mm x 102 mm
Form Factor
3.5-inch
Operating Temperature
-20°C ~ 60°C
Storage Temperature
-30°C ~ 70°C
Operating Humidity
30% ~ 90%, non-condensing
Power Management
Power Input
+12V DC
Packing List
Standard
IP32S 3.5" Single Board Computer
IP32S Manual & Driver DVD
1.4 Functional Description
Function block (V100)

12
IP32S 3.5" SBC User Manual
1.5 Dimensions
Board Dimensions (V100)

13
Chapter 2: Hardware Installation
Chapter 2: Hardware Installation
This chapter provides information on how to use jumpers and connectors on the IP32S 3.5" SBC.
2.1 Motherboard Components
2.2 Memory Module Installation
2.3 I/O Equipment Installation
2.4 Jumper Settings
2.5 Motherboard Connectors

14
IP32S 3.5" SBC User Manual
2.1 Motherboard Components
2.1.1 Key Component Location
PCB Top Layer (Top View)
PCB Bottom Layer (Top View)

15
Chapter 2: Hardware Installation
2.2 Memory Module (SO-DIMM) Installation
The IP32S 3.5" SBC has two 260-pin SO-DIMM slots. The socket supports DDR3L.
When installing the memory unit, please follow the
steps below:
1. Firmly insert the SO-DIMM at an angle of about
30-degree into the slot. Align the SO-DIMM with
the slot until it is fully inserted. The notch on the
SO-DIMM should match the break on the slot.
2. Press downwards on SO-DIMM until the
retaining clips at both ends fully snap closed
and the SO-DIMM is properly seated.
Note: Pull tabs away with your thumbs, bracing your forefingers against the rails. The
memory module will be released. Then raise the memory module to a vertical position.
Caution The SO-DIMM only fits in one correct orientation. It will cause permanent
damage to the development board and the SO-DIMM if the SO-DIMM is forced into the
slot at the incorrect orientation.
2.3 I/O Equipment Installation
2.3.1 Power Input Jack
The IP32S 3.5" SBC allows plugging 12V DC jack on the board without another power module converter
under power consumption by Intel® Pentium® N4200 (2M Cache, up to 2.5 GHz), and Intel® SOC
chipset.
2.3.2 Serial COM Port
Two COM Port pin headers build in the motherboard. Optional COM ports support RS-422/485.
*When an optional touch-screen is ordered with panel PC, the serial com port can connect to a serial or
an optional touch-screen.
2.3.3 HDMI
The IP32S 3.5" SBC has one HDMI port that can be connected to an external LCD monitor. Use HDMI
cable to connect to an external LCD monitor, and connect the power cable to the outlet. The HDMI
connector is a standard 19-pin HDMI connector.
2.3.4 Ethernet Interface
The IP32S 3.5" SBC is equipped with 2 x Intel® Ethernet Controller I210-AT (PD 802.3at x1) which is
fully compliant with the 1000 Base-Tx Gigabit Ethernet. It is supported by major network operating

16
IP32S 3.5" SBC User Manual
systems. The Ethernet ports provide two standard RJ-45 jacks, one of those supports PoE function.
2.3.5 USB Port
Eight USB devices (four with pin headers) may be connected to the system though an adapter cable.
Various adapters may come with USB ports. USB usually connect the external system to the system.
The USB ports support hot plug-in connection. Whatever, you should install the device driver before you
use the device.
2.3.6 Audio
The Audio 7.1 channel capabilities are provided by a Realtek chipset supporting digital audio outputs.
The audio interface includes two jacks: line-out and mic-in.
2.4 Mainboard Connectors
2.4.1 Connectors
The table below lists component side motherboard jumpers and connectors.
Connectors
Label
Function
Note
J1
DC-In
3pin, phoenix connector
DCJACK1 (Co-lay J1)
DC-In
3pin, 2.5ψ DC Jack
DCJACK2 (Co-lay J1)
DC-In
1x2 header, pitch 2.0mm
COM1
Serial Port RS-232/422/485
D-Sub9 (Male)
LAN1
Gigabit Ethernet
RJ45+LED
LAN2
Gigabit Ethernet with PoE
RJ45+LED
USB1
USB 3.0
USB Type A
HDMI1
HDMI
Micro HDMI
DIMM1
SO-DIMM Slot
SO-DIMM
CN2
Left-Speaker out
1x2 wafer, pitch 2.0 mm
CN3
Right-Speaker out
1x2 wafer, pitch 2.0 mm
CN5
NGFF KEY B for SSD
NGFF KEY B Slot
CN6
NGFF KEY E Slot for Wi-Fi,
WWAN Card
NGFF KEY E
CN8
USB for Touch
1x6 connector
CN10, CN12
Light bar LED indicator
1x4 wafer, pitch 2.0 mm
CN11
UART for RFID
1x6 wafer, pitch 2.0 mm
CN15
MCU Debug Port
1x5 wafer
CN16
RS232
2x5 header, pitch 2.0mm
CN17
SATA Power
2x4 wafer
SATA1
SATAIII
SATAIII connector
CON2
Backlight Power
1x7 wafer, pitch 2.0 mm
CON3
LVDS
For 10.1”panel
LVDS1
LVDS
2x20 wafer, pitch 1.25mm

17
Chapter 2: Hardware Installation
USB2, USB3
Internal USB 2.0
2x4 wafer, pitch 2.0mm
AUDIO1
Line in/Line out/ Mic in
2x6 wafer, pitch 2.0mm
PANEL1
OSD Membrane Control
2x5 wafer, pitch 2.0mm
DIDO1
GPIO
2x7 wafer, pitch 2.0mm
5V1
+5V output
1x2 wafer, pitch 2.0 mm
BT1
RTC Battery
2P wafer, pitch 1.25 mm
2.4.1.1 J1: Power DC Jack
2.4.1.2 DCJACK1: Power DC Jack
2.4.1.3 DCJACK2: Power DC Jack
2.4.1.4 COM1: Serial Port RS-232/422/485
*Default setting: RS-232
Pin №
Signal Name
1
Power
2
GND
Pin №
Signal Name
1
Power
2
GND
Pin №
*RS-232
RS-422
RS-485
1
DCD
TxD-
D-
2
RXD
TxD+
D+
3
TXD
RxD+
NC
4
DTR
RxD-
NC
5
GND
GND
GND
6
DSR
NC
NC
7
RTS
NC
NC
8
CTS
NC
NC
9
RI
NC
NC

18
IP32S 3.5" SBC User Manual
2.4.1.5 LAN1: Gigabit Ethernet
Pin №
Signal Name
1
MDI0+
2
MDI0-
3
MDI1+
4
MDI1-
5
MDI2+
6
MDI2-
7
MDI3+
8
MDI3-
2.4.1.6 LAN2: Gigabit Ethernet with PoE
Pin №
Signal Name
1
TRDT3
2
TRD3-
3
TRD3+
4
TRD2+
5
TRD2-
6
TRDT2
7
TRDT4
8
TRD4+
9
TRD4-
10
TRD1-
11
TRD1+
12
TRDT1
13
VC+
14
VC-
15
VC+
16
VC-

19
Chapter 2: Hardware Installation

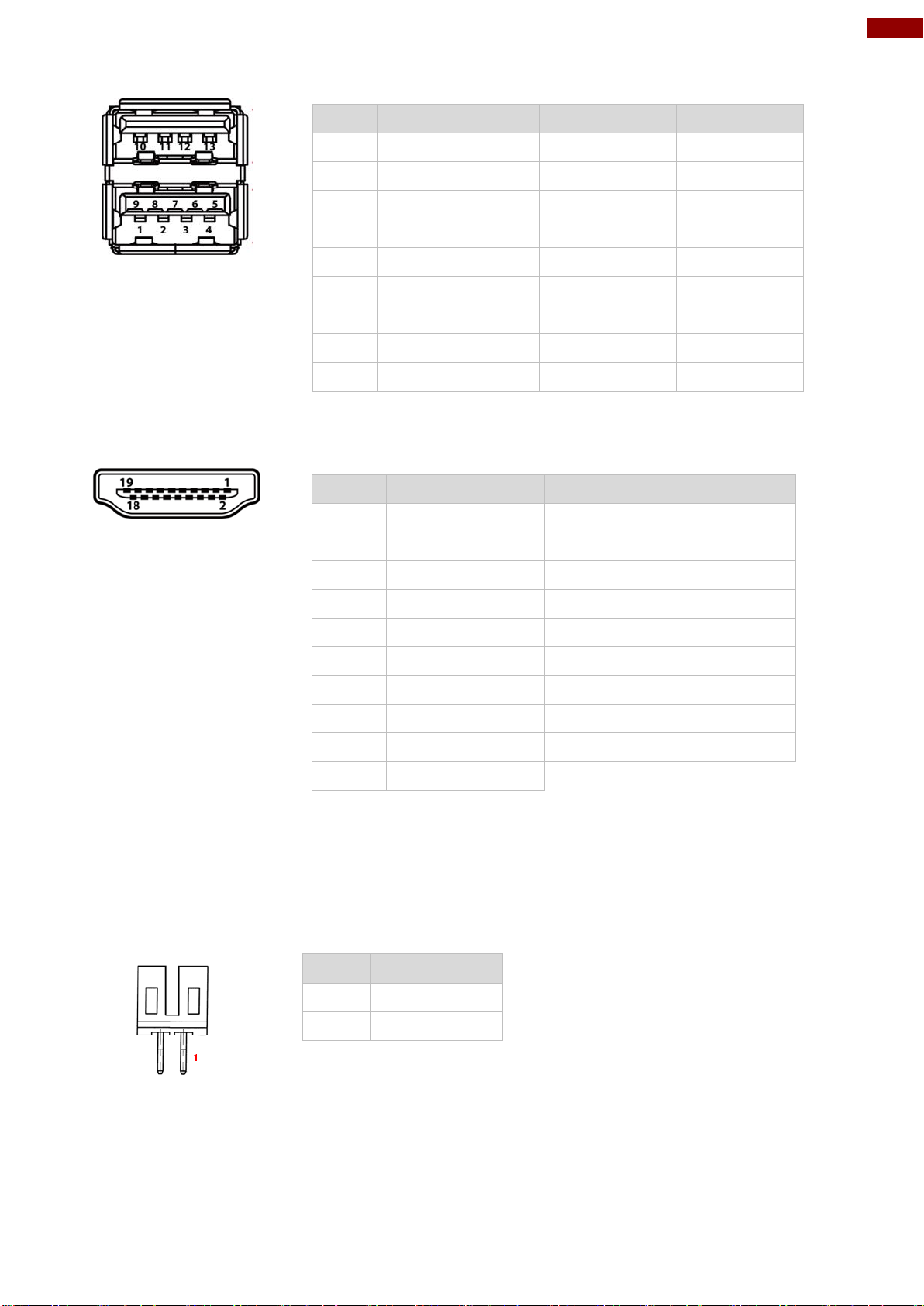

2.4.1.7 USB1: USB 3.0
2.4.1.8 HDMI1: HDMI
2.4.1.9 DIMM1: SO-DIMM Slot
Standard SO-DIMM Slot.
2.4.1.10 CN2: Left-Speaker out
Pin №
Signal Name
Pin №
Signal Name
1
+5VUSB3.0
10
+5VUSB3.0
2
U2DN0
11
U2DN1
3
U2DP0
12
U2DP1
4
USB_GND
13
USB_GND
5
U3RXDN1
14
U3RXDN2
6
U3RXDP1
15
U3RXDP2
7
USB_GND
16
USB_GND
8
U3TXDN1
17
U3TXDN2
9
U3TXDP1
18
U3TXDP2
Pin №
Signal Name
Pin №
Signal Name
1
HDMI_HPD1
11
HDMIB_TMDS0-
2
N/A
12
HDMIB_CLK+
3
HDMIB_TMDS2+
13
GND
4
GND
14
HDMIB_CLK-
5
HDMIB_TMDS2-
15
HDMI_CEC
6
HDMIB_TMDS1+
16
GND
7
GND
17
HDMI_DDC_CLK
8
HDMIB_TMDS1-
18
HDMI_DDC_DATA
9
HDMIB_TMDS0+
19
+V5S
10
GND
Pin №
Signal Name
1
OUT +
2
OUT -

20
IP32S 3.5" SBC User Manual

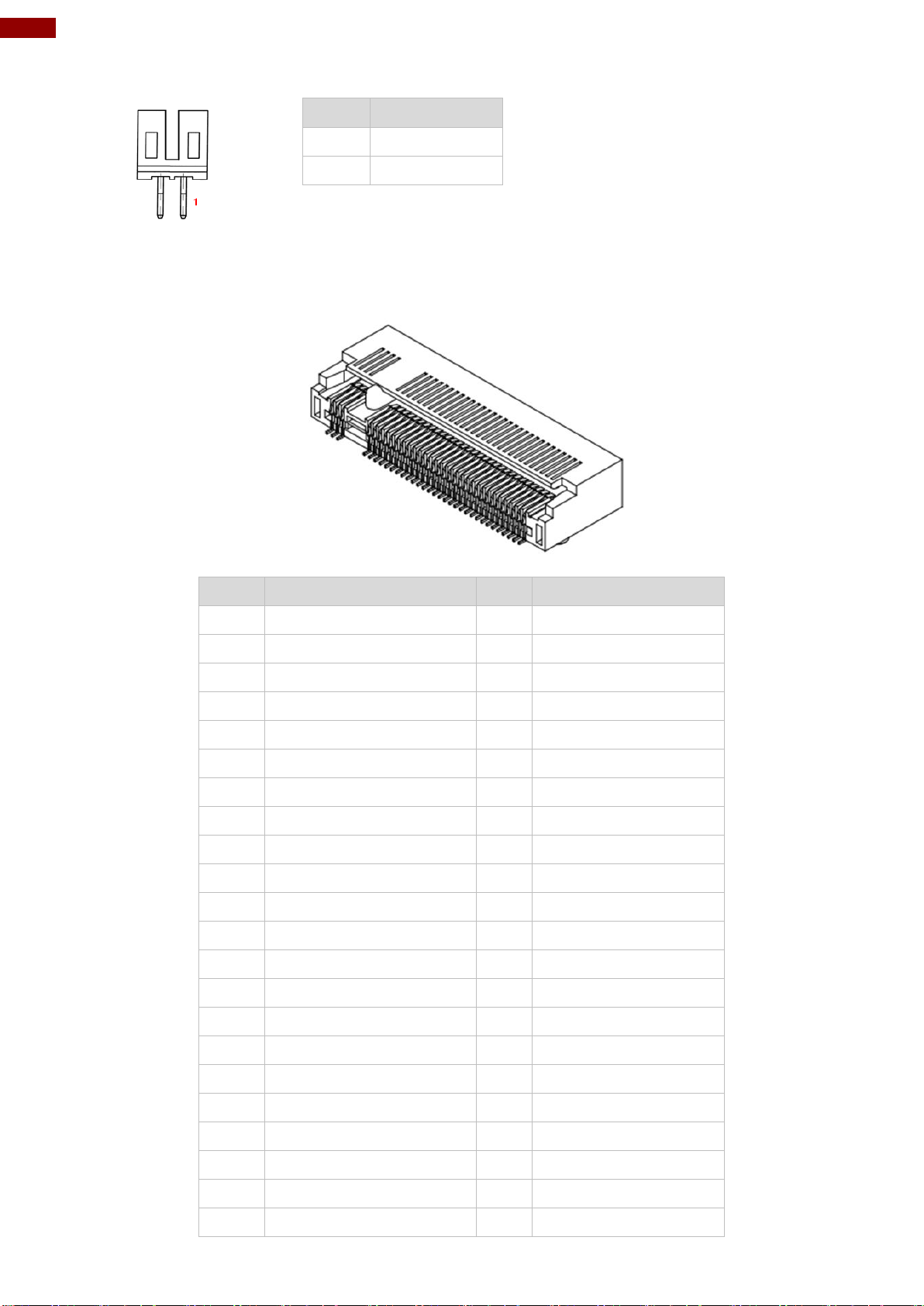

2.4.1.11 CN3: Right-Speaker out
2.4.1.12 CN5: NGFF KEY B for SSD
Pin №
Signal Name
Pin №
Signal Name
1
GND
2
+3.3V
3
GND
4
+3.3V
5
NC
6
NC
7
NC
8
NC
9
GND
10
NC
11
NC
12
KEY
13
KEY
14
KEY
15
KEY
16
KEY
17
KEY
18
KEY
19
KEY
20
NC
21
GND
22
NC
23
NC
24
NC
25
NC
26
NC
27
GND
28
NC
29
NC
30
NC
31
NC
32
NC
33
GND
34
NC
35
NC
36
NC
37
NC
38
SATA0_DEVSLP_R
39
GND
40
NC
41
NC
42
NC
43
NC
44
NC
Pin №
Signal Name
1
OUT +
2
OUT -
