Winplus AutoXS AU170023 User manual

HEAD UP
DISPLAY
USER GUIDE
CAR ACCESSORIES
MPH
Km/h
X1000RPM
V
C
oo
F
01234567

Warranty Details
Warranty Details
The product is guaranteed to be free from defects in workmanship and parts for a period
of 12 months from the date of purchase. Defects that occur within this warranty period, under
normal use and care, will be repaired, replaced or refunded at our discretion. The benets
conferred by this warranty are in addition to all rights and remedies in respect of the product
that the consumer has under the Competition and Consumer Act 2010 and similar state and
territory laws.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law.
You are entitled to a replacement or refund for a major failure and for compensation
for any other reasonably foreseeable loss or damage.You are also entitled to have the goods
repaired or replaced if the goods fail to be of acceptable quality and the failure
does not amount to a major failure.
AFTER SALES SUPPORT
REGISTER YOUR PURCHASE ATwww.aldi.com.au/en/about-aldi/product-registration/TO KEEP UP-TO-DATE WITH IMPORTANT PRODUCT INFORMATION
1300 663 907
AUS customercar[email protected] YEAR WARRANTY
1
HEAD UP DISPLAY
MODEL: AU170023 PRODUCT CODE: 58797 10/2017

AFTER SALES SUPPORT
1300 663 907
AUS
MODEL: AU170023 PRODUCT CODE: 58797 10/2017
[e-mail]
3
Contents
Version Number 1.1
2Warranty Details
4Safety Instructions
5Abbreviations & Symbols
6Part List
6Technical Specications
7Product Overview
8Instructions
8OBD-II Connection Process
9First Use
9Reection Film and Non-Slip Mat Installation
10 Settings/ Functions and Modes
11 Button Conguration and Function
11 Quick Function Guide
12 Disposal & Maintenance
12 Disposal of Packaging
12 Disposal of Product
12 Maintenance and Storage
13 FAQs
14 Repair and Refurbished Goods Notice

AFTER SALES SUPPORT
1300 663 907
AUS
MODEL: AU170023 PRODUCT CODE: 58797 10/2017
[e-mail]
4
Read this manual thoroughly before rst use and keep in a safe place for future
references, along with warranty card, purchase receipt and packaging. The safety
precautions enclosed reduce the risk of automotive accidents, electric shock and
injury when correctly adhered to.
Follow all instructions and take notice of all warnings to reduce the risk of electric
shock, automotive accidents or product malfunctions.
• Before operating this set, please fully understand the prerequisite such as vehicle
specications or constraints of the vehicle’s hardware and software.
• The information of the HUD is for reference only. Do not operate HUD or OBD-II
while driving or while the vehicle is in motion.
• Do not directly use water or chemicals to clean the HUD.
• Do not place the unit in a dusty place.
• Connect the OBD-II securely. Improper connection could result in injury or
malfunction.
• Do not remove cover or modify the product. Doing so will void all warranty and
may cause injury.
• The information of the HUD is for reference only. Do not operate HUD or OBD-II
while driving or while the vehicle is in motion.
• This device is for private vehicle use only, and is not suitable for commercial, trade
or industrial use.
Safety Instructions

AFTER SALES SUPPORT
1300 663 907
AUS
MODEL: AU170023 PRODUCT CODE: 58797 10/2017
[e-mail]
5
1. - Settings
2. - Battery Voltage Alarm
3. - Water Temperature Alarm
4. - Speed Alarm
5. - Beep Sound On/O
6. RPM – Revolutions Per Min
7. ºC – Degrees Celsius
8. ºF – Degrees Fahrenheit
9. V - Voltage
10. MPH – Miles Per Hour
11. Km/h – Kilometers Per Hour
HUD – Head-Up Display
OBD – On Board Diagnostics
mA - Milliamps
KPa - Kilopascal
dB - Decibels
cm – Centimeters
Vdc – Volts Direct Current
G- Grams
ECU – Engine Control Unit
Other Abbreviations
Abbreviations & Symbols
MP H
Km/ h
X1000RPM
V
C
oo
F
01234567
11
1
5
2
3
4
10
9
8
7
6

AFTER SALES SUPPORT
1300 663 907
AUS
MODEL: AU170023 PRODUCT CODE: 58797 10/2017
[e-mail]
6
• 1 x Head Up Display
• 1 x Non-Slip Mounting Pad
• 1 x Reection lm
• 1 x Mini USB to OBD-II Cable
• 1 x Instruction Manual
• 1 x Getting Started Guide
• 1 x Warranty Card
Working Temperature: -40c -- 80c
Atmospheric Pressure: 86 – 106 KPa
Relative Humidity: 10% -- 95%
Noise: <60dB
Alarm Beep: >30dB
Working Voltage: 9V~16Vdc (12Vdc/ 400mA)
Physical Measurement: 9cm x 5.4 x 1.2cm
Weight: 40g
Part List
Technical Specications

AFTER SALES SUPPORT
1300 663 907
AUS
MODEL: AU170023 PRODUCT CODE: 58797 10/2017
[e-mail]
7
Congratulations on the purchase of your HUD.
The HUD is compatible with the OBD-II interface which allows for“Plug & Play”
installation without the need to modify your vehicle’s wiring. The all-digital display
will project the vehicle’s speed and engine rotation speed (RPM) directly onto the
windscreen for direct viewing while driving.
The HUD also includes an automatic power on/o function. All settings can be
accessed by the built-in three way button for easy, one nger operation.
The safest way to view information while travelling without taking your eyes o the
road.
Product Overview
1. OBD-II cable input (connector with vehicle OBD-II)
2. Power on/o switch
3. Three Way Function/ Settings button (can be pushed up, down and inward)
1 2 3

AFTER SALES SUPPORT
1300 663 907
AUS
MODEL: AU170023 PRODUCT CODE: 58797 10/2017
[e-mail]
8
Instructions
OBD-II Connection Process
This HUD has been tested on a variety of vehicles with an OBD-II interface and a
12V battery system. Please refer to your vehicle’s user manual before installation.
The HUD is compatible with the OBD-II interface which allows for“Plug & Play”
installation without the need to modify your vehicle’s wiring
1. Ensure your vehicle is OBD-II certied – If you are unsure please visit the below
website.
https://www.fueleconomysolutions.com.au/page/obd-ii-applications-guide/
list-of-obd-ii-cars-in-australia/
2. Make sure your vehicle has an OBD-II connector - usually found under the
drivers side of the dashboard (as per the below picture)
3. It is recommended that the engine be turned o; connect the OBD-II cable
(included in package) to your vehicle’s OBD-II jack.
4. Connect the other end of the cable (mini USB connector) to HUD device.
5. It is recommended that the cable be routed away from the center of the
dash. For example, around the drivers side dash and tucked under trims. Seek
professional assistance if required.

AFTER SALES SUPPORT
1300 663 907
AUS
MODEL: AU170023 PRODUCT CODE: 58797 10/2017
[e-mail]
9
First Use

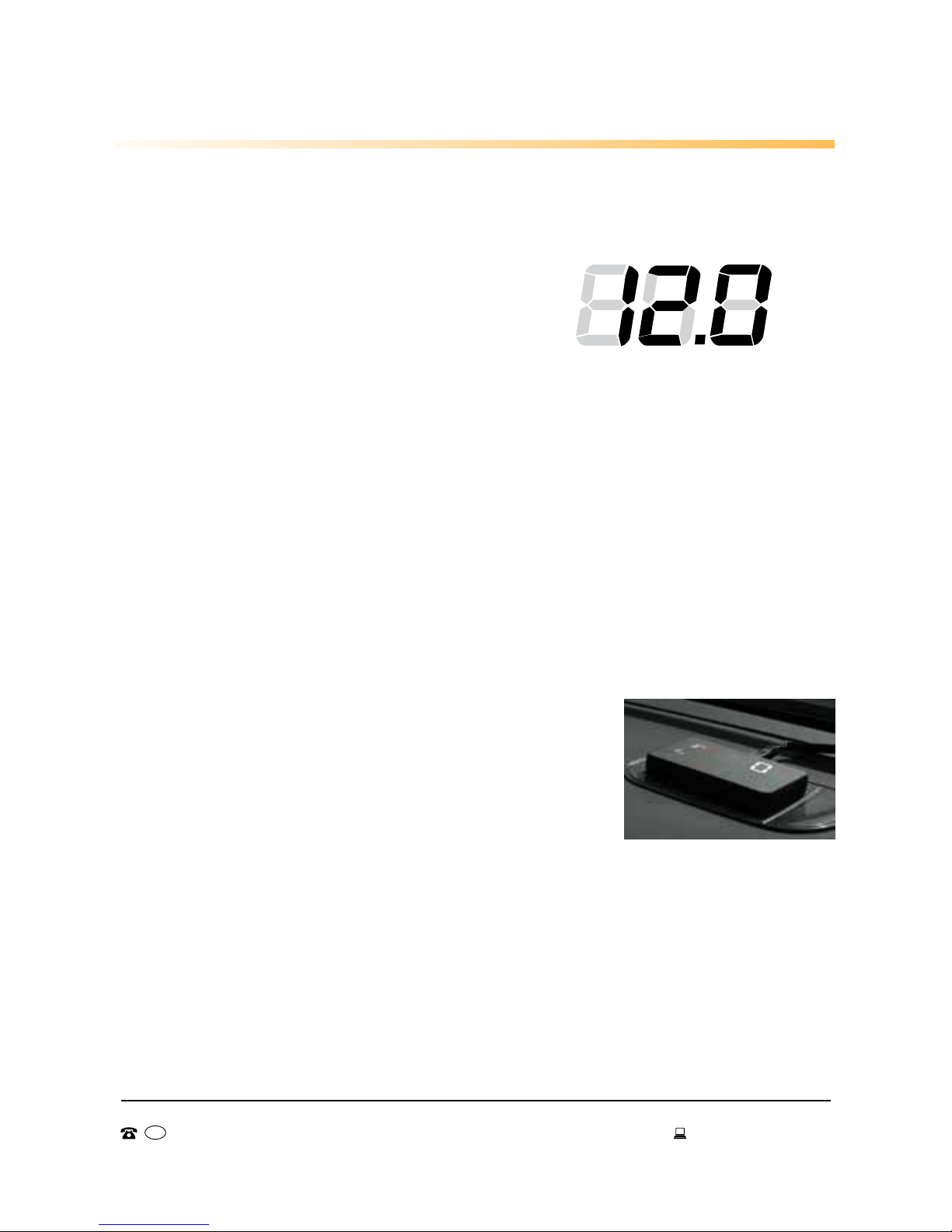

1. Start the engine of your vehicle, this will automatically power on the HUD.
a. Once the HUD is powered on, it will show the current vehicle voltage.
2. Press the Function/ Settings button inwards.
a. This will check your vehicle’s Engine Control
Unit (ECU) State in this one instance.
3. If the HUD shows the vehicle’s speed the HUD has been installed successfully.
a. If after a minute the HUD is only displaying the voltage, check if the HUD’s
OBD-II data cable is connected correctly.
Note - Ensure the OBD-II cable is plugged in tightly
4. If the HUD is still not working, please check to see if your vehicle is OBD-II
compatible.
Reflection Film and Non-Slip Mat Installation
1. Place the supplied non-slip mat (with the adhesive sticker still on) towards the
front of the dashboard .
2. Place the HUD on it with the USB port facing away from the driver.
3. Maneuver the HUD until it’s in a good position.
4. Remove adhesive sticker from the back of the non-
slip mat and secure it to the dashboard, then place
the HUD on top of it.
5. Stick the reection lm on a clean and dry
windscreen so the digital read out of the HUD is clear.
Remove backing lm on reection lm and paste
right above the HUD. It should be able to reect the whole display screen.
Ensure there are no bubbles behind the reection lm.
Instructions
MPH
Km/ h
V
C
oo
F

AFTER SALES SUPPORT
1300 663 907
AUS
MODEL: AU170023 PRODUCT CODE: 58797 10/2017
[e-mail]
10
Settings/ Functions and Modes
The HUD’s display information is from your vehicle’s ECU, if you nd HUD display
information is dierent from dashboard information, please see following table for
all Settings/ Modes and Adjustments
Menu Function Adjustment
Range Description Factory
Preset Picture Shown
0 Speed 50-150
If HUD speed is higher than
dashboard instrument, lower this
number as needed. For speeds
lower than dashboard instrument
increase as needed.
107
MP H
Km/ h
X1000RP M
V
C
oo
F
01234567
1 Engine RPM 50-150
If the HUD needs to be adjusted,
start your vehicle, shift to
‘Park’, push accelerator down
(push function button down to
decrease and up to increase)
117
MPH
Km/ h
X1000RPM
V
C
oo
F
01234567
2 RPM Alarm 0-75
Factory preset Alarm is 5000
RPM. You can adjust it by pushing
function button up/down.
50
MPH
Km/ h
X1000RPM
V
C
oo
F
01234567
3 Speed Alarm 30-500
Factory preset speeding Alarm is
150. You can adjust it by pushing
function button up/down.
150
MPH
Km/ h
X1000RPM
V
C
oo
F
01234567
4 Brightness 0-2 0 = Auto 1= darker 2=brighter 0
MPH
Km/ h
X1000RPM
V
C
oo
F
01234567
5 Speed Unit 1-2 1=KM, 2=MPH 1
MPH
Km/ h
X1000RPM
V
C
oo
F
01234567
6Temperature
Unit 1-2 1= C, 2= F 1
MP H
Km/ h
X1000RPM
V
C
oo
F
01234567
7Power On
Voltage 110-150
HUD will automatically turn on
when voltage is above 13.2V,
and HUD automatically turns o
when voltage is below 13.2V
132
MPH
Km/ h
X1000RPM
V
C
oo
F
01234567
01234567 Demo Mode 0-2
0 =Normal state, 1 = Demo state,
2 = Power o override (use this
setting if HUD remains on after
engine is shut o)
0
MPH
Km/ h
X1000RPM
V
C
oo
F
01234567
Instructions

AFTER SALES SUPPORT
1300 663 907
AUS
MODEL: AU170023 PRODUCT CODE: 58797 10/2017
[e-mail]
11
Instructions
Button Configuration and Function
Do not operate HUD or OBD-II while driving
or while the vehicle is in motion.
1. Press the Three Way Button
inwards for 5 seconds. This will give
you access to the Settings Mode.
2. Using the Three Way Button again,
toggle your way through the settings
by pushing it up or down. Once an
option has been selected push the Three Way Button inwards to conrm.
Quick Function Guide
1. Quick pressing the Three Way button inwards will switch the display
information i.e. Water Temperature, Battery Voltage and Speed
2. To enable or disable the sound output on your HUD, push the Three Way
button down for 5 seconds.
3. Restore the Factory Settings:
a. Scroll to “L”and leave for 5 seconds, all the LED lights will turn on
b. Repeat the action and leave for another 5 seconds,
c. All settings will now be reset to factory default.
The information of the HUD is for reference only. Do not operate HUD or OBD-II
while driving or while the vehicle is in motion.
MP H
Km/ h
X1000RP M
V
C
oo
F
01234567

AFTER SALES SUPPORT
1300 663 907
AUS
MODEL: AU170023 PRODUCT CODE: 58797 10/2017
[e-mail]
12
Disposal & Maintenance
Disposal of Packaging
This product has been packaged to protect it against transportation damage.
Unpack the HUD and keep the original packaging carton and materials in a safe
place. It will help prevent any damage if the product needs to be transported in the
future, and you can use it to store the HUD when not in use.
In the event it is to be disposed of, please recycle all packaging material where
possible. Wrapping can be a suocation hazard for babies and young children,
so ensure all packaging materials are out of their reach and disposed of safely.
Observe any local regulations regarding the disposal of packaging and dispose of
it appropriately for recycling. Contact your local authorities for advice on recycling
facilities in your area.
Disposal of Product
Observe and local regulations regarding the disposal of waste products. Contact
your local authorities for advice on recycling facilities in your area.
At the end of its working life, do not throw this product out with your household
rubbish. Electrical and electronic products contain substances that can have
a detrimental eect on the environment and human health if disposed of
inappropriately. Observe any local regulations regarding the disposal of electrical
consumer goods and dispose of it appropriately for recycling. Contact your local
authorities for advice on recycling facilities in your area.
Maintenance and Storage
The HUD does not require scheduled maintaining or cleaning. Should cleaning
be necessary, simply wipe the outside surface with a dry soft cloth. Windscreen
cleaner can be used on the reection lm, however, never use aggressive cleaning
agents, cleaning alcohol or other chemical solutions, since these could damage the
housing or reection lm or even impair operation of the Head Up Display. Be sure
to unplug this device before cleaning.
Always store your device in a clean dry environment and avoid storage in extreme
heat or cold.

AFTER SALES SUPPORT
1300 663 907
AUS
MODEL: AU170023 PRODUCT CODE: 58797 10/2017
[e-mail]
13
QUESTION ANSWER
Nothing on screen Make sure the HUD power button is on, make
sure OBD-II is securely connected, start vehicle
again.
Power is on, but the screen
only shows vehicle battery
voltage and switches o after
30 seconds
Vehicle might not be OBD-II or EU OBD
compatible, check the sticker under engine
board or call your vehicle manufacturer to
make conrm.
Projection is not clear in sun
light
Make sure you have removed the transparent
lm on HUD screen and HUD reection screen
is facing the correct way. Ensure the brightness
is adjusted to suit.
HUD speed is higher/lower
than dashboard instrument
See Menu 0 adjustment. Ensure that Km/h is
selected, not Mph
HUD doesn’t automatically
power o
When both your vehicle and HUD are powered
o, but after 30 seconds HUD restarts
automatically, increase the default setting
from 13.2 V to 13.5 V (refer to menu 7 in table)
HUD does not automatically
power on
Press the Three Way button in for 5 seconds to
enter into menu settings. Short press 7 times
to menu 7. The default parameter is 132, scroll
up or down change it to 128. Press in for 5
seconds to save and exit.
FAQs

Repair and Refurbished
Goods Notice
HEAD UP DISPLAY
Repair and Refurbished Goods
or Parts Notice
Unfortunately, from time to time, faulty products are manufactured which need to be returned
to the Supplier for repair.
Please be aware that if your product is capable of retaining user-generated data (such asles
stored on a computer hard drive, telephone numbers stored on a mobile telephone, songs
stored on a portable media player, games saved on a games console or les stored on a USB
memory stick) during the process of repair, some or all of your stored data may be lost.
We recommend you save this data elsewhere prior to sending the product for repair.
You should also be aware that rather than repairing goods, we may replace them with
refurbished goods of the same type or use refurbished parts in the repair process.
Please be assured though, refurbished parts or replacements are only used where they
meet ALDI’s stringent quality specications.
If at any time you feel your repair is being handled unsatisfactorily, you may escalate your
complaint. Please telephone us on1300 663 907 or write to us at:
Winplus Australasia
PO Box 537 Bayswater Business Centre, Victoria, Australia
1300 663 907 - Hours: Mon-Fri 8:30am - 6:00pm AEST
customercar[email protected]
AFTER SALES SUPPORT
MODEL: AU170023 PRODUCT CODE: 58797 10/2017
1300 663 907
AUS customercar[email protected] YEAR WARRANTY
1

HEAD UP DISPLAY
Repair and Refurbished Goods
or Parts Notice
Unfortunately, from time to time, faulty products are manufactured which need to be returned
to the Supplier for repair.
Please be aware that if your product is capable of retaining user-generated data (such asles
stored on a computer hard drive, telephone numbers stored on a mobile telephone, songs
stored on a portable media player, games saved on a games console or les stored on a USB
memory stick) during the process of repair, some or all of your stored data may be lost.
We recommend you save this data elsewhere prior to sending the product for repair.
You should also be aware that rather than repairing goods, we may replace them with
refurbished goods of the same type or use refurbished parts in the repair process.
Please be assured though, refurbished parts or replacements are only used where they
meet ALDI’s stringent quality specications.
If at any time you feel your repair is being handled unsatisfactorily, you may escalate your
complaint. Please telephone us on1300 663 907 or write to us at:
Winplus Australasia
PO Box 537 Bayswater Business Centre, Victoria, Australia
1300 663 907 - Hours: Mon-Fri 8:30am - 6:00pm AEST
[e-mail]
AFTER SALES SUPPORT
MODEL: AU170023 PRODUCT CODE: 58797 10/2017
1300 663 907
AUS [e-mail] YEAR WARRANTY
1
