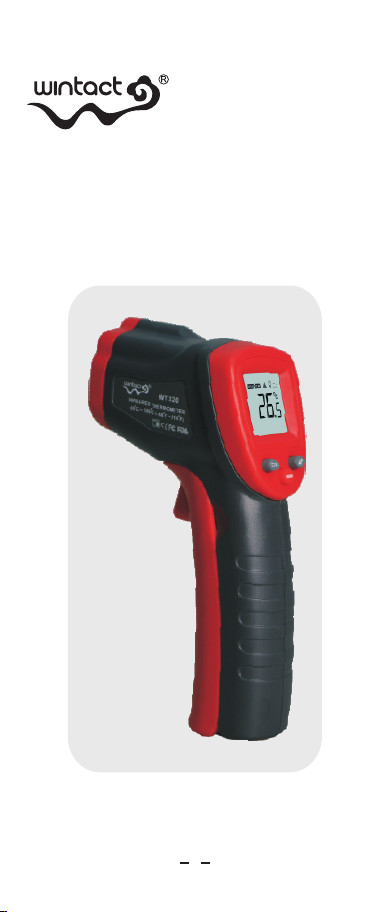

WINTACT WT320 User manual

21 3
A. Introduction
B. WARNING & CAUTIONS
C. Distance to spot size
This infrared thermometer is used for measuring the tem-
perature of the object's surface, which is applicable for va-
rious hot, hazardous or hard-toreach objects without contact
safely and quickly.
This unit consist of Optics, Temperature Sensor Signal
amplifier, Processing circuit and LCD Display. The Optics
collected the infrared energy emitted by object and focus onto
the Sensor. Then the sensor translates the energy into an
electricity signal. This signal will be turned out to be digital
shown on the LCD after the signal amplifier and processing
circuit.
1. Warning:
To avoid the potential situation may cause harm or dam-
age to people, please pay attention to the following items:
1) . Do not point laser directly at eye or indirectly off reflec-
tive surfaces.
2) . The unit cannot measure through transparent surfaces
such as glass or plastic. It will measure the surface tem-
perature of these materials instead.
3) . Steam, dust, smoke, or other particles can prevent acc-
urate measurement by obstructing by the units optics.
2. Cautions:
Infrared thermometer should be protected for the
following:
1). EMF (electro-magnetic fields) from arc welders,
induction heaters.
2). Thermal shock (cause by large or abrupt ambient
temperature changes allow 30 minutes for unit to
stabilize before use).
3). Do not leave the unit on or near objects of high
temperature.

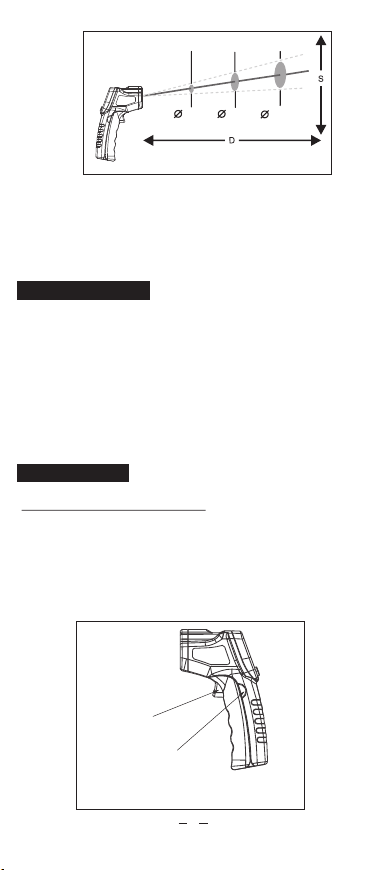

1. When take measurement, pay attention to the Distance
to Spot Size. As the Distance (D) from the target surface
increases, the spot size (S) of the area measured by the
unit becomes larger.
The Distance to Spot size of the unit is 12:1(Figure 1).
MODEL:WT320
Version：WT320-EN-0
Infrared Thermometer
Instruction Manual
D. EMISSIVITY
Emissivity: Most organic materials and painted or
oxidized surfaces have an emissivity of 0.95(preset in
the unit). Inaccurate readings will result from measuring
shiny or polished metal surfaces. To compensate for this,
adjust the units emissivity reading or cover the surface to
be measured with masking tape or flat black paint.
Measure the tape or painted surface when the tape or
painted reach the same temperature as the material
underneath.
2. Field of view:
Make sure the target is larger than the unit's spot size.
The smaller the target the closer measure distance.
When accuracy is critical, make sure the target is at least
twice as large as the spot size.
E. Operation
1. Operating the unit：Figure 2
1). Open the battery door and insert the battery.
2). Pull the trigger to turn on the unit;
3). Aim at the target surface and pull the trigger, then temp-
erature will be shown on the LCD.
This unit is equ ipped with a laser, which is only used for
aiming.
Trigger
Finger indents
Figure 2
25mm@
300mm
75mm@
900mm
125mm@
1500mm
1"@
12"
3"@
36"
5"@
60"
D:S=12:1
Figure 1

21 3
A. Introduction
B. WARNING & CAUTIONS
C. Distance to spot size
This infrared thermometer is used for measuring the tem-
perature of the object's surface, which is applicable for va-
rious hot, hazardous or hard-toreach objects without contact
safely and quickly.
This unit consist of Optics, Temperature Sensor Signal
amplifier, Processing circuit and LCD Display. The Optics
collected the infrared energy emitted by object and focus onto
the Sensor. Then the sensor translates the energy into an
electricity signal. This signal will be turned out to be digital
shown on the LCD after the signal amplifier and processing
circuit.
1. Warning:
To avoid the potential situation may cause harm or dam-
age to people, please pay attention to the following items:
1) . Do not point laser directly at eye or indirectly off reflec-
tive surfaces.
2) . The unit cannot measure through transparent surfaces
such as glass or plastic. It will measure the surface tem-
perature of these materials instead.
3) . Steam, dust, smoke, or other particles can prevent acc-
urate measurement by obstructing by the units optics.
2. Cautions:
Infrared thermometer should be protected for the
following:
1). EMF (electro-magnetic fields) from arc welders,
induction heaters.
2). Thermal shock (cause by large or abrupt ambient
temperature changes allow 30 minutes for unit to
stabilize before use).
3). Do not leave the unit on or near objects of high
temperature.
1. When take measurement, pay attention to the Distance
to Spot Size. As the Distance (D) from the target surface
increases, the spot size (S) of the area measured by the
unit becomes larger.
The Distance to Spot size of the unit is 12:1(Figure 1).
MODEL:WT320
Version：WT320-EN-0
Infrared Thermometer
Instruction Manual
D. EMISSIVITY
Emissivity: Most organic materials and painted or
oxidized surfaces have an emissivity of 0.95(preset in
the unit). Inaccurate readings will result from measuring
shiny or polished metal surfaces. To compensate for this,
adjust the units emissivity reading or cover the surface to
be measured with masking tape or flat black paint.
Measure the tape or painted surface when the tape or
painted reach the same temperature as the material
underneath.
2. Field of view:
Make sure the target is larger than the unit's spot size.
The smaller the target the closer measure distance.
When accuracy is critical, make sure the target is at least
twice as large as the spot size.
E. Operation
1. Operating the unit：Figure 2
1). Open the battery door and insert the battery.
2). Pull the trigger to turn on the unit;
3). Aim at the target surface and pull the trigger, then temp-
erature will be shown on the LCD.
This unit is equ ipped with a laser, which is only used for
aiming.
Trigger
Finger indents
Figure 2
25mm@
300mm
75mm@
900mm
125mm@
1500mm
1"@
12"
3"@
36"
5"@
60"
D:S=12:1
Figure 1

21 3
A. Introduction
B. WARNING & CAUTIONS
C. Distance to spot size
This infrared thermometer is used for measuring the tem-
perature of the object's surface, which is applicable for va-
rious hot, hazardous or hard-toreach objects without contact
safely and quickly.
This unit consist of Optics, Temperature Sensor Signal
amplifier, Processing circuit and LCD Display. The Optics
collected the infrared energy emitted by object and focus onto
the Sensor. Then the sensor translates the energy into an
electricity signal. This signal will be turned out to be digital
shown on the LCD after the signal amplifier and processing
circuit.
1. Warning:
To avoid the potential situation may cause harm or dam-
age to people, please pay attention to the following items:
1) . Do not point laser directly at eye or indirectly off reflec-
tive surfaces.
2) . The unit cannot measure through transparent surfaces
such as glass or plastic. It will measure the surface tem-
perature of these materials instead.
3) . Steam, dust, smoke, or other particles can prevent acc-
urate measurement by obstructing by the units optics.
2. Cautions:
Infrared thermometer should be protected for the
following:
1). EMF (electro-magnetic fields) from arc welders,
induction heaters.
2). Thermal shock (cause by large or abrupt ambient
temperature changes allow 30 minutes for unit to
stabilize before use).
3). Do not leave the unit on or near objects of high
temperature.
1. When take measurement, pay attention to the Distance
to Spot Size. As the Distance (D) from the target surface
increases, the spot size (S) of the area measured by the
unit becomes larger.
The Distance to Spot size of the unit is 12:1(Figure 1).
MODEL:WT320
Version：WT320-EN-0
Infrared Thermometer
Instruction Manual
D. EMISSIVITY
Emissivity: Most organic materials and painted or
oxidized surfaces have an emissivity of 0.95(preset in
the unit). Inaccurate readings will result from measuring
shiny or polished metal surfaces. To compensate for this,
adjust the units emissivity reading or cover the surface to
be measured with masking tape or flat black paint.
Measure the tape or painted surface when the tape or
painted reach the same temperature as the material
underneath.
2. Field of view:
Make sure the target is larger than the unit's spot size.
The smaller the target the closer measure distance.
When accuracy is critical, make sure the target is at least
twice as large as the spot size.
E. Operation
1. Operating the unit：Figure 2
1). Open the battery door and insert the battery.
2). Pull the trigger to turn on the unit;
3). Aim at the target surface and pull the trigger, then temp-
erature will be shown on the LCD.
This unit is equ ipped with a laser, which is only used for
aiming.
Trigger
Finger indents
Figure 2
25mm@
300mm
75mm@
900mm
125mm@
1500mm
1"@
12"
3"@
36"
5"@
60"
D:S=12:1
Figure 1

5 64
(1) Trigger: press it to display temperature value with
SCAN appears at meantime. Release the trigger
and enter into HOLD mode to save the data
automatically, and the unit turns off automatically
if there is no further operation.
(2) Switch key between celcius degree and fahrenheit
degree. This key can also be used for increasing
value set.
(3) Mode switch key:press Mode key to switch modes
in turn among MAX→MIN→EMS→CAL→MEAS-
URING INTERFACE
a. MAX: measuring maximum temperature
b. MIN: measuring minimum temperature
Note: In measuring, hold on the Mode key to swtich to
Max or Min review.
c. EMS: under this mode, select the emissivity 0.95
with ℃/℉ key or emissivity 0.8 with laser location
key.
d. CAL: Under self calibration mode, to calibrate the
unit between -5.0℃ and +5.0℃
For example: if the temperature is 26.3℃ and the
temperature value measured is 25℃，
then and 1.3℃ should be increased as
a calibration value,and after calibration
press the mode key to return to the
measuring mode.
(4) laser locatoin key and backlight switch key(press
the 2 keys simutaneously for backlight on/off.
this key can also be used as an self calibration
value decrease key.

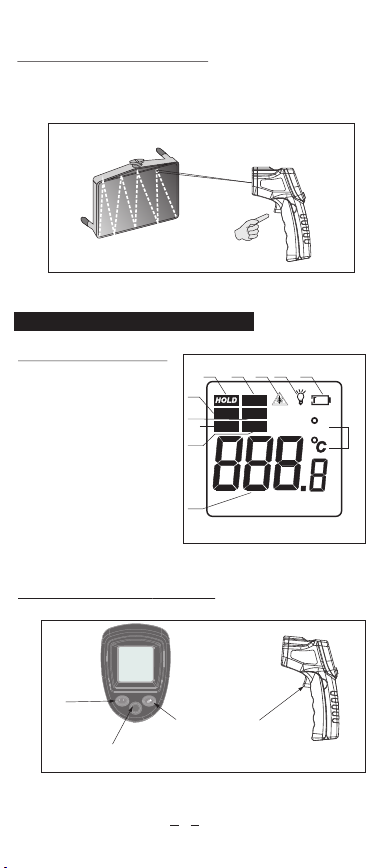

F. LCD display & buttons
2. ：Figure 5Diagram description
2. Locating a Hot Spot：Figure 3
To find a hot spot, aim the thermometer outside of interest,
then scan across with an up and down motion until you
locate the hot spot.
1. LCD display:Figure4
A: data hold icon
B: scanning icon
C: laser on icon
D: back light on icon
E: battery power icon
I: minimum icon
F: self-calibration icon
G: emissivity icon
H: maximum icon
J: measuring unit
K: measuring reading
Figure 3
Figure 4
SCAN
AB C D E
K
F
MIN
CAL
MAX
G
F
I
EMS
HJ
C/ F
MODE
Figure 5
（2）
（4）
（3）
（1）
G. Maintenence
H. Specification
1. Lens Cleaning:
Blow off loose particles using clean compressed
air. Gently brush remaining debris away with a
moist cotton swab. The swab may be moistened
with water.
2. Case cleaning: Clean the case with a damp spo-
nge/cloth and mild soap.
Note:
1) Do not use solvent to clean plastic lens.
2) Do not submerge the unit in water.
Accuracy
0~380℃(32~716℉) :±1.5℃(±2.7℉)
or±1.5%
-50~0℃(-58~32℉):±3℃ (±5℉)
Whichever is greater
Repeatability 1% of reading or 1℃
Response time 500 mSec, 95% response
5~14 um
Emissivity 0.95 Preset、0.8 optional
0 ~40℃ (32 ~ 104℉)
-20 ~ 60℃ (-4~140℉)
Power 3V (1.5V AAA * 2)battery
Laser Models:12 hrs
12:1
Spectral response
Operating Humidity
Storage Temperature
Typical battery life
(Alkaline)
Distance to Spot size
-50~380℃ (-58~716℉)
Temperature range
Operating Temperature
10~95%RH non-condensing，
up to 30℃(86℉)
Specific Declarations:
Our company shall hold no any responisibility resulting
from using output from this product as an direct or indirect
evidence.
We reserves the right to modify product design and
specification without notice.

5 64
(1) Trigger: press it to display temperature value with
SCAN appears at meantime. Release the trigger
and enter into HOLD mode to save the data
automatically, and the unit turns off automatically
if there is no further operation.
(2) Switch key between celcius degree and fahrenheit
degree. This key can also be used for increasing
value set.
(3) Mode switch key:press Mode key to switch modes
in turn among MAX→MIN→EMS→CAL→MEAS-
URING INTERFACE
a. MAX: measuring maximum temperature
b. MIN: measuring minimum temperature
Note: In measuring, hold on the Mode key to swtich to
Max or Min review.
c. EMS: under this mode, select the emissivity 0.95
with ℃/℉ key or emissivity 0.8 with laser location
key.
d. CAL: Under self calibration mode, to calibrate the
unit between -5.0℃ and +5.0℃
For example: if the temperature is 26.3℃ and the
temperature value measured is 25℃，
then and 1.3℃ should be increased as
a calibration value,and after calibration
press the mode key to return to the
measuring mode.
(4) laser locatoin key and backlight switch key(press
the 2 keys simutaneously for backlight on/off.
this key can also be used as an self calibration
value decrease key.
F. LCD display & buttons
2. ：Figure 5Diagram description
2. Locating a Hot Spot：Figure 3
To find a hot spot, aim the thermometer outside of interest,
then scan across with an up and down motion until you
locate the hot spot.
1. LCD display:Figure4
A: data hold icon
B: scanning icon
C: laser on icon
D: back light on icon
E: battery power icon
I: minimum icon
F: self-calibration icon
G: emissivity icon
H: maximum icon
J: measuring unit
K: measuring reading
Figure 3
Figure 4
SCAN
AB C D E
K
F
MIN
CAL
MAX
G
F
I
EMS
HJ
C/ F
MODE
Figure 5
（2）
（4）
（3）
（1）
G. Maintenence
H. Specification
1. Lens Cleaning:
Blow off loose particles using clean compressed
air. Gently brush remaining debris away with a
moist cotton swab. The swab may be moistened
with water.
2. Case cleaning: Clean the case with a damp spo-
nge/cloth and mild soap.
Note:
1) Do not use solvent to clean plastic lens.
2) Do not submerge the unit in water.
Accuracy
0~380℃(32~716℉) :±1.5℃(±2.7℉)
or±1.5%
-50~0℃(-58~32℉):±3℃ (±5℉)
Whichever is greater
Repeatability 1% of reading or 1℃
Response time 500 mSec, 95% response
5~14 um
Emissivity 0.95 Preset、0.8 optional
0 ~40℃ (32 ~ 104℉)
-20 ~ 60℃ (-4~140℉)
Power 3V (1.5V AAA * 2)battery
Laser Models:12 hrs
12:1
Spectral response
Operating Humidity
Storage Temperature
Typical battery life
(Alkaline)
Distance to Spot size
-50~380℃ (-58~716℉)
Temperature range
Operating Temperature
10~95%RH non-condensing，
up to 30℃(86℉)
Specific Declarations:
Our company shall hold no any responisibility resulting
from using output from this product as an direct or indirect
evidence.
We reserves the right to modify product design and
specification without notice.

5 64
(1) Trigger: press it to display temperature value with
SCAN appears at meantime. Release the trigger
and enter into HOLD mode to save the data
automatically, and the unit turns off automatically
if there is no further operation.
(2) Switch key between celcius degree and fahrenheit
degree. This key can also be used for increasing
value set.
(3) Mode switch key:press Mode key to switch modes
in turn among MAX→MIN→EMS→CAL→MEAS-
URING INTERFACE
a. MAX: measuring maximum temperature
b. MIN: measuring minimum temperature
Note: In measuring, hold on the Mode key to swtich to
Max or Min review.
c. EMS: under this mode, select the emissivity 0.95
with ℃/℉ key or emissivity 0.8 with laser location
key.
d. CAL: Under self calibration mode, to calibrate the
unit between -5.0℃ and +5.0℃
For example: if the temperature is 26.3℃ and the
temperature value measured is 25℃，
then and 1.3℃ should be increased as
a calibration value,and after calibration
press the mode key to return to the
measuring mode.
(4) laser locatoin key and backlight switch key(press
the 2 keys simutaneously for backlight on/off.
this key can also be used as an self calibration
value decrease key.
F. LCD display & buttons
2. ：Figure 5Diagram description
2. Locating a Hot Spot：Figure 3
To find a hot spot, aim the thermometer outside of interest,
then scan across with an up and down motion until you
locate the hot spot.
1. LCD display:Figure4
A: data hold icon
B: scanning icon
C: laser on icon
D: back light on icon
E: battery power icon
I: minimum icon
F: self-calibration icon
G: emissivity icon
H: maximum icon
J: measuring unit
K: measuring reading
Figure 3
Figure 4
SCAN
AB C D E
K
F
MIN
CAL
MAX
G
F
I
EMS
HJ
C/ F
MODE
Figure 5
（2）
（4）
（3）
（1）
G. Maintenence
H. Specification
1. Lens Cleaning:
Blow off loose particles using clean compressed
air. Gently brush remaining debris away with a
moist cotton swab. The swab may be moistened
with water.
2. Case cleaning: Clean the case with a damp spo-
nge/cloth and mild soap.
Note:
1) Do not use solvent to clean plastic lens.
2) Do not submerge the unit in water.
Accuracy
0~380℃(32~716℉) :±1.5℃(±2.7℉)
or±1.5%
-50~0℃(-58~32℉):±3℃ (±5℉)
Whichever is greater
Repeatability 1% of reading or 1℃
Response time 500 mSec, 95% response
5~14 um
Emissivity 0.95 Preset、0.8 optional
0 ~40℃ (32 ~ 104℉)
-20 ~ 60℃ (-4~140℉)
Power 3V (1.5V AAA * 2)battery
Laser Models:12 hrs
12:1
Spectral response
Operating Humidity
Storage Temperature
Typical battery life
(Alkaline)
Distance to Spot size
-50~380℃ (-58~716℉)
Temperature range
Operating Temperature
10~95%RH non-condensing，
up to 30℃(86℉)
Specific Declarations:
Our company shall hold no any responisibility resulting
from using output from this product as an direct or indirect
evidence.
We reserves the right to modify product design and
specification without notice.
