Wisco Industries 282-16 User manual

The perfect merchandiser for all your hot fast foods. Compact display unit is designed for maximum
visibility and extended shelf life. Featuring product illumination for both shelves and an adjustable
thermostat to keep your products at just the right serving temperature.
FOOD WARMING/
MERCHANDISING CABINET
FP140152 12/17/2014
P.O. Box 10 • Oregon, WI 53575 • Ph: 608.835.3106 • Fx: 608.835.8273 • wiscoind.com • wiscomade.com
FEATURES: ELECTRICAL DATA:
VOLTS:
120
AMPS:
10.6
WATTS:
1275
DIMENSIONS:
SHIPPING INFORMATION:
• Best when operated on an individual branch circuit
• ’ power cord length6
• 18”W × 17”D × 20 ½”H
• Inside: Base - 17”W × 16”D
Shelf - 17”W × 16”D
• SHIPPING DIMENSIONS: × 22”W 22”D × 24”H
• SHIPPING WEIGHT: lbs.47
• Thermostatically controlled heated shelf and base plate
• Adjustable thermostat for precise temperature control
• Temperature range to above 150°F
• Illuminated to showcase product on both heated surfaces
• Sturdy, durable stainless steel construction
• Slanted shelf/base units available that have the top shelf
and base angled down 6° in front:
Models: 282-16-S or 282-16-R-S
AVAILABLE ACCESSORIES:
#0022520 3⅞”W Aluminum Product Tray
#0022591 8”W Aluminum product Tray (unit holds 2
trays per surface)
#0022592 Flat Grill Rack (unit holds 1 rack per surface)
#0022590 Sign Holder
• NSF does not require usage of sneeze guard on this model
FOR EXTENDED SHELF LIFE, WE RECOMMEND:
• Product Trays for wrapped sandwiches
• Flat Racks for plastic containers or wrapped products
MODEL 282-16
Includes (8) 3⅞”W Aluminum
Product Trays (0022520)
MODEL 282-16-R
Includes (2) Flat Grill
Racks (0022592)

P.O. Box 10 • Oregon, WI 53575 • Ph: 608.835.3106 • Fx: 608.835.8273 • wiscoind.com • wiscomade.com
IMPORTANT: Read the following safety and operation instructions to avoid injury and to avoid damage to equipment or property.
Plug unit into a properly grounded electrical outlet of the correct voltage, size, and plug configuration for
this unit. We recommend usage on an individual branch circuit of at least 15 amps for best results. Failure to
do so may result in decreased performance of the warmer.
Exterior surfaces on unit may get hot. Use caution when touching these areas to avoid injury.
Unplug warmer when not in use.
Unit is not waterproof. Do not submerge in water. Do not operate if unit has been submerged in water.
Unplug unit from power source, and allow to cool completely before performing any maintenance or cleaning.
Do not steam clean or use excessive water on unit to avoid personal injury or electrical shock.
It is recommended that the interior and exterior surfaces be cleaned daily with a mild soap and damp
cloth. Stubborn stains on base of unit and/or shelves may be removed with a non-abrasive cleaner and
a damp cloth. Usage of an abrasive cleanser could scratch or damage the finish of your unit.
OPERATION:
This warmer is designed to maintain food product at or above the optimum temperature. It is not designed
or intended to heat up or cook food to the serving temperature. Product is to be prepared to a temperature
of above 160°F before placing in the warmer. Do not place product on its side as this will affect the internal
holding temperatures of the product.
TEMPERATURE
The amount of product placed in the warmer will affect the performance of the warmer. We suggest
periodically checking the internal temperature of the product and adjusting the temperature settings if
necessary.
The following temperatures are APPROXIMATE and can vary due to unit location, electrical supply, product
used, etc. Intended as a guideline only.
SETTING TEMPERATURE READING
1 80°F
1.5 95°F
2 105°F
2.5 110°F
3 125°F
3.5 140°F
4 150°F
4.5 155°F
5 160°F
CLEANING INSTRUCTIONS

TO REPLACE DISPLAY LIGHT
Only shatter resistant light bulbs which meet or exceed NSF Standards specifically designed for food holding
units must be used. Breakage of bulbs not specially coated could result in personal injury and/or food
contamination.
Disconnect the power supply cord, and wait until unit has completely cooled. Unscrew display light, and
replace with a new specially coated bulb of the same style and wattage.
P.O. Box 10 • Oregon, WI 53575 • Ph: 608.835.3106 • Fx: 608.835.8273 • wiscoind.com • wiscomade.com
TROUBLESHOOTING:
Unplug unit from power source, and allow to cool completely before performing any maintenance or cleaning.
Unit not working:
• Check the power switch position, power cord, and/or electrical circuit.
Display light not working:
• Tighten or replace the bulb.
Unit not heating properly:
• Has food been prepared in advance and placed in warmer at proper serving temperature?
• Check heat settings. Is it at correct setting for your food product?
NOTES:
MAINTENANCE:

P.O. Box 10 • Oregon, WI 53575 • Ph: 608.835.3106 • Fx: 608.835.8273 • wiscoind.com • wiscomade.com
PARTS LIST:
MODEL 282-16
ITEM # PART # DESCRIPTION
10022551 BASE ASSEMBLY
2 0022554 BOTTOM PANEL ASSEMBLY
3 0022573 BASE INSULATION
40022570 FOIL HEATER 120V 150W
5 0022553 PLATE
6 0022552 BASE
70022534 REGULATING THERMOSTAT
8I013163 THERMOSTAT DIAL
90016157 THERMOSTAT KNOB
10 00486 ON/OFF SWITCH
11 00131 STRAIN RELIEF
12 00132 POWER CORD
13 0022507 OUTER POST
14 0022541 BUSHING
15 009028 BUSHING
16 0017315 BUSHING
17 0022506 INNER POST
18 0022556 SHELF ASSEMBLY
19 0022569 ELEMENT 120V 480W
20 0016123 THERMOMETER
21 004038 STOWAGE CLIP
22 0018415 LIGHT SOCKET
23 0022559 SHELF BASE WELDMENT
24 0022557 SHELF
25 0022521 DIVIDER BAR
26 0022520 4" BLACK ALUMINUM PRODUCT TRAY
27 0022542 FLAT RACK
28 0022562 TOP ASSEMBLY
29 0022563 TOP
30 0022572 TOP INSULATION
31 0022565 TOP BASE WELDMENT
32 0022535 COATED BULB
33 0022587 16” ANGLED SIDE RAIL

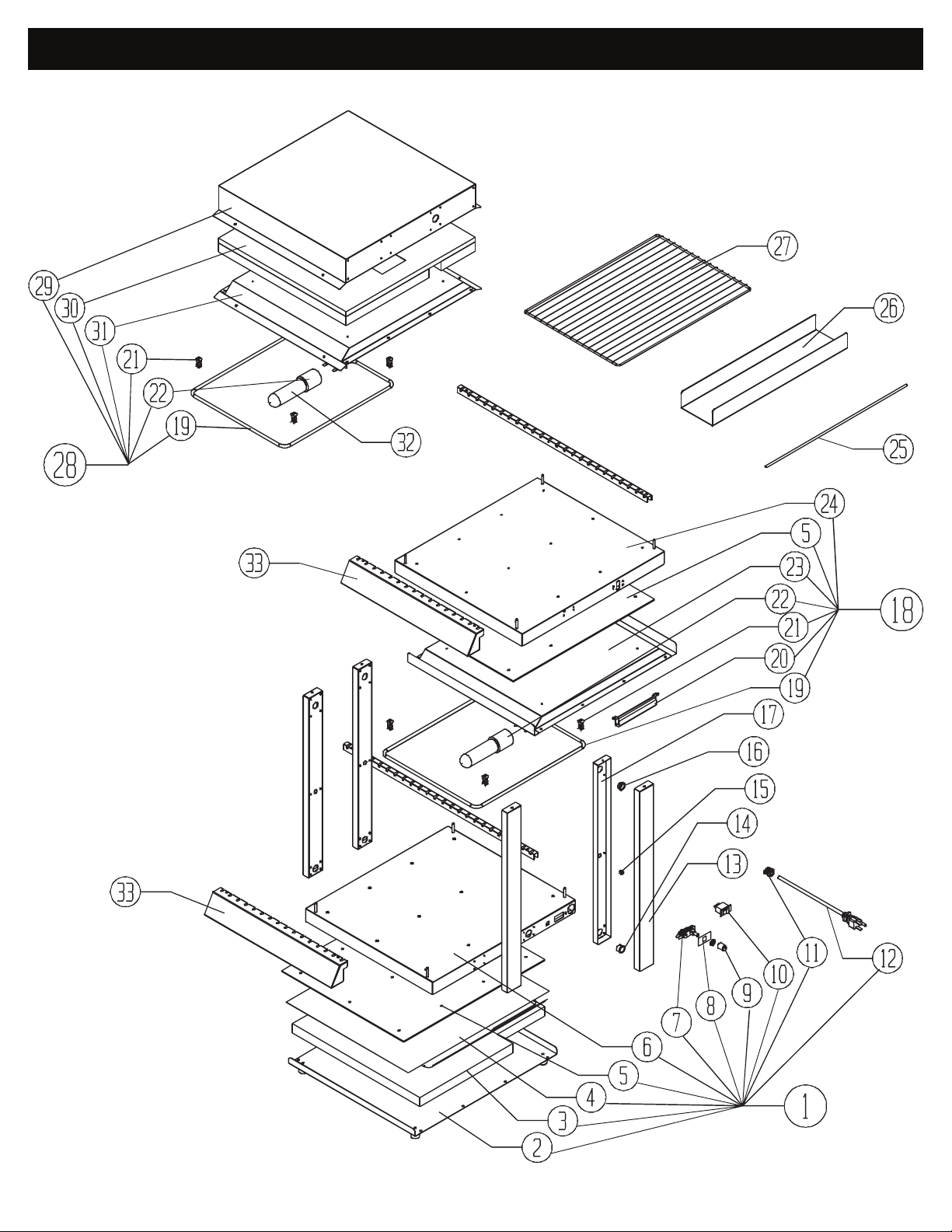

Model 282-16 Exploded View

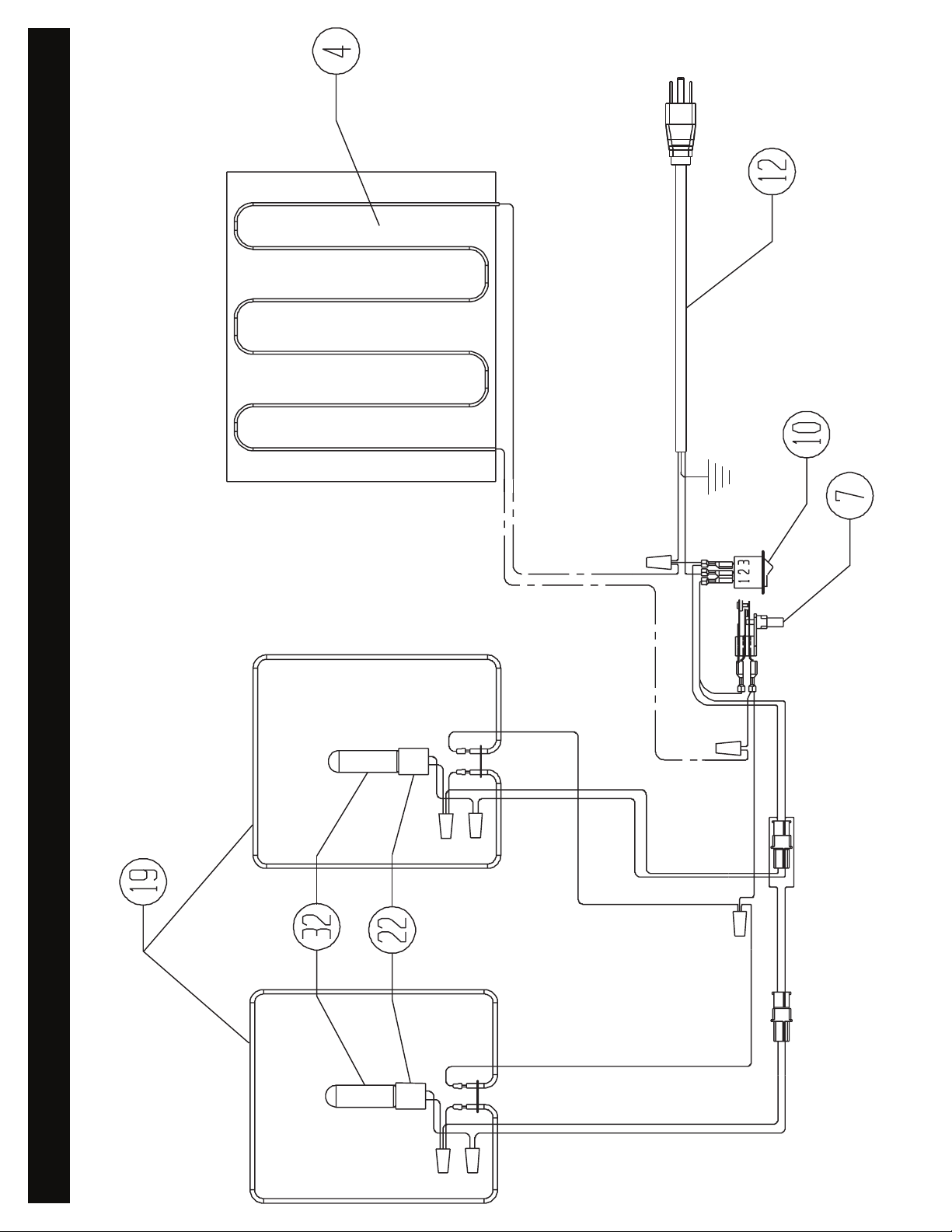

Model 282-16 Wiring Diagram
