Wisenet SNK-B73047BW User manual

ALL-IN-ONE SECURITY SYSTEM
Quick Start Guide

2_ English
If you are experiencing video loss, verify that all cables are properly and securely connected to the NVR.
• Check your Network Connection
• Check your Username and Password
• Restart the NVR if you have trouble connecting.

Main Menu > Shutdown > Enter Username & Password > Click “Reboot”

To reset your NVR to factory settings, refer to the User manual.
For more information about your product, please download the User Manual from "wisenetlife.com".
CAUTION!
• The transmission range of the wireless signal may weaken if heavy obstructions, such as concrete, brick, or metal
walls are between the NVR and cameras.
• If there are multiple Wi-Fi routers and devices in your environment, it may reduce the wireless bandwidth
available. Weak network bandwidth may reduce the video quality or video loss.
• If your video is interrupted and video loss occurs, change Wireless Band Selection from the Auto mode to the
Manual mode in the Setup menu, and select a channel with no interference. (See page 16 of the NVR manual).
Troubleshooting

English _3

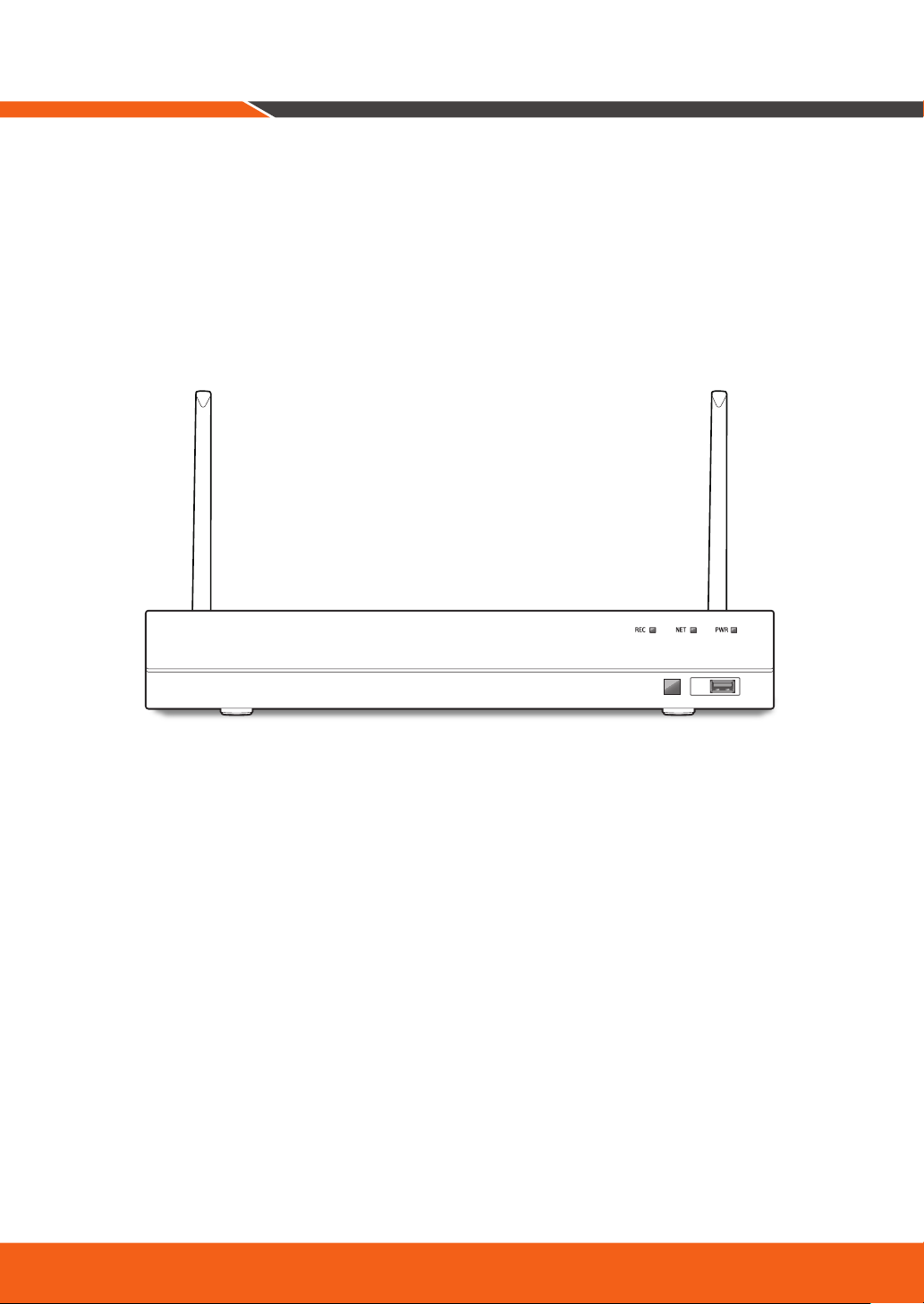

NVR Setup
KIT Model
SNK-B73047BW
NVR Model
SNR-73207W
• Front
USB

4_ English
Package Contents

The appearance of the components may differ from the image shown.

Accessory category and quantity may differ depending on sales region.

The administrator is recommended to store the remote control carefully in order to initialize it if the password is
lost.
USB
SNR-73207W SNC-79447BW 18.2 m (60 ft) Power Extension Cable
Ethernet cable HDMI Cable Remote Control /
Remote Control Battery (AAA x 2)
Mouse Screw x 3EA (per Camera) /
Anchor x 3EA (per Camera) Power adaptor for NVR / Power adaptor for 4 Cameras
Quick Guide
NVR Setup

English _5
1.
Connect the mouse to the USB Port on the front or back panel of the NVR.
2.
Depending on the monitor port, connect the HDMI or VGA cable from your monitor to the HDMI or VGA
Port on the rear panel.
HDMIVGA
CAUTION
RISKOF ELECTRI SHOCK
DONOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRICAL SHOCK
DO NOT OPEN COVERS. NO USER SERVICEABLE
PARTSINSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
WARNING : TO PREVENT FIRE OR SHOCK HAZARD. DO NOT
EXPOSE UNITS NOT SPECIFICALLYDESIGNED
FOR OUTDOOR USE TO RAIN OR MOISTURE.
WAN
HDMIVGA
CAUTION
RISKOF ELECTRI SHOCK
DONOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRICAL SHOCK
DO NOT OPEN COVERS. NO USER SERVICEABLE
PARTSINSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
WARNING : TO PREVENT FIRE OR SHOCK HAZARD. DO NOT
EXPOSE UNITS NOT SPECIFICALLYDESIGNED
FOR OUTDOOR USE TO RAIN OR MOISTURE.
WAN
HDMI
HDMIVGA
CAUTION
RISK OF ELECTRI SHOCK
DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRICAL SHOCK
DO NOT OPEN COVERS. NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
WARNING : TO PREVENT FIRE OR SHOCK HAZARD. DO NOT
EXPOSE UNITS NOT SPECIFICALLY DESIGNED
FOR OUTDOOR USE TO RAIN OR MOISTURE.
WAN
5
1
4
3 2

6_ English
3.
Connect one end of the Ethernet cable into your router’s LAN port, and the other end of the cable to the
WAN port on the rear panel.
4.
Install the cameras on the walls and connect the power adapters to each camera.
5.
Connect the power adapter for NVR to the DC 12V port on the rear panel and the power plug into a wall
outlet. The NVR will display live video feeds from your cameras and then start recording. You will briefly
see a live video on display before you start the Startup Wizard. If the camera video is not displayed on the
screen, manually pair the camera with the NVR again using the Pair button on the camera. To see how to
pair them, see page 11.
HDMIVGA
CAUTION
RISKOF ELECTRI SHOCK
DONOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRICAL SHOCK
DONOT OPEN COVERS. NO USER SERVICEABLE
PARTSINSIDE. REFER SERVICING TO QUALIFIED
SERVICEPERSONNEL.
WARNING : TO PREVENT FIRE OR SHOCK HAZARD. DO NOT
EXPOSE UNITS NOT SPECIFICALLY DESIGNED
FOR OUTDOOR USE TO RAIN OR MOISTURE.
WAN
HDMIVGA
CAUTION
RISKOF ELECTRI SHOCK
DONOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRICAL SHOCK
DO NOT OPEN COVERS. NO USER SERVICEABLE
PARTSINSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
WARNING : TO PREVENT FIRE OR SHOCK HAZARD. DO NOT
EXPOSE UNITS NOT SPECIFICALLYDESIGNED
FOR OUTDOOR USE TO RAIN OR MOISTURE.
WAN
WAN
NVR Setup

English _7
Change your password on a regular basis.

Please create a user name and password for your device. Password MUST be 8~13 characters long. When
password is 8~9 characters long, it should be with at least a combination of letters, digits and special symbols.
If it is 10~13 characters long, it should be with at least a combination of two types of characters. 4 or more
contiguous or repeated characters or key arrangement are prohibited, for example 1111, 1234, abcd, qwerty.

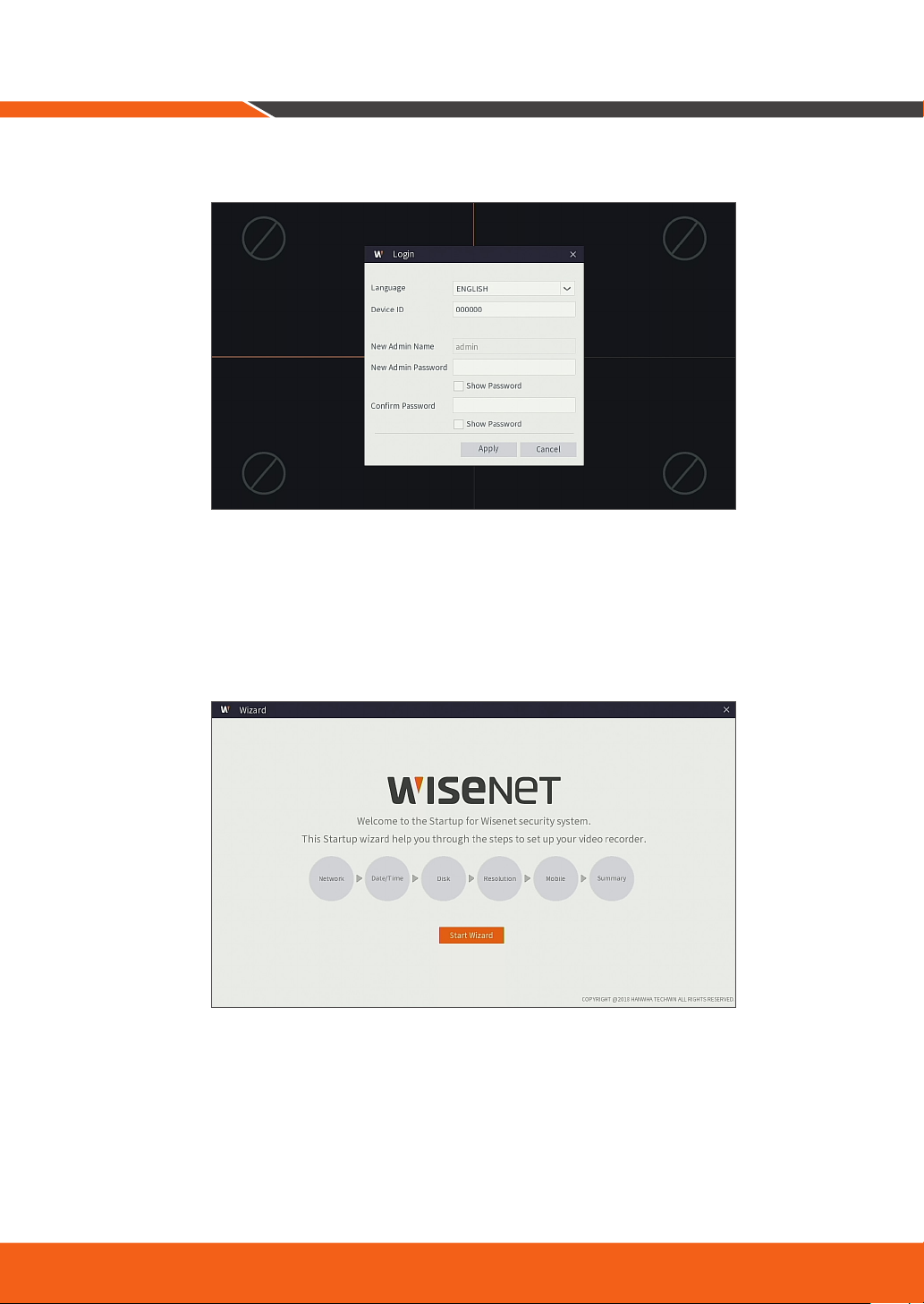

1.
After NVR startup is completed, the startup wizard will be displayed. Click "Start Wizard".
Startup Wizard Guide

8_ English

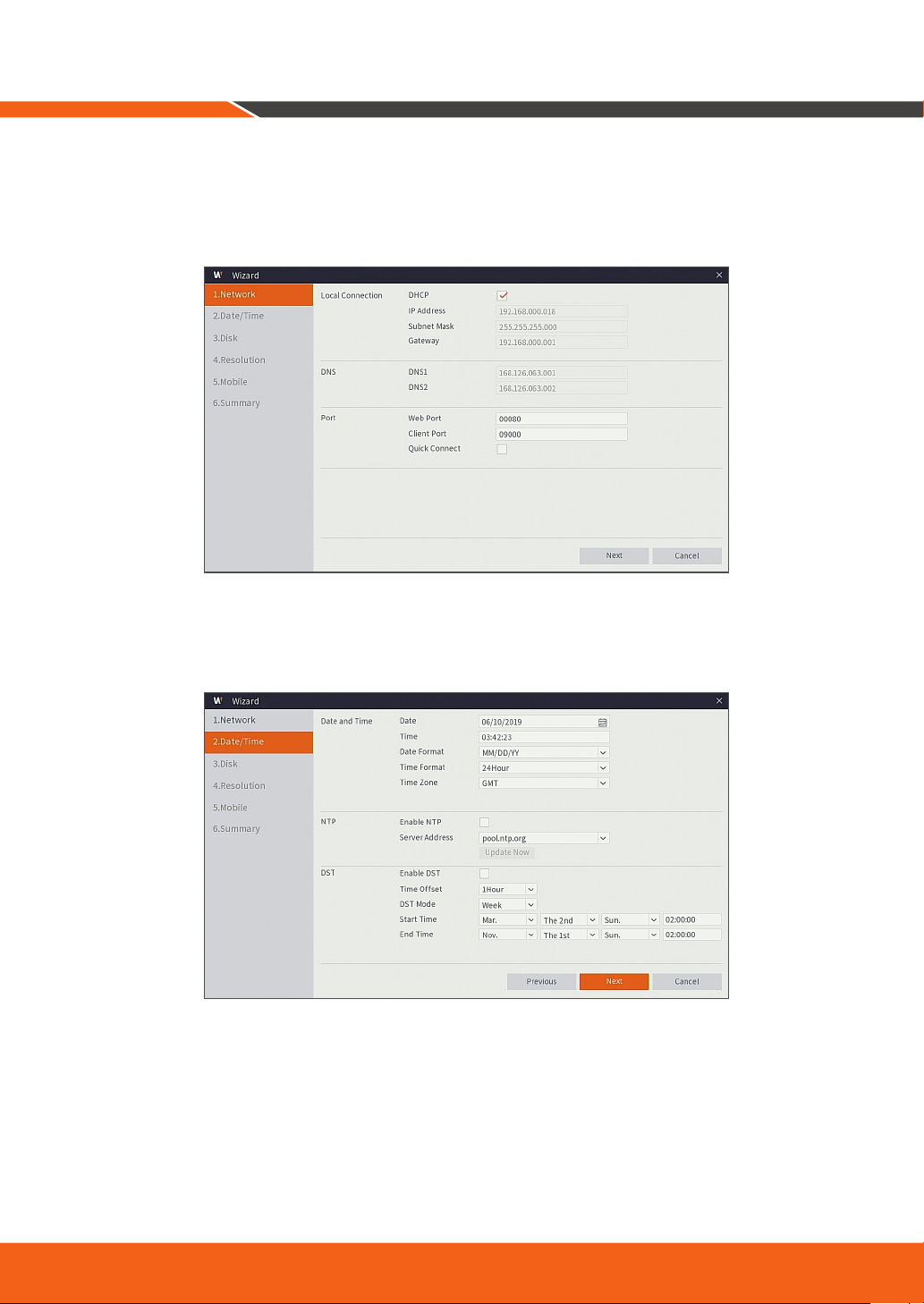

2.
Network
In DHCP mode the router will automatically assign an IP address to NVR.
If the NVR fails to obtain an IP address, refer to the NVR Router Guide. If the problem still cannot be resolved,
contact technical support.
3.
Date/Time
Set the date, time, NTP, DST.
Startup Wizard Guide

English _9

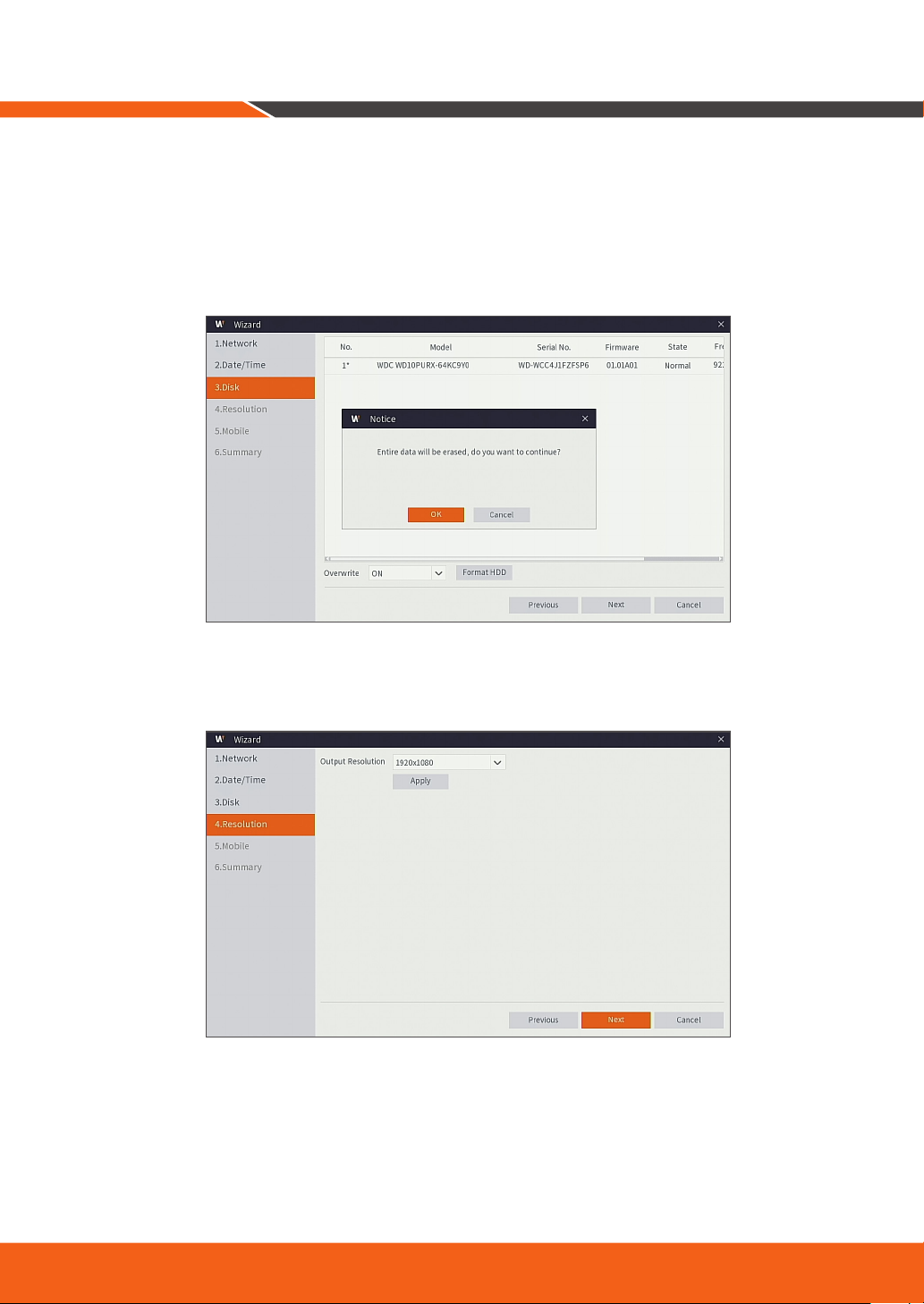

4.
Disk
New hard drive(s) connected must be formatted before use. Upon connection, it will indicate to format
new hard drive. Click on "Select" to select the unformatted hard drive. Click on "Format HDD" to pop up
the user login window and enter the password to log in. A notice window will indicate "Entire Data Will Be
Erased. do You Want To Continue?". Click "OK" to format the disk. When the progress bar is complete, the
formatting process is completed.
5.
Resolution
Select the resolution for the VGA output or HDMI output of your monitor.

10_ English
6.
Mobile
If you scan a QR code using WisenetLife App, the device ID displayed in the NVR will be automatically
reflected in the Mobile Viewer ID, and you can use the Mobile Viewer immediately by entering the
password of the NVR.
7.
Summary
Shows system and network status of NVR.
8.
Click on“Finish”to finish setting of startup wizard.

You can click on “Don’t show this window next time” if you do not wish to have the wizard setting to
appear next time.
Startup Wizard Guide

English _11
In real-time preview mode: right click on any area to access the desired menu. Right click on it to open a context
menu. Menu items may vary depending on the condition, such as sign-in, sign-out, split screen mode and various
operation conditions.
Left click on any channel to access shortcut menu. Image capture, recording and image zoom-in are in this section.
The video recording marks are shown below
: means common Recording.
: means Motion detection recording.
: means PIR detection.
1
Channel Name Display channel name
2
Date & Time Display current date and time
3
The WiFi signal icon The level of the signal, strong or weak.
Main Interface
1 2 43
56789 10 11
12 14 16 18 191513 17

12_ English
4
Video Loss Camera is off-line
5
Manual Recording Enable or disable manual recording
6
Manual Capture Make a snapshot of current video
7
Instant Playback Playback of the last five minutes of the video
8
Zoom Hold and drag mouse cursor to select a frame of current video to zoom in
9
Color Setting Set hue, brightness, contrast and saturation of current channel
10 Stream Switch Mainstream or Substream optional.
11 Pair
Do the pairing of camera and NVR.
If you click the icon of each channel and press the Pair button on the camera within 30 seconds, the
camera and NVR are manually paired.
12 Main Menu Access the main menu
13 4-Channel Layout Display 4 channels of video
14 Auto SEQ Press this button to switch the screen mode in sequence
15 Play Replay video recorded
16 Stream Switch HD or SD optional.
17 Connection state
Display the network connection status
connect fail : Not connected WAN.
not connect : Not connected physically.
connect success : connected WAN.
18 Manual mode Set manual recording mode
19 System System Information
Main Interface

English _13
Once you’ve set up your system, you can access to your cameras from anywhere, anytime using Wisenet Life Cloud
service.

The appearance of the viewer may differ from the image shown.
[With your PC]
1.
OS and browser environment
• OS requirements:
-Windows 7 or higher
-Mac OS 10.12 or higher
• Browser requirements
-Please use the latest version of the Chrome (Windows OS), or Safari (Mac OS) browsers.
2.
Start Wisenet Life monitoring & Cloud Service
1) Open your web browser and go to wisenetlife.com
2) Click the "Web Viewer Sign In" button to proceed with signing up.
You will need to verify your registered e-mail account to complete the signup.
If you already have a Wisenet Life account, log in and register your product.
3) After logging in, proceed with device registration.
4) Enter the serial number on the bottom of the device's QR code as the QR code ID.
5) Enter your Device Password of your NVR.
`
You can only log in with an admin account.
6) Create a name for your NVR and complete the registration.
Remote Viewing & Cloud Service

14_ English
[With Mobile Devices]
1.
Recommended Mobile OS version
• Android: v6.0 or higher
• iOS: v10.0 or higher
Some functions may not work properly depending on the manufacturer of the mobile device
2.
Start Wisenet Life monitoring & Cloud Service
1) Open Google Play or the App Store and download the free Wisenet Life app.
2) Once installed, open the Wisenet Life app.
3) Click the "Sign Up" button to proceed with signing up.
You will need to verify your registered e-mail account to complete the signup.
If you already have a Wisenet Life account, log in and register your product.
4) After logging in, tap or click [+] to add a new device.
5) Scan QR code
6) Enter your Device Password of your NVR.
`
You can only log in with an admin account.
7) Create a name for your NVR and complete the registration.
[Works with the Google Assistant]
Wisenet video security system is compatible with Google assistant and chromecast.
For more details, please visit www.wisenetlife.com
Remote Viewing & Cloud Service

English _15
User Interface
1
Main Menu
Find the Information about
your plan and notice and
turn on/off your alert from
the app
1
23
64
5
2
Device name
You can check the live and
event images of the device.
`
The split screen configuration
differs depending on the OS type.

16_ English
4
List Editor
You can change the display
position of the device.
5
View mode
View mode can be changed.
6
Add Device
New devices can be added.
Remote Viewing & Cloud Service
3
Device Setup
You can change the settings
of the device.

English _17
App Interface
Live & Playback
8
7
4 5
6
11
5
9
6
7
10
4
12
1
2
3

18_ English
1
Go into single view mode
2
2 or 4 Channel Split-Screen view
3
Multi channel image capture
4
UI guide
5
Change to full screen mode
6
Manual record and save
7
Image capture
8
Go into Event list page
9
Go back to live page
10
Select storage location
11
Refresh the event list
12
Event type
- Cloud : Motion
- Device : All Events/Motion
App Interface

English _19
To make camera installation easier, you can tear off this page and adhere it to the place you would like to install
your cameras.
Camera Installation Template
This template is used to install the camera on the wall
TEMPLATE
CAMERA FRONT
