Wisenet SDH-B84045BF User manual

5M VIDEO SECURITY SYSTEM
Quick Start Guide

2_ English
If you are experiencing video loss, verify that all cables are properly and securely connected to the DVR.
•Check your Network Connection
•Check your Username and Password
•Restart the DVR if you have trouble connecting.

Main Menu > Shutdown > Enter Username & Password > Click “Reboot”

To reset your DVR to factory settings, refer to the User manual.
For more information about your product, please download the User Manual from "wisenetlife.com".
Troubleshooting
Need Help?
Contact our Technical Supprt Team
844-WISENET
(844-947-3638)
Open 7 days a week

English _3
DVR Setup
KIT Model
SDH-B84045BF/SDH-C84085BF/SDH-C85105BF
DVR Model
SDR-84305/SDR-85305
•8CH DVR
•16CH DVR
HDMI
VGA
LAN
7 5 3 1
8 6 4 2
VIDEO INPUT 12V
CAUTION
RISK OF ELECTRI SHOCK
DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRICAL SHOCK
DO NOT OPEN COVERS. NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
WARNING : TO PREVENT FIRE OR SHOCK HAZARD. DO NOT
EXPOSE UNITS NOT SPECIFICALLY DESIGNED
FOR OUTDOOR USE TO RAIN OR MOISTURE.
HDMI
VGA
LAN
VIDEO INPUT
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
12V
CAUTION
RISK OF ELECTRI SHOCK
DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRICAL SHOCK
DO NOT OPEN COVERS. NO USER SERVICEABLE
PARTSINSIDE. REFER SER VICING TO QUALIFIED
SERVICE PERSONNEL.
WARNING : TO PREVENT FIRE OR SHOCK HAZARD. DO NOT
EXPOSE UNITS NOT SPECIFICALLYDESIGNED
FOR OUTDOOR USE TO RAIN OR MOISTURE.

4_ English
Package Contents

The appearance of the components may differ from the image shown.

Accessory category and quantity may differ depending on sales region.

The administrator is recommended to store the remote control carefully in order to initialize it if the password is
lost.
•SDH-B84045BF
USB
REC NET PWR
SDR-84305 SDC-89445BF 60ft camera cable Ethernet cable
HDMI Cable Remote Control / Remote Control Battery
(AAA x 2) Mouse Power splitter
Screw x 3EA (per Camera) /
Anchor x 3EA (per Camera) Power adaptor for DVR / Power adaptor for 4 Cameras Printed Material
•SDH-C84085BF
USB
REC NET PWR
SDR-84305 SDC-89445BF 60ft camera cable Ethernet cable
HDMI Cable Remote Control / Remote Control Battery
(AAA x 2) Mouse Power splitter (2PCS)
Screw x 3EA (per Camera) /
Anchor x 3EA (per Camera)
Power adaptor for DVR /
Power adaptor for 4
Cameras(2PCS) Printed Material
DVR Setup

English _5
•SDH-C85105BF
PWR HDD
USB
SDR-85305 SDC-89445BF 60ft camera cable Ethernet cable
HDMI Cable Remote Control / Remote Control Battery
(AAA x 2) Mouse Power splitter (2PCS)
Screw x 3EA (per Camera) /
Anchor x 3EA (per Camera)
Power adaptor for DVR,
Power adaptor for 6 cameras,
Power adaptor for 4 cameras Printed Material

6_ English
1.
Connect the camera's video input (yellow) and power supply (red) connectors to the BNC extension cables.
Then connect the BNC video input (yellow) to the video input port on the rear panel. (Repeat Step 1 for the
remaining cameras.)
2.
Connect the mouse to the USB Port on the front or back panel of the DVR.
3.
Depending on the monitor port, connect the HDMI or VGA cable from your monitor to the HDMI or VGA
Port on the rear panel.
HDMI
DVR Setup
HDMI
VGA
LAN
7 5 3 1
8 6 4 2
VIDEO INPUT 12V
CAUTION
RISK OF ELECTRI SHOCK
DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRICAL SHOCK
DO NOT OPEN COVERS. NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
WARNING : TO PREVENT FIRE OR SHOCK HAZARD. DO NOT
EXPOSE UNITS NOT SPECIFICALLYDESIGNED
FOR OUTDOOR USE TO RAIN OR MOISTURE.
For
Cameras
For
DVR
5 1 43
2
6
HDMI
VGA
LAN
7 5 3 1
8 6 4 2
VIDEO INPUT 12V
CAUTION
RISKOF ELECTRI SHOCK
DONOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRICAL SHOCK
DO NOT OPEN COVERS. NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
WARNING: TO PREVENT FIRE OR SHOCK HAZARD. DO NOT
EXPOSE UNITS NOT SPECIFICALLYDESIGNED
FOR OUTDOOR USE TO RAIN OR MOISTURE.
TO DVR
TO CAMERA
2 1

English _7
4.
Connect one end of the Ethernet cable into your router’s LAN port, and the other end of the cable to the
Ethernet port on the rear panel.
5.
Connect the camera's power supply (red) to the power splitter. Then connect the other end of the power
splitter to the power adapter for Cameras and plug in the adapter to a wall outlet. (Repeat Step 5 to con-
nect the cameras to the second set of power splitter and power adapter.)
6.
Connect the power adapter for DVR to the DC 12V port on the rear panel and the power plug into a wall
outlet. The DVR will automatically power on and the startup wizard will appear on your monitor.
HDMI
VGA
LAN
7 5 3 1
8 6 4 2
VIDEO INPUT 12V
CAUTION
RISKOF ELECTRI SHOCK
DONOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRICAL SHOCK
DO NOT OPEN COVERS. NO USER SERVICEABLE
PARTSINSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
WARNING: TO PREVENT FIRE OR SHOCK HAZARD. DO NOT
EXPOSEUNITS NOT SPECIFICALLYDESIGNED
FOROUTDOOR USE TO RAIN OR MOISTURE.
For
DVR
LAN
HDMI
VGA
LAN
7 5 3 1
8 6 4 2
VIDEO INPUT 12V
CAUTION
RISKOF ELECTRI SHOCK
DONOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRICAL SHOCK
DONOT OPEN COVERS. NO USER SERVICEABLE
PARTSINSIDE. REFER SERVICING TO QUALIFIED
SERVICEPERSONNEL.
WARNING : TO PREVENT FIRE OR SHOCK HAZARD. DO NOT
EXPOSE UNITS NOT SPECIFICALLY DESIGNED
FOR OUTDOOR USE TO RAIN OR MOISTURE.
TO DVR
TO CAMERA
For
Cameras
3
2
1

8_ English
Change your password on a regular basis.

Please create a user name and password for your device. Password MUST be 8~13 characters long. When
password is 8~9 characters long, it should be with at least a combination of letters, digits and special symbols.
If it is 10~13 characters long, it should be with at least a combination of two types of characters. 4 or more
contiguous or repeated characters or key arrangement are prohibited, for example 1111, 1234, abcd, qwerty.
1.
After DVR startup is completed, the startup wizard will be displayed. Click "Start Wizard".
Startup Wizard Guide

English _9
2.
Network
In DHCP mode the router will automatically assign an IP address to DVR.
If the DVR fails to obtain an IP address, refer to the DVR Router Guide. If the problem still cannot be resolved,
contact technical support.
3.
Date/Time
Set the date, time, NTP, DST.

10_ English

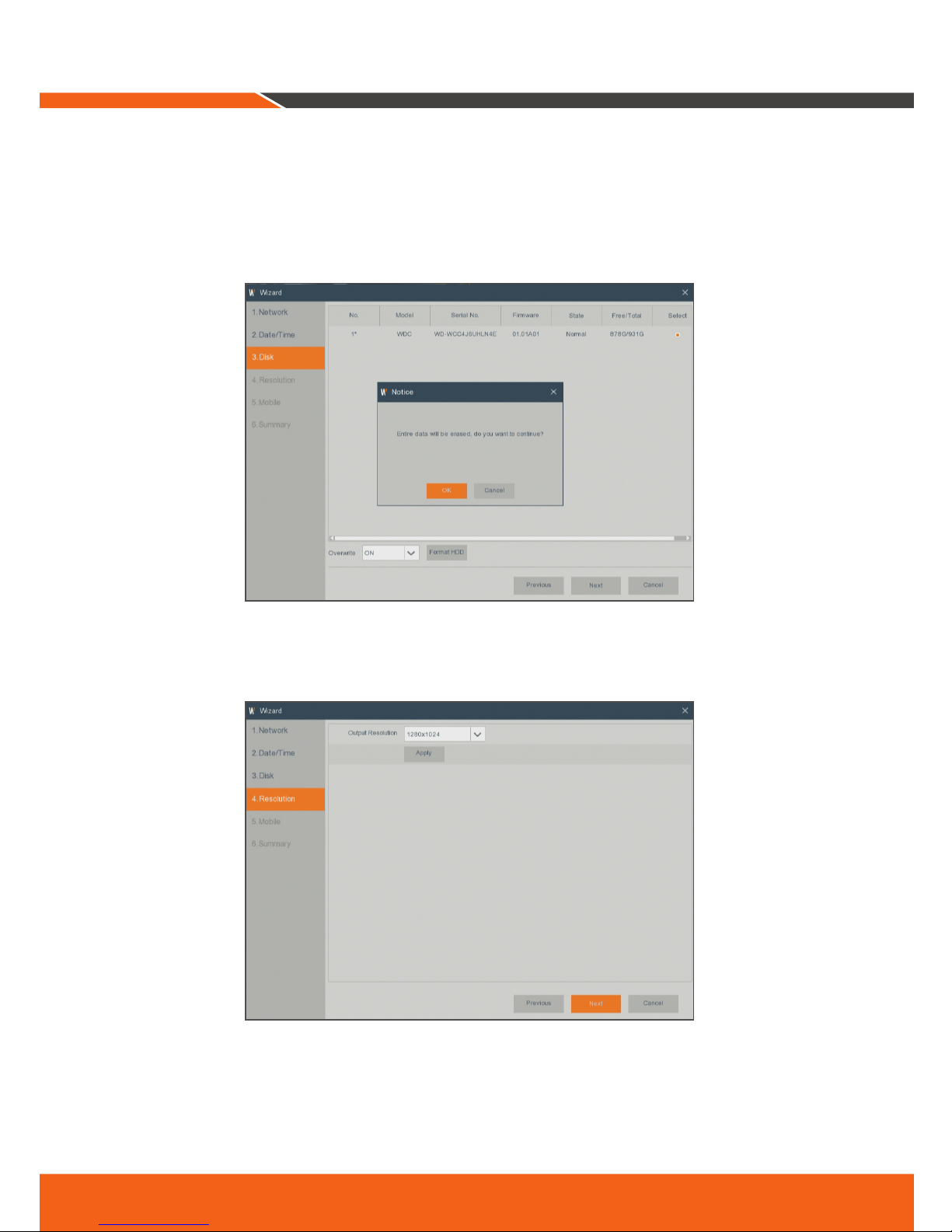

4.
Disk
New hard drive(s) connected must be formatted before use. Upon connection, it will indicate to format
new hard drive. Click on "Select" to select the unformatted hard drive. Click on "Format HDD" to pop up
the user login window and enter the password to log in. A notice window will indicate "Entire Data Will Be
Erased. do You Want To Continue?". Click "OK" to format the disk. When the progress bar is complete, the
formatting process is completed.
5.
Resolution
Select the resolution for the VGA output or HDMI output of your monitor.
Startup Wizard Guide

English _11

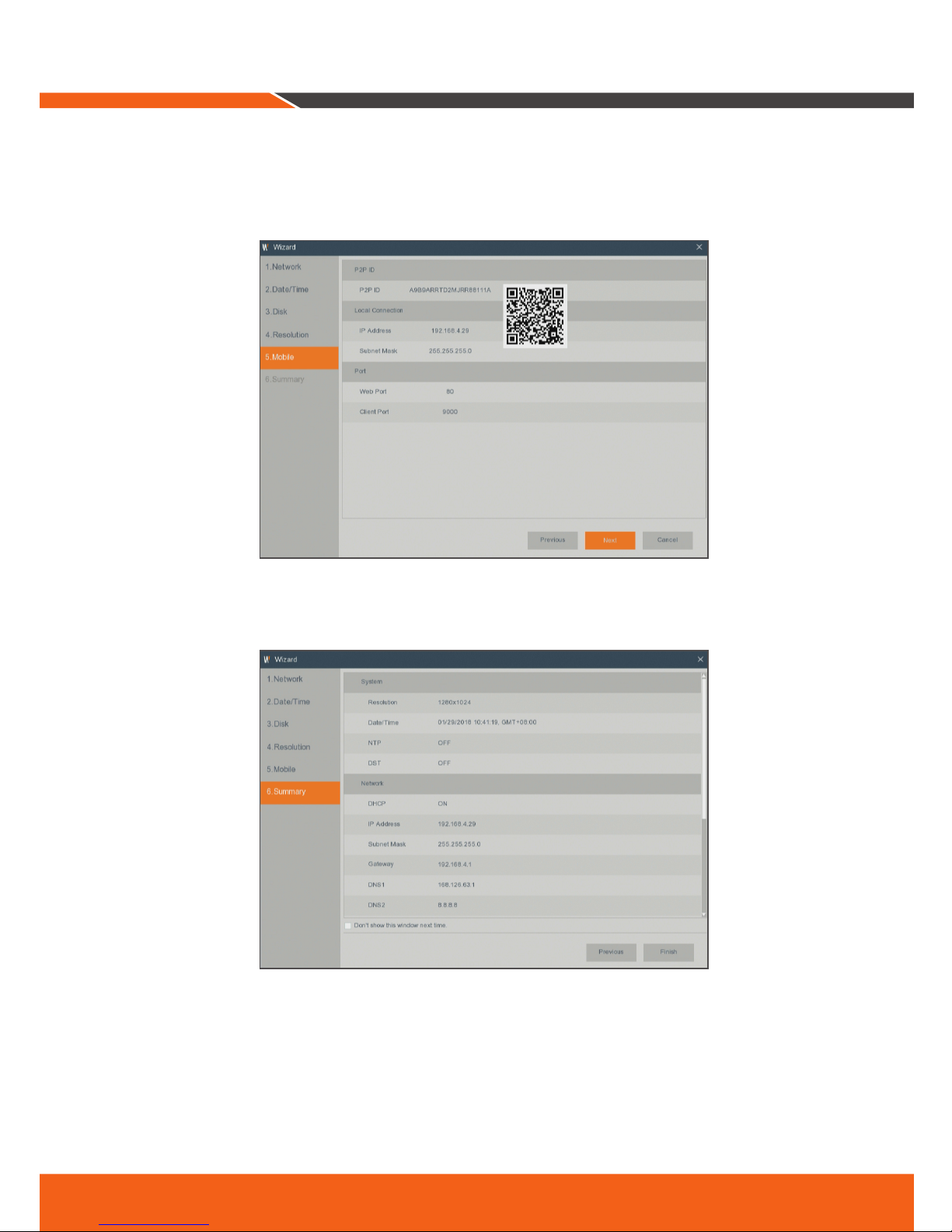

6.
Mobile
If you scan a QR code using WisenetLife, the device ID displayed in the DVR will be automatically reected
in the Mobile Viewer ID, and you can use the Mobile Viewer immediately by entering the ID/password of
the DVR.
7.
Summary
Shows system and network status of DVR.
8.
Click on “Finish”to nish setting of startup wizard.

You can click on “Don’t show this window next time” if you do not wish to have the wizard setting to
appear next time.

12_ English
Main Interface
1 2
34567
810 12 13 14119

English _13
1
Channel Name Display channel name
2
Video Loss Camera is o-line
3
Manual Recording Enable or disable manual recording
4
Manual Capture Make a snapshot of current video
5
Instant Playback Playback of the last ve minutes of the video
6
Zoom Hold and drag mouse cursor to select a frame of current video to zoom in
7
Color Setting Set hue, brightness, contrast and saturation of current channel
8
Main Menu Access the main menu
9
4-Channel Layout Display four channels of video
9-Channel Layout Display nine channels of video
12-Channel Layout Display twelve channels of video
16-Channel Layout Display sixteen channels of video
More Layout Display 8/10/13/14 channels of video
10 Auto SEQ Press this button to switch the screen mode in sequence
11 Play Replay video recorded
12 Connection state Display the network connection status
13 Manual mode Set manual recording mode
14 System System Information

14_ English
Once you’ve set up your system, you can access to your cameras from anywhere, anytime using Wisenet Life Cloud
service.

The appearance of the viewer may differ from the image shown.
[With your PC]
1.
OS and browser environment
•OS requirements:
-Windows 7 or later
-Mac OS 10.11 or later
•Browser requirements
-Please use the latest version of the Chrome, Firefox (Windows OS), or Safari (Mac OS) browsers.
-Please refer to the viewer manual for specic version information.
2.
Start Wisenet Life monitoring & Cloud Service
1) Open your web browser and go to cloud.wisenetlife.com
2) "Click the "Sign Up" button to proceed with signing up.
You will need to verify your registered e-mail account to complete the signup.
If you already have a Wisenet Life account, log in and register your product.

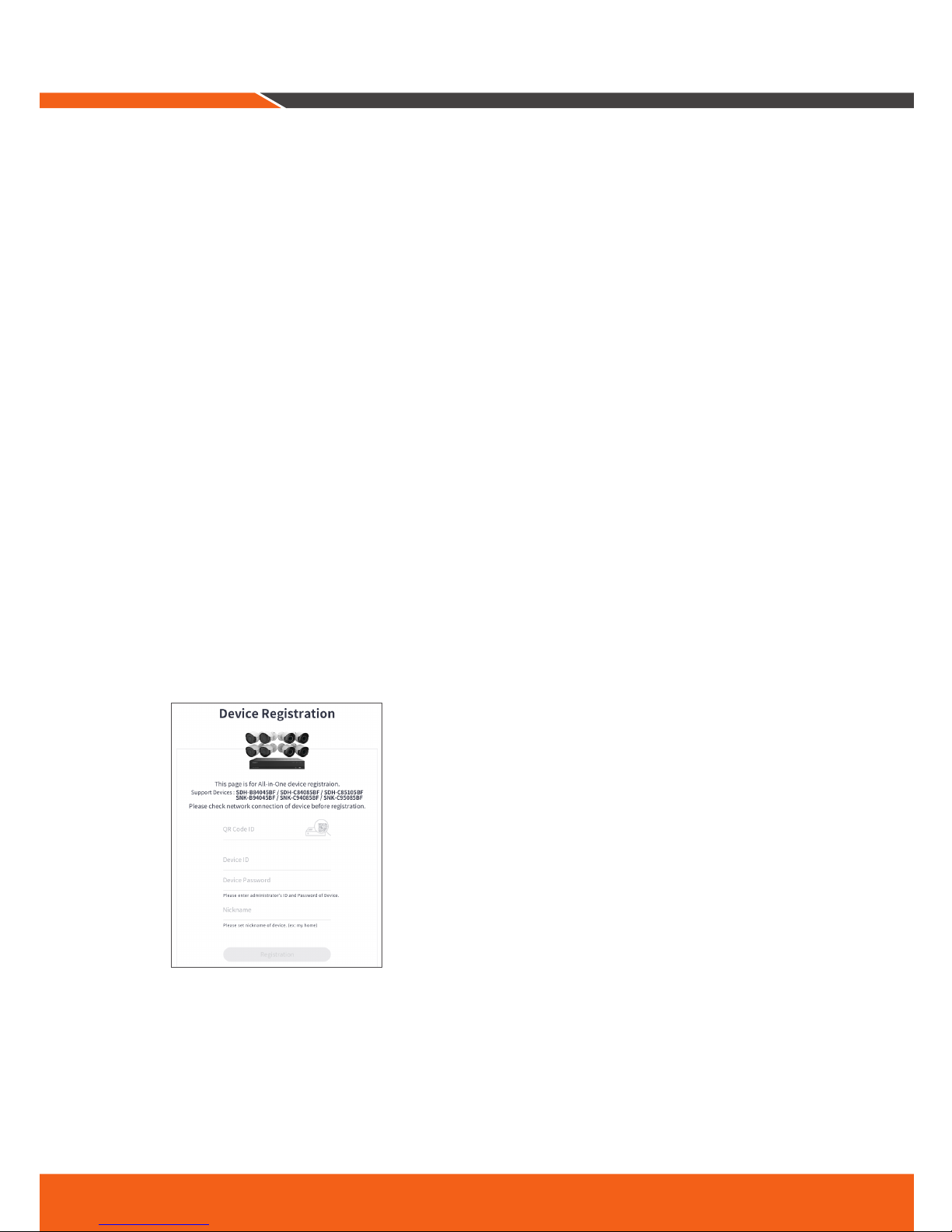

3) After logging in, proceed with device registration.
4) Enter the serial number on the bottom of the device's QR code as the QR code ID.
5) Enter your Device ID and Password of your DVR.
`
You can only log in with an admin account.
6) Create a name for your DVR and complete the registration.
Remote Viewing & Cloud Service

English _15
[With Mobile Devices]
1.
Recommended Mobile OS version
•Android: Above 5.0
•iOS: above 9.0
Some functions may not work properly depending on the manufacturer of the mobile device
2.
Start Wisenet Life monitoring & Cloud Service
1) Open Google Play or the App Store and download the free Wisenet Life app.
2) Once installed, open the Wisenet Life app.
3) Click the "Sign Up" button to proceed with signing up.
You will need to verify your registered e-mail account to complete the signup.
If you already have a Wisenet Life account, log in and register your product.
4) After logging in, tap or click [+] to add a new device.
5) Scan QR code
6) Enter your Device ID and Password of your DVR.
`
You can only log in with an admin account.
7) Create a name for your DVR and complete the registration.
Sign up
Forgot password?
Auto login
Login
Password
User E-Mail
Life
Please place the QR code within a rectangular
area. It will automatically recognize it.
Before registering, make sure that the device is connected to
the network.
1. Registration
Next If the QR code cannot be recognized, please
enter the ID below the QR code.

16_ English
Remote Viewing & Cloud Service
User Interface
1
Main Menu
Find the Information
about your plan and
notice and turn on/
o your alert from
the app
2
Device name
You can check the
live and event
images of the device.
`
The split screen
conguration diers
depending on the OS
type.
3
Device Setup
You can change the
settings of the
device.
1
23
64
5

English _17
4
List Editor
You can change the
display position of
the device.
5
View mode
View mode can be
changed.
6
Add Device
New devices can be
added.

18_ English
App Interface
Live & Playback
3
1
27
10
5
8
6
6
4
9
5
4
11

English _19
1
Go into single view mode
2
Android OS : 2 / 4 Split Screen
iOS : 4 / 8 / 1+7 / 9 Split Screen
3
Multi channel image capture
4
UI guide
5
Manual record and save
6
Image capture
7
Go into Event list page
8
Go back to live page
9
Select storage location
10
Refresh the event list
11
Event type
- Cloud : Motion
- Device : Normal/Motion

20_ English
MEMO
