Wisenet SNK-B73041BW User manual

English _1
ALL-IN-ONE SECURITY SYSTEM
Quick Start Guide
Thank you for purchasing the NVR Security System.
Follow the simple steps in this guide to set up and start using your new security system.
If you have any questions or need help installing your new product, please contact our free technical support.
US:
Telephone: +1 844 WISENET (844-947-3638)
6am - 6pm PST (7 days a week)
e-mail: [e-mail]
Web: www.wisenetlife.com
Europe:
Telephone #1: 00800-8010-8022
Telephone #2: [phone]
8am - 4pm CET, Monday - Friday (5 days a week)
e-mail: [email protected]
Web: www.wisenetlife.com
Australia:
Telephone: [phone] (Australia) or
09-363-7877 (New Zealand)
9:00AM - 5:00PM Australian Eastern
Web: www.wisenetlife.com
CAUTION!
`The transmission range of the wireless signal may weaken if heavy obstructions, such as concrete, brick, or metal walls are
between the NVR and cameras.
`If there are multiple Wi-Fi routers and devices in your environment, it may reduce the wireless bandwidth available. Weak
network bandwidth may reduce the videoquality or video loss.
❒Front
❒Back
`The appearance of power adaptor differs depending on sales region.
Part Name Function
1Ground connection A terminal to connect a separate ground cable.
`Make sure to add a ground cable in order to use the equipment safely.
2Antenna Receive signal from wireless camera.
3USB port Connect with USB.
4VGA port Connect with VGA display devices, such as PC monitor.
5HDMI Connect with HDMI display devices, such as PC monitor.
6WAN: (RJ45)
Network port Connect with WAN, Ethernet cable.
7Power port Connect with the power supply DC12V 2A, included with the device
USB
REC NET PWR
KIT MODEL
SNK-B73041BW
NVR MODEL
SNR-73201W
HDMI
VGA
CAUTION
RISKOF ELECTRI SHOCK
DONOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRICAL SHOCK
DO NOT OPEN COVERS. NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
WARNING: TO PREVENT FIRE OR SHOCK HAZARD. DO NOT
EXPOSE UNITS NOT SPECIFICALLYDESIGNED
FOR OUTDOOR USE TO RAIN OR MOISTURE.
WAN
2 4 5
6
3
1
7
2

2_ English

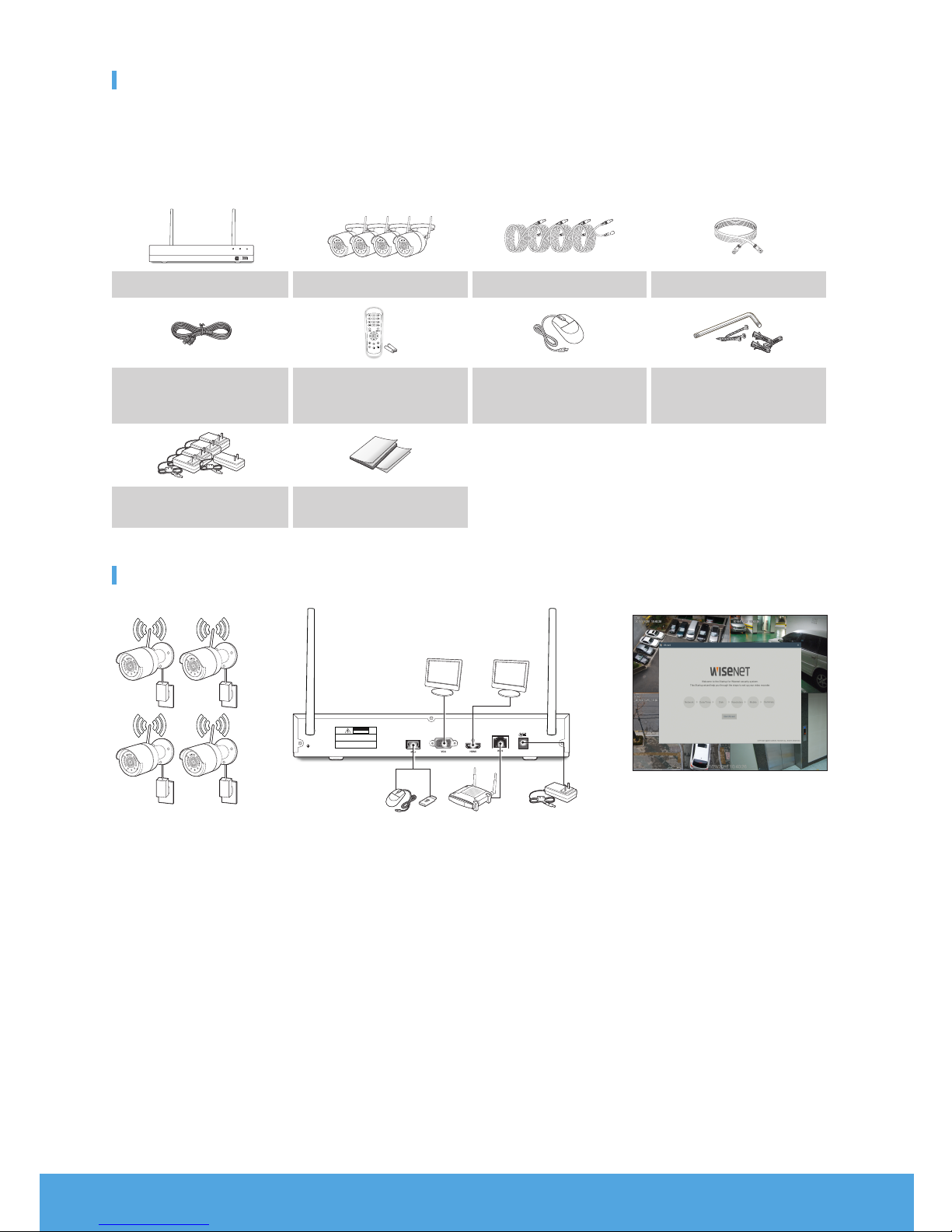

Package Contents
Please unwrap the product, and place the product on a flat place or in the place to be installed.
Please check the following contents are included in addition to the main unit.
M`The appearance of the components may differ from the image shown.
`Accessory category and quantity may differ depending on sales region.
USB
REC NET PWR
SNR-73201W SNC-79441BW 45ft Power Extension Cable Network Cable
HDMI Cable Remote Control /
Remote Control Battery (AAA x 2) Mouse
Hex Key x 1EA (per Camera) /
Screw x 3EA (per Camera) /
Anchor x 3EA (per Camera)
12V 2A Adapter for NVR /
12V 0.5A Adapter for 4 Cameras Printed Material
Getting Started
(1) Install the cameras on the walls and connect the power adapters to each camera.
(2) Plug in the NVR power adapter and connect the NVR to your Wi-Fi router.
(3) When the NVR is powered on, it will automatically start the pairing process with the cameras. Once the process is complete, the
NVR will display live video feeds from your cameras and then start recording.
(4) You will briefly see a live video on display before you start the Startup Wizard.
(5) To configure advanced settings for device, please follow the Startup Wizard instructions to complete installation as shown below.
HDMI
VGA
CAUTION
RISKOF ELECTRI SHOCK
DONOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK
DO NOT OPEN COVERS. NO USER SERVICEABLE
PARTSINSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
WARNING: TO PREVENT FIRE OR SHOCK HAZARD. DO NOT
EXPOSEUNITS NOT SPECIFICALLY DESIGNED
FOROUTDOOR USE TO RAIN OR MOISTURE.
WAN
 

English _3

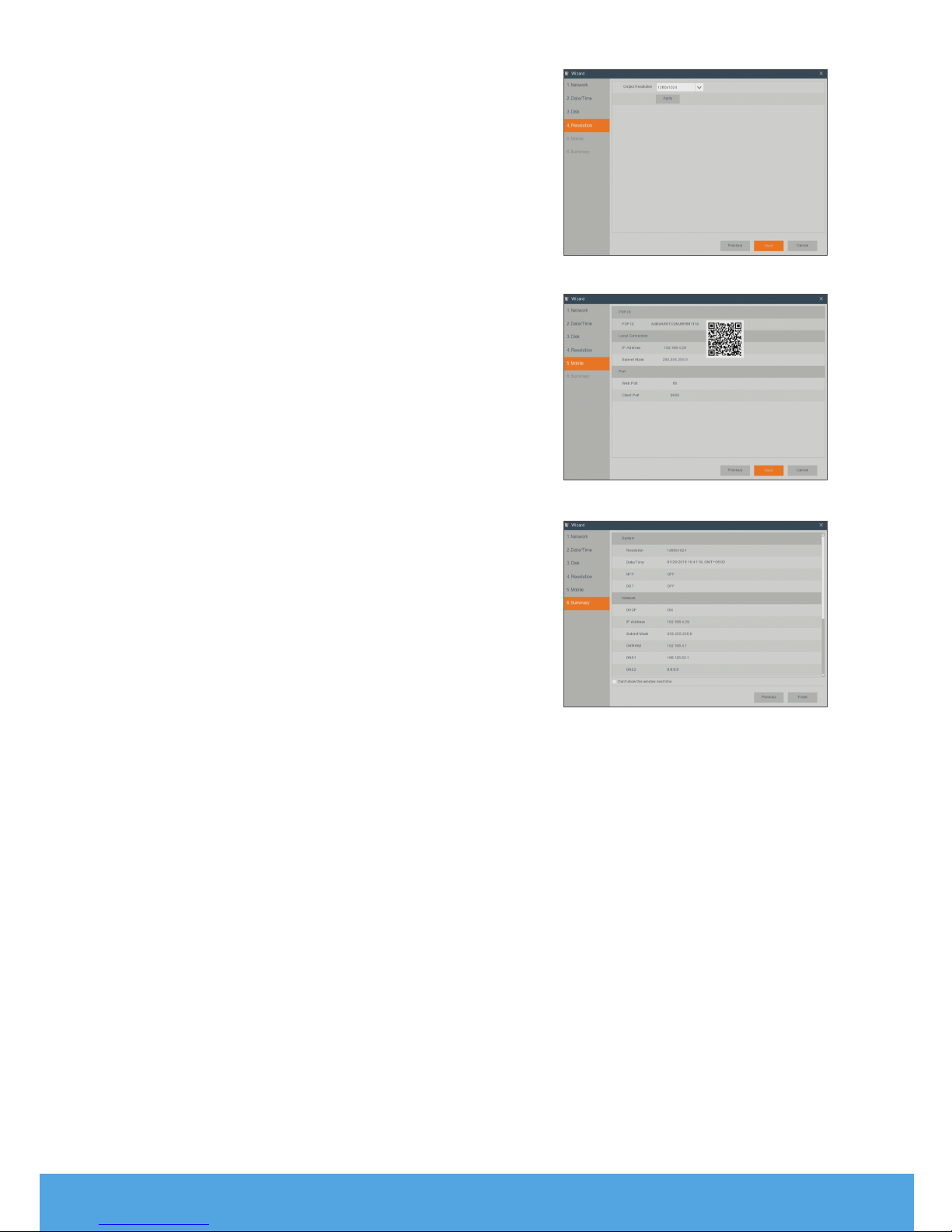

Startup Wizard
After NVR startup is completed, the startup wizard will be displayed.
Wizard setting menu includes:
• Network setup
• Date/Time setup
• Disk setup
• Resolution setup
• Mobile access
• System Summary
1.
Network
In DHCP mode the router will automatically assign an IP address to NVR.
If the NVR fails to obtain an IP address, refer to the NVR Router Guide. If
the problem still cannot be resolved, contact technical support.
2.
Date/Time
Set the date, time, NTP, DST.
3.
Disk
New hard drive(s) connected must be formatted before use. Upon
connection, it will indicate to format new hard drive. Click on "Select" to
select the unformatted hard drive. Click on "Format HDD" to pop up the
user login window and enter the password to log in. A notice window will
indicate "Entire Data Will Be Erased. do You Want To Continue?". Click
"OK" to format the disk. When the progress bar is complete, the format-
ting process is completed.

4_ English
4.
Resolution
For VGA output or HDMI output, the optional resolution includes
1024×768, 1280×1024, 1440×900, 1280×720,1920×1080
5.
Mobile
If you scan a QR code using WiseView, the device ID displayed in the
NVR will be automatically reflected in the Mobile Viewer ID, and you can
use the Mobile Viewer immediately by entering the ID/password of the
NVR.
6.
Summary
Shows system and network status of NVR.
7.
Click on “Finish” to finish setting of startup wizard.
M`You can click on “Don’t show this window next time” if you do not wish to
have the wizard setting to appear next time.

English _5
Mobile App
❒Android Phones/Tablets
1.
Open Play Store to search for WiseView and click “INSTALL”.
2.
After installation, open WiseView and select “Device”. Then click [ ] to add new device.
Scan QR code under Information page. Then input client port, user name and password, and then click Save to log into the
NVR.

6_ English
❒iPhone/iPad
1.
Open App Store to search for WiseView, and click icon [ ] to install.
2.
Open WiseView, and go to Device. Click [ ] to add new device. Scan QR code under Information page. Then input client
port, user name and password, and then click Save to log into the NVR.

English _7
Registering with DDNS
❒To register your product with the Wisenet DDNS
1.
Visit the Wisenet DDNS web site (http://ddns.hanwha-security.com) and
sign in with a registered account.
2.
From the top menu bar, select <MY DDNS>.
3.
Click the [Register Product] tab.
4.
Select DDNS button.
5.
Enter the product ID.
6.
Select a <Type> and specify the <Model>.
7.
Specify the product location with a description if necessary.
8.
Click [Product Registration].
The product will be added to the product list that you can check.

8_ English

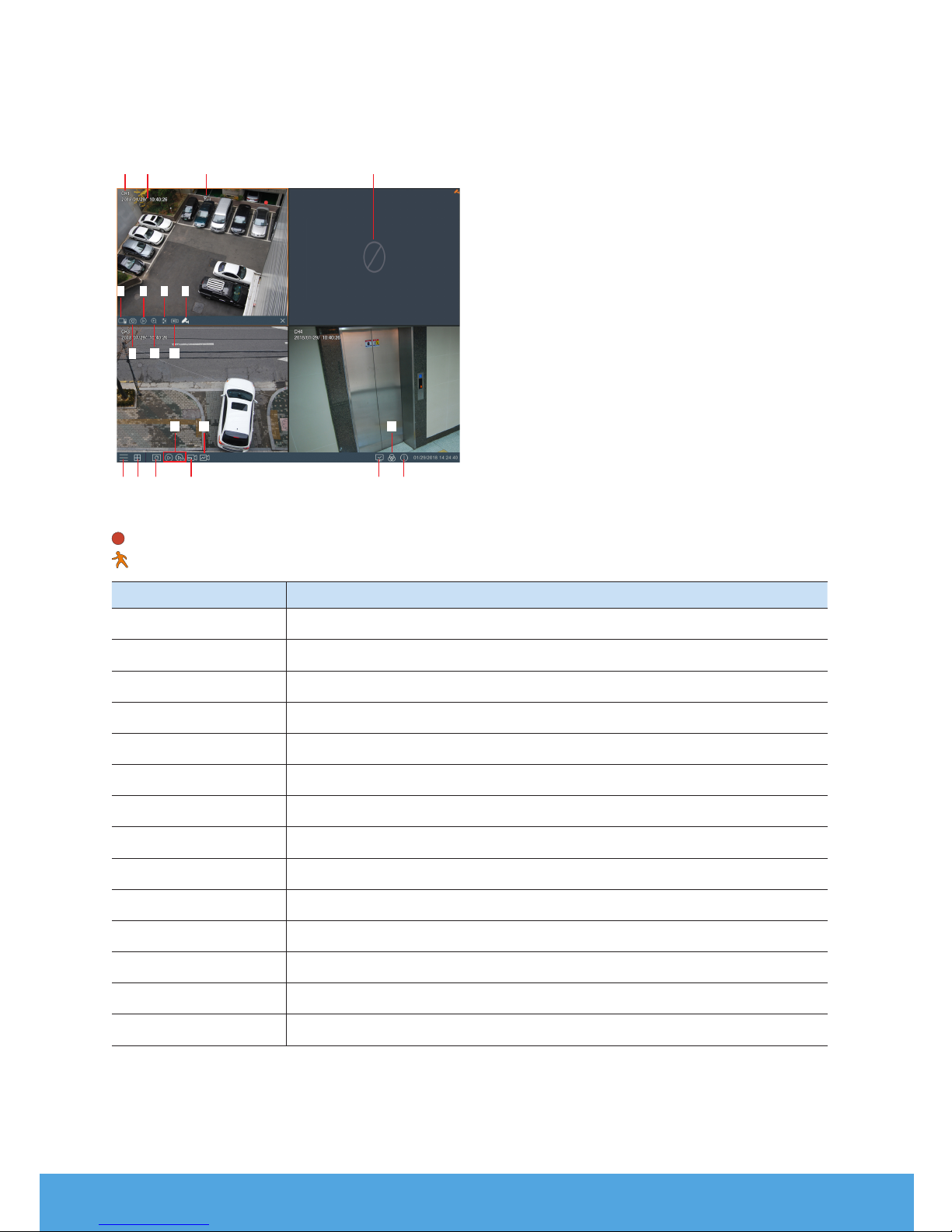

❒Main Interface
In real-time preview mode: right click on any area to access the desired menu. Right click on it to open a context menu. Menu items
may vary depending on the condition, such as sign-in, sign-out, split screen mode and various operation conditions.
Left click on any channel to access shortcut menu. Image capture, recording and image zoom-in are in this section.
The video recording marks are shown below
: means common Recording.
: means Motion detection recording.
Component Name Function
1Channel Name Display channel name
2Date & Time Display current date and time
3The signal icon The level of the signal, strong or weak.
4Video Loss Wireless Camera is off-line.
5Manual Recording Enable or disable manual recording
6Manual Capture Make a snapshot of current video
7Instant Playback Playback of the last five minutes of the video
8Zoom Hold and drag mouse cursor to select a frame of current video to zoom in.
9Color Setting Set hue, brightness, contrast and saturation of current channel.
0Stream Switch Mainstream or Substream optional.
!Pair Do the pairing of camera and NVR.
@Main Menu Access the main menu
#4-Channel Layout Display four channels of video.
$Auto SEQ Press this button to switch the screen mode in sequence.
@# $ ^ * )
1 2 3 4
5 7 9
& (
!
6 8 0
%

English _9
Component Name Function
%Play Replay video recorded
^Stream Switch HD or SD optional.
&Preview Policy
Realtime: There is no delay of video, but it is not that smooth.
Smooth:There may be some delay of video, but it is smooth.
Balanced: Take both realtime and smooth into consideration at the same time.
*Connection state Displays the network connection status.
(Manual mode Sets manual recording mode.
)System System Information.

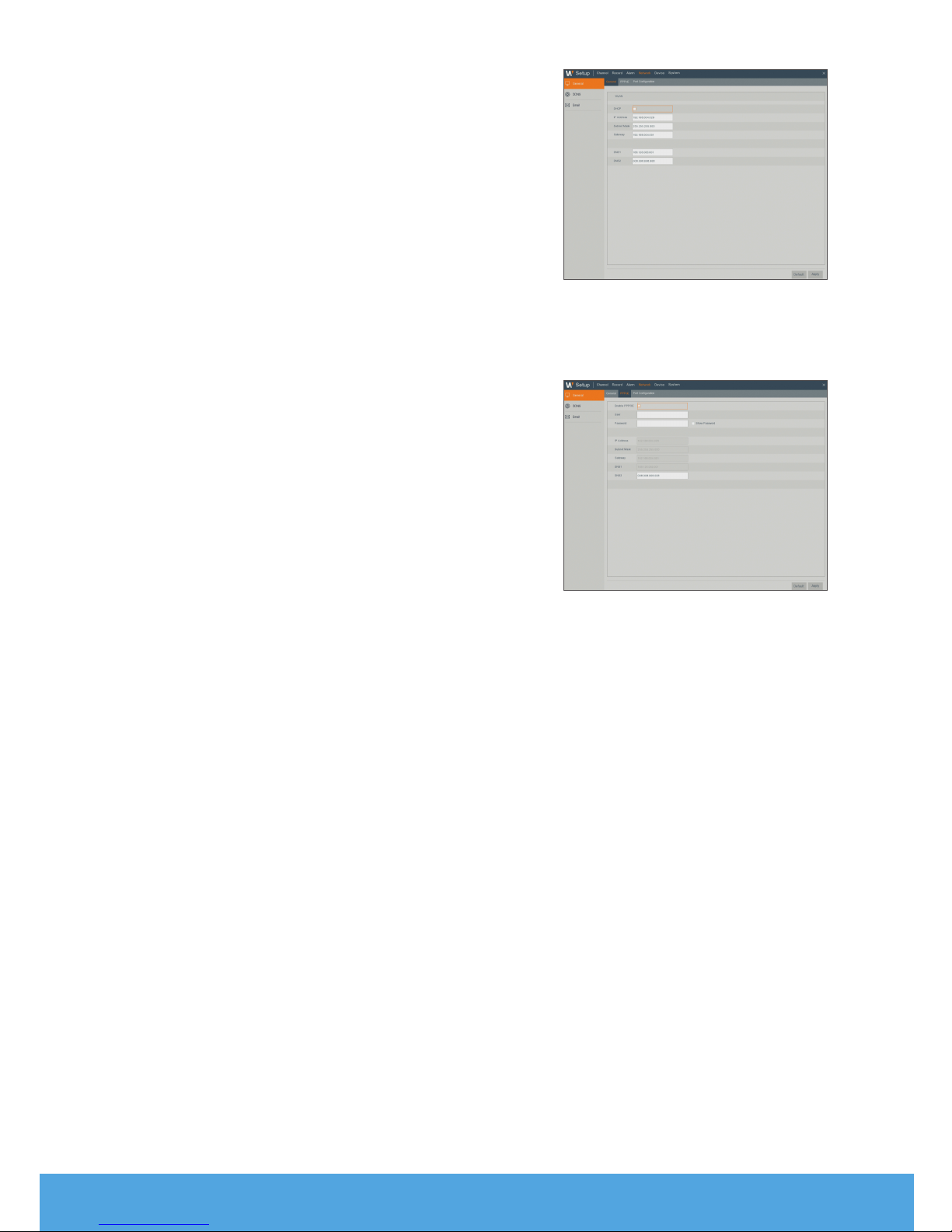

Network Settings
• DNS: DNS is usually provided by local ISP. Enter the IP address of your domain name server.
• UPnP (Plug and Play): function of automatic upload from port. It is important that UPnP function be available on the router and
should be enabled before use. When UPnP is enabled, port does not need to be mapped on router.
• Tips: When settings are confirmed and saved, they will be applied after the "OK" button is clicked.
1.
When selecting DHCP, router will allocate IP address to the NVR auto-
matically, and the IP address allocated to NVR varies upon each start
of the NVR or DHCP server, so the corresponding IP address and port
number shall be confirmed and mapped prior to remote access to the
NVR each time. The operation procedure is as shown below:
1
Select DHCP and then click on Save.
Enter client port and Web port (they must be different from each
other).
2
Set the IP address obtained by NVR on router and the port set for
mapping, as detailed in router setting.
3
Use the IP address to perform remote access to NVR:
http://IP in public network: Web port (e.g. 80)
http://IP in intranet: Web port (e.g. 80) (available only in one LAN)

10_ English
2.
When choosing Static, you have to set IP address, subnet mask, gate-
way and port number. The operation procedure is as shown below:
1
Deselect DHCP.
2
Set port (client port), which shall be mapped on router.
3
Enter Web port (which must be different from client port), which shall
be mapped on router.
4
Enter the specified IP address to this bar, which will become
the unique NVR address code in regional network, for example,
192.168.2.128 as shown below.
5
Subnet mask: view the router to set a same mask as that in it, or
consult your network operator.
6
DNS: Enter DNS (domain name server) address. View the router to set the same gateway as that , or consult your net-
work operator.
7
Click on "Apply" to save changes.
3.
Select PPPoE for direct dial-up in the following procedure:
1
Enter Client port.
2
Enter Web port (which must be different from Client port).
3
Enter user name and password for PPPoE, which are provided by
network operator.
4
Enter DNS (domain name server) address.
5
Click on "Save" to exit and restart it, and then the NVR will obtain an
IP address.
6
Perform remote access to the NVR by using the IP address followed
by port number (IP: Web port number).

English _11
Web Application Manager
❒Download and Installation of Plugin.
If you are using Windows 7, you may need to setup the user authority for remote control, or you may be unable to backup or record.
Vista System: Start ;Setup ;Control Panel. Set user authority in control panel as shown below.
Remove the check mark "√" in front of "Use UAC to help protect your computer" and click "OK".
WIN7
Vista
M`If the plugin is not downloaded successfully, please check if your browser's safety level or firewall
setting is set too high. Please open IE browser ;[Menu Bar] Tools ;Internet options ;Security
;Internet ;Custom level ;Enable the options.

12_ English

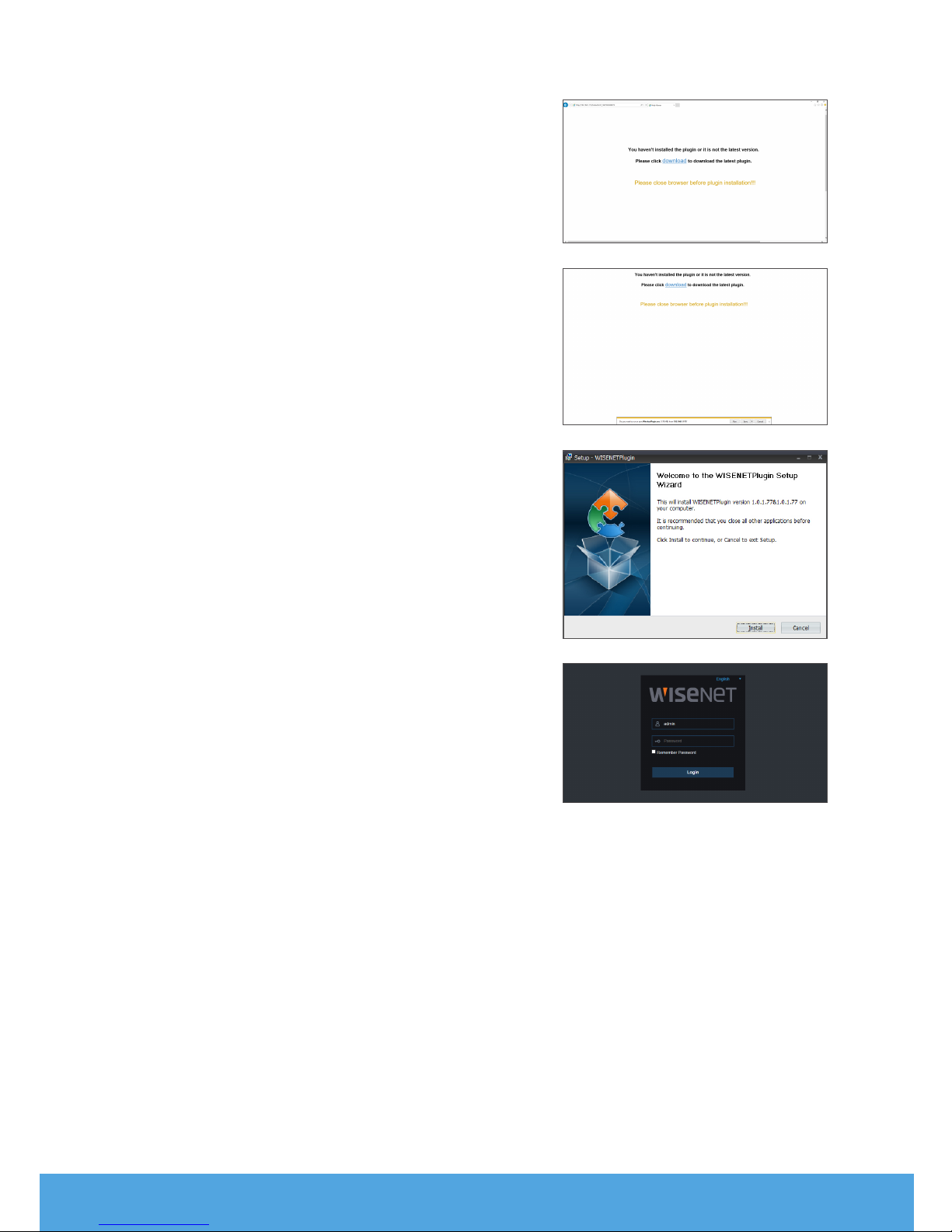

Download and installation of plugin for IE
Enter IP address plus Web port of the NVR in the address bar of IE, for example,
http://192.168.2.173:80.
Click "Download" and then "Run" to begin downloading the file.
Click on "Install" in the "WISENETPlugin" dialog box.

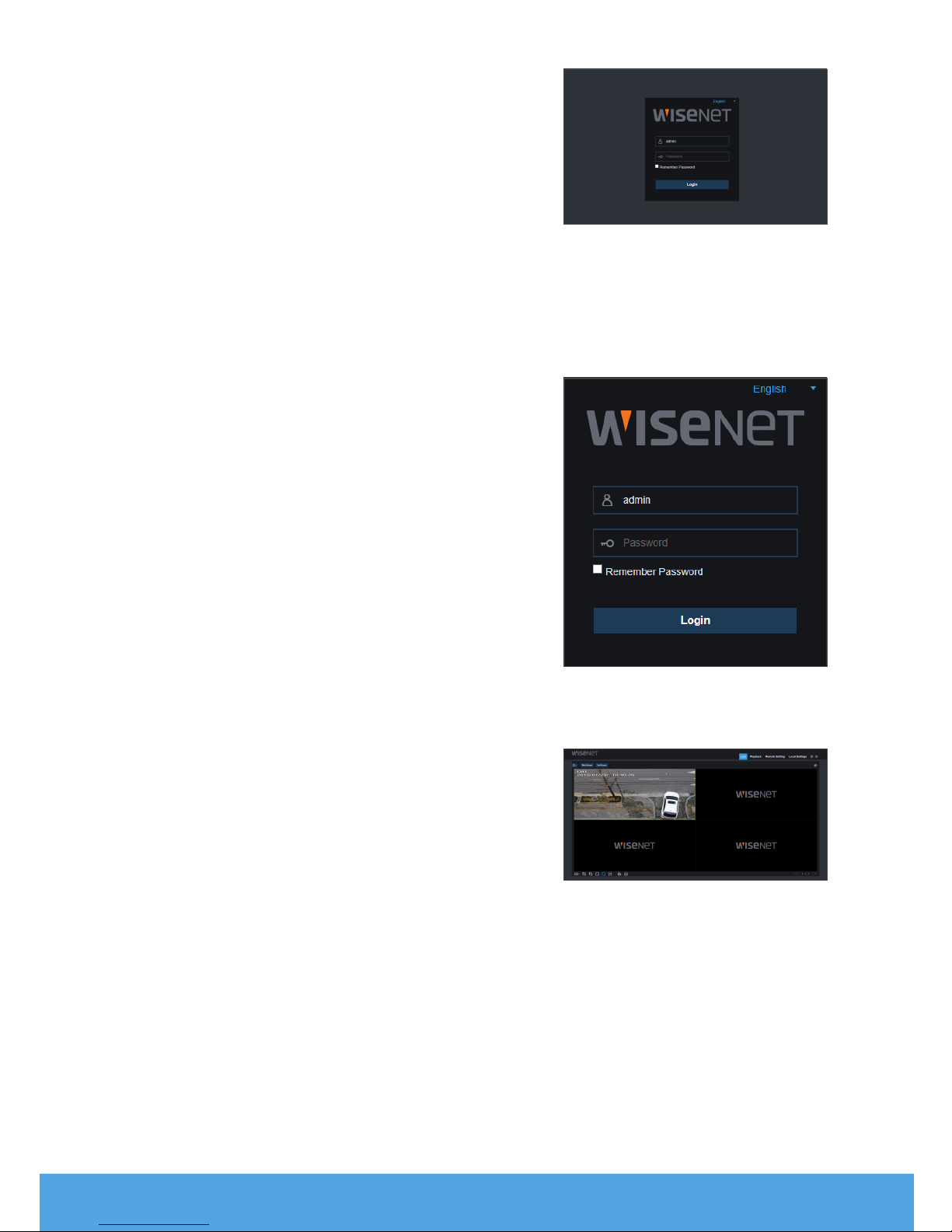

Close your IE browser and restart it. Enter IP address plus Web port of the NVR in
address bar to access the login page.

English _13

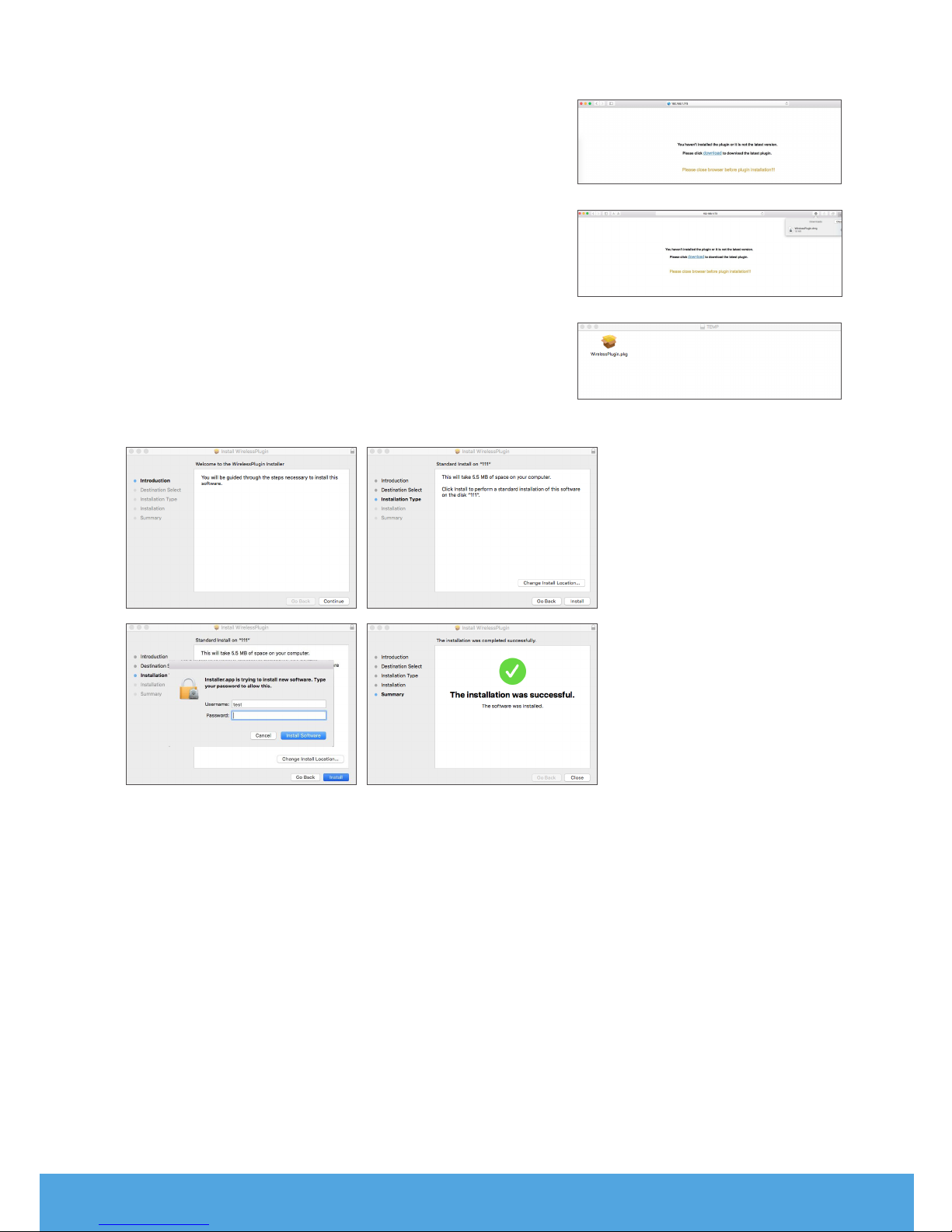

Download and installation of plugin for Mac SAFARI
Enter the IP address and Web port for the NVR in the address bar of Mac SAFARI
browser. For example, http://192.168.2.173:80, and click on "Download" to
download the plugin.
Locate the downloaded plugin "WirelessPlugin.dmg" and double click on it.
Install the plugin by double clicking on "WirelessPlugin.pkg".
Click on "Continue" > "Install". Enter user name and password for login to your Mac. Click on "Install" > "Close" to finish installation.

14_ English
Close your Mac Safari browser and restart it. Enter the IP address and Web port
for the NVR in the address bar to access login page.
M`The above instruction is to install the initial plugin. You can use the same plugin for IE and
Firefox. If plugin for windows OS was installed on IE, Firefox once, you can use IE which
needs to be run as administrator, Firefox to log in to NVR.
When you download and install plugin on Firefox, please close Firefox when it is prompted to. After installation is finished, you can
restart Firefox to log in to the NVR.
When you do a firmware upgrade, please close the browsers in order to have the new plugin replace the old one. Depending on
your situation, the plugin may not be work on your browser. In this case, please install the plugin unavailable on the CD provided.
(WirelessPlugin_Windows_YYYY_MM_DD.exe for Windows system, and WirelessPlugin_Mac_YYYY_MM_DD.dmg for Mac).
❒Web Application Manager Login
After plugin installation, please enter user name and password, select Main Stream
or Sub Stream (In general, select main stream for intranet and sub stream for
extranet), and select language in the interface. There is an option for opening all
channel preview, select it to open all live pictures. Click Login to log in remotely
view the NVR.
❒Live Interface
Log in and go to live view.

English _15
MEMO

16_ English
Camera Installation Template - SNC-79441BW
To make camera installation easier, you can tear off this page and adhere it to the place you would like to install your cameras.
This template is used to install the camera on the wall
TEMPLATE
Screw holes for
the Camera
installation
CAMERA FRONT
